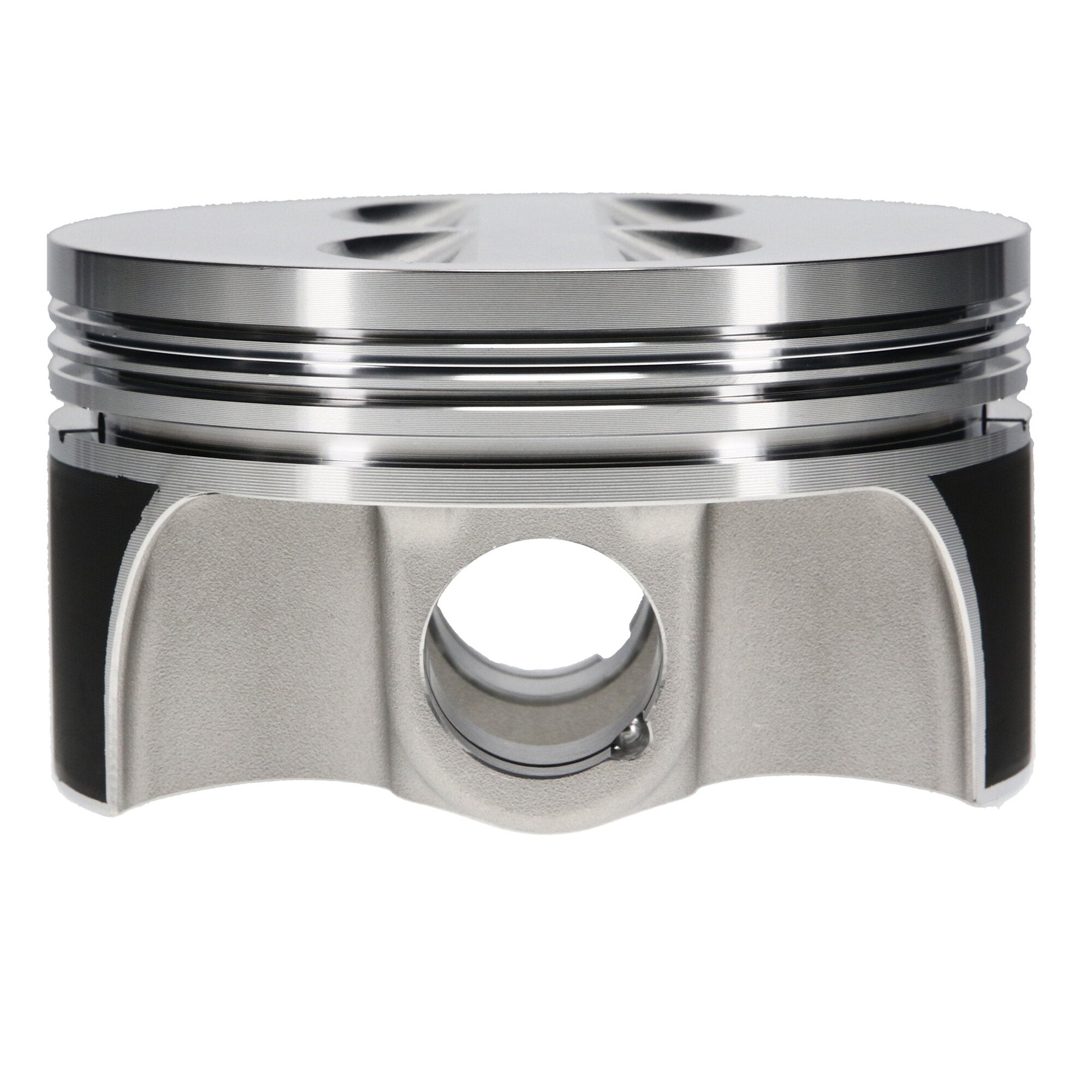

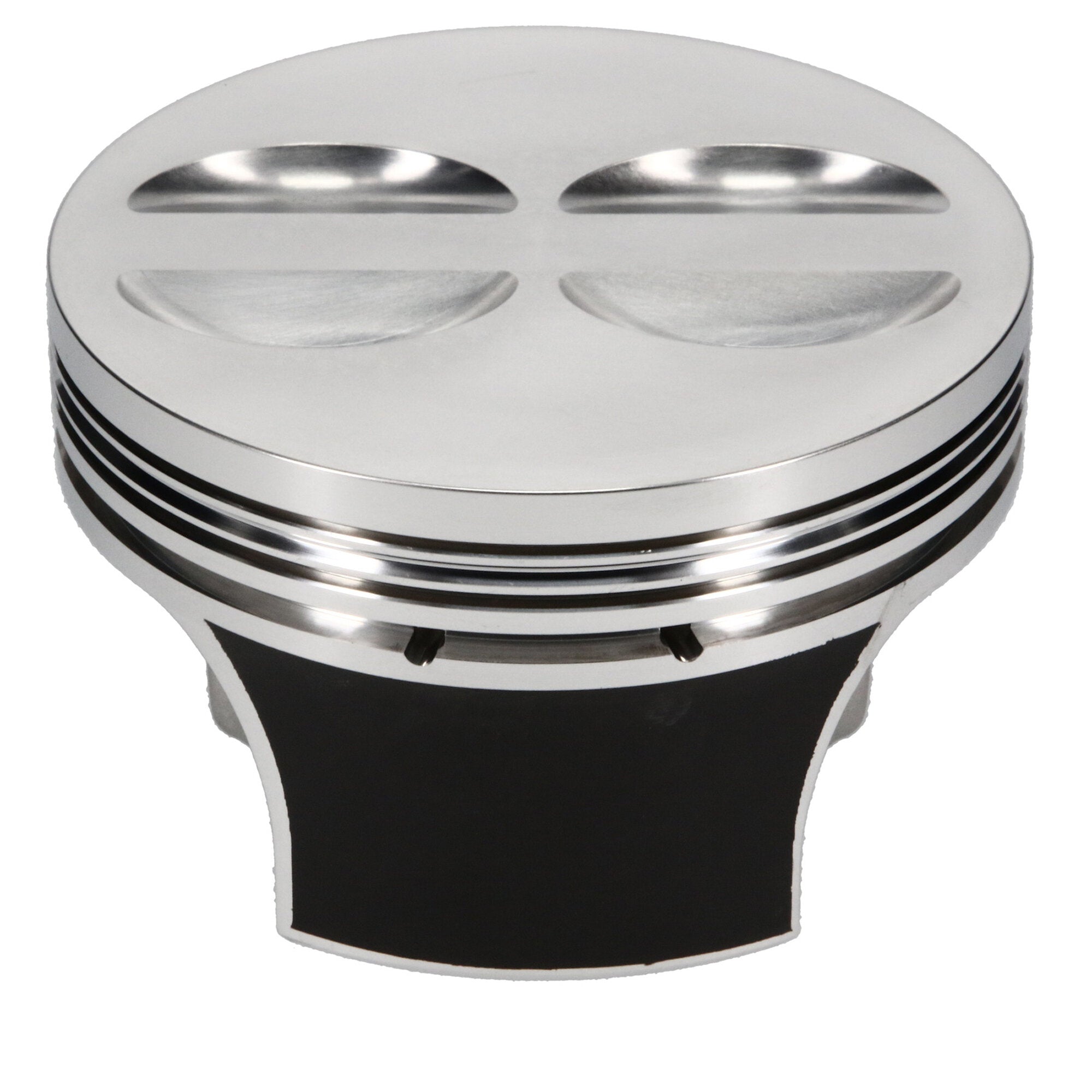

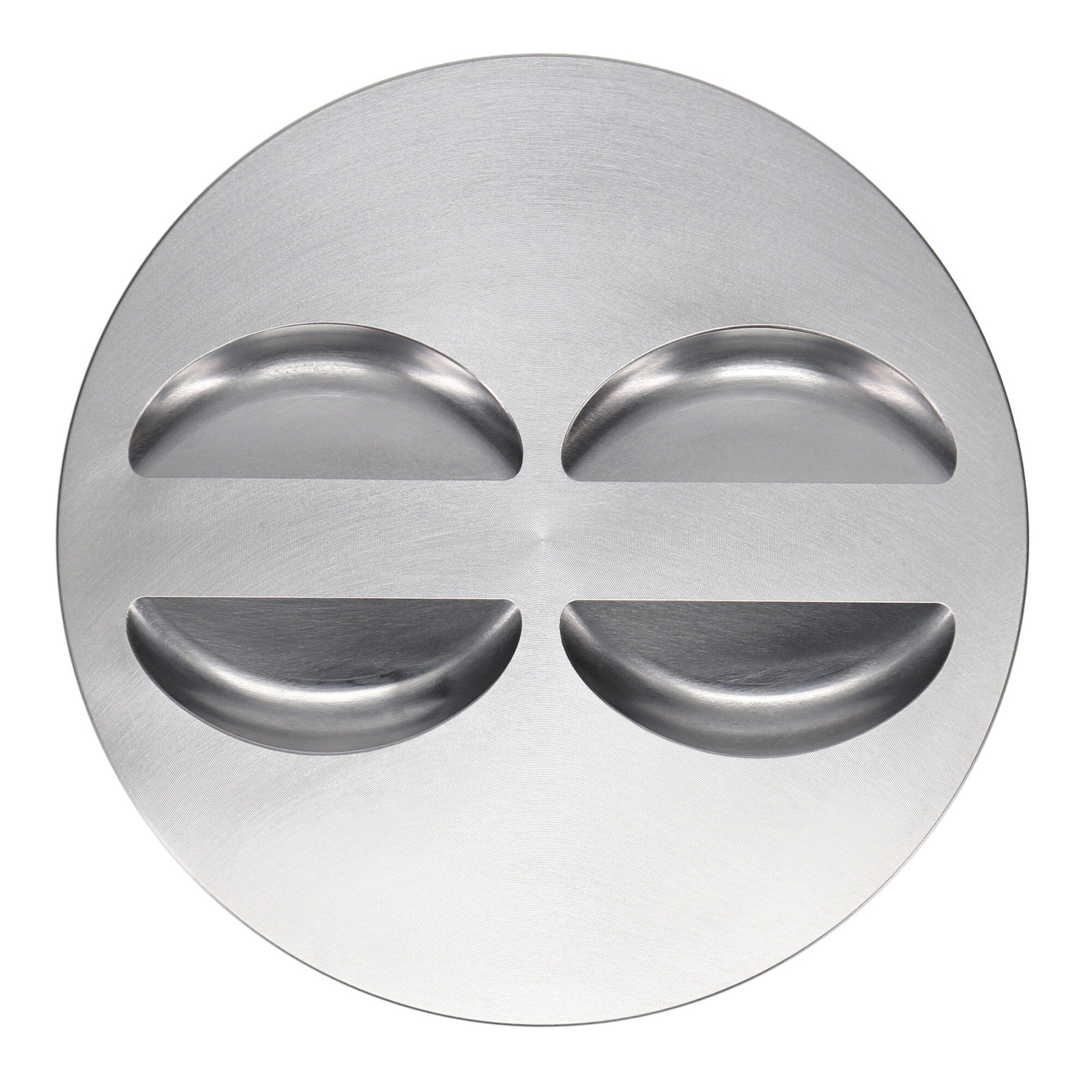

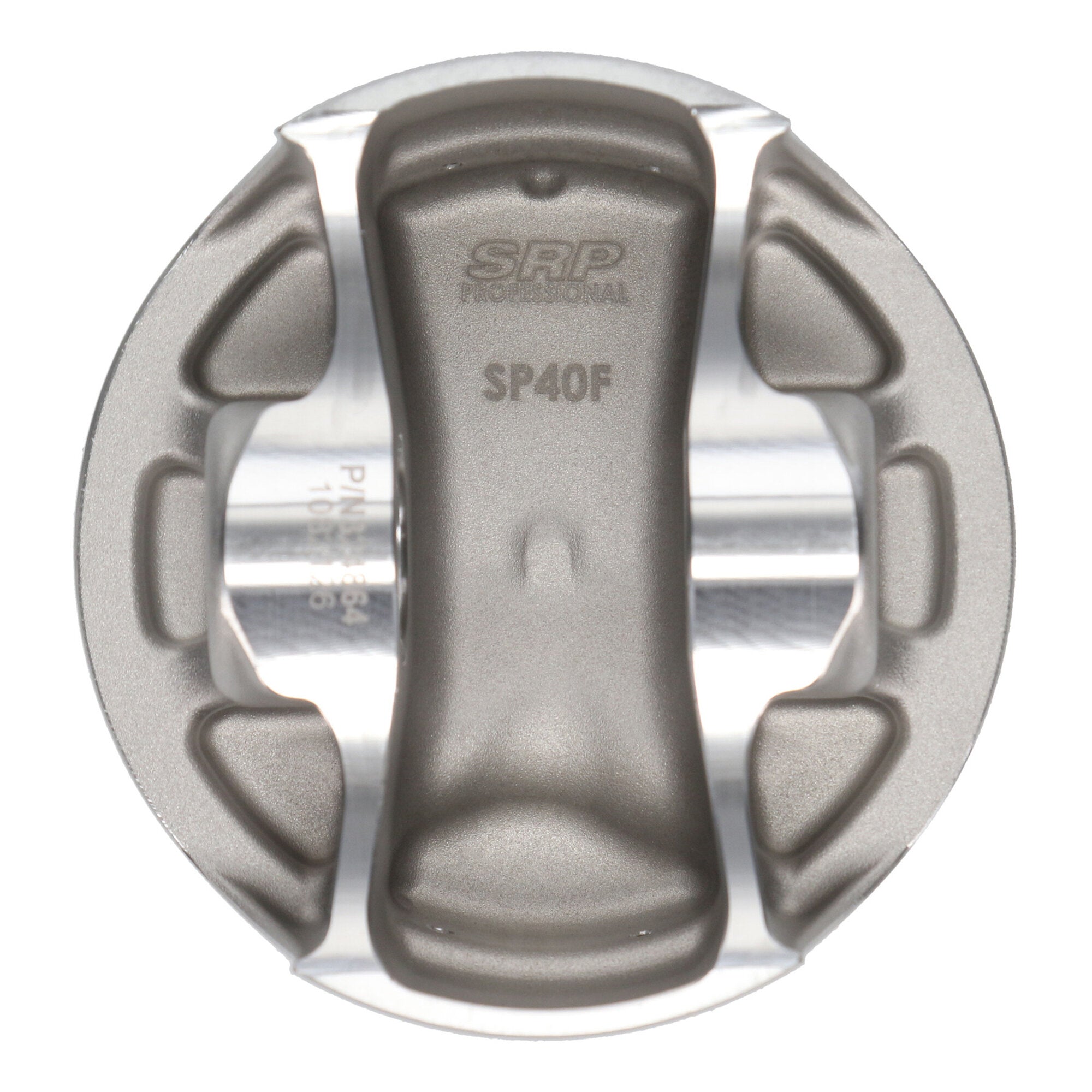

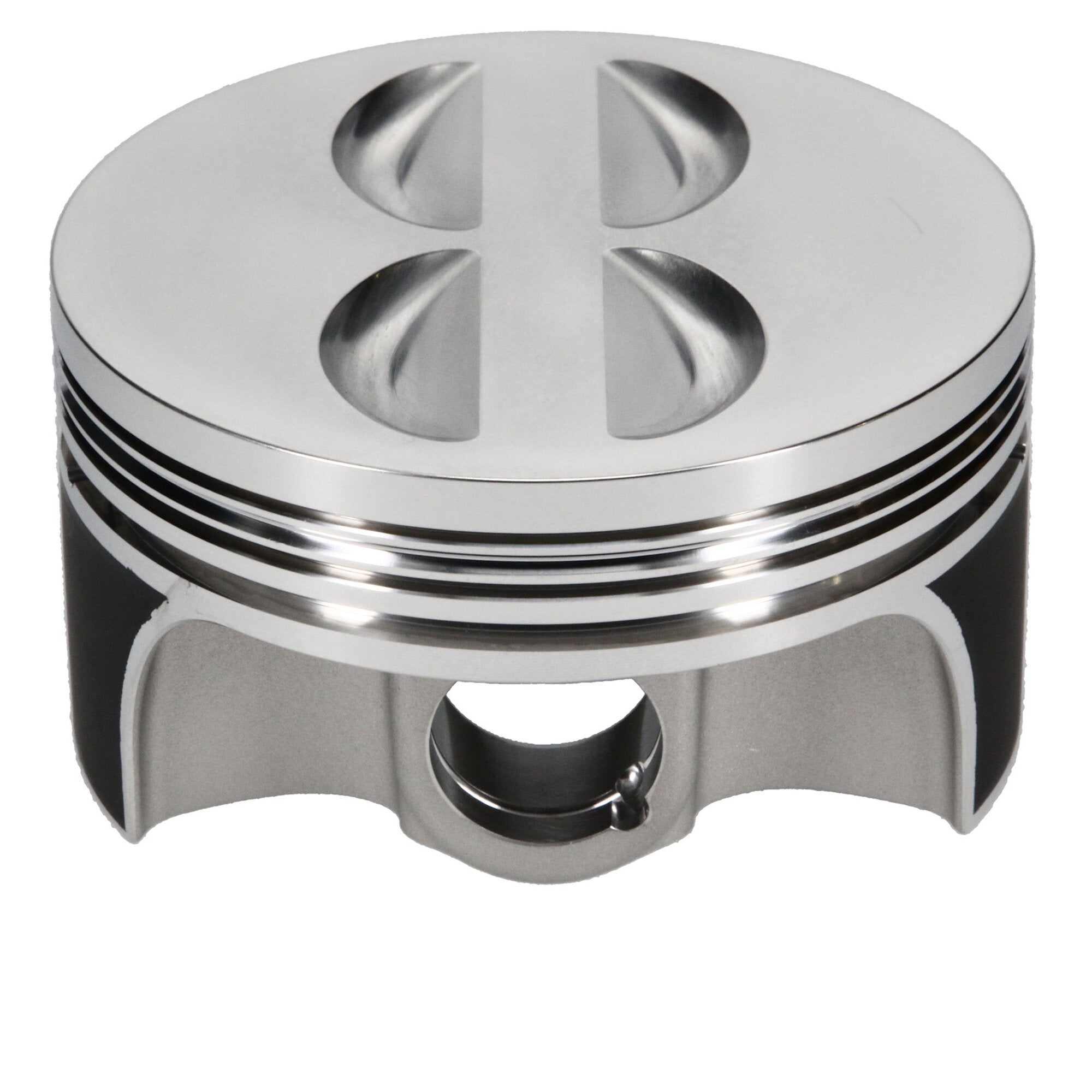

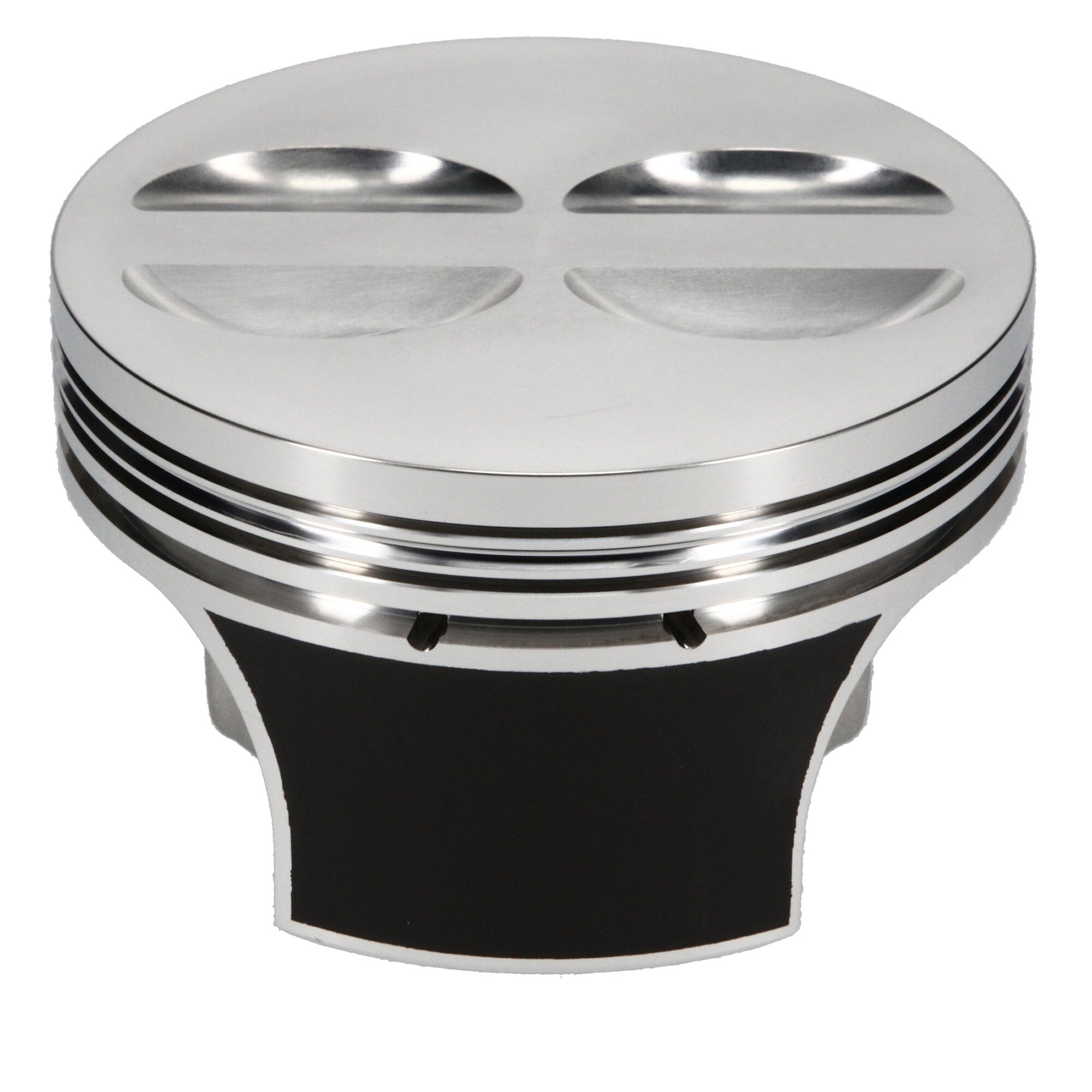

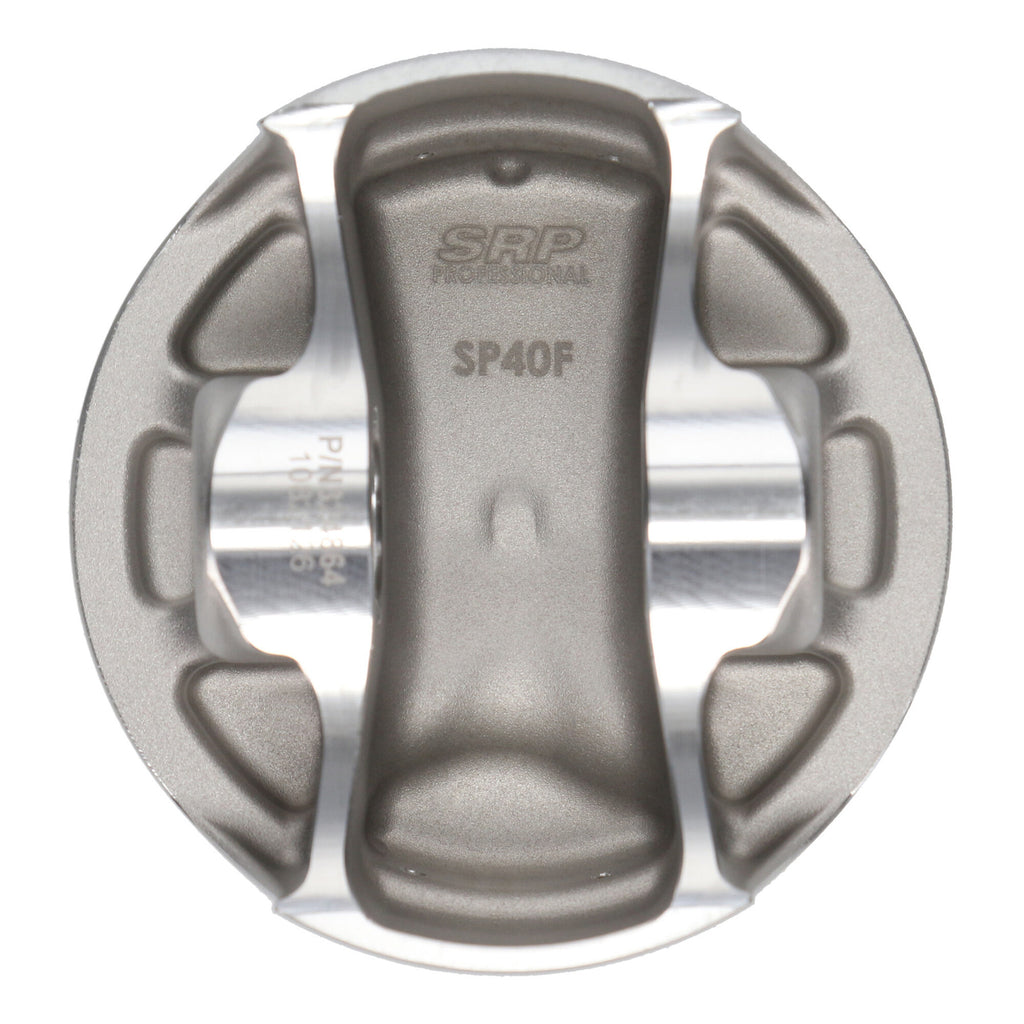

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP Pro, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.020 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_INV |
SRP Pro, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
SRP Pro 4032 - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.020 in. Bore - 1.560 in. CH, -4.50 CC |
| Piston Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0600 |
| Engine |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
927-2250-15-51C |
| Industry |
Automotive |
| Add-On |
927-073-MW |
| Add-On |
JG3108-4020-2 |
| Make - Web |
Chevrolet |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Forging Type |
FSR |
| Compression Height |
1.560 |
| Piston Pin Material |
5115 |
| Ringset Included |
Yes |
| Piston Head Type |
Flat |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0480 |
| Piston Pin Outside Diameter |
0.927 |
| Product Market |
Domestic |
| Make |
CHEVROLET |
| Oil Ring Thickness |
0.119 |
| Engine Type |
ICE |
| Piston Series |
SRP Pro |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Piston Volume |
-4.50 |
| Bore Diameter |
4.020 |
| Piston Average Weight |
492 |
| Piston Material |
4032 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
