As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 400 Brodix 11X |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

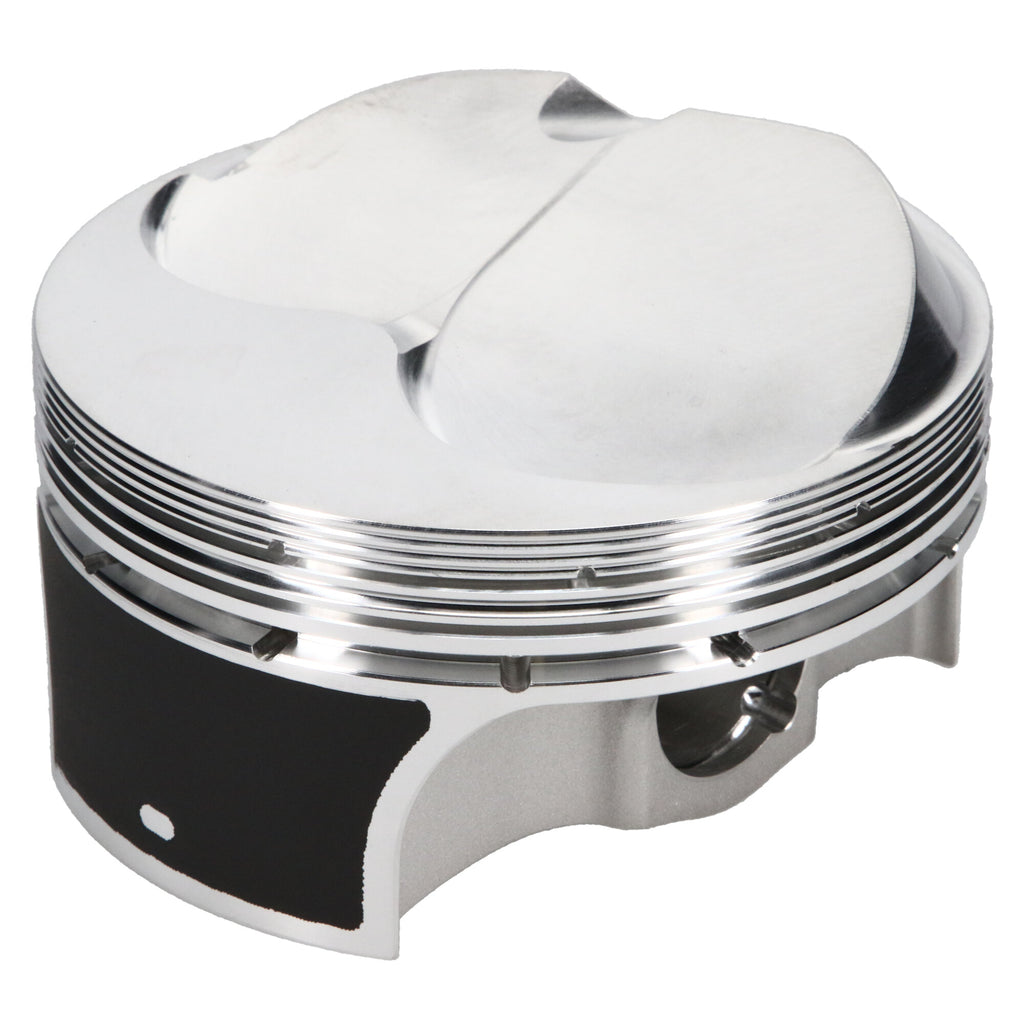

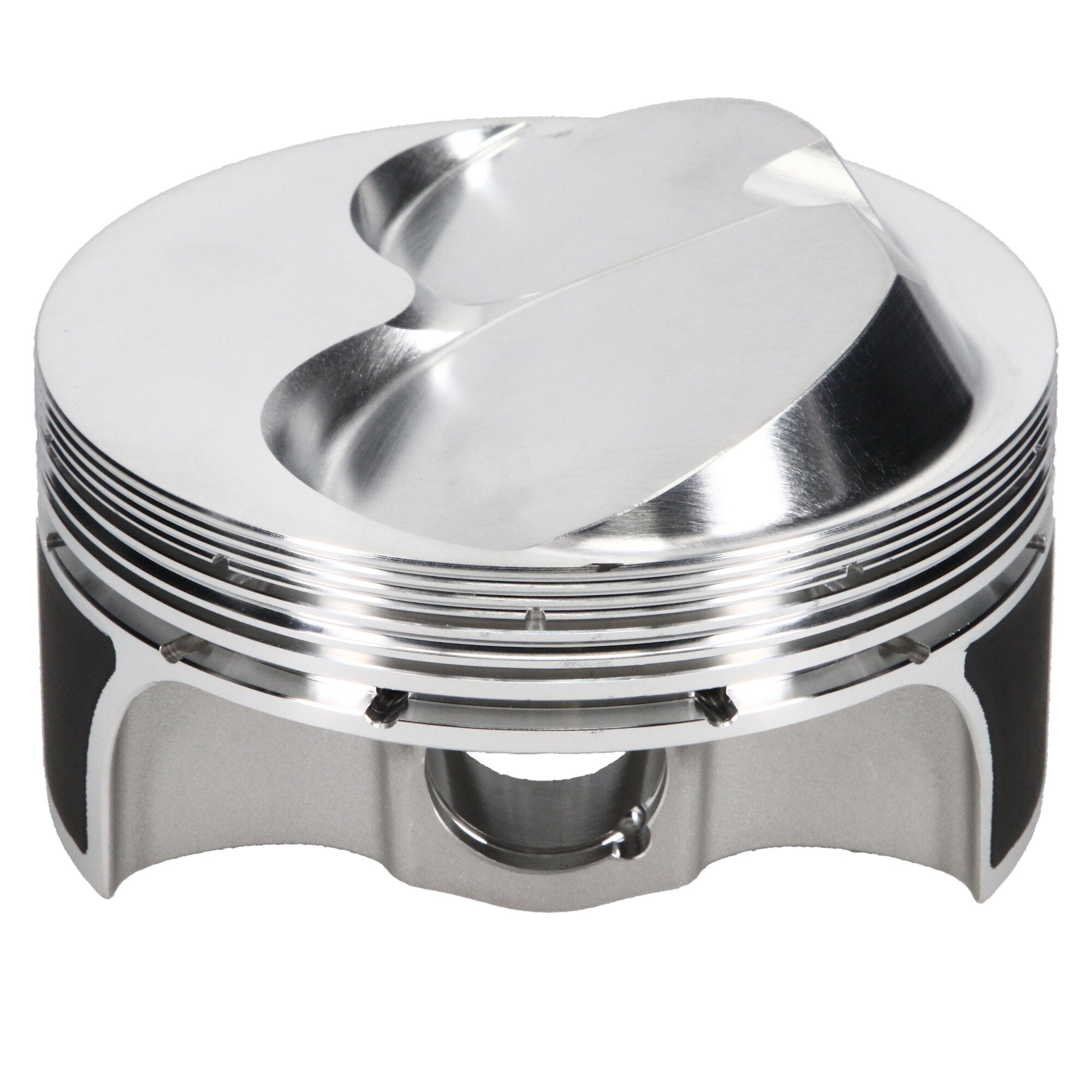

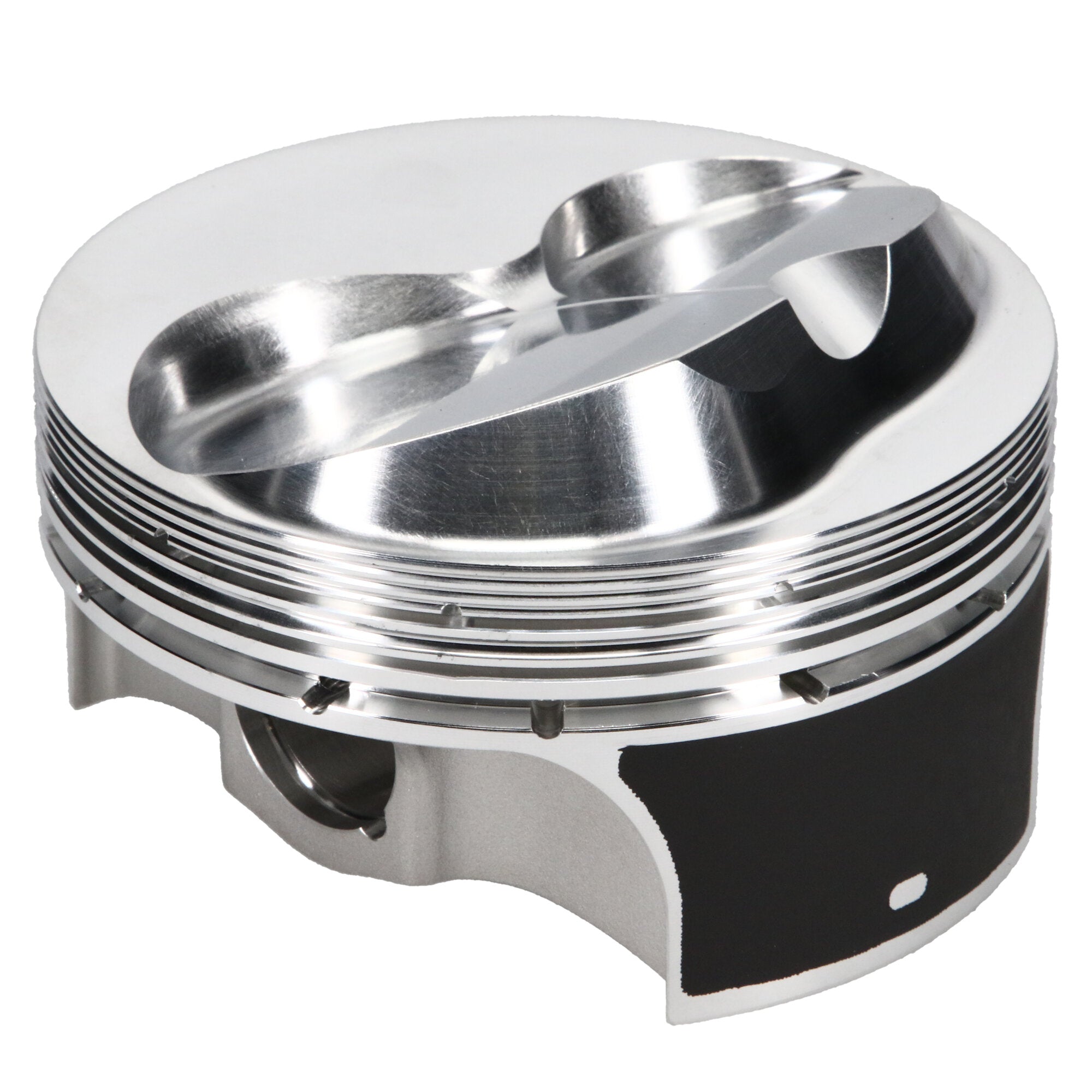

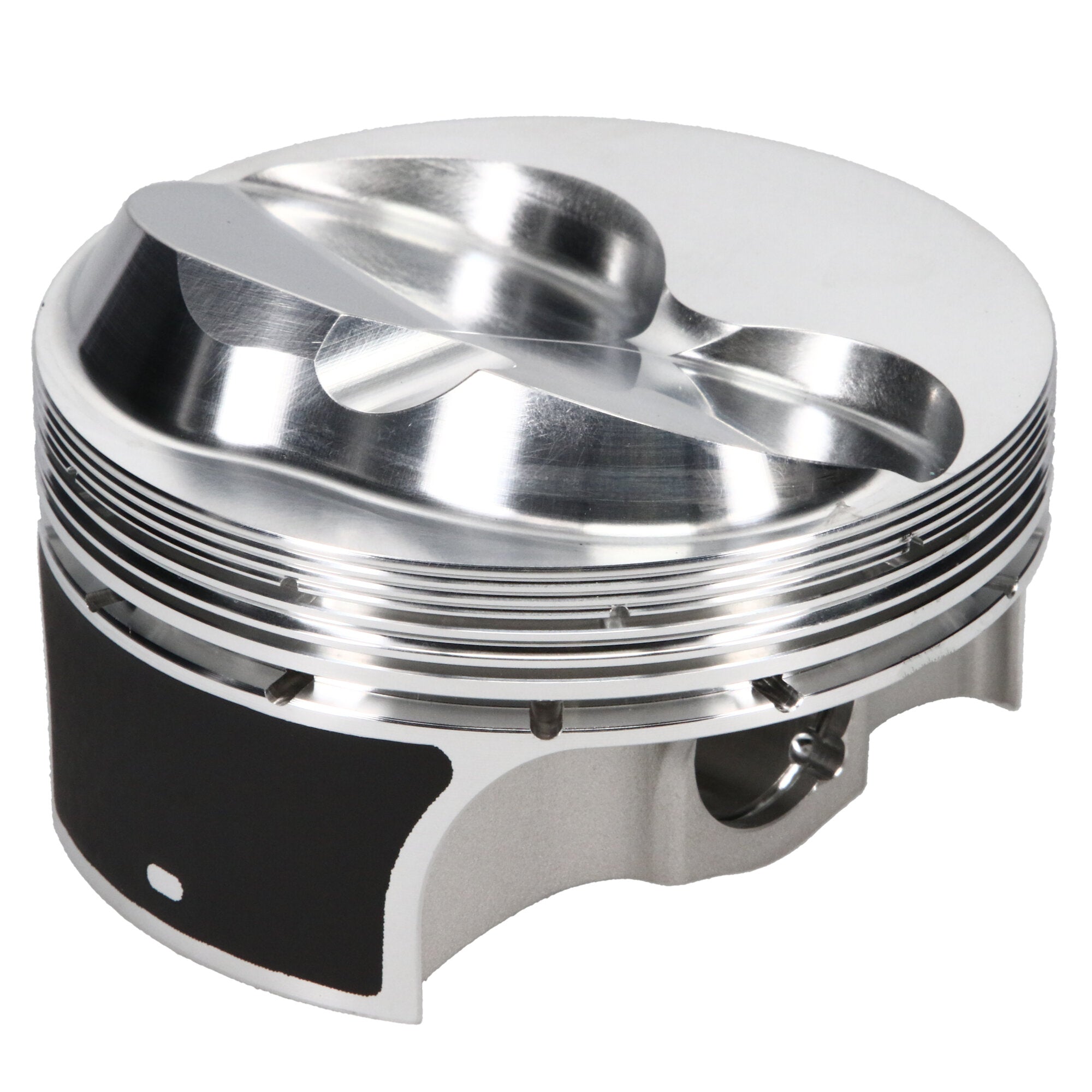

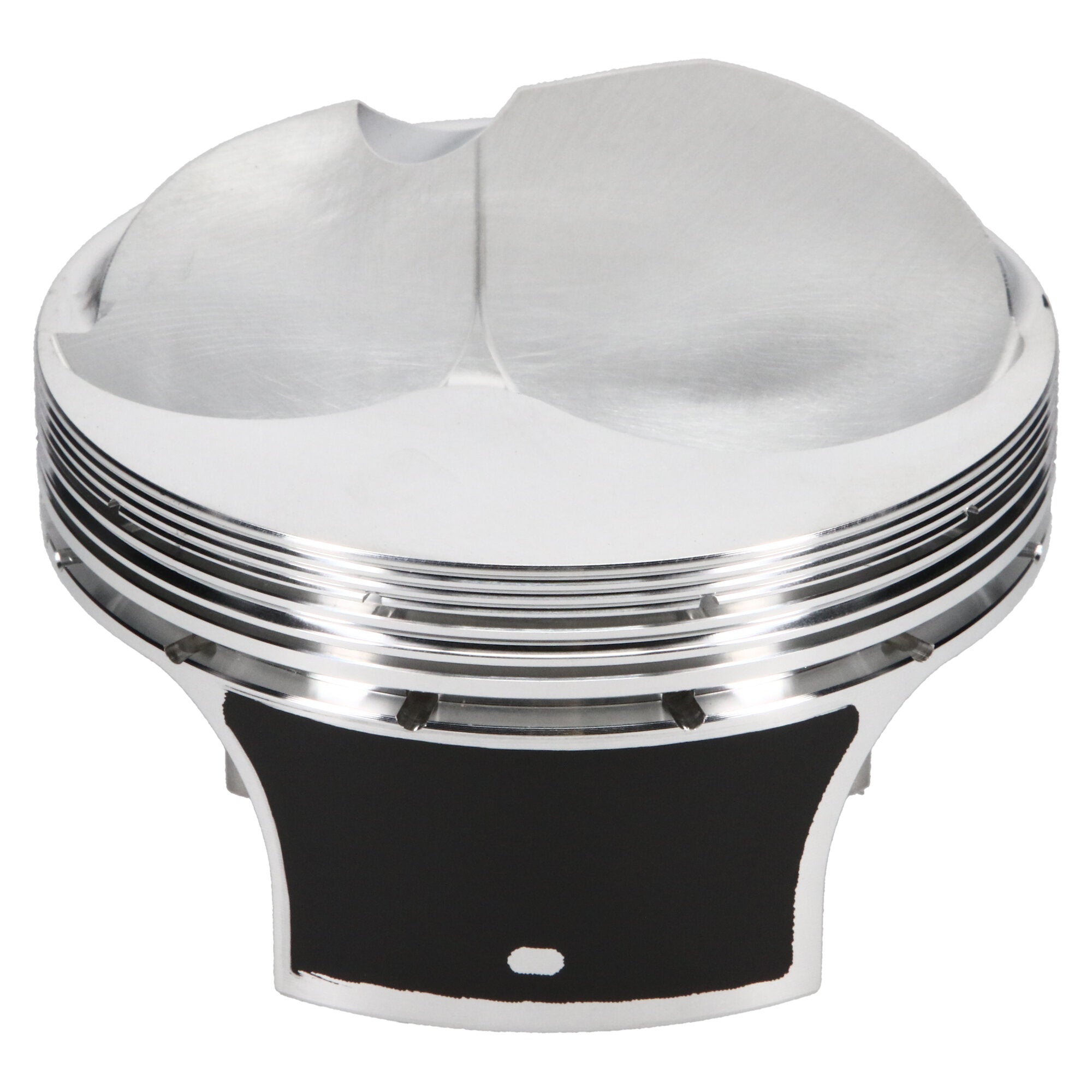

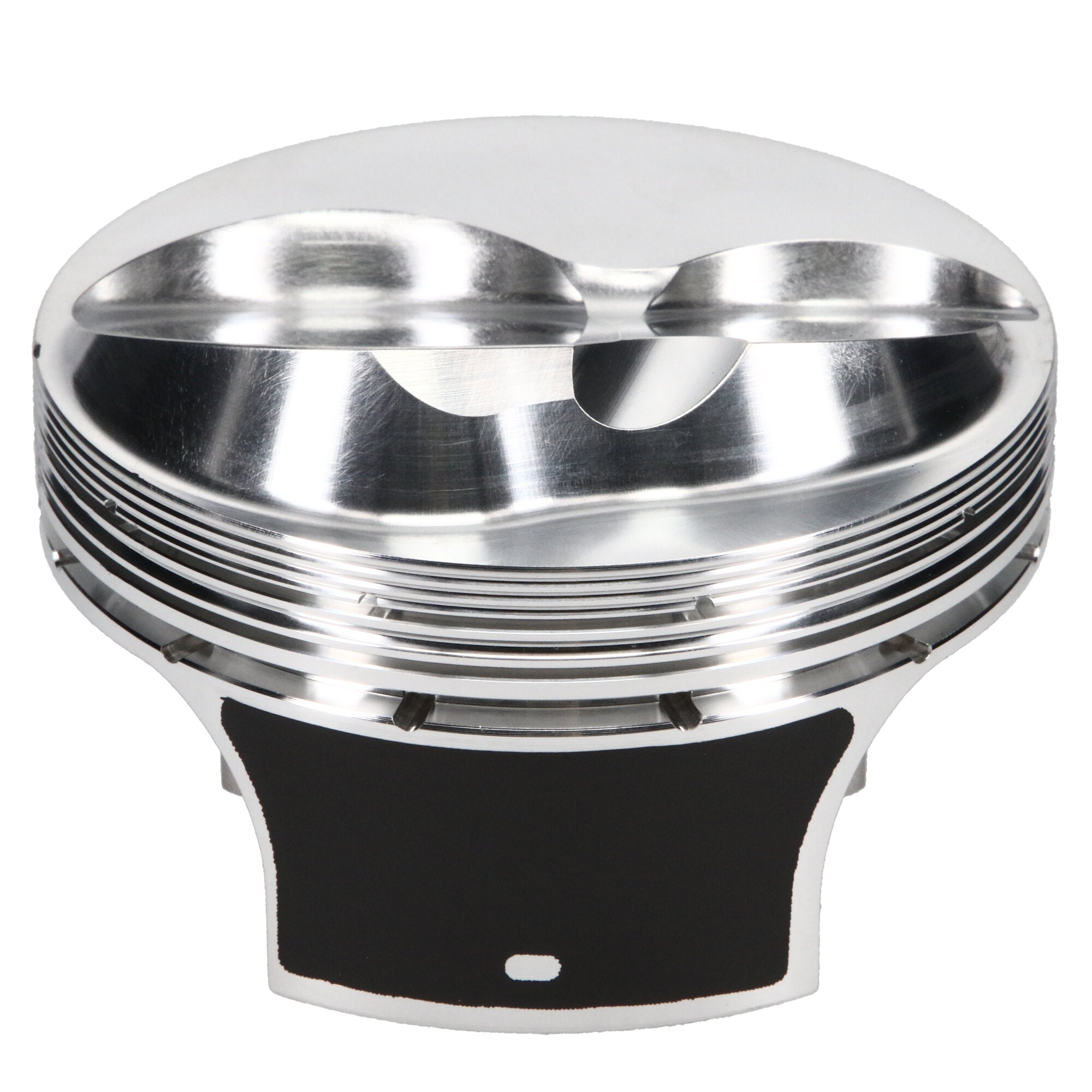

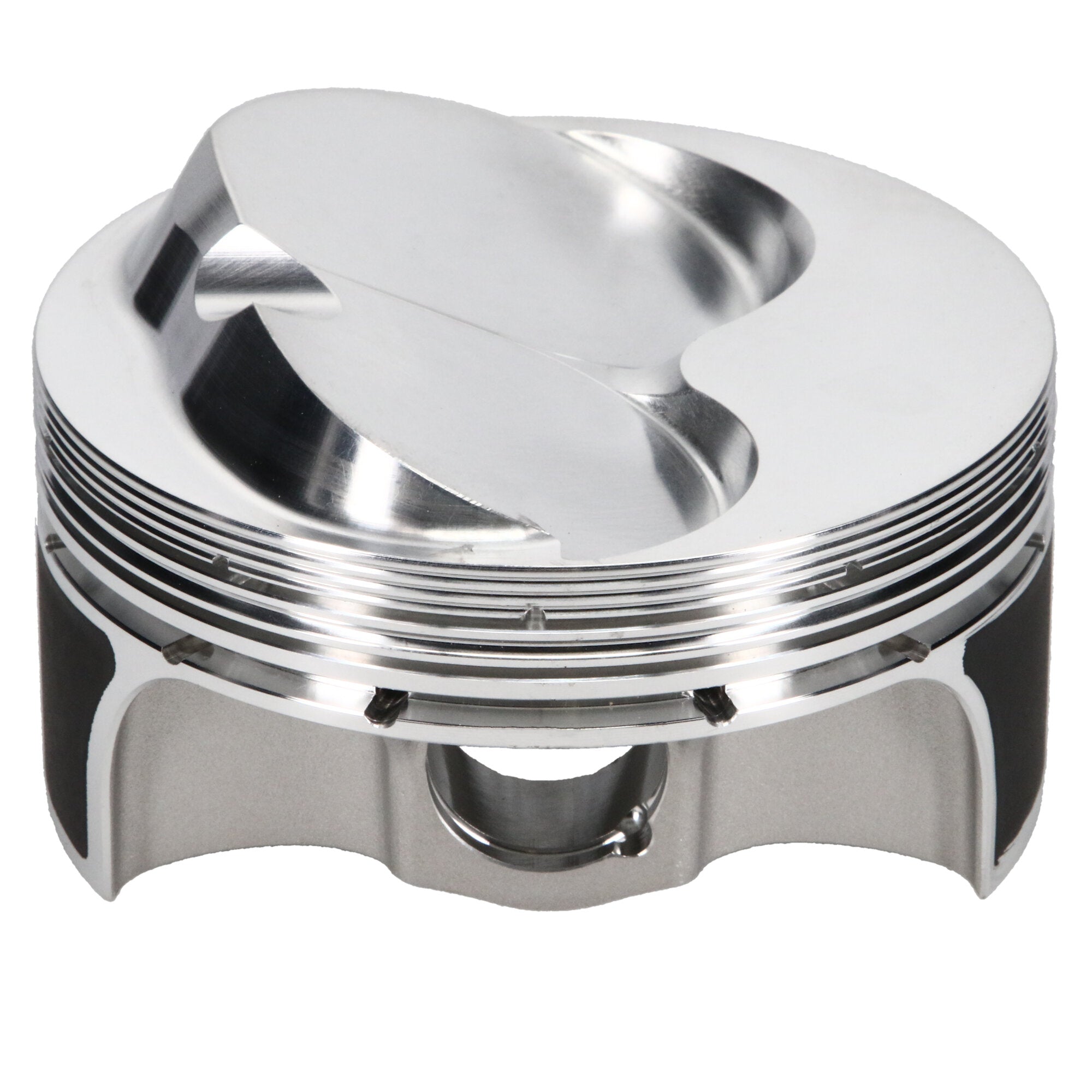

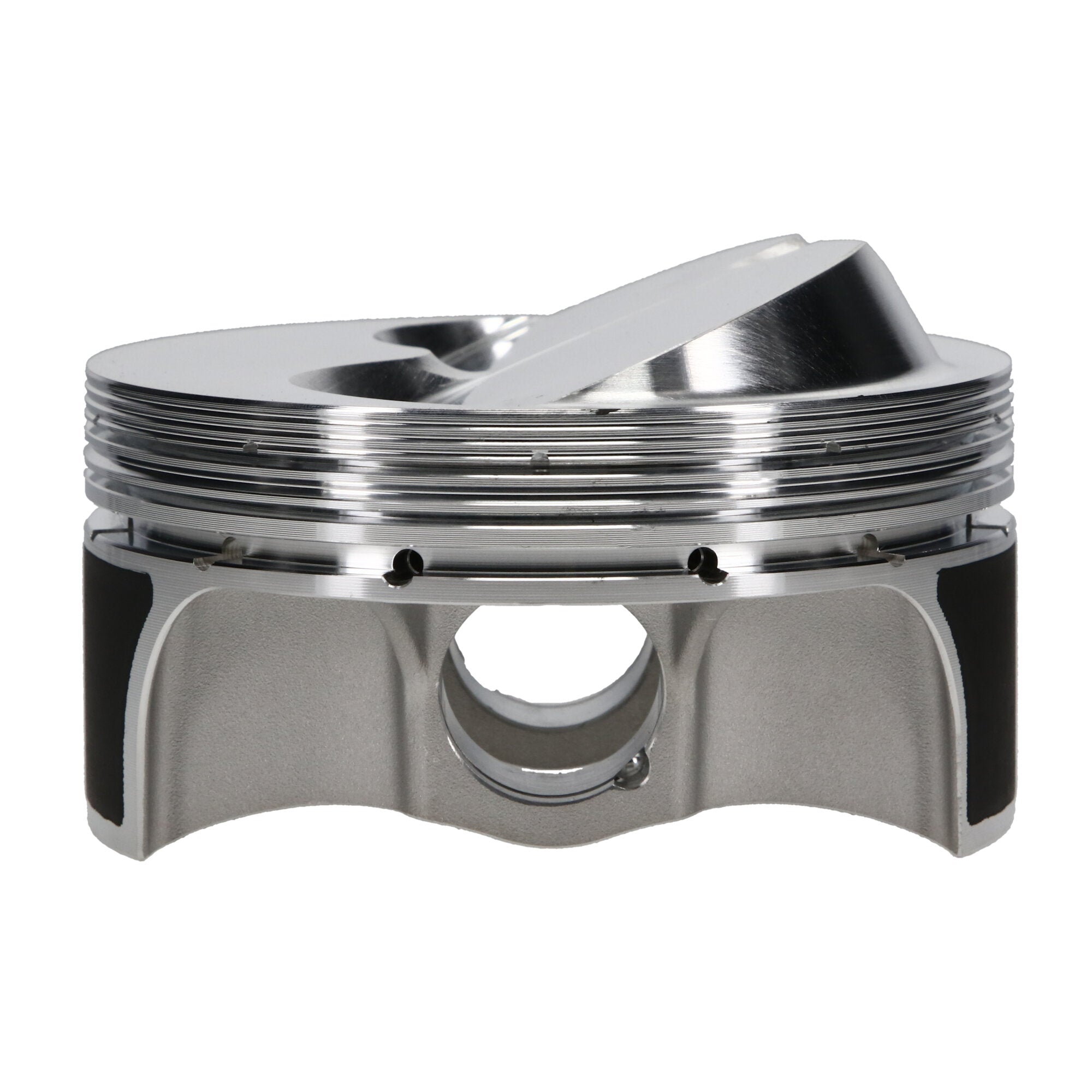

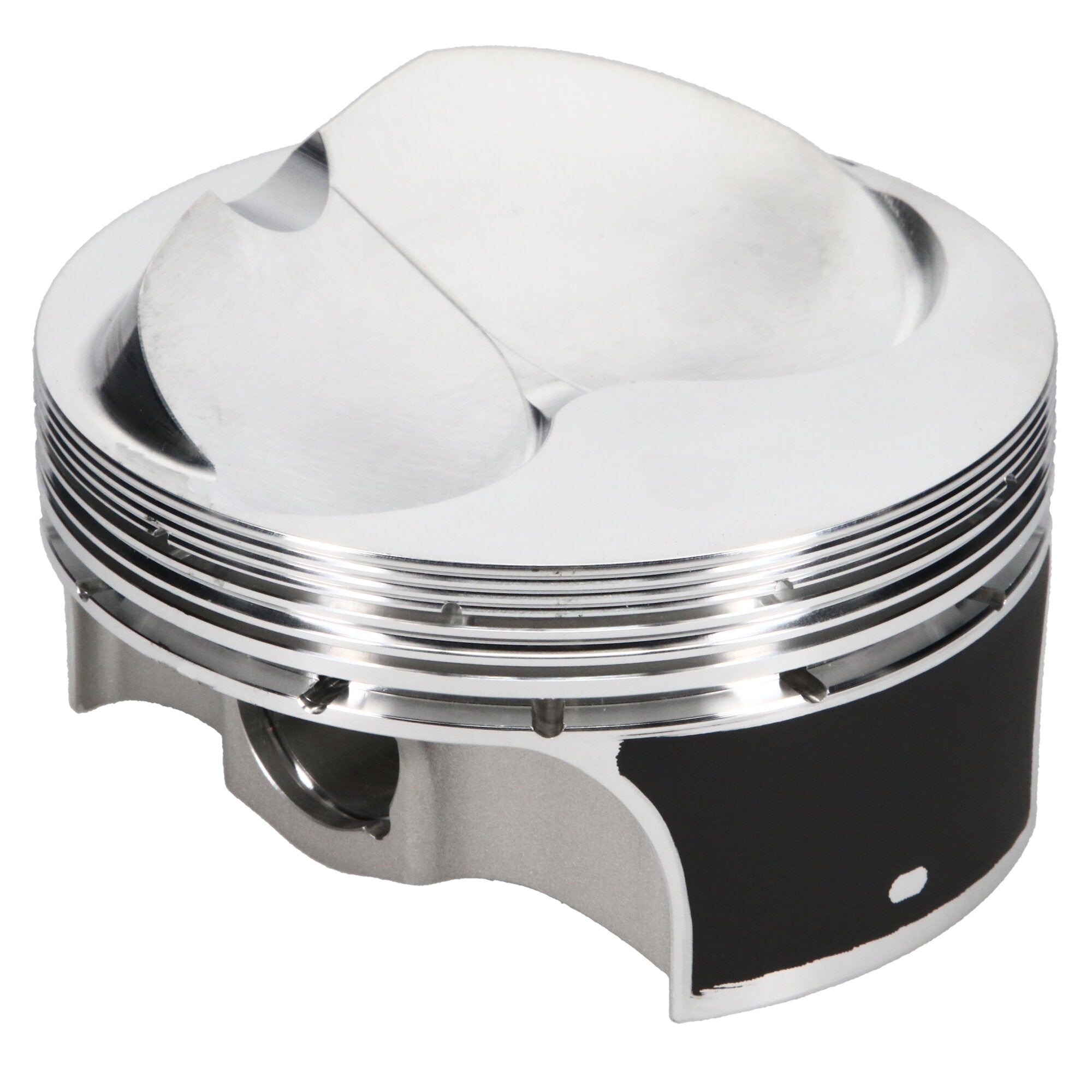

Piston Set, 2618, Dome, 4.125 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.125 in. Bore, 1.125 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet 400, 4.125 Bore, Dome, Set of 8 |
| Piston Pin Material |
5115 |
| Engine - Web |
Small Block |
| Ringset Included |
No |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Chevrolet, Small Block, 4.125 in. Bore, Piston Kit |
| Piston Head Type |

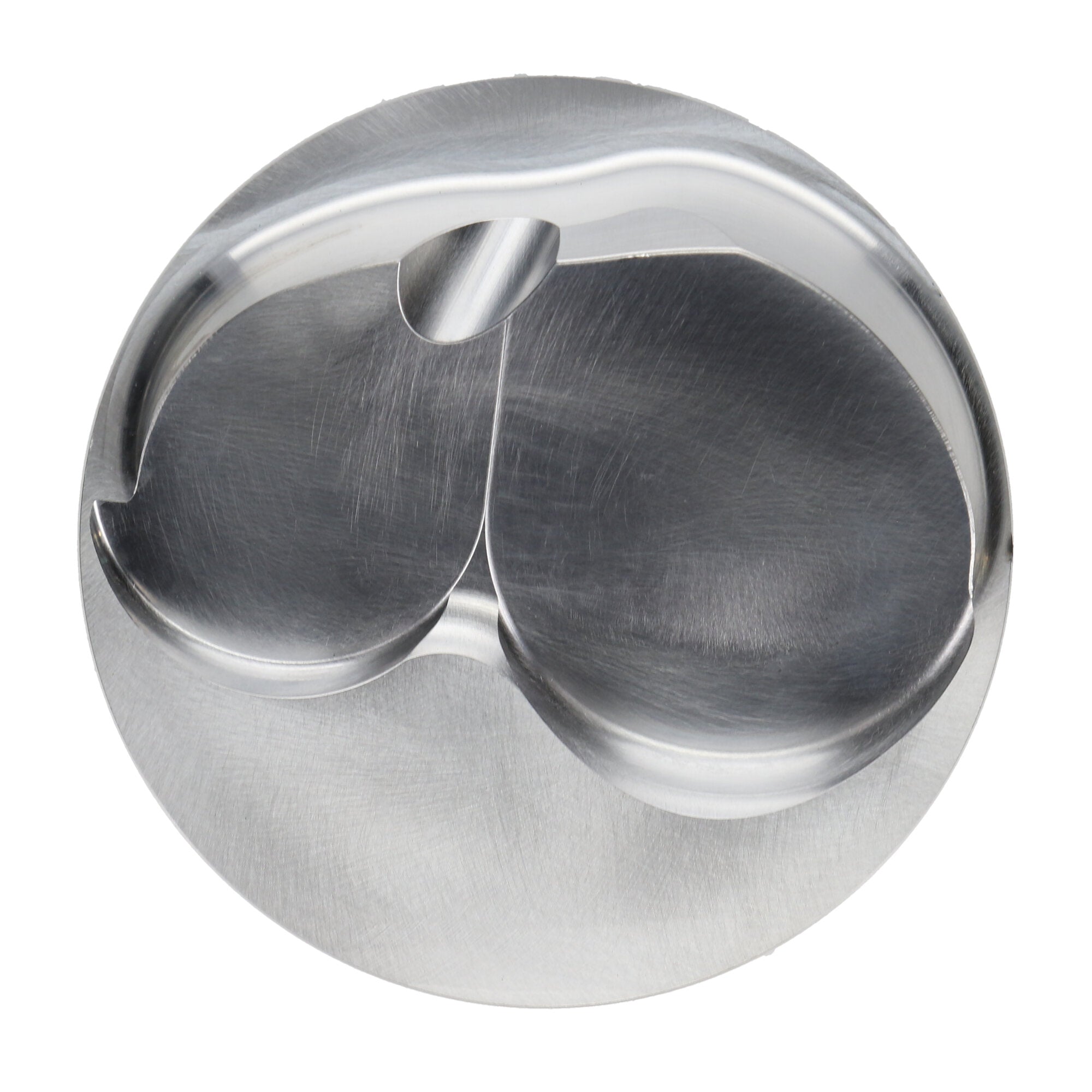

Dome |
| Make |
CHEVROLET |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0435 |
| Compression Height |
1.125 |
| Piston Pin Wall Thickness |
0.170 |
| Piston Average Weight |
451 |
| Wrist Pin Wall Thickness |
0.170 |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.1175 |
| Bore Diameter |
4.125 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Quantity |
8 |
| Forging Type |
FSR |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.125 in. Bore - 1.125 in. CH, 7.00 CC |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.250 |
| Product Type |
Engine Piston Kit |
| Second Compression Ring Thickness |
0.0440 |
| Prop 65 Yes/No |
Yes |
| Add-On |
927-073-MW |
| Piston Material |
2618 |
| Industry |
Automotive |
| Cylinder Head |
CHEVROLET 23 DEG 40/60 |
| Add-On |
927-2250-17-51C |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Engine |
Small Block |
| Piston Volume |
7.00 |
| Piston Pin Length |
2.250 |
| Add-On |
JG7708-4125-5 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
