As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DES |

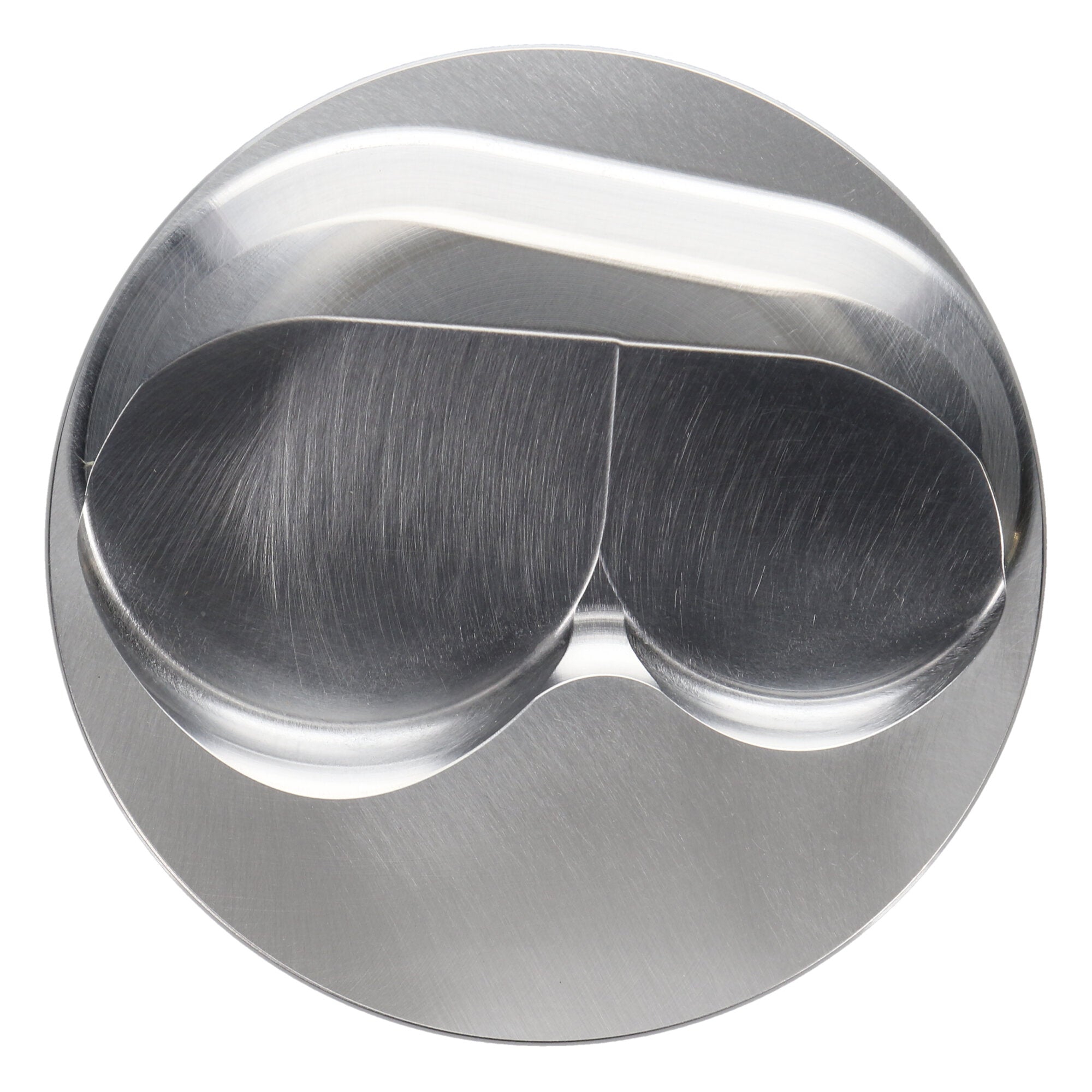

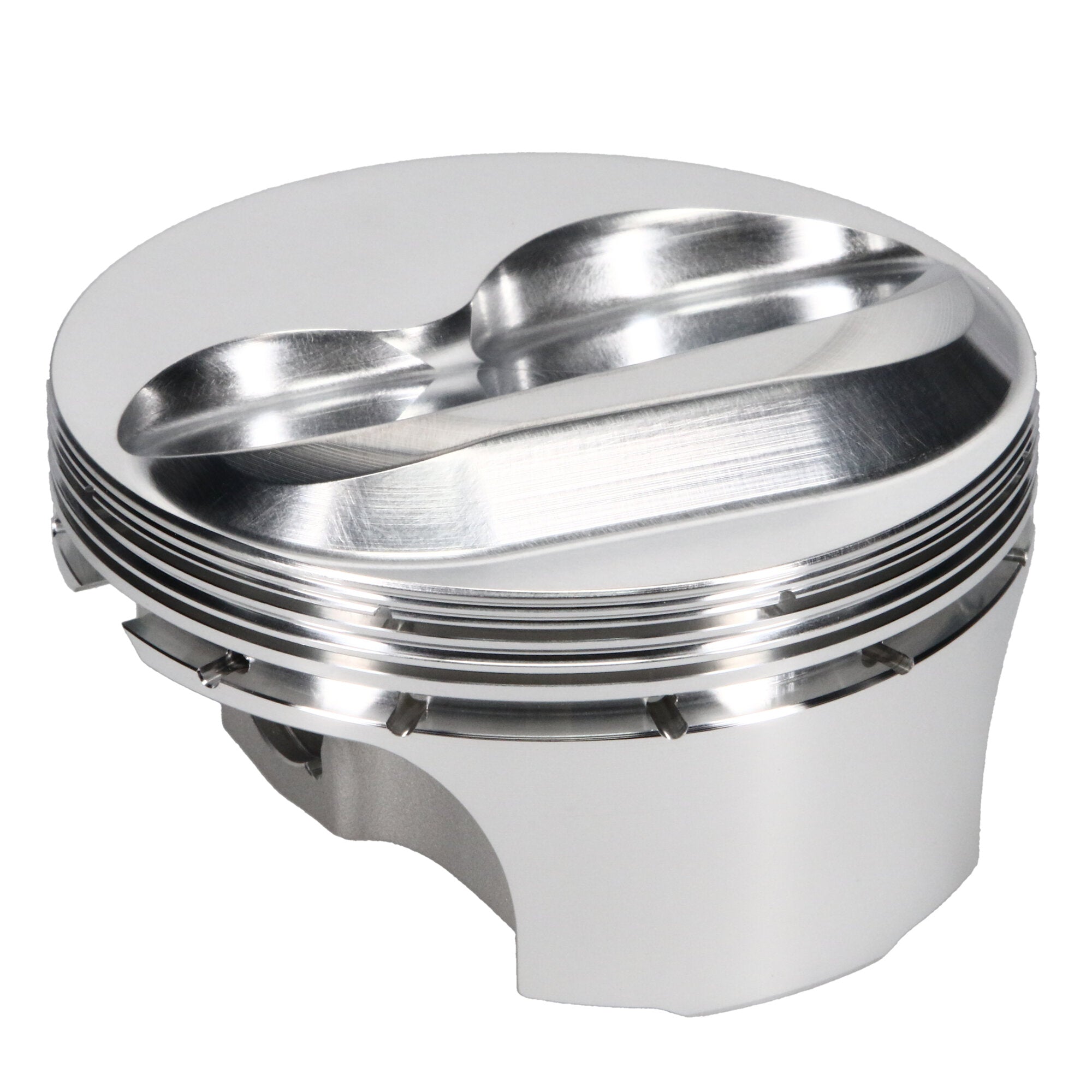

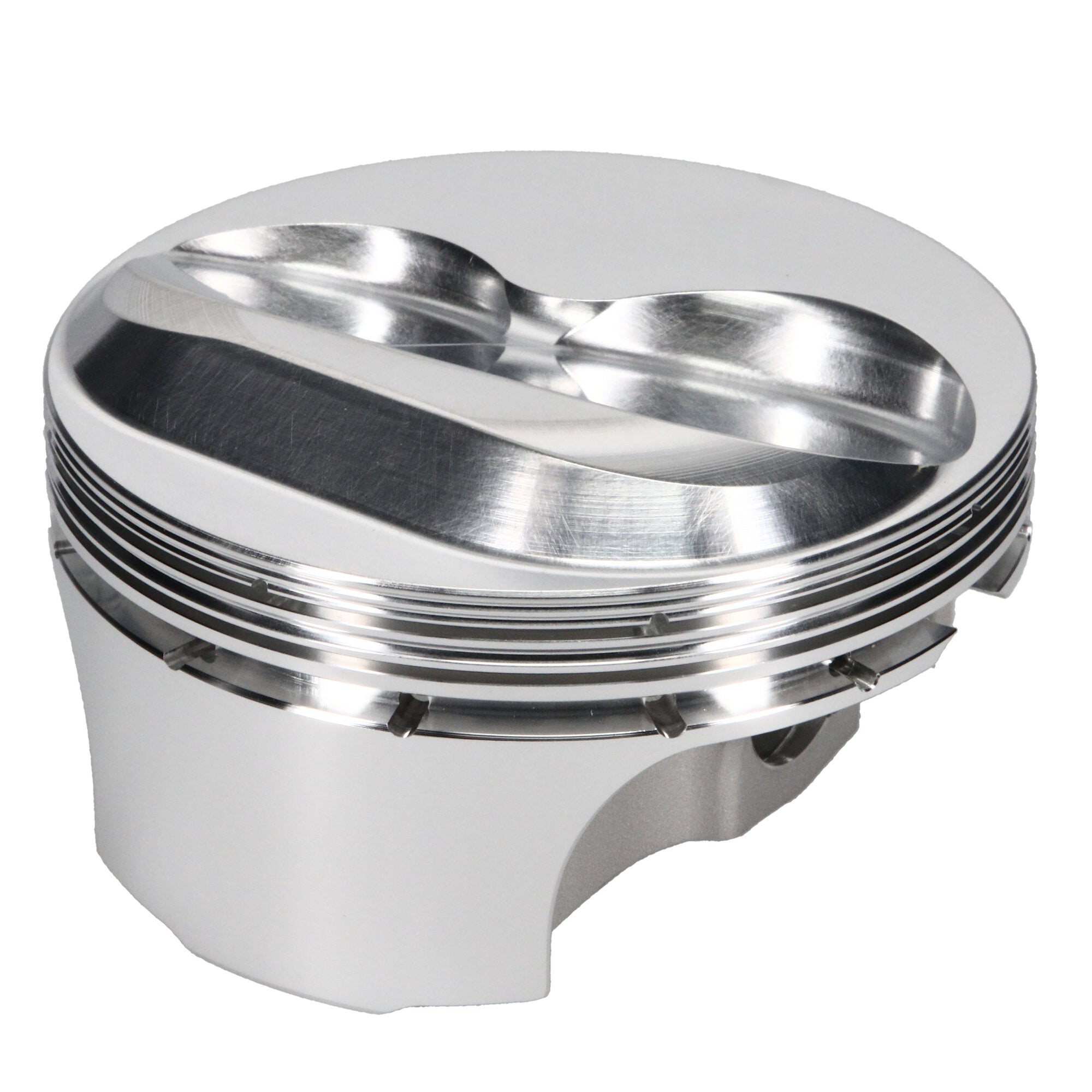

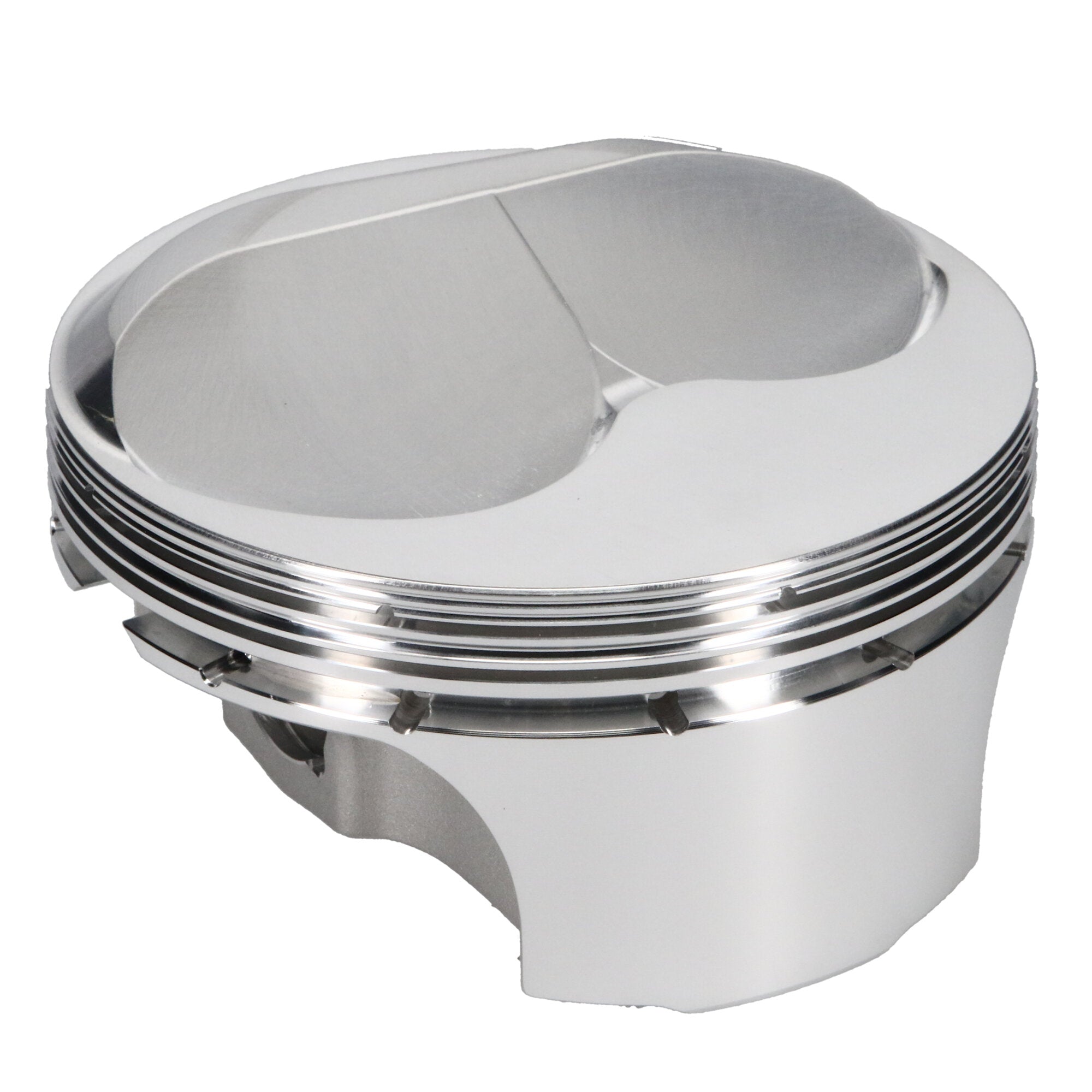

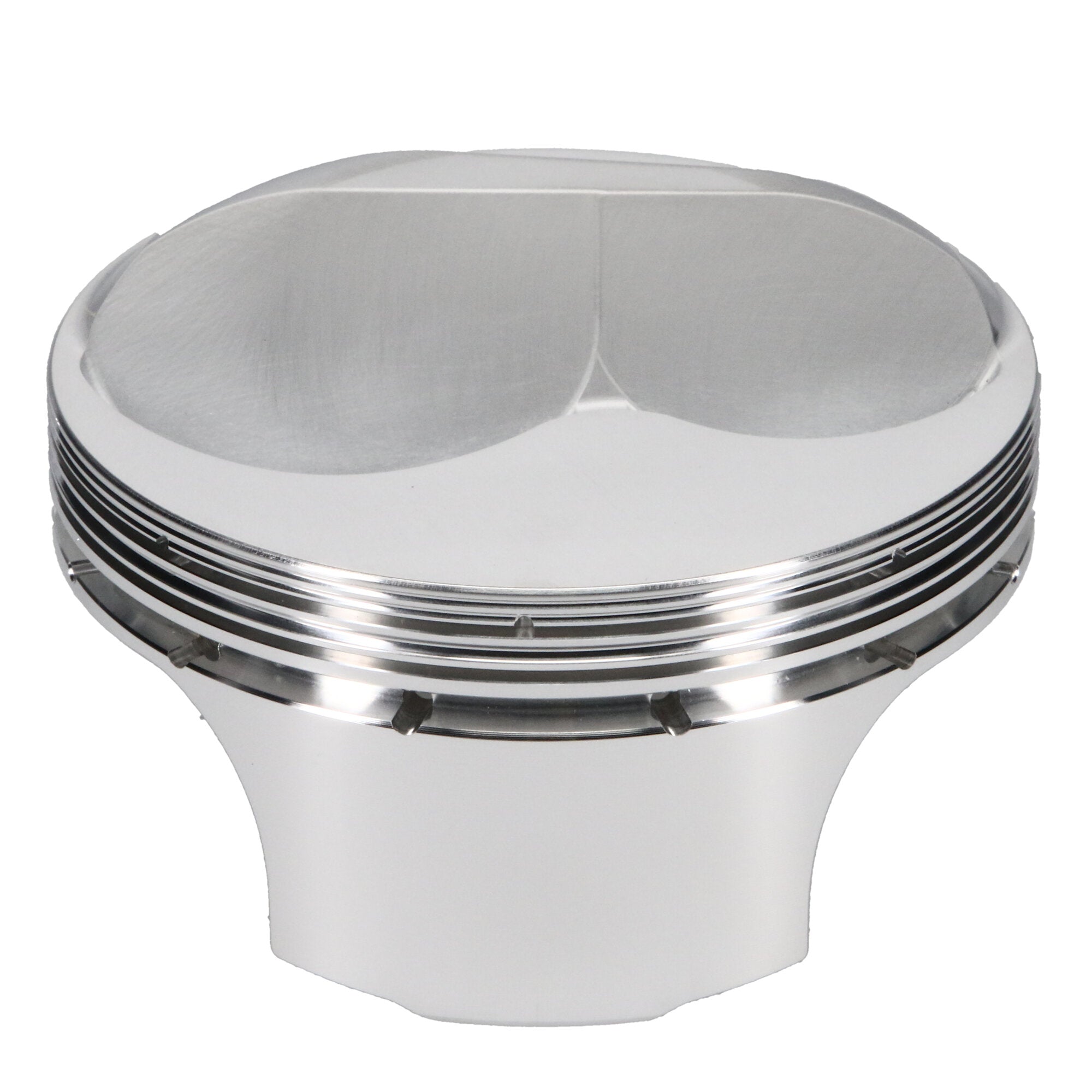

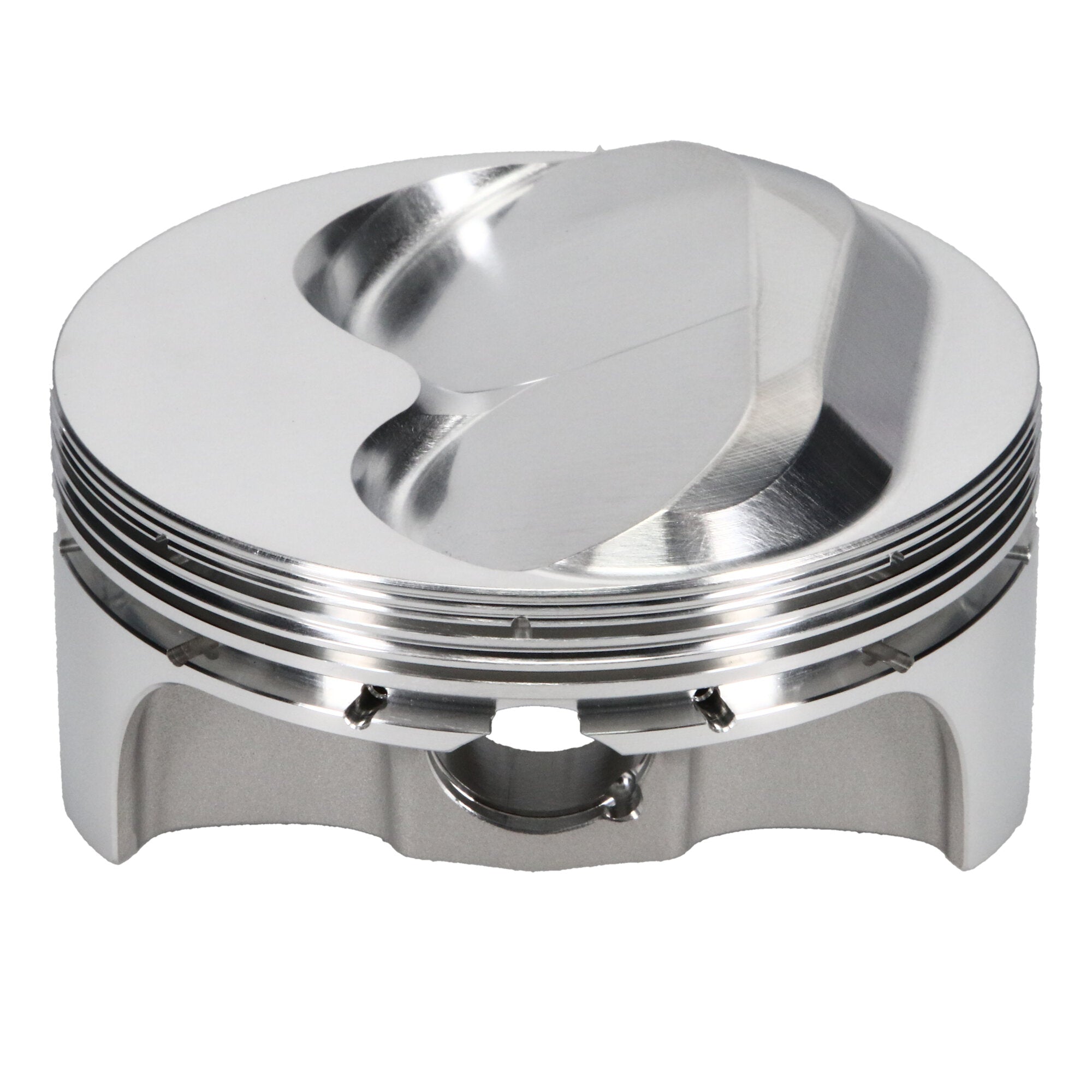

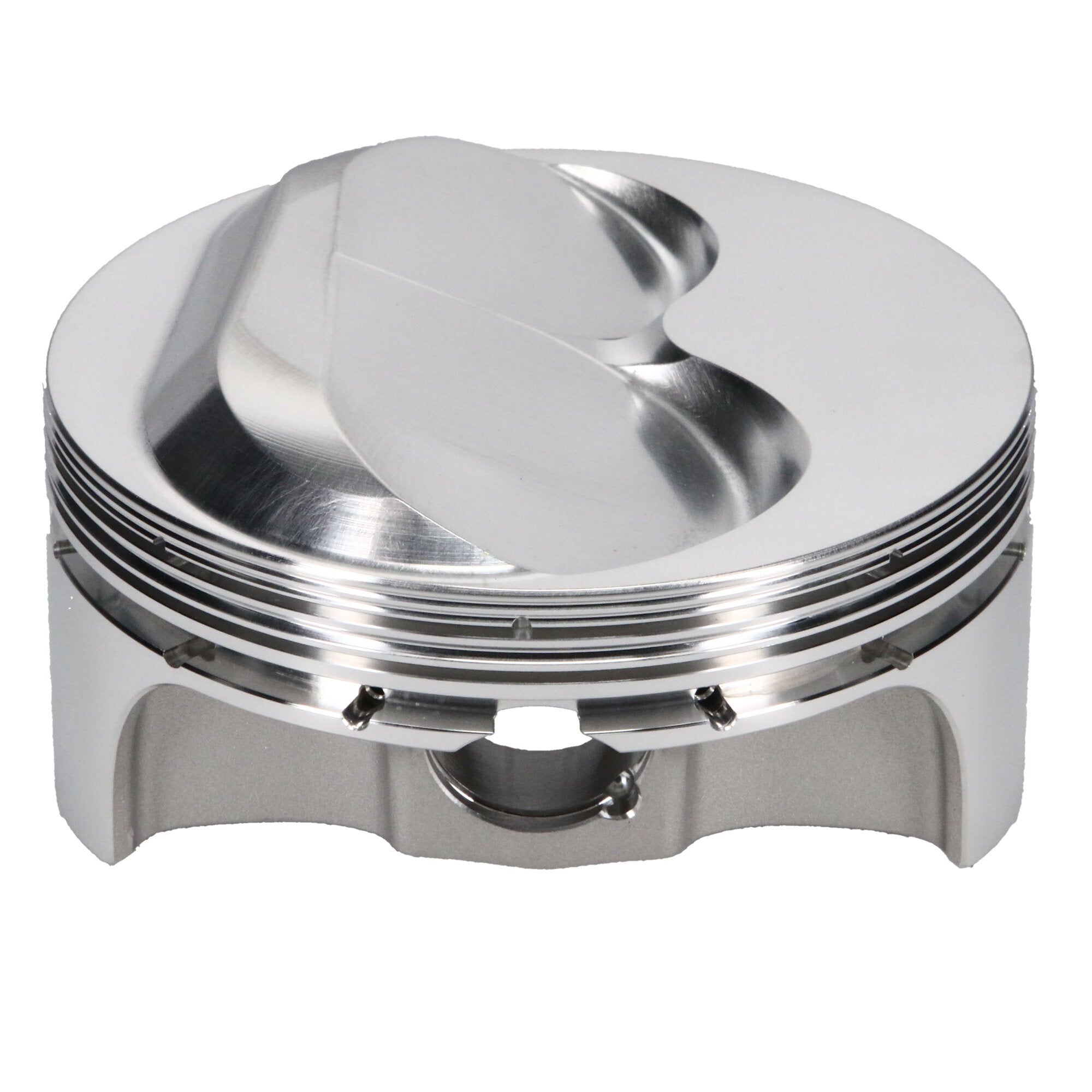

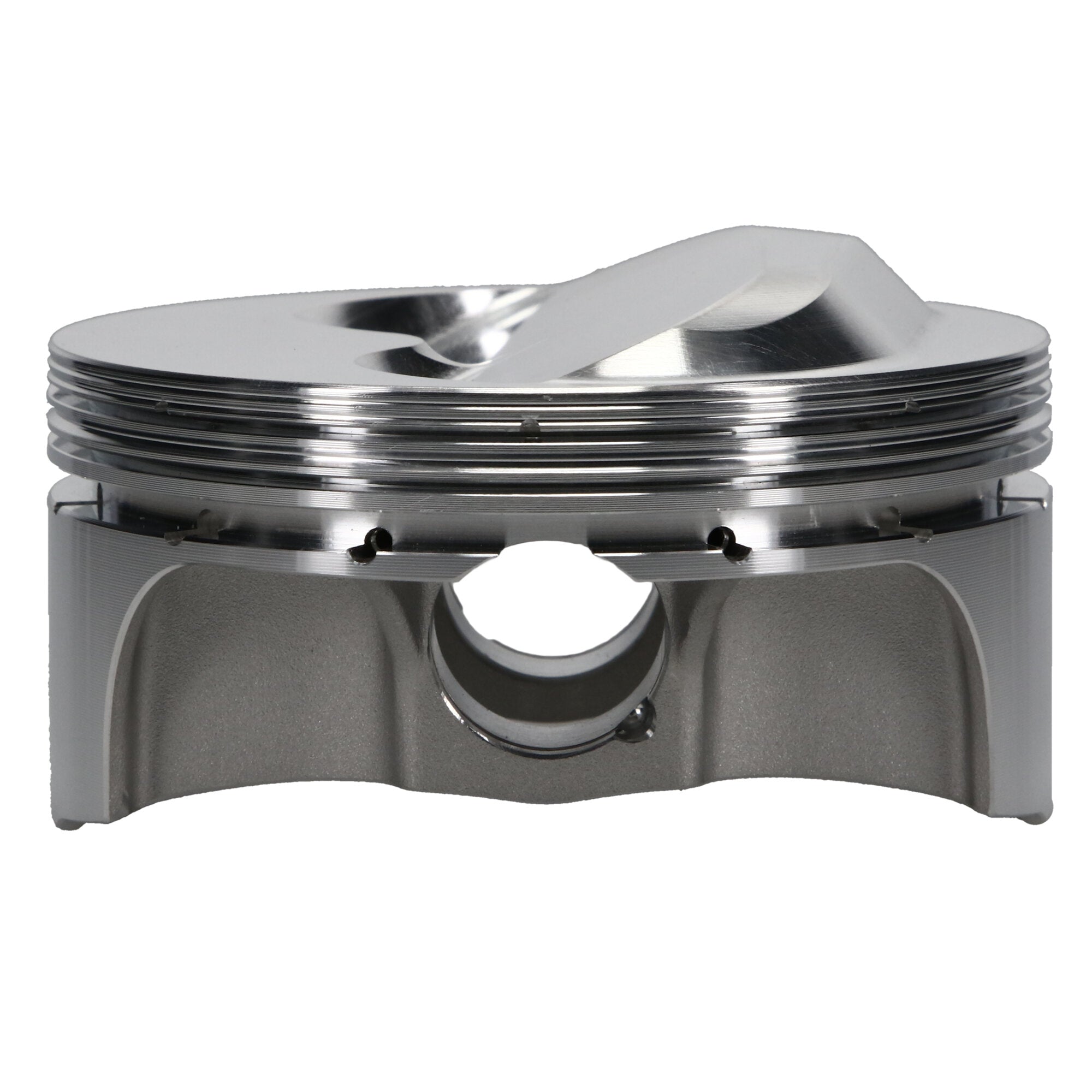

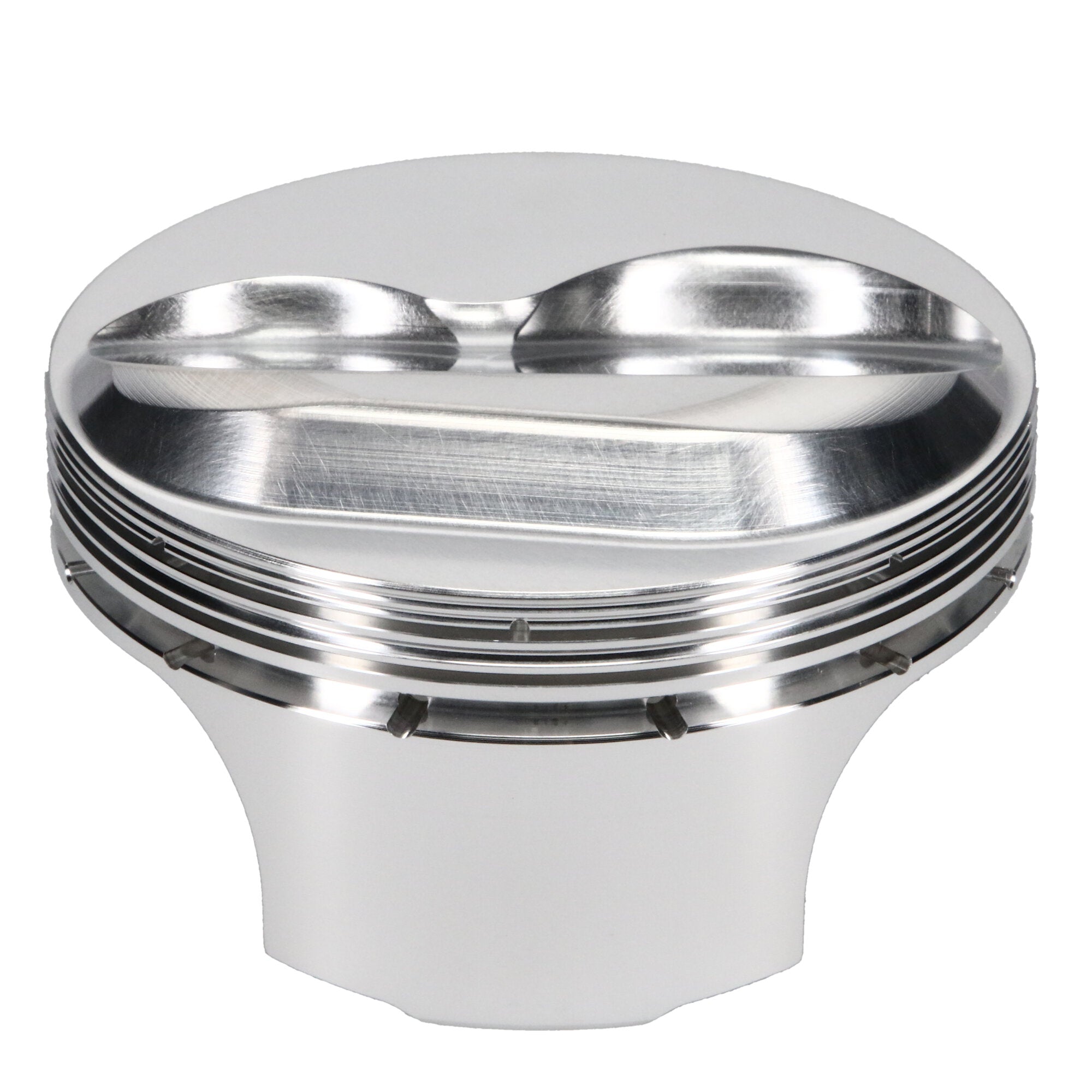

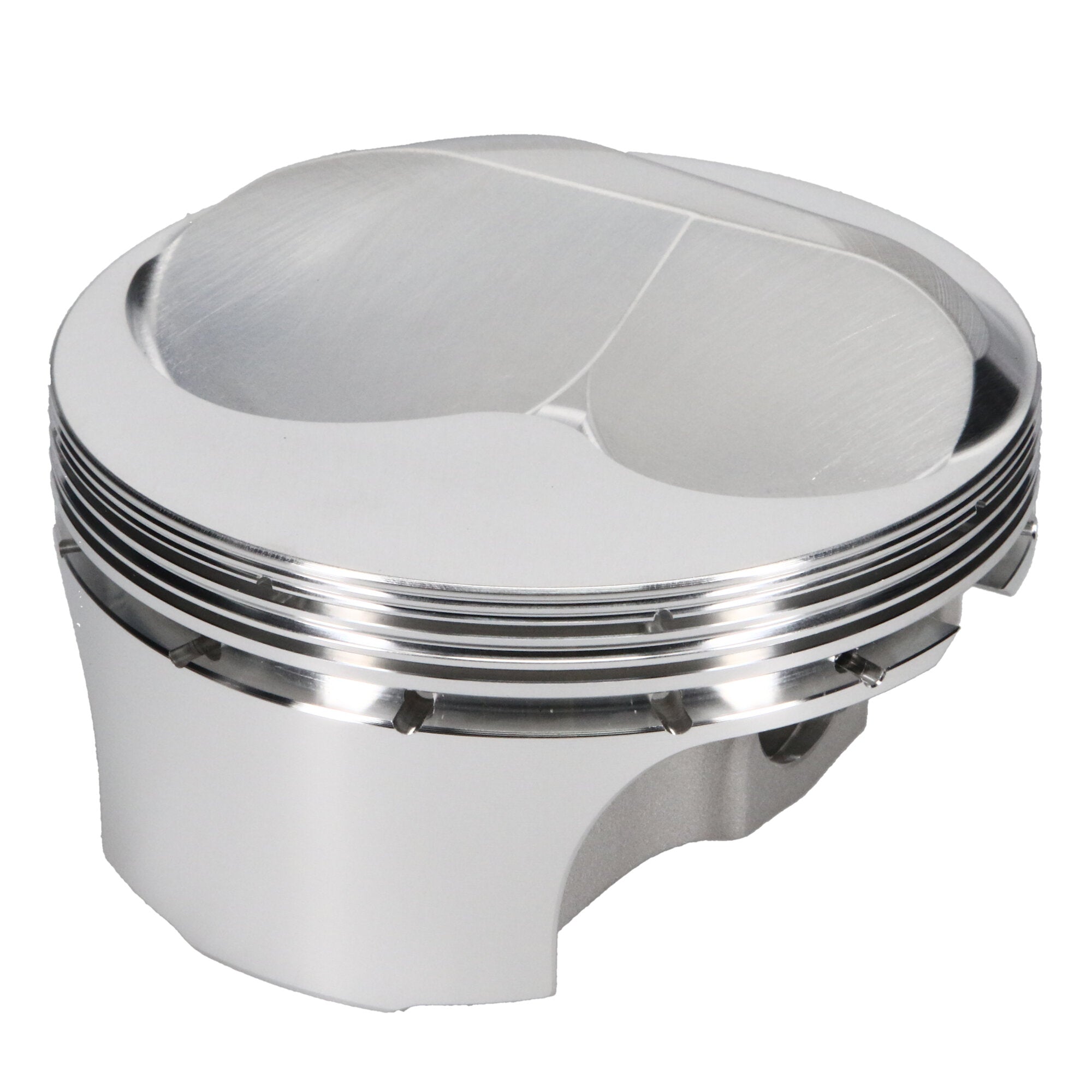

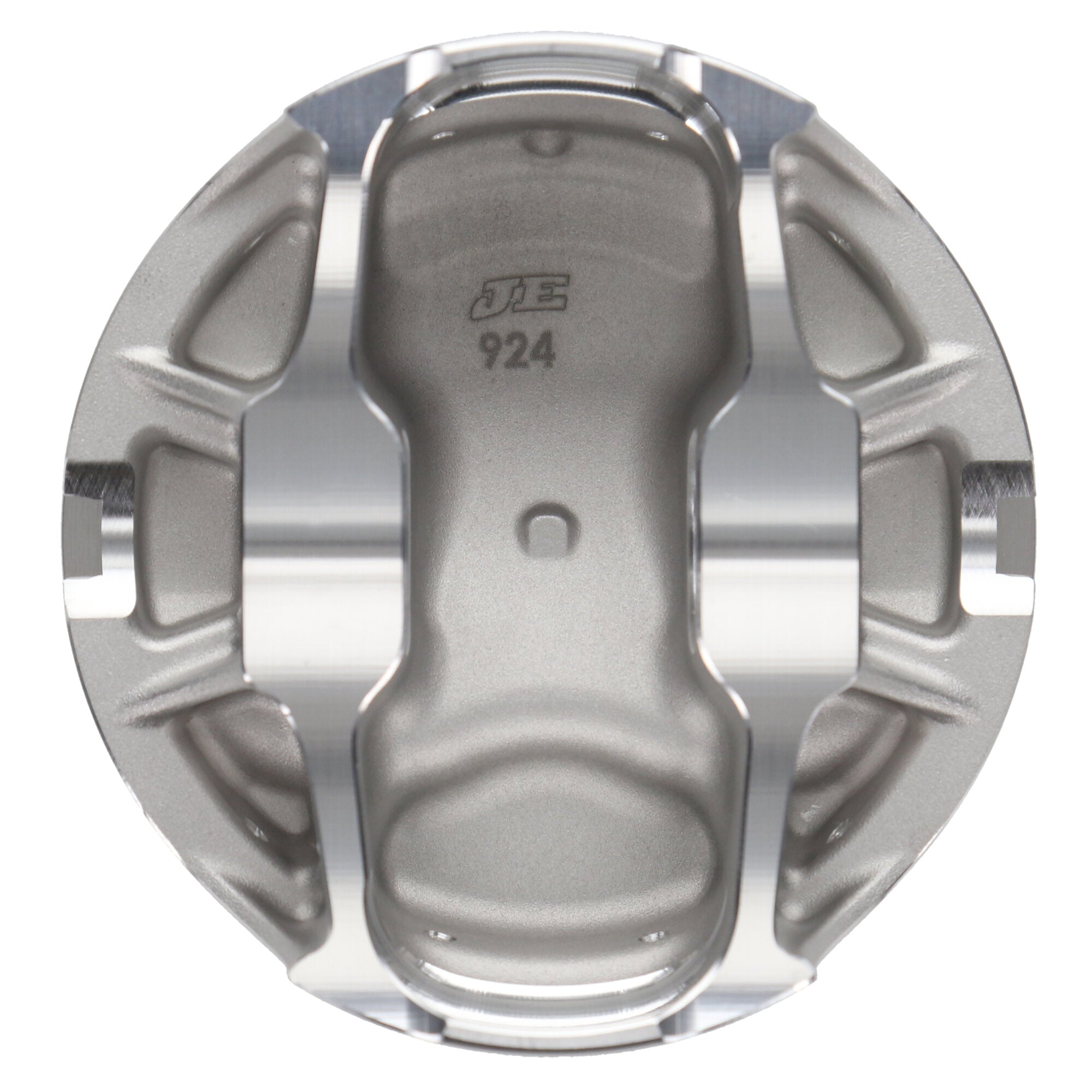

Piston Set, 2618, Dome, 4.060 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.060 in. Bore, 1.125 CD, Dome, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.060 Bore, Dome, Set of 8 |
| Top Compression Ring Thickness |
0.0435 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Prop 65 (C, R or CR) |
CR |
| Bore Diameter |
4.060 |
| Piston Volume |
11.00 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.060 in. Bore - 1.125 in. CH, 11.00 CC |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Add-On |
927-073-MW |
| Industry |
Automotive |
| Add-On |
J714F8-4060-5 |
| Add-On |
927-2250-17-51C |
| Piston Average Weight |
432 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Piston Quantity |
8 |
| Prop 65 Yes/No |
Yes |
| Product Type |
Engine Piston Kit |
| Second Compression Ring Thickness |
0.0440 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Make |
CHEVROLET |
| Piston Series |
JE Pistons |
| Piston Pin Length |
2.250 |
| Engine Type |
ICE |
| Engine |
Small Block |
| Ringset Included |
No |
| Piston Pin Outside Diameter |
0.927 |
| Piston Head Type |
Dome |
| Forging Type |
FSR |
| Compression Height |
1.125 |
| Oil Ring Thickness |
0.119 |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.170 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.170 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.060 in. Bore, Piston Kit |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
