As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Cosworth YB |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

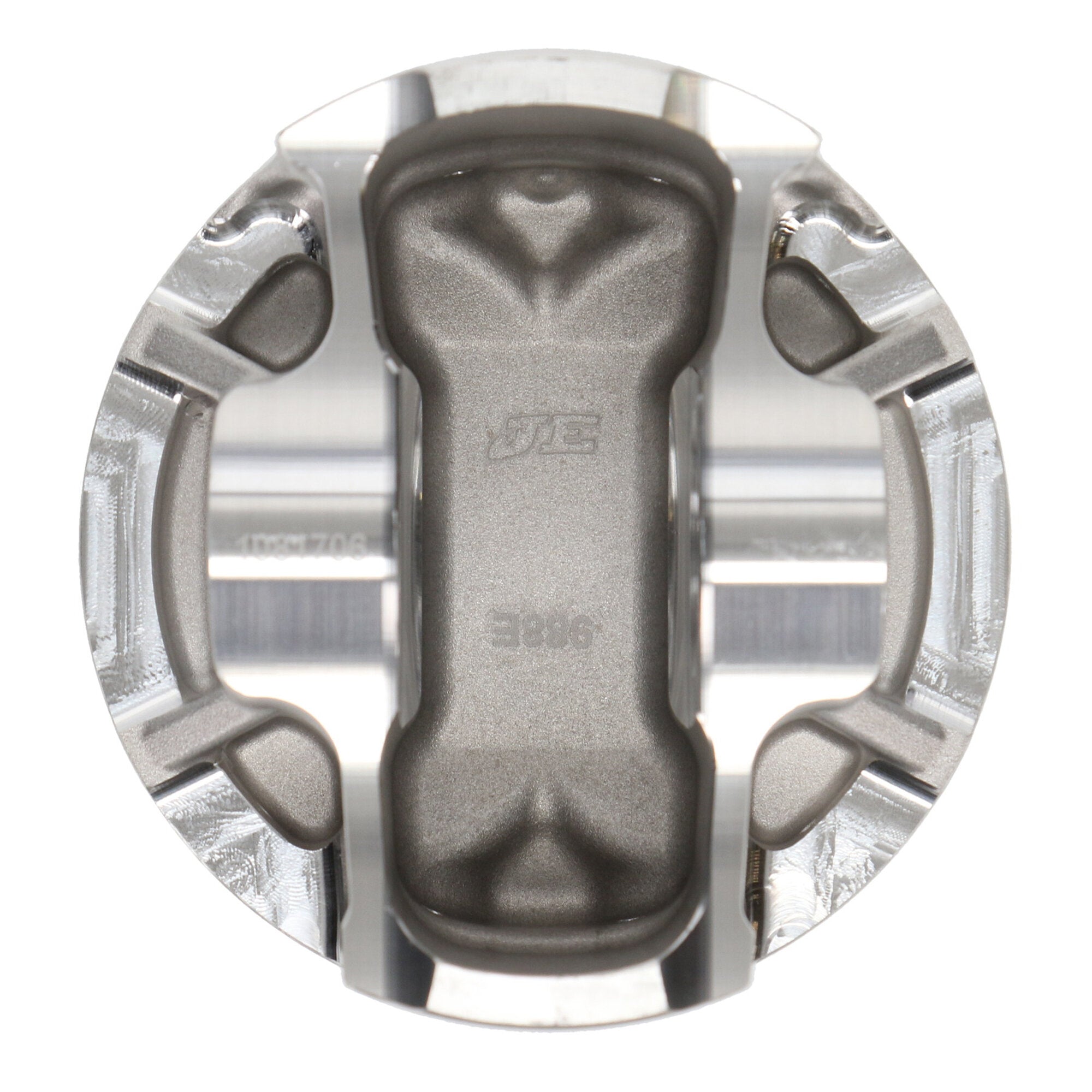

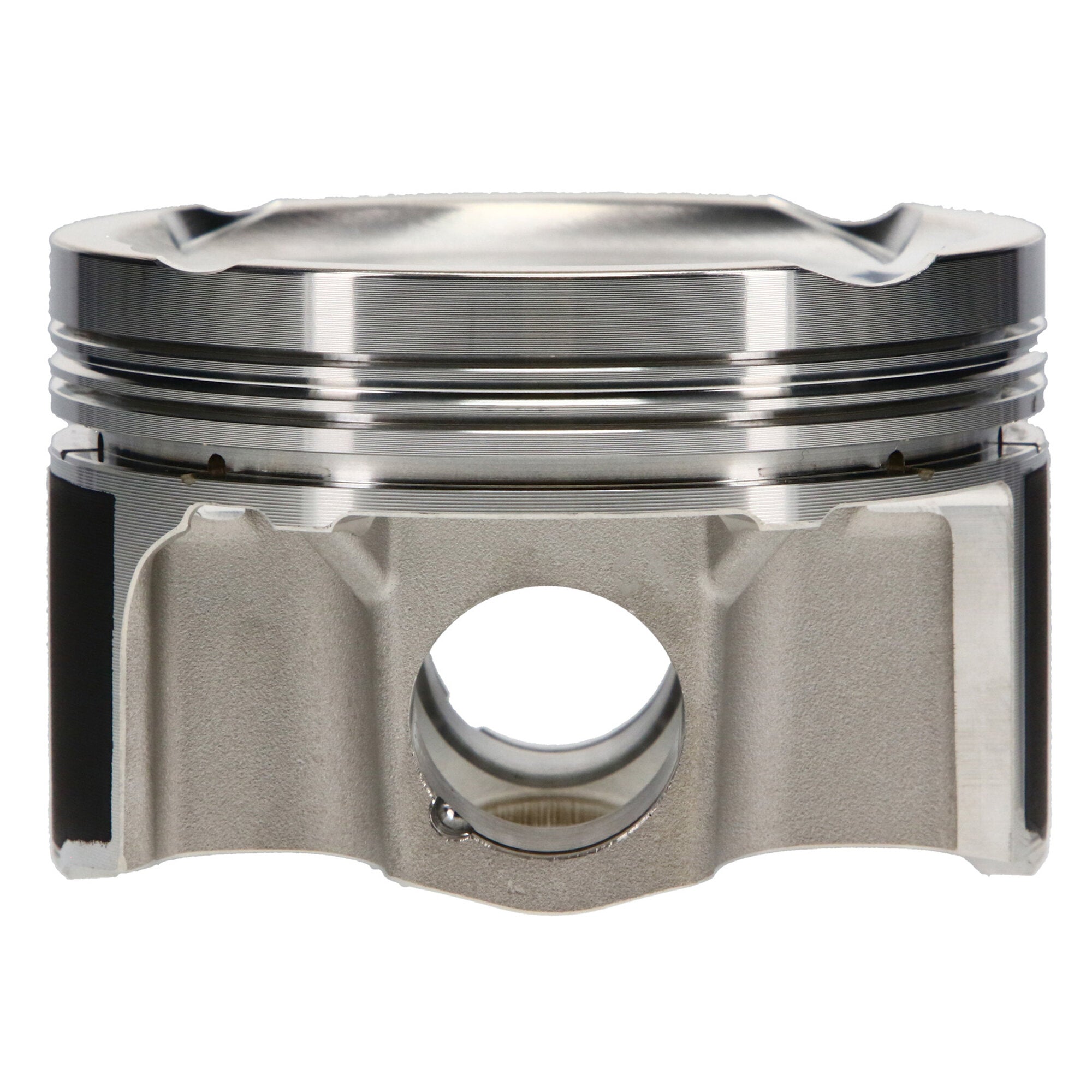

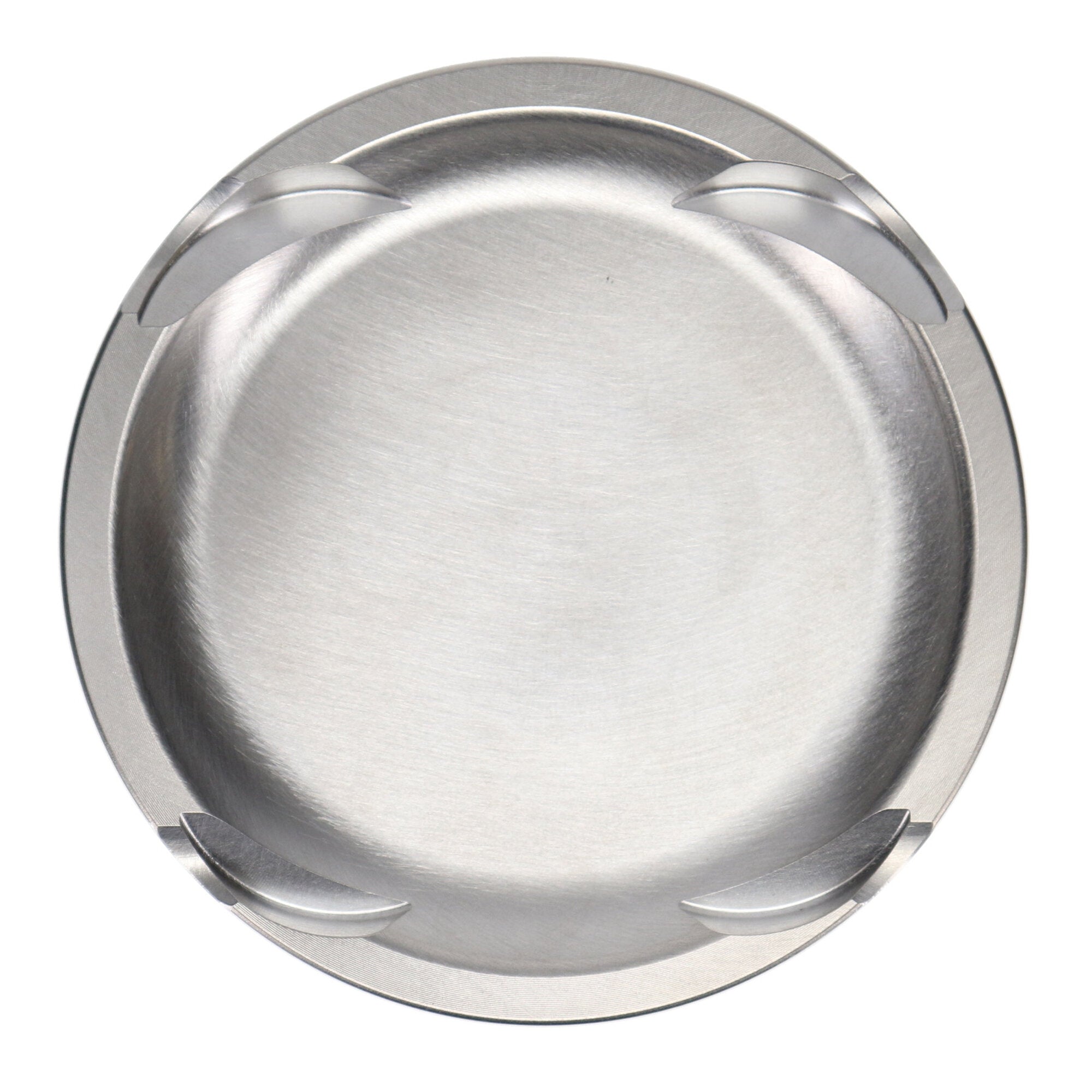

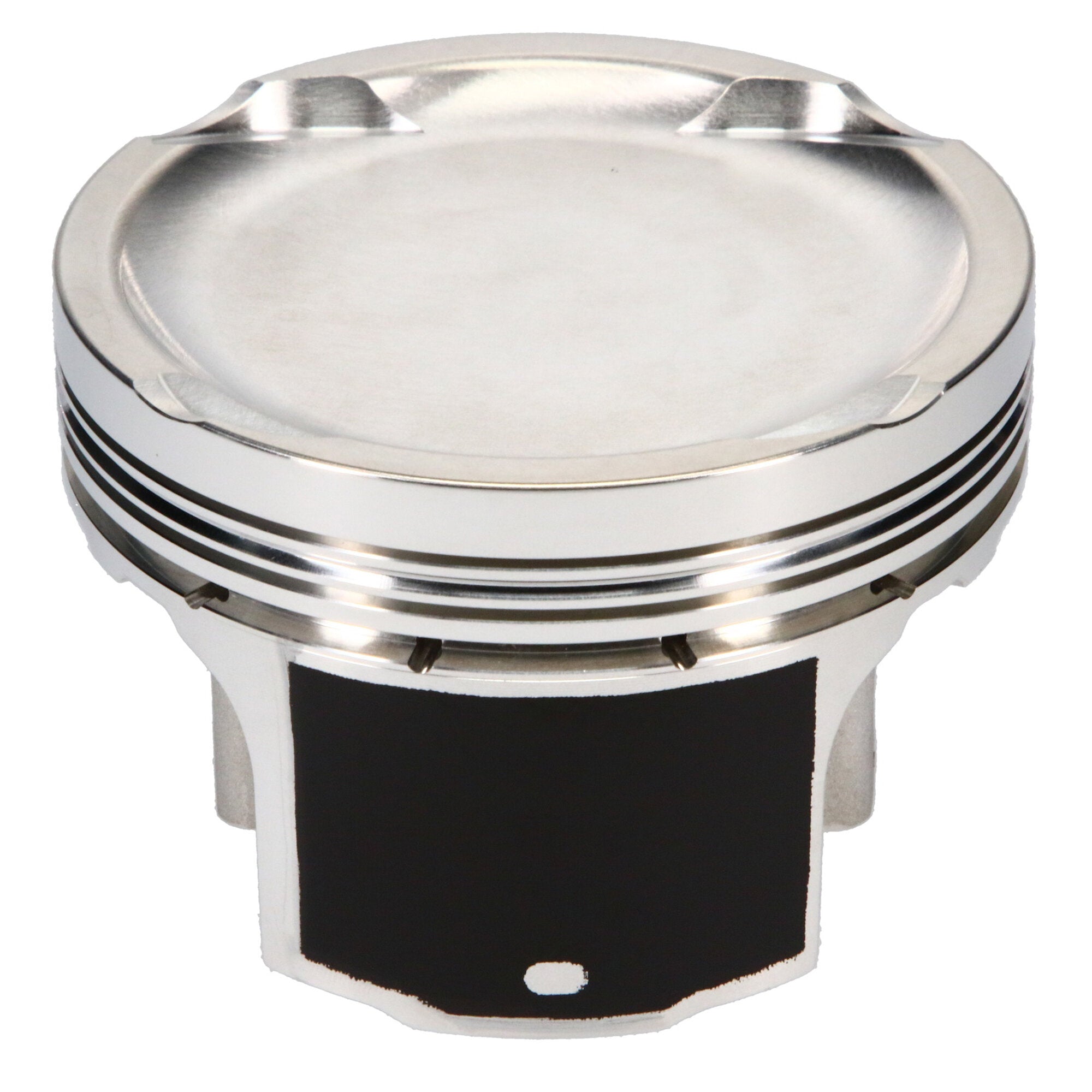

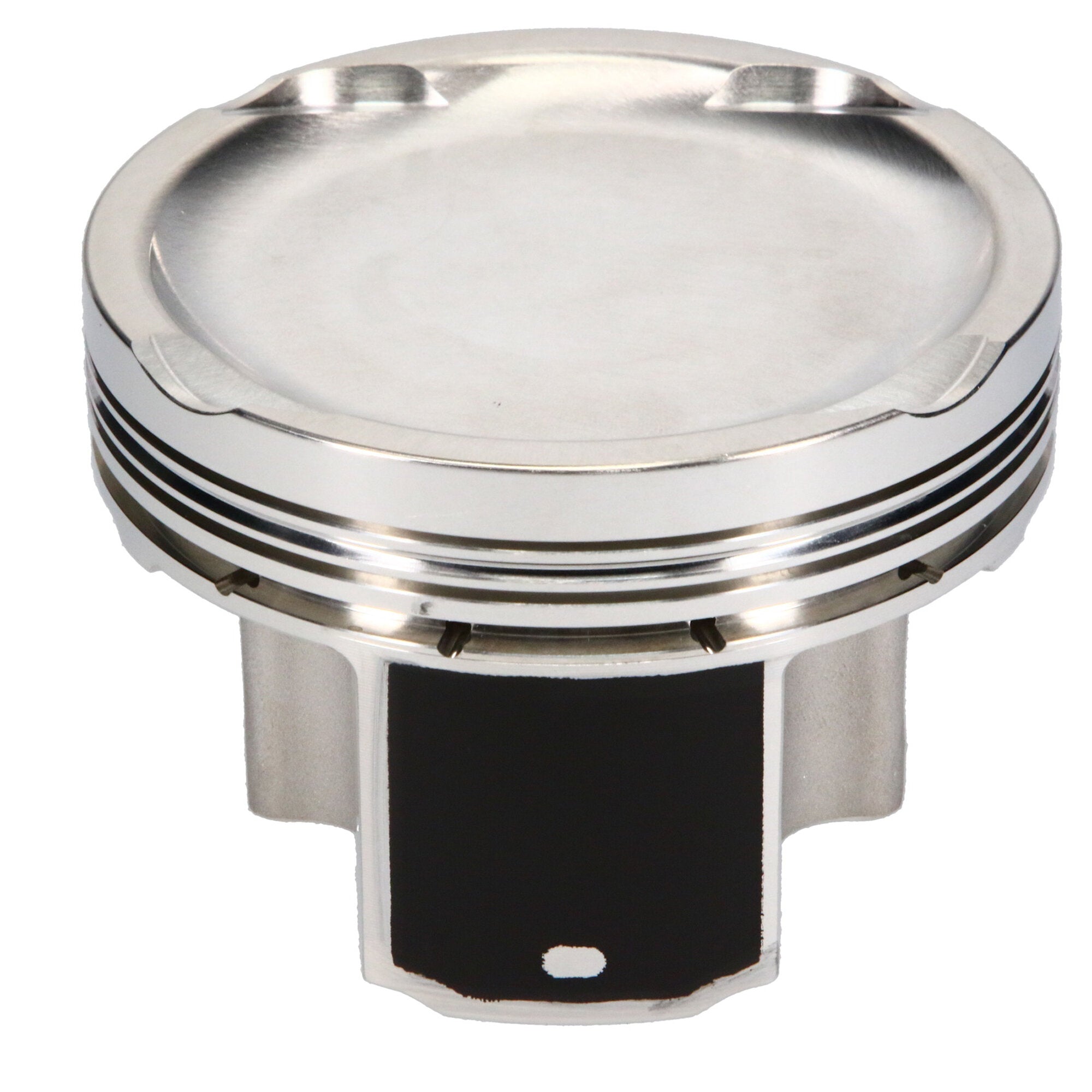

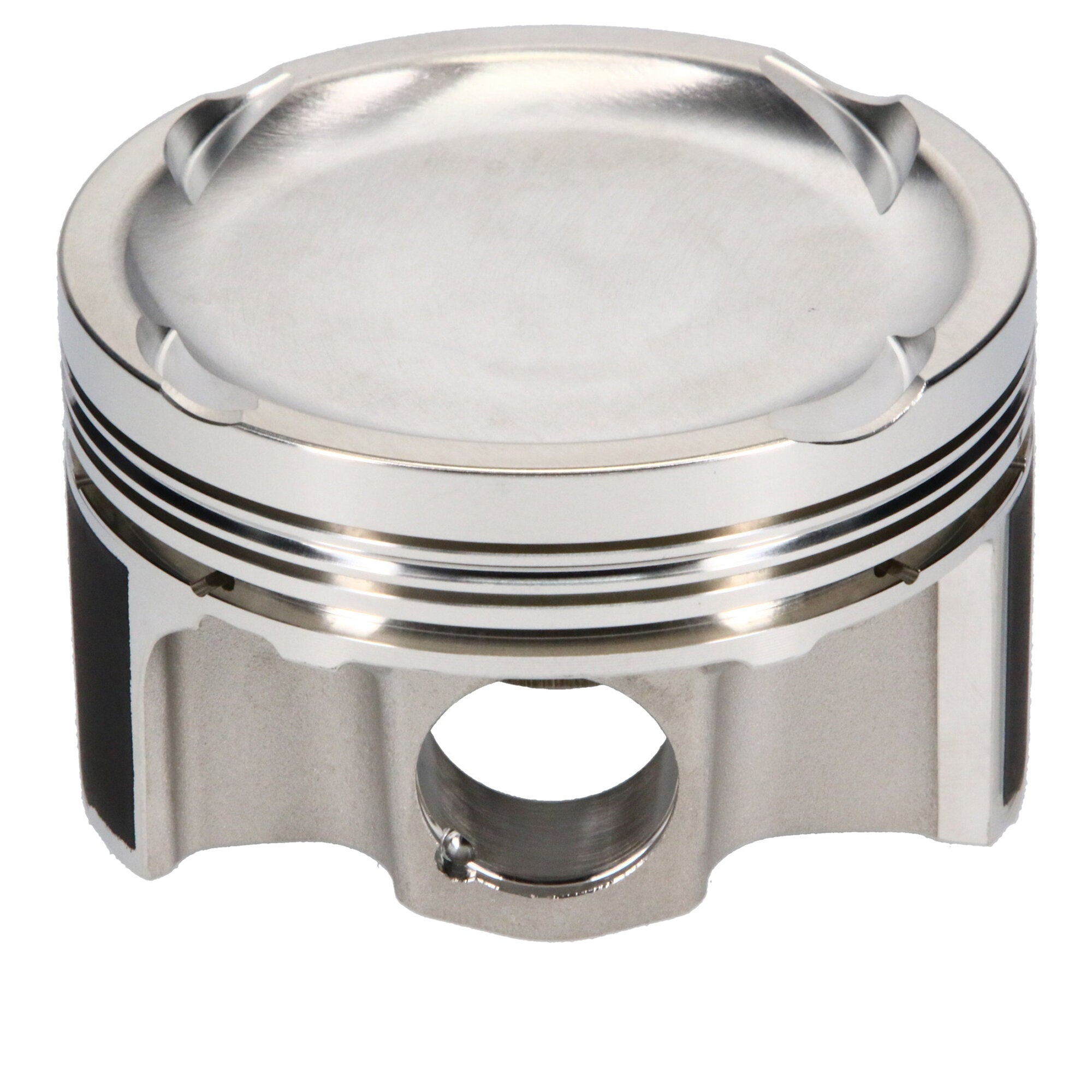

Piston Set, 2618, Inv Dome/Dish, 3.622 Bore, 1.604 CD, 0.945 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, YB Cosworth, 3.622 in. Bore, 8.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford Cosworth YB, 92.00 Bore, Dish, Set of 4 |
| Piston Pin Outside Diameter |
0.945 |
| Wrist Pin Outer Diameter |
0.945 |
| Piston Head Type |
Dish |
| Make |
FORD |
| Piston Series |
JE Pistons |
| Compression Height |
1.604 |
| Oil Ring Thickness |
0.111 |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Engine |
YB COSWORTH |
| Ringset Included |
Yes |
| Title |
JE Pistons - Ford, YB Cosworth, 92.00 mm Bore, Piston Kit |
| Piston Pin Length |
2.250 |
| Engine - Web |
YB Cosworth |
| Add-On |
945-073-MW |
| Cylinder Head |
COSWORTH |
| Piston Average Weight |
387 |
| Add-On |
JG1001-3622 |
| Product Market |
Sport Compact |
| Title - Web |
JE Pistons Ford YB Cosworth Piston Kit - 92.00 mm Bore - 1.604 in. CH, -20.00 CC |
| Industry |
Automotive |
| Bore Diameter |
92.00 |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Add-On |
945-2250-15-51C |
| Piston Quantity |
4 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Volume |
-20.00 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Material |
2618 |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Ford |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
6.0000 |
