As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
BMW M3 Base United States S14B23 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

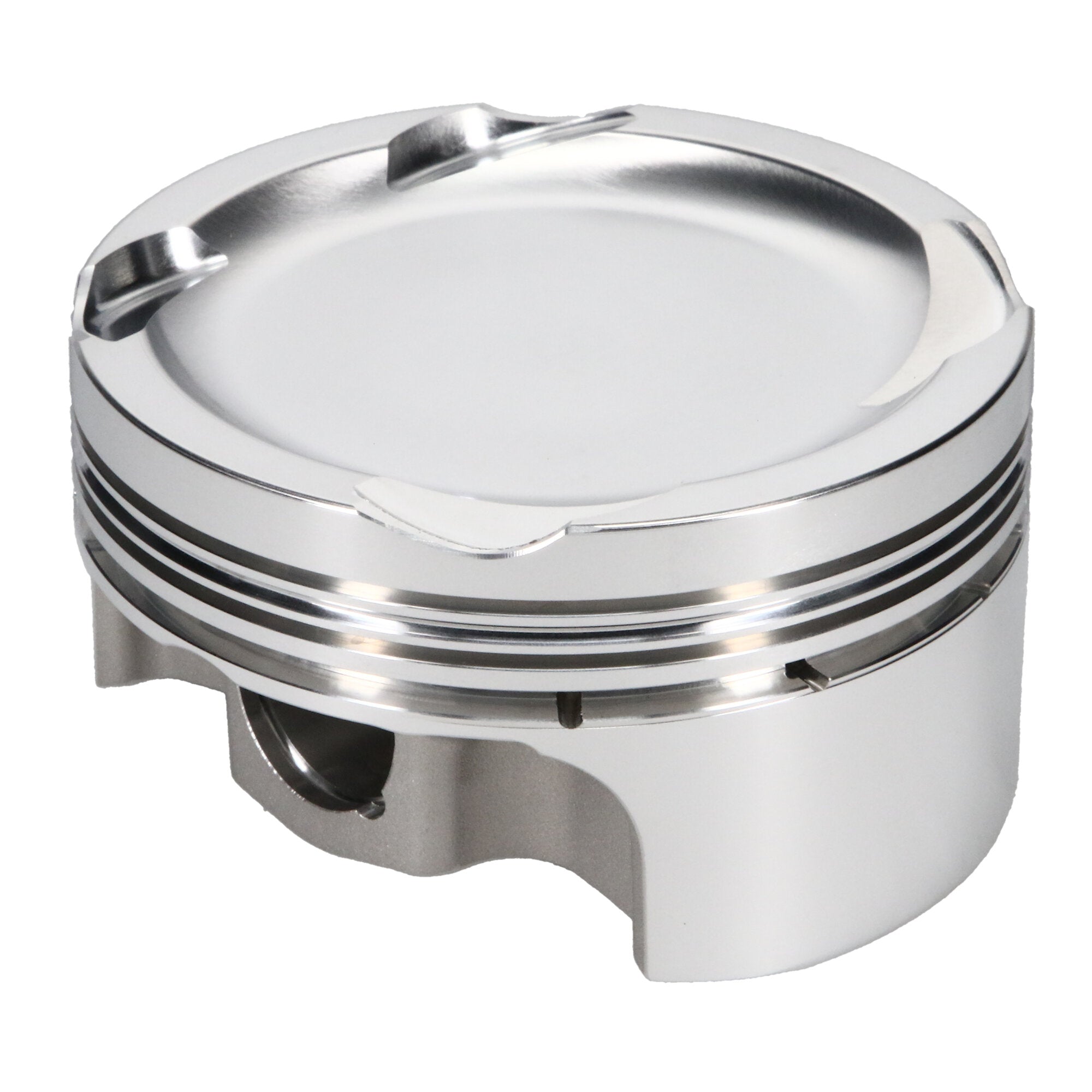

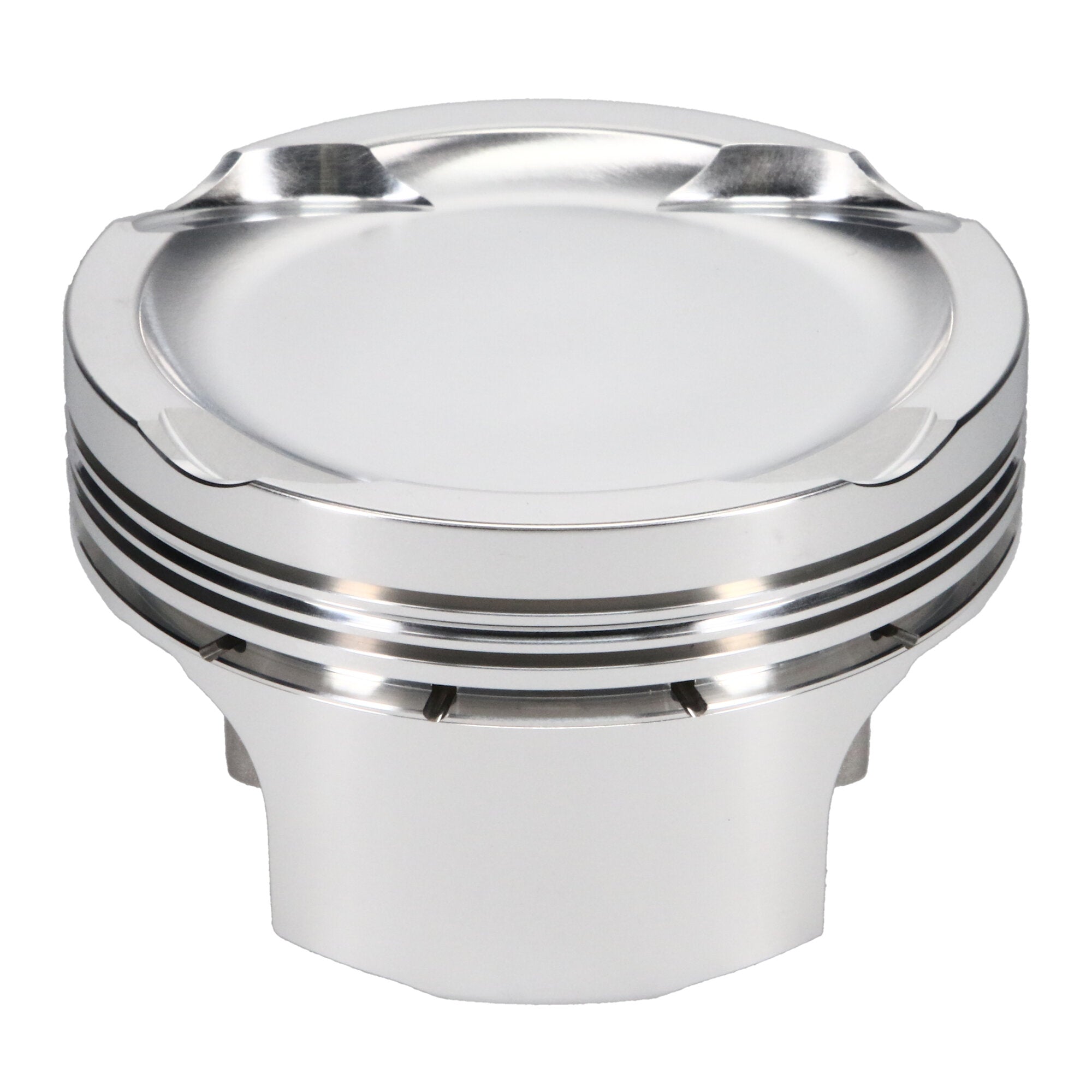

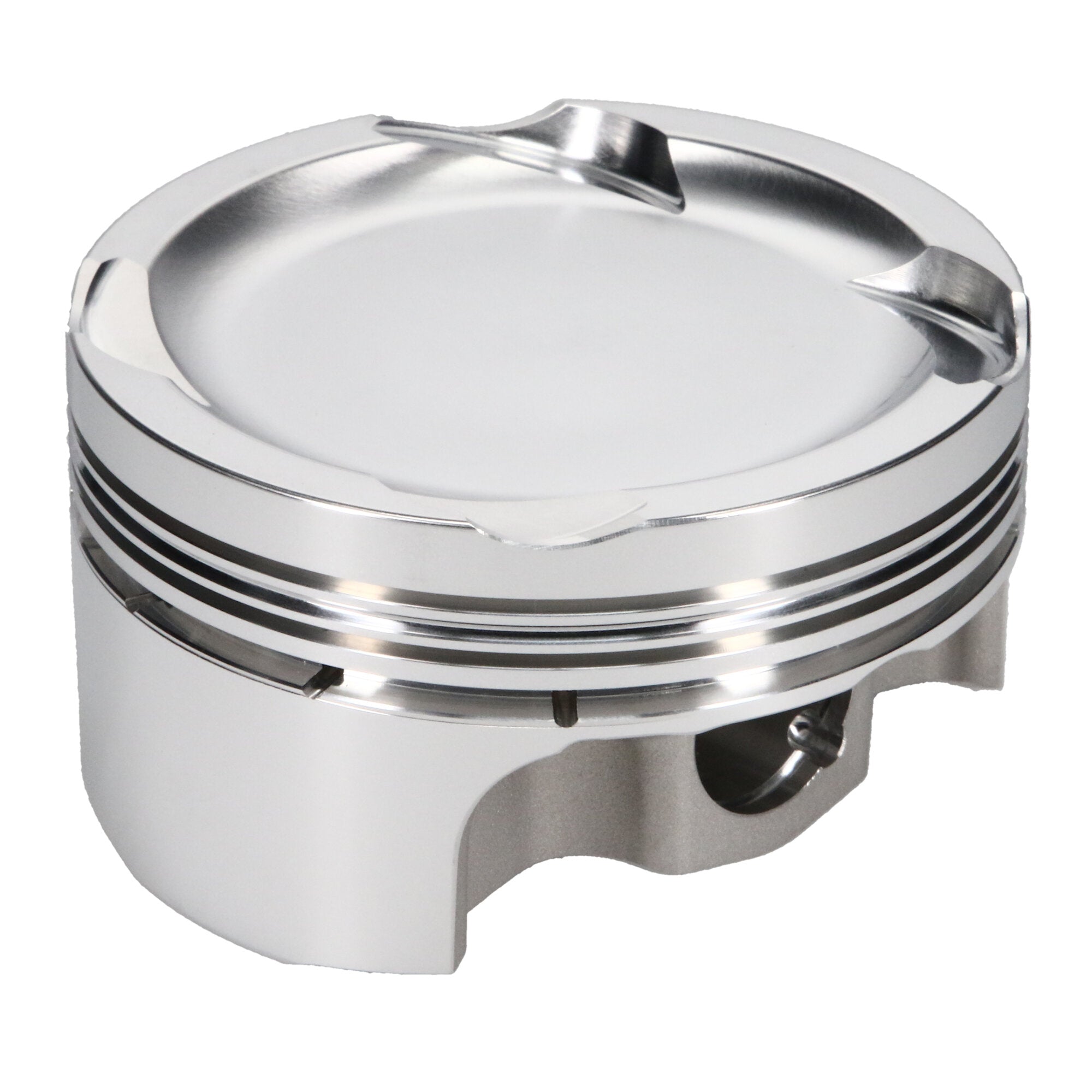

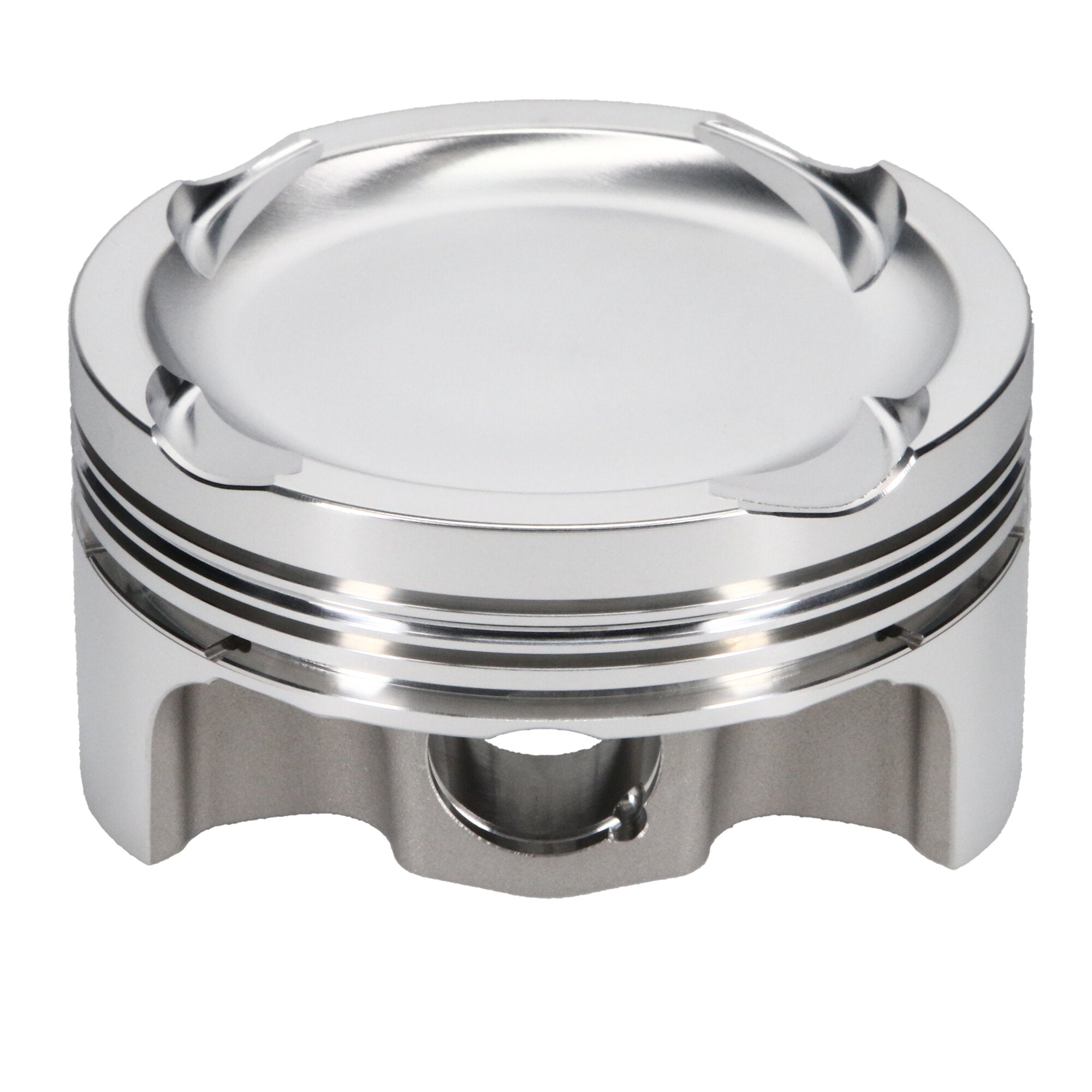

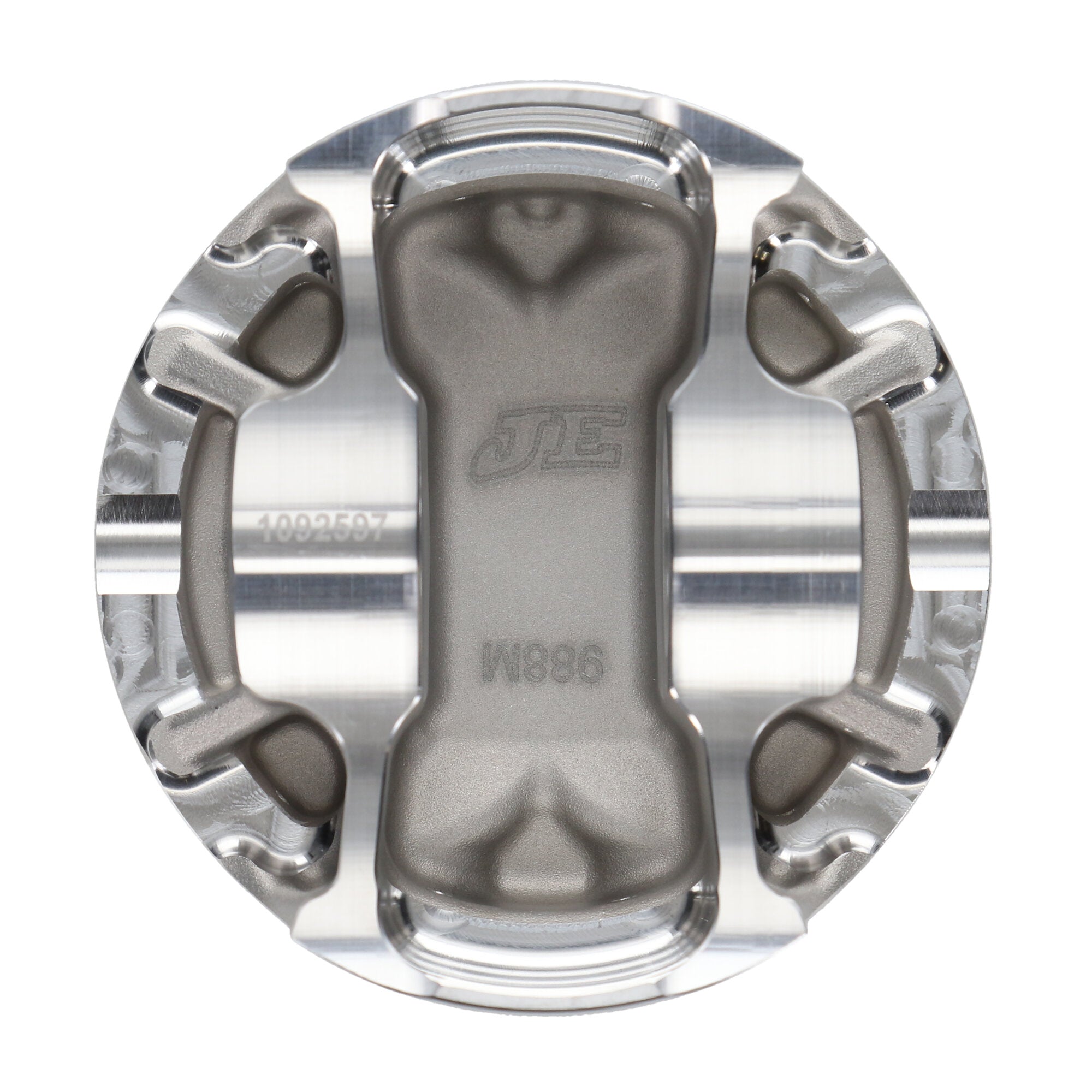

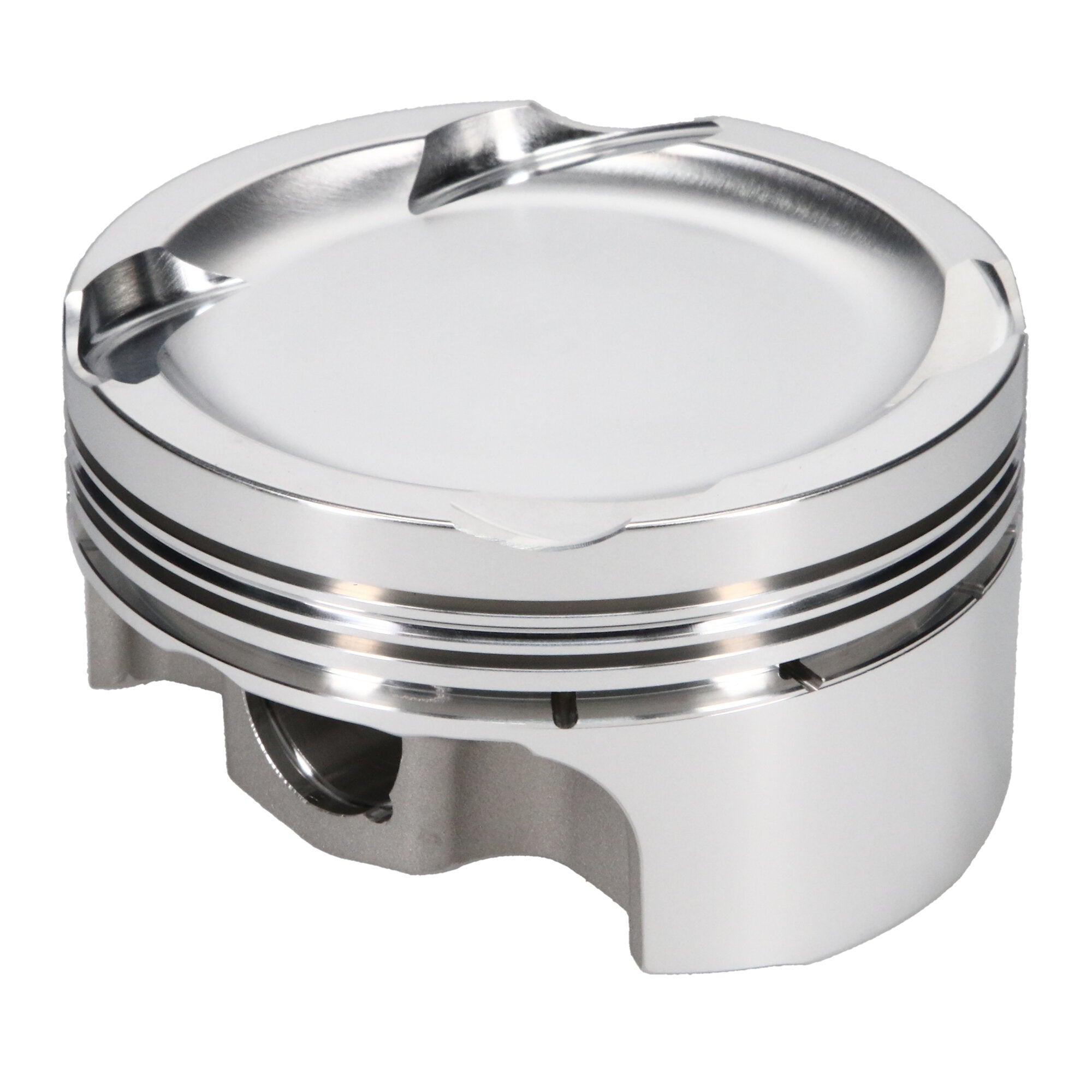

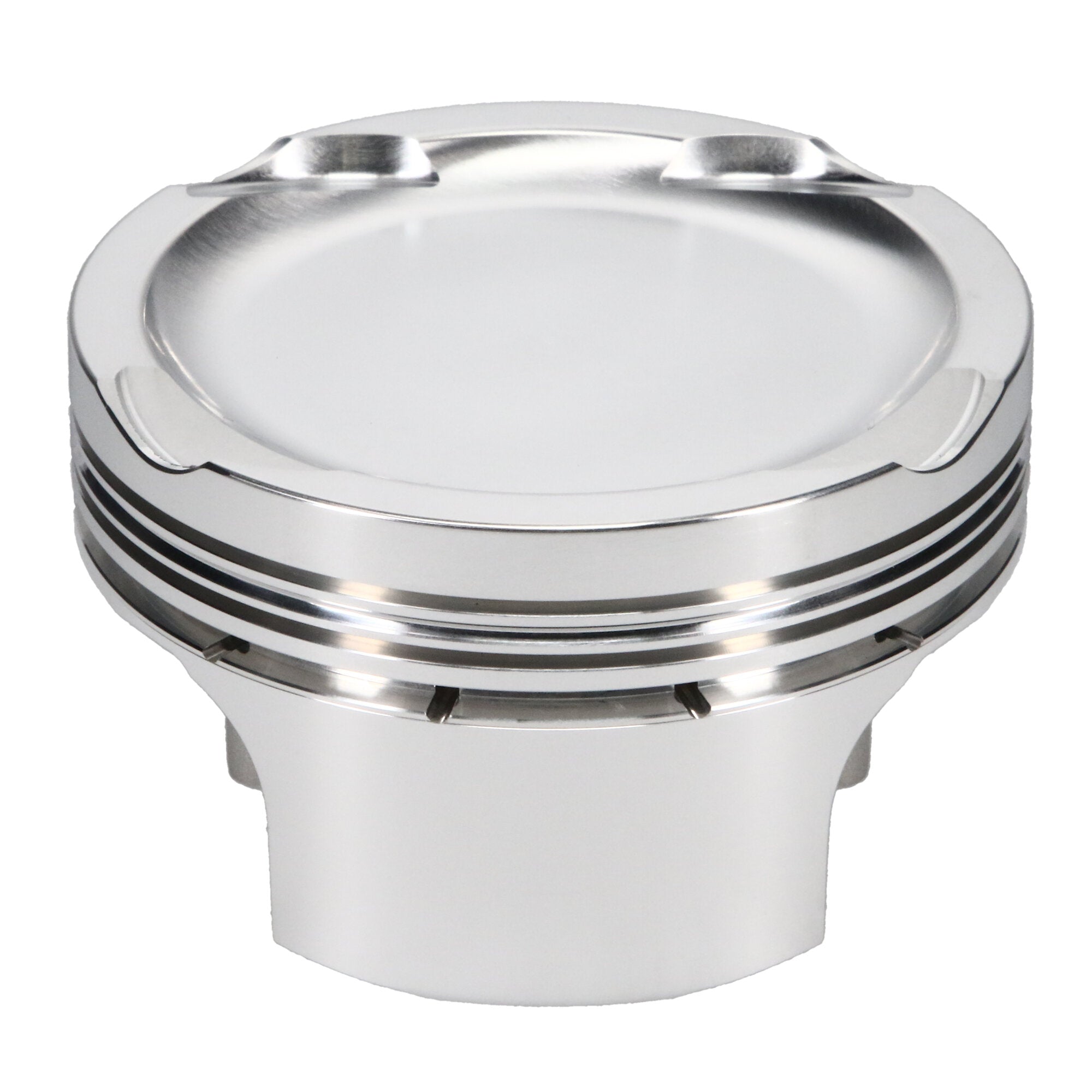

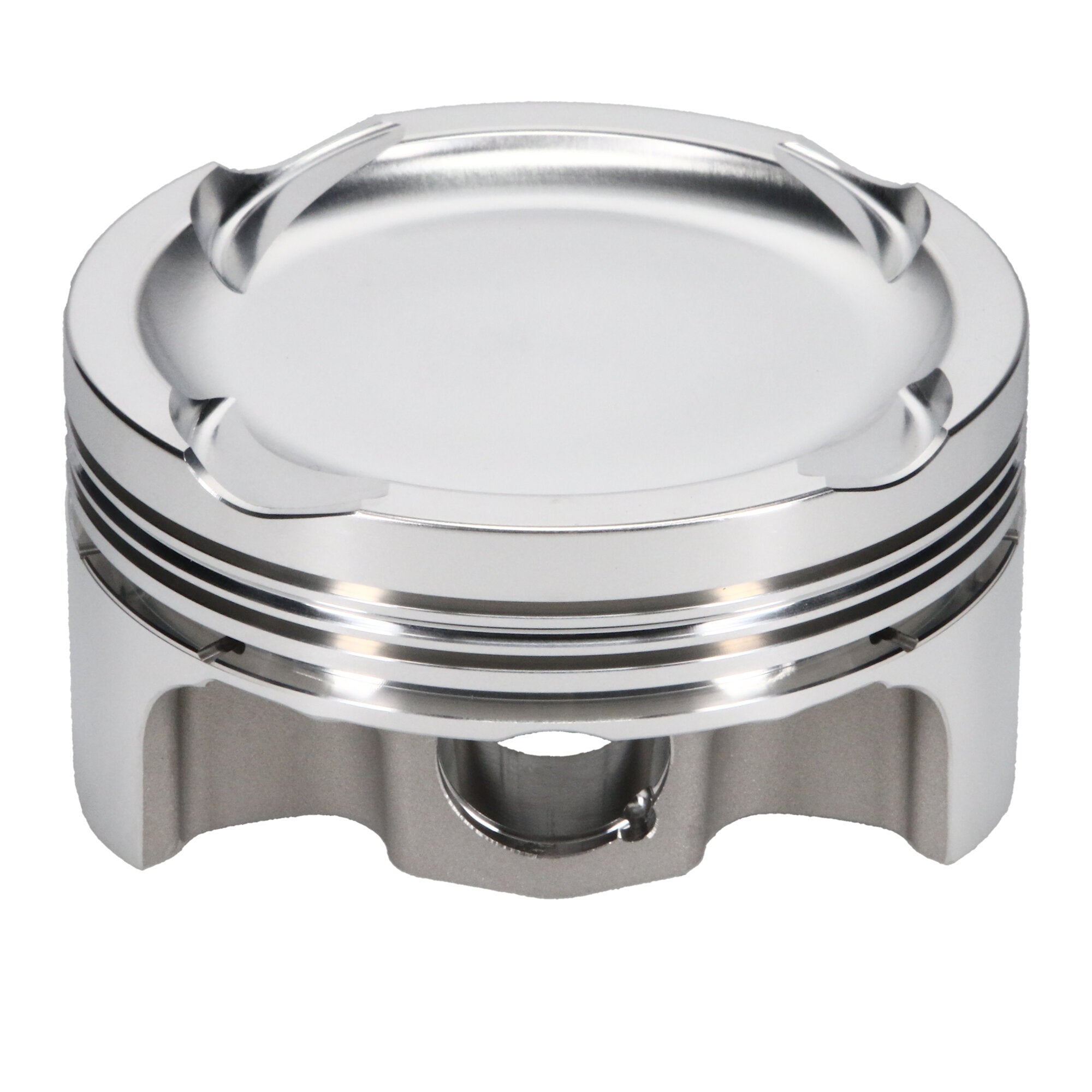

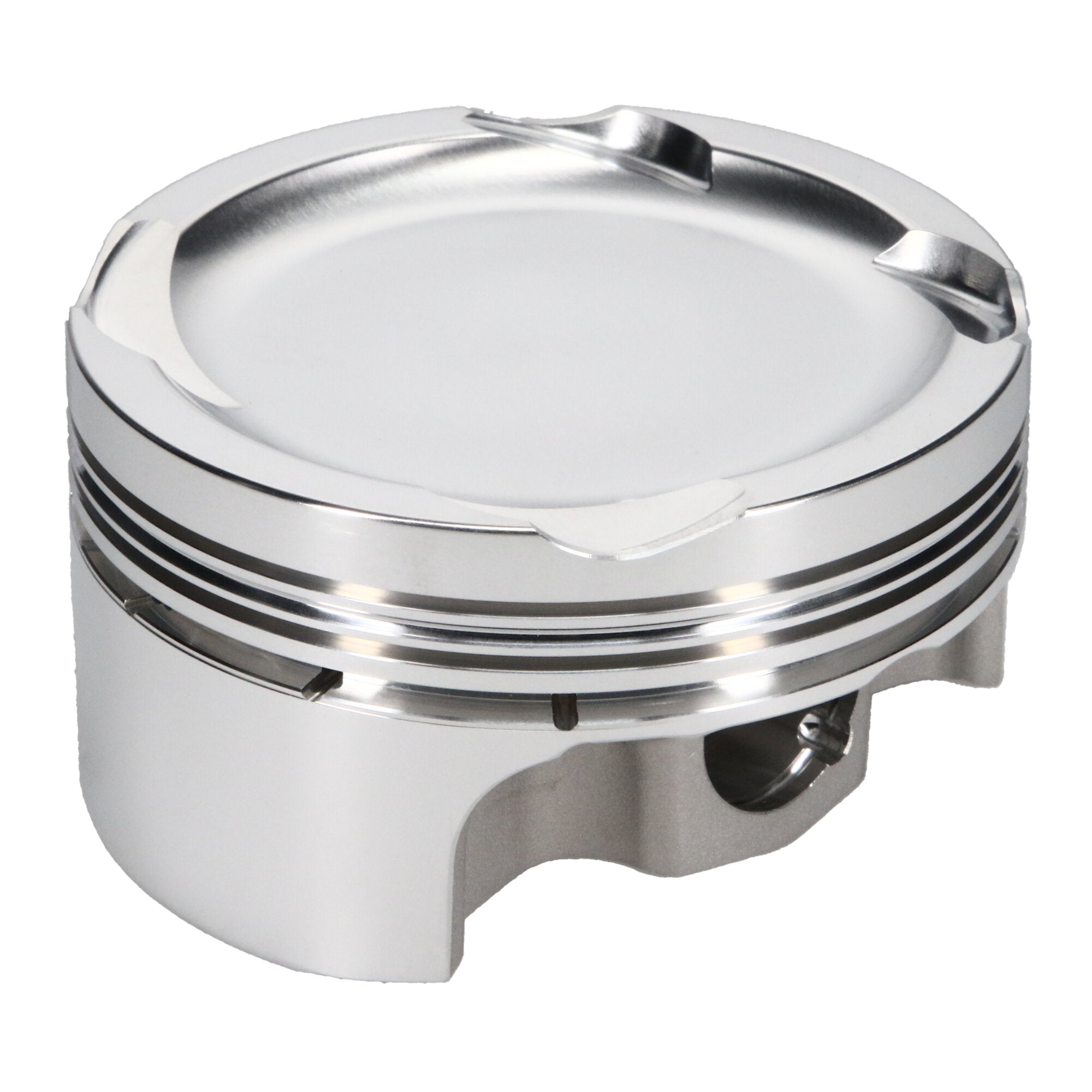

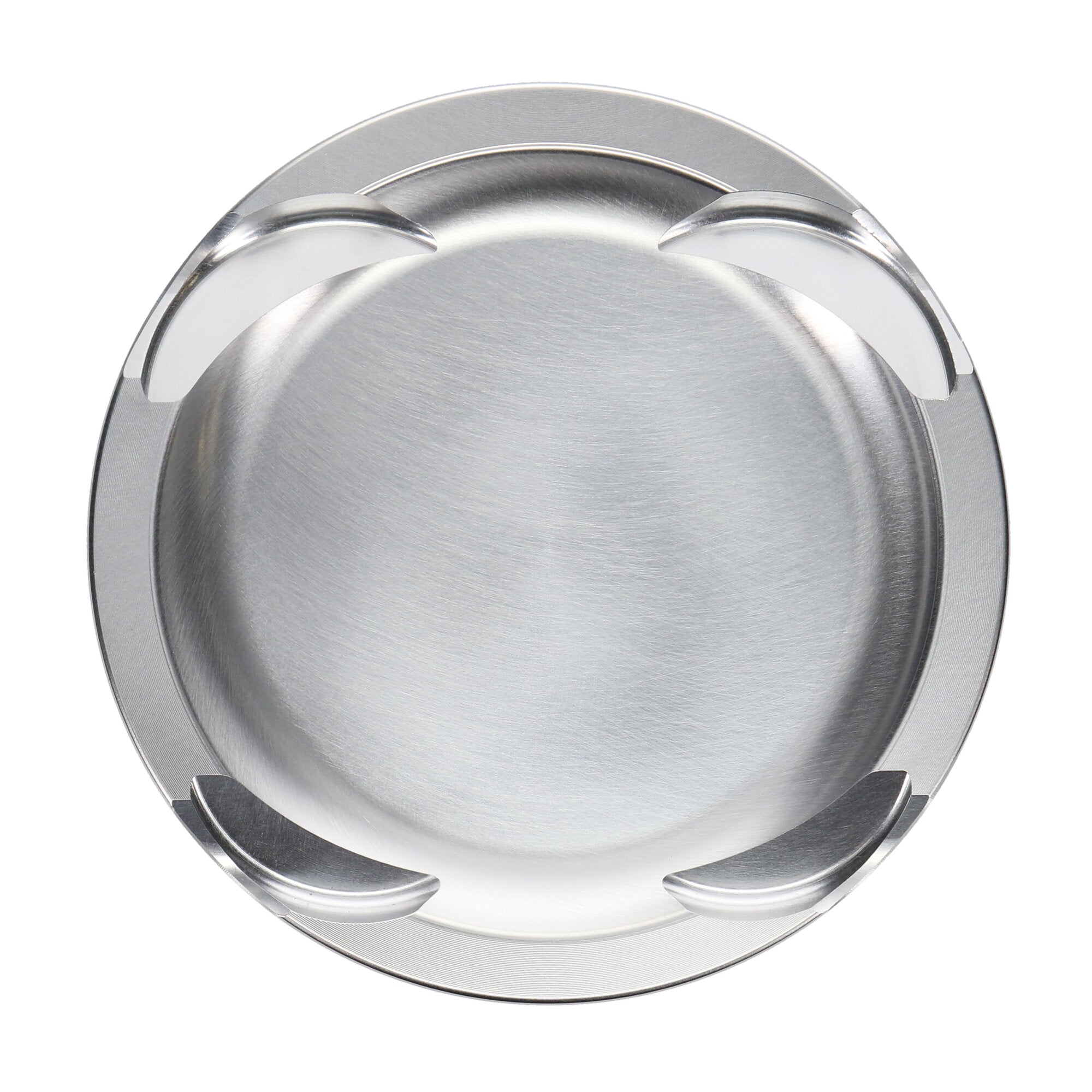

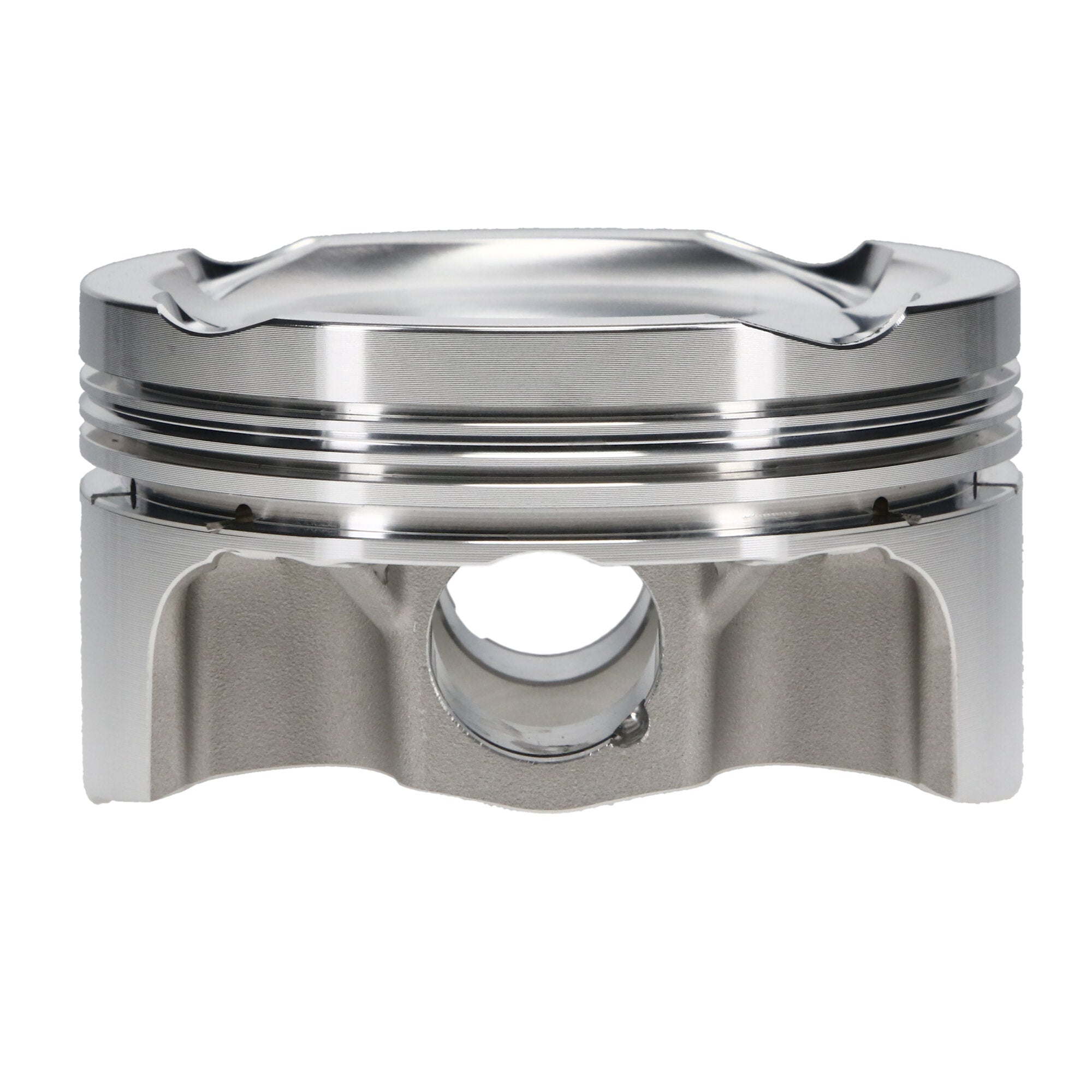

Piston Set, 2618, Dome, 3.685 Bore, 1.260 CD, 0.866 Pin, Set of 4. |
| Description_EXT |
JE, BMW, S14B23, 3.685 in. Bore, 13.00:1, Dome, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
BMW S14, 93.60 Bore, Dome, Set of 4 |
| Product Market |
European |
| Top Compression Ring Thickness |
0.0600 |
| Wrist Pin Wall Thickness |
0.150 |
| Bore Diameter |
93.60 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Average Weight |
407 |
| Piston Material |
2618 |
| Compression Height |
1.260 |
| Wrist Pin Outer Diameter |
0.866 |
| Engine - Web |
S14B23 |
| Cylinder Head |
BMW S14B23 |
| Piston Quantity |
4 |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - BMW, S14B23, 93.60 mm Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Make |
BMW |
| Add-On |
J60008-3691 |
| Product Type |
Engine Piston Kit |
| Add-On |
866-063-MW |
| Piston Volume |
5.80 |
| Second Compression Ring Thickness |
0.0600 |
| Add-On |
866-2250-15-51C |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons BMW S14B23 Piston Kit - 93.60 mm Bore - 1.260 in. CH, 5.80 CC |
| Prop 65 Yes/No |
Yes |
| Piston Pin Outside Diameter |
0.866 |
| Industry |
Automotive |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
BMW |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Out of Stock Message |
Call for Availability |
| Piston Head Type |
Dome |
| Oil Ring Thickness |
0.119 |
| Ringset Included |
Yes |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Engine |
S14B23 |
| Engine Type |
ICE |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
7.0000 |
