As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan KA24DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

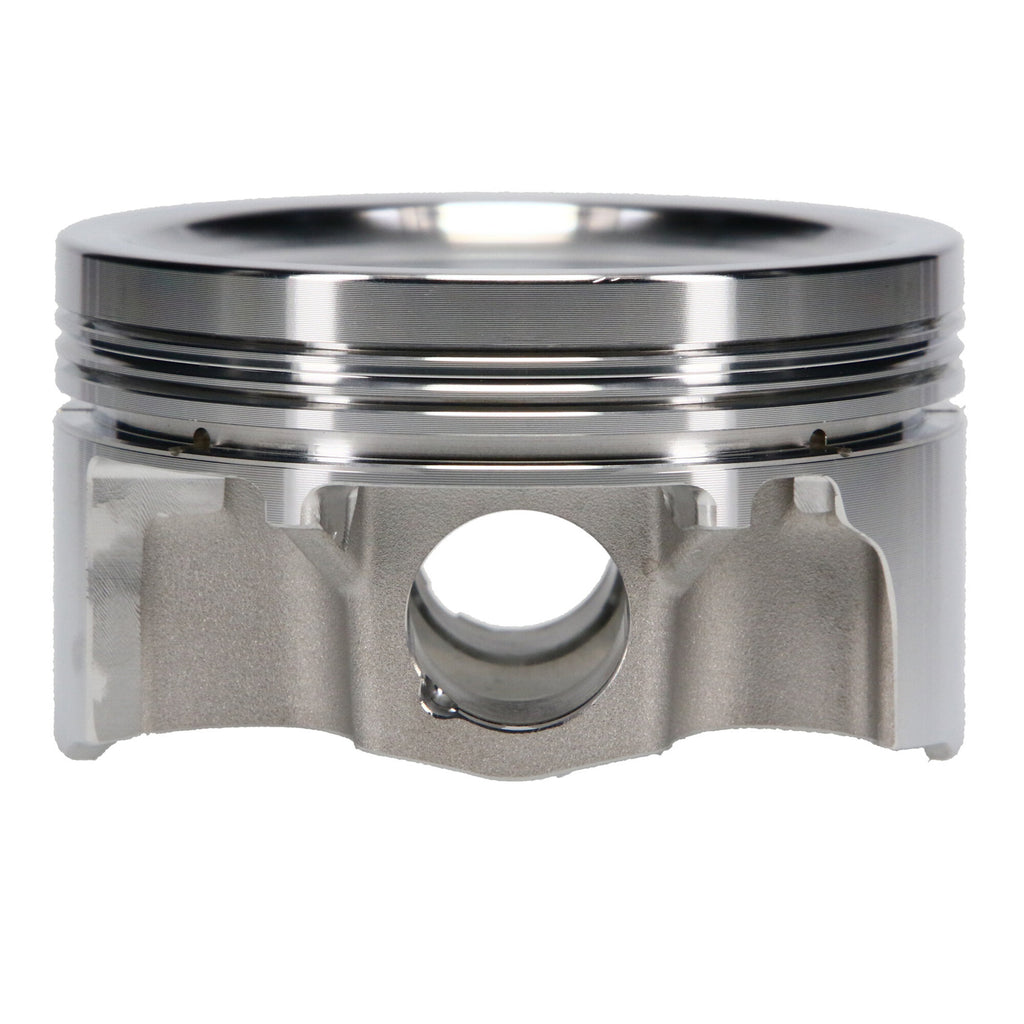

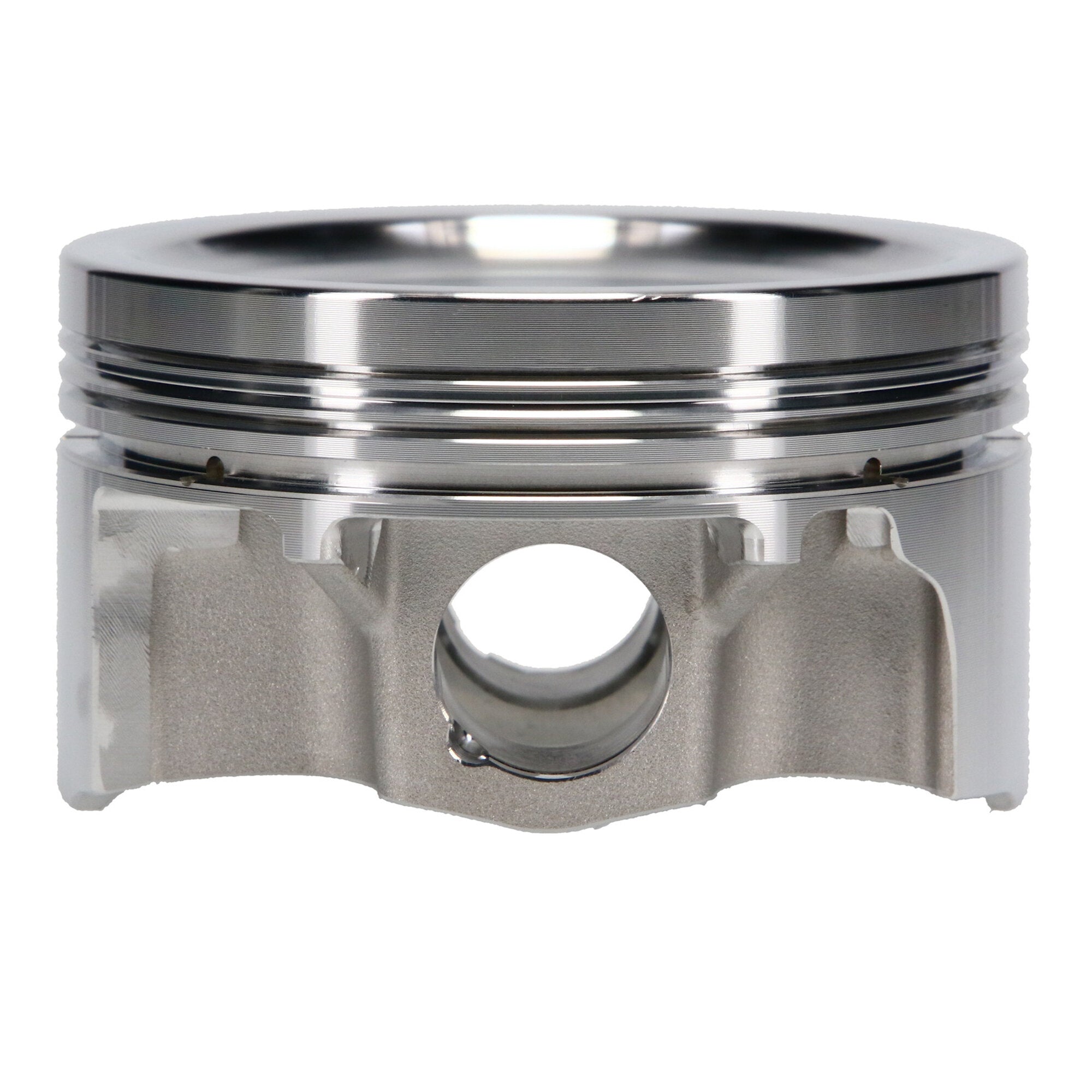

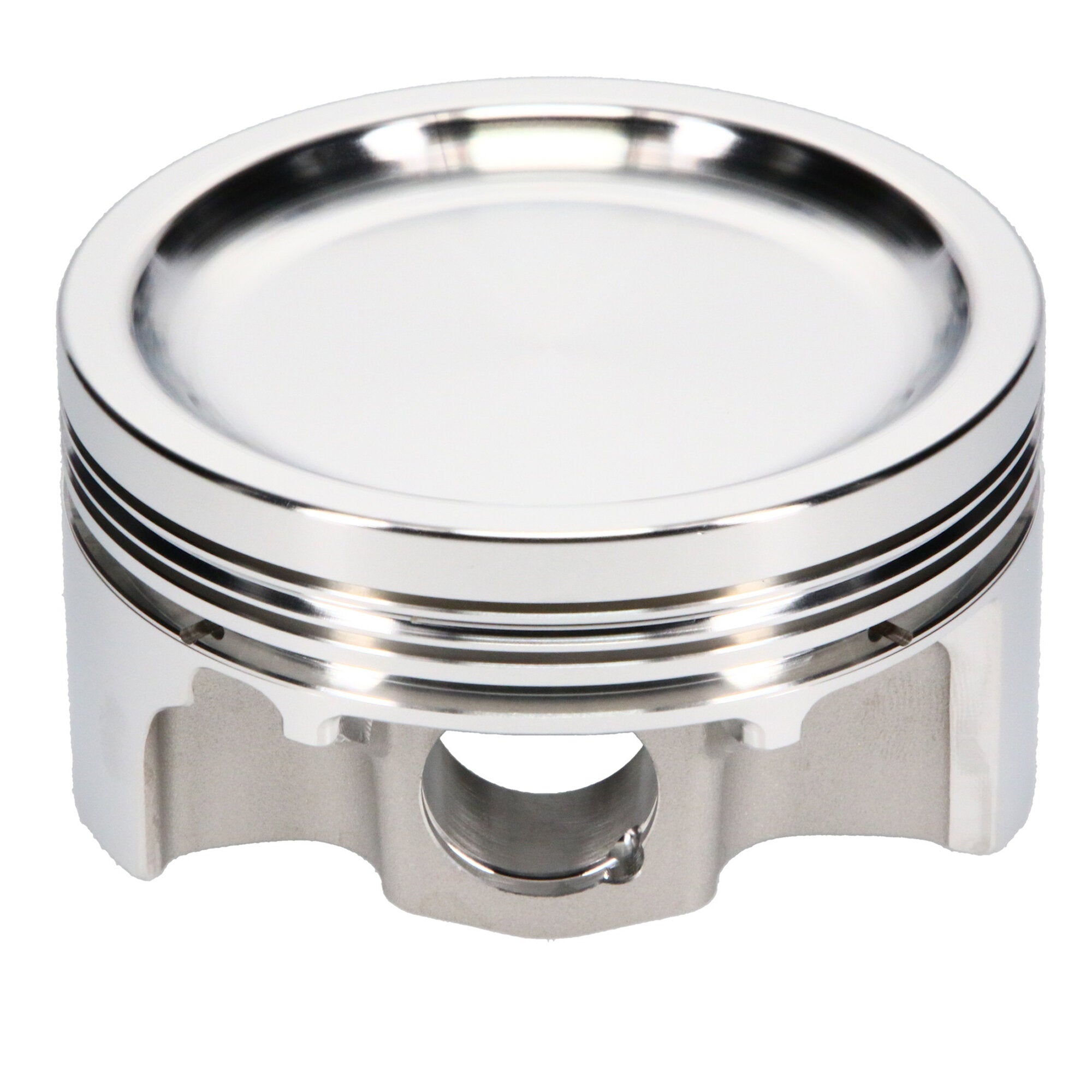

Piston Set, 2618, Inv Dome/Dish, 3.543 Bore, 1.336 CD, 0.827 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Nissan, KA24DE, 3.543 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Nissan KA24DE, 90.00 Bore, Dish, Set of 4 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Make |
NISSAN |
| Ring Set Included |
Yes |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Top Compression Ring Thickness |
0.0400 |
| Oil Ring Thickness |
0.111 |
| Product Market |
Sport Compact |
| Piston Volume |
-23.30 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Outside Diameter |
0.827 |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Engine - Web |
KA24DE |
| Engine |
KA24DE |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 Yes/No |
Yes |
| Compression Height |
1.336 |
| Out of Stock Message |
Call for Availability |
| Title |
JE Pistons - Nissan, KA24DE, 90.00 mm Bore, Piston Kit |
| Bore Diameter |
90.00 |
| Piston Average Weight |
341 |
| Piston Quantity |
4 |
| Wrist Pin Outer Diameter |
0.827 |
| Piston Material |
2618 |
| Add-On |
827-2250-15-51C |
| Industry |
Automotive |
| Add-On |
827-063-MW |
| Add-On |
JG1001-3543 |
| Title - Web |
JE Pistons Nissan KA24DE Piston Kit - 90.00 mm Bore - 1.336 in. CH, -23.30 CC |
| Ringset Included |
Yes |
| Cylinder Head |
KA24DE |
| Piston Pin Length |
2.250 |
| Make - Web |
Nissan |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
