As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
BMW M3 Base United States S14B23 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

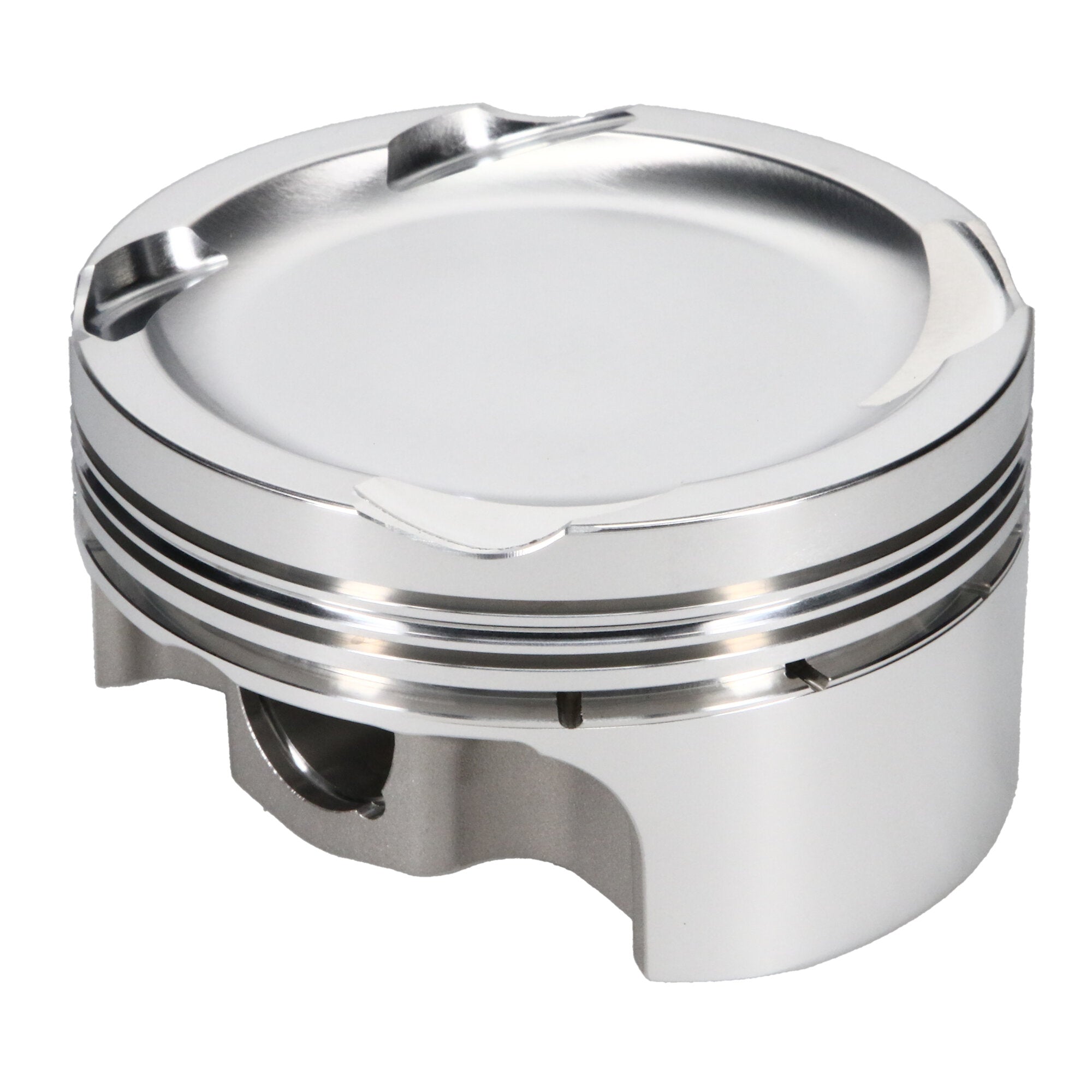

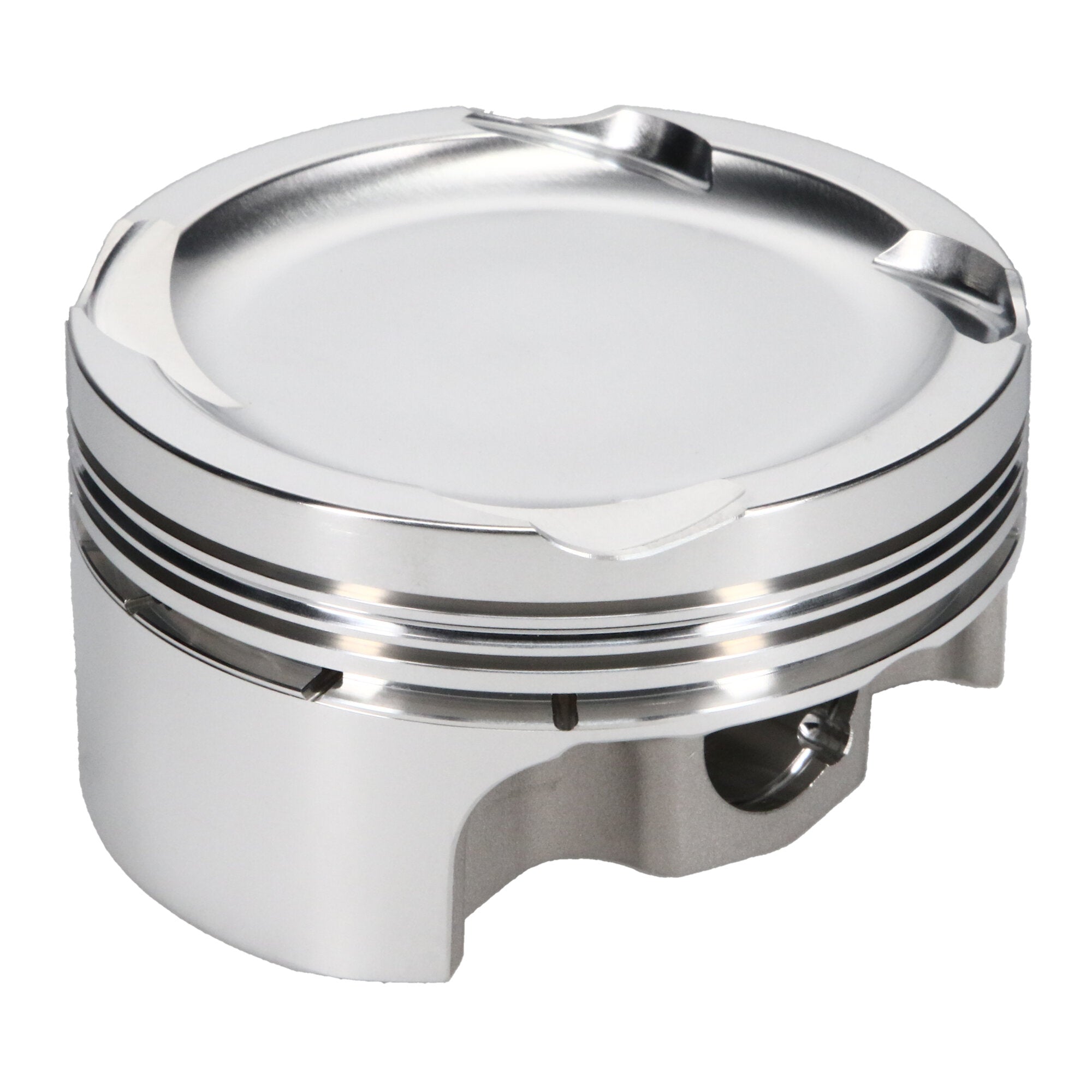

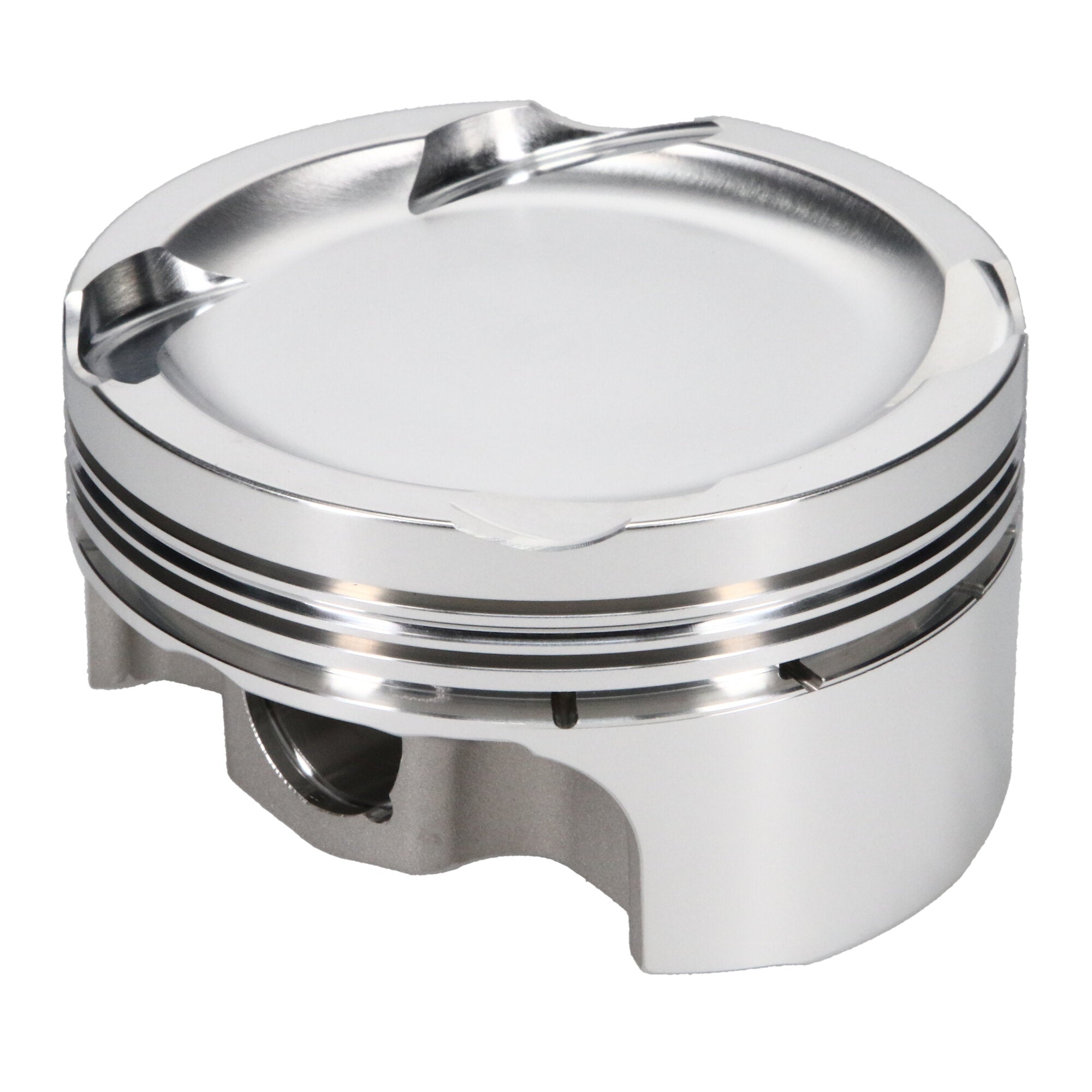

Piston Set, 2618, Inv Dome/Dish, 3.701 Bore, 1.260 CD, 0.866 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, BMW, S14B23, 3.701 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
BMW S14, 94.00 Bore, Dish, Set of 4 |
| Piston Volume |
-23.70 |
| Piston Material |
2618 |
| Title - Web |
JE Pistons BMW S14B23 Piston Kit - 94.00 mm Bore - 1.260 in. CH, -23.70 CC |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
BMW S14B23 |
| Engine |
S14B23 |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Length |
2.250 |
| Add-On |
JG1001-3701 |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-2250-15-51C |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Piston Series |
JE Pistons |
| Product Type |
Engine Piston Kit |
| Add-On |
866-063-MW |
| Make - Web |
BMW |
| Oil Ring Thickness |
0.111 |
| Piston Pin Material |
5115 |
| Compression Height |
1.260 |
| Piston Average Weight |
373 |
| Piston Pin Outside Diameter |
0.866 |
| Bore Diameter |
94.00 |
| Piston Head Type |
Dish |
| Ringset Included |
Yes |
| Title |
JE Pistons - BMW, S14B23, 94.00 mm Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0400 |
| Product Market |
European |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Piston Quantity |
4 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Make |
BMW |
| Wrist Pin Outer Diameter |
0.866 |
| Engine - Web |
S14B23 |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
