As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |

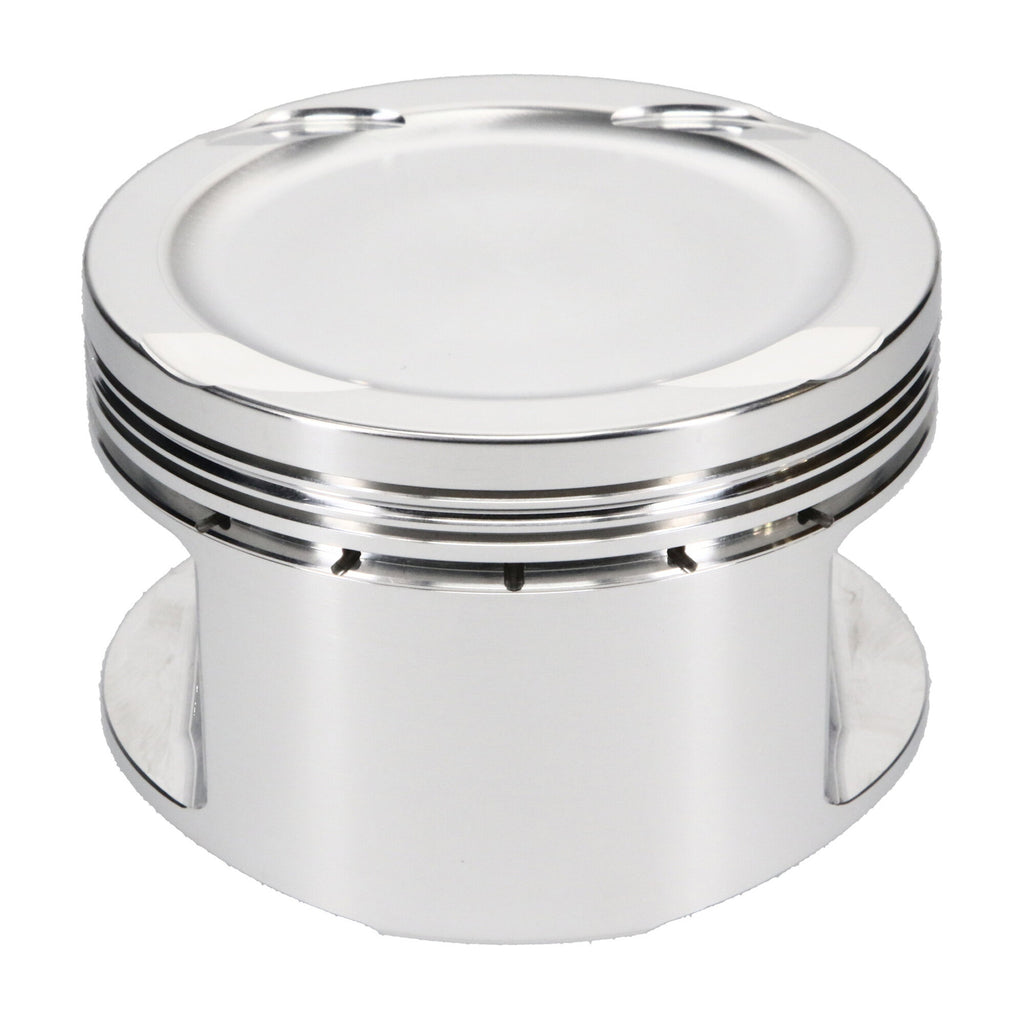

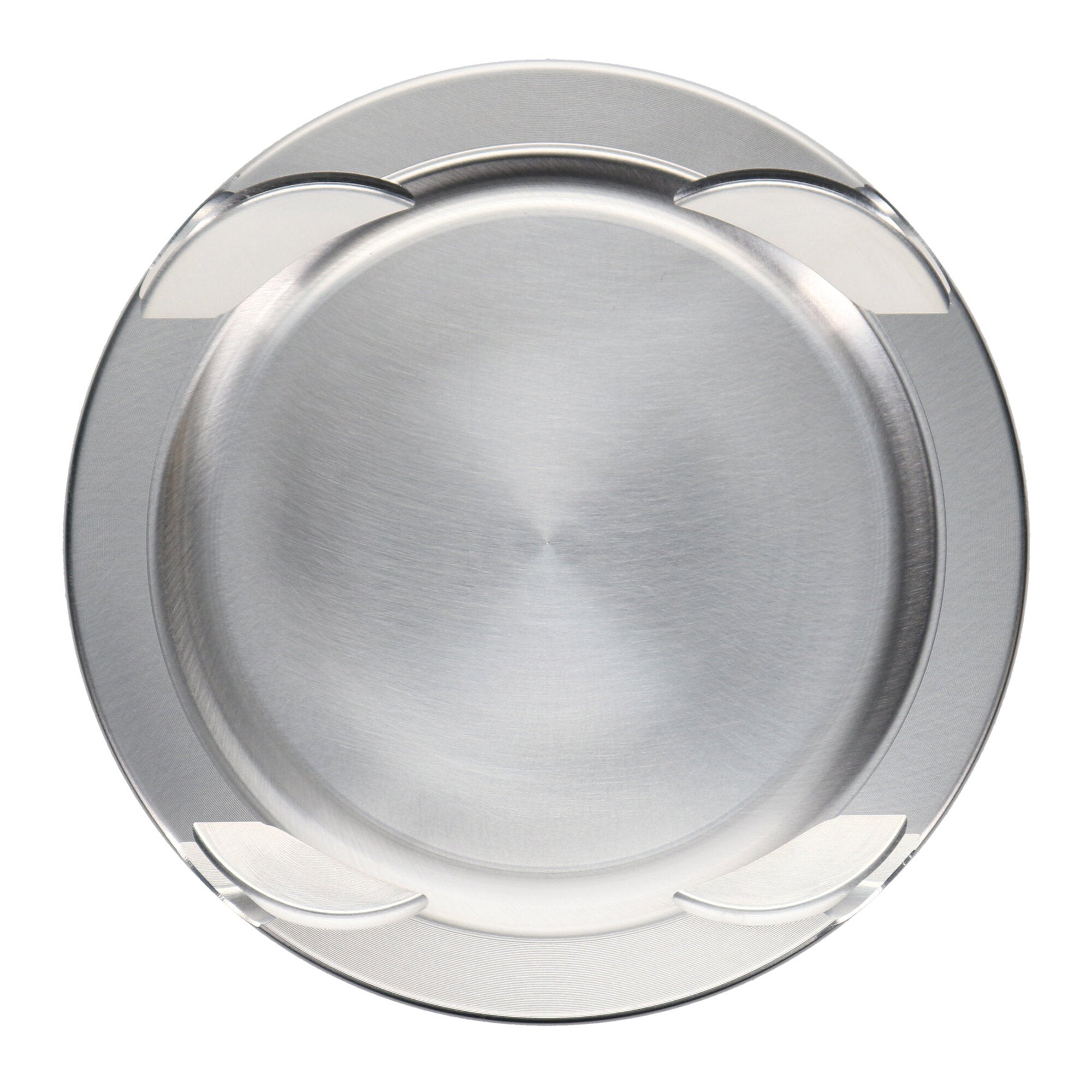

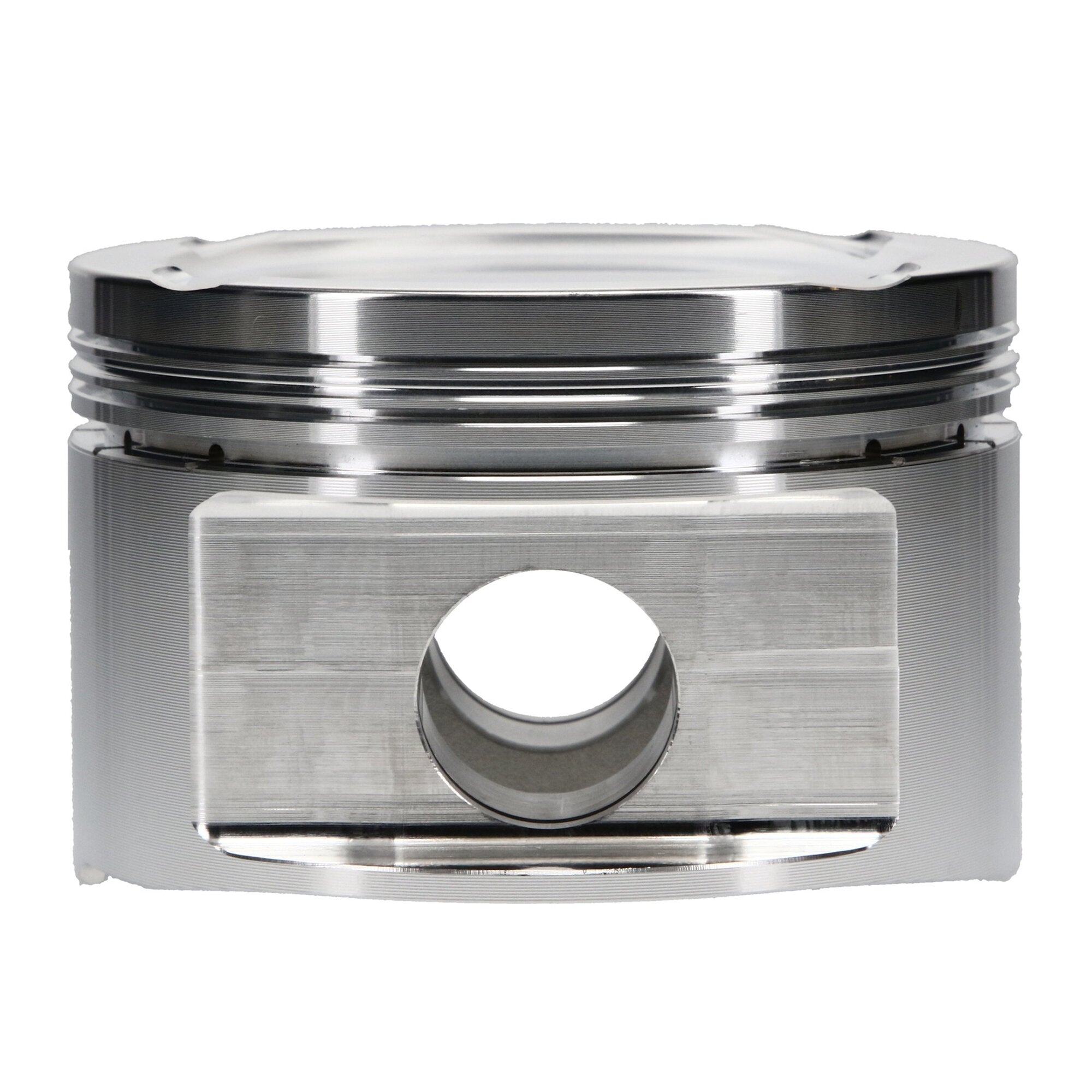

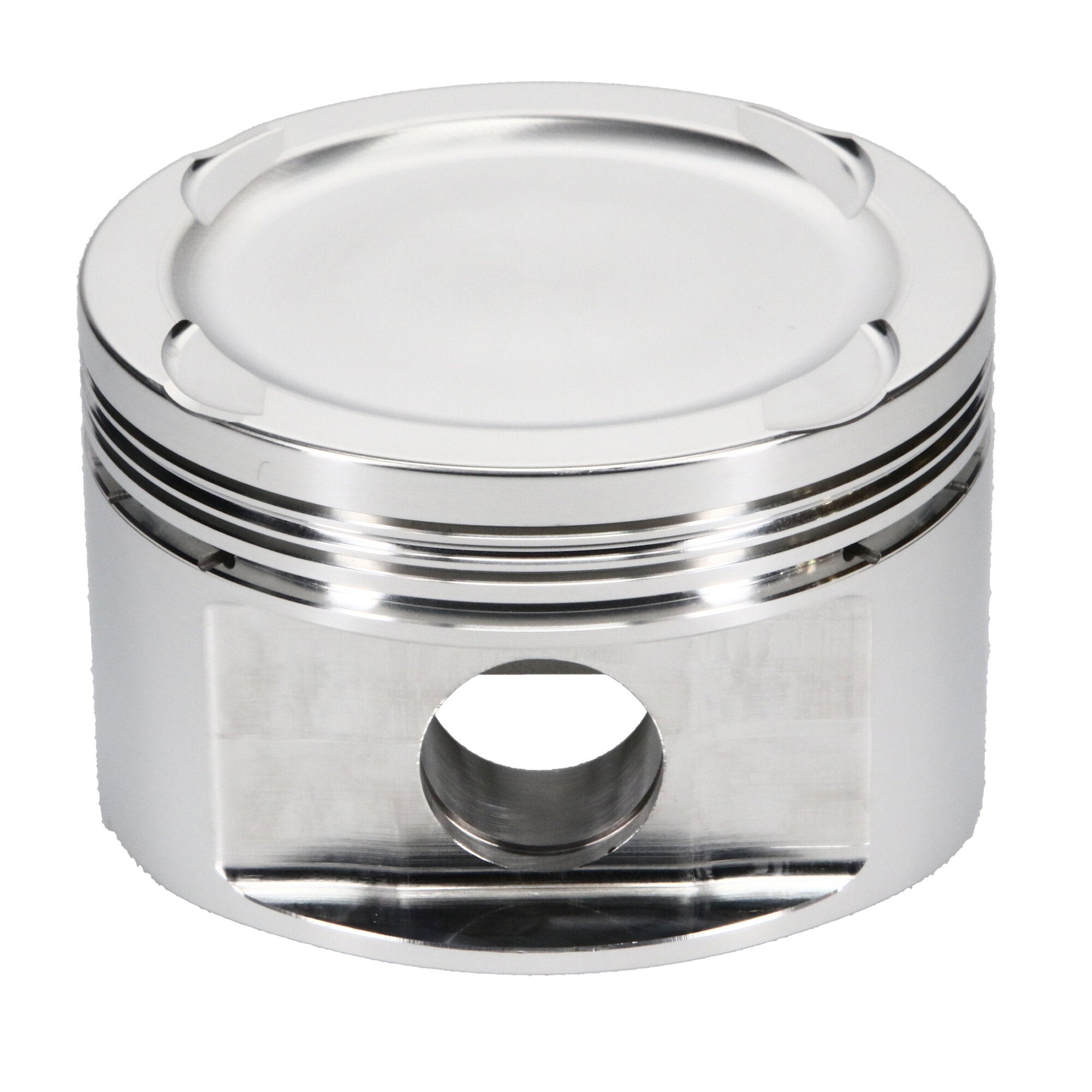

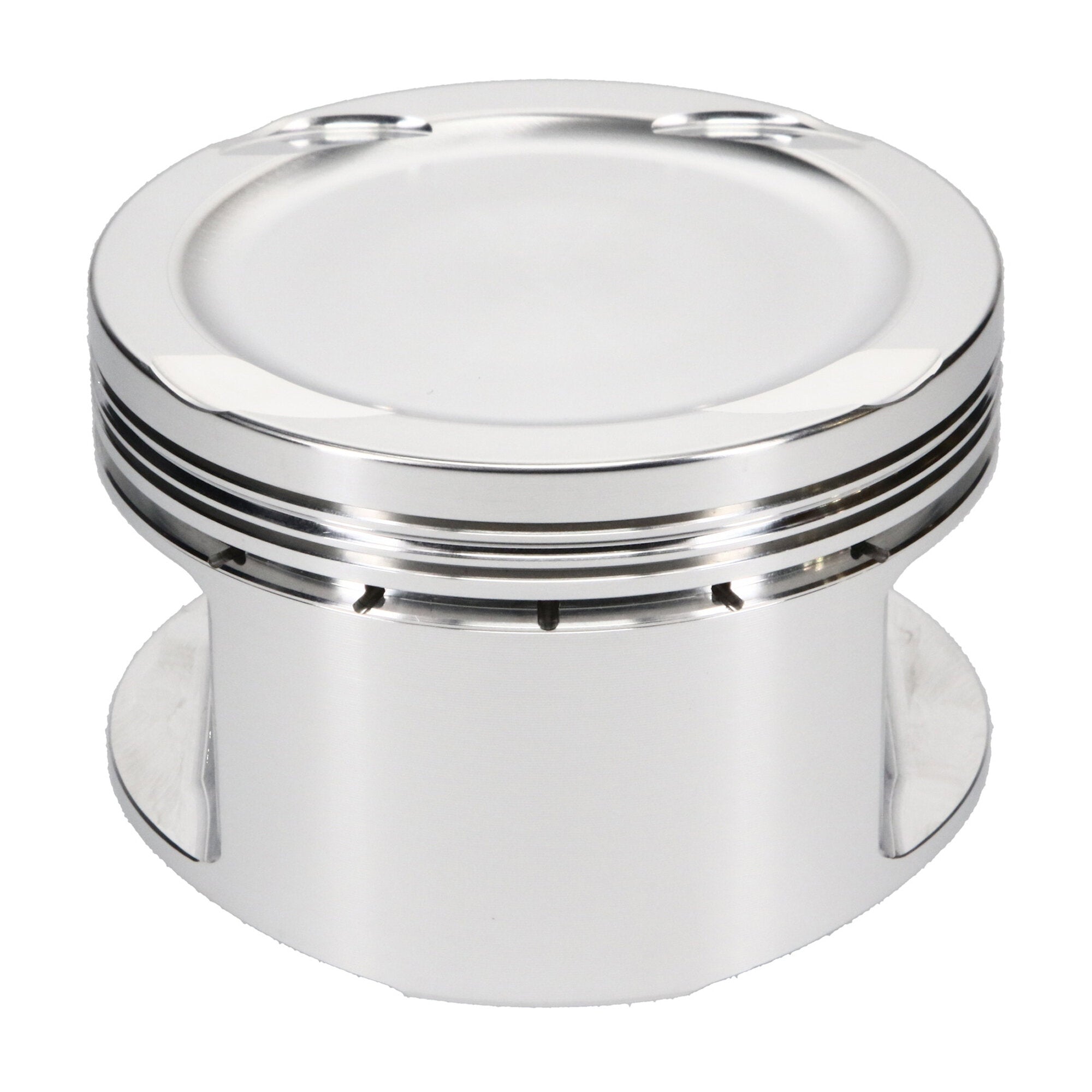

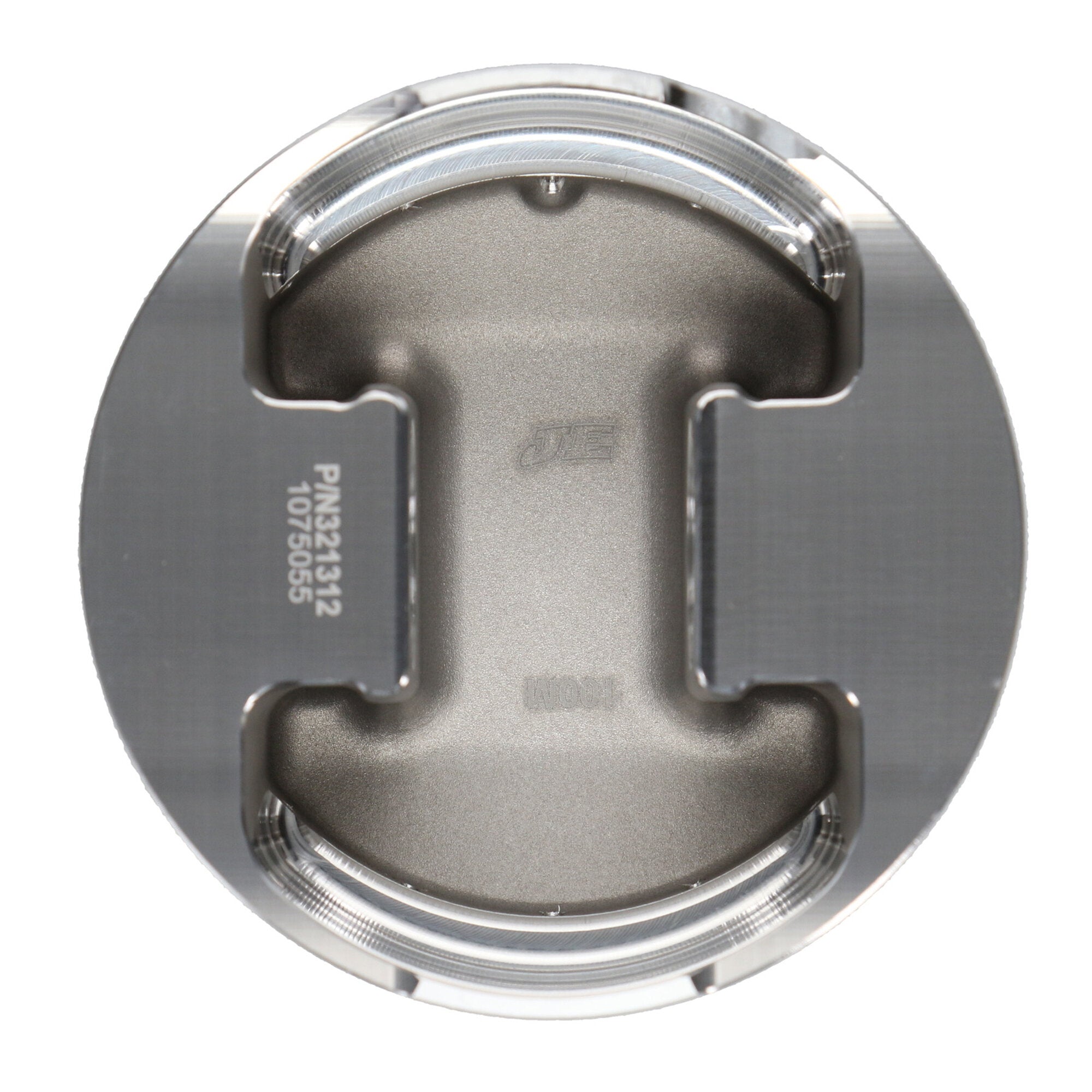

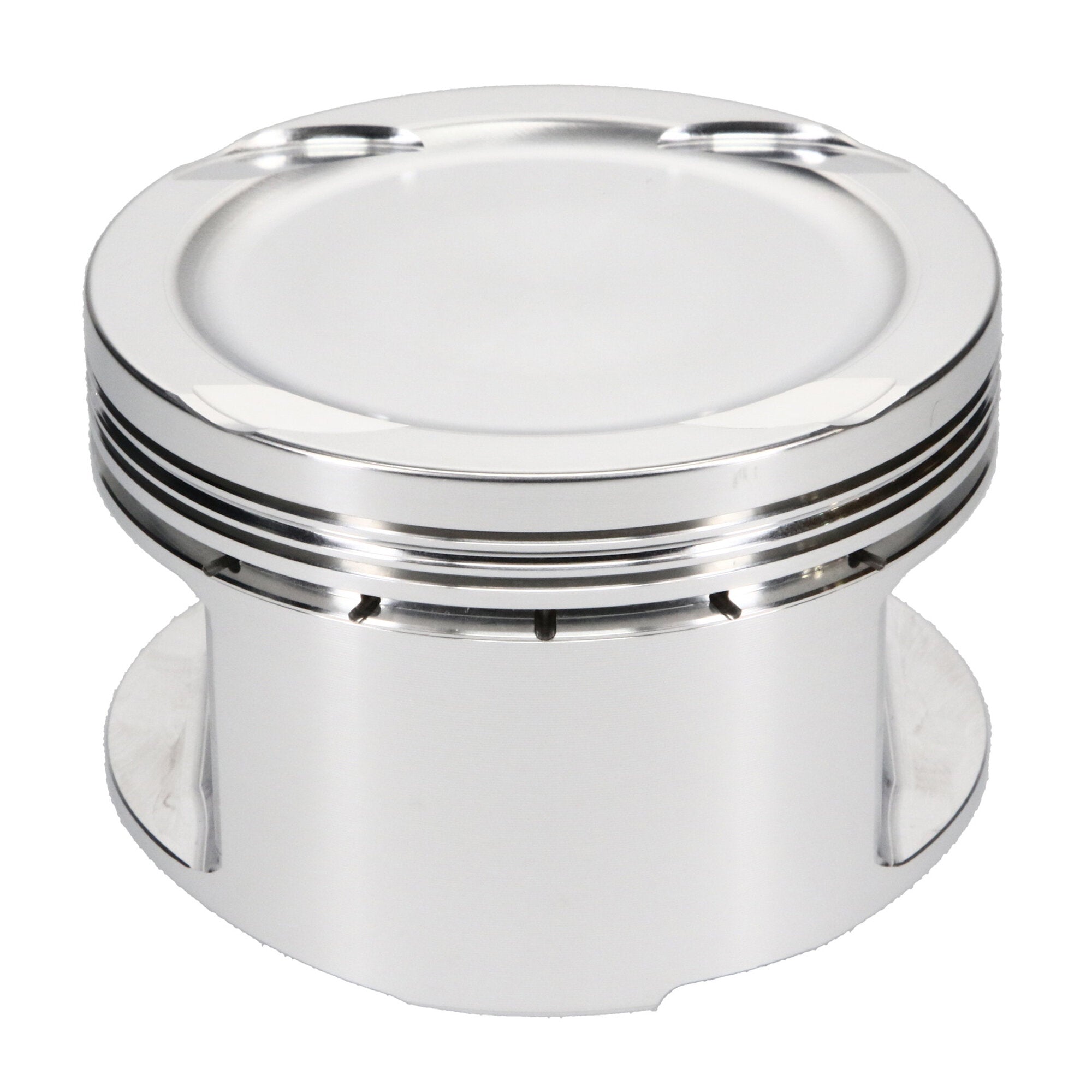

Toyota 1FZ-FE Stroker |
| Description_DEF |
Engine Piston |
| Description_DES |
Piston Single, 2618, Dome, 3.957 Bore, 1.535 CD, 1.024 Pin, Set of 1. |
| Description_EXT |
JE, Toyota, 1FZ-FE, 3.957 in. Bore, 10.00:1, Dome, Single Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Toyota 1FZ-FE, 100.50 Bore, Dome, Set of 1 |
| Add-On |
024-2500-20-51S |
| Bore Diameter |
100.50 |
| Add-On |
031-042-CS |
| Add-On |
JG1001-3957 |
| Compression Height |
1.535 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Cylinder Head |
1FZ-FE |
| Industry |
Automotive |
| Forging Type |
Round |
| Make |
TOYOTA |
| Engine Type |
ICE |
| Engine |
1FZ-FE |
| Make - Web |
Toyota |
| Engine - Web |
1FZ-FE |
| Piston Quantity |
1 |
| Product Market |
Sport Compact |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Piston Pin Length |
2.500 |
| Piston Head Type |
Dome |
| Ringset Included |
Yes |
| Piston Average Weight |
471 |
| Product Type |
Engine Piston |
| Piston Pin Wall Thickness |
0.200 |
| Piston Pin Outside Diameter |
1.024 |
| Piston Pin Material |
5115 |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-0.20 |
| Out of Stock Message |
Call for Availability |
| Piston Series |
JE Pistons |
| Oil Ring Thickness |
0.111 |
| Second Compression Ring Thickness |
0.0480 |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title |
JE Pistons - Toyota, 1FZ-FE, 100.50 mm Bore, Piston |
| Top Compression Ring Thickness |
0.0400 |
| Title - Web |
JE Pistons Toyota 1FZ-FE Piston - 100.50 mm Bore - 1.535 in. CH, -0.20 CC |
| Wrist Pin Wall Thickness |
0.200 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
1.024 |
| Wrist Pin Length |
2.500 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
