As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan VQ37VHR |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

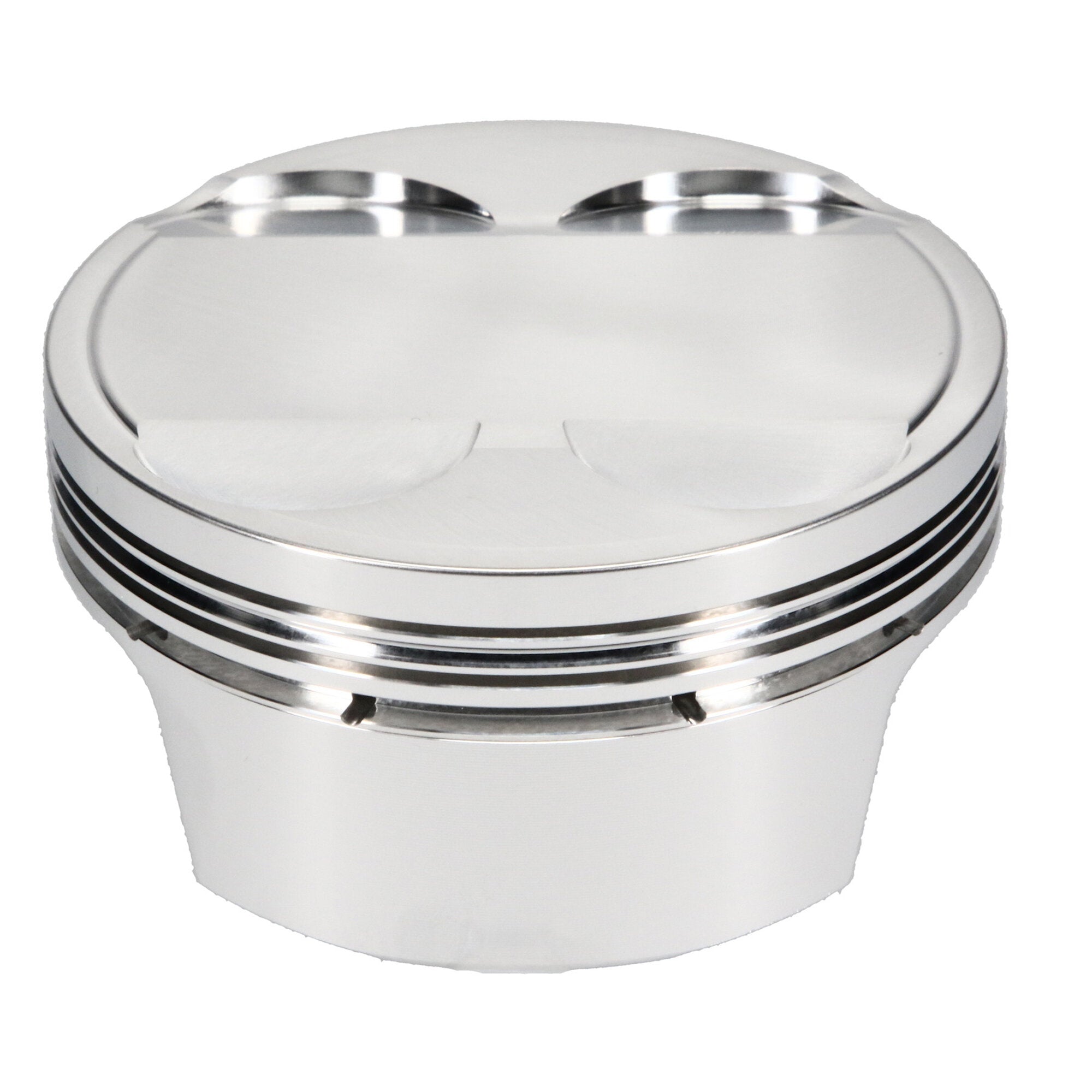

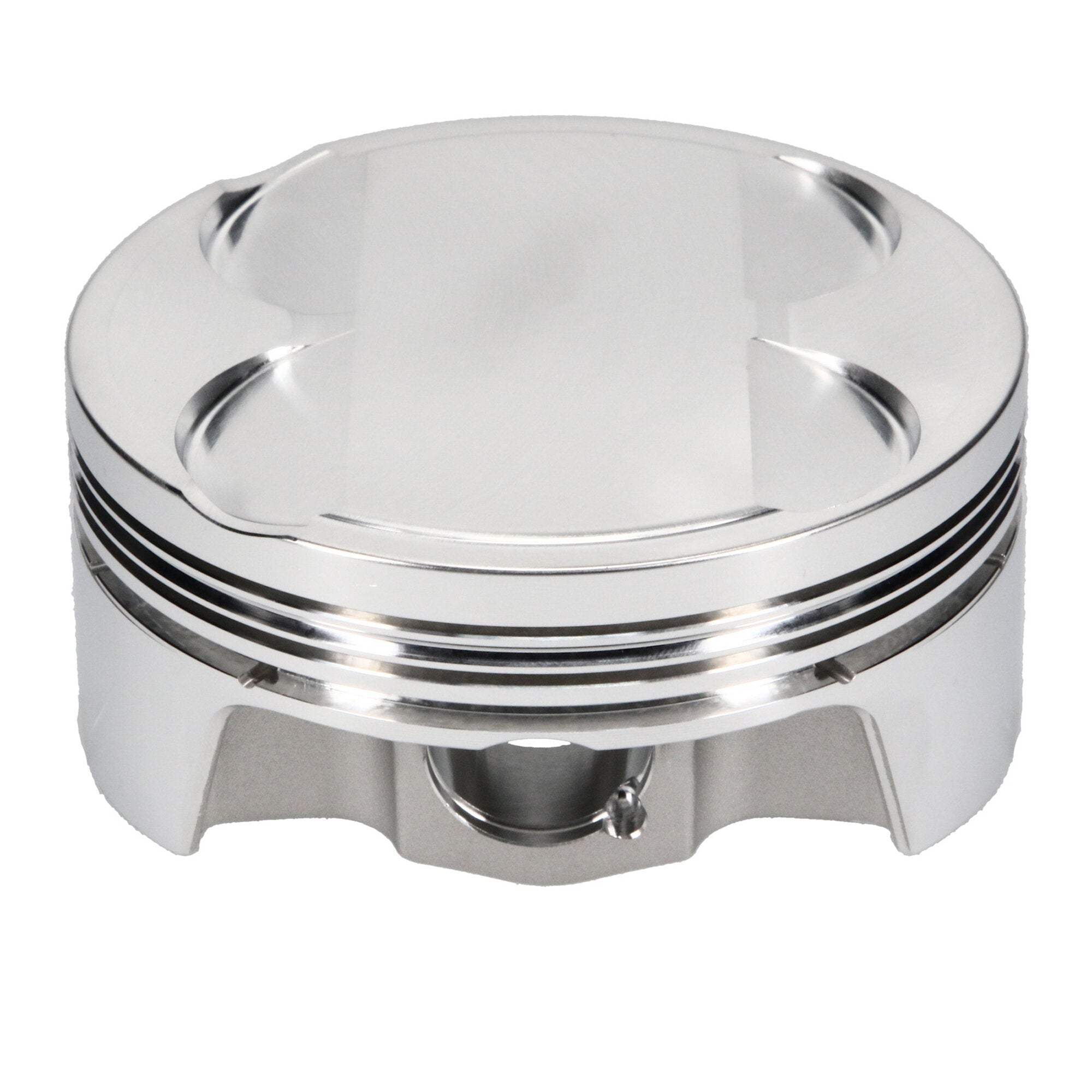

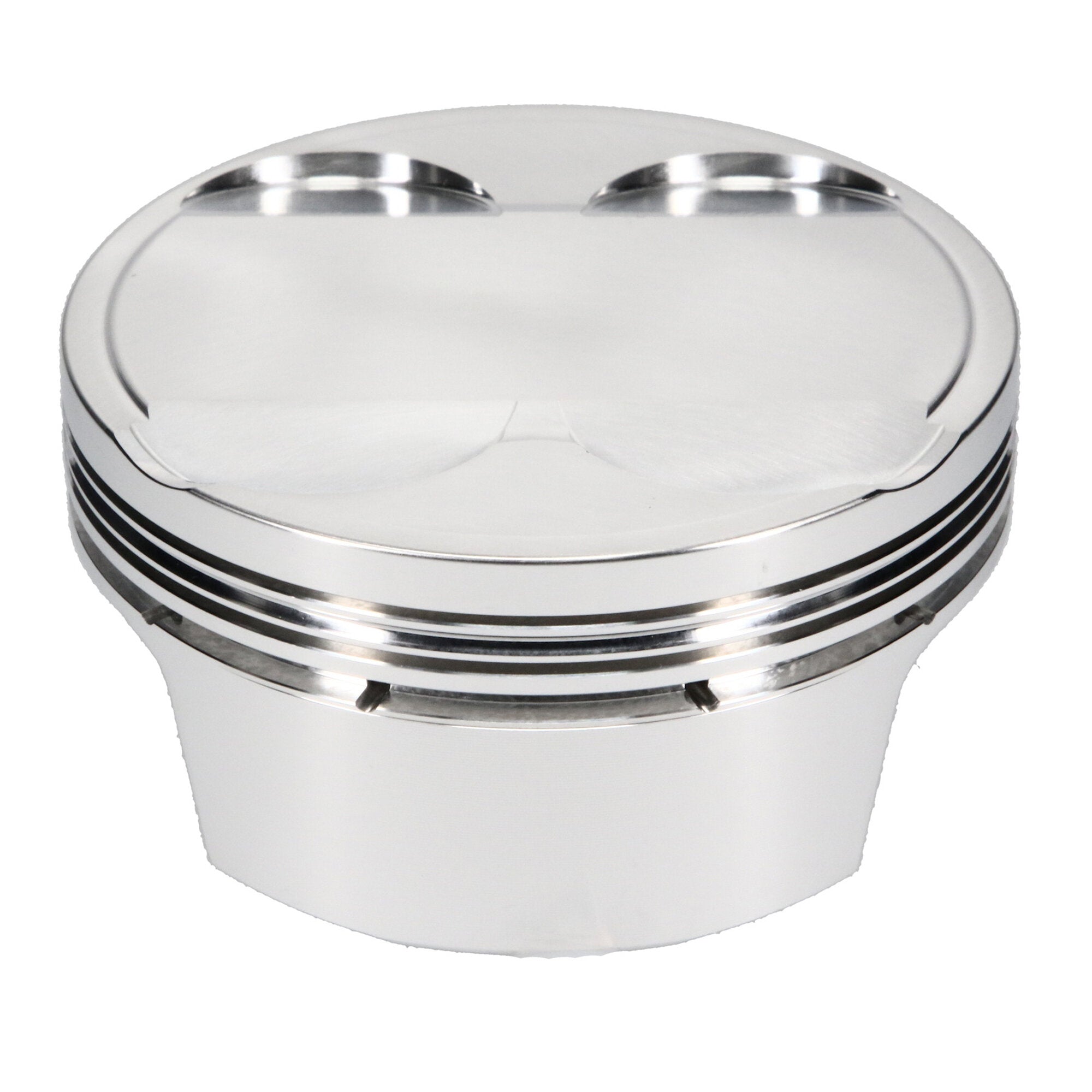

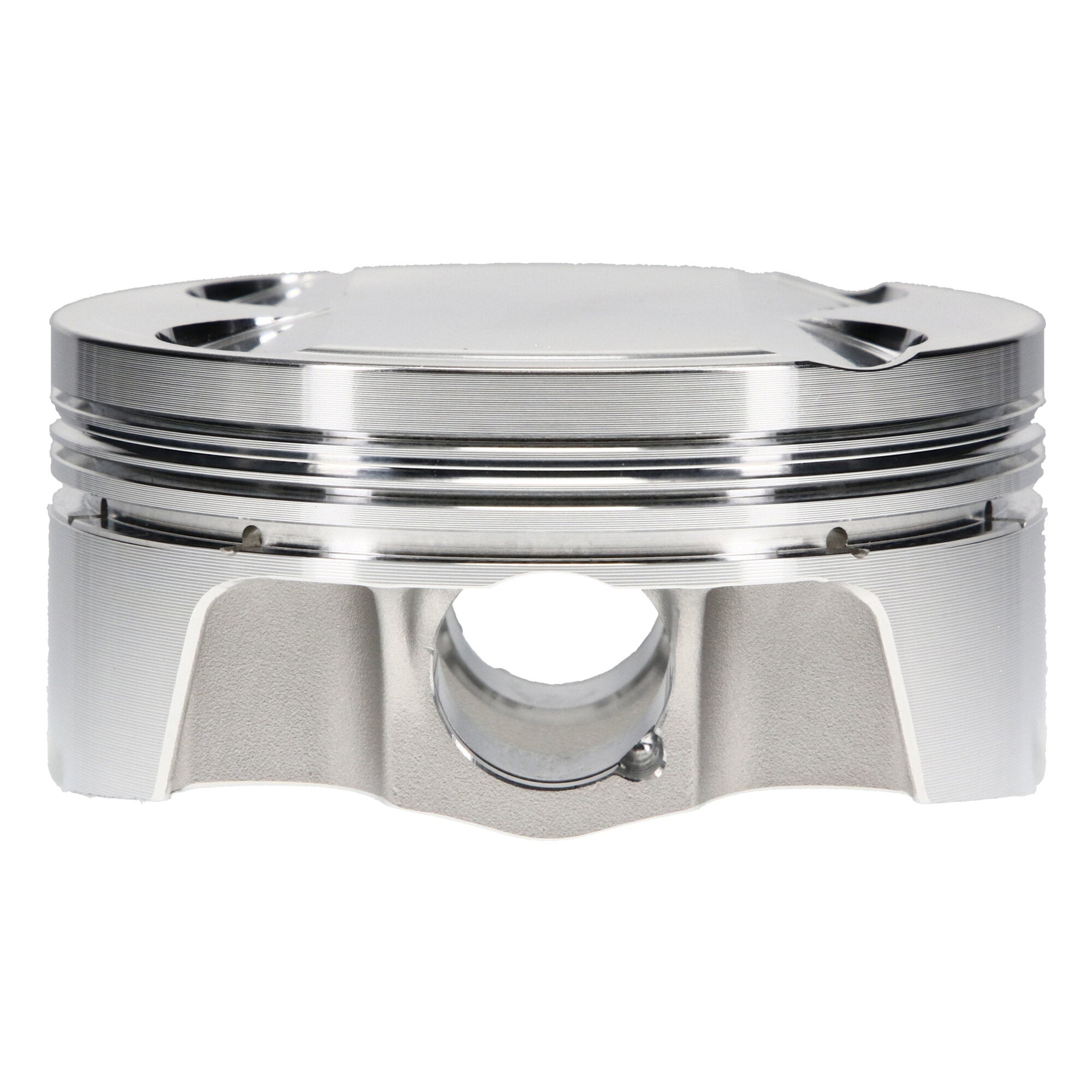

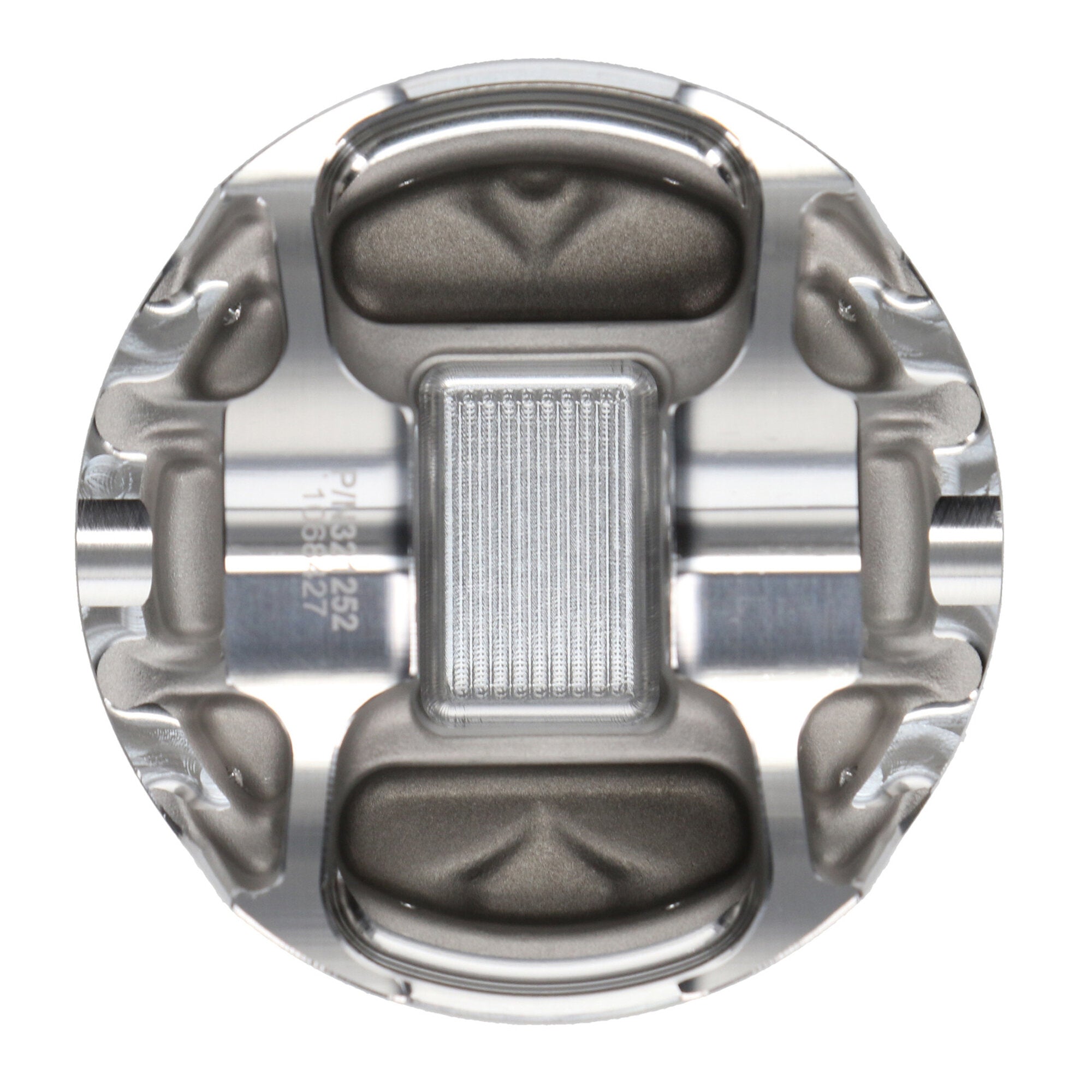

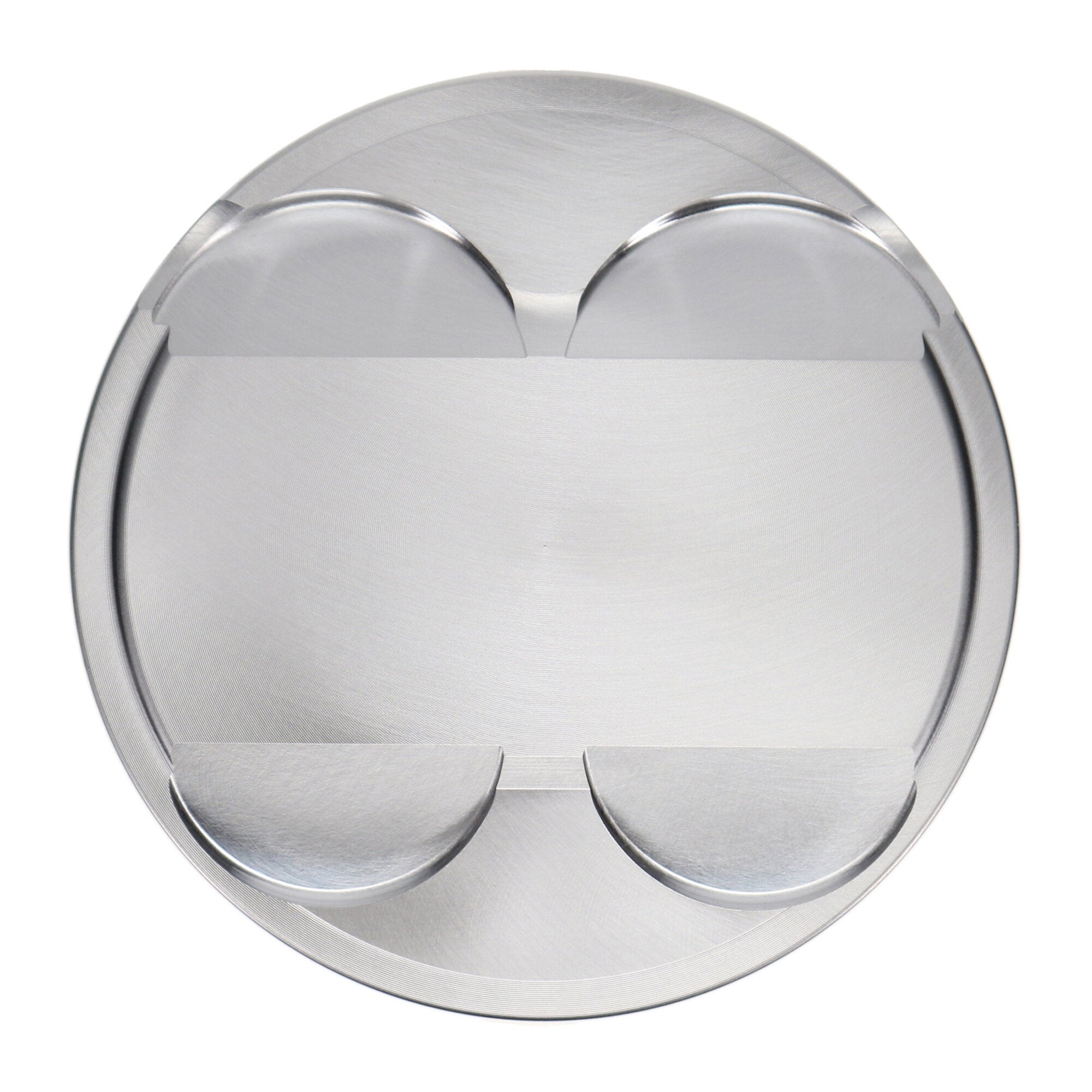

Piston Set, 2618, Inv Dome/Dish, 3.760 Bore, 1.198 CD, 0.866 Pin, Set of 6. |
| Description_EXT |
JE, Nissan, VQ37VHR, 3.760 in. Bore, 8.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Nissan VQ37VHR, 95.50 Bore, Dish, Set of 6 |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Length |
2.250 |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
Yes |
| Piston Quantity |
6 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Volume |
-22.60 |
| Piston Pin Outside Diameter |
0.866 |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Nissan |
| Engine - Web |
VQ37VHR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Product Market |
Sport Compact |
| Piston Material |
2618 |
| Add-On |
866-2250-15-51C |
| Piston Average Weight |
376 |
| Title - Web |
JE Pistons Nissan VQ37VHR Piston Kit - 95.50 mm Bore - 1.198 in. CH, -22.60 CC |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1001-3760 |
| Add-On |
866-063-MW |
| Bore Diameter |
95.50 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Cylinder Head |
VQ37VHR |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0400 |
| Piston Series |
JE Pistons |
| Compression Height |
1.198 |
| Forging Type |
FSR |
| Title |
JE Pistons - Nissan, VQ37VHR, 95.50 mm Bore, Piston Kit |
| Engine |
VQ37VHR |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Make |
NISSAN |
| Ringset Included |
Yes |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dish |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.111 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
