As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LS1 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Flat Top, 3.898 Bore, 1.050 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, LS Gen III/IV, 3.898 in. Bore, 1.050 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet LS1, 3.898 Bore, Flat, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Bore Diameter |
3.898 |
| Top Compression Ring Thickness |
0.0600 |
| Wrist Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.050 |
| Piston Average Weight |
405 |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Wrist Pin Length |
2.250 |
| Engine - Web |
LS Gen III/IV |
| Industry |
Automotive |
| Piston Material |
2618 |
| Add-On |
927-073-MW |
| Title |
JE Pistons - Chevrolet, LS Gen III/IV, 3.898 in. Bore, Piston Kit |
| Piston Volume |
-2.00 |
| Add-On |
927-2250-15-51C |
| Add-On |
J68008-3900-3 |
| Ring Set Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Make |
CHEVROLET |
| Piston Quantity |
8 |
| Piston Pin Outside Diameter |
0.927 |
| Second Compression Ring Thickness |
0.0600 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
LSX/L92 12 DEG |
| Title - Web |
JE Pistons Chevrolet LS Gen III/IV Piston Kit - 3.898 in. Bore - 1.050 in. CH, -2.00 CC |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Outer Diameter |
0.927 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine |
LS Gen III/IV |
| Piston Series |
JE Pistons |
| Oil Ring Thickness |
0.149 |
| Forging Type |
FSR |
| Ringset Included |
No |
| Piston Head Type |

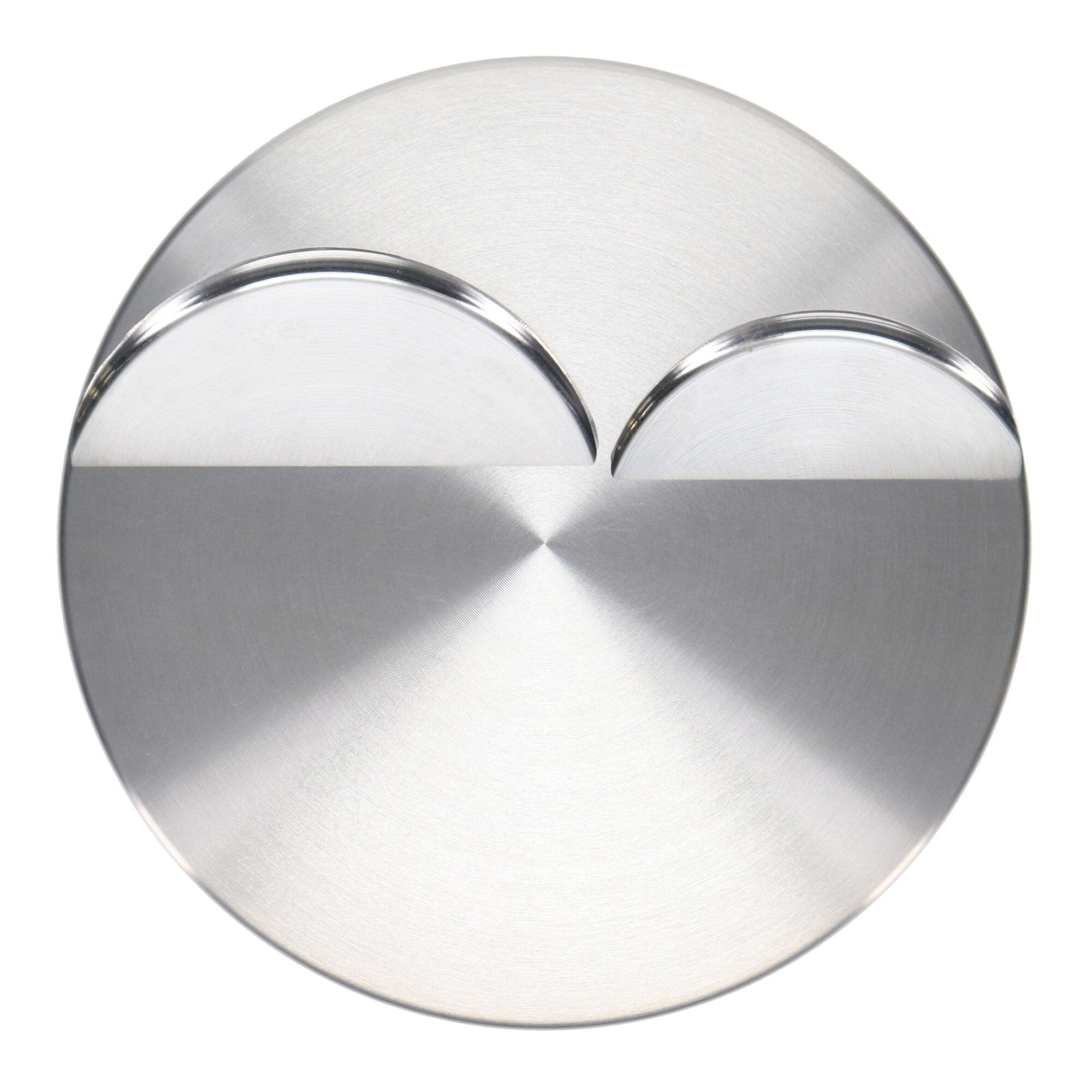

Flat |
| Piston Pin Length |
2.250 |
| Engine Type |
ICE |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
13.0000 |
