As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan KA24DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

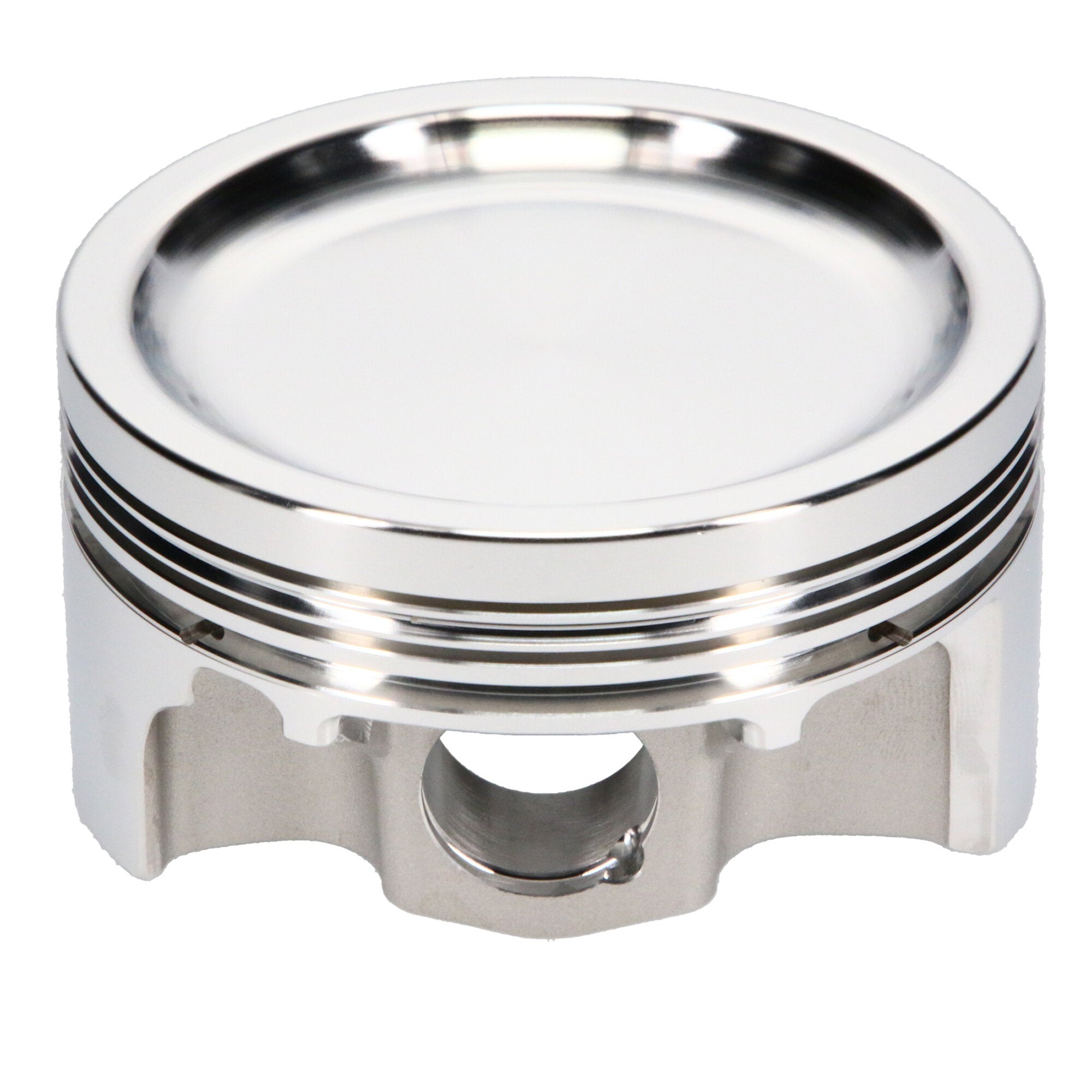

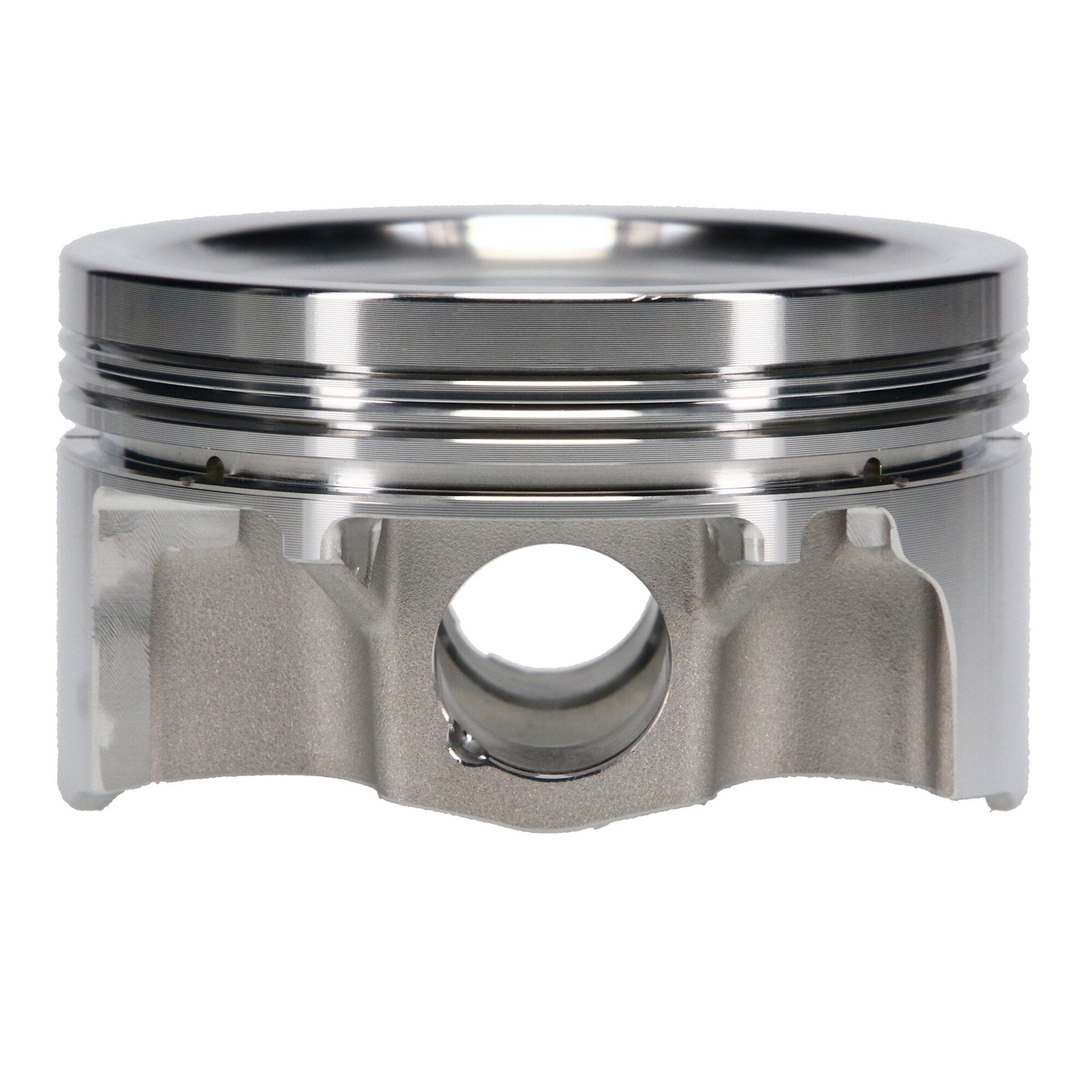

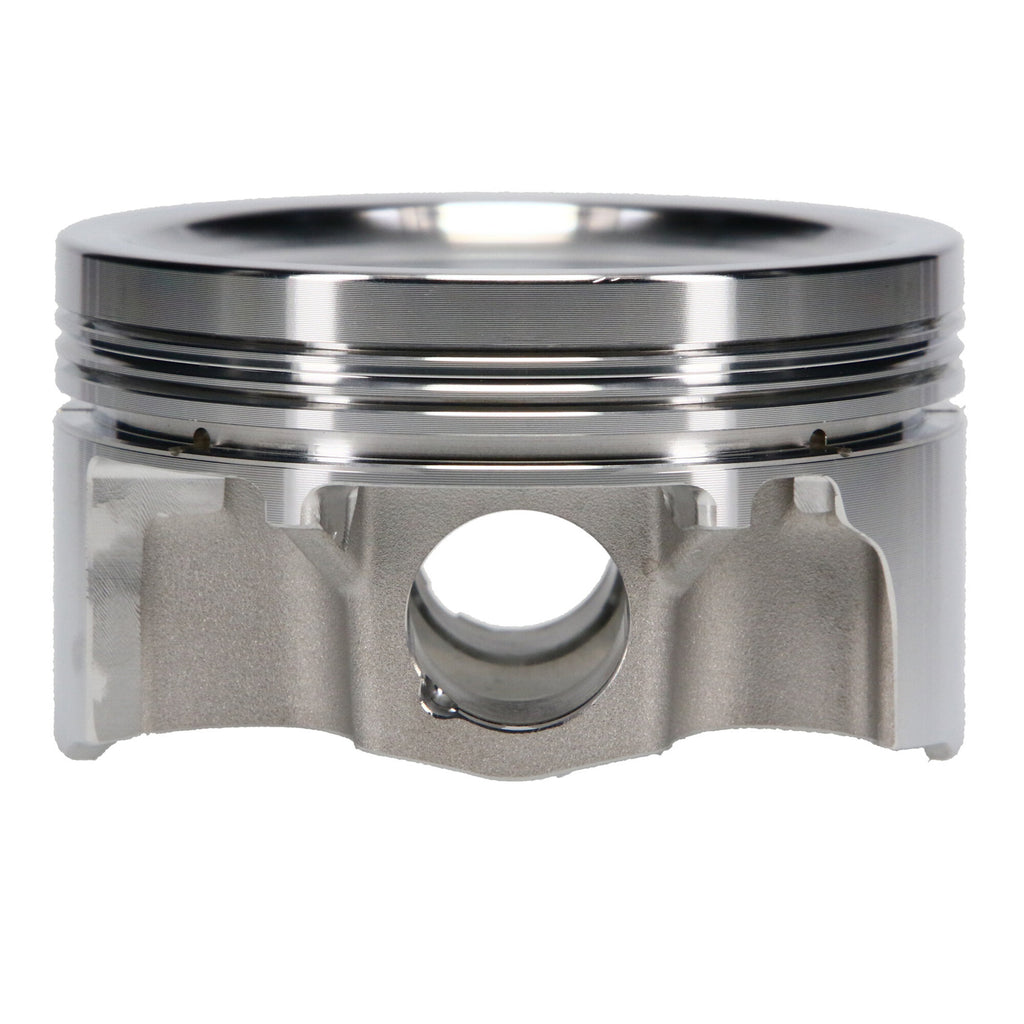

Piston Set, 2618, Inv Dome/Dish, 3.543 Bore, 1.336 CD, 0.827 Pin, Set of 4. |
| Description_EXT |
JE, Nissan, KA24DE, 3.543 in. Bore, 10.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Nissan KA24DE, 90.00 Bore, Dish, Set of 4 |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Piston Material |
2618 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Cylinder Head |
KA24DE |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Nissan |
| Ringset Included |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
827-063-MW |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Engine |
KA24DE |
| Piston Pin Length |
2.250 |
| Add-On |
JG1001-3543 |
| Piston Head Type |
Dish |
| Add-On |
827-2250-15-51C |
| Title - Web |
JE Pistons Nissan KA24DE Piston Kit - 90.00 mm Bore - 1.336 in. CH, -14.90 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Title |
JE Pistons - Nissan, KA24DE, 90.00 mm Bore, Piston Kit |
| Piston Quantity |
4 |
| Make |
NISSAN |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Sport Compact |
| Piston Pin Outside Diameter |
0.827 |
| Engine Type |
ICE |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Material |
5115 |
| Piston Volume |
-14.90 |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
345 |
| Forging Type |
FSR |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0400 |
| Bore Diameter |
90.00 |
| Oil Ring Thickness |
0.111 |
| Compression Height |
1.336 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.827 |
| Engine - Web |
KA24DE |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
