As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan FJ20 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

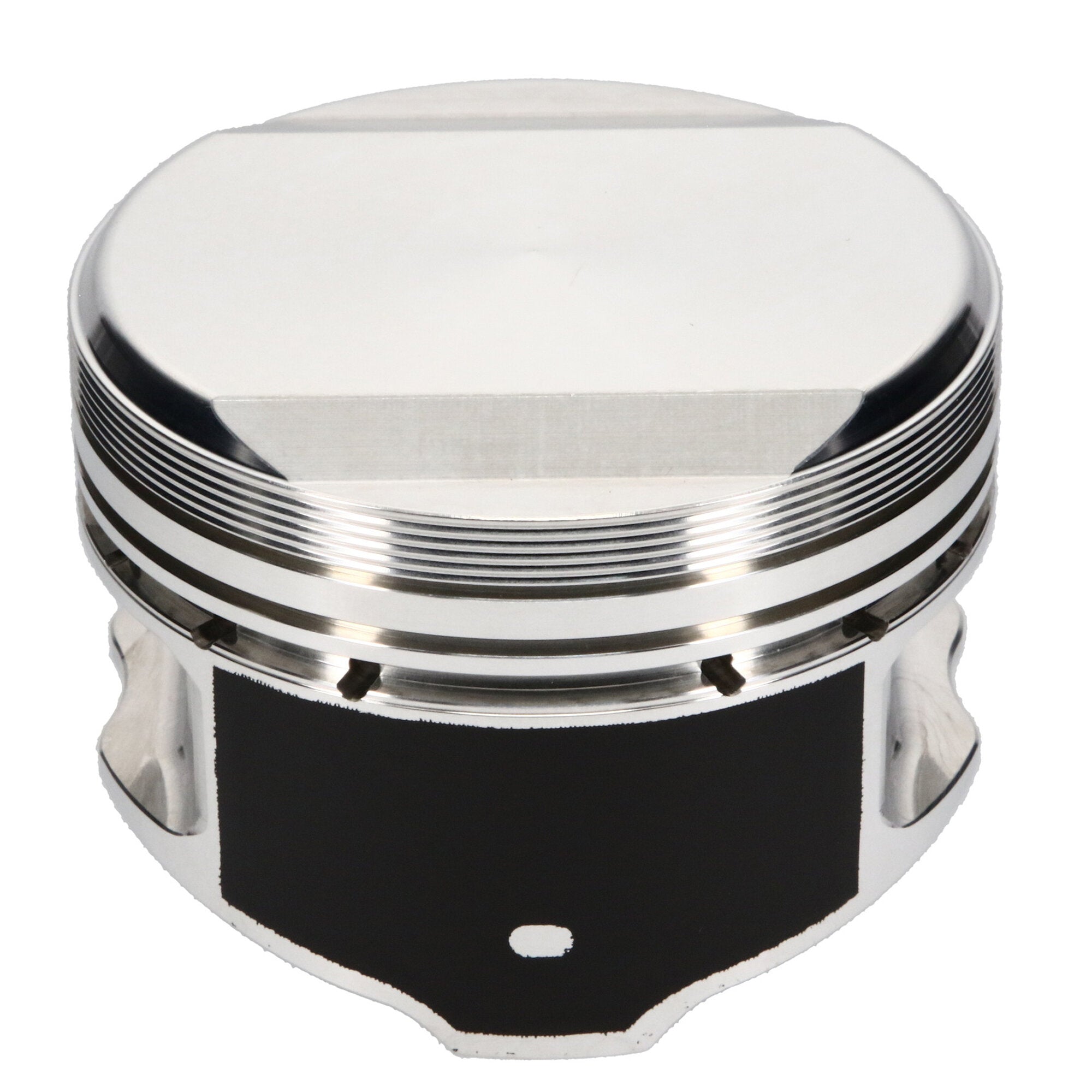

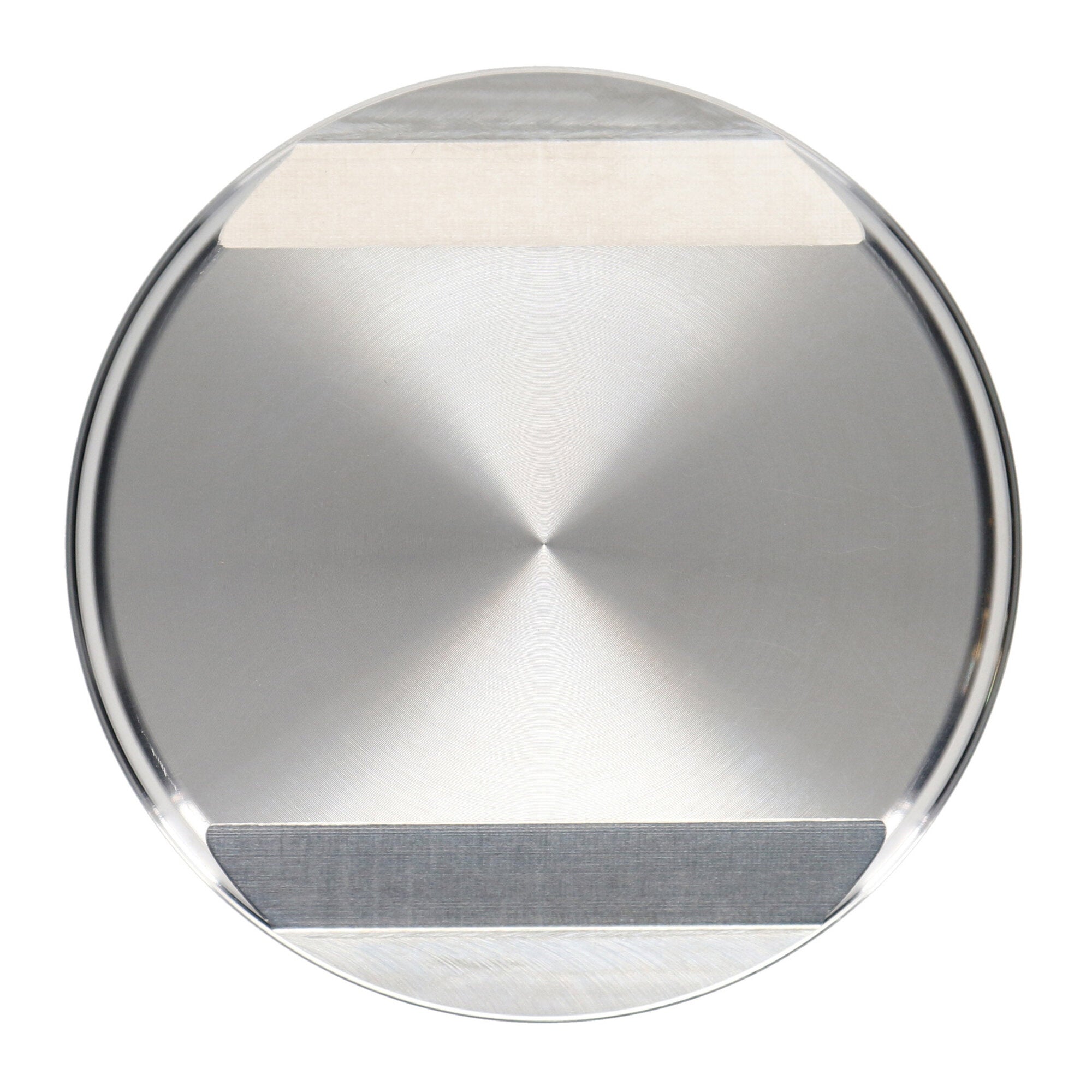

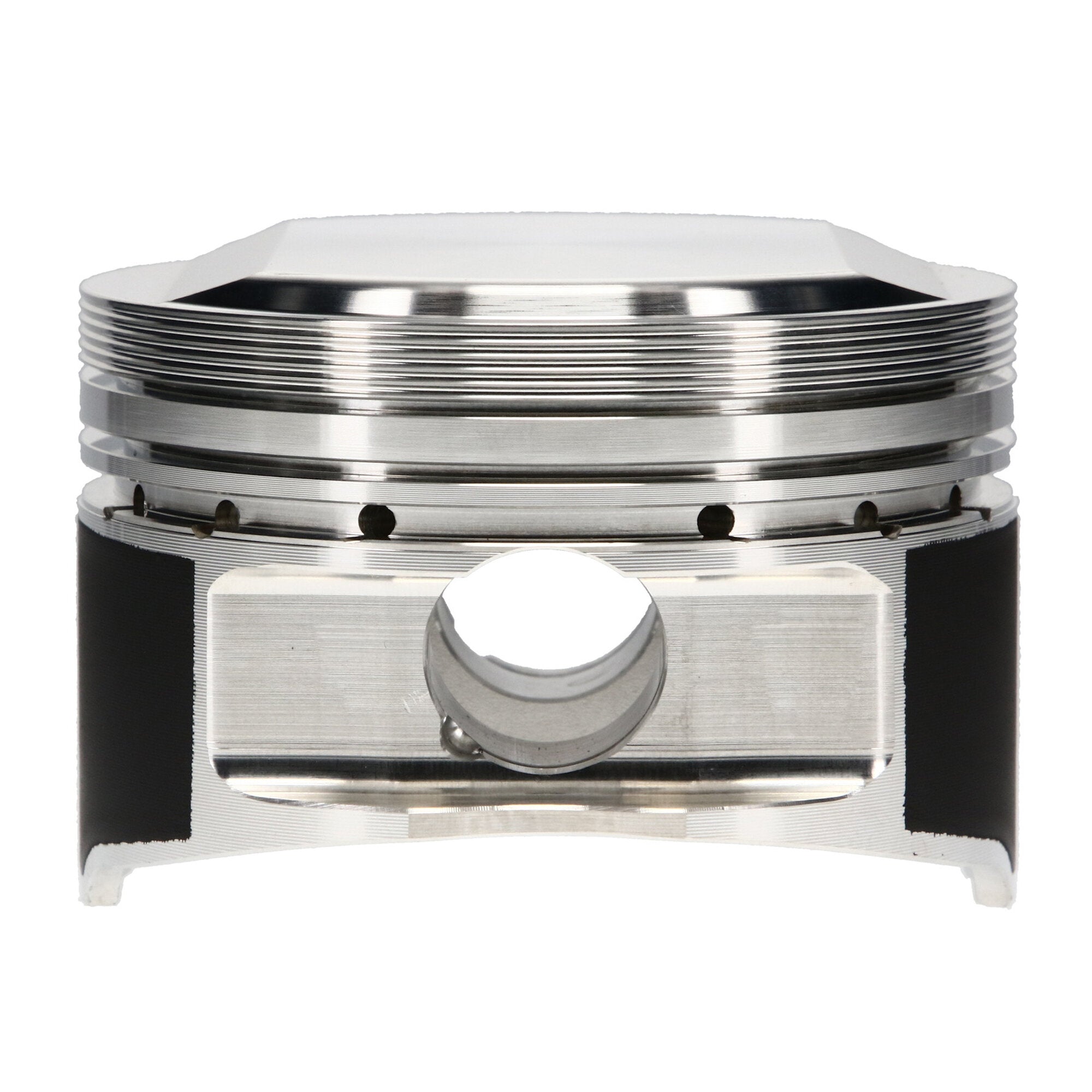

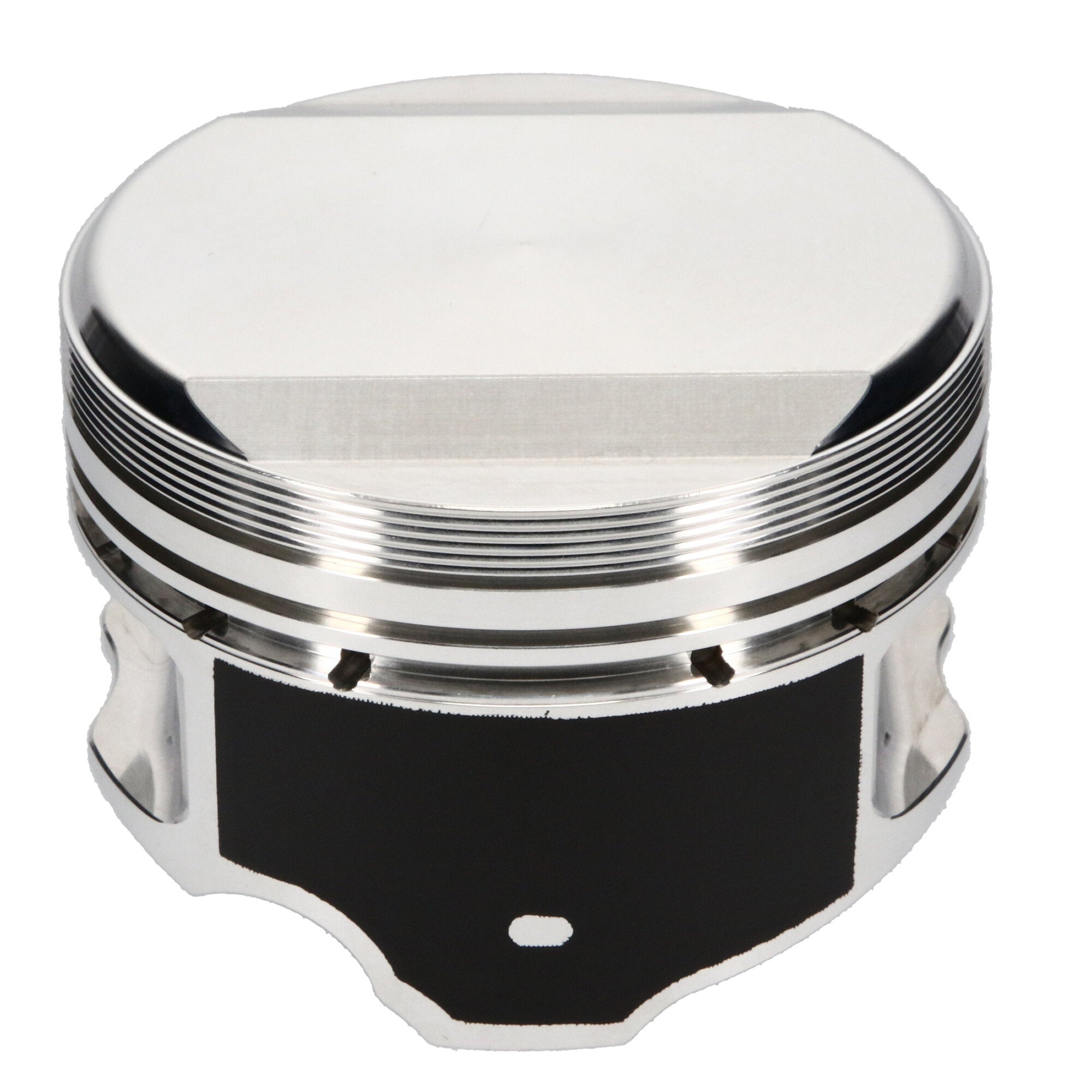

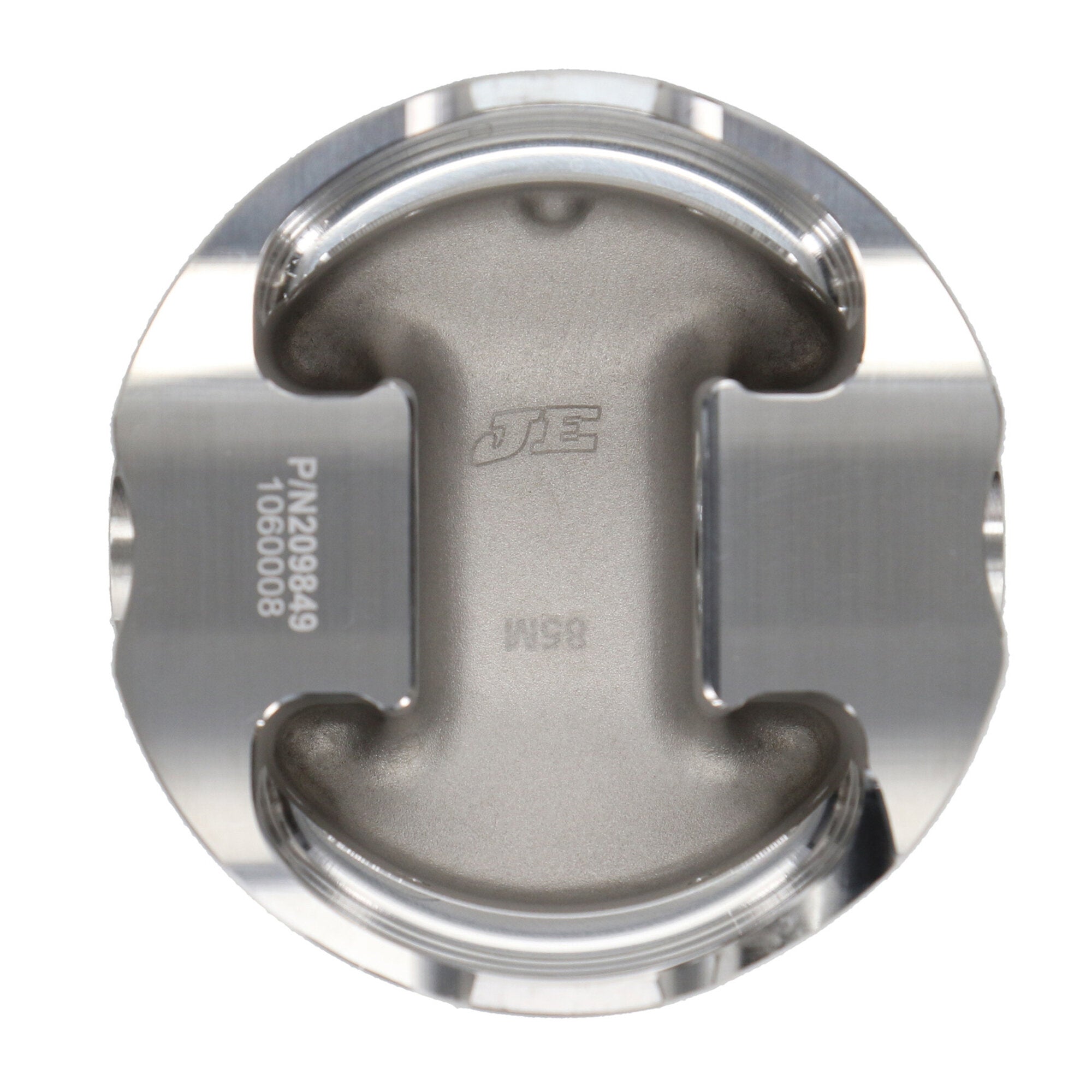

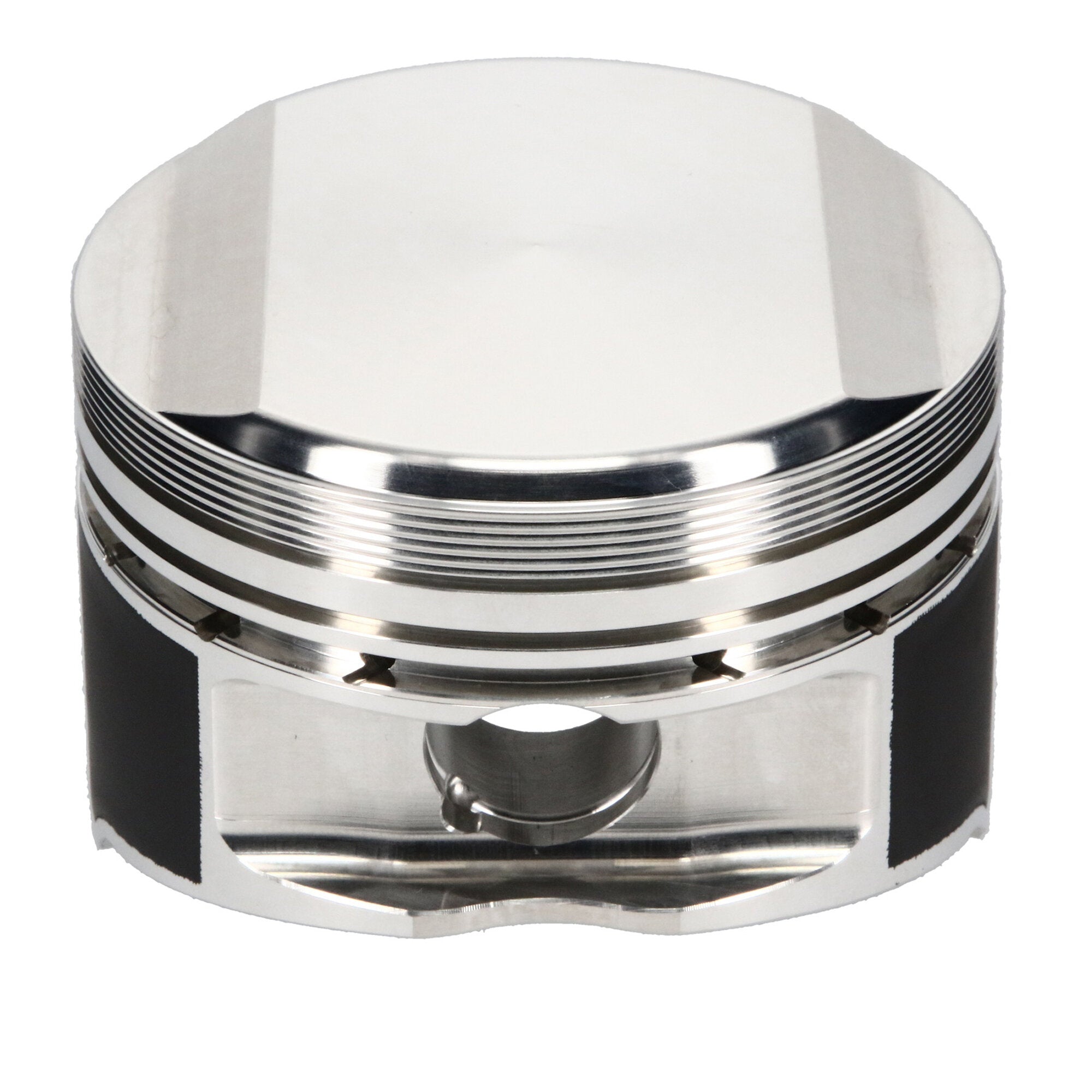

Piston Set, 2618, Inv Dome/Dish, 3.524 Bore, 1.260 CD, 0.866 Pin, Set of 4. |
| Description_EXT |
JE, Nissan, FJ20, 3.524 in. Bore, 9.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Nissan FJ20, 89.50 Bore, Dish, Set of 4 |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Cylinder Head |
FJ20 |
| Piston Quantity |
4 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Piston Volume |
-2.80 |
| Piston Material |
2618 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Nissan |
| Piston Pin Length |
2.250 |
| Add-On |
866-063-MW |
| Bore Diameter |
89.50 |
| Top Compression Ring Thickness |
0.0400 |
| Product Market |
Sport Compact |
| Piston Average Weight |
346 |
| Engine |
FJ20 |
| Piston Series |
JE Pistons |
| Add-On |
JG1001-3524 |
| Prop 65 (C, R or CR) |
CR |
| Forging Type |
FSR |
| Title |
JE Pistons - Nissan, FJ20, 89.50 mm Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-2250-15-51C |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Title - Web |
JE Pistons Nissan FJ20 Piston Kit - 89.50 mm Bore - 1.260 in. CH, -2.80 CC |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.866 |
| Make |
NISSAN |
| Piston Pin Wall Thickness |
0.150 |
| Ringset Included |
Yes |
| Piston Head Type |
Dish |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Compression Height |
1.260 |
| Wrist Pin Outer Diameter |
0.866 |
| Engine - Web |
FJ20 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
