As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 3.5L Ecoboost V6 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

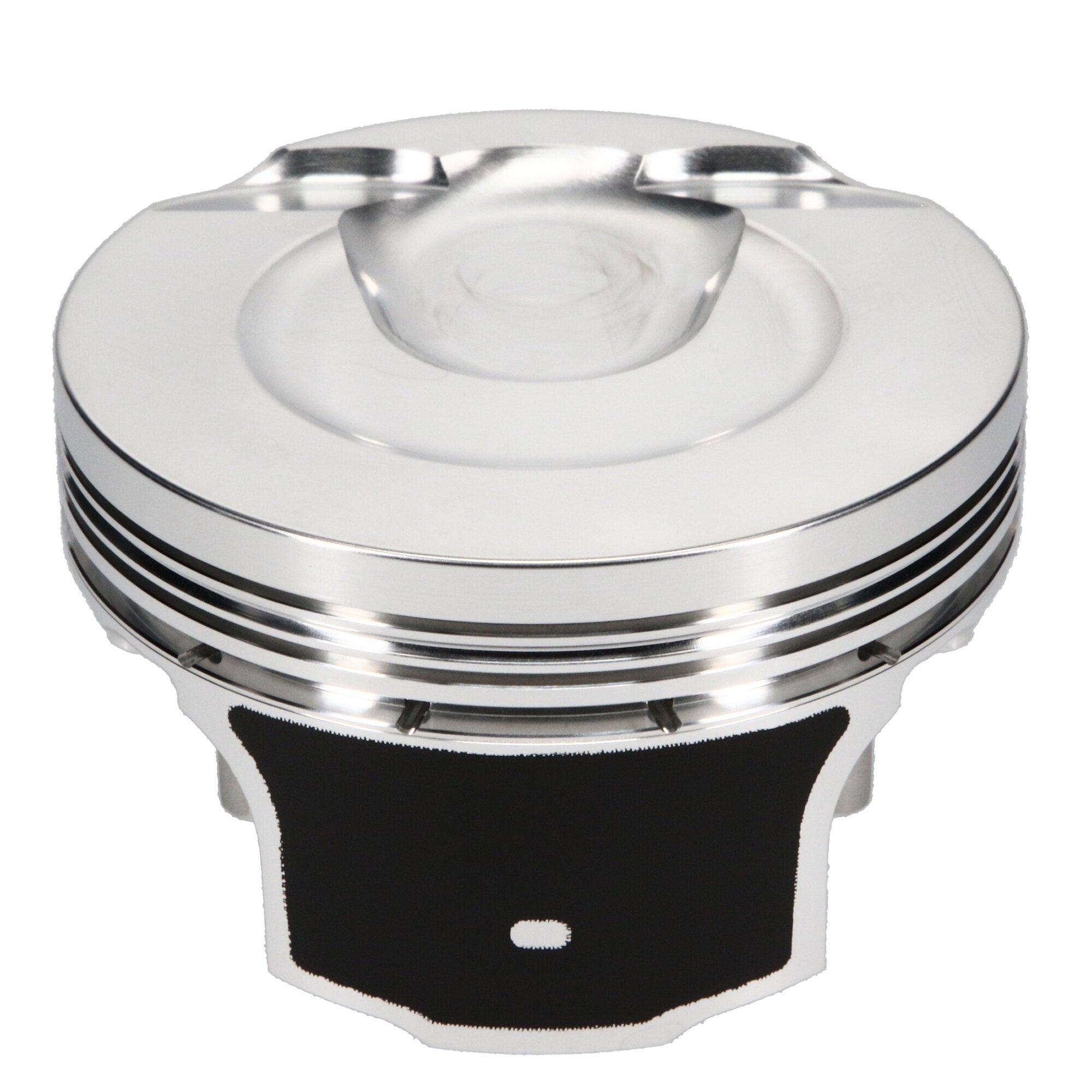

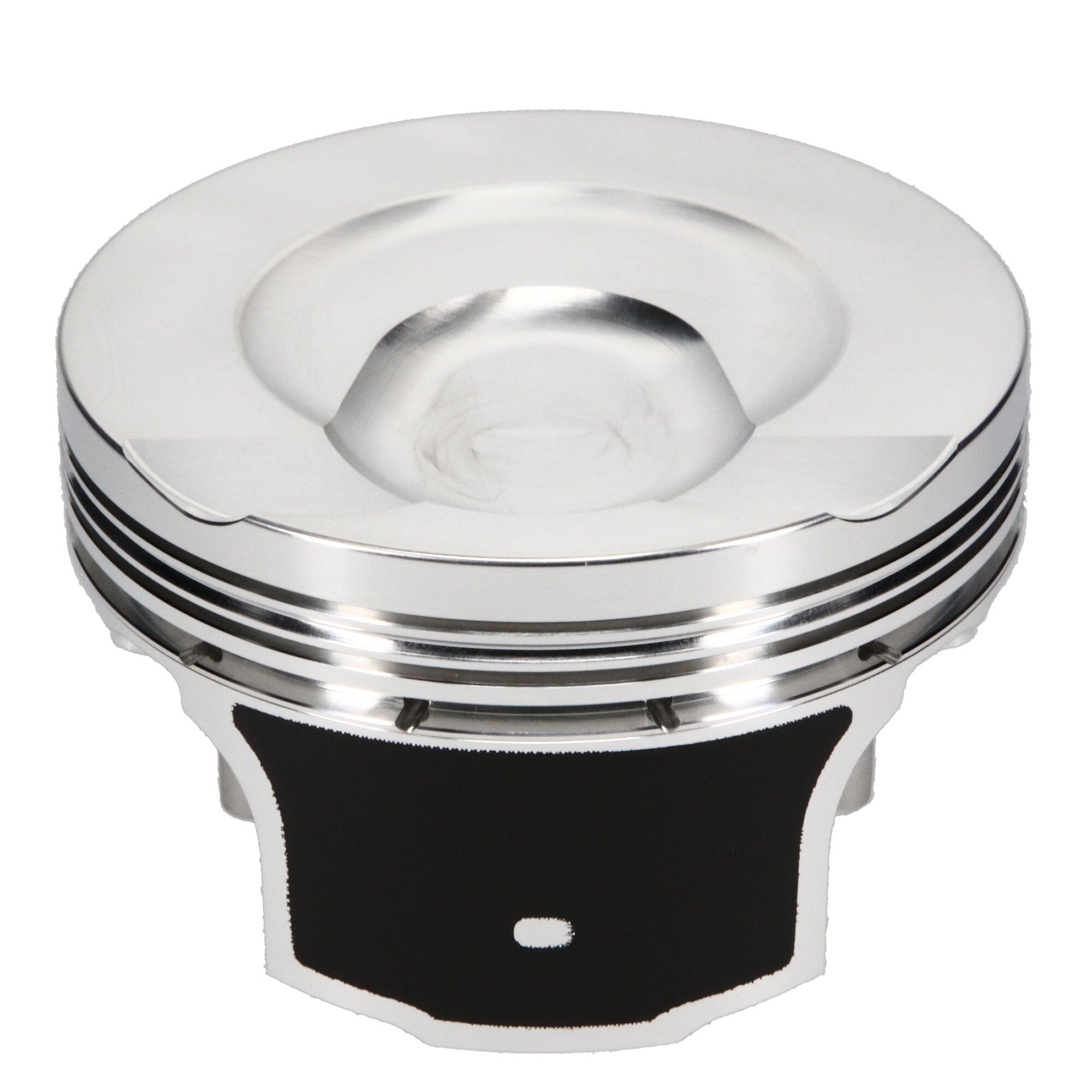

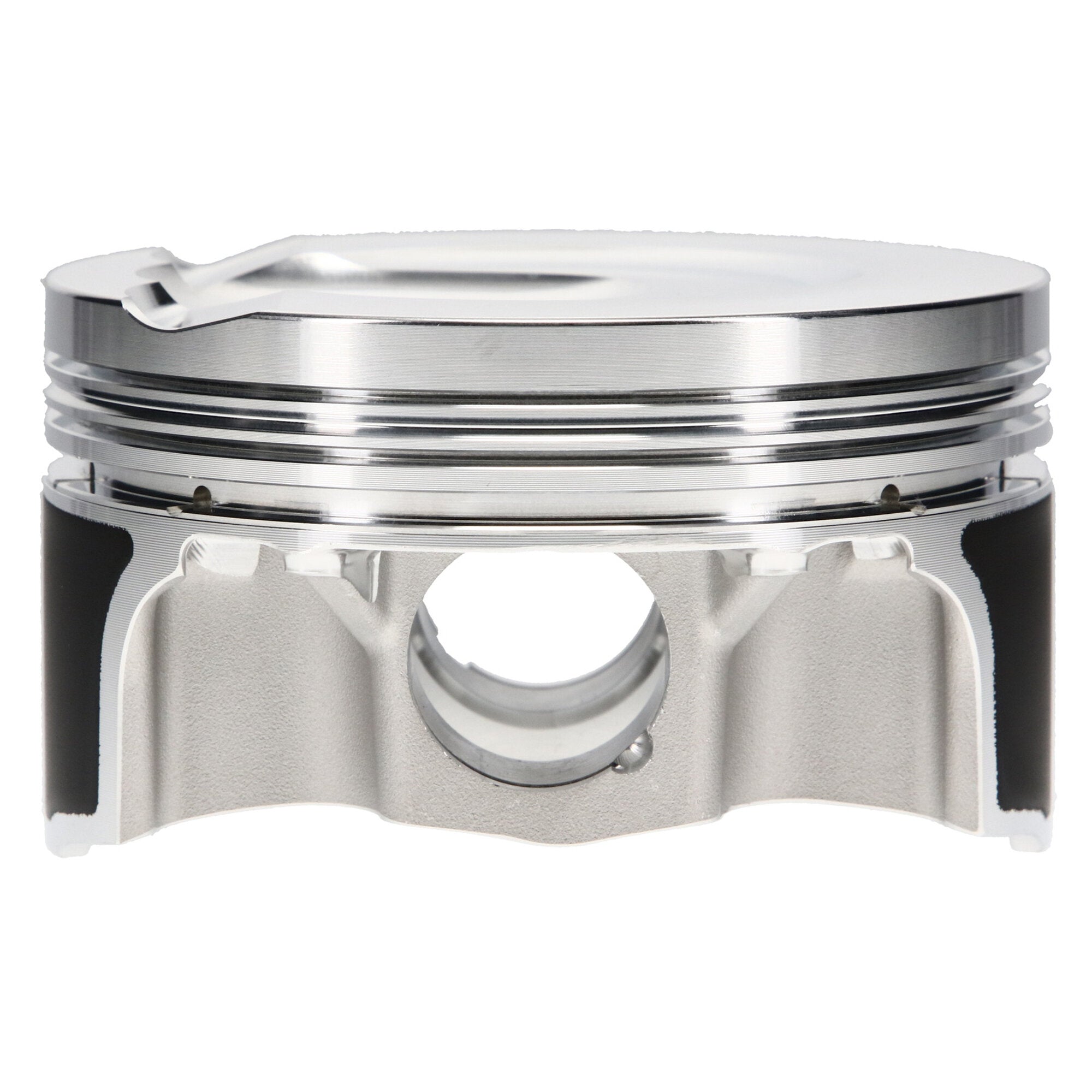

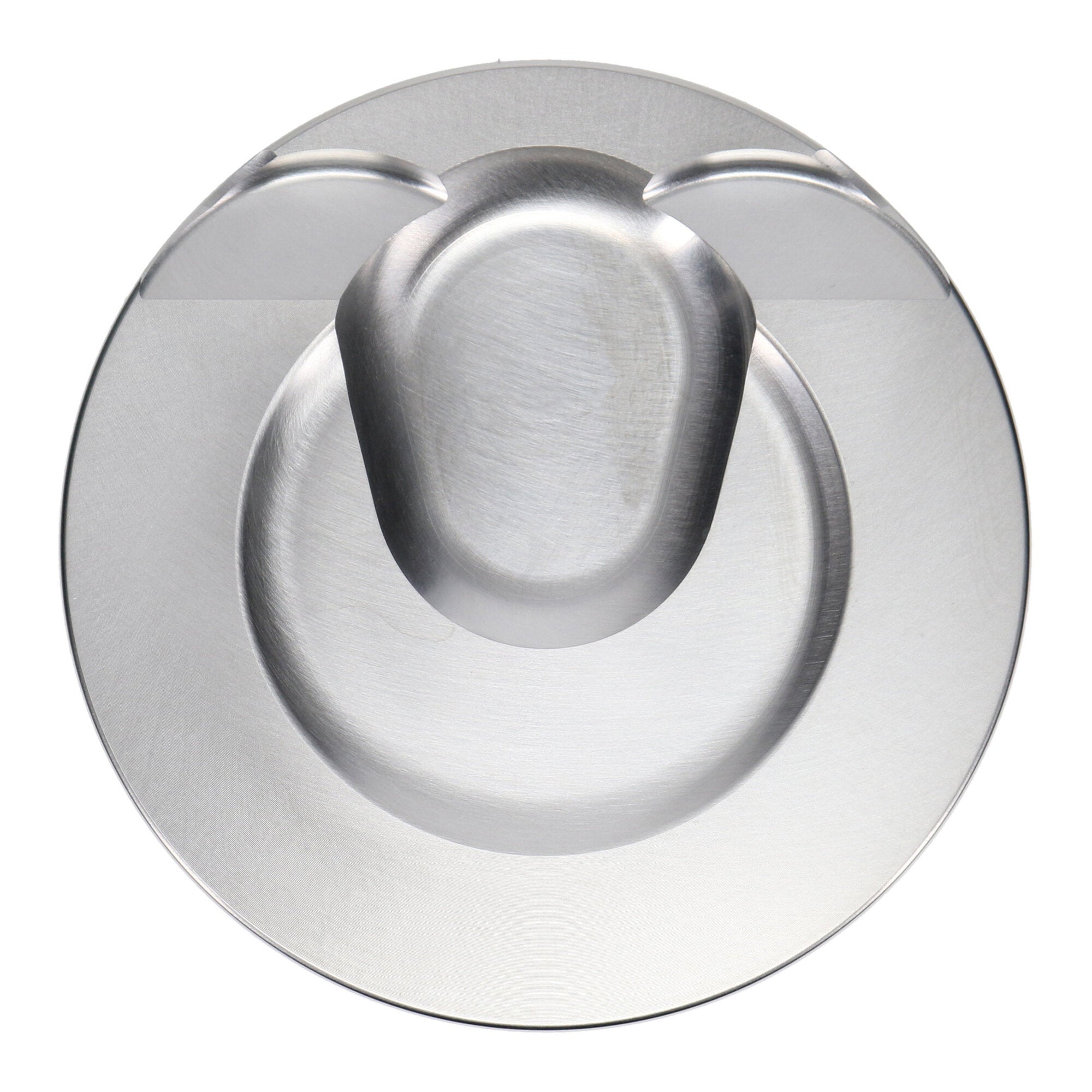

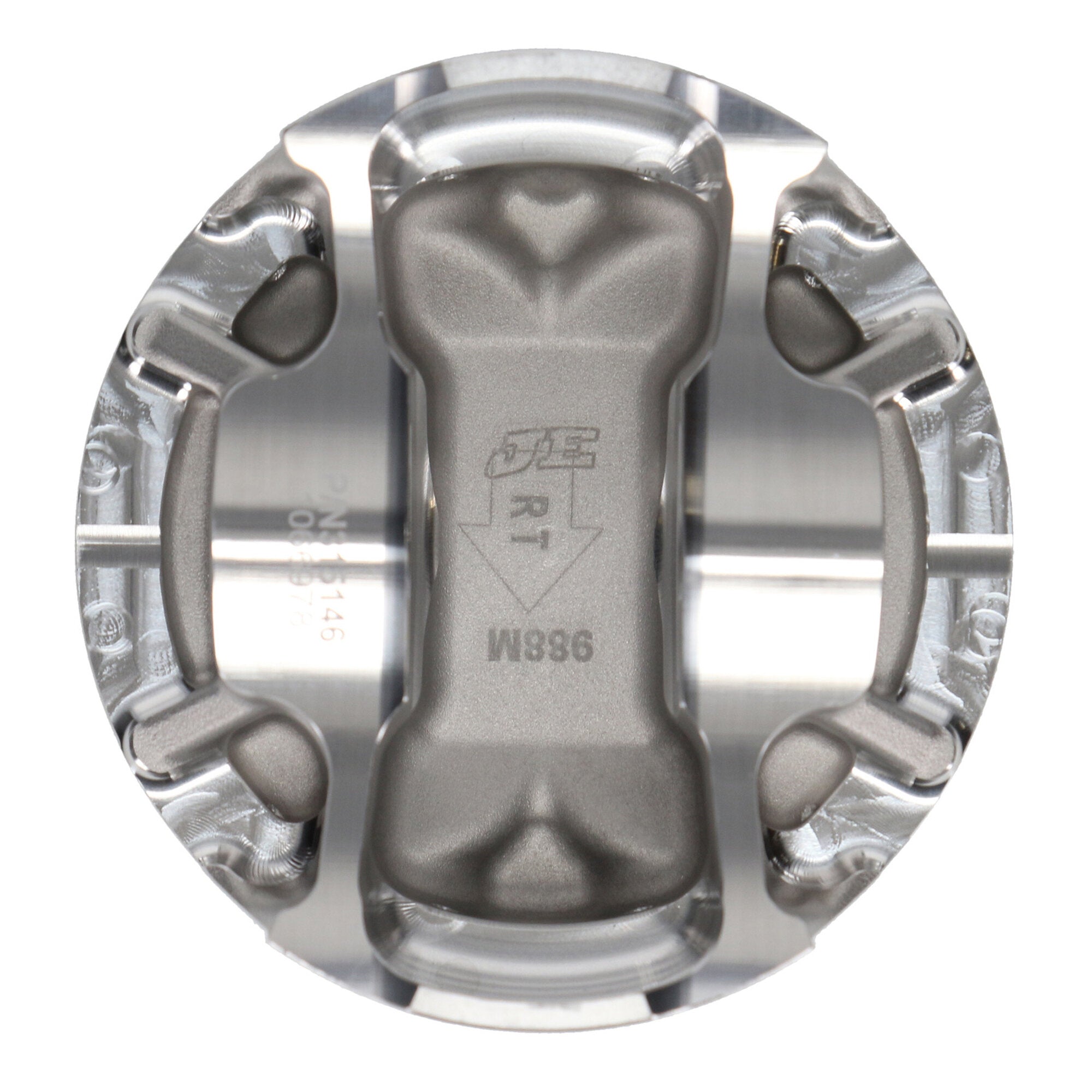

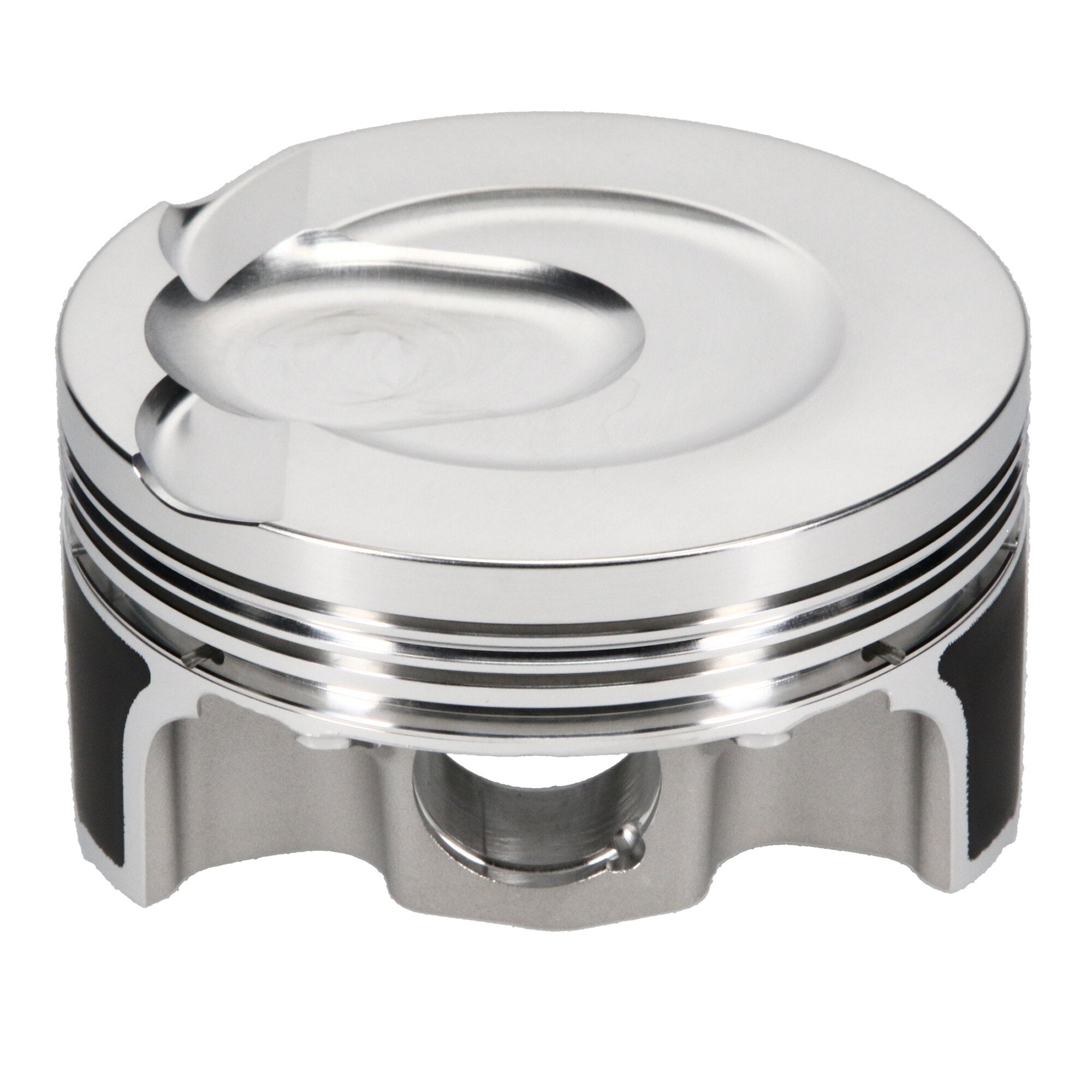

Piston Set, 2618, Dome, 3.661 Bore, 1.240 CD, 0.905 Pin, Set of 6. |
| Description_EXT |
JE, Ford, 3.5L EcoBoost Gen 1 V6, 3.661 in. Bore, 10.00:1, Dome, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Ford 3.5L Eco Boost V6, 93.00 Bore, Dome, Set of 6 |
| Description_SHO |
Piston Kit |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
JG1001-3661 |
| Industry |
Automotive |
| Add-On |
905-073-MW |
| Add-On |
905-2250-18-51C |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
ECOBOOST V6 |
| Prop 65 Yes/No |
Yes |
| Engine |
3.5L ECOBOOST GEN 1 V6 |
| Piston Material |
2618 |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Length |
2.250 |
| Piston Pin Wall Thickness |
0.180 |
| Oil Ring Thickness |
0.111 |
| Ringset Included |
Yes |
| Forging Type |
FSR |
| Title - Web |
JE Pistons Ford 3.5L EcoBoost Gen 1 V6 Piston Kit - 93.00 mm Bore - 1.240 in. CH, -0.90 CC |
| Engine Type |
ICE |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.905 |
| Piston Series |
JE Pistons |
| Piston Average Weight |
406 |
| Piston Pin Material |
5115 |
| Bore Diameter |
93.00 |
| Piston Head Type |
Dome |
| Piston Volume |
-0.90 |
| Title |
JE Pistons - Ford, 3.5L EcoBoost Gen 1 V6, 93.00 mm Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.905 |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0400 |
| Product Market |
Sport Compact |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Compression Height |
1.240 |
| Make |
FORD |
| Piston Quantity |
6 |
| Engine - Web |
3.5L EcoBoost Gen 1 V6 |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
9.0000 |
