As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 5.2L Modular 2V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

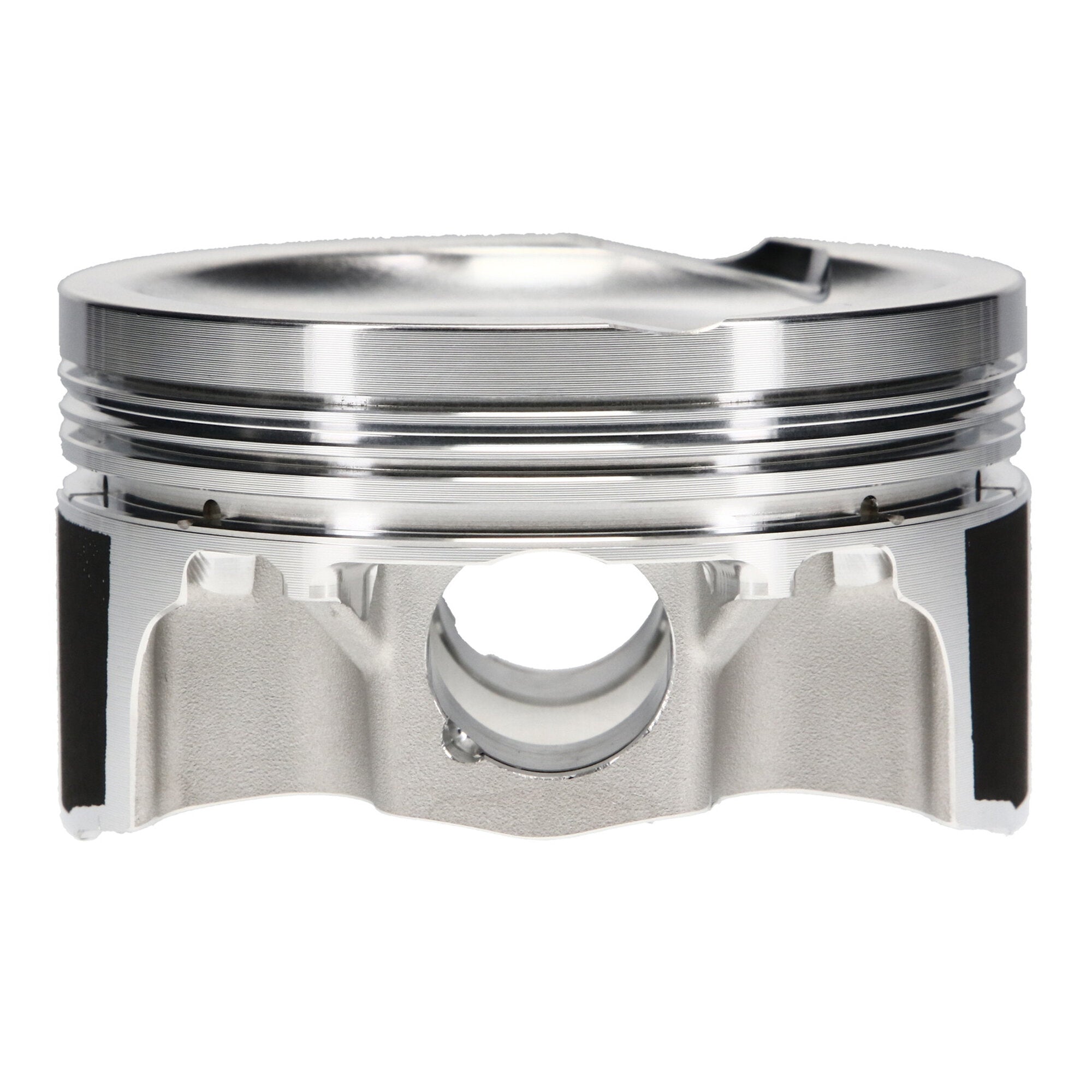

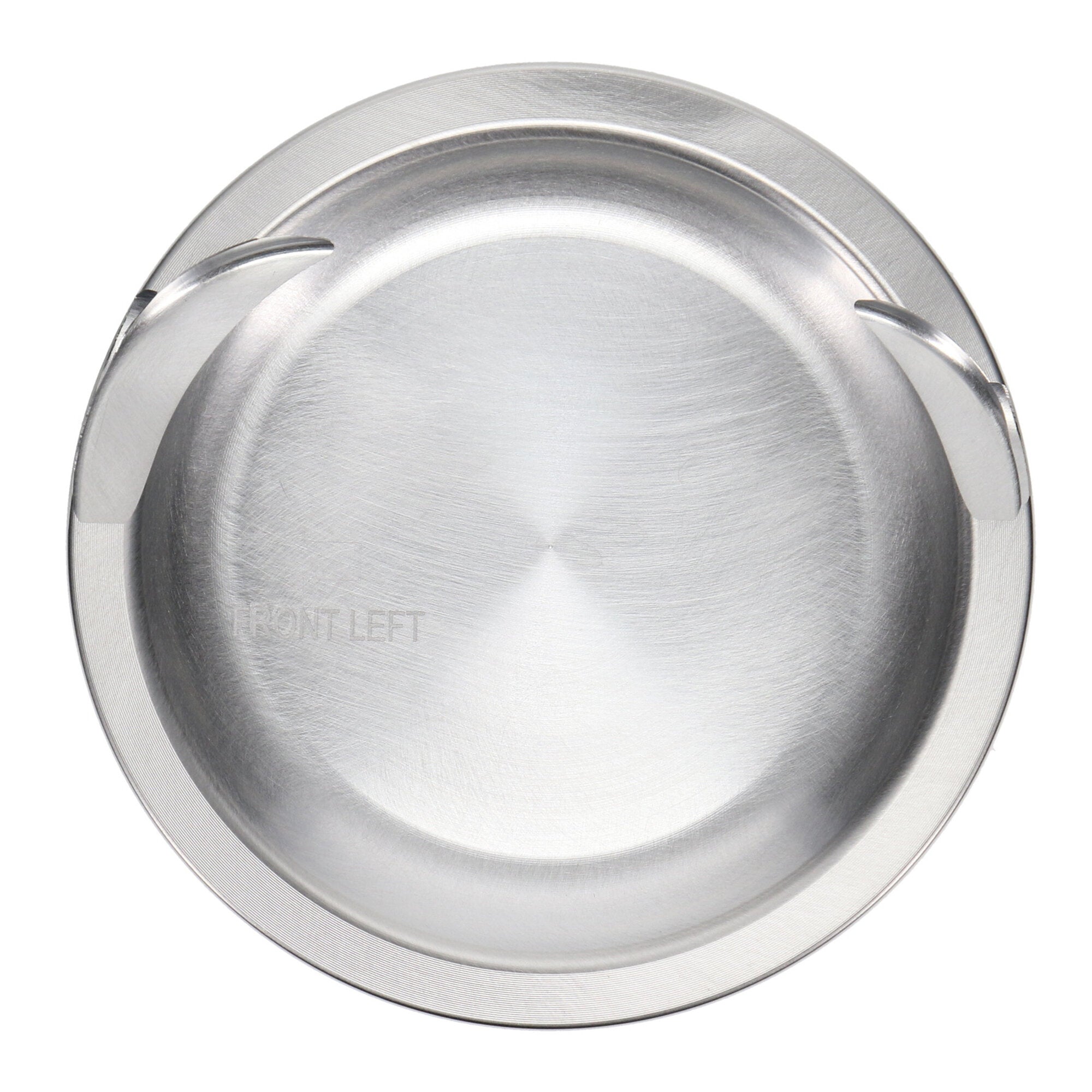

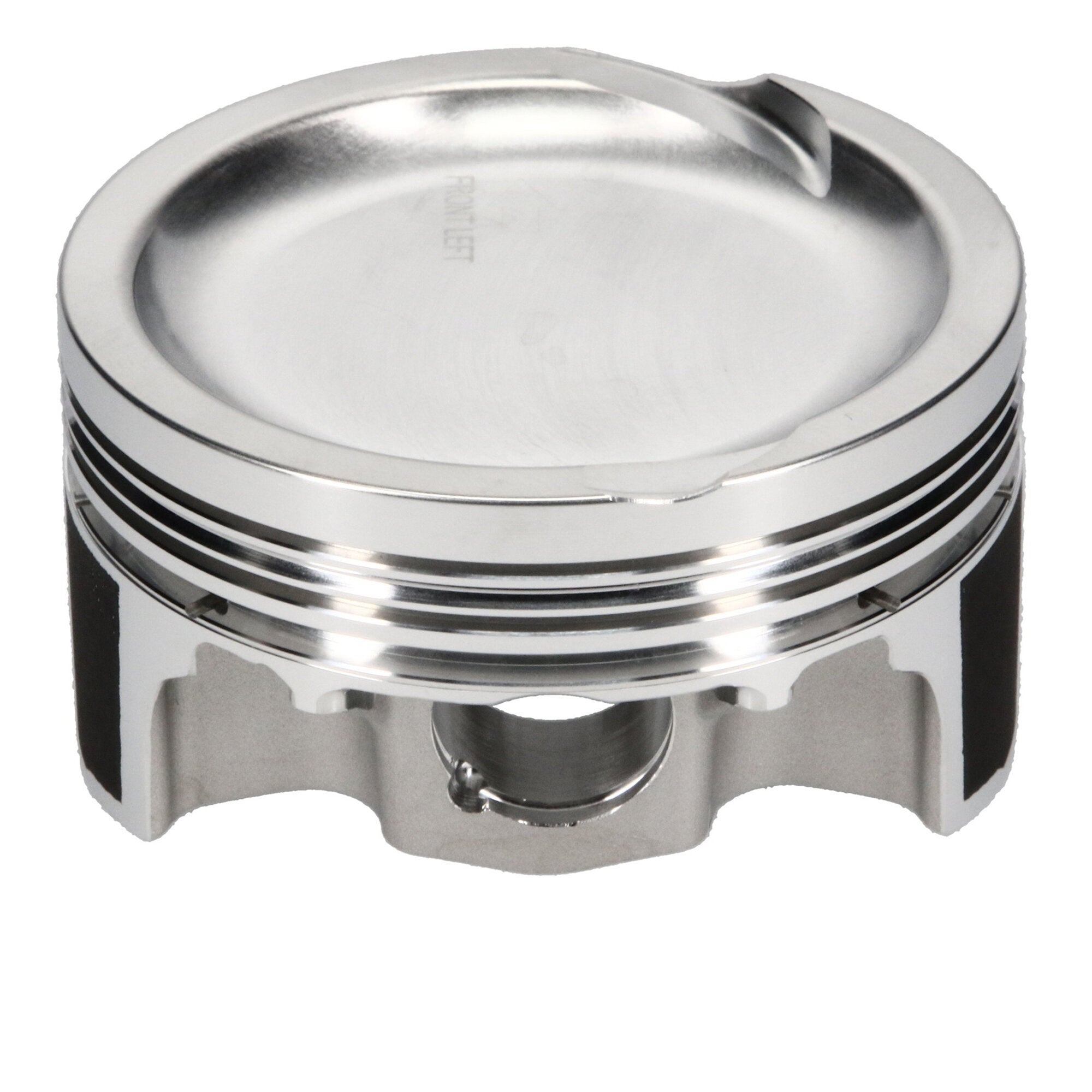

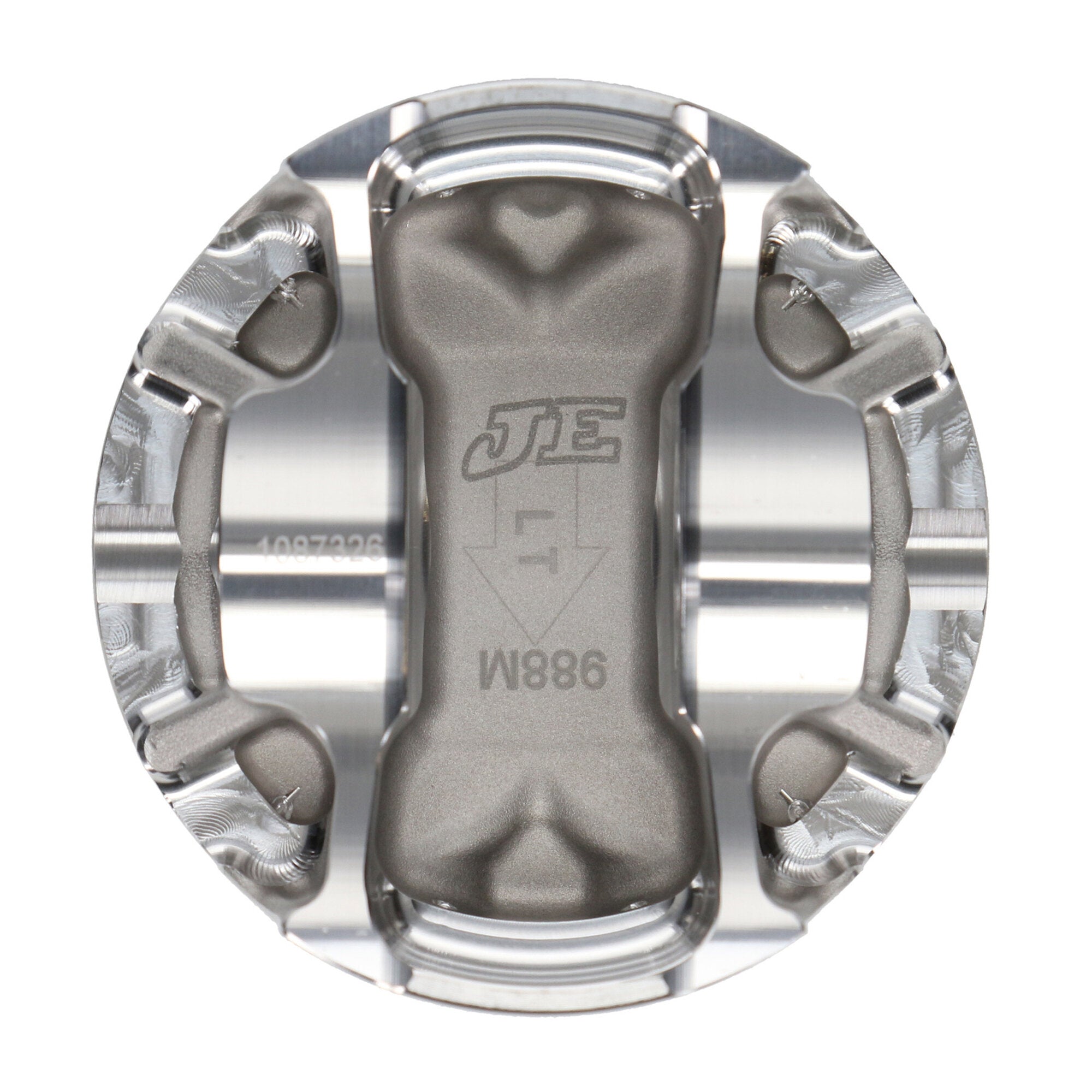

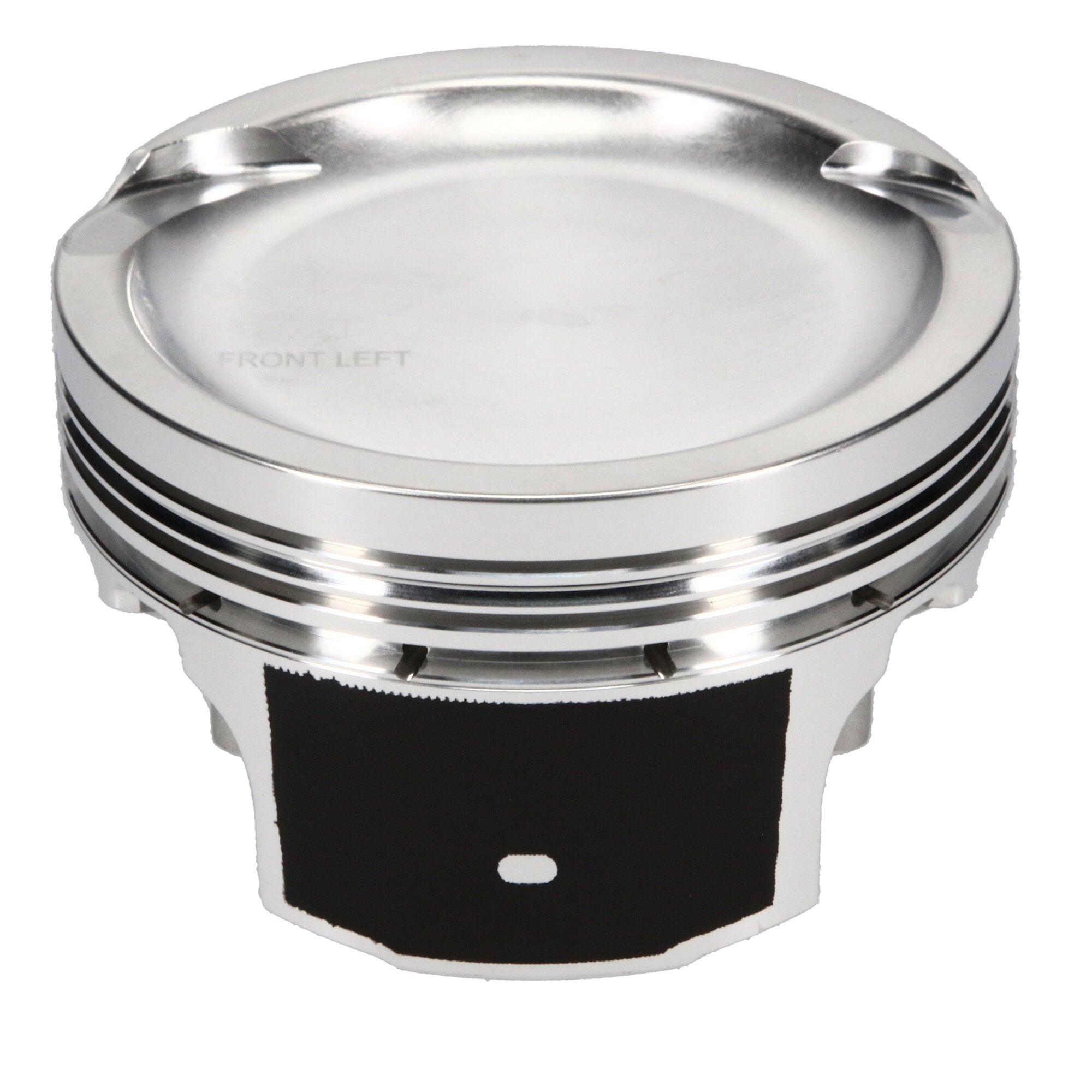

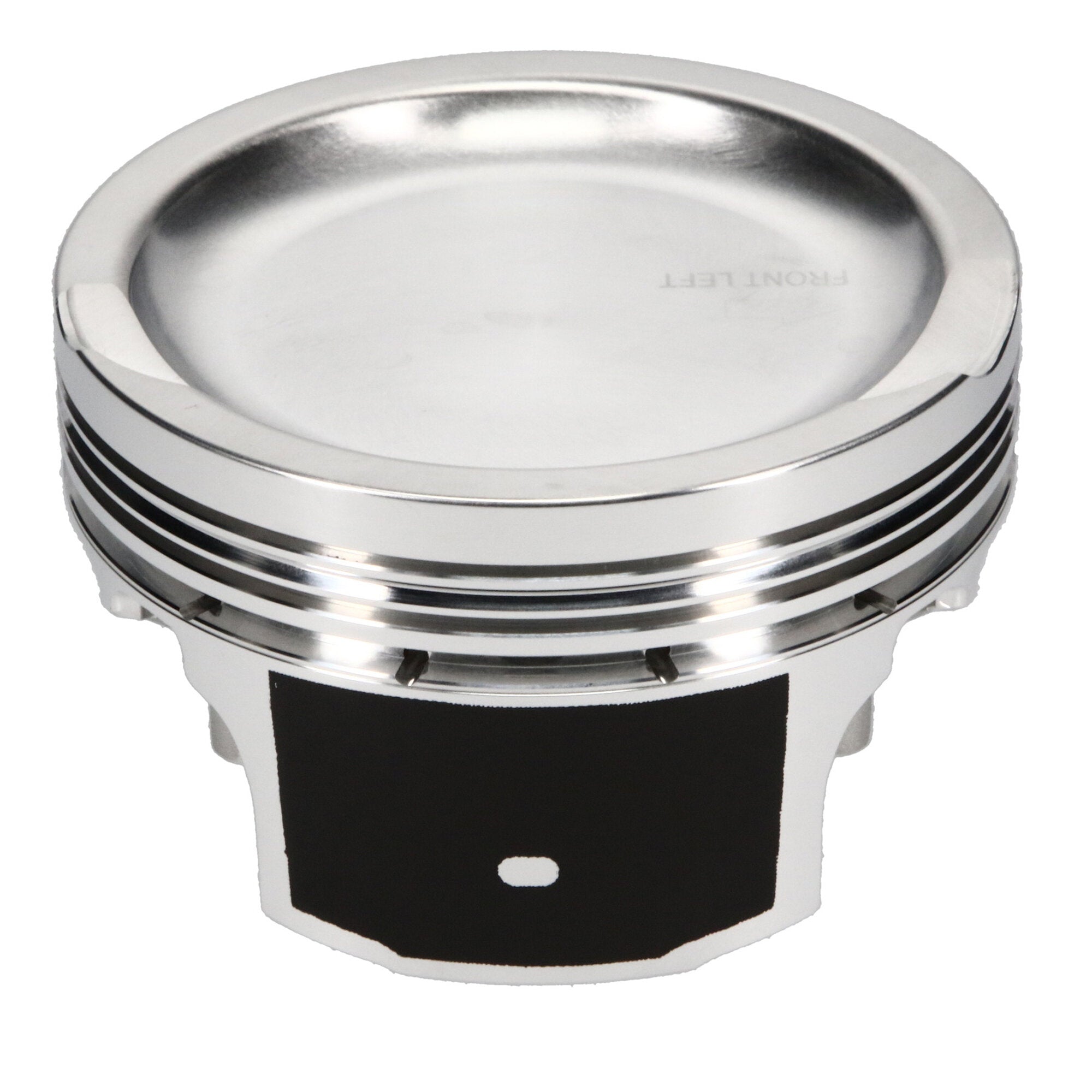

Piston Set, 2618, Inv Dome/Dish, 3.622 Bore, 1.320 CD, 0.866 Pin, Set of 8. |
| Description_EXT |
JE, Ford, Modular Ford, 3.622 in. Bore, 1.320 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 5.2L Modular 2V, 3.622 Bore, Dish, Set of 8 |
| Ringset Included |
No |
| Title |
JE Pistons - Ford, Modular, 3.622 in. Bore, Piston Kit |
| Engine |
Modular |
| Compression Height |
1.320 |
| Engine - Web |
Modular |
| Product Market |
Domestic |
| Oil Ring Thickness |
0.111 |
| Forging Type |
FSR |
| Wrist Pin Wall Thickness |
0.150 |
| Make |
FORD |
| Piston Head Type |
Dish |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.150 |
| Piston Quantity |
8 |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-18.10 |
| Piston Pin Outside Diameter |
0.866 |
| Piston Pin Material |
5115 |
| Prop 65 Yes/No |
Yes |
| Engine Type |
ICE |
| Second Compression Ring Thickness |
0.0480 |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
No |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Average Weight |
349 |
| Add-On |
JG1008-3622 |
| Piston Pin Length |
2.250 |
| Cylinder Head |
MODULAR 4.6 2V |
| Add-On |
866-063-MW |
| Top Compression Ring Thickness |
0.0400 |
| Bore Diameter |
3.622 |
| Add-On |
866-2250-15-51C |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Ford Modular Piston Kit - 3.622 in. Bore - 1.320 in. CH, -18.10 CC |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
11.0000 |
