As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 4.6L Modular 3V Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

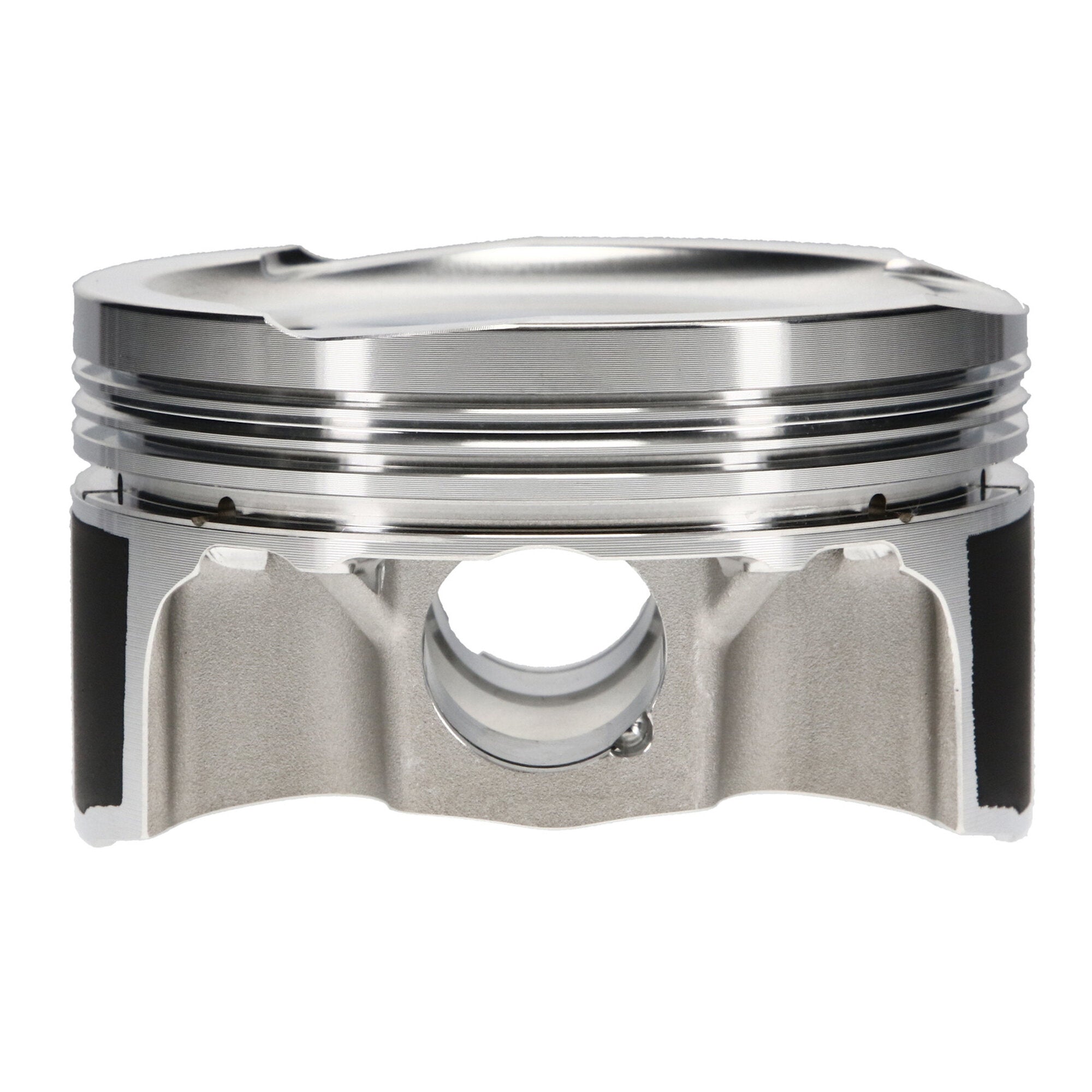

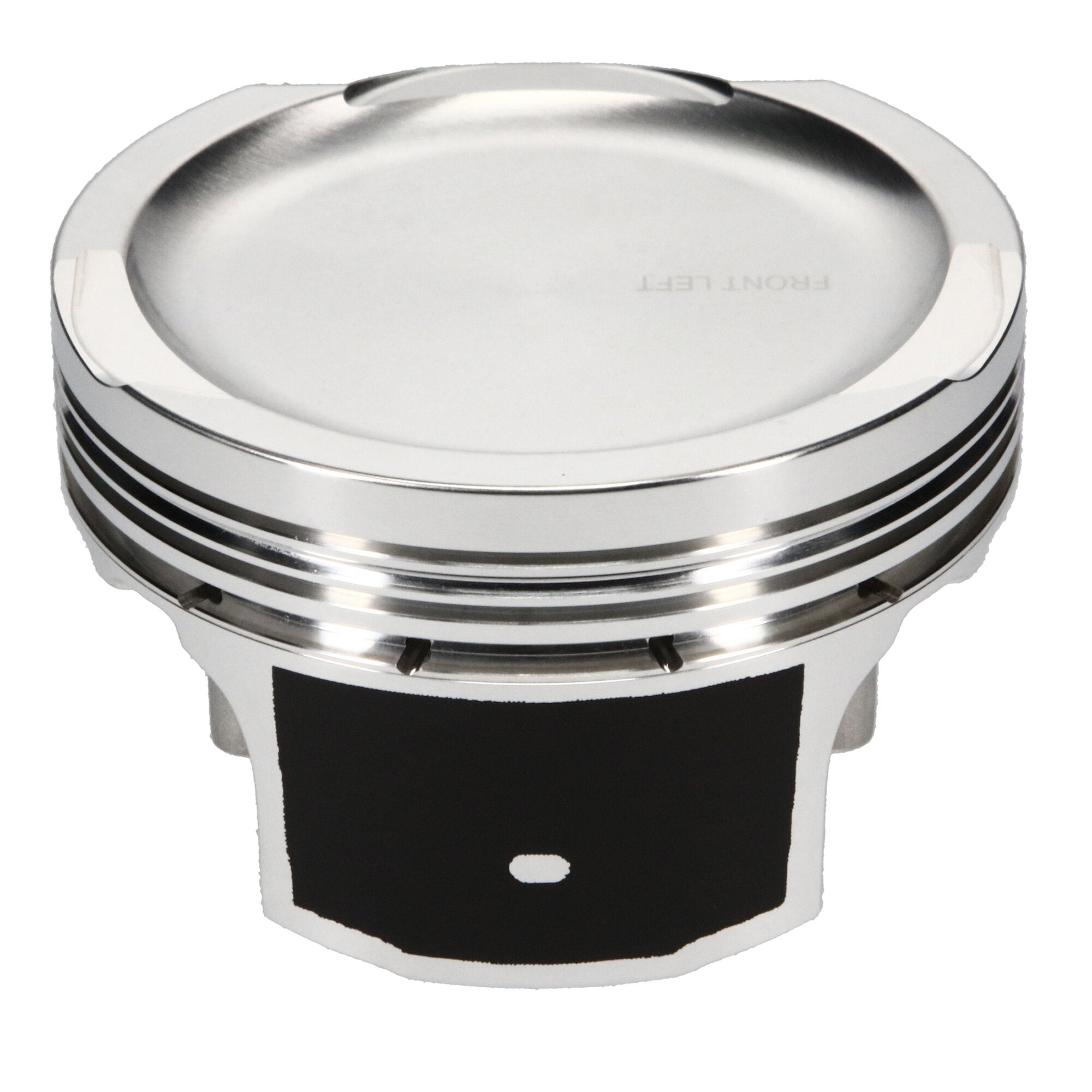

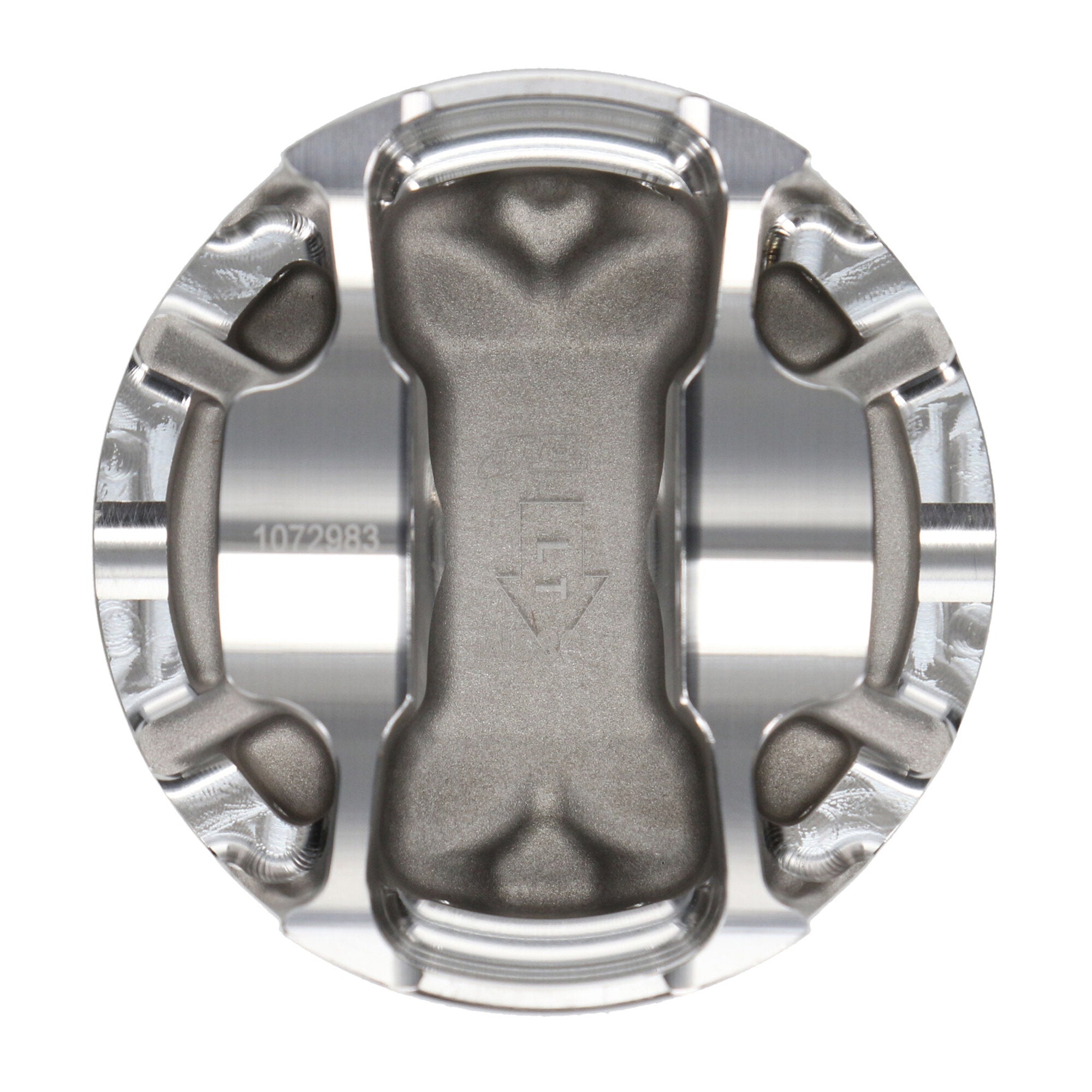

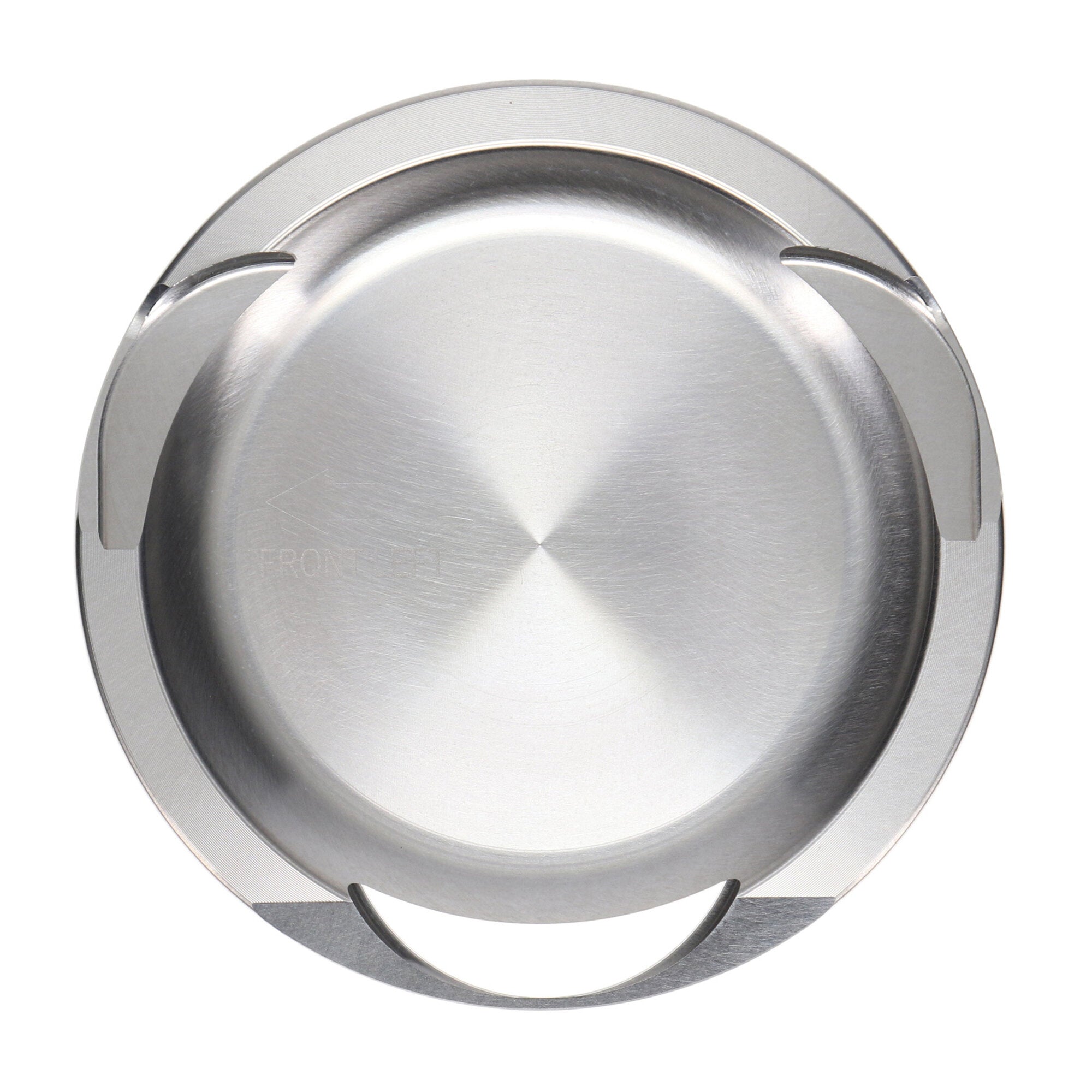

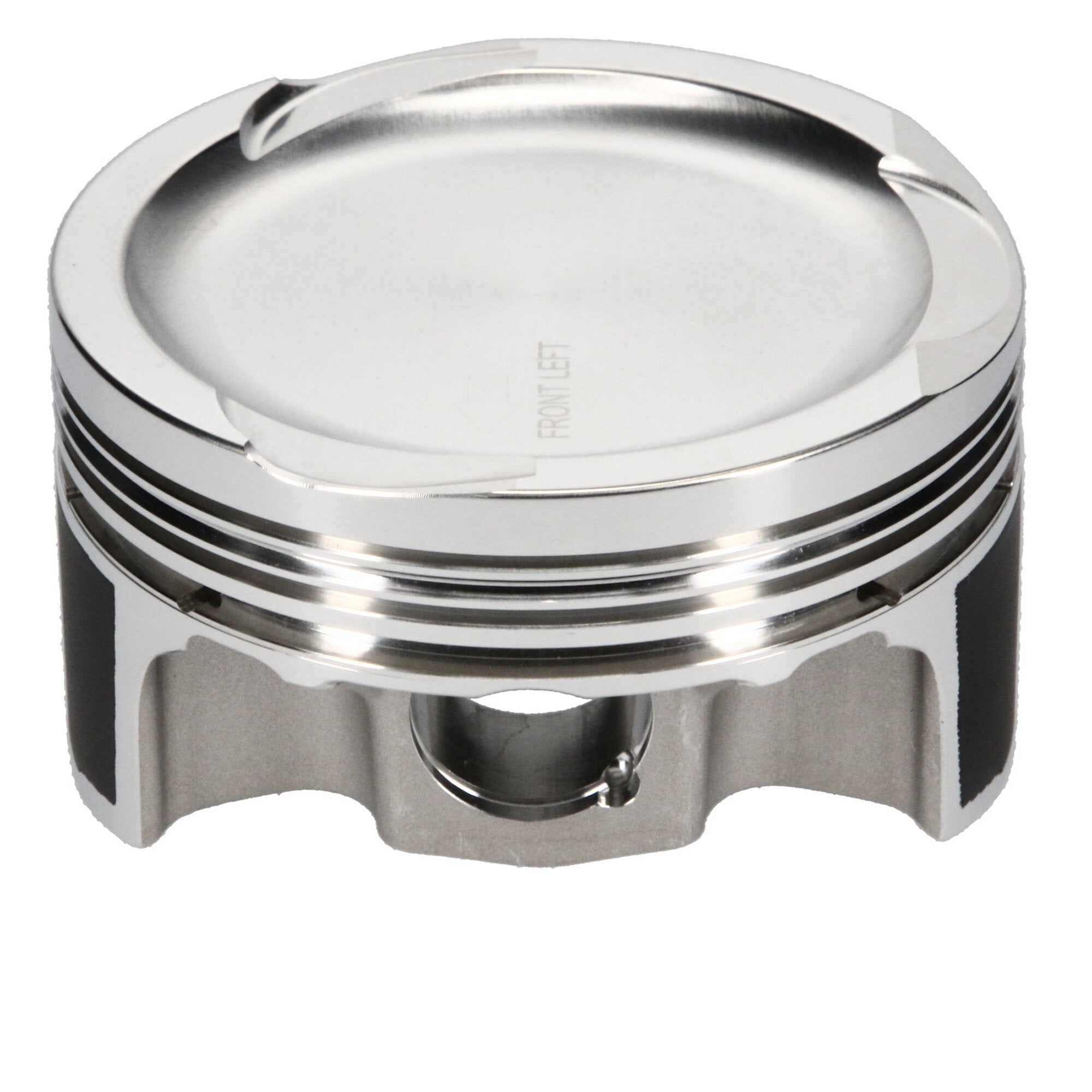

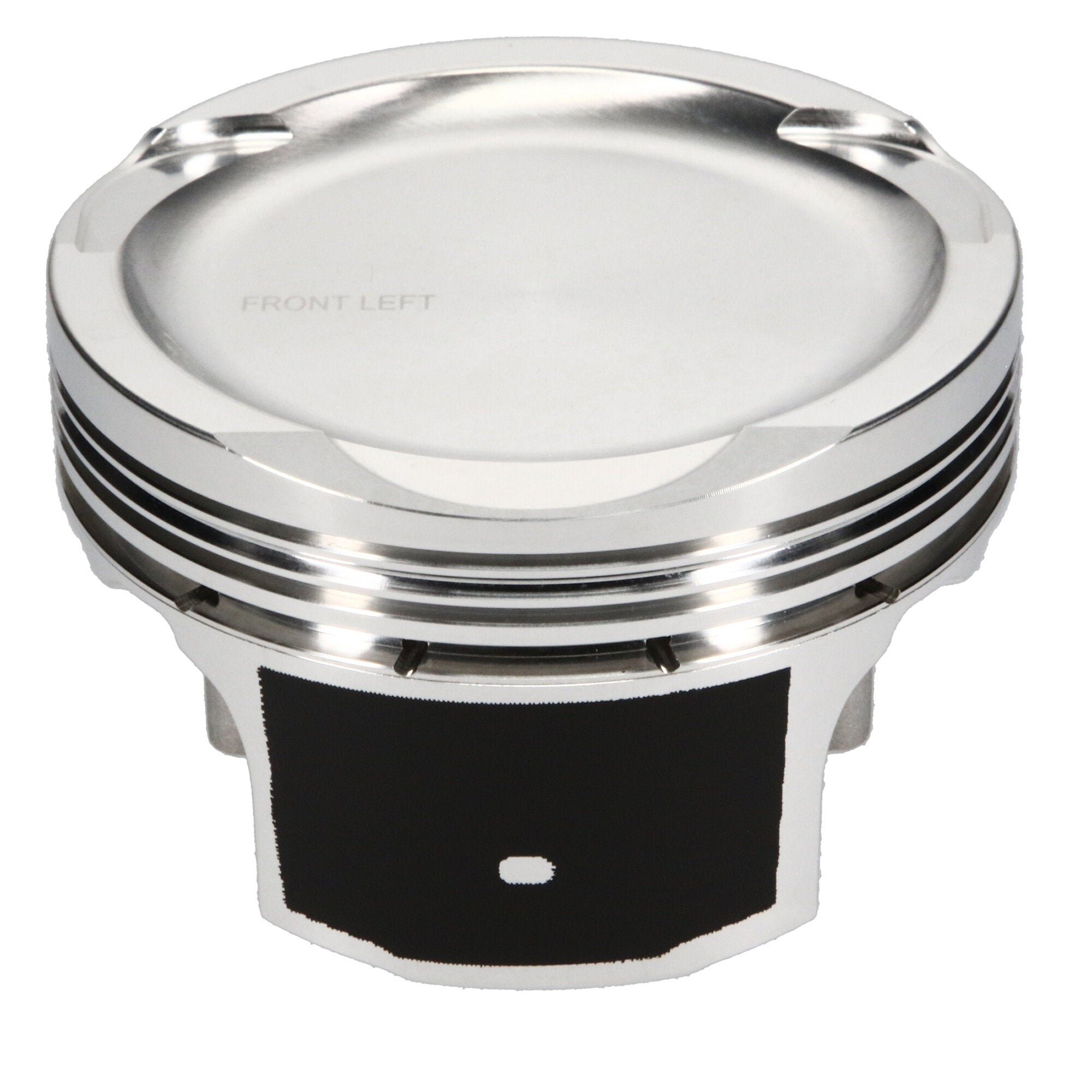

Piston Set, 2618, Inv Dome/Dish, 3.572 Bore, 1.200 CD, 0.866 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Modular Ford, 3.572 in. Bore, 1.200 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Ford 4.6L Modular, 3.572 Bore, Dish, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Piston Head Type |
Dish |
| Product Type |
Engine Piston Kit |
| Engine Type |
ICE |
| Engine - Web |
Modular |
| Wrist Pin Length |
2.250 |
| Piston Quantity |
8 |
| Ring Set Included |
No |
| Top Compression Ring Thickness |
0.0480 |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Volume |
-14.30 |
| Piston Average Weight |
342 |
| Piston Pin Outside Diameter |
0.866 |
| Compression Height |
1.200 |
| Make |
FORD |
| Bore Diameter |
3.572 |
| Second Compression Ring Thickness |
0.0600 |
| Product Market |
Domestic |
| Title |
JE Pistons - Ford, Modular, 3.572 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.119 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-2250-15-51C |
| Piston Pin Length |
2.250 |
| Cylinder Head |
MODULAR 4.6L 3V |
| Prop 65 Yes/No |
Yes |
| Add-On |
866-063-MW |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Engine |
Modular |
| Title - Web |
JE Pistons Ford Modular Piston Kit - 3.572 in. Bore - 1.200 in. CH, -14.30 CC |
| Industry |
Automotive |
| Add-On |
JG3208-3571-0 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
12.0000 |
