As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302/351 Windsor |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

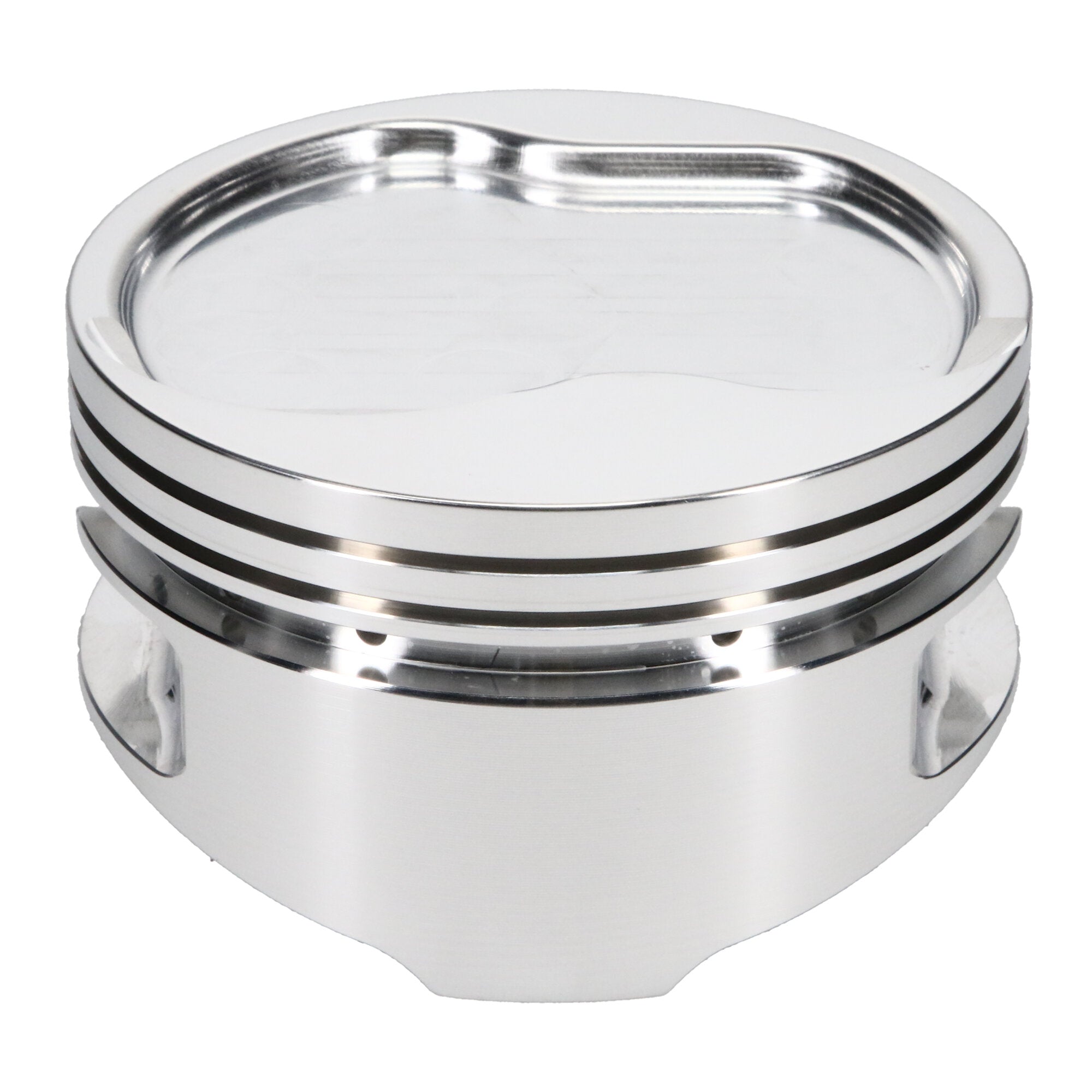

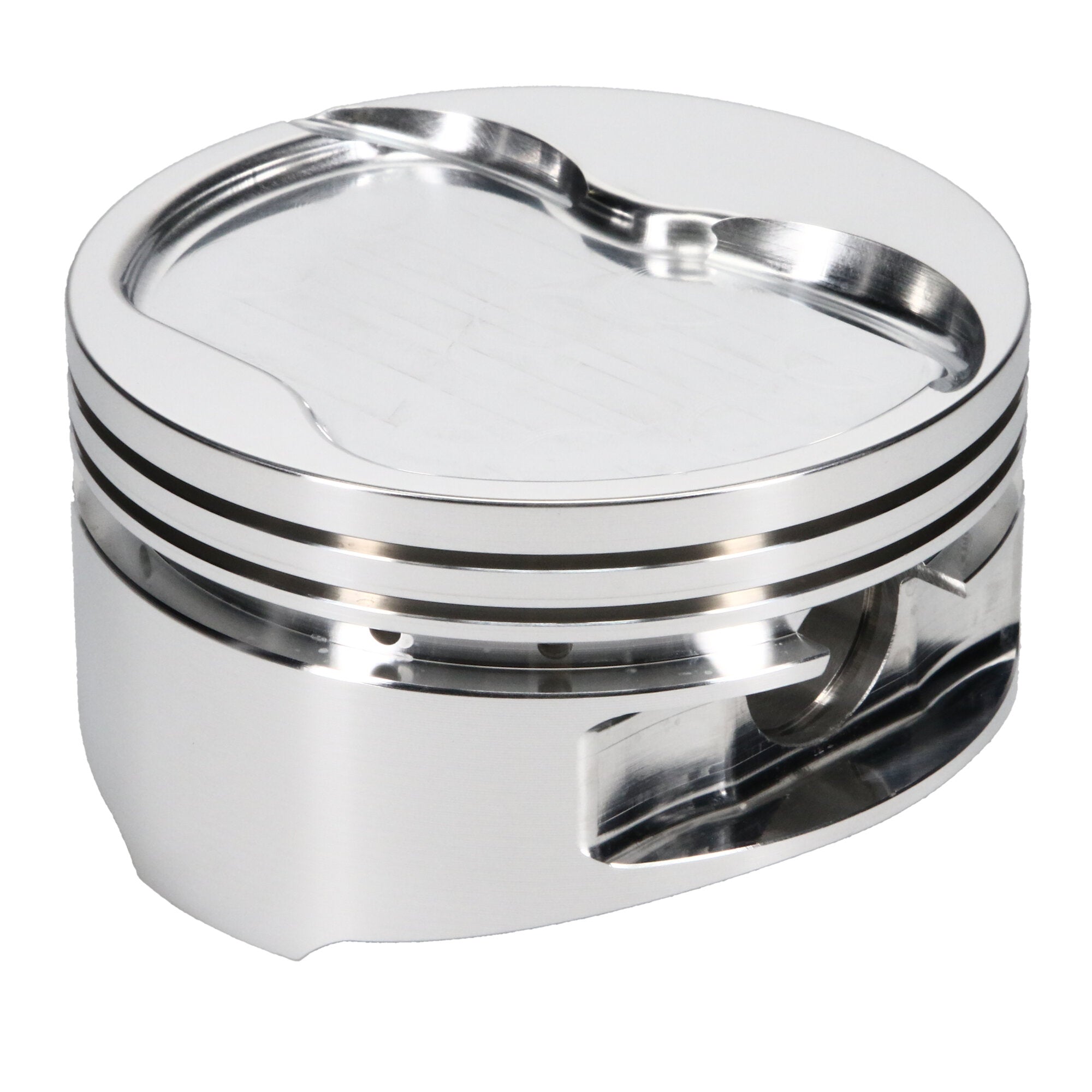

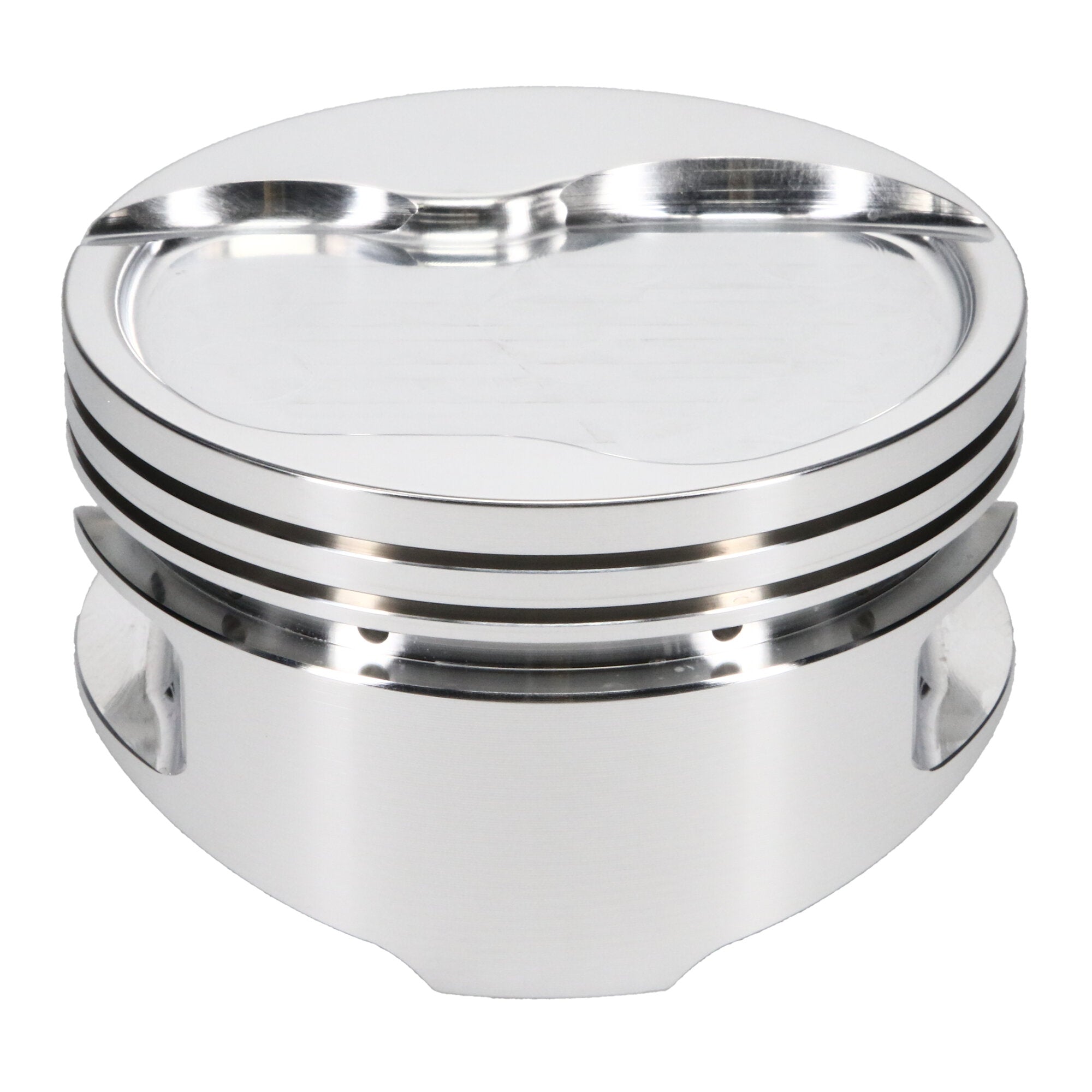

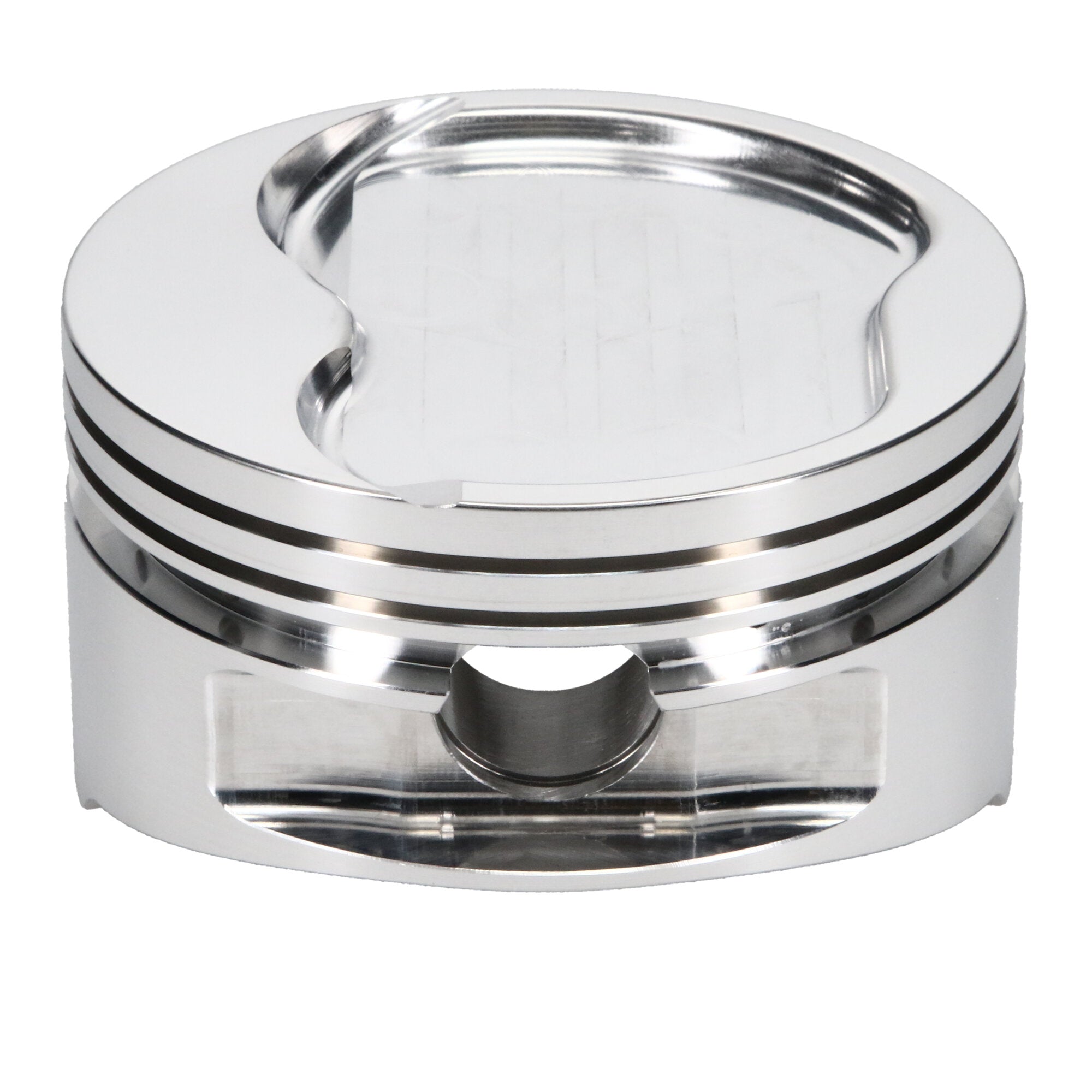

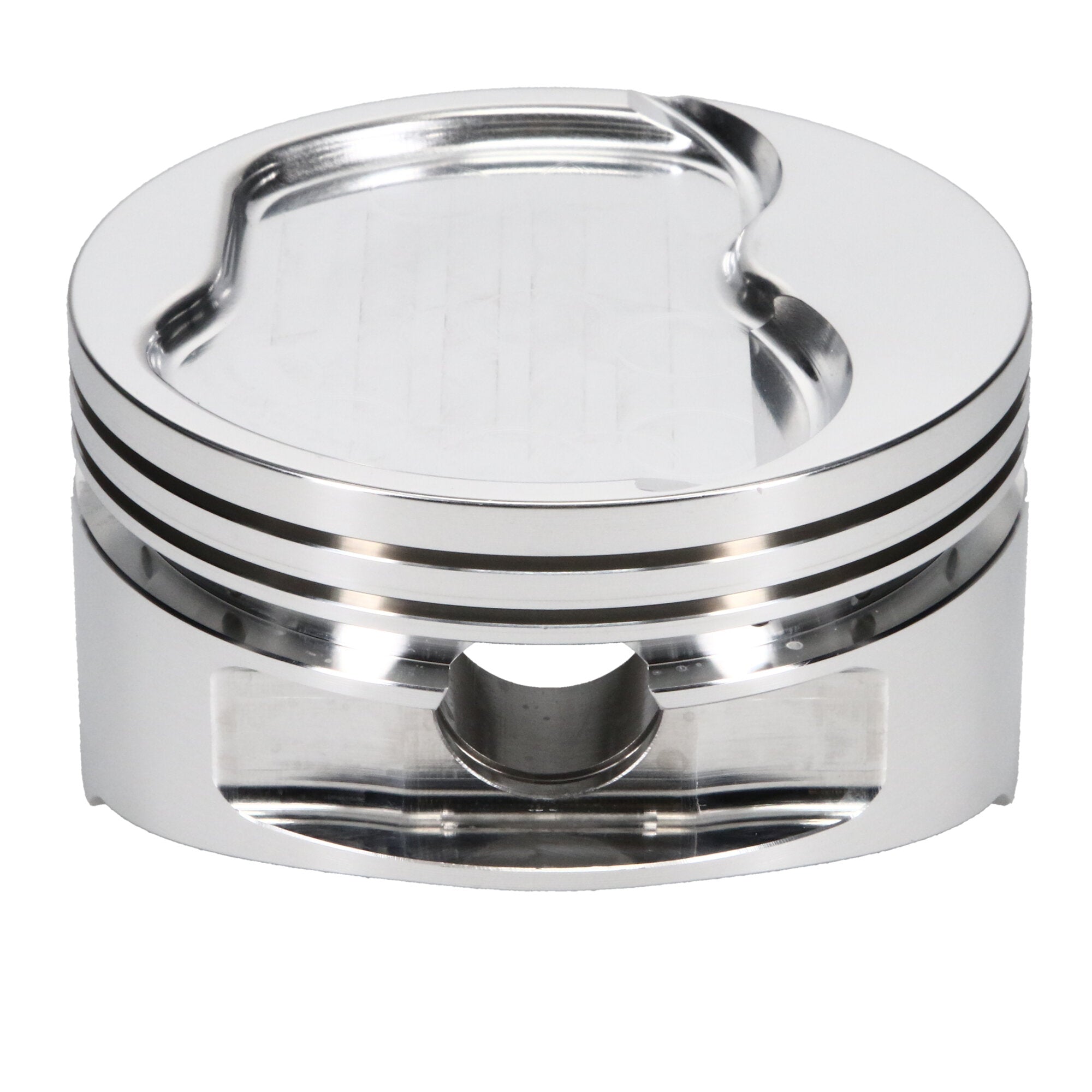

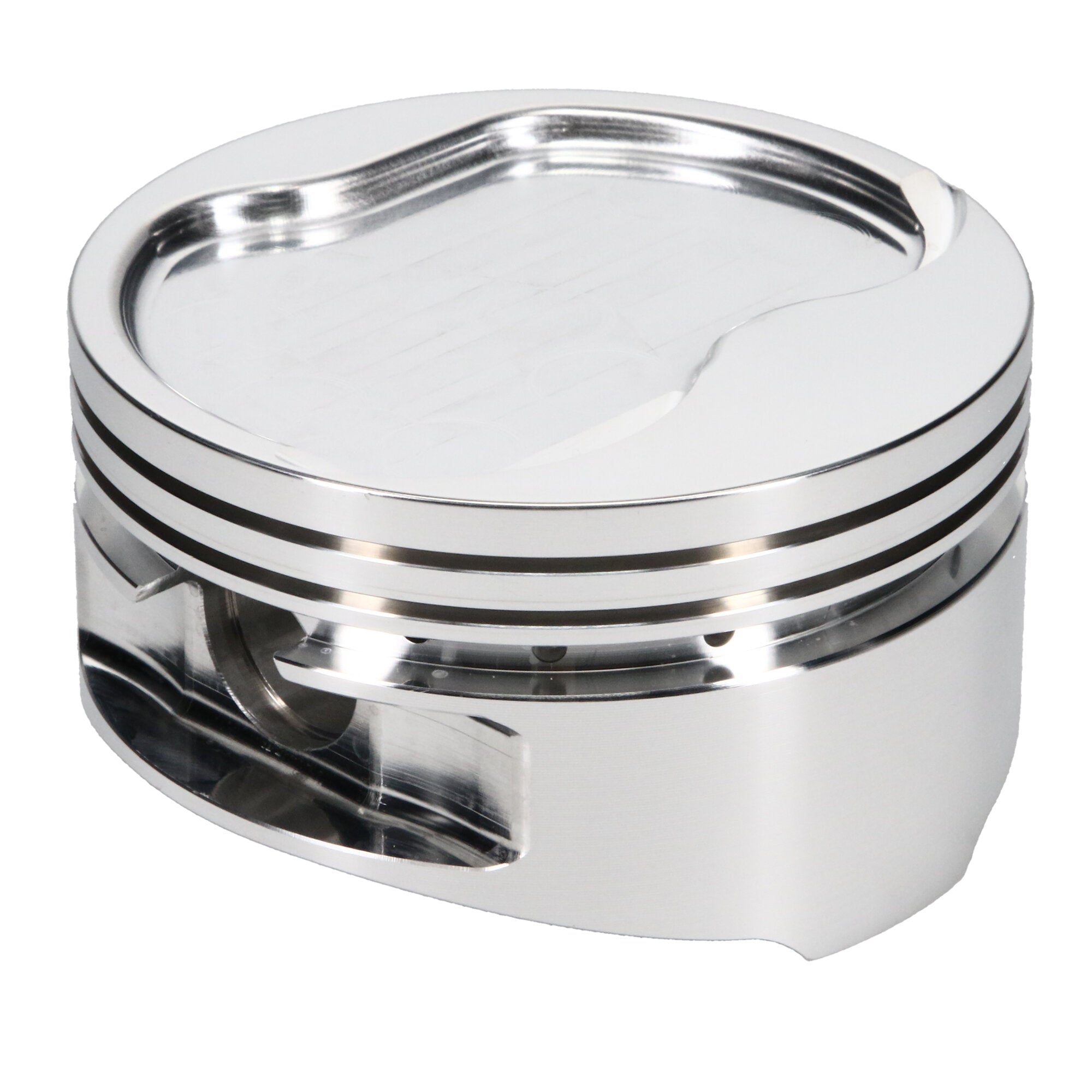

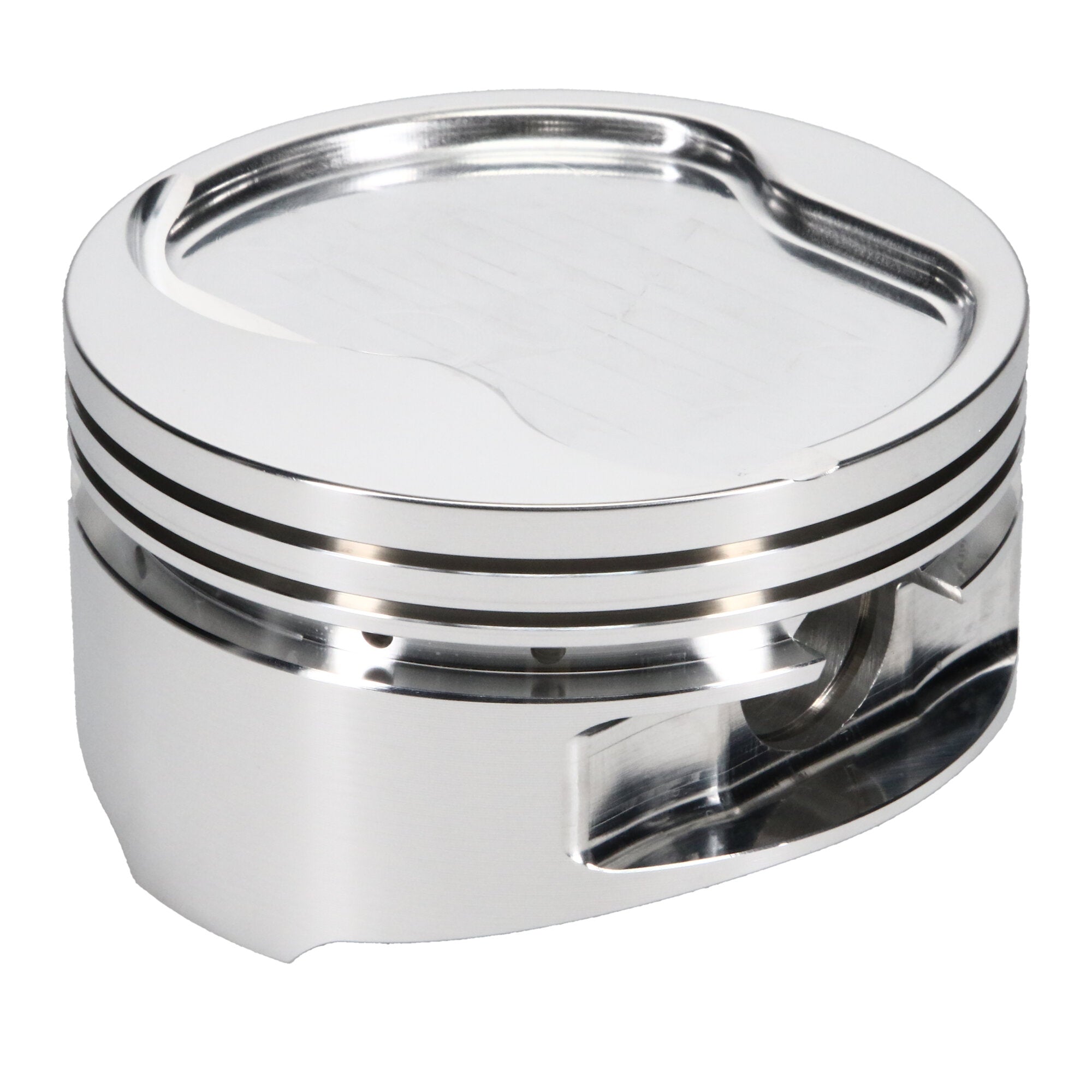

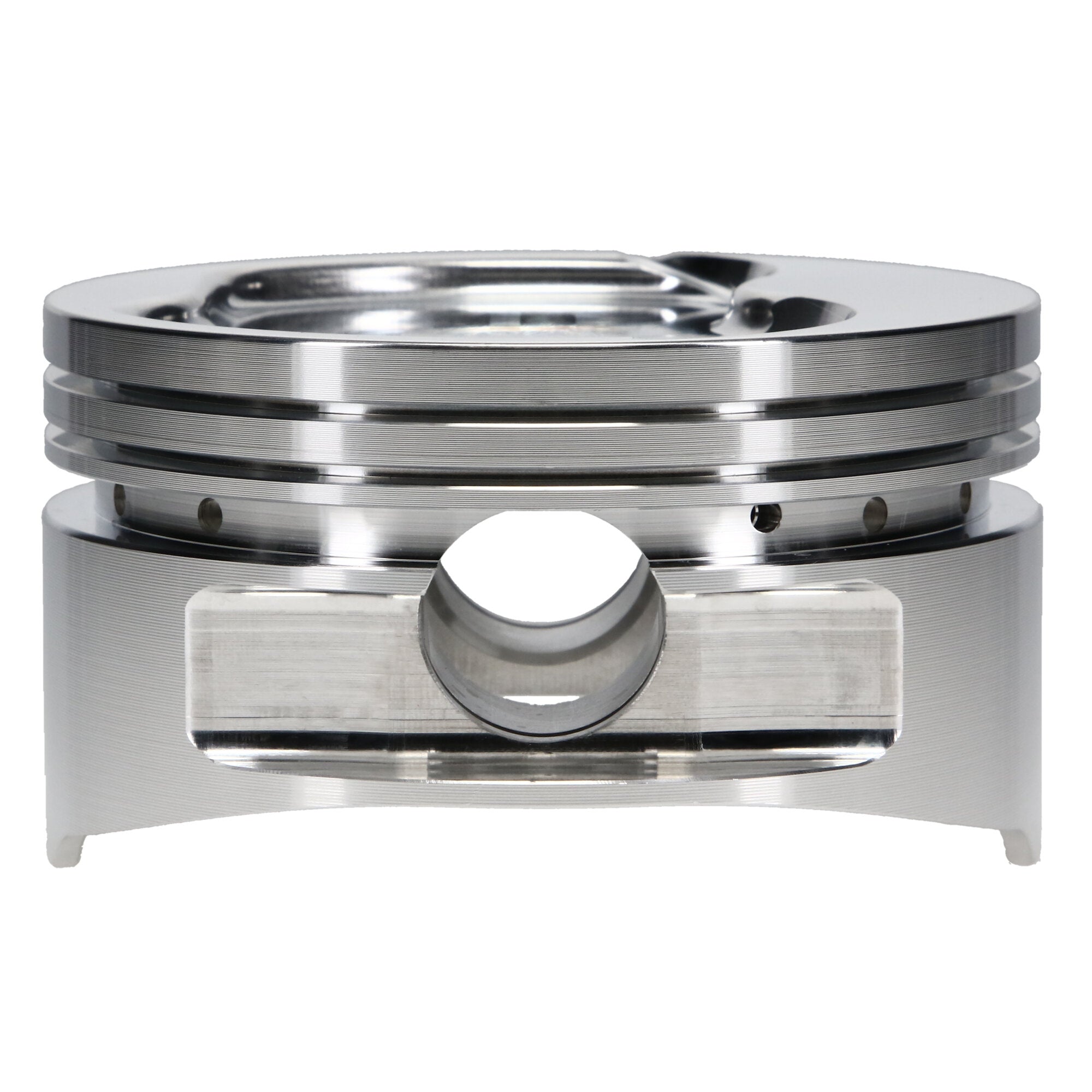

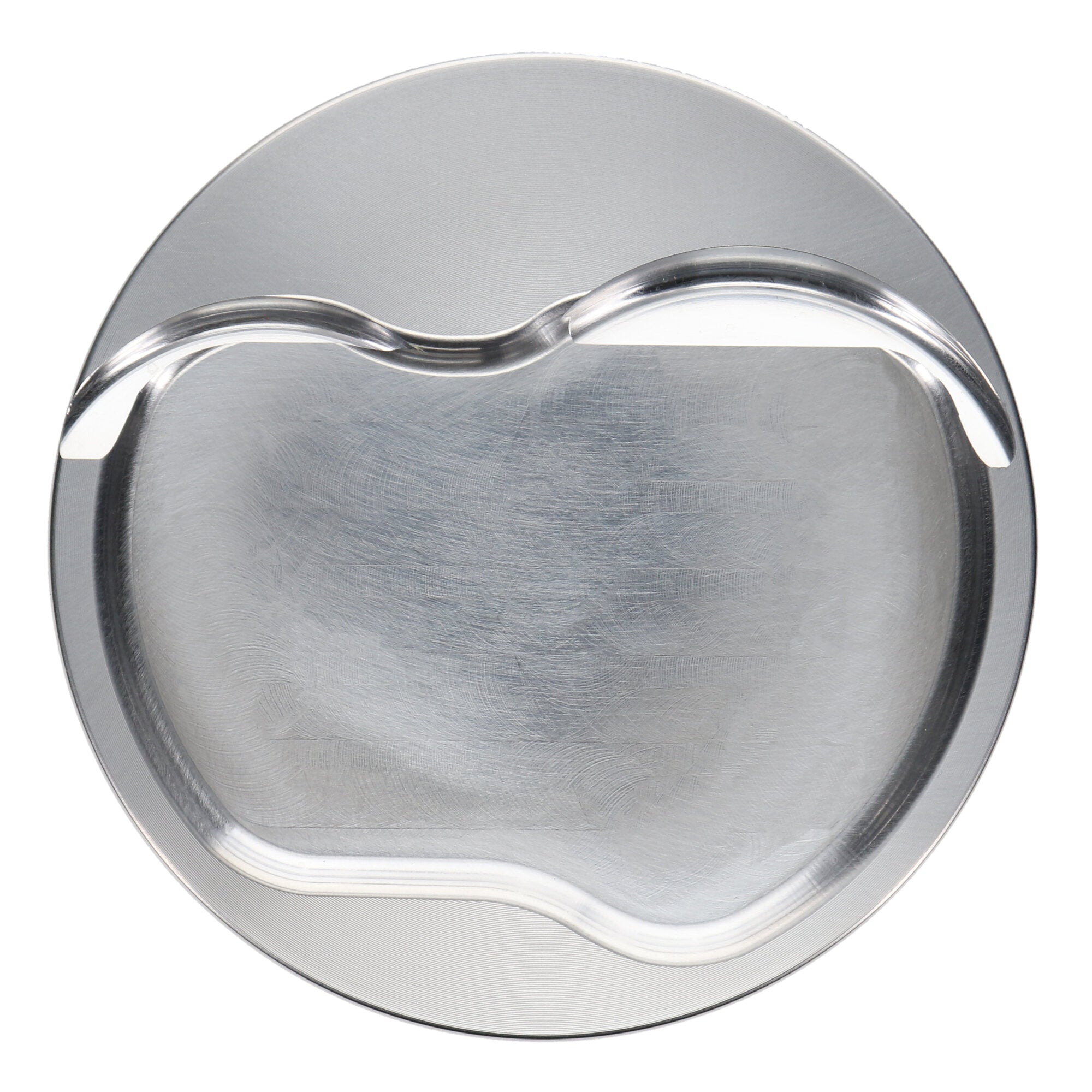

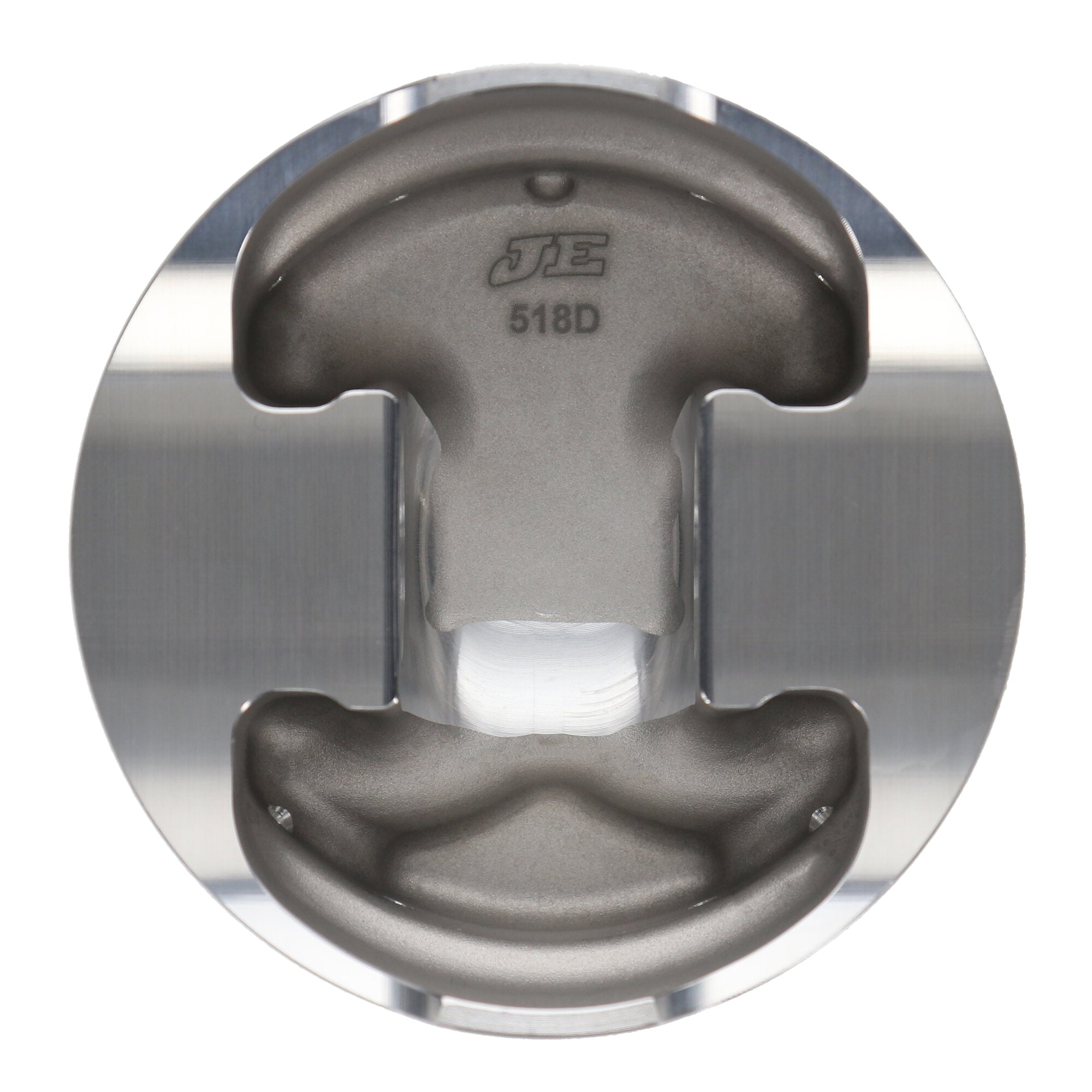

Piston Set, 2618, Inv Dome/Dish, 4.125 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Small Block Ford, 4.125 in. Bore, 1.100 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 302/351 Windsor, 4.125 Bore, Dish, Set of 8 |
| Piston Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Ford, Small Block, 4.125 in. Bore, Piston Kit |
| Piston Head Type |
Dish |
| Product Market |
Domestic |
| Piston Average Weight |
400 |
| Piston Series |
JE Pistons |
| Ringset Included |
No |
| Engine Type |
ICE |
| Compression Height |
1.100 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Top Compression Ring Thickness |
0.0640 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.927 |
| Make |
FORD |
| Bore Diameter |
4.125 |
| Piston Quantity |
8 |
| Second Compression Ring Thickness |
0.0640 |
| Forging Type |
Round |
| Out of Stock Message |
Call for Availability |
| Oil Ring Thickness |
0.218 |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.125 in. Bore - 1.100 in. CH, -14.00 CC |
| Wrist Pin Outer Diameter |
0.927 |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
927-2750-15-51S |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Engine |
Small Block |
| Piston Volume |
-14.00 |
| Piston Pin Length |
2.750 |
| Prop 65 Yes/No |
Yes |
| Add-On |
J10008-4125-5 |
| Make - Web |
Ford |
| Wrist Pin Length |
2.750 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
