As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
1.6L Tritec I4 Supercharged |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

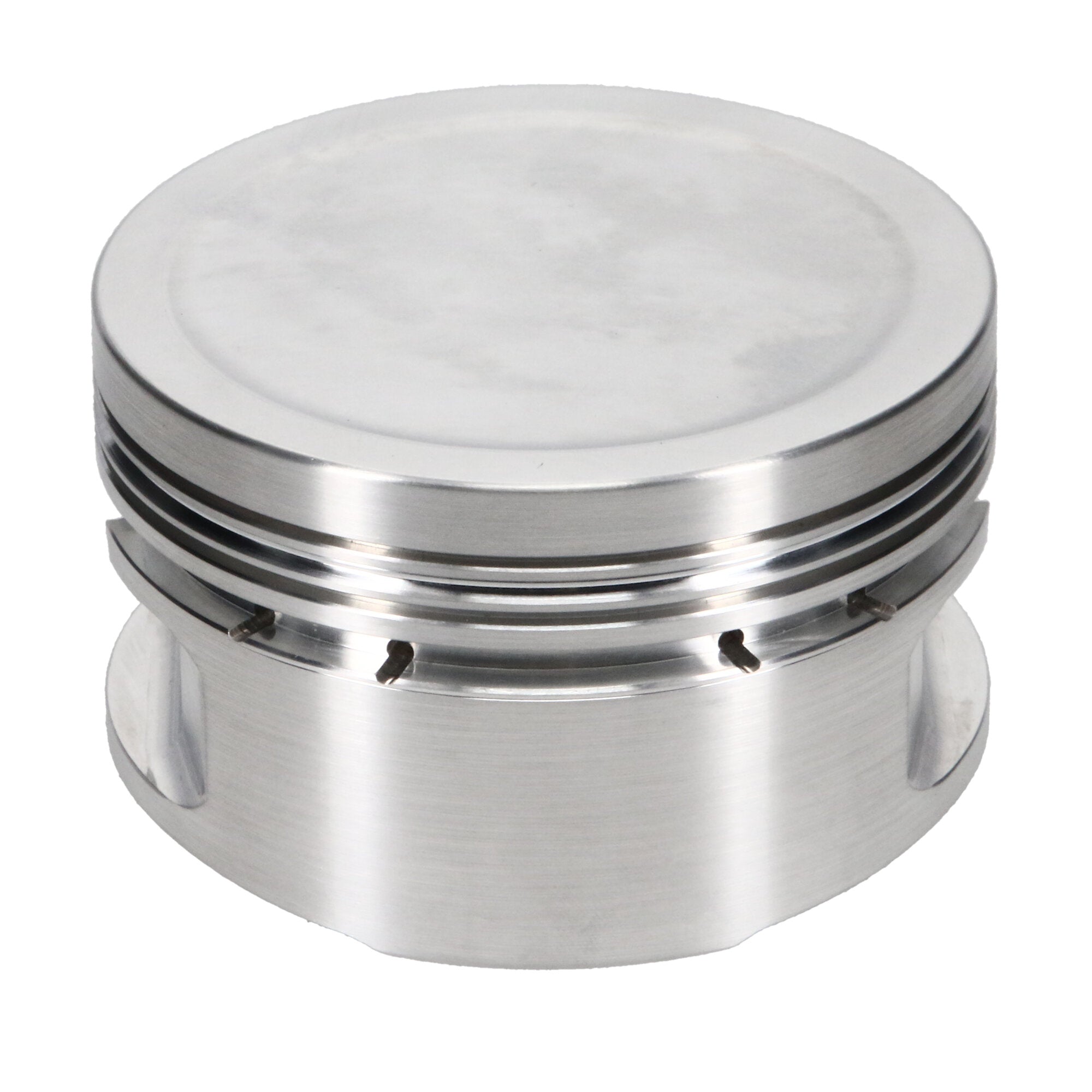

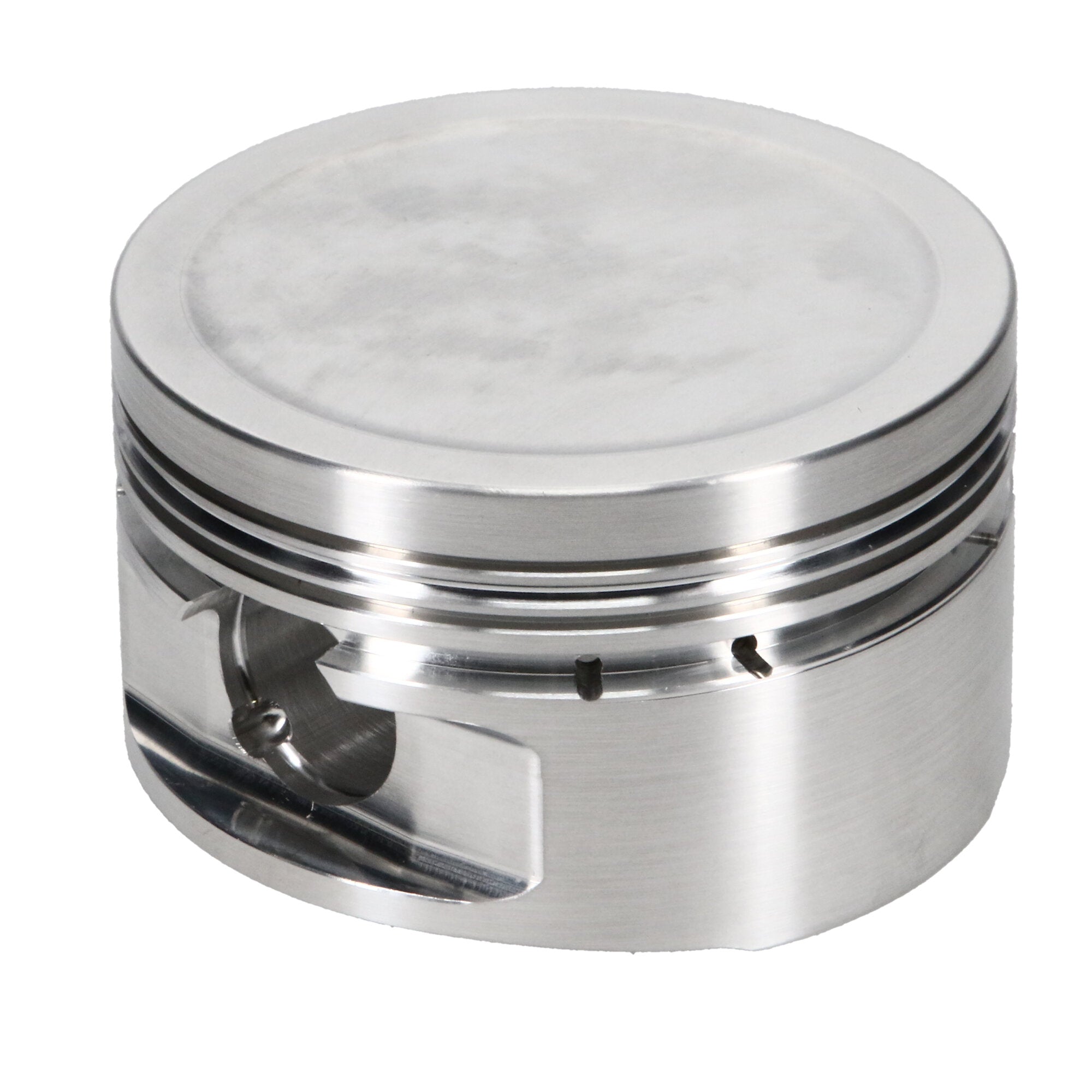

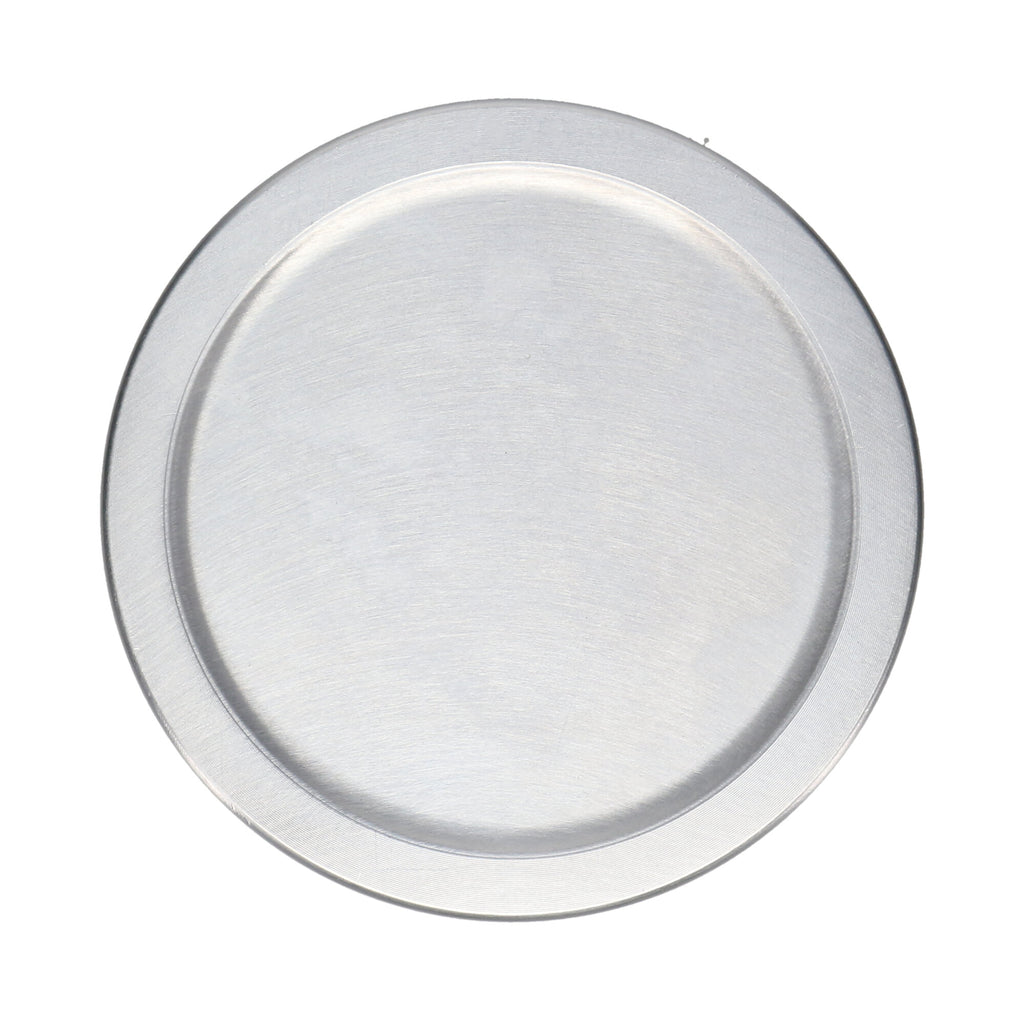

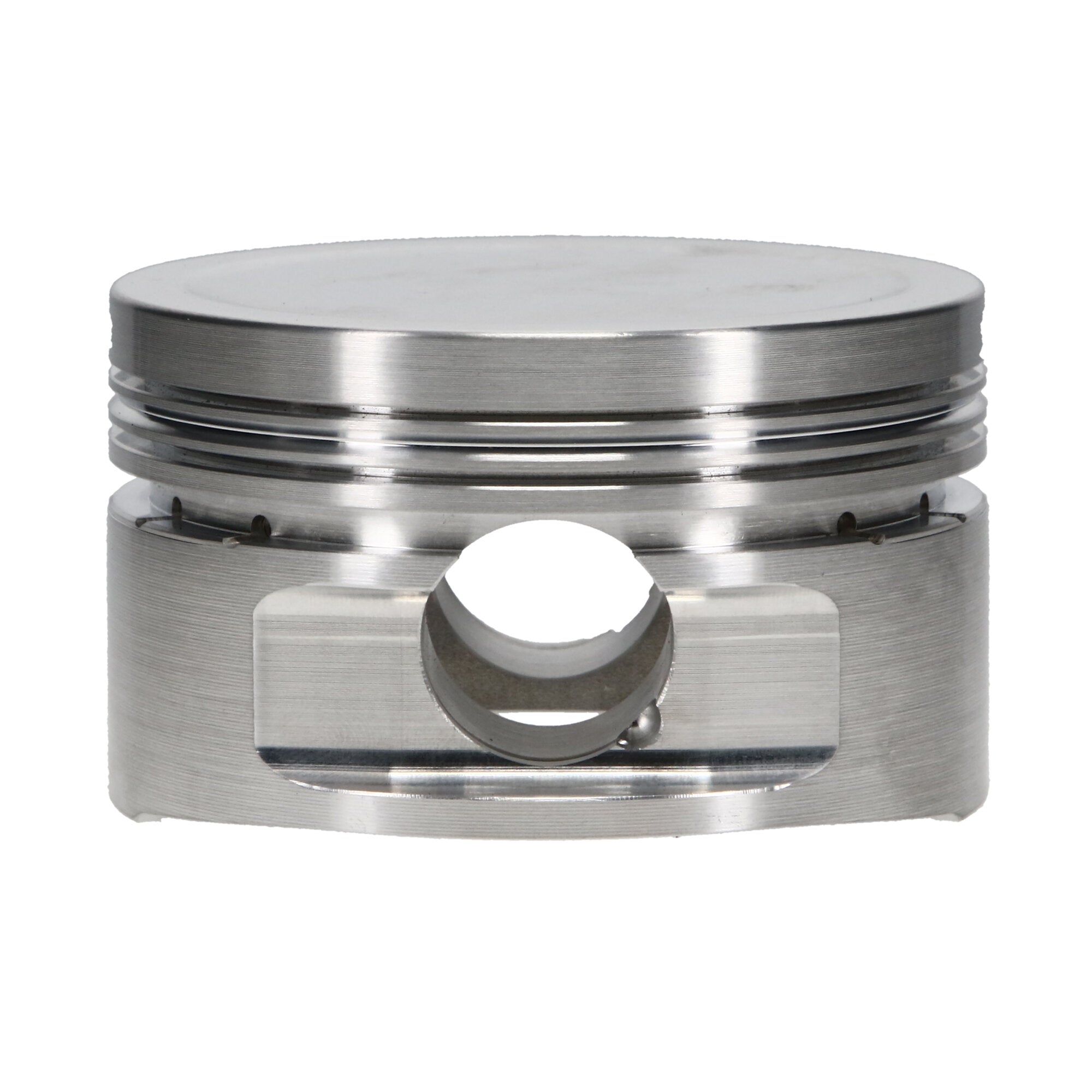

Piston Set, 2618, Inv Dome/Dish, 3.031 Bore, 1.043 CD, 0.827 Pin, Set of 4. |
| Description_EXT |
JE, Mini, 1.6 SC TRITEC, 3.031 in. Bore, 8.30:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Mini 1.6L Tritec I4 Supercharged, 77.00 Bore, Dish, Set of 4 |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Piston Pin Length |
2.250 |
| Add-On |
827-063-MW |
| Product Type |
Engine Piston Kit |
| Cylinder Head |
MINI |
| Add-On |
827-2250-15-51C |
| Prop 65 (C, R or CR) |
CR |
| Engine |
1.6 SC TRITEC |
| Add-On |
XC7700 |
| Ring Set Included |
Yes |
| Piston Volume |
-1.00 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Material |
5115 |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Min.i 1.6 SC Tritec Piston Kit - 77.00 mm Bore - 1.043 in. CH, -1.00 CC |
| Make - Web |
Mini |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Top Compression Ring Thickness |
0.0400 |
| Ringset Included |
Yes |
| Product Market |
European |
| Piston Quantity |
4 |
| Compression Height |
1.043 |
| Piston Average Weight |
238 |
| Piston Pin Outside Diameter |
0.827 |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Min.i, 1.6 SC Tritec, 77.00 mm Bore, Piston Kit |
| Forging Type |
Round |
| Piston Head Type |
Dish |
| Piston Pin Wall Thickness |
0.150 |
| Make |
MINI |
| Bore Diameter |
77.00 |
| Oil Ring Thickness |
0.141 |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.827 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
1.6 SC Tritec |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
