As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302/351 Windsor |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

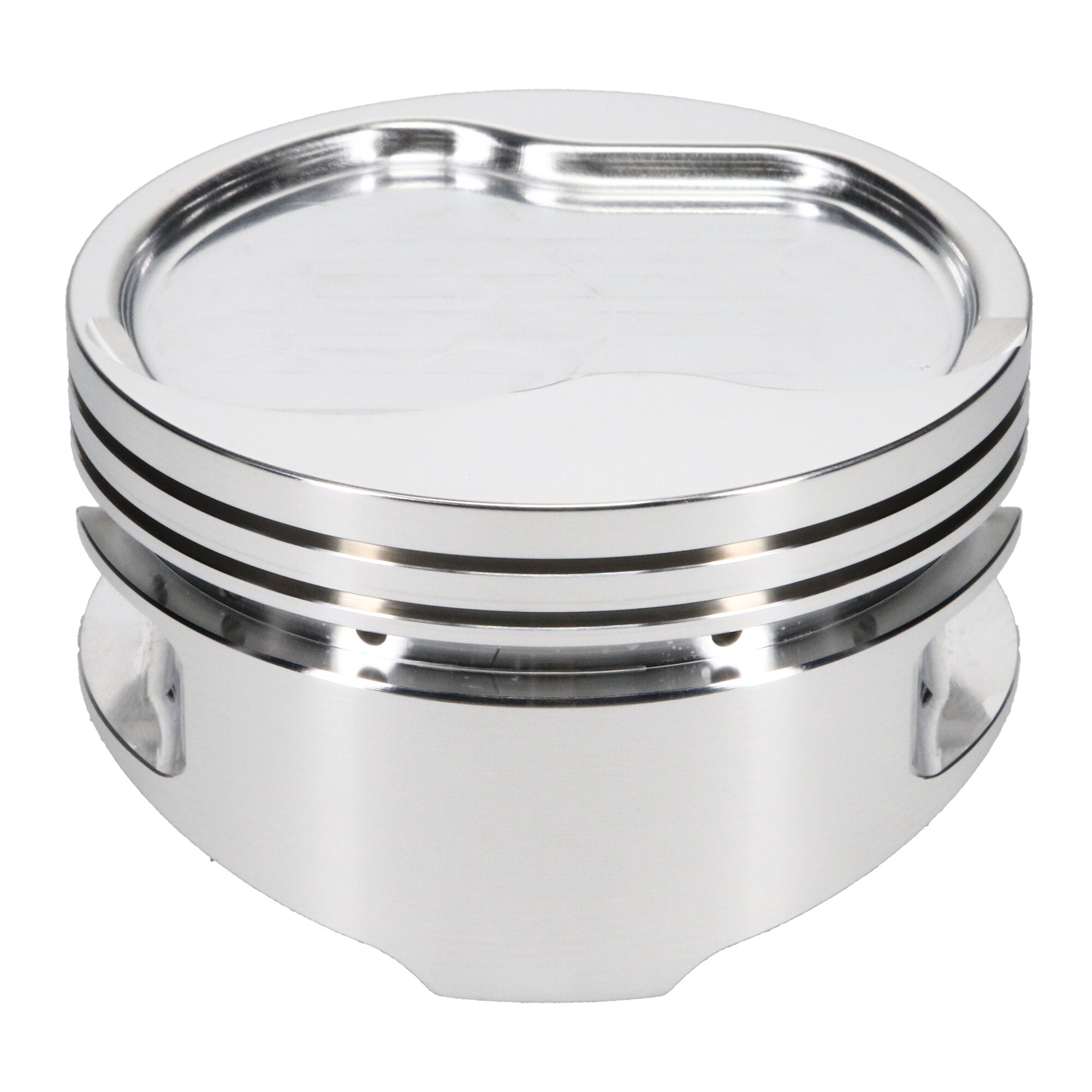

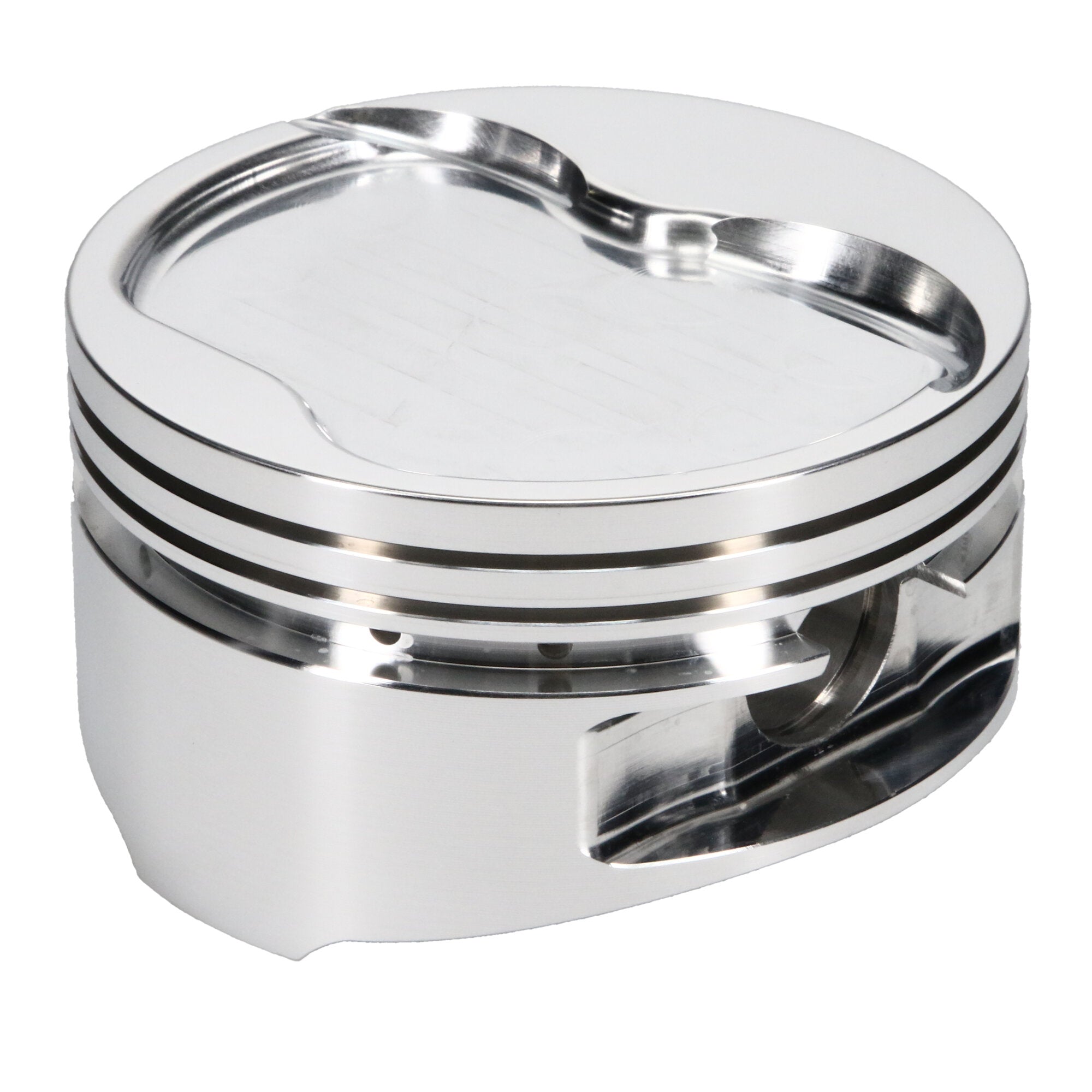

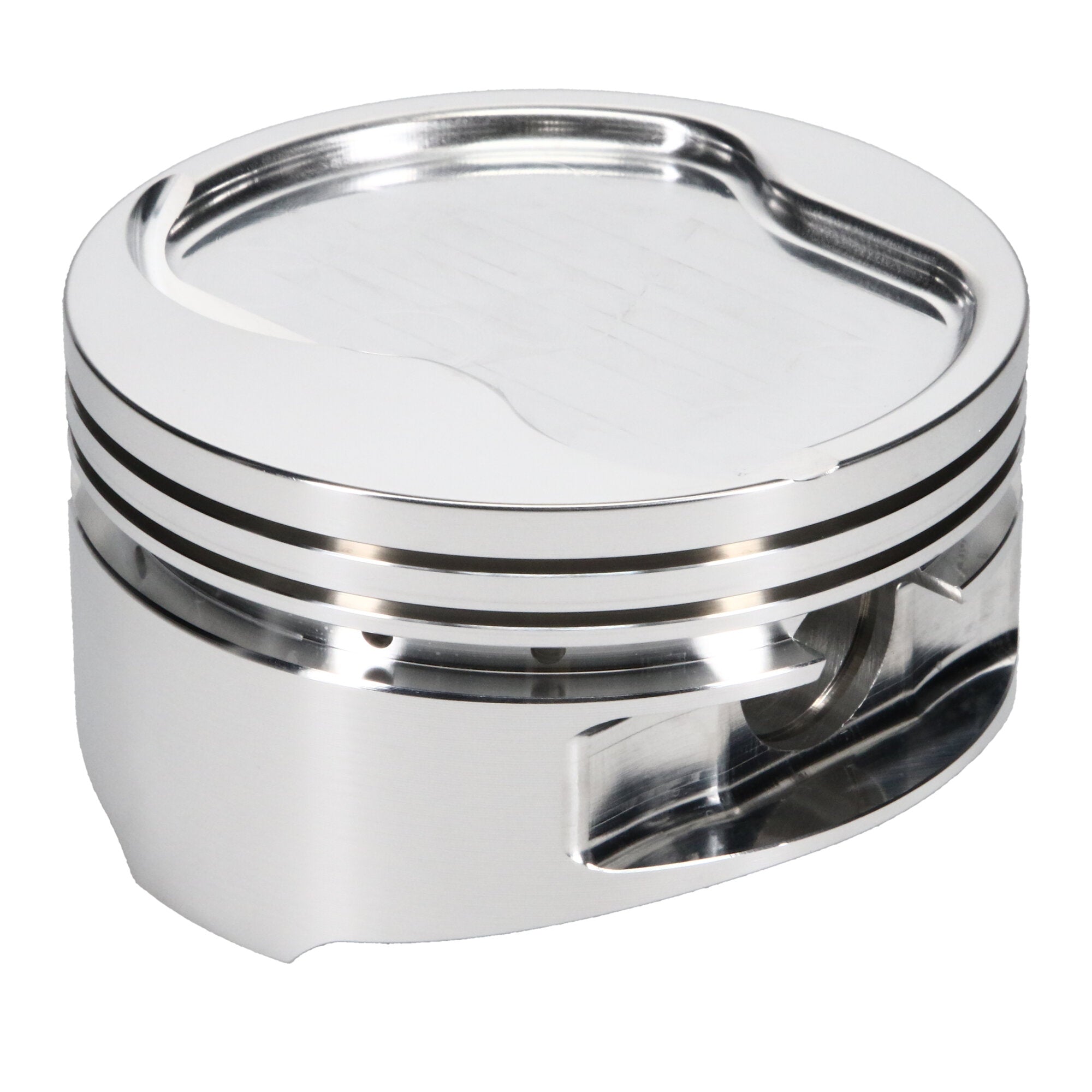

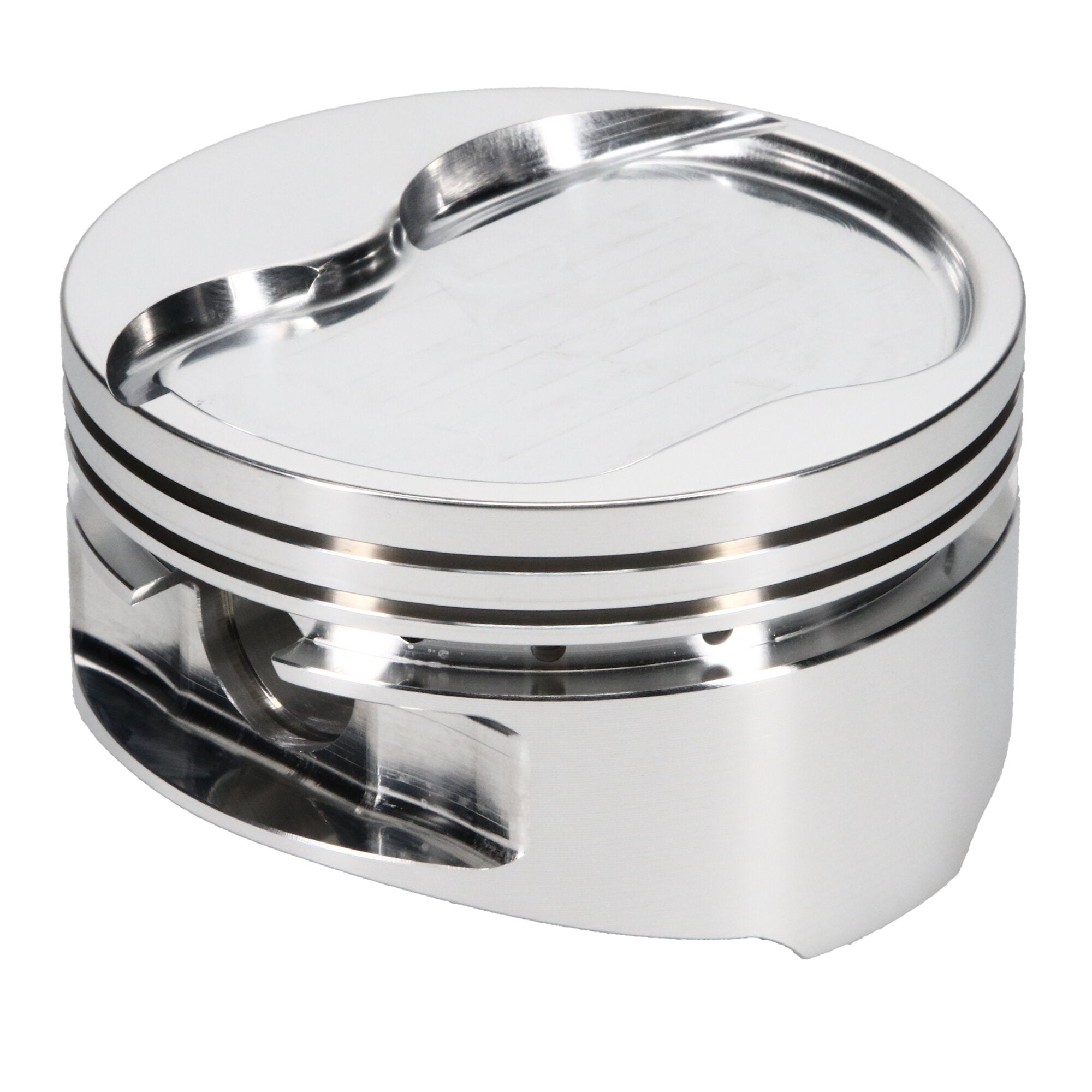

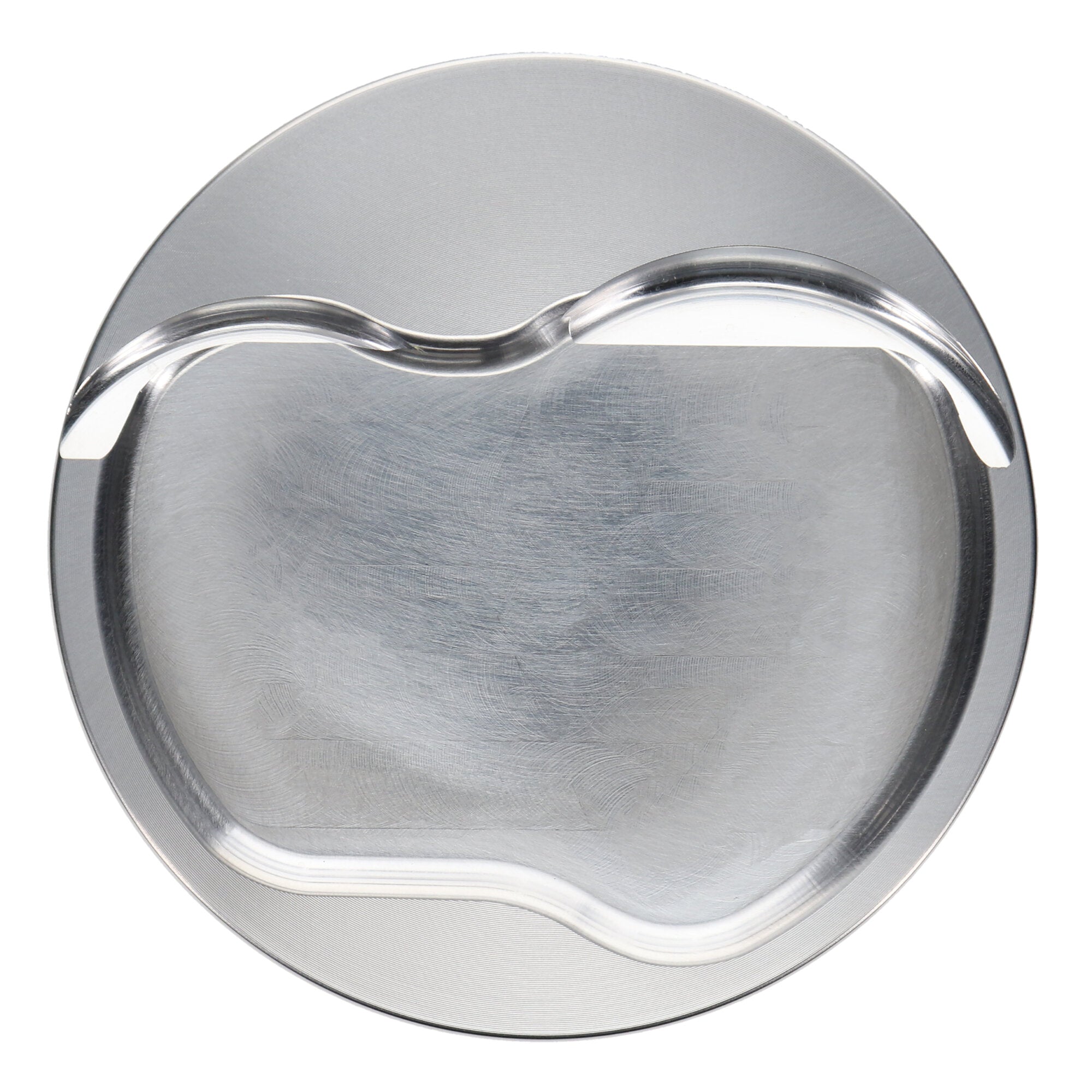

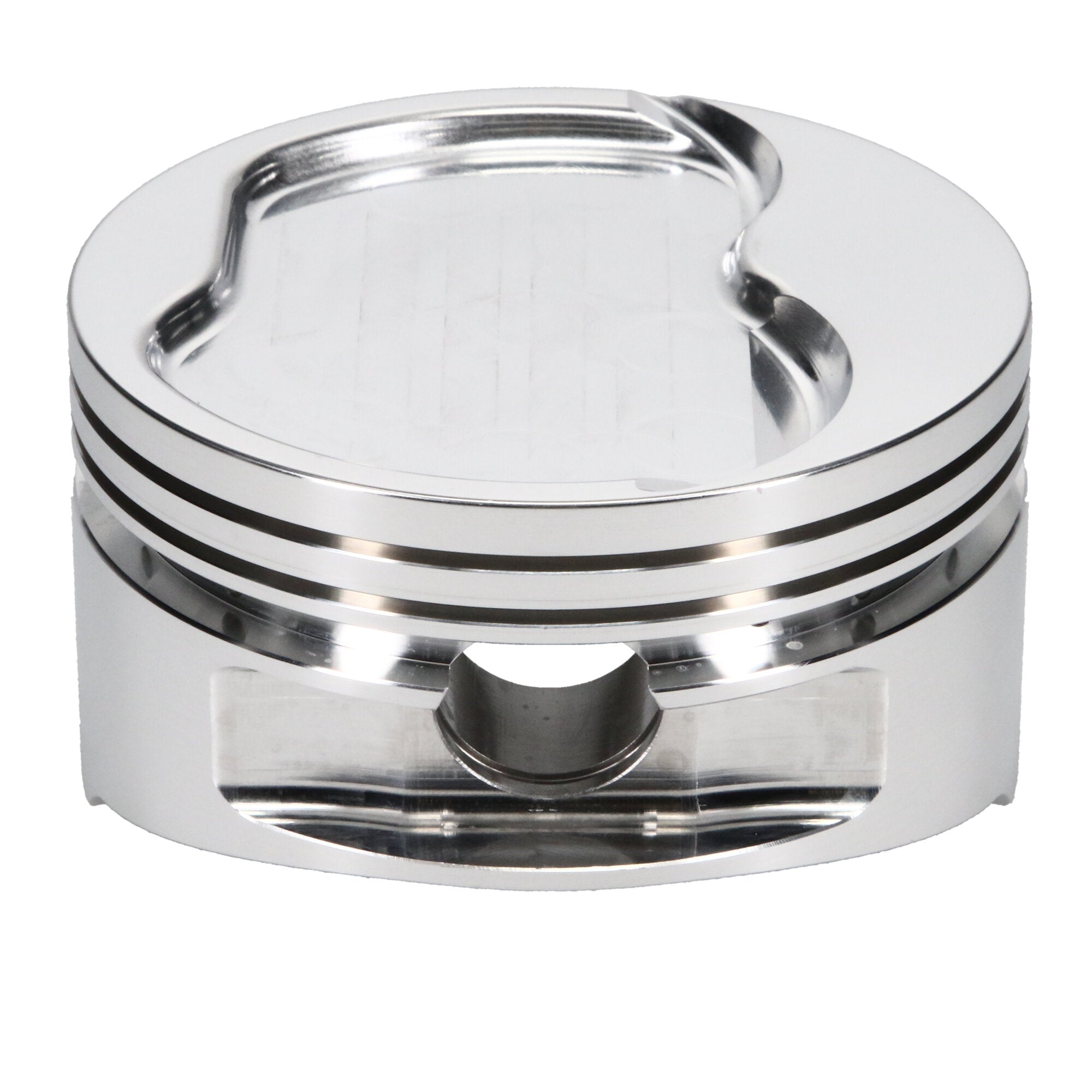

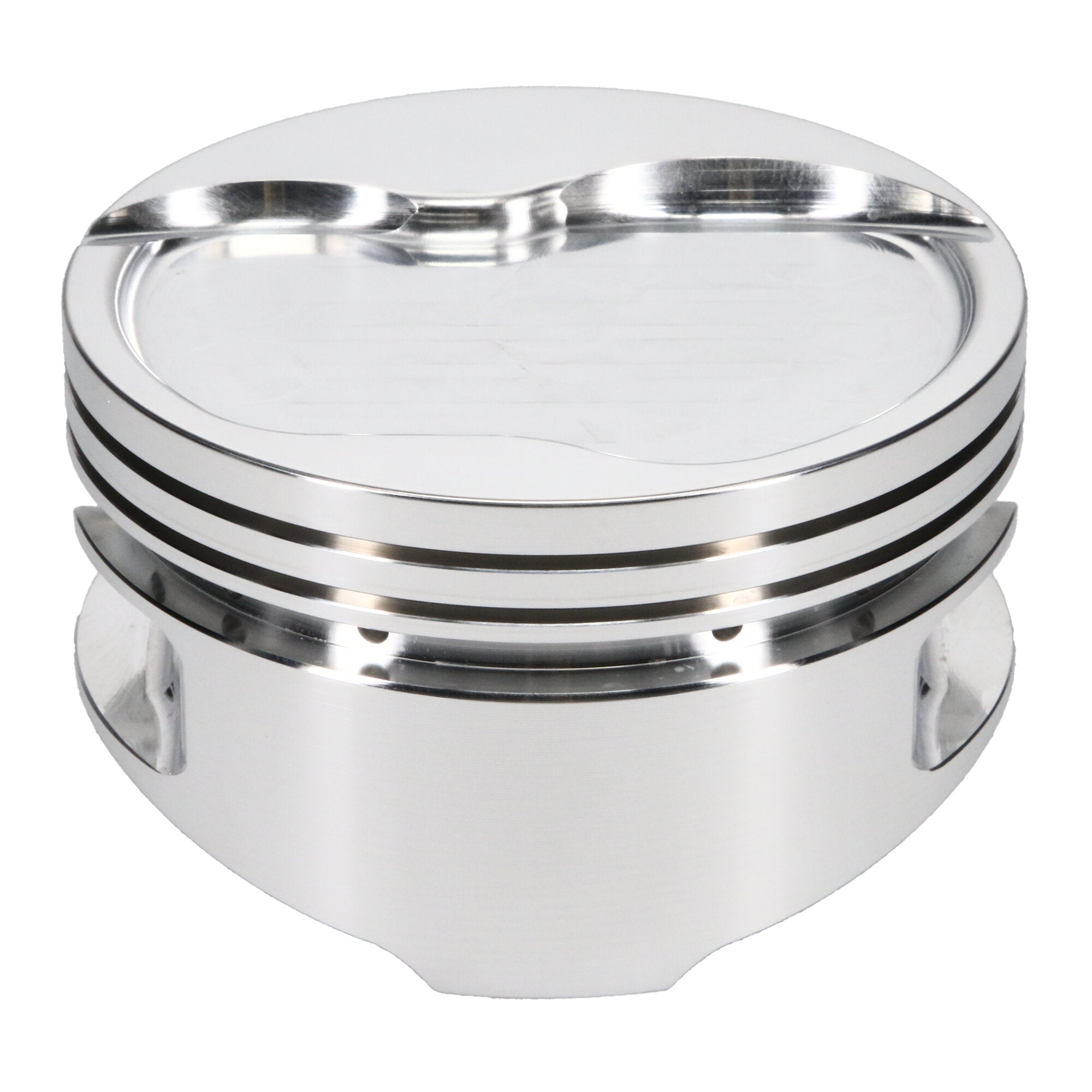

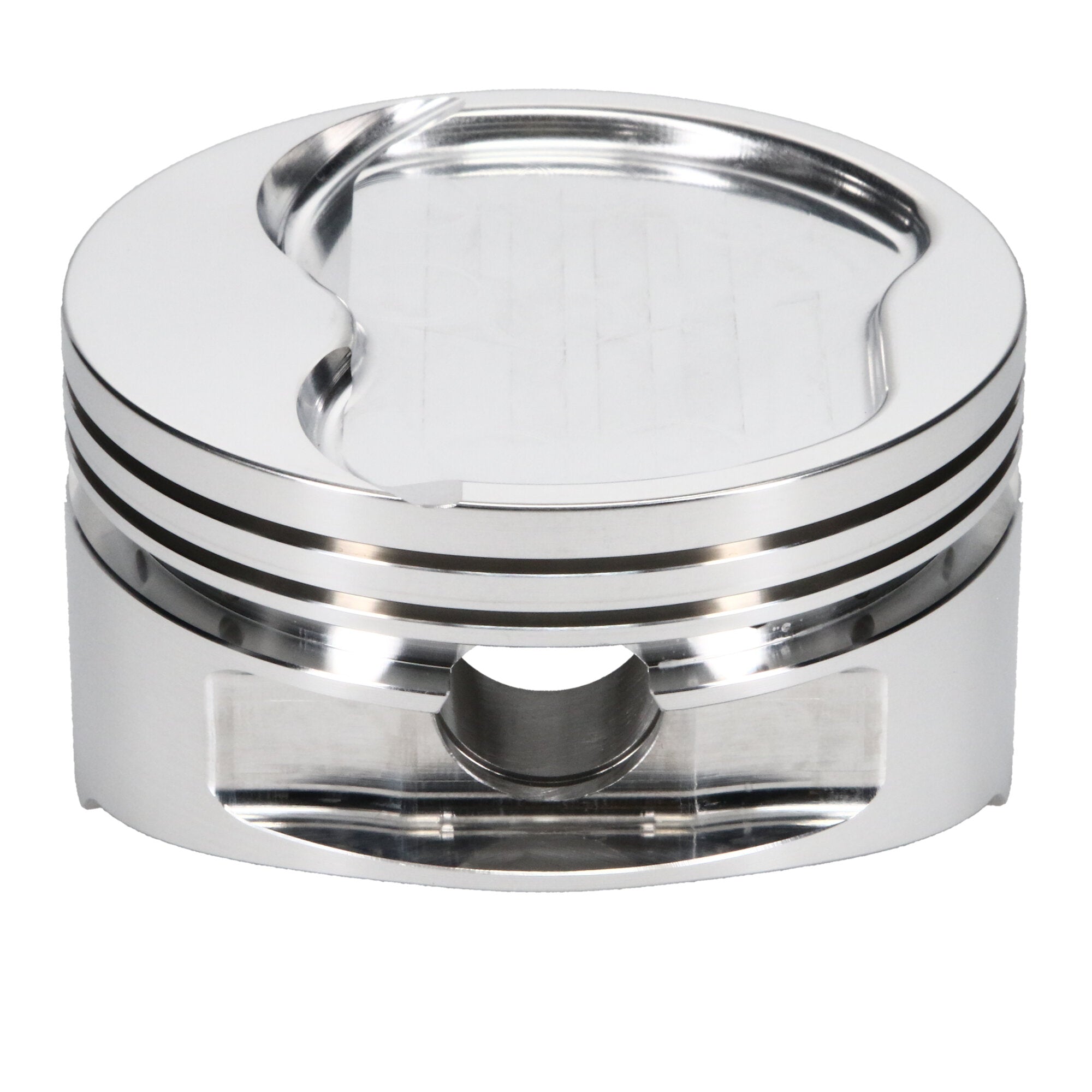

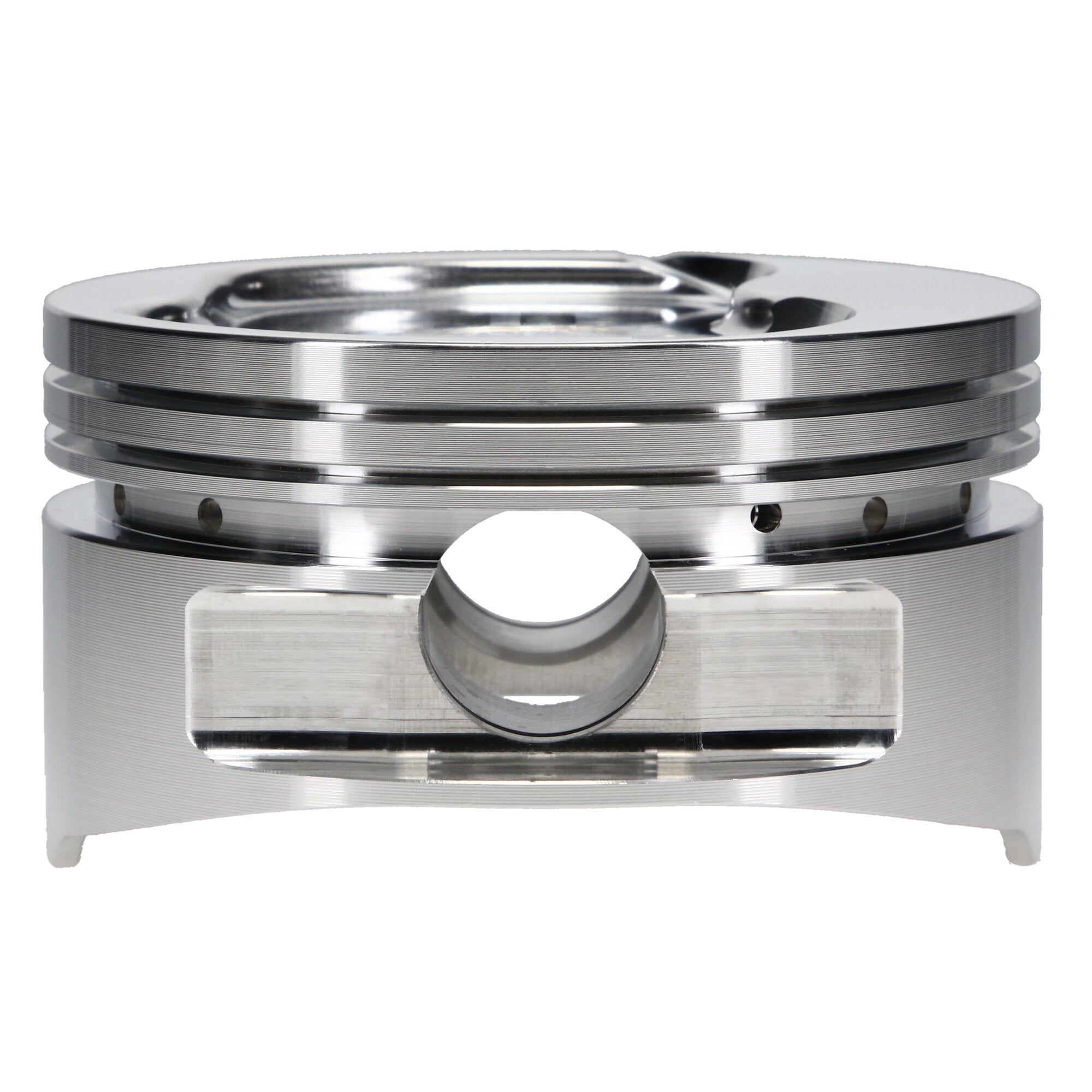

Piston Set, 2618, Inv Dome/Dish, 4.020 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

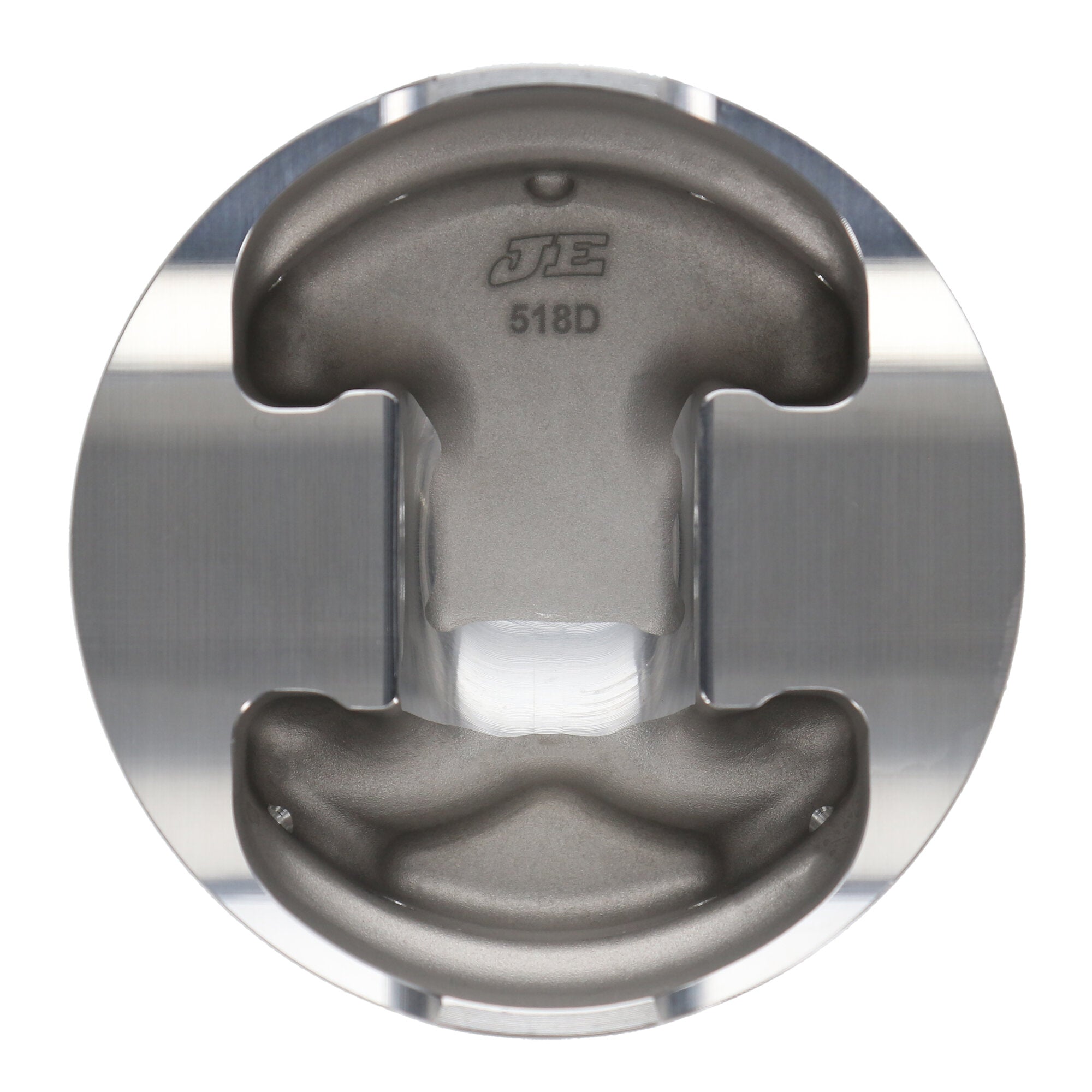

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Small Block Ford, 4.020 in. Bore, 1.100 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 302/351 Windsor, 4.020 Bore, Dish, Set of 8 |
| Make |
FORD |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Series |
JE Pistons |
| Ringset Included |
No |
| Oil Ring Thickness |
0.218 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Forging Type |
Round |
| Bore Diameter |
4.020 |
| Piston Head Type |
Dish |
| Product Type |
Engine Piston Kit |
| Engine |
Small Block |
| Piston Pin Length |
2.750 |
| Product Market |
Domestic |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.927 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Material |
2618 |
| Add-On |
927-2750-15-51S |
| Piston Volume |
-10.10 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Quantity |
8 |
| Industry |
Automotive |
| Piston Pin Outside Diameter |
0.927 |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.100 |
| Piston Average Weight |
420 |
| Title |
JE Pistons - Ford, Small Block, 4.020 in. Bore, Piston Kit |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.020 in. Bore - 1.100 in. CH, -10.10 CC |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Out of Stock Message |
Call for Availability |
| Add-On |
J10008-4020-5 |
| Add-On |
927-042-CS |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
Small Block |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
