As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 5.0L Coyote |
| Description_DEF |
Engine Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |

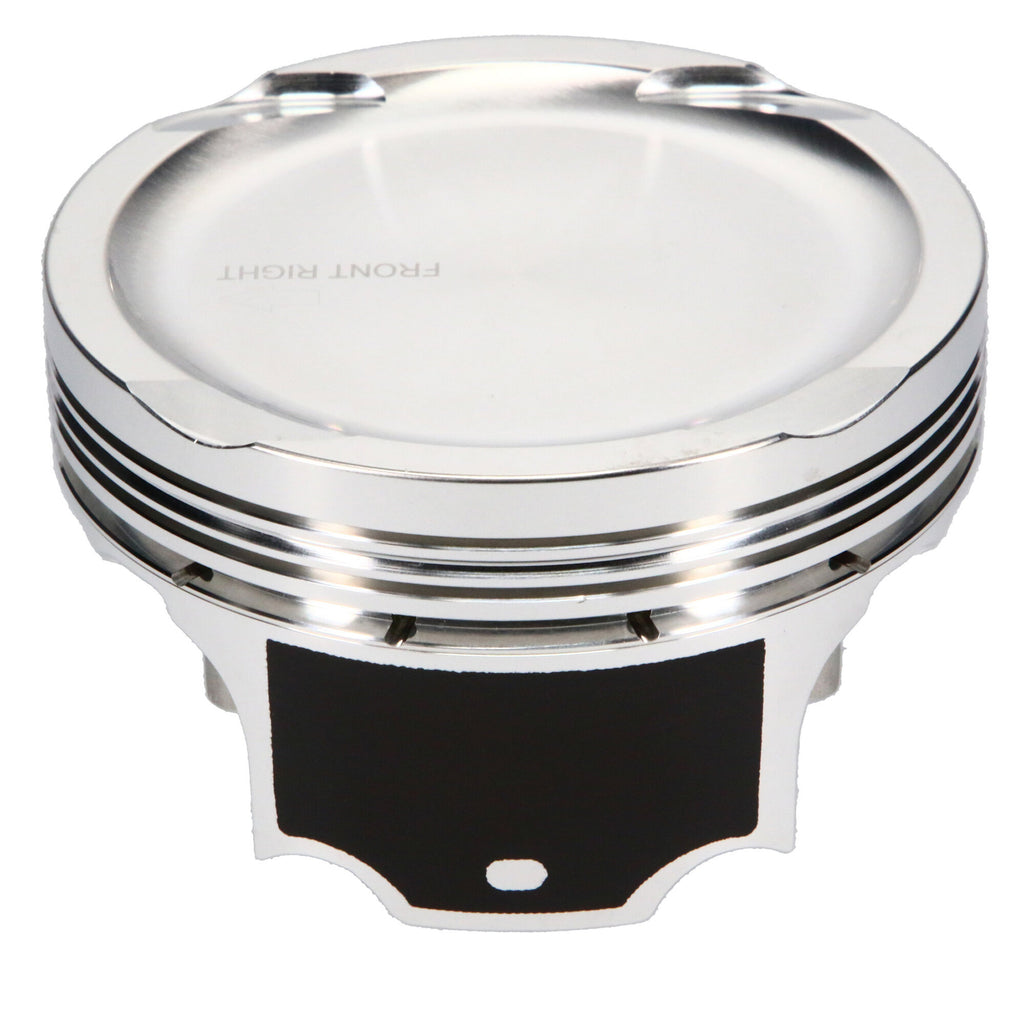

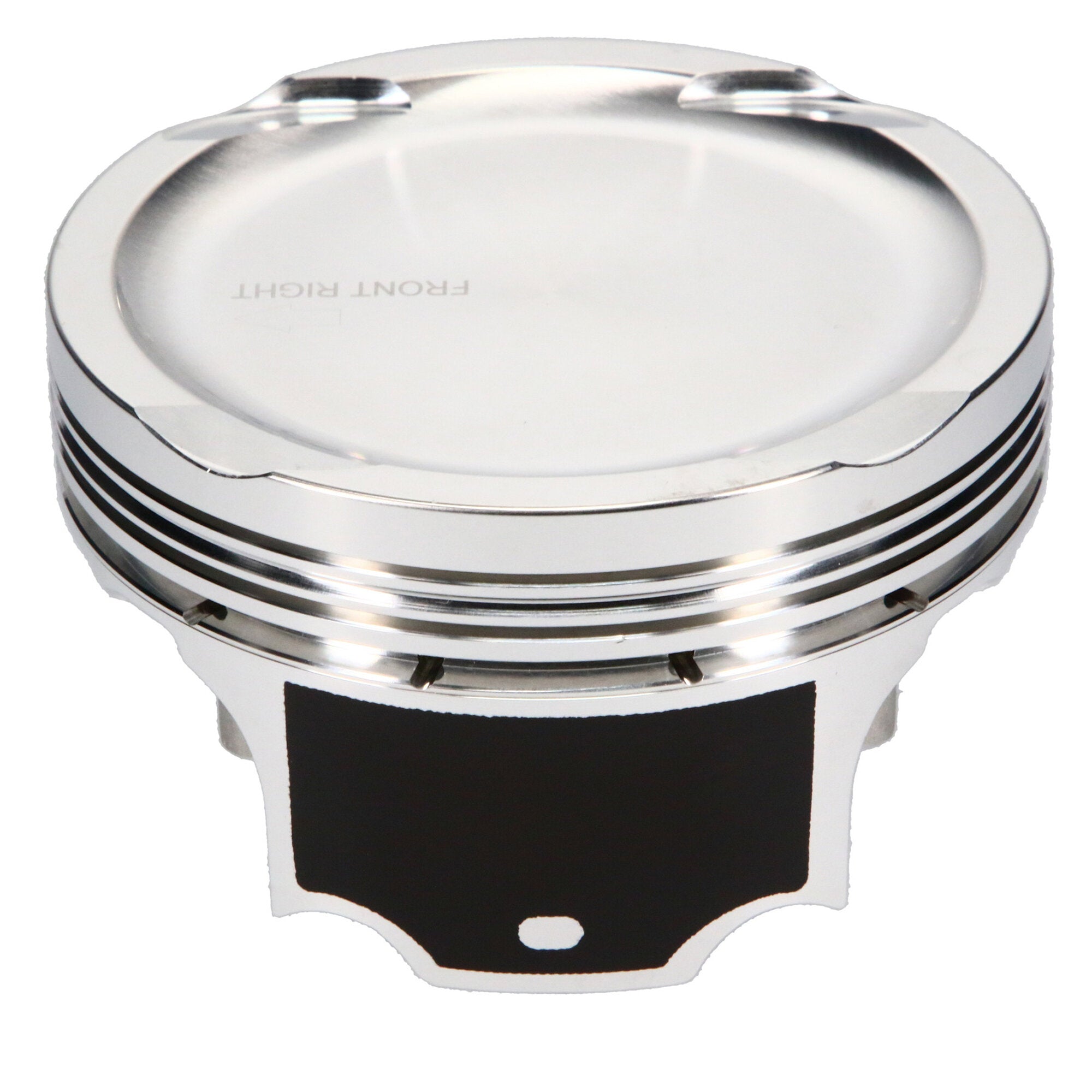

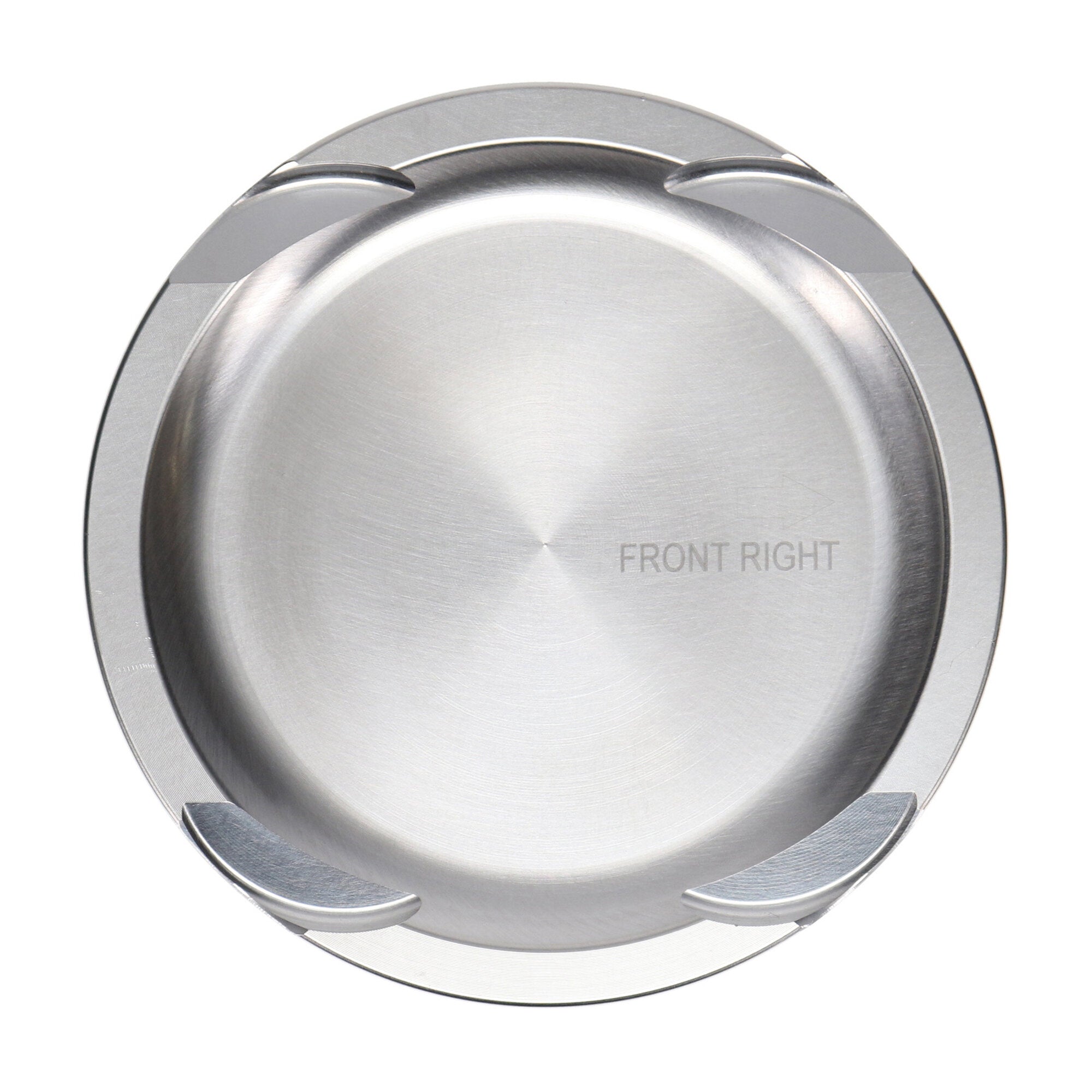

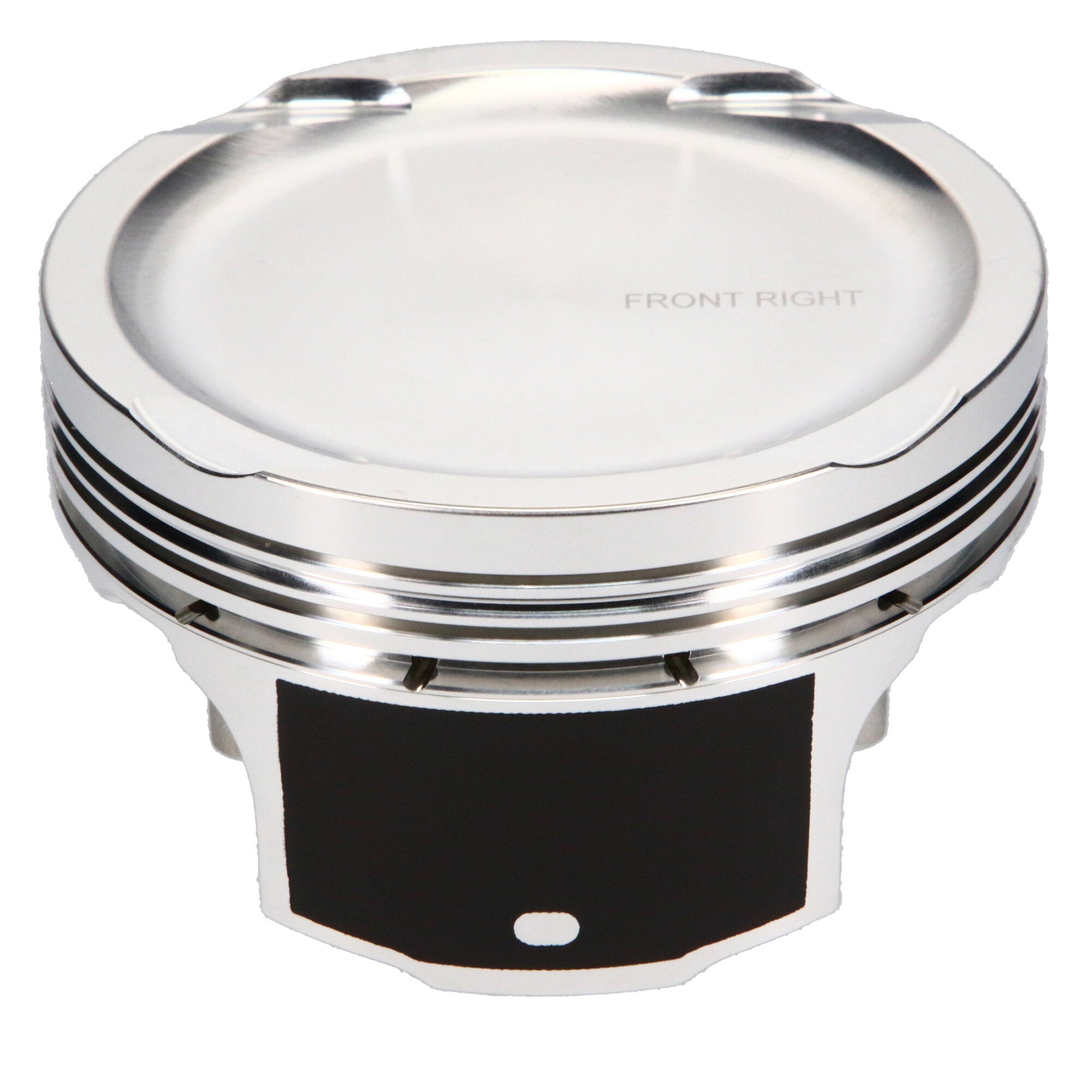

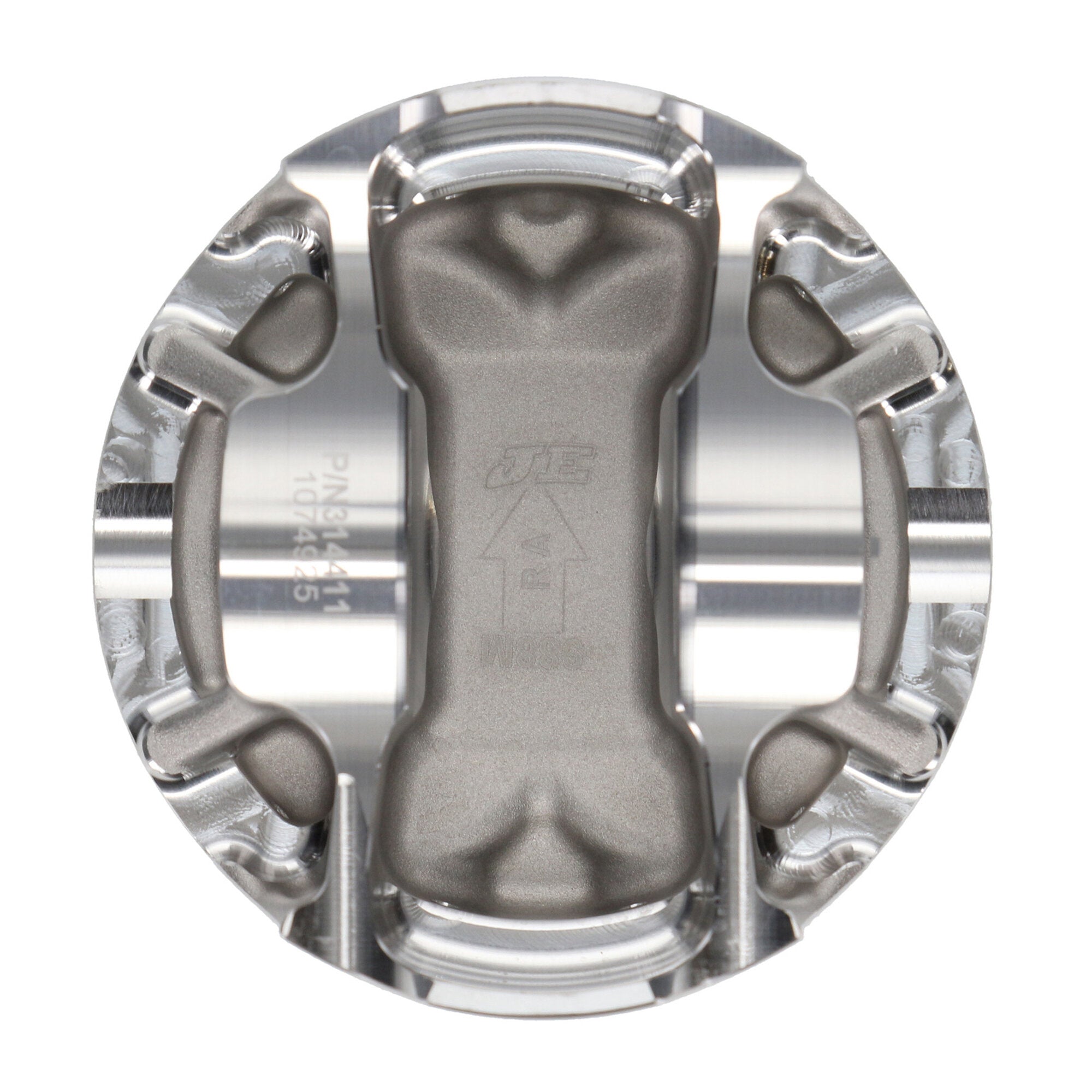

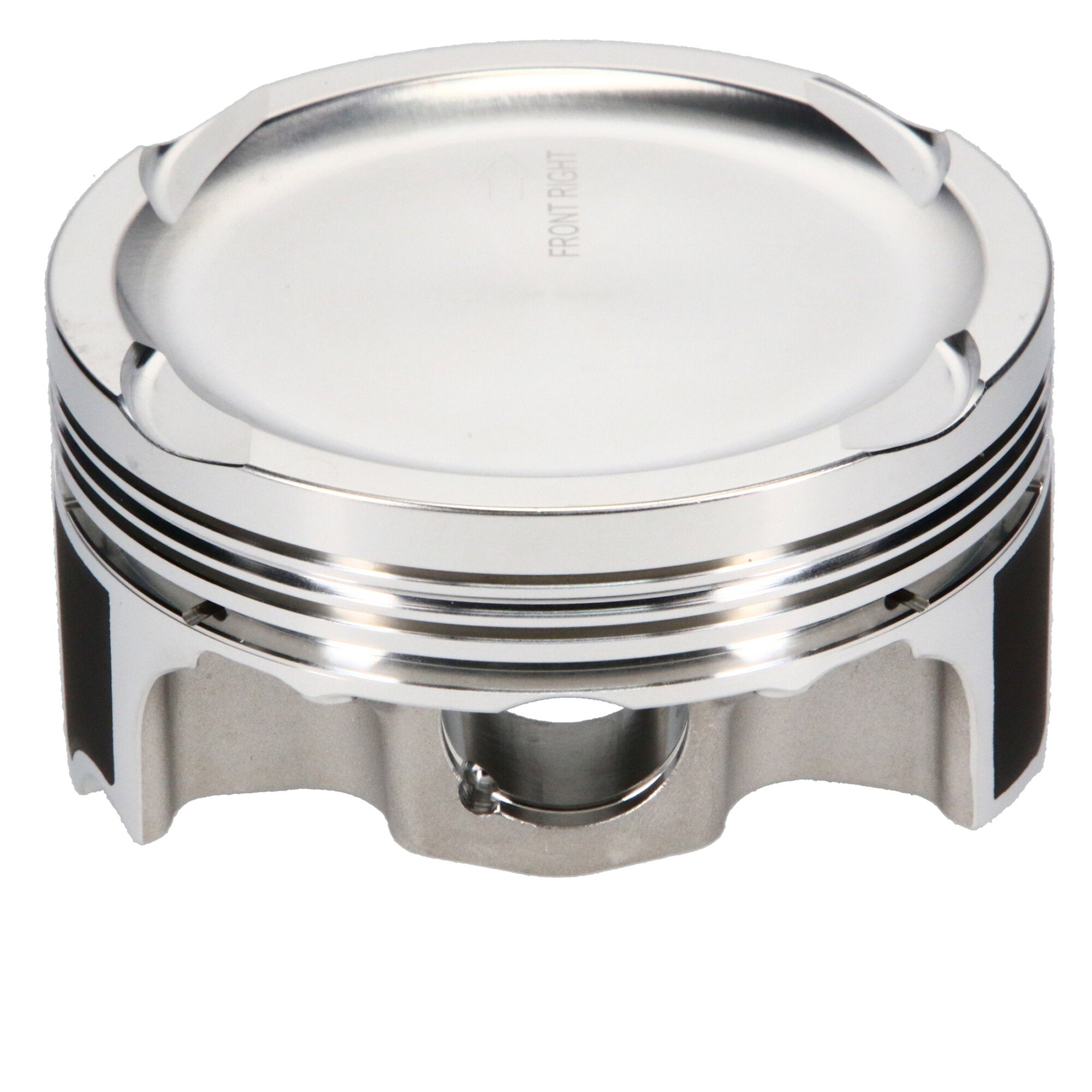

JE, Ford, Modular Ford, 3.630 in. Bore, 1.174 CD, Inverted Dome/Dish, Right Piston |
| Description_DES |
Piston Single, 2618, Inv Dome/Dish, 3.630 Bore, 1.174 CD, 0.866 Pin, Set of 1. |
| Description_SHO |
Piston |
| Description_TLE |
Ford 5.0L Coyote, 3.630 Bore, Dish, Set of 1 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston |
| Add-On |
866-2250-15-51C |
| Add-On |
866-063-MW |
| Add-On |
JG1008-3632 |
| Bore Diameter |
3.630 |
| Engine |
Modular |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Compression Height |
1.174 |
| Engine Type |
ICE |
| Cylinder Head |
MODULAR 5.0L COYOTE GEN 1/2 |
| Engine - Web |
Modular |
| Piston Orientation |
Right |
| Piston Average Weight |
351 |
| Make |
FORD |
| Piston Material |
2618 |
| Piston Quantity |
1 |
| Piston Volume |
-17.40 |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.111 |
| Piston Pin Material |
5115 |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Piston Pin Outside Diameter |
0.866 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dish |
| Piston Pin Length |
2.250 |
| Make - Web |
Ford |
| Top Compression Ring Thickness |
0.0400 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
No |
| Title - Web |
JE Pistons Ford Modular Piston - 3.630 in. Bore - 1.174 in. CH, -17.40 CC |
| Product Market |
Domestic |
| Title |
JE Pistons - Ford, Modular, 3.630 in. Bore, Piston |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
