As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 5.0L Coyote |
| Description_DES |

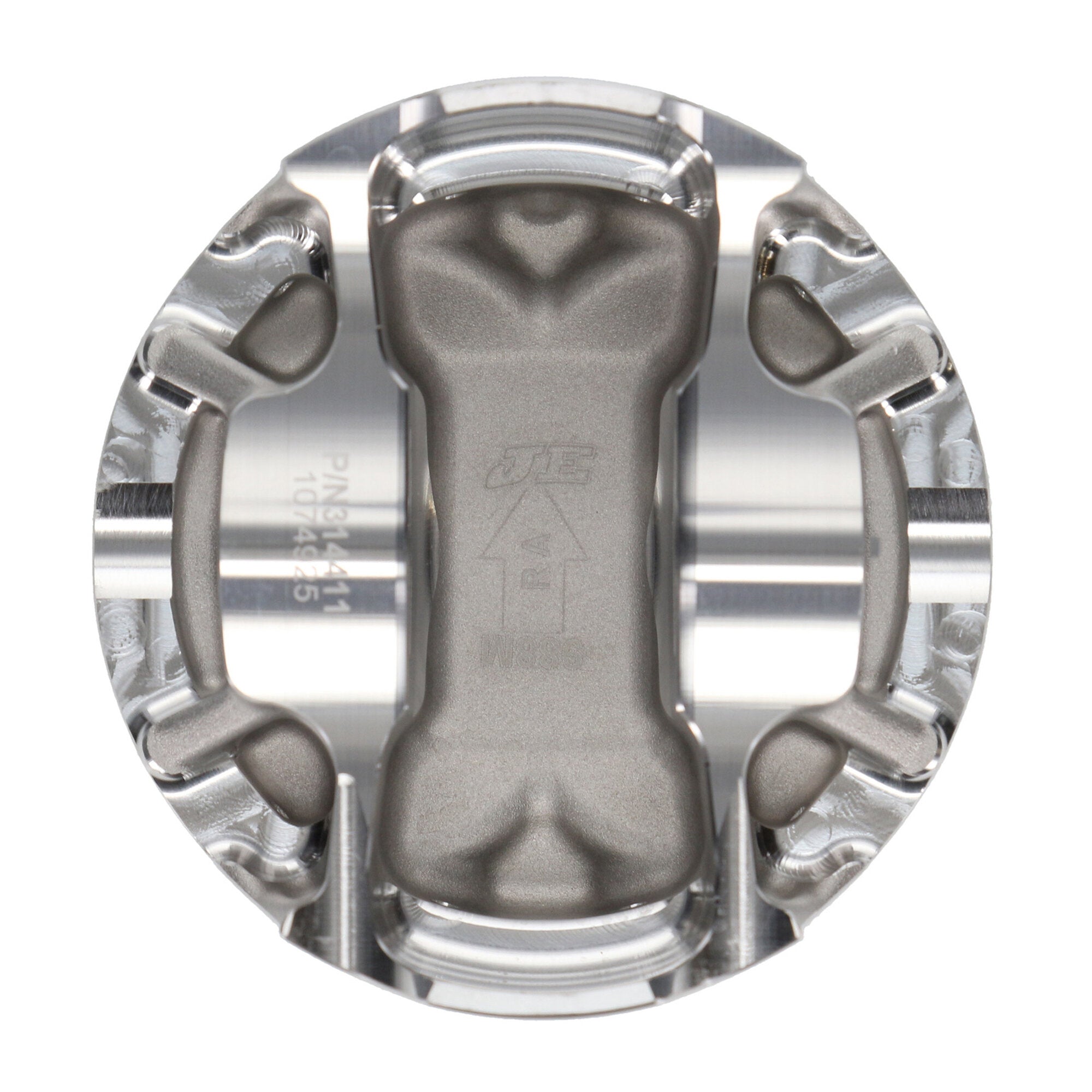

Piston Single, 2618, Inv Dome/Dish, 3.630 Bore, 1.174 CD, 0.866 Pin, Set of 1. |
| Description_DEF |
Engine Piston |
| Description_EXT |
JE, Ford, Modular Ford, 3.630 in. Bore, 1.174 CD, Inverted Dome/Dish, Left Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 5.0L Coyote, 3.630 Bore, Dish, Set of 1 |
| Description_SHO |
Piston |
| Add-On |
JG1008-3632 |
| Add-On |
866-2250-15-51C |
| Add-On |
866-063-MW |
| Bore Diameter |
3.630 |
| Engine Type |
ICE |
| Industry |
Automotive |
| Make |
FORD |
| Engine |
Modular |
| Compression Height |
1.174 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Forging Type |
FSR |
| Cylinder Head |
MODULAR 5.0L COYOTE GEN 1/2 |
| Engine - Web |
Modular |
| Piston Pin Length |
2.250 |
| Piston Average Weight |
351 |
| Oil Ring Thickness |
0.111 |
| Out of Stock Message |
Call for Availability |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.866 |
| Piston Quantity |
1 |
| Piston Orientation |
Left |
| Piston Material |
2618 |
| Piston Volume |
-17.40 |
| Piston Head Type |
Dish |
| Make - Web |
Ford |
| Title - Web |
JE Pistons Ford Modular Piston - 3.630 in. Bore - 1.174 in. CH, -17.40 CC |
| Product Type |
Engine Piston |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
No |
| Title |
JE Pistons - Ford, Modular, 3.630 in. Bore, Piston |
| Top Compression Ring Thickness |
0.0400 |
| Product Market |
Domestic |
| Prop 65 (C, R or CR) |
CR |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
