As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Subaru EJ22 91-94 Turbo |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

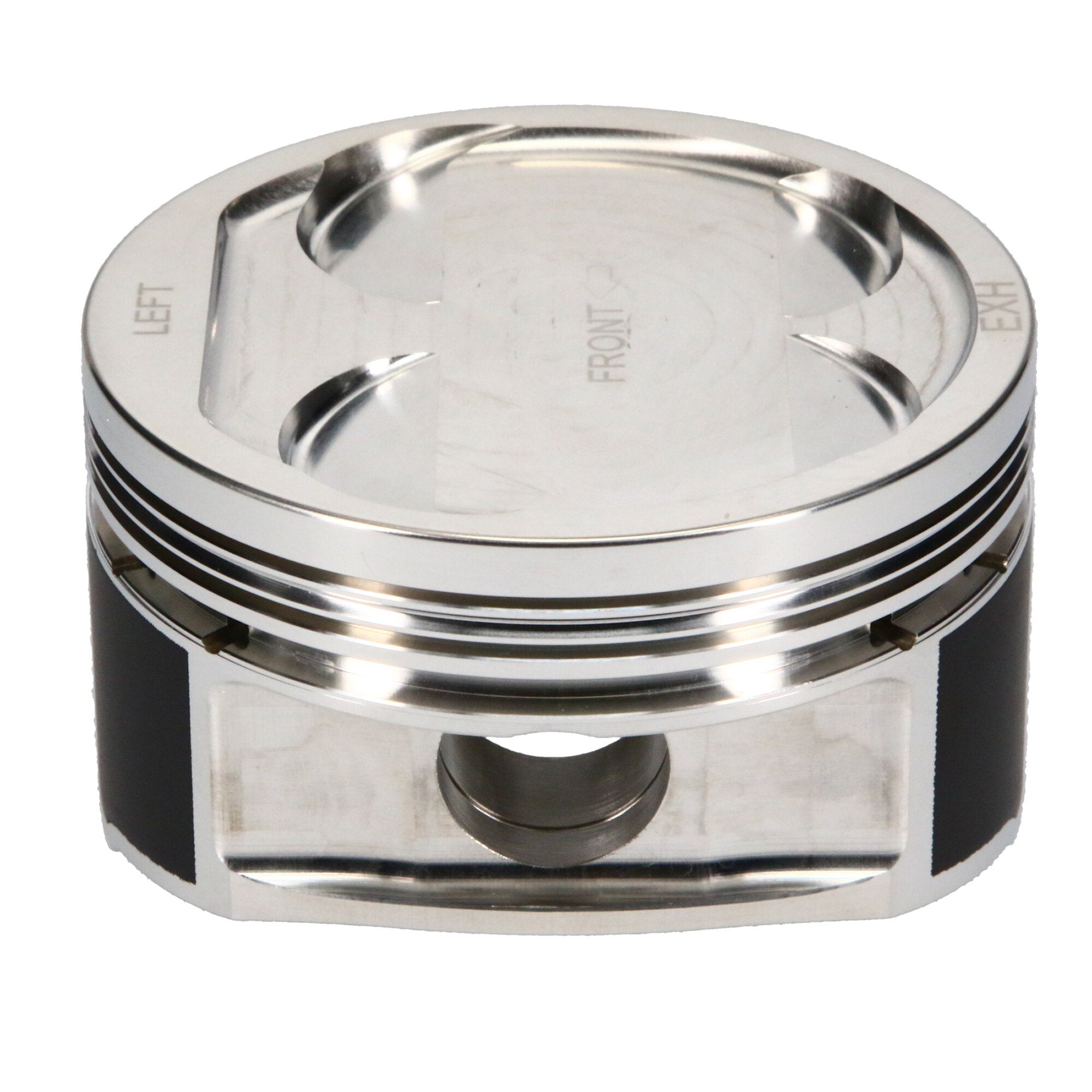

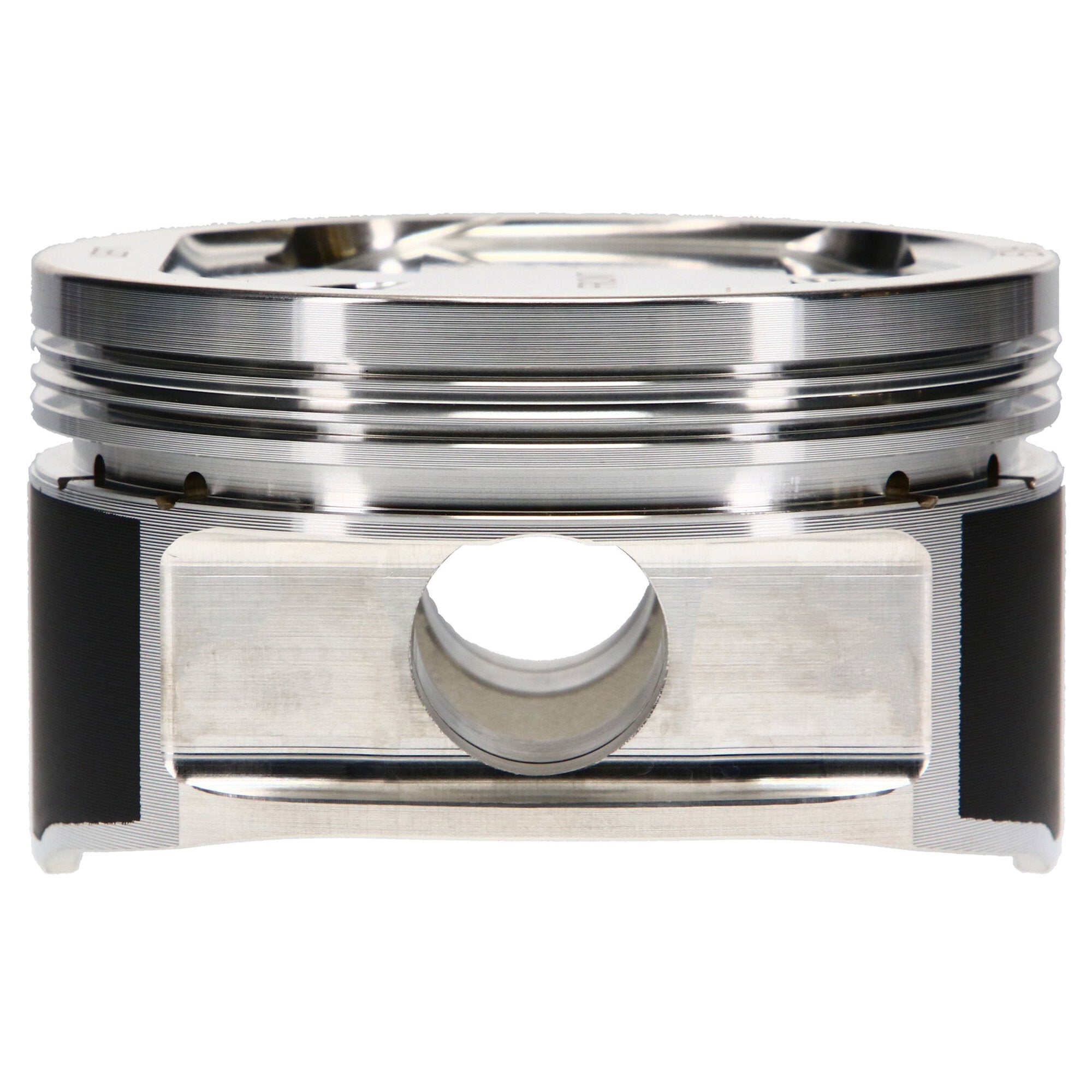

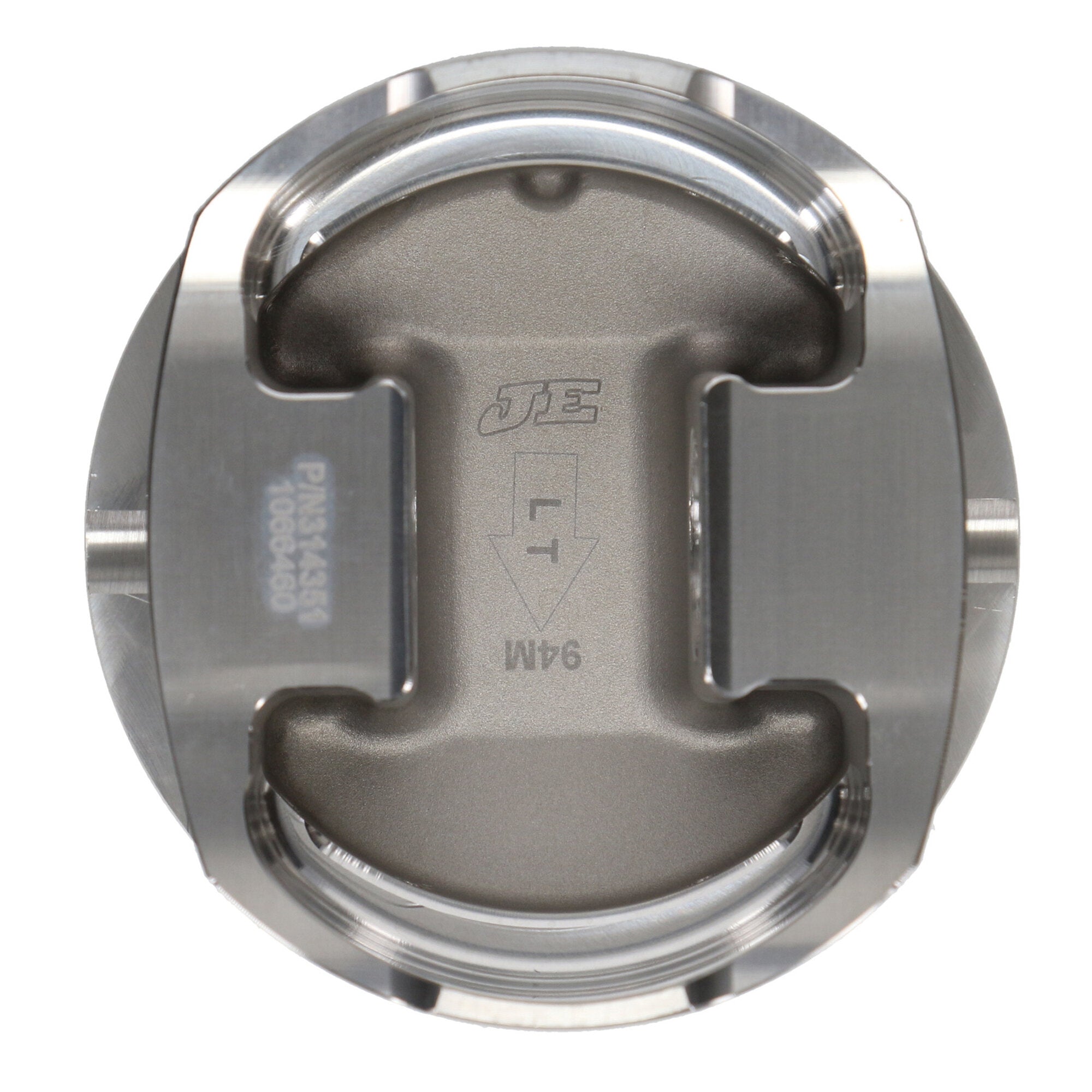

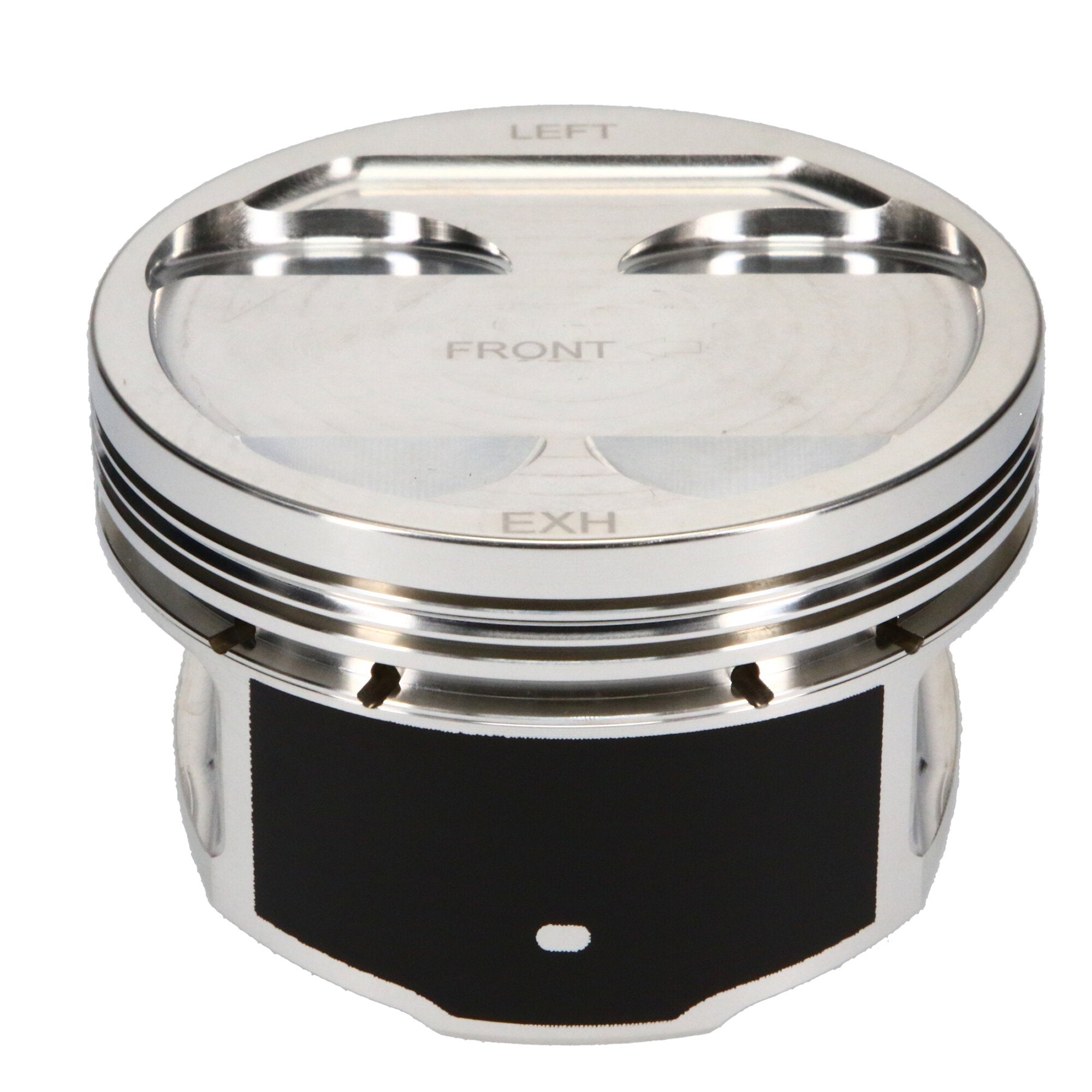

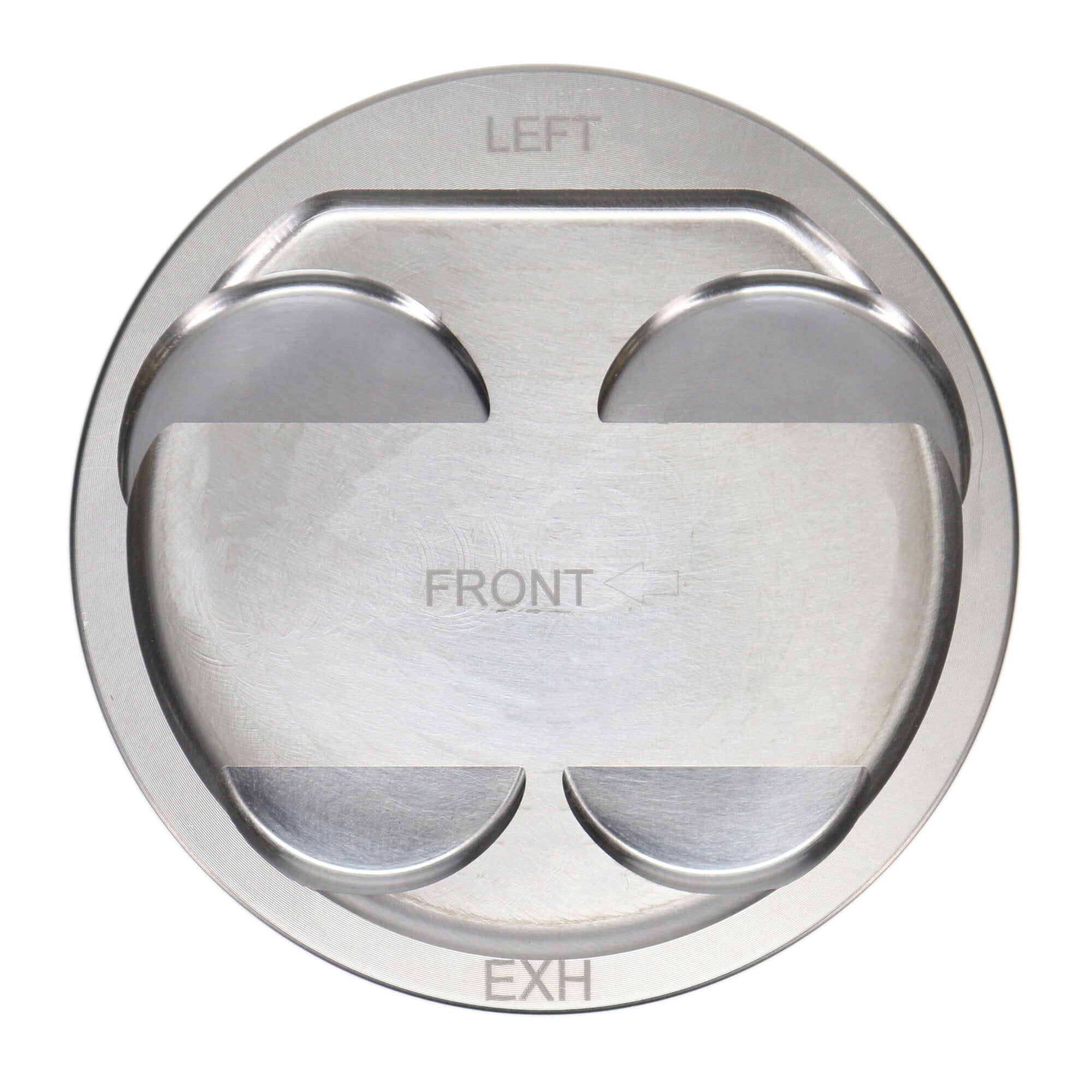

Piston Set, 2618, Inv Dome/Dish, 3.858 Bore, 1.287 CD, 0.905 Pin, Set of 4. |
| Description_EXT |
JE, Subaru, EJ Series, 3.858 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Subaru EJ22, 98.00 Bore, Dish, Set of 4 |
| Make |
SUBARU |
| Oil Ring Thickness |
0.159 |
| Title |
JE Pistons - Subaru, EJ Series, 98.00 mm Bore, Piston Kit |
| Product Market |
Sport Compact |
| Top Compression Ring Thickness |
0.0480 |
| Piston Pin Wall Thickness |
0.180 |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Bore Diameter |
98.00 |
| Piston Average Weight |
418 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Wrist Pin Outer Diameter |
0.905 |
| Ring Set Included |
Yes |
| Compression Height |
1.287 |
| Piston Quantity |
4 |
| Piston Volume |
-16.00 |
| Piston Pin Outside Diameter |
0.905 |
| Piston Head Type |
Dish |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Wrist Pin Wall Thickness |
0.180 |
| Engine - Web |
EJ Series |
| Wrist Pin Length |
2.250 |
| Add-On |
905-2250-18-51S |
| Cylinder Head |
EJ22 |
| Add-On |
XH9800 |
| Piston Material |
2618 |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Engine |
EJ SERIES |
| Title - Web |
JE Pistons Subaru EJ Series Piston Kit - 98.00 mm Bore - 1.287 in. CH, -16.00 CC |
| Second Compression Ring Thickness |
0.0600 |
| Add-On |
905-042-CT |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Subaru |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
