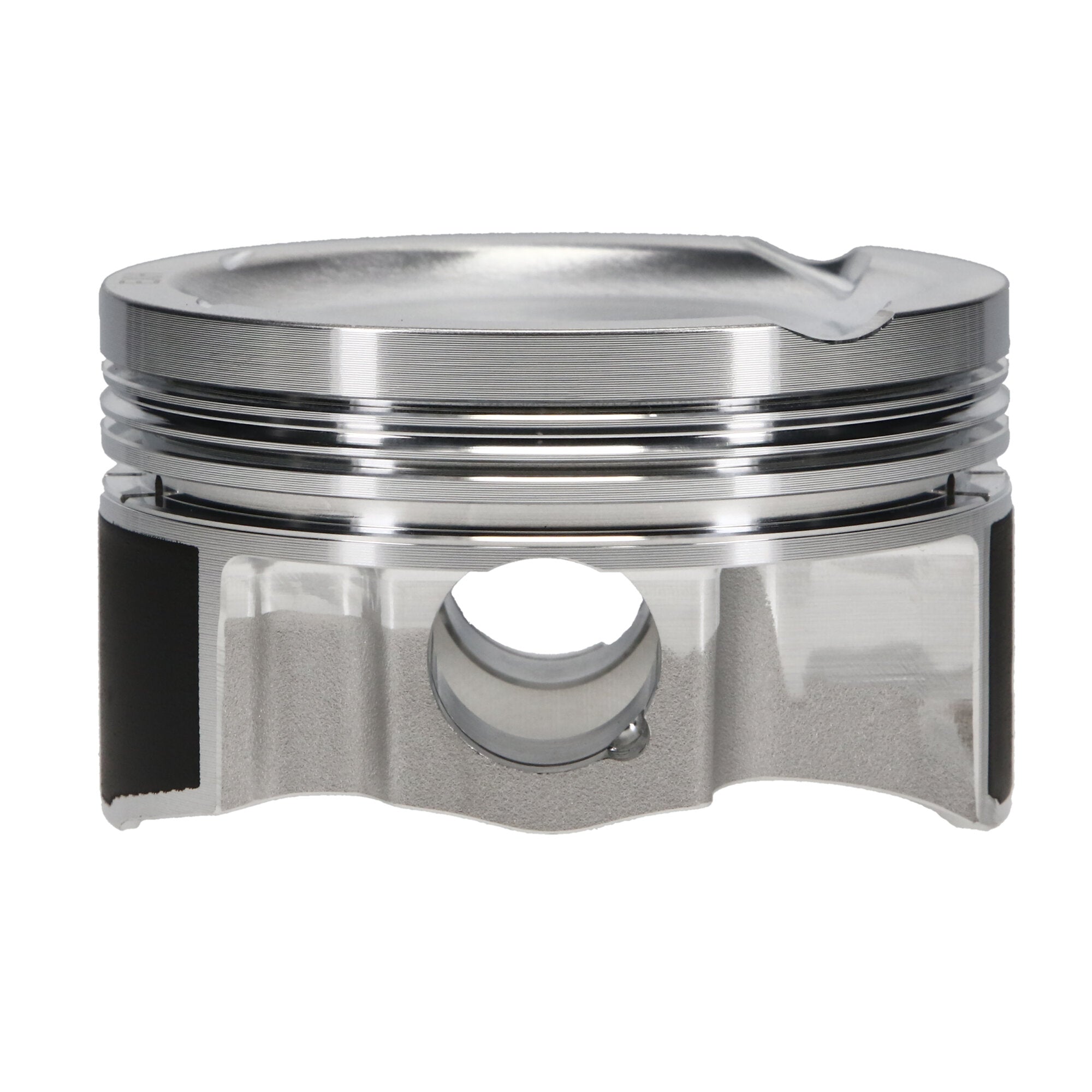

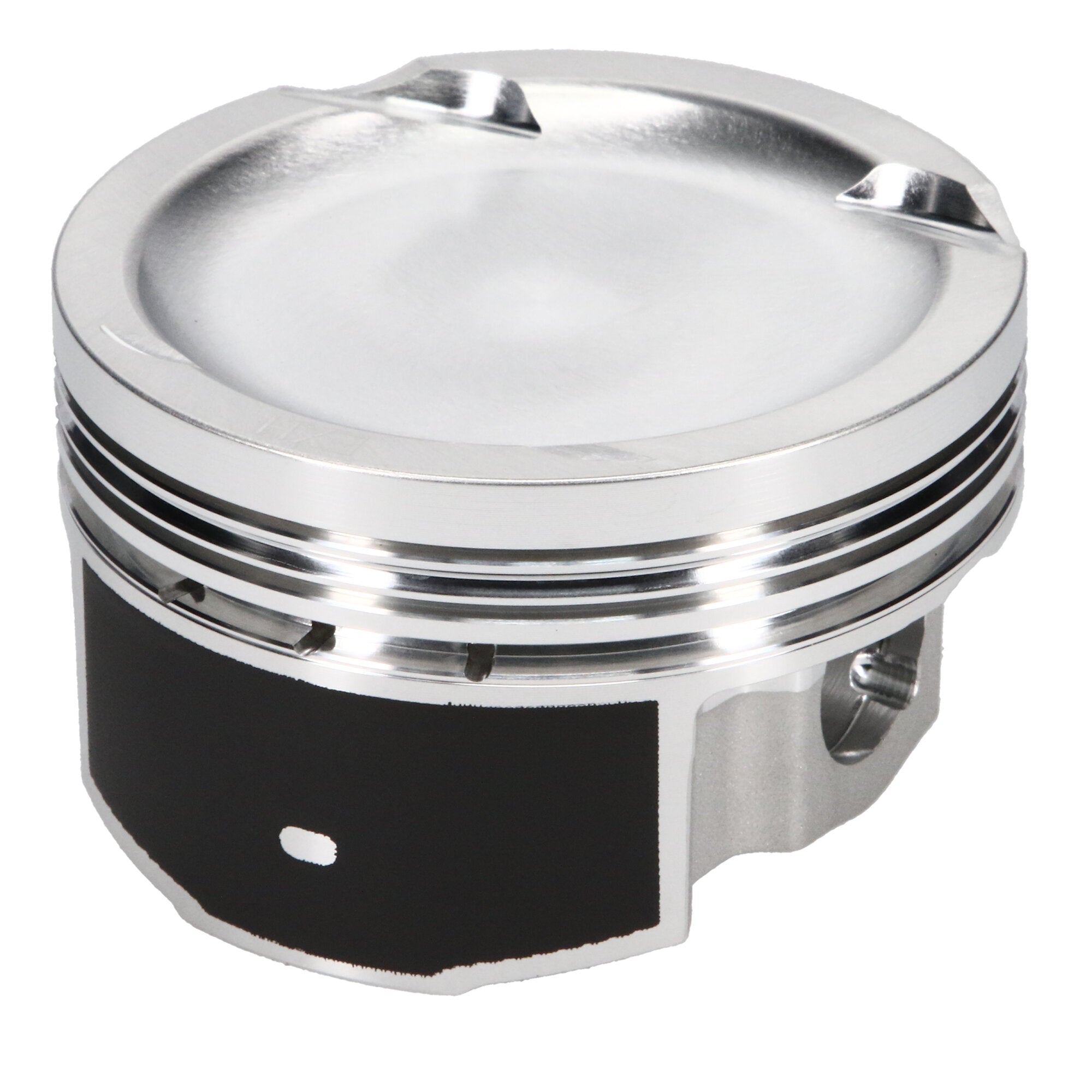

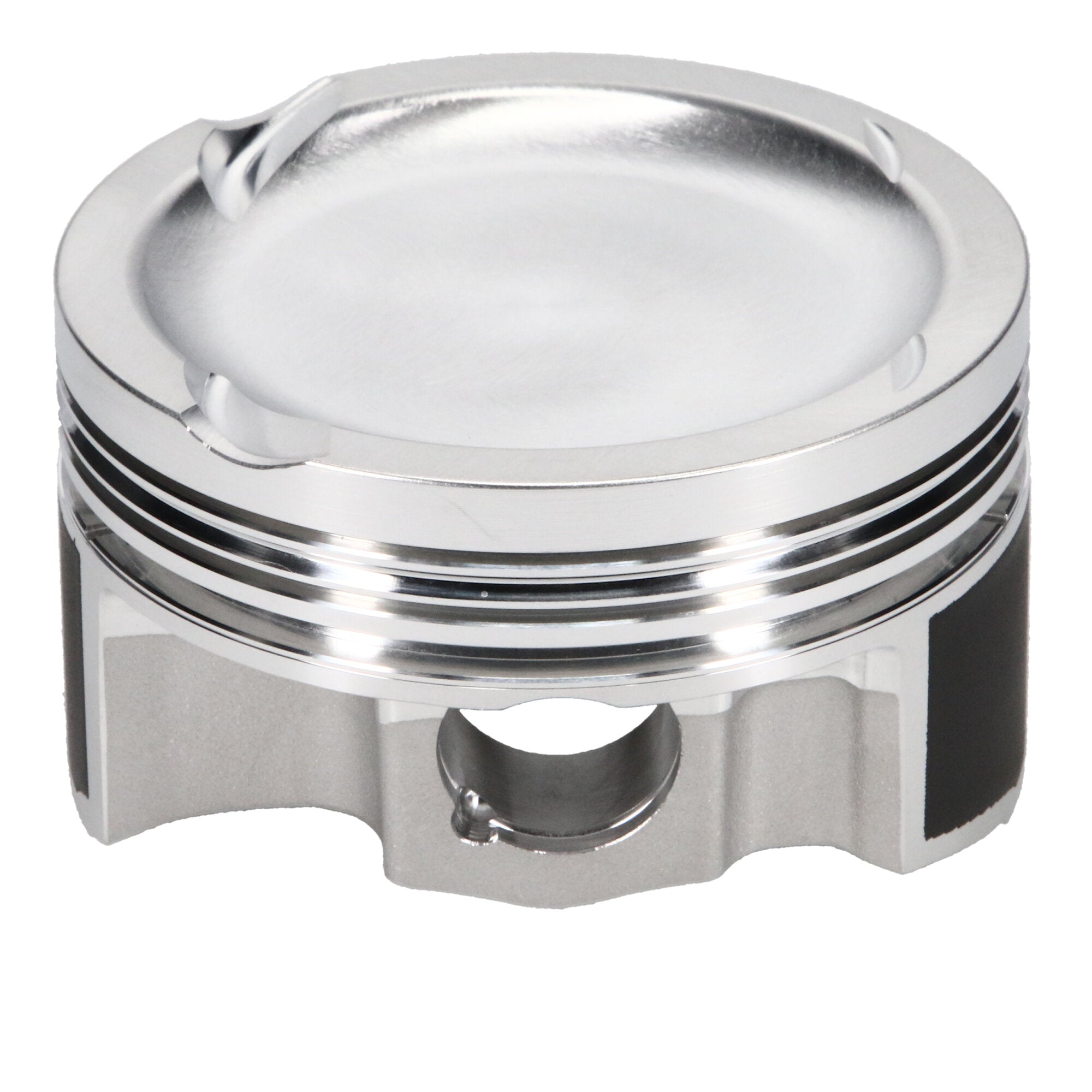

JE Pistons 314320S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.827 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_314320S
Engine Piston
$451.87
customers are viewing this product
JE Pistons 314583R Piston Single, 2618, Inv Dome/Dish, 3.622 Bore, 1.200 CD, 0.866 Pin, Set of 1.
JE Pistons 314583R Piston Single, 2618, Inv Dome/Dish, 3.622 Bore, 1.200 CD, 0.866 Pin, Set of 1.
$292.41
JE Pistons 314449L Piston Single, 2618, Inv Dome/Dish, 3.622 Bore, 1.209 CD, 0.905 Pin, Set of 1.
JE Pistons 314449L Piston Single, 2618, Inv Dome/Dish, 3.622 Bore, 1.209 CD, 0.905 Pin, Set of 1.
$451.87

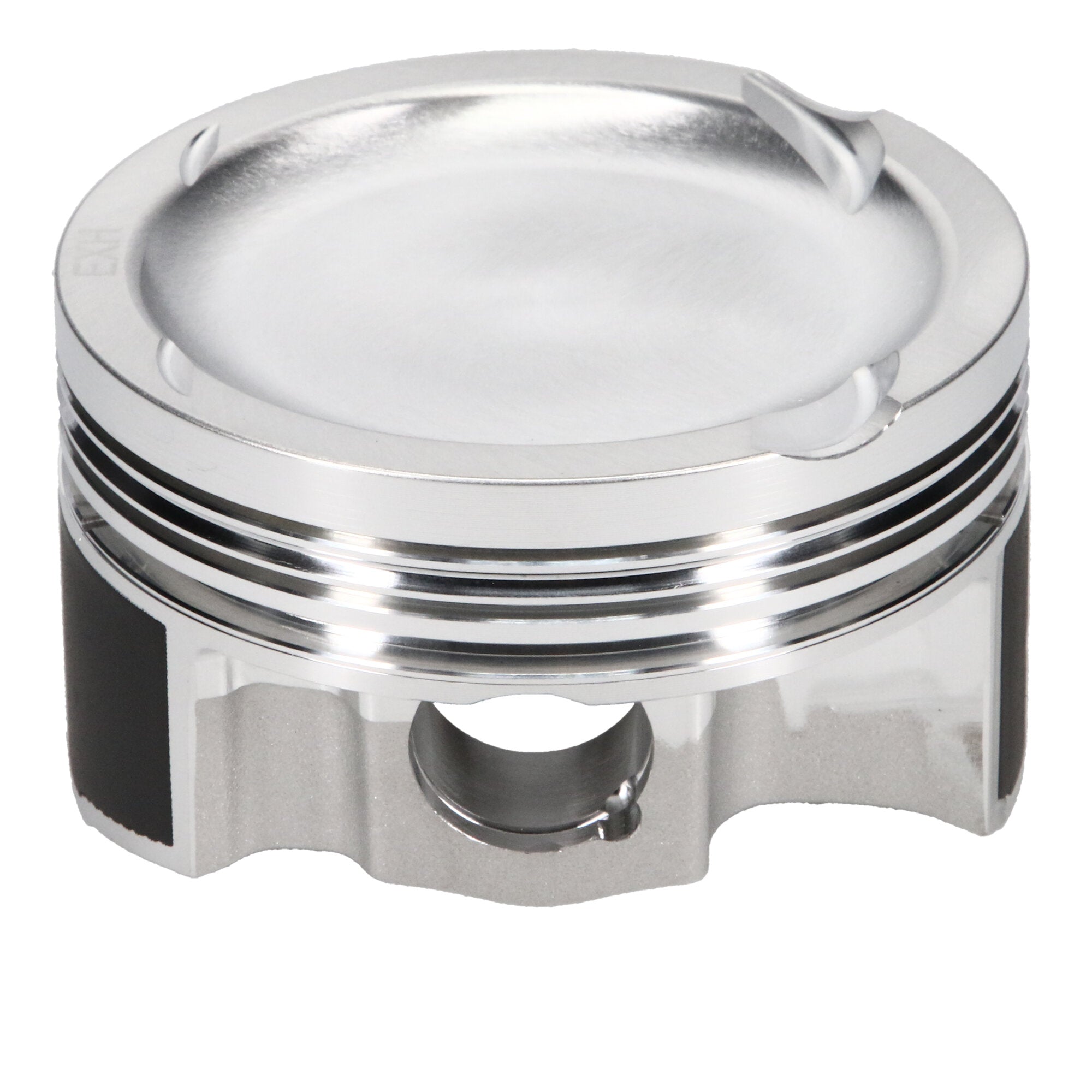

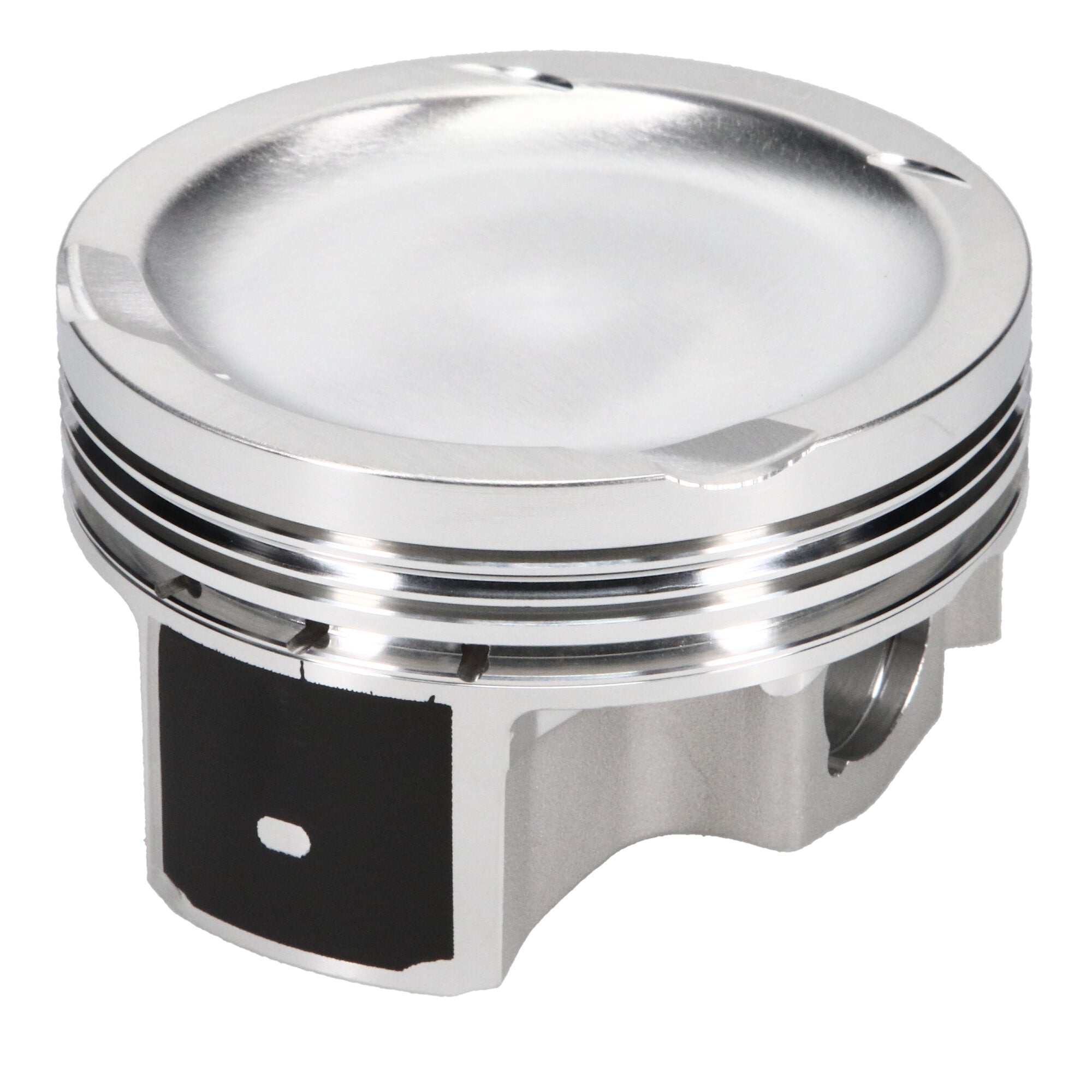

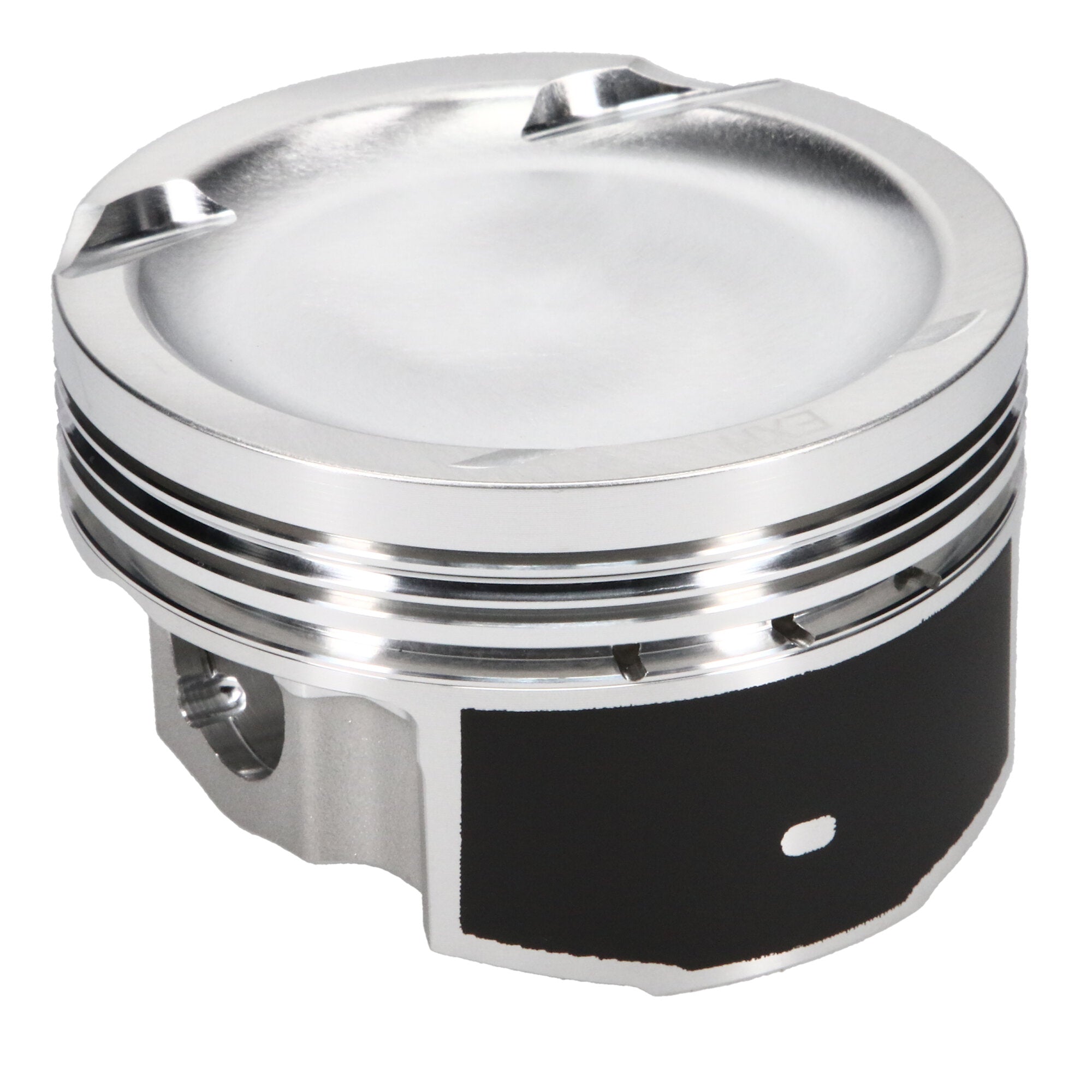

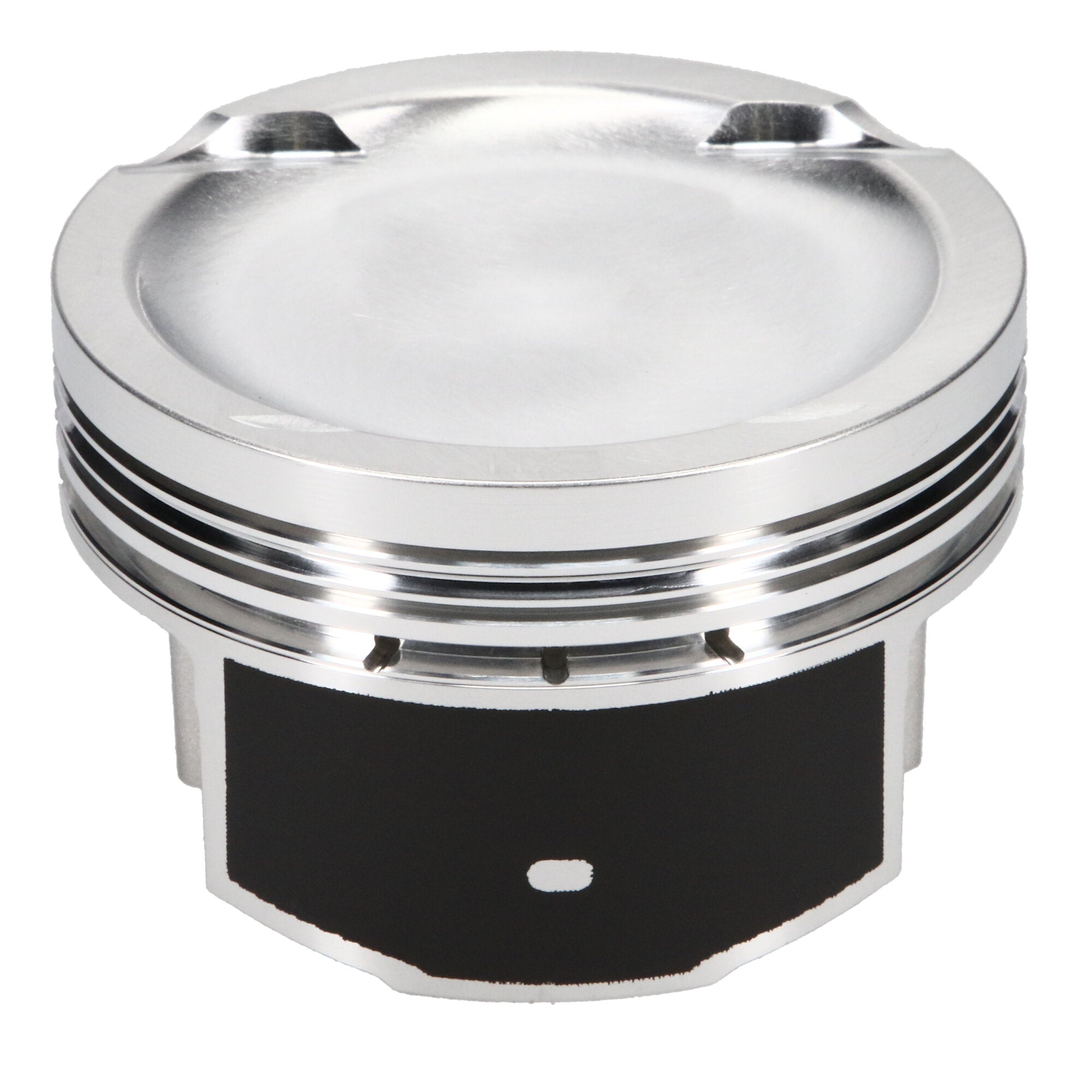

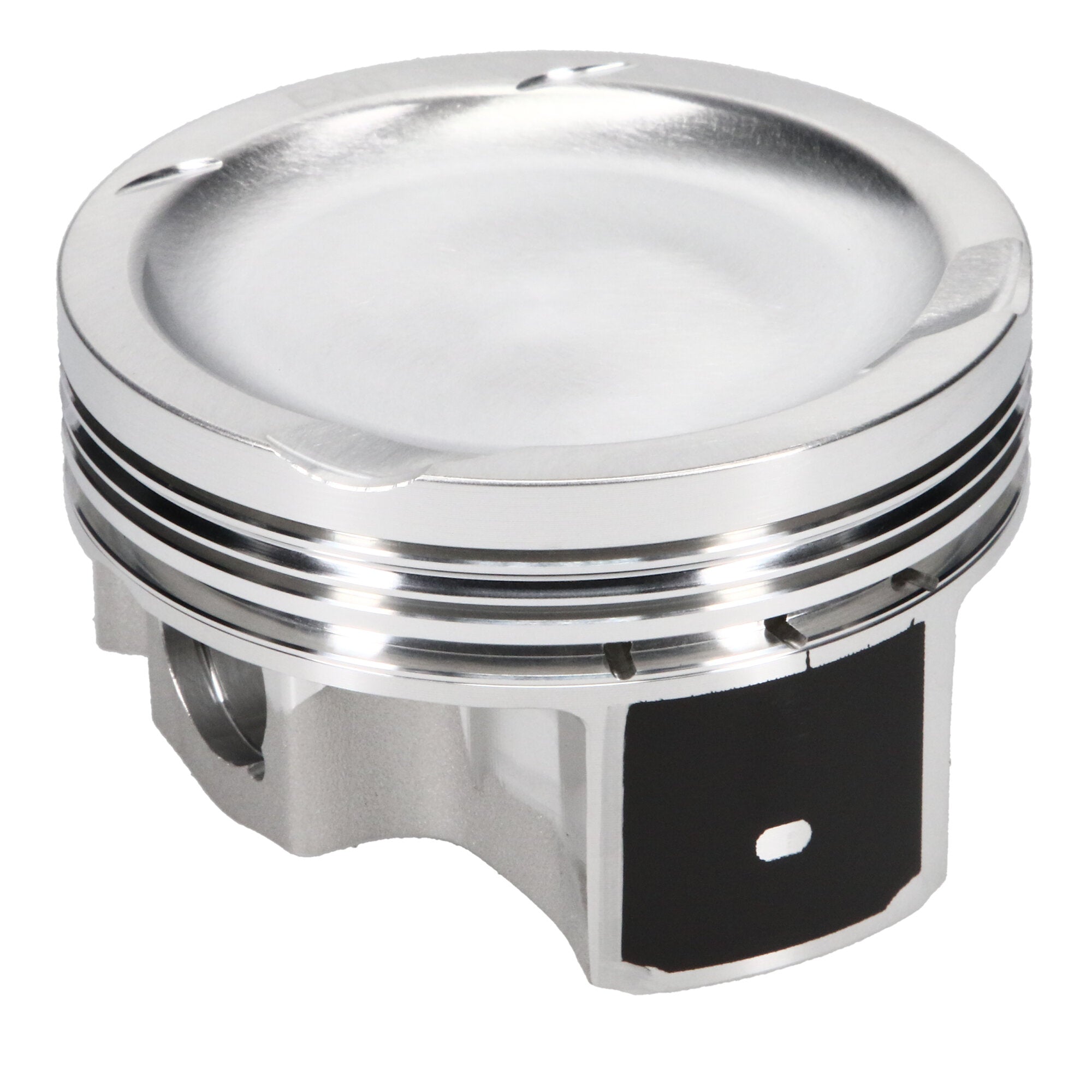

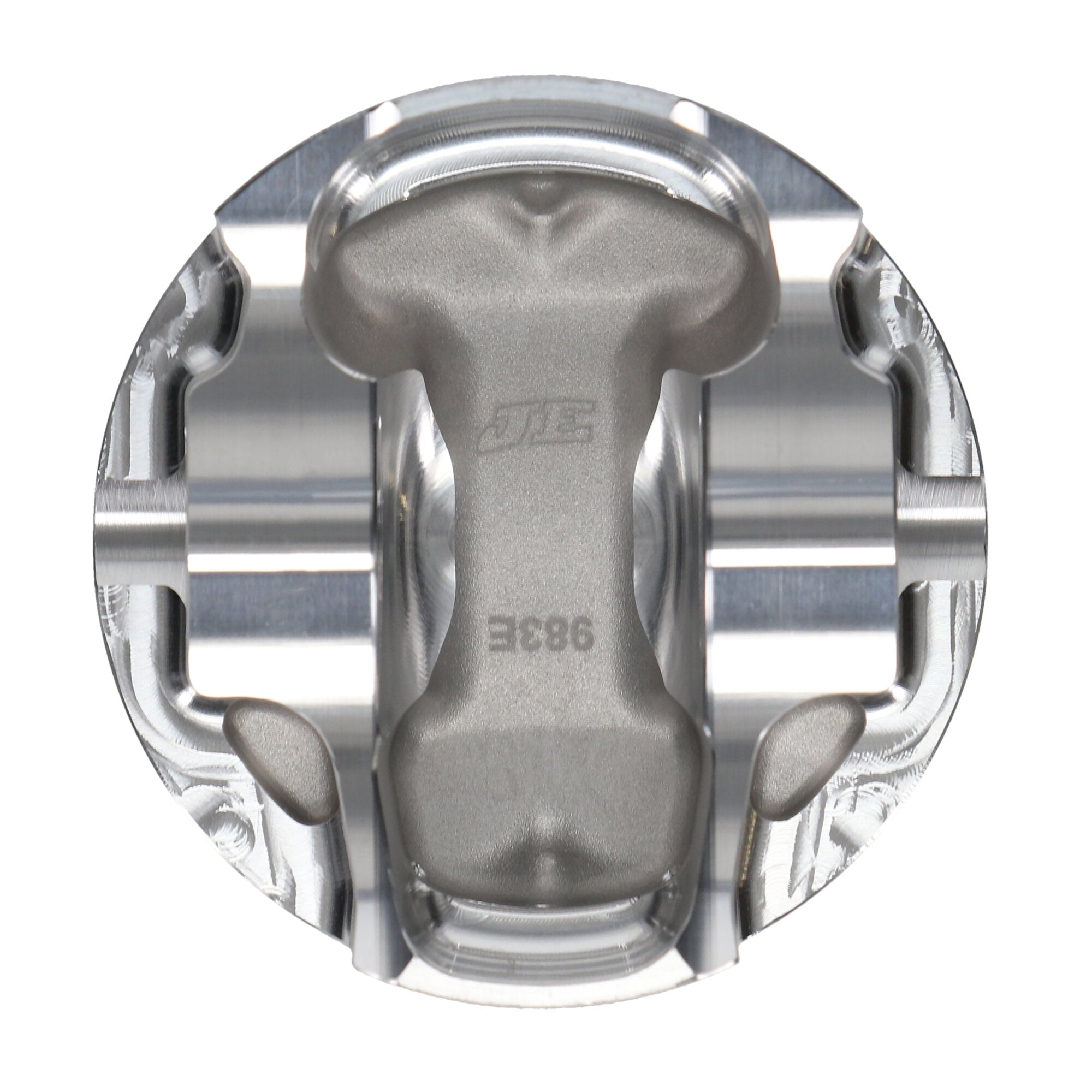

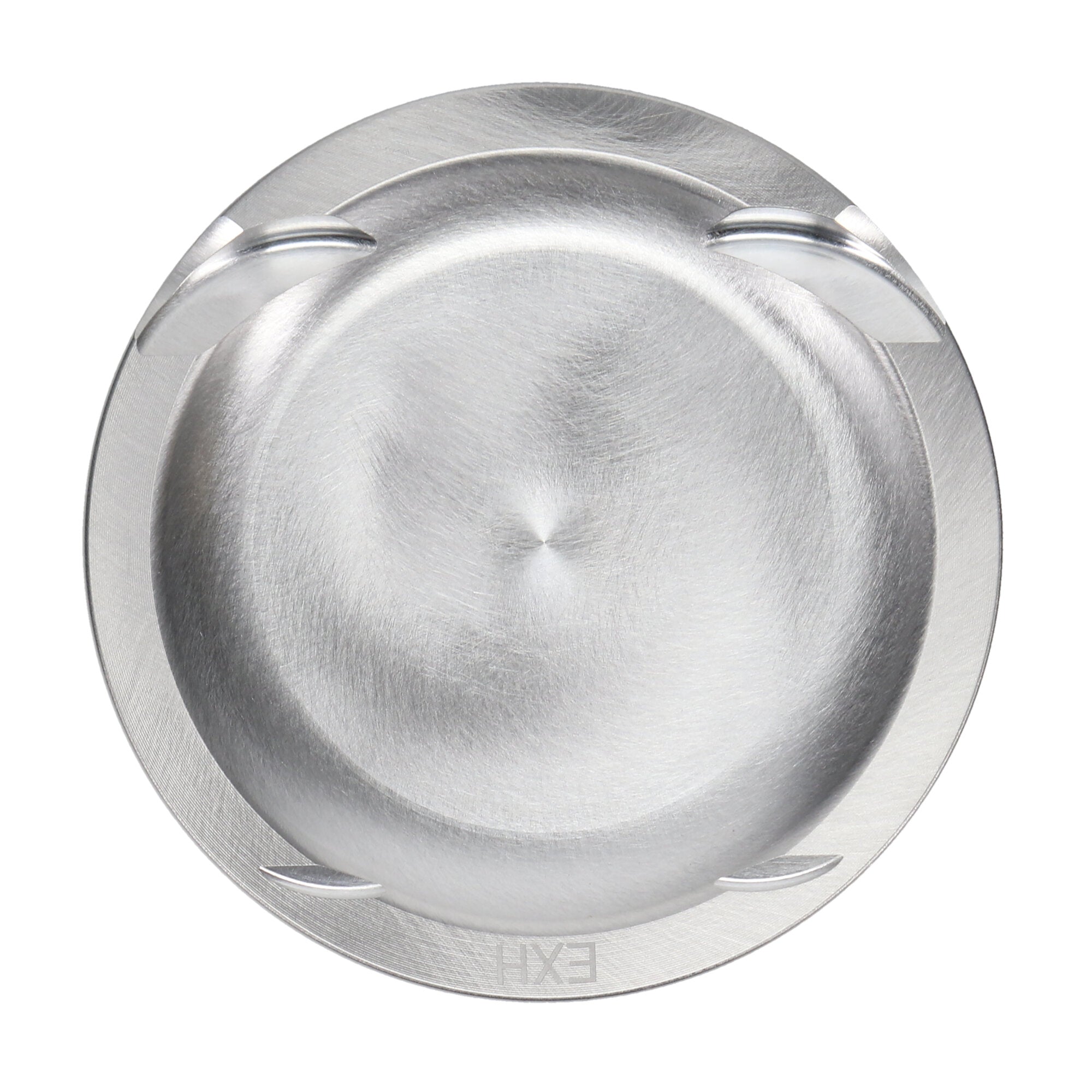

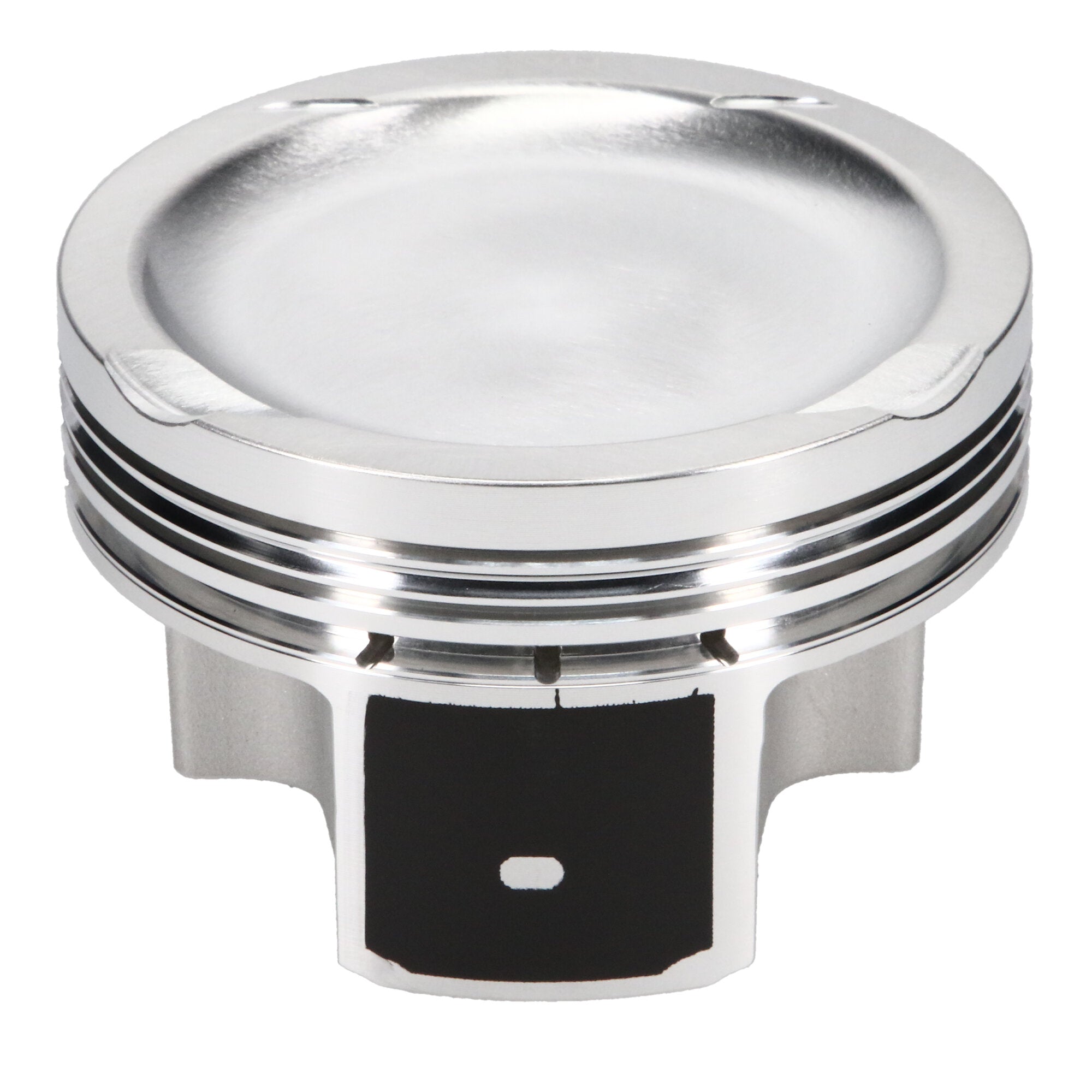

JE Pistons 314320S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.827 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Volkswagen 2.0T TSI 08-14
Description_DEF Engine Piston
Description_EXT JE, VW, 2.0T TSI - 08-14 - 21mm Pin, 3.248 in. Bore, 10.30:1, Inverted Dome/Dish, Single Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Description_DES Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.827 Pin, Set of 1.
Description_TLE Volkswagen 2.0L Turbo, 82.50 Bore, Dish, Set of 1
Description_INV JE Pistons, Piston
Description_SHO Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Add-On 827-2250-15-51C
Add-On JG1001-3250
Add-On 827-063-MW
Bore Diameter 82.50
Piston Head Type Dish
Compression Height 1.165
Engine Type ICE
Forging Type FSR
Engine 2.0T TSI 04-08 21 mm Pin
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>European
Oil Ring Thickness 0.111
Industry Automotive
Out of Stock Message Call for Availability
Piston Average Weight 297
Cylinder Head 2.0 TSI
Make VOLKSWAGEN
Make - Web Volkswagen
Engine Detail 2.0T TSI 04-08 21 mm Pin
Engine - Web 2.0T TSI
Piston Material 2618
Piston Volume -3.00
Piston Pin Wall Thickness 0.150
Piston Pin Material 5115
Piston Pin Length 2.250
Piston Quantity 1
Piston Series JE Pistons
Product Market European
Piston Pin Outside Diameter 0.827
Product Type Engine Piston
Ringset Included Yes
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Title JE Pistons - Volkswagen, 2.0T TSI, 82.50 mm Bore, Piston
Prop 65 Yes/No Yes
Title - Web JE Pistons Volkswagen 2.0T TSI Piston - 82.50 mm Bore - 1.165 in. CH, -3.00 CC
Prop 65 (C, R or CR) CR
Wrist Pin Length 2.250
Wrist Pin Wall Thickness 0.150
Ring Set Included Yes
Wrist Pin Outer Diameter 0.827
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Prop 65 - Short Label Prop 65 Warning Label.JPG
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
