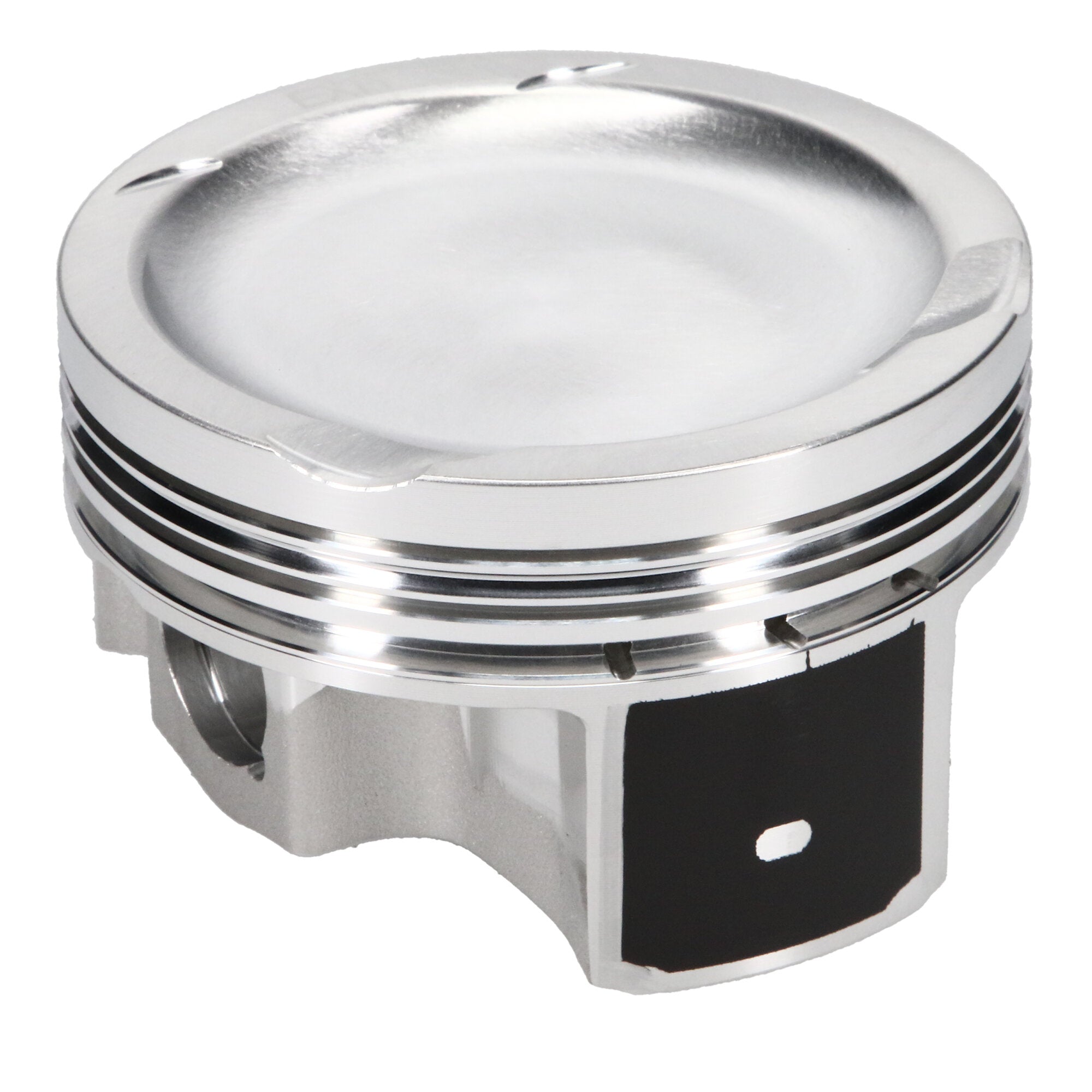

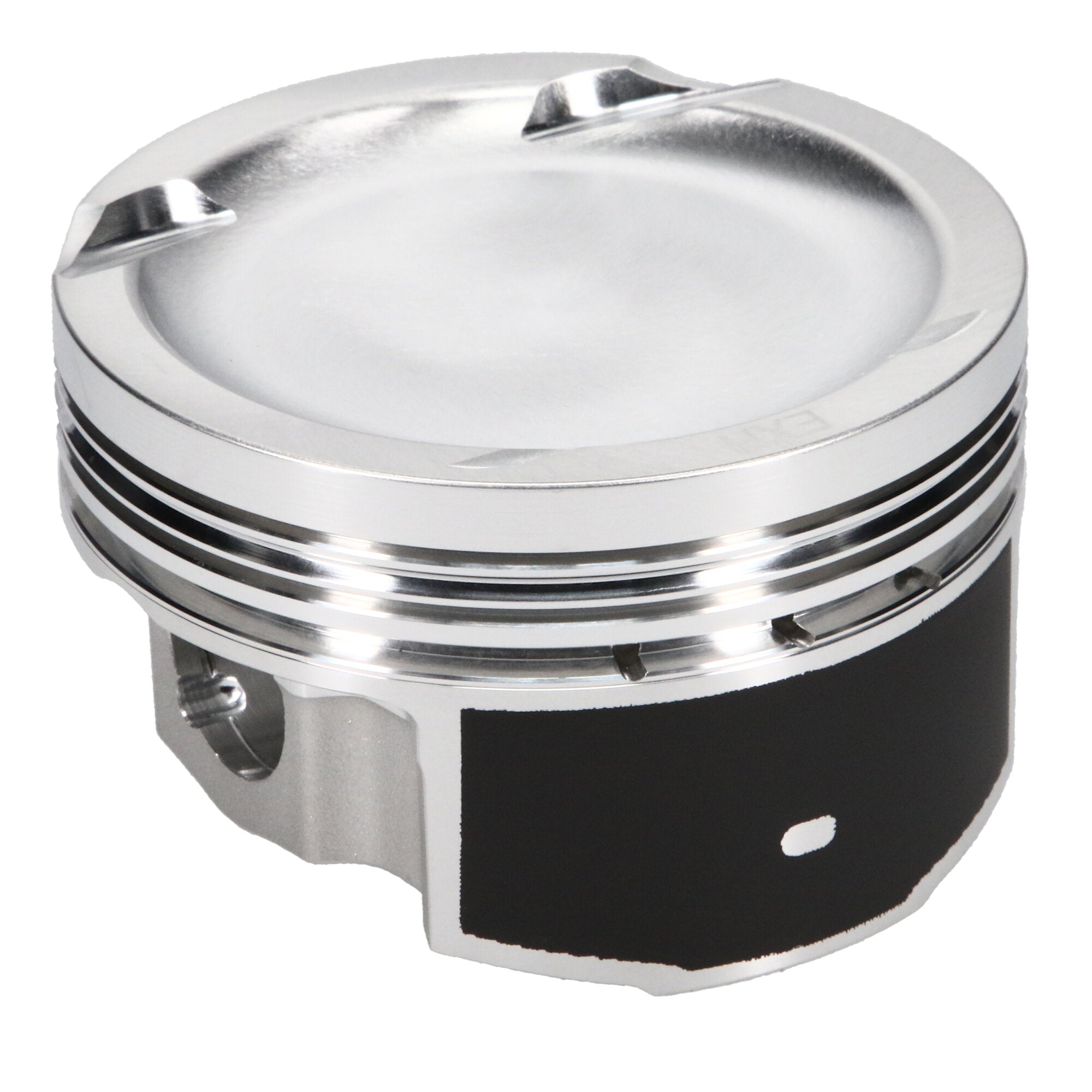

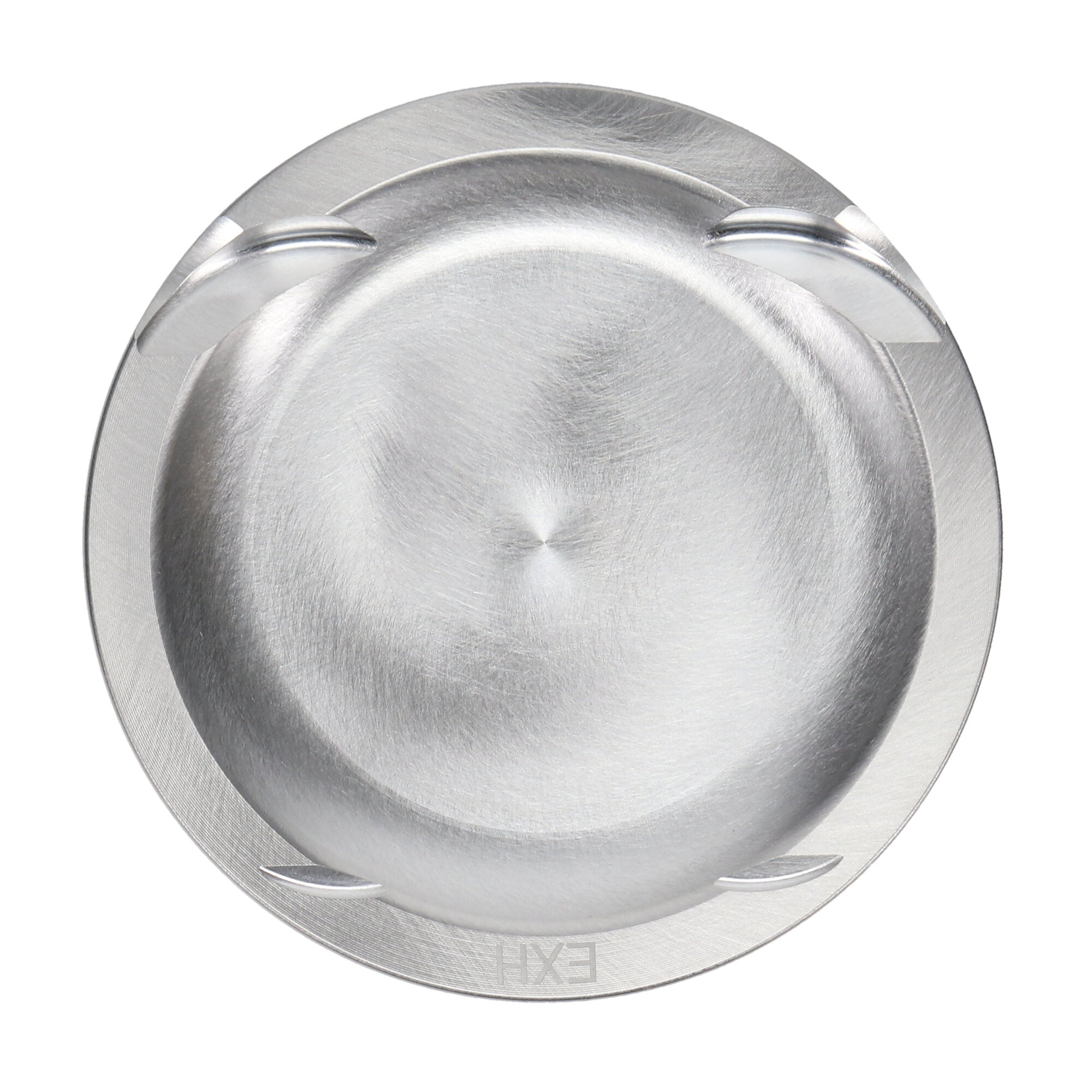

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0T TSI 08-14 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.827 Pin, Set of 4. |
| Description_EXT |
JE, VW, 2.0T TSI - 08-14 - 21mm Pin, 3.248 in. Bore, 10.30:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 2.0L Turbo, 82.50 Bore, Dish, Set of 4 |
| Ring Set Included |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Top Compression Ring Thickness |
0.0400 |
| Bore Diameter |
82.50 |
| Product Market |
European |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.827 |
| Piston Volume |
-3.00 |
| Add-On |
JG1001-3250 |
| Product Type |
Engine Piston Kit |
| Make |
VOLKSWAGEN |
| Title |
JE Pistons - Volkswagen, 2.0T TSI, 82.50 mm Bore, Piston Kit |
| Industry |
Automotive |
| Compression Height |
1.165 |
| Add-On |
827-2250-15-51C |
| Add-On |
827-063-MW |
| Out of Stock Message |
Call for Availability |
| Piston Average Weight |
297 |
| Cylinder Head |
2.0 TSI |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
4 |
| Piston Material |
2618 |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.827 |
| Engine - Web |
2.0T TSI |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Engine |
2.0T TSI 04-08 21 mm Pin |
| Forging Type |
FSR |
| Piston Pin Length |
2.250 |
| Title - Web |
JE Pistons Volkswagen 2.0T TSI Piston Kit - 82.50 mm Bore - 1.165 in. CH, -3.00 CC |
| Second Compression Ring Thickness |
0.0480 |
| Make - Web |
Volkswagen |
| Engine Detail |
2.0T TSI 04-08 21 mm Pin |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
