As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Peugeot XU9JA 205 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

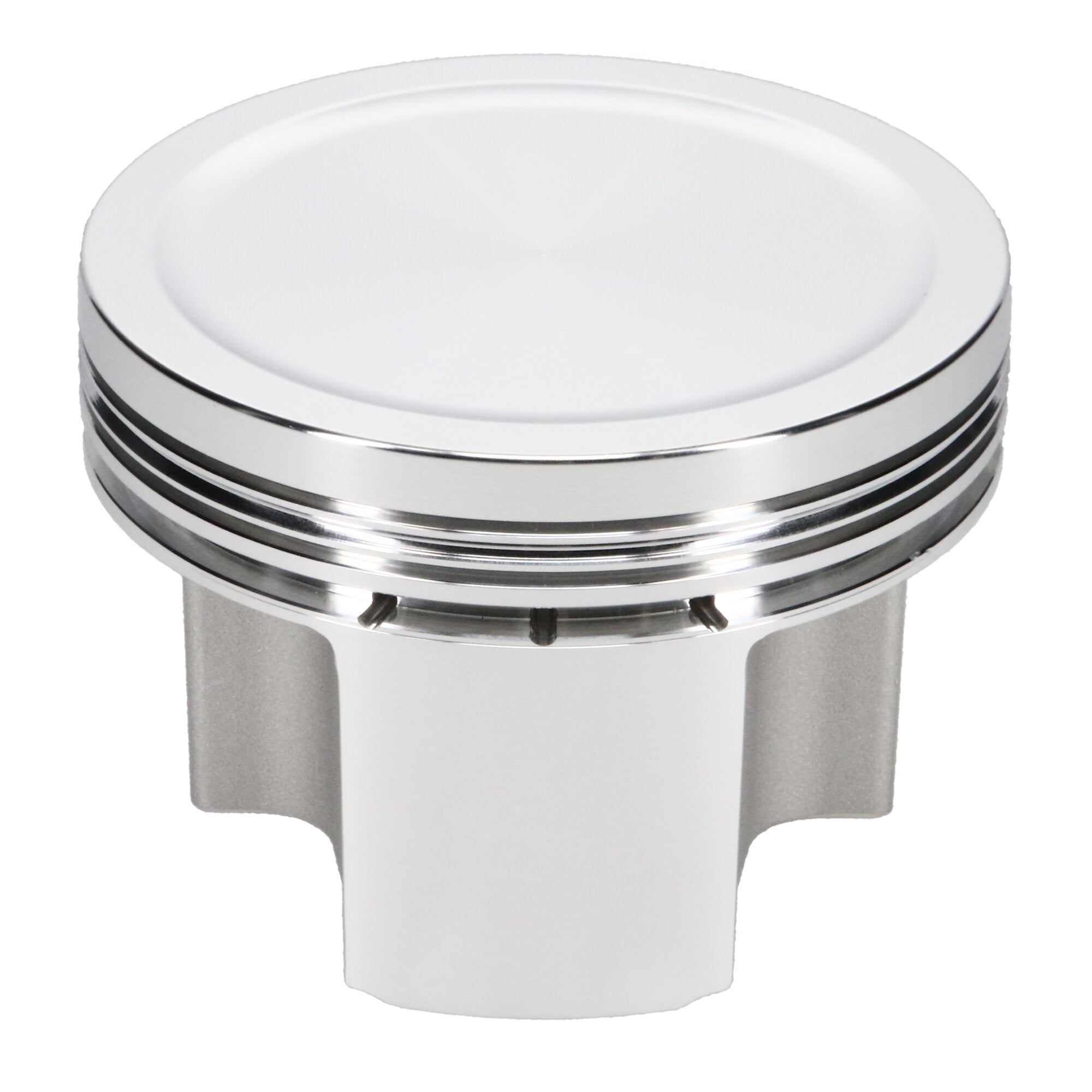

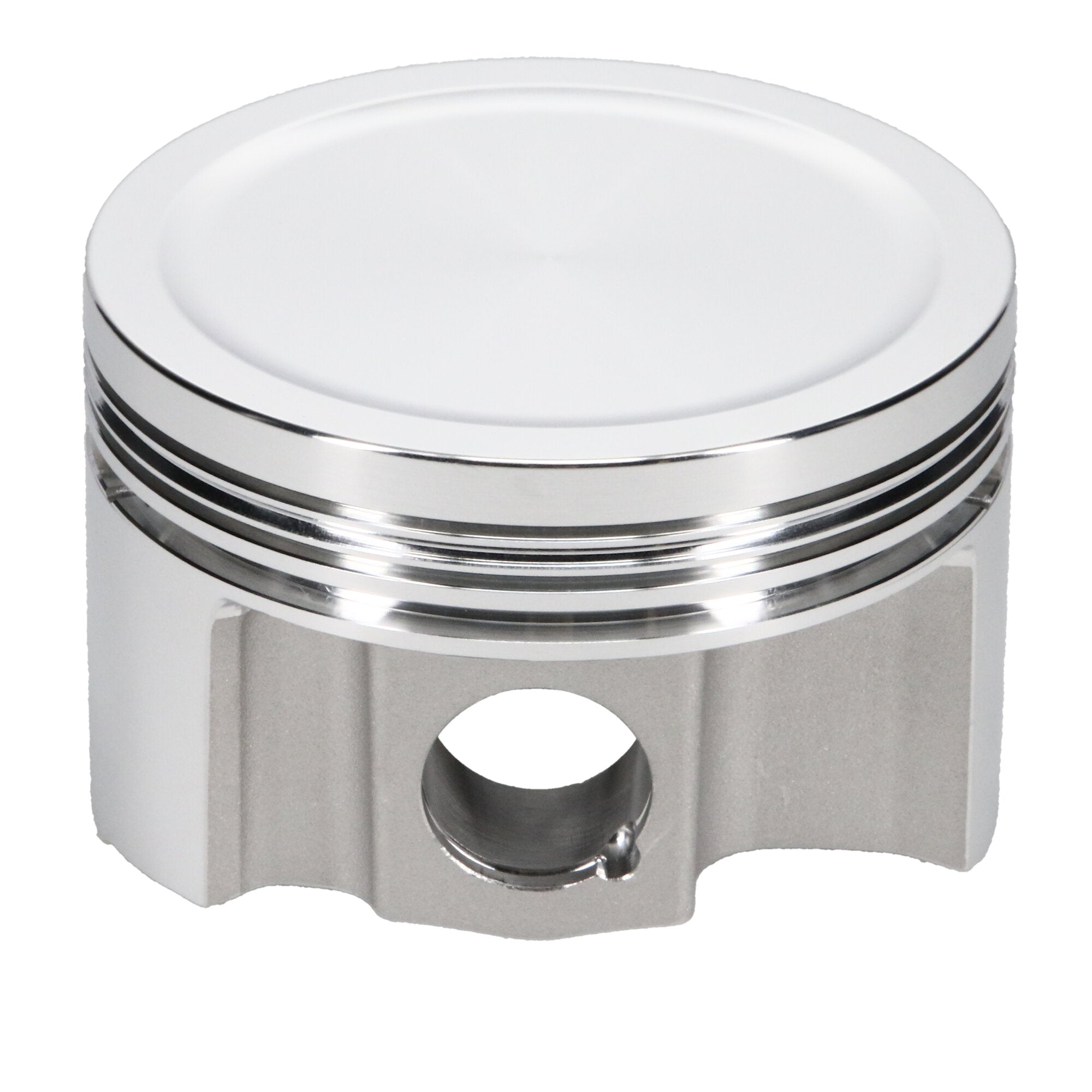

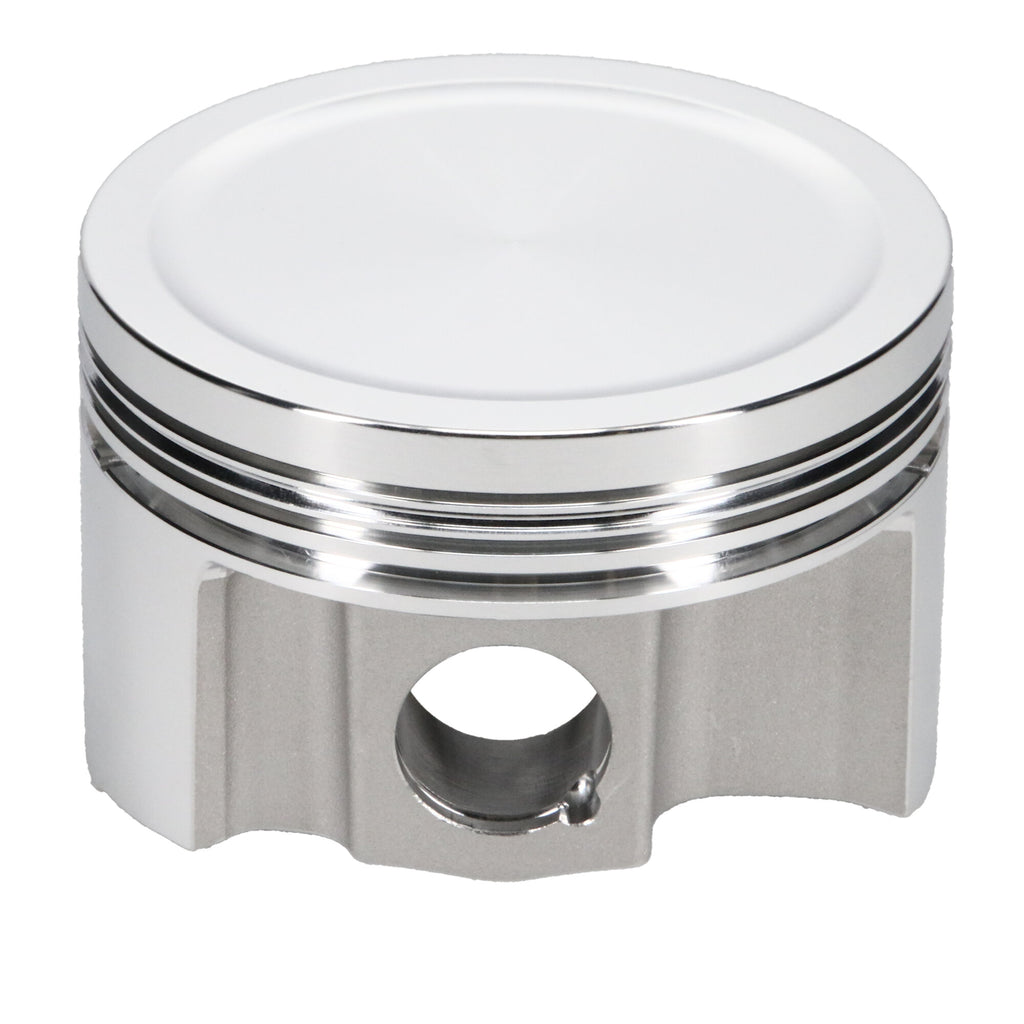

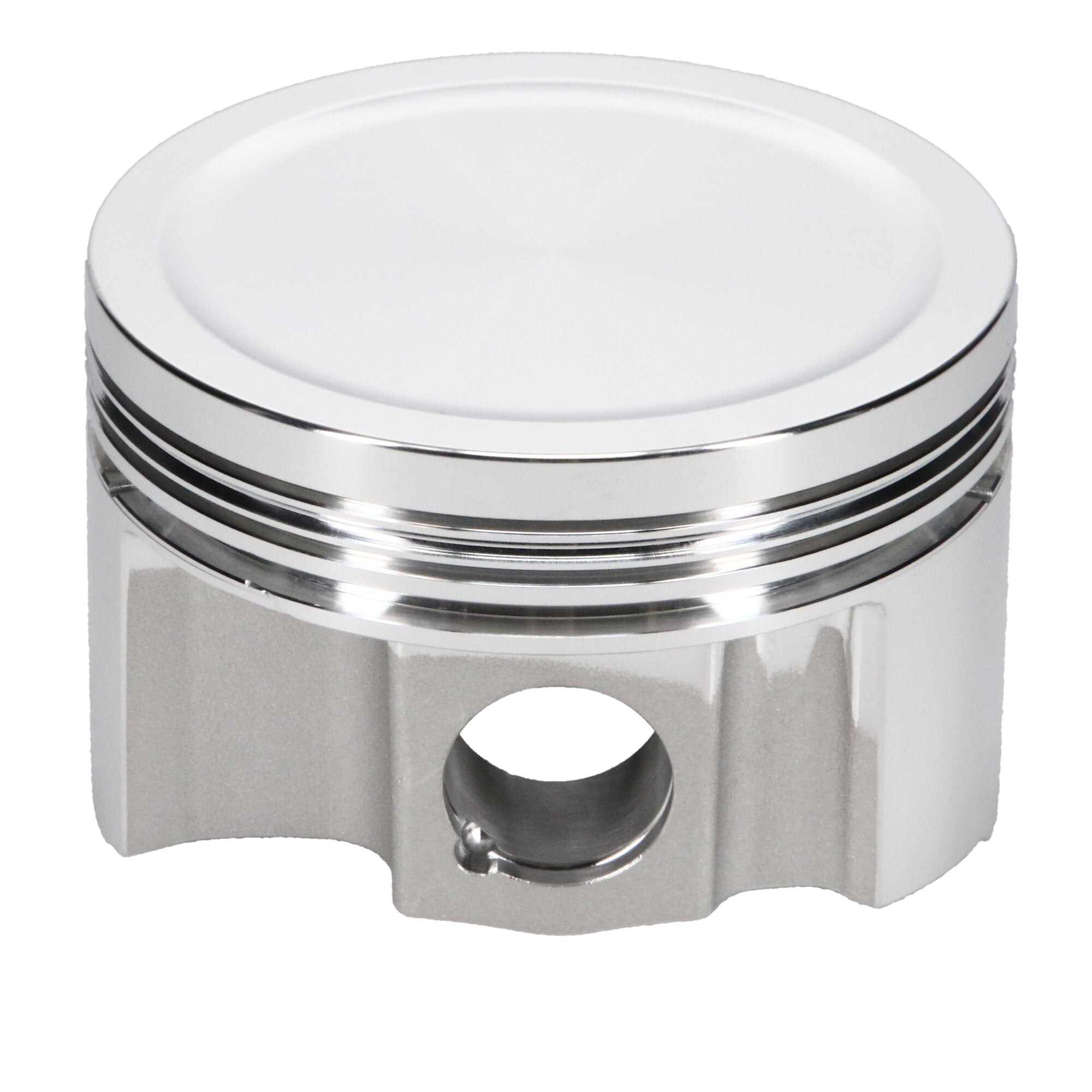

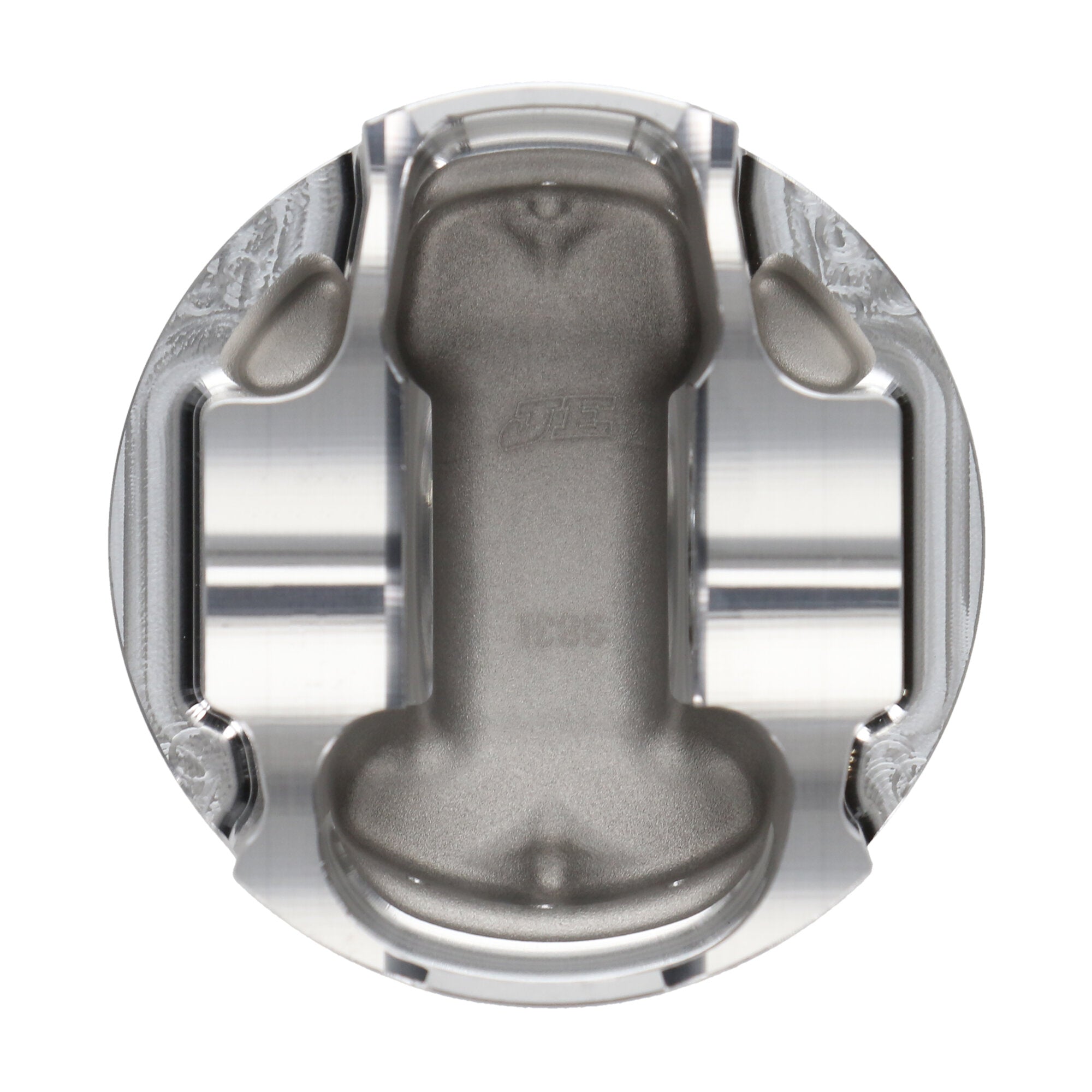

Piston Set, 2618, Inv Dome/Dish, 3.287 Bore, 1.456 CD, 0.787 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Peugeot, XU9JA, 3.287 in. Bore, 11.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Peugeot XU9JA 205, 83.50 Bore, Dish, Set of 4 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Piston Pin Outside Diameter |
0.787 |
| Piston Average Weight |
324 |
| Compression Height |
1.456 |
| Title |
JE Pistons - Peugeot, XU9JA, 83.50 mm Bore, Piston Kit |
| Make |
PEUGEOT |
| Engine - Web |
XU9JA |
| Wrist Pin Length |
2.250 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Wall Thickness |
0.180 |
| Product Market |
European |
| Out of Stock Message |
Call for Availability |
| Top Compression Ring Thickness |
0.0400 |
| Piston Quantity |
4 |
| Wrist Pin Outer Diameter |
0.787 |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.180 |
| Add-On |
JG1001-3287 |
| Engine |
XU9JA |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Cylinder Head |
XU9JA |
| Piston Volume |
-3.70 |
| Add-On |
787-050-MW |
| Piston Pin Length |
2.250 |
| Title - Web |
JE Pistons Peugeot XU9JA Piston Kit - 83.50 mm Bore - 1.456 in. CH, -3.70 CC |
| Bore Diameter |
83.50 |
| Piston Head Type |
Dish |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Add-On |
787-2250-18-51C |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Second Compression Ring Thickness |
0.0480 |
| Forging Type |
FSR |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Peugeot |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
