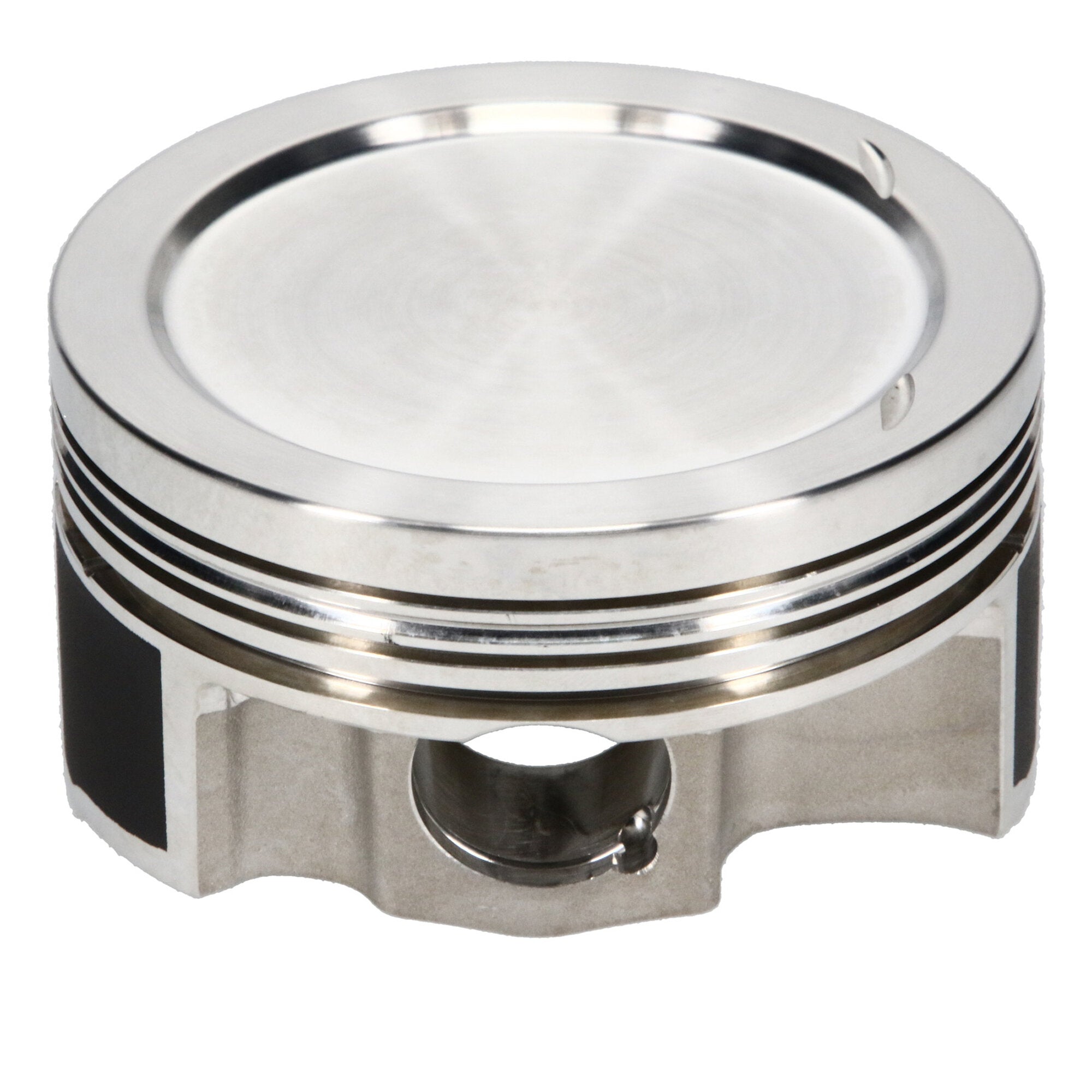

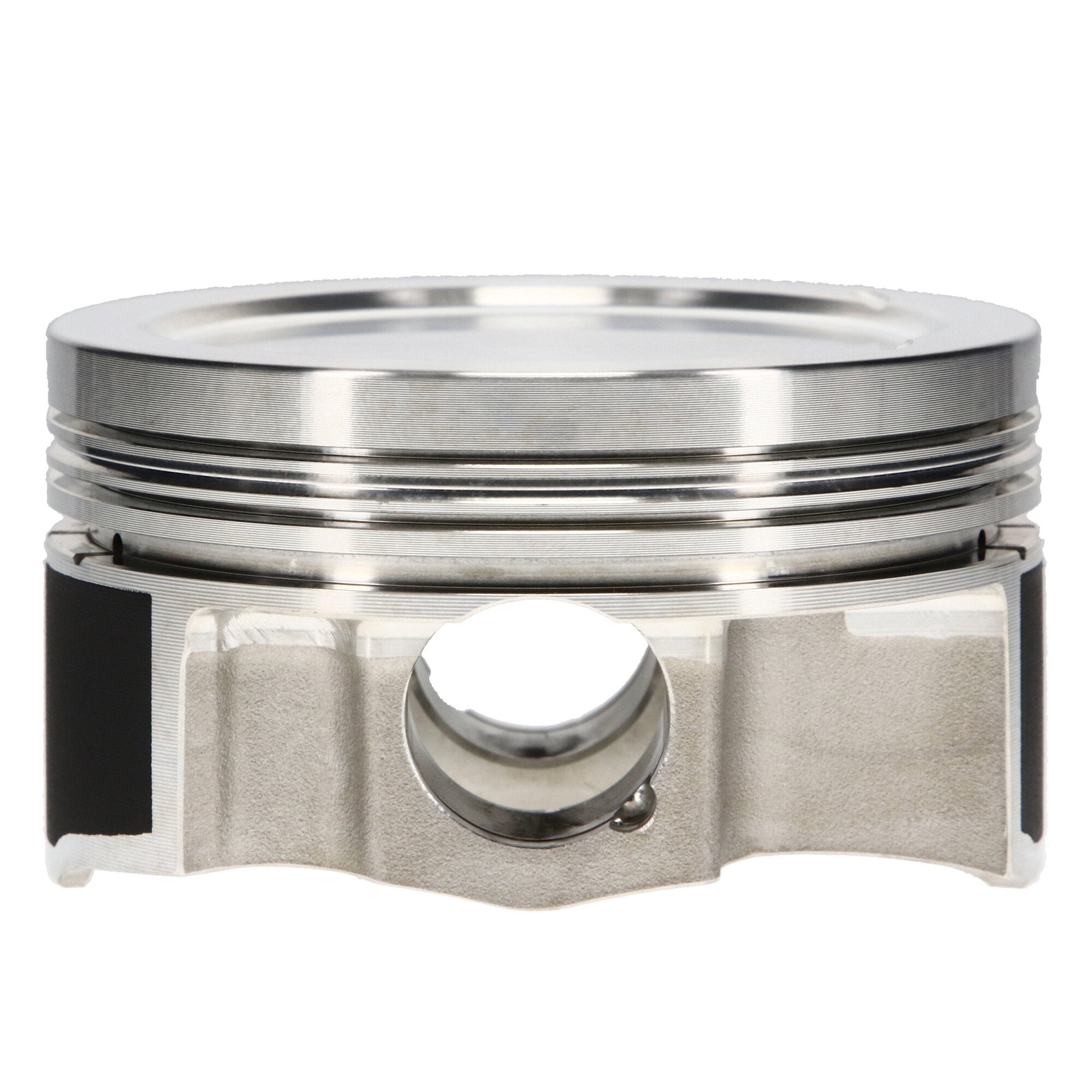

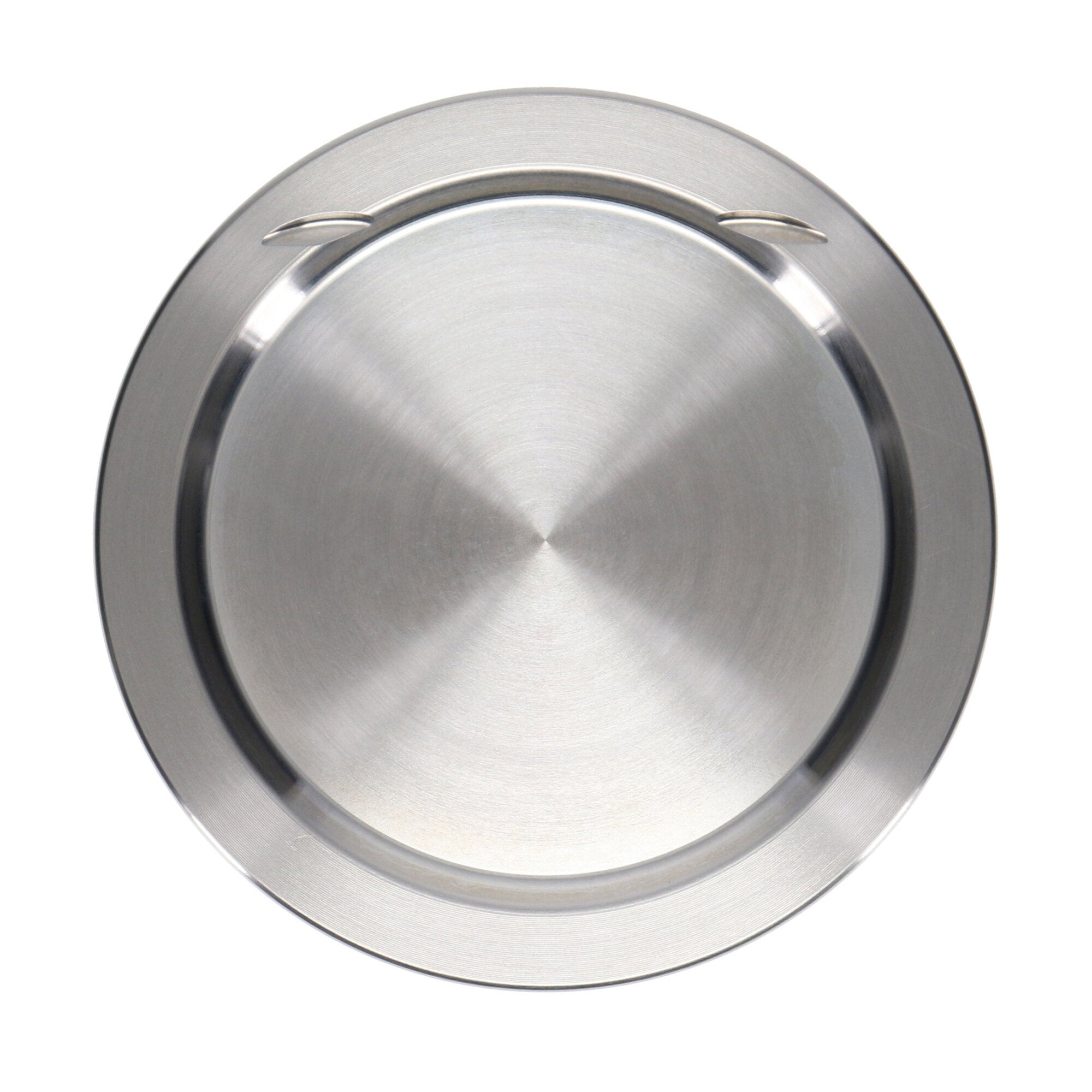

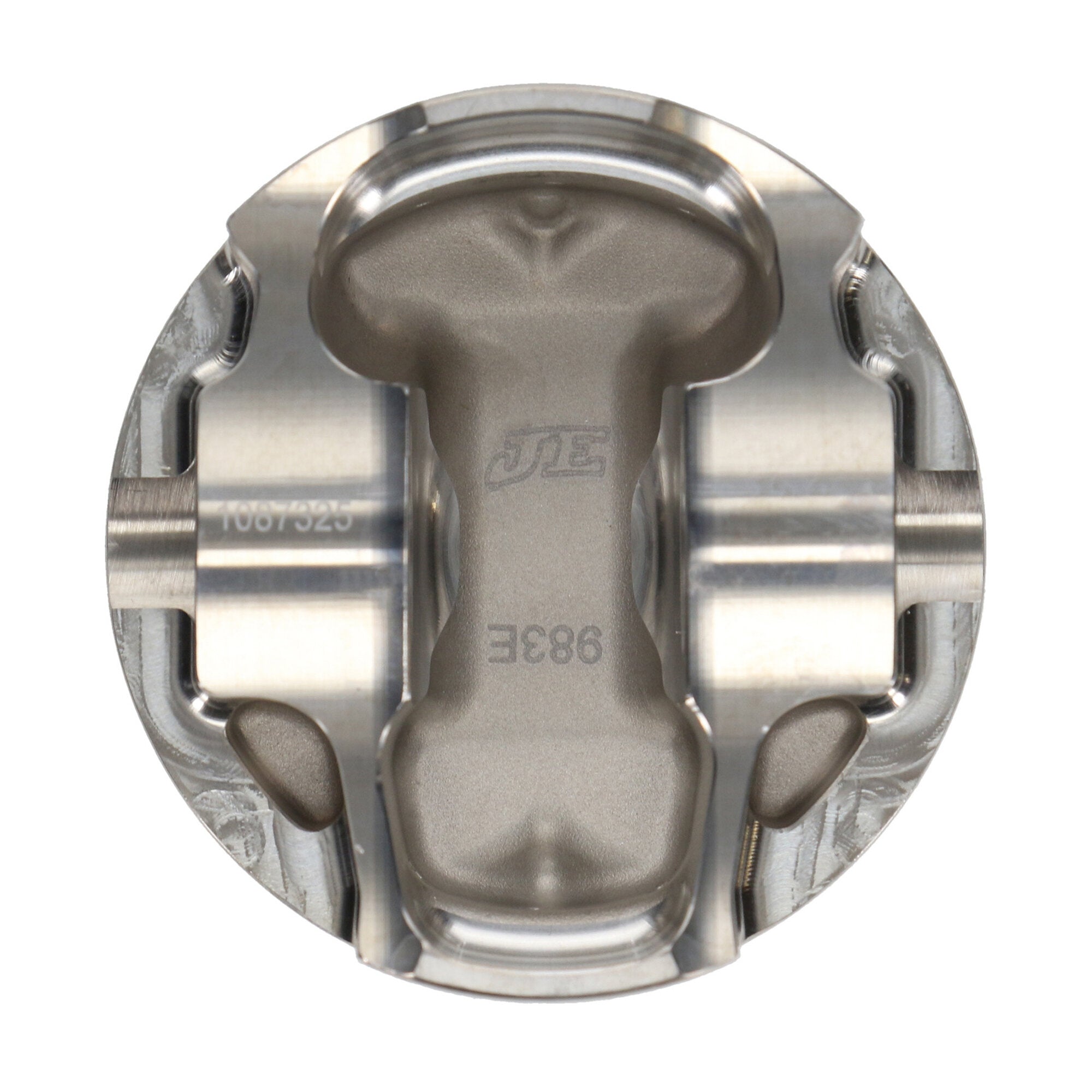

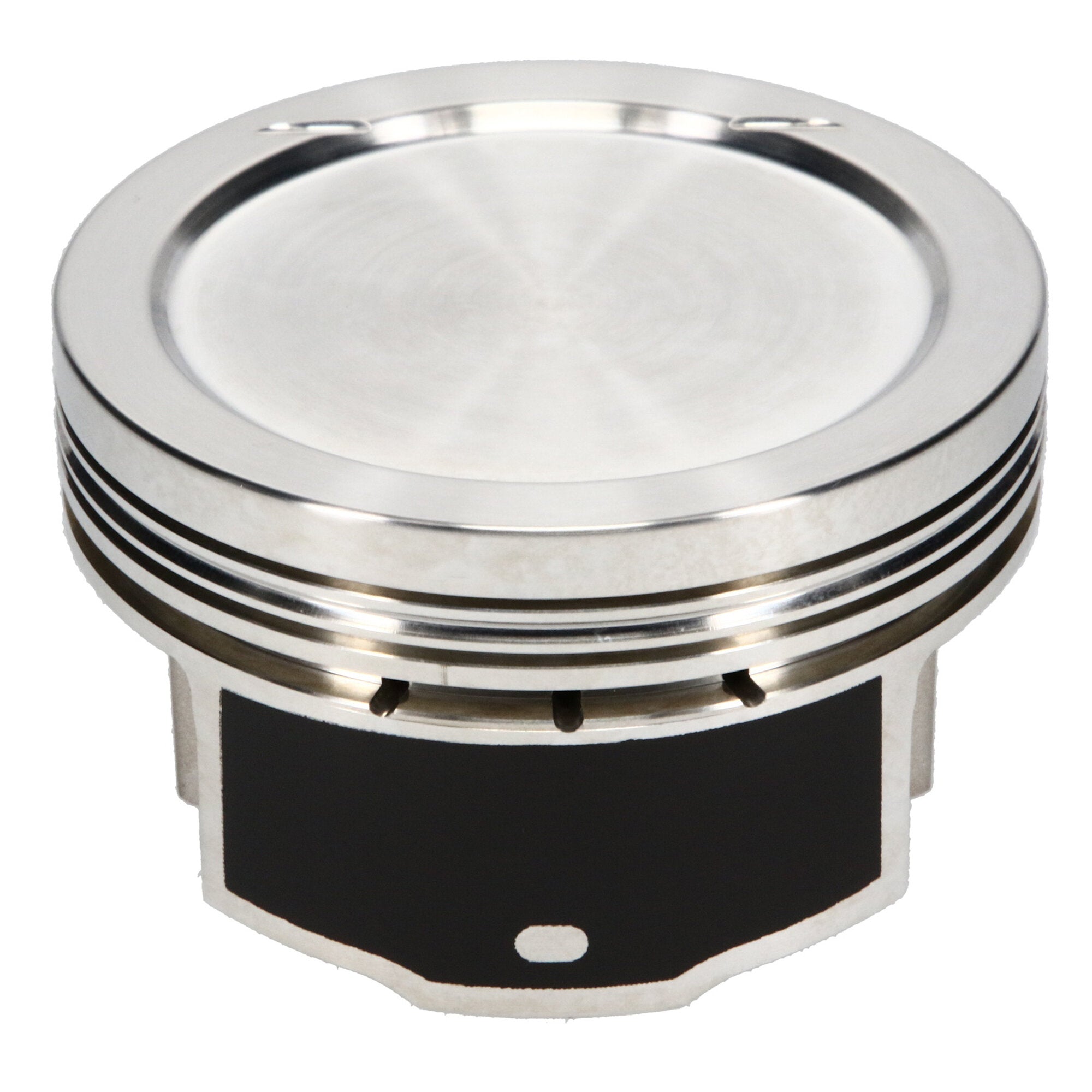

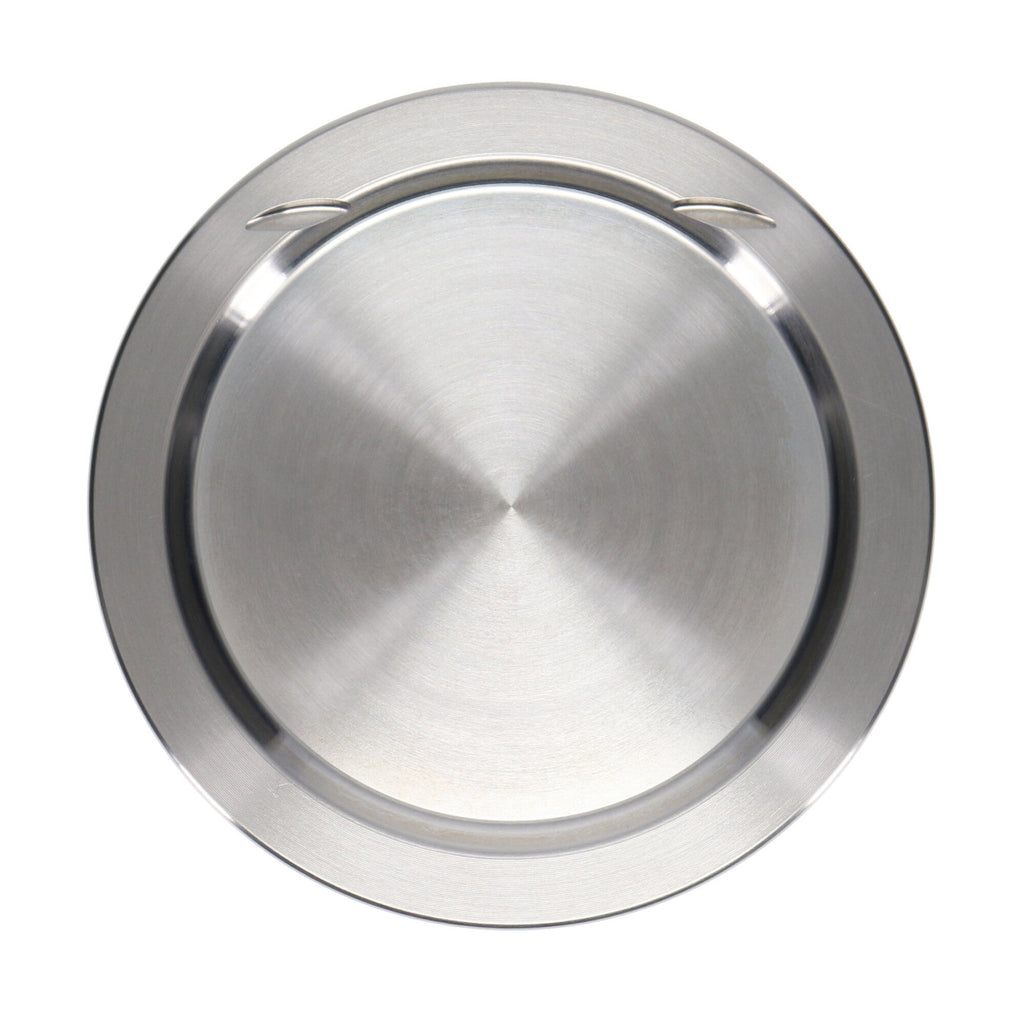

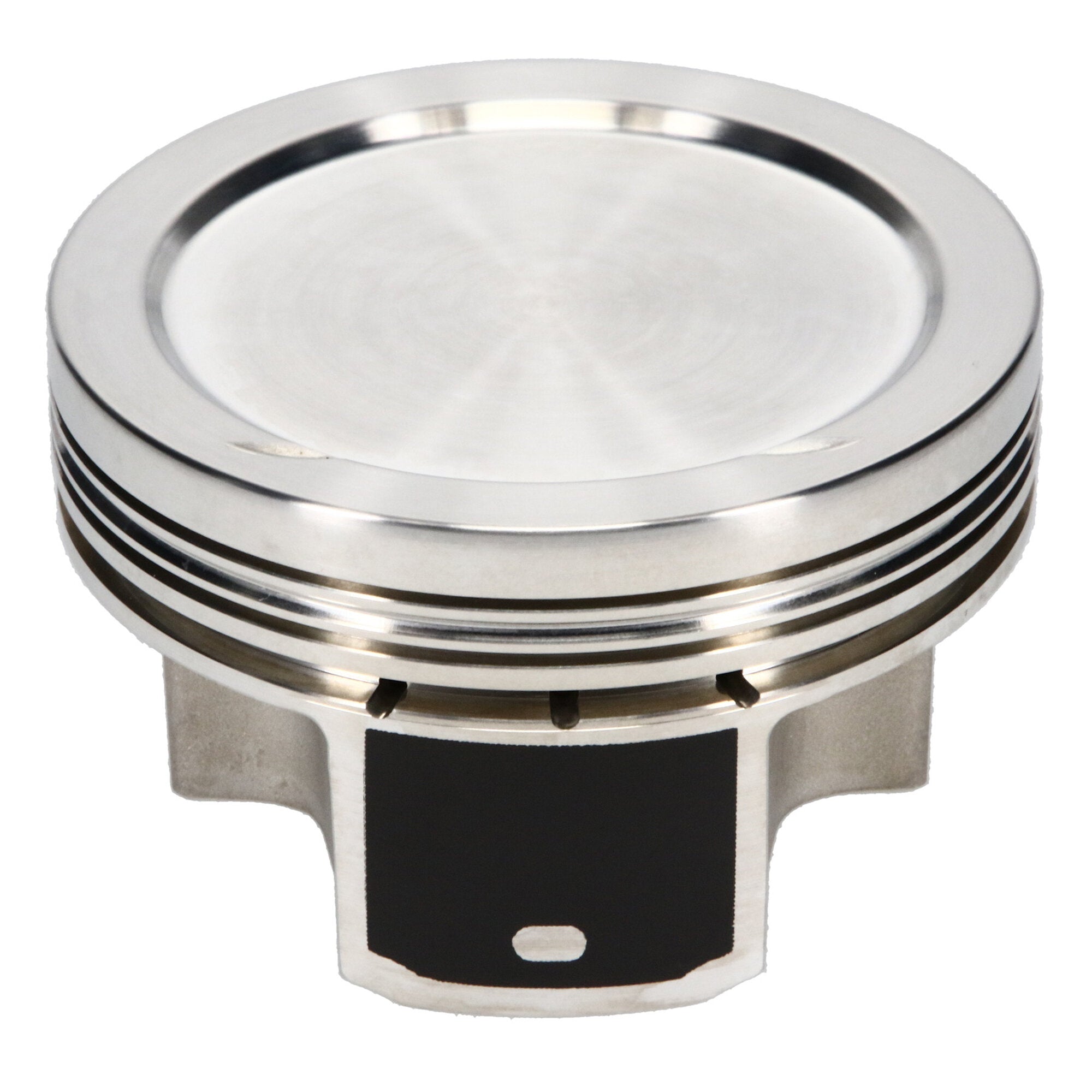

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 2.5L ST |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Ford, 2.5L ST, 3.287 in. Bore, 8.50:1, Inverted Dome/Dish, 5 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.287 Bore, 1.118 CD, 0.827 Pin, Set of 5. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 2.5L V6, 83.50 Bore, Dish, Set of 5 |
| Ringset Included |
Yes |
| Piston Pin Length |
2.250 |
| Engine |
2.5L ST |
| Title |
JE Pistons - Ford, 2.5L ST, 83.50 mm Bore, Piston Kit |
| Compression Height |
1.118 |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Wrist Pin Outer Diameter |
0.827 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Volume |
-7.20 |
| Oil Ring Thickness |
0.111 |
| Piston Head Type |
Dish |
| Make |
FORD |
| Piston Quantity |
5 |
| Second Compression Ring Thickness |
0.0480 |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.827 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Series |
JE Pistons |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine - Web |
2.5L ST |
| Make - Web |
Ford |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
Yes |
| Title - Web |
JE Pistons Ford 2.5L ST Piston Kit - 83.50 mm Bore - 1.118 in. CH, -7.20 CC |
| Add-On |
JG1001-3287 |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
83.50 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Piston Average Weight |
285 |
| Product Market |
Sport Compact |
| Product Type |
Engine Piston Kit |
| Add-On |
827-2250-15-51C |
| Cylinder Head |
FORD ST 2.5 |
| Add-On |
827-050-MW |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
6.0000 |
