As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda B18C1 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

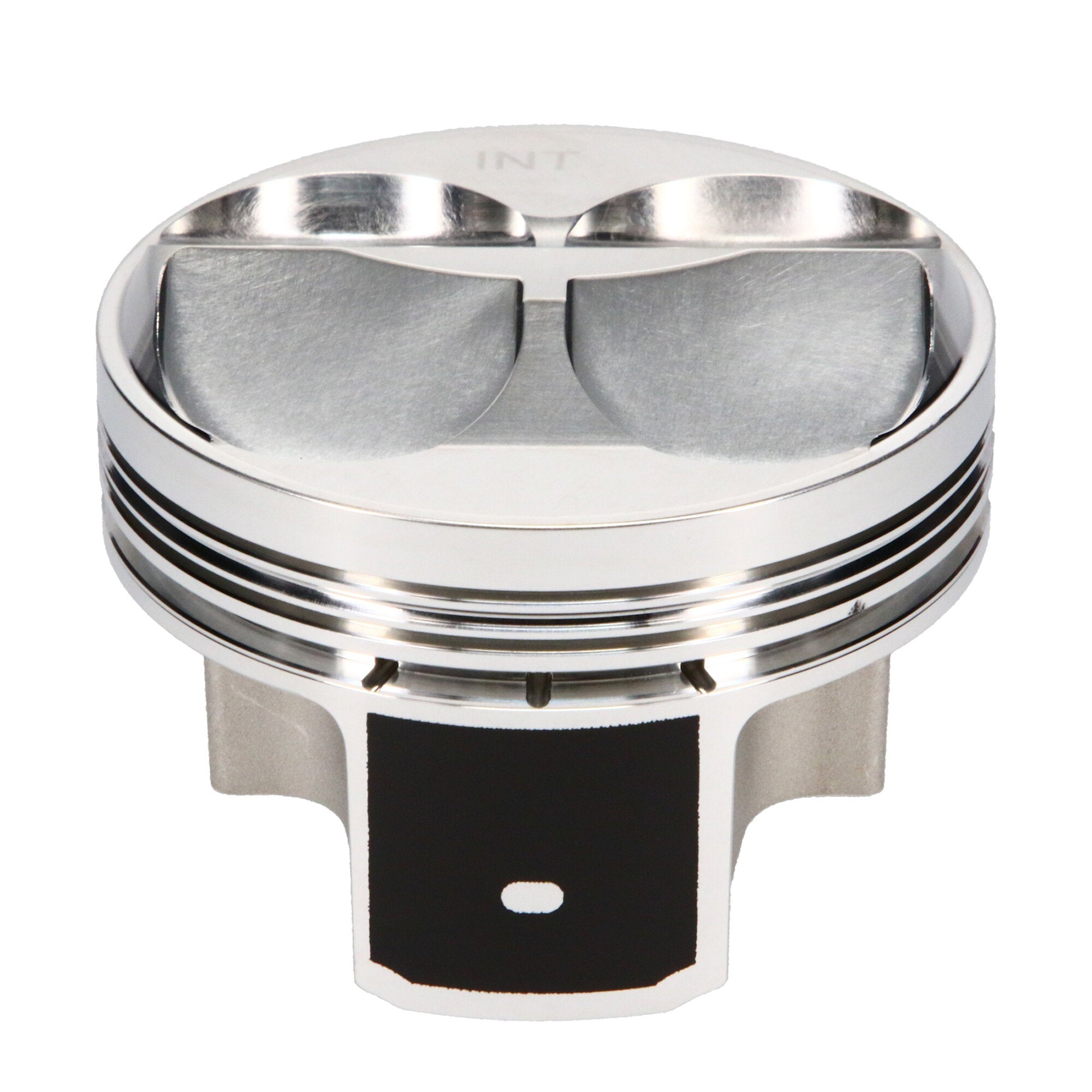

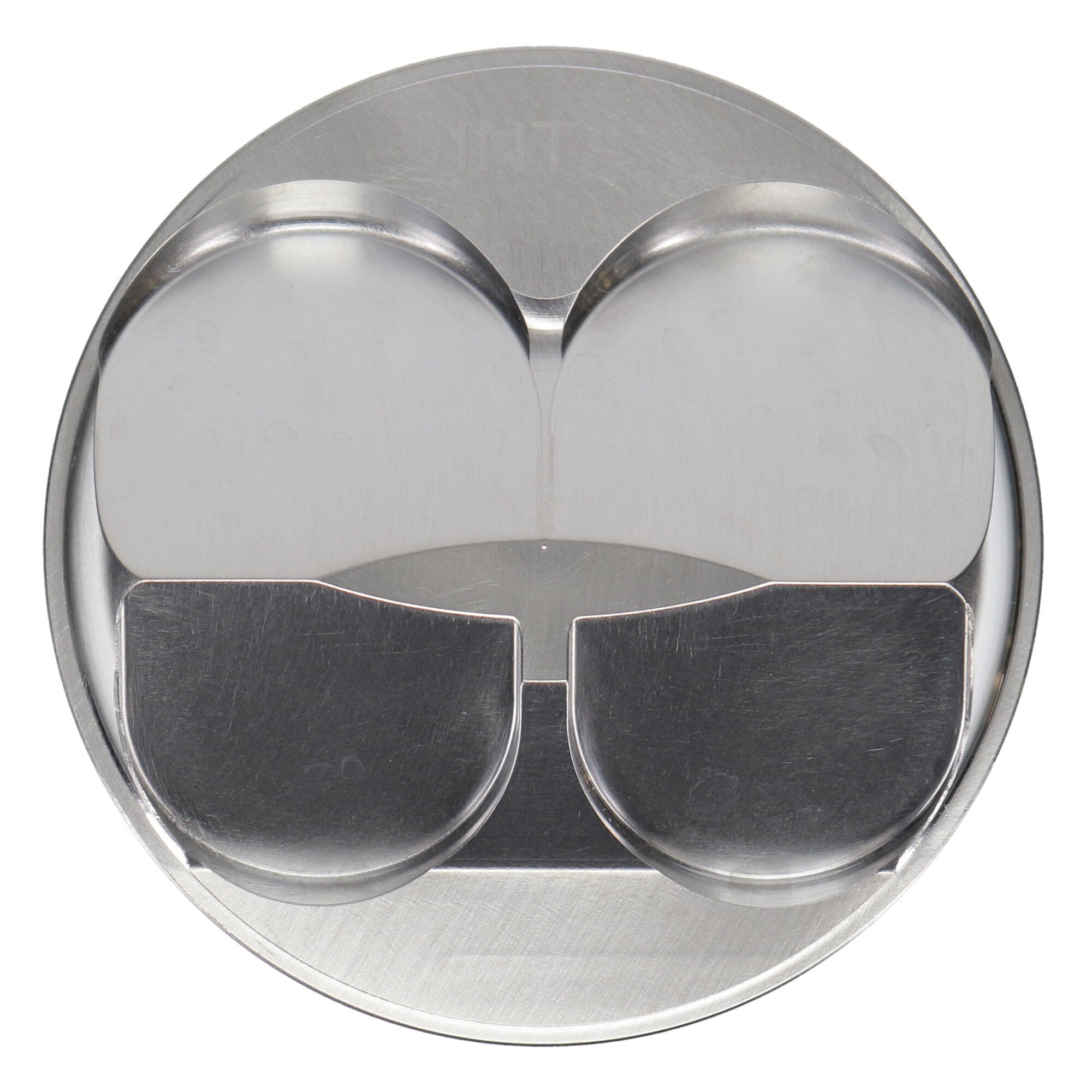

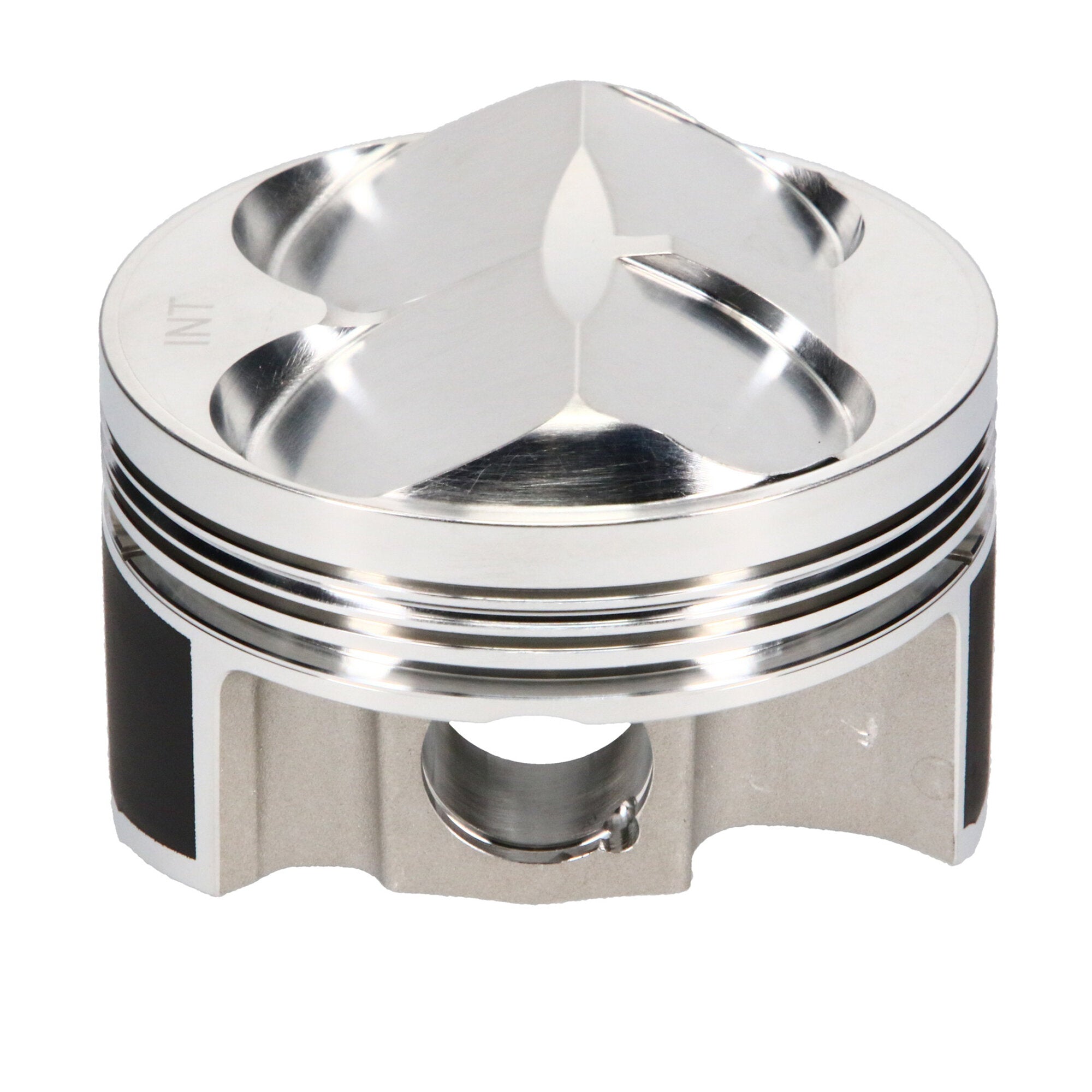

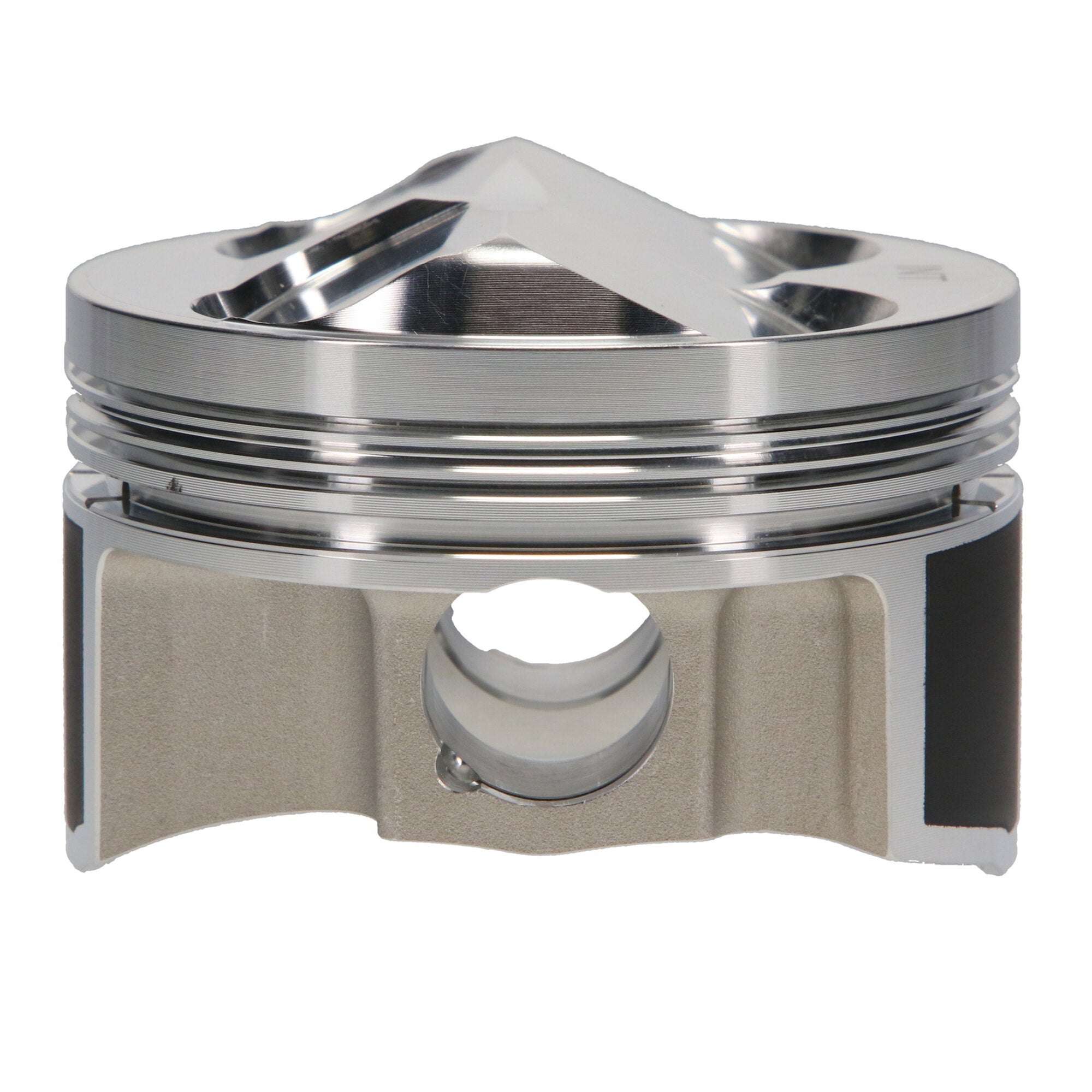

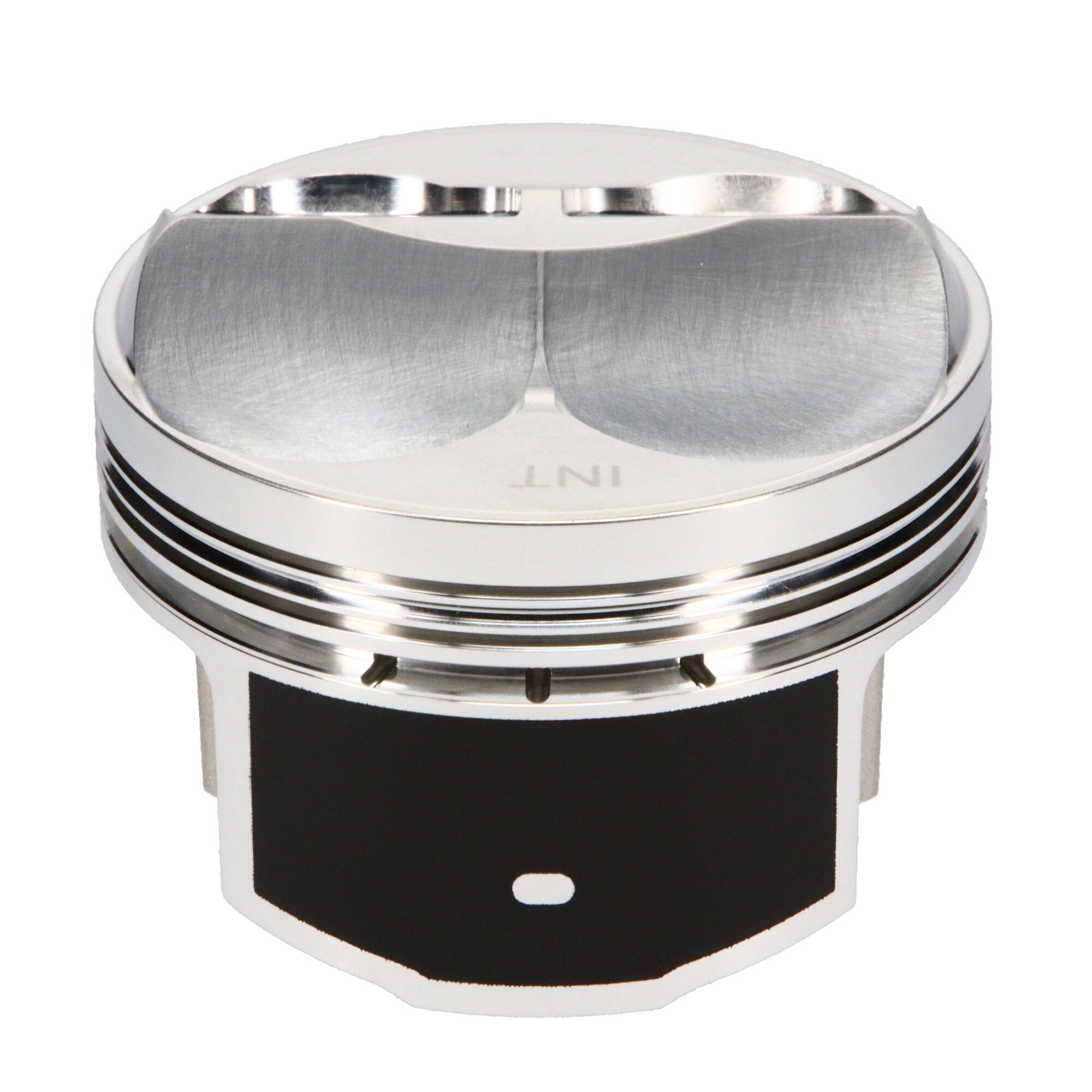

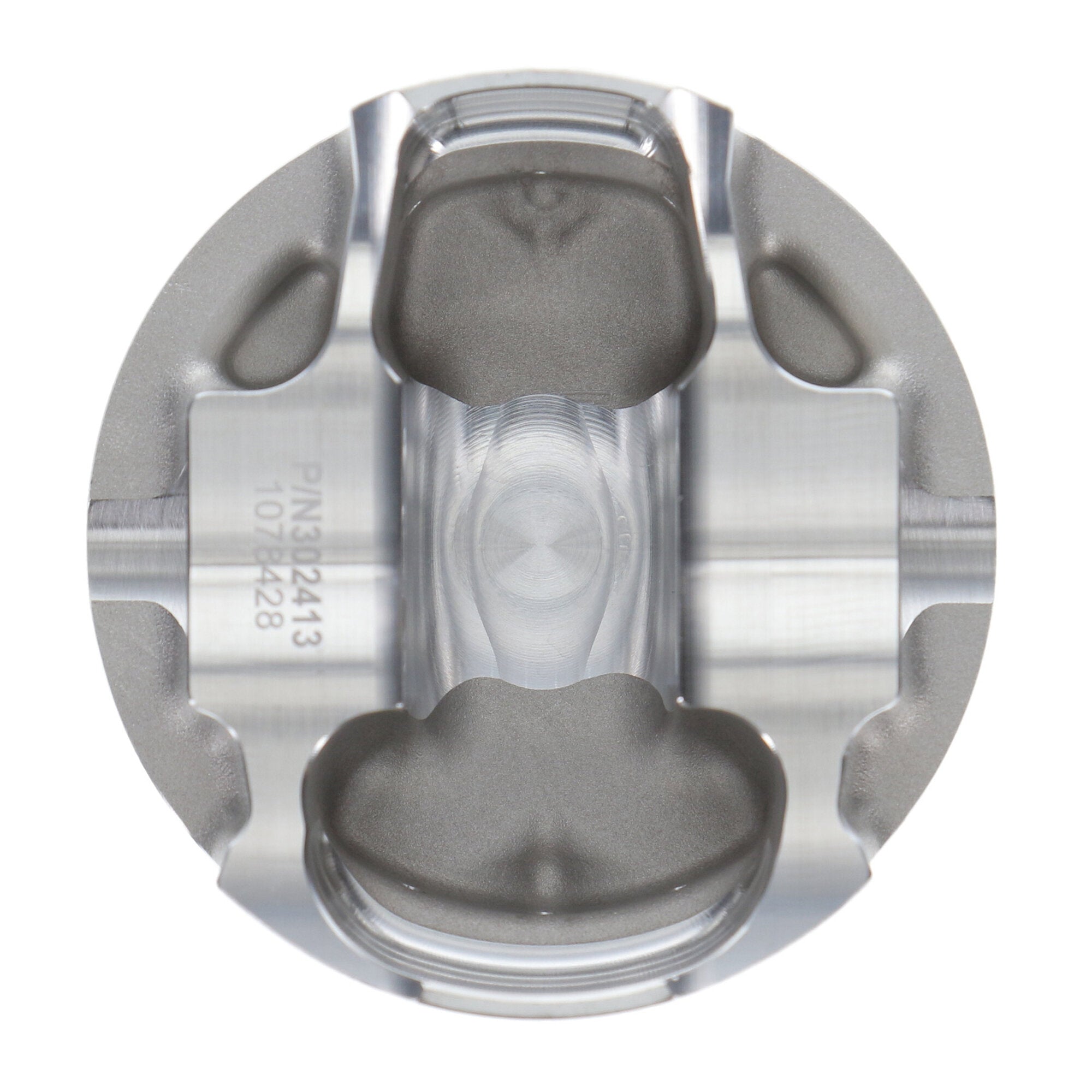

Piston Set, 2618, Flat Top, 3.189 Bore, 1.181 CD, 0.827 Pin, Set of 4. |
| Description_EXT |
JE, Honda, B Series, 3.189 in. Bore, 10.00:1, Flat Top, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Honda B18C1, 81.00 Bore, Flat, Set of 4 |
| Make |
HONDA |
| Forging Type |
FSR |
| Ringset Included |
Yes |
| Bore Diameter |
81.00 |
| Piston Average Weight |
290 |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Honda, B Series, 81.00 mm Bore, Piston Kit |
| Piston Head Type |
Flat |
| Compression Height |
1.181 |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Product Market |
Sport Compact |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Outside Diameter |
0.827 |
| Product Type |
Engine Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Piston Volume |
-1.40 |
| Piston Pin Length |
2.250 |
| Engine |
B Series |
| Top Compression Ring Thickness |
0.0400 |
| Wrist Pin Outer Diameter |
0.827 |
| Engine - Web |
B Series |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Cylinder Head |
B18C |
| Add-On |
827-063-MW |
| Add-On |
JG1001-3189 |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Piston Quantity |
4 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Honda B Series Piston Kit - 81.00 mm Bore - 1.181 in. CH, -1.40 CC |
| Piston Material |
2618 |
| Add-On |
827-2250-15-51C |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Honda |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
