As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 1.8T 20V 97-05 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

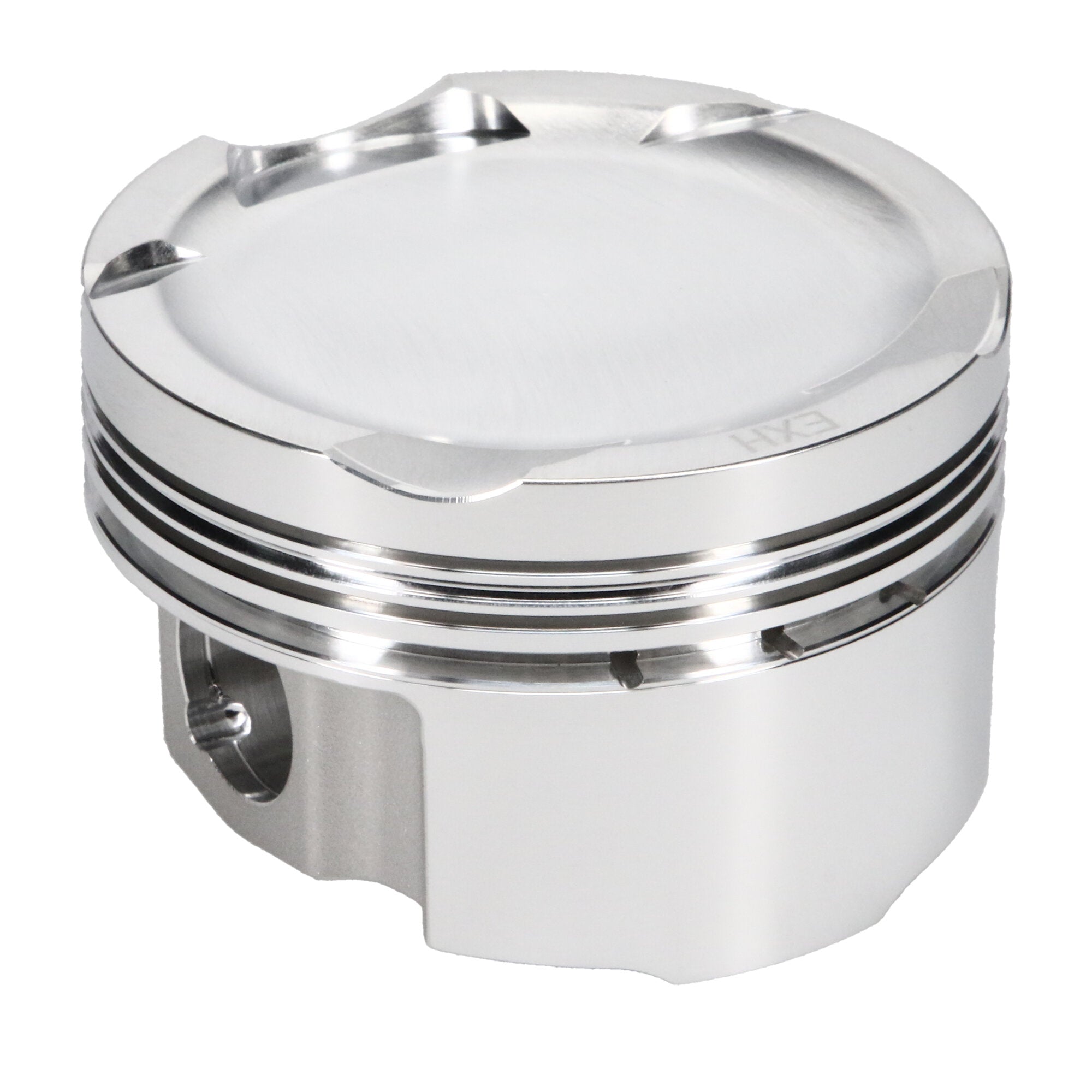

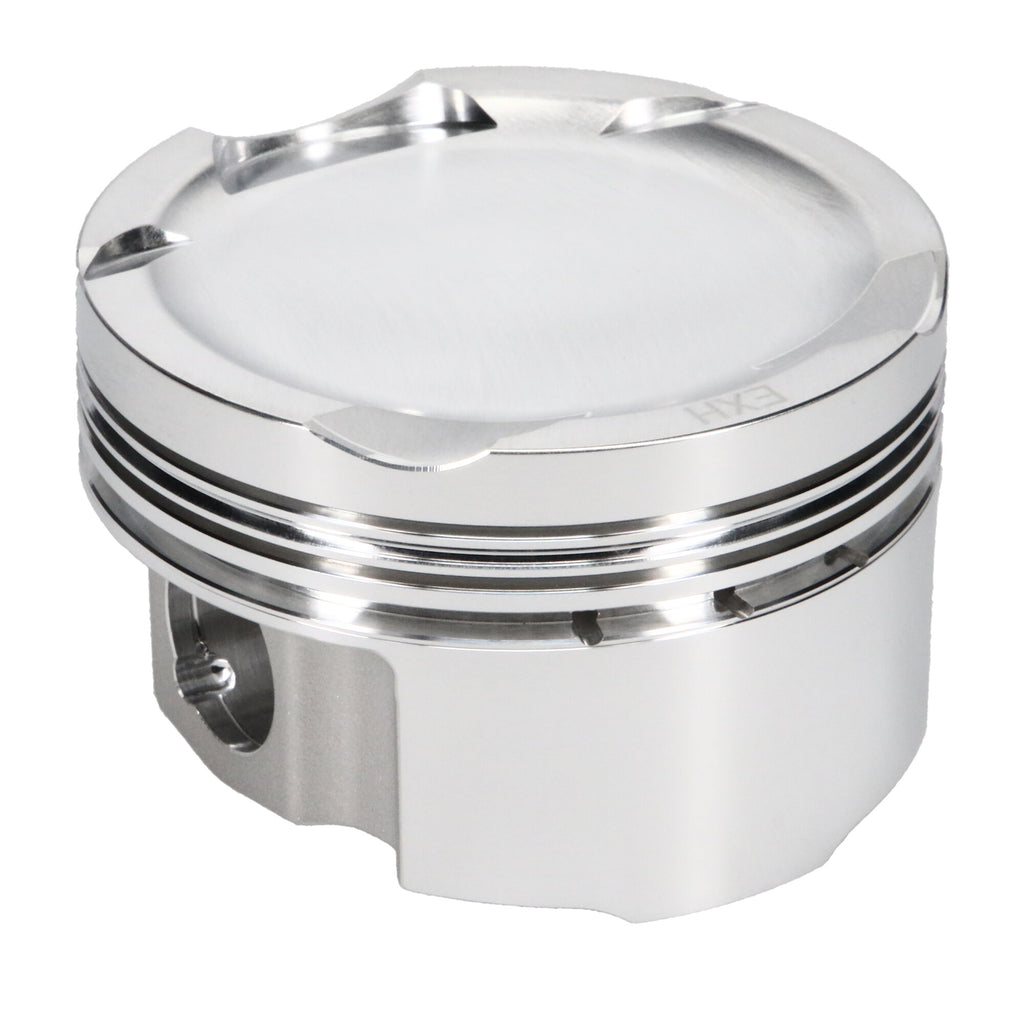

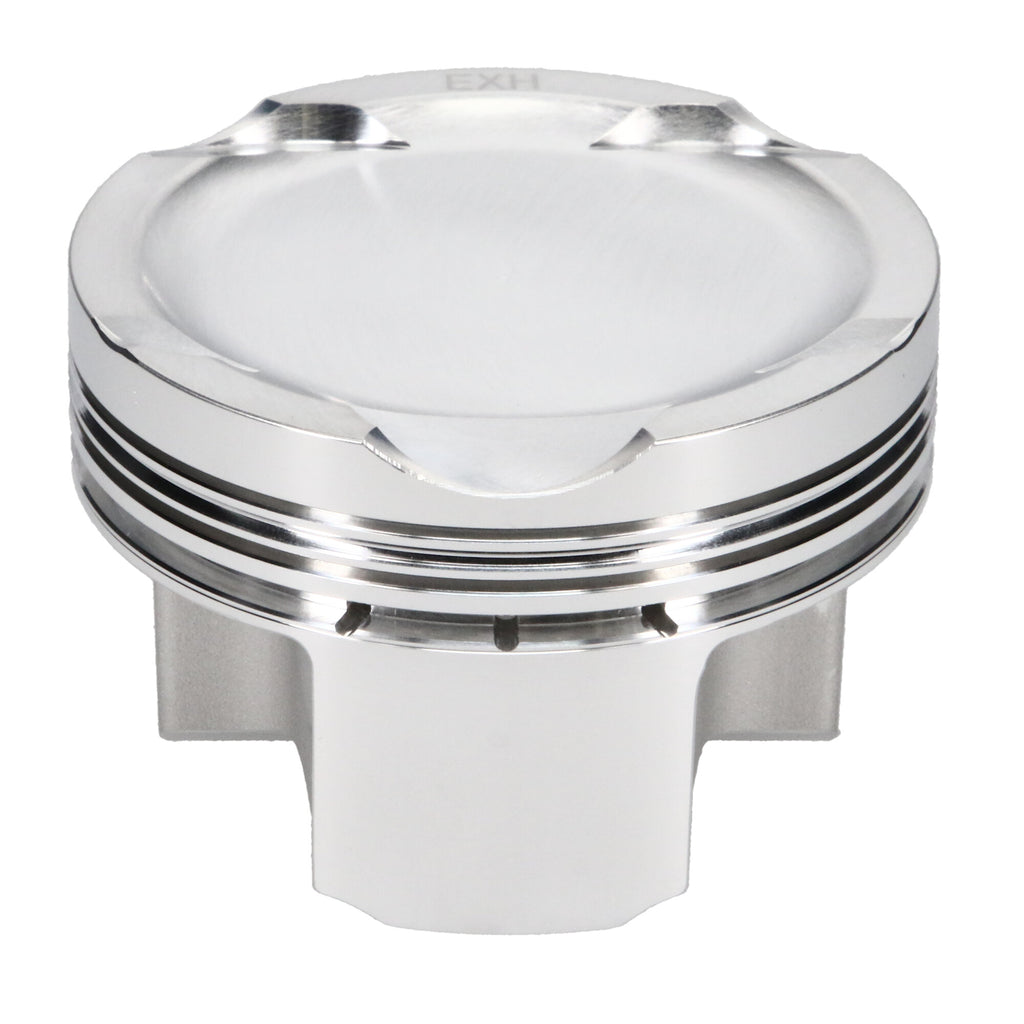

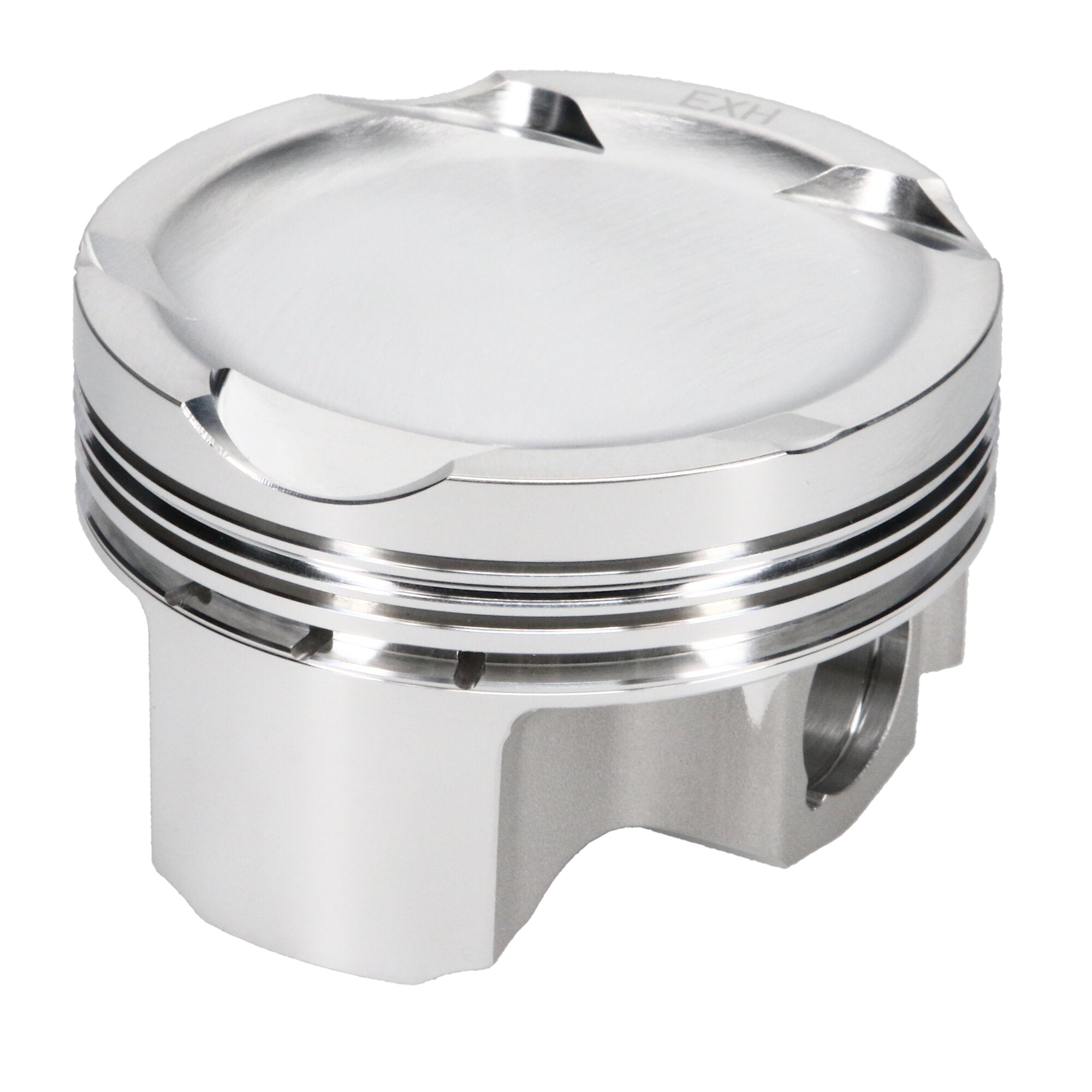

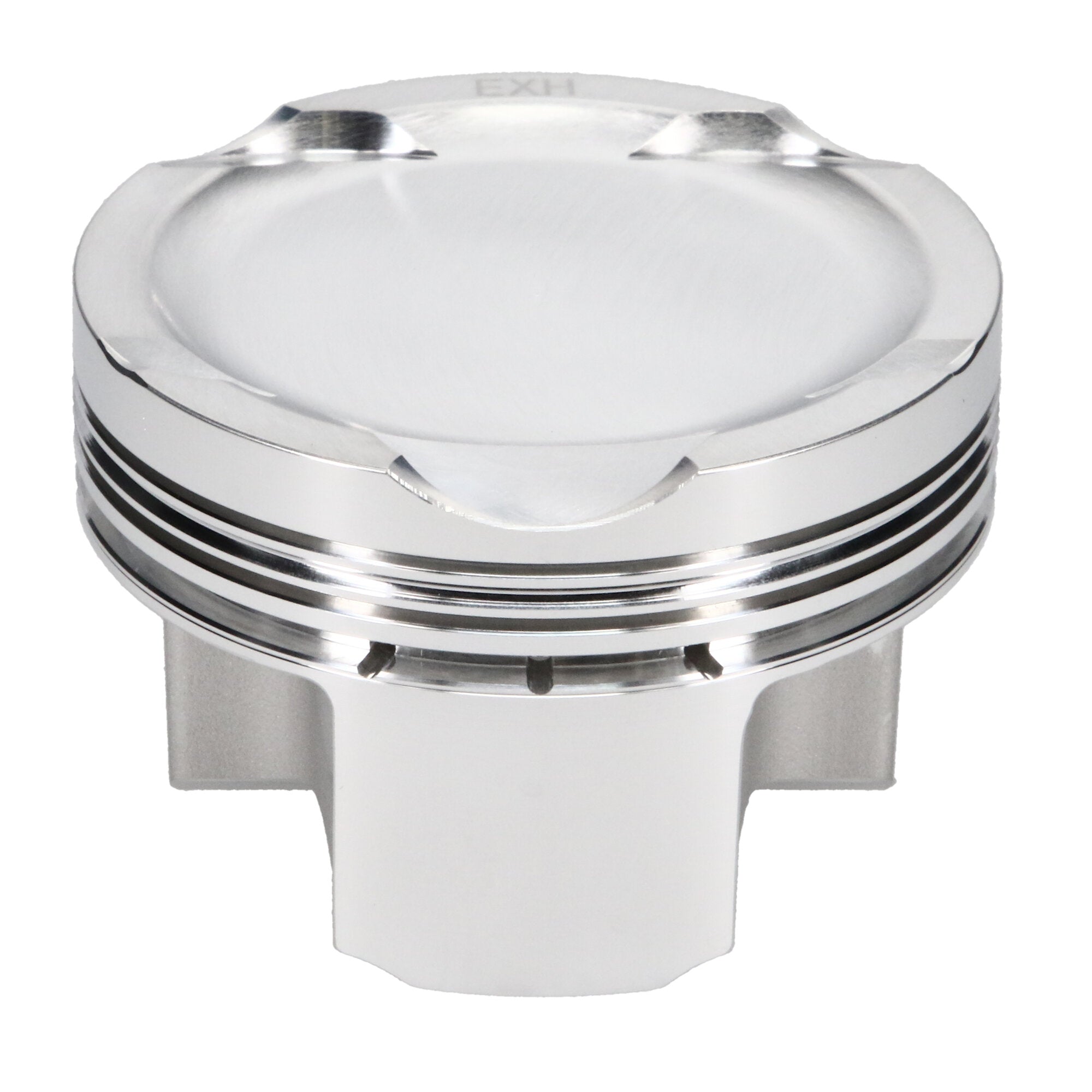

Piston Set, 2618, Inv Dome/Dish, 3.228 Bore, 1.291 CD, 0.787 Pin, Set of 4. |
| Description_EXT |
JE, VW, 1.8T 20V - 20mm Pin, 3.228 in. Bore, 9.25:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Volkswagen 1.8T 20V, 82.00 Bore, Dish, Set of 4 |
| Engine |
1.8T 20V 20 mm Pin |
| Ringset Included |
Yes |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dish |
| Make |
VOLKSWAGEN |
| Piston Pin Wall Thickness |
0.180 |
| Piston Pin Length |
2.250 |
| Top Compression Ring Thickness |
0.0400 |
| Oil Ring Thickness |
0.111 |
| Title |
JE Pistons - Volkswagen, 1.8T 20V, 82.00 mm Bore, Piston Kit |
| Forging Type |
FSR |
| Piston Material |
2618 |
| Piston Quantity |
4 |
| Product Market |
European |
| Compression Height |
1.291 |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.787 |
| Wrist Pin Wall Thickness |
0.180 |
| Engine Detail |
1.8T 20V 20 mm Pin |
| Engine - Web |
1.8T 20V |
| Wrist Pin Outer Diameter |
0.787 |
| Industry |
Automotive |
| Title - Web |
JE Pistons Volkswagen 1.8T 20V Piston Kit - 82.00 mm Bore - 1.291 in. CH, -6.50 CC |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
JG1001-3228 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
787-2250-18-51C |
| Piston Average Weight |
295 |
| Piston Volume |
-6.50 |
| Out of Stock Message |
Call for Availability |
| Add-On |
787-050-MW |
| Cylinder Head |
1.8T APH |
| Bore Diameter |
82.00 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Make - Web |
Volkswagen |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
