As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 1.8T 20V 97-05 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

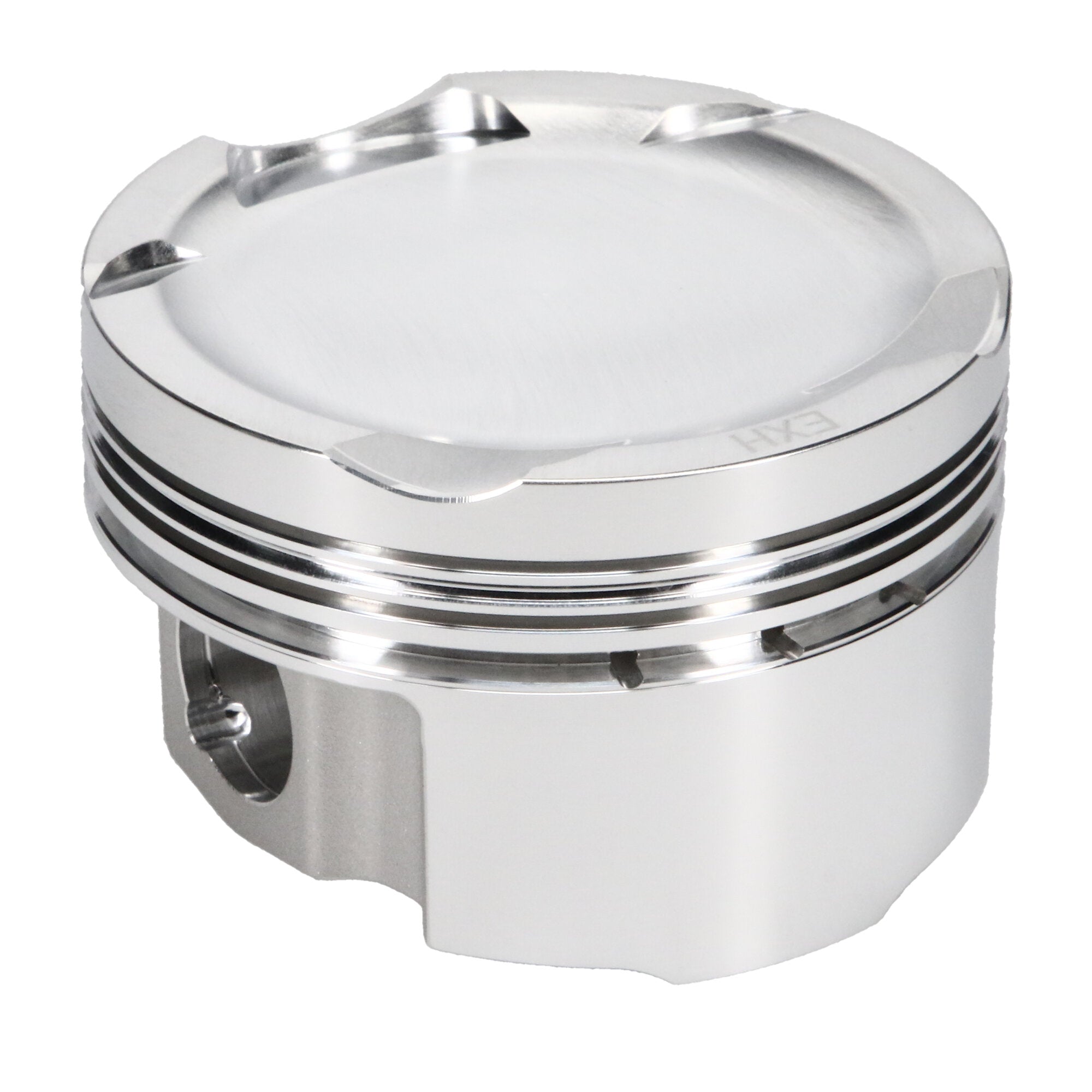

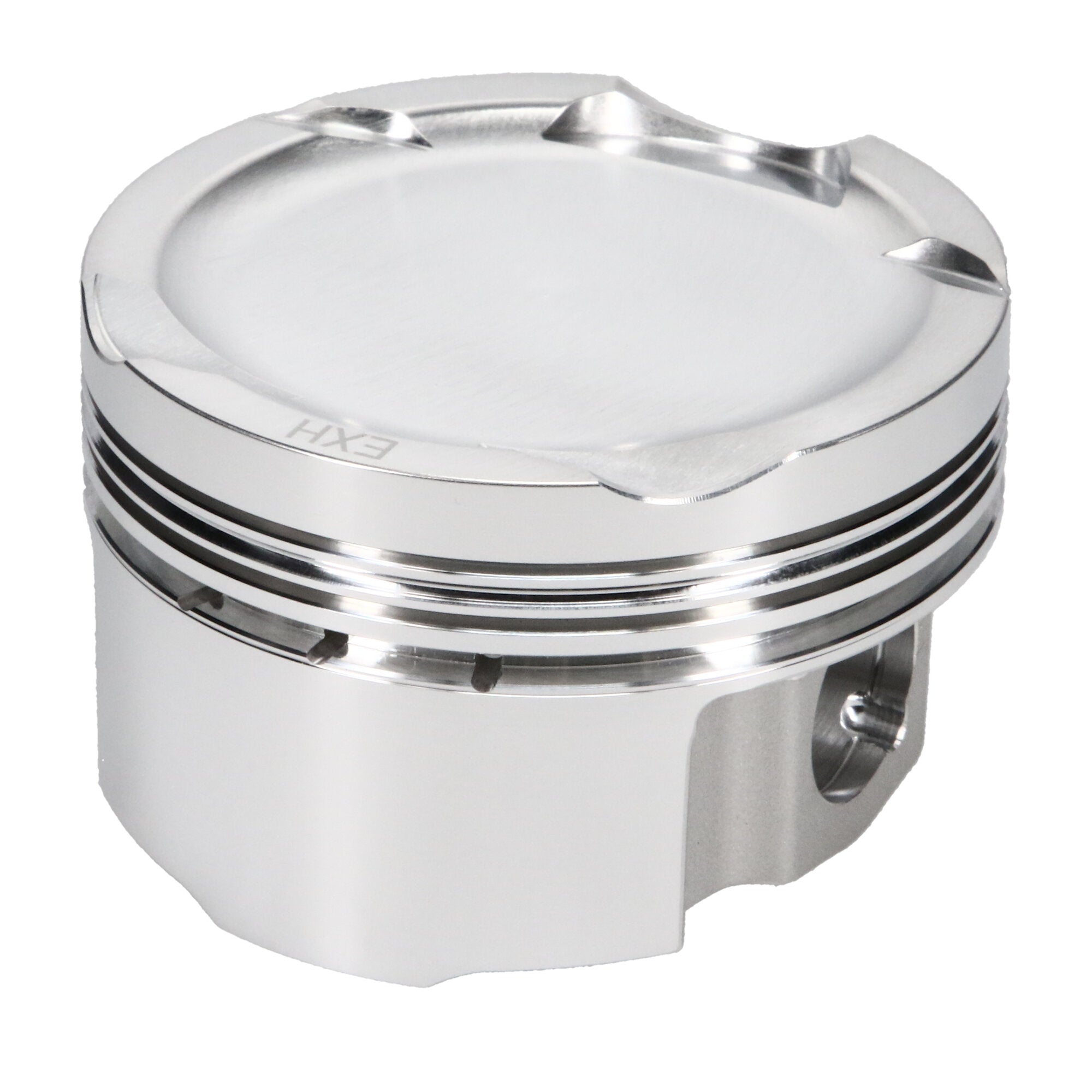

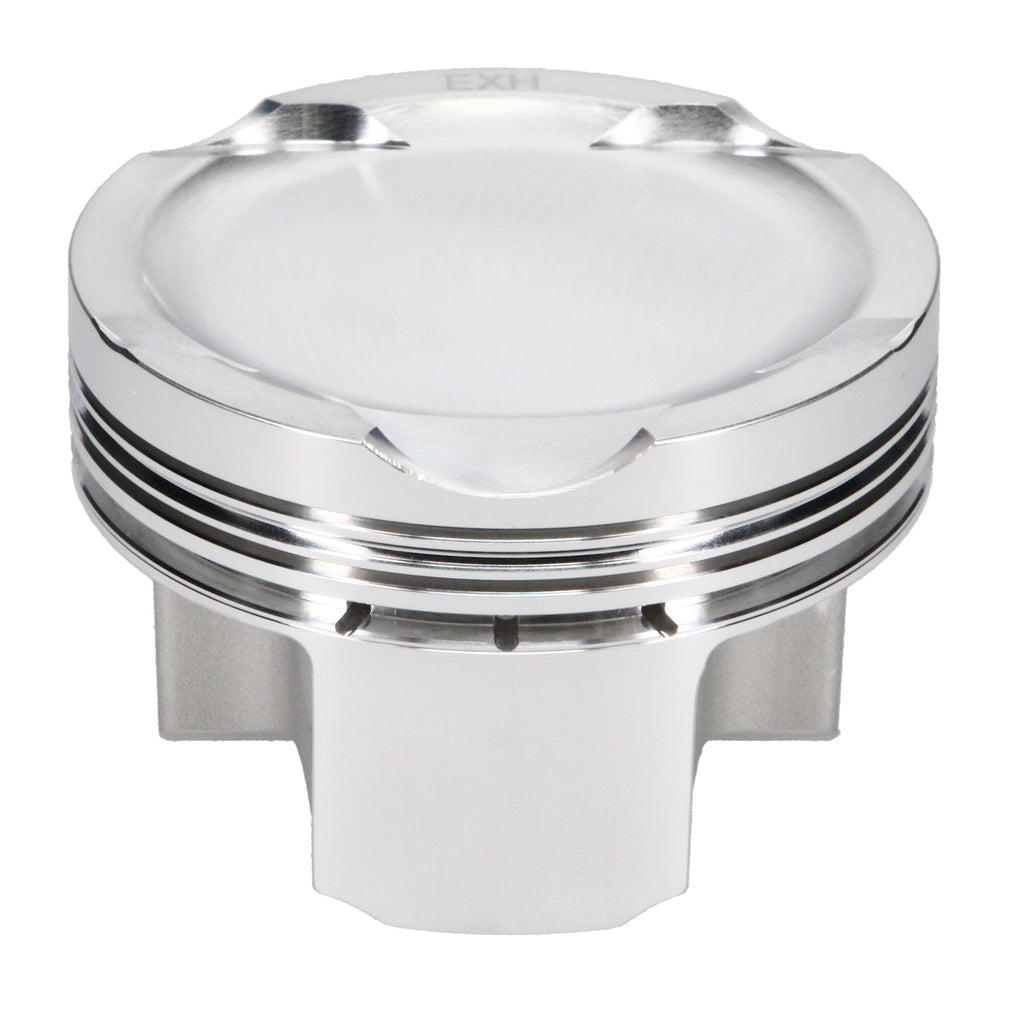

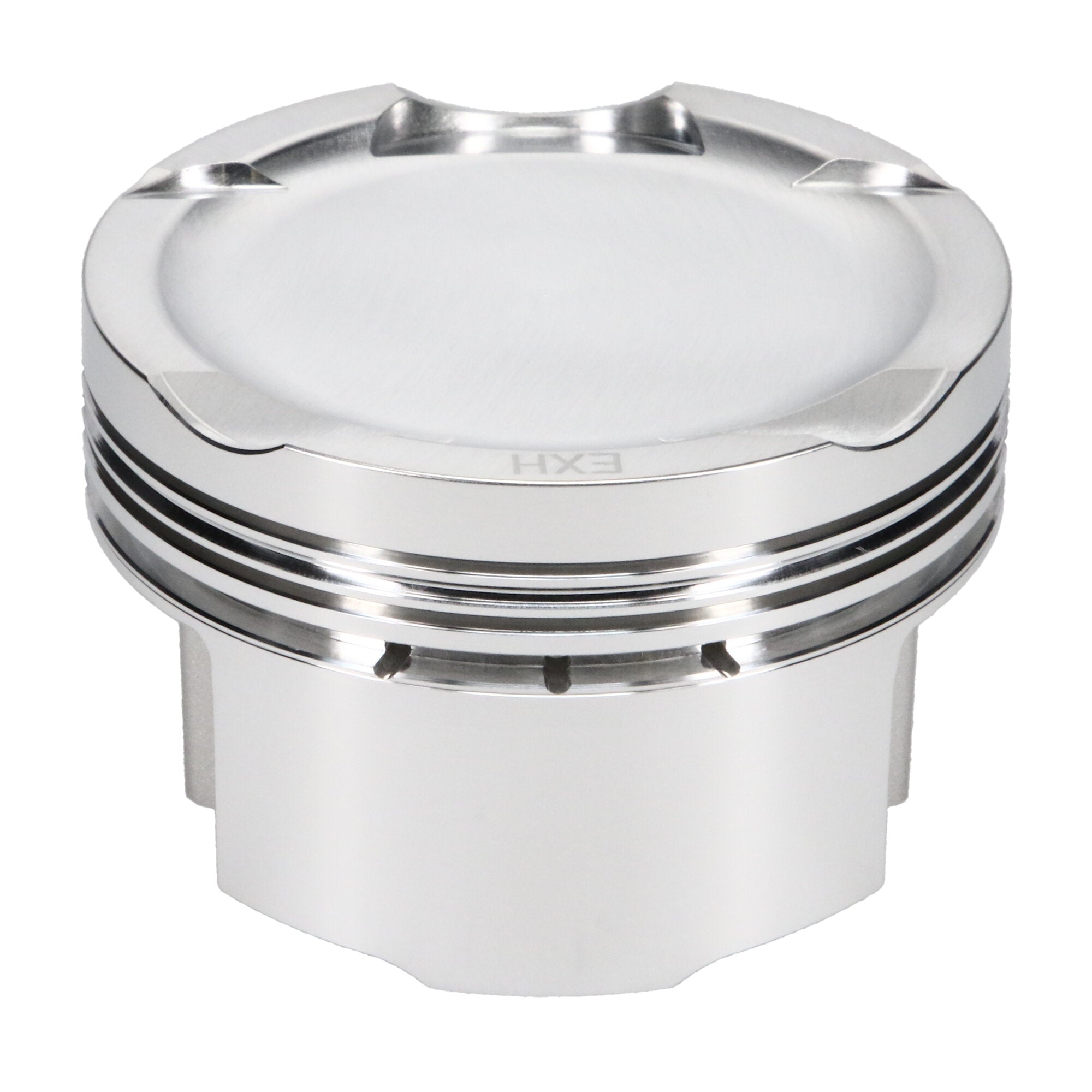

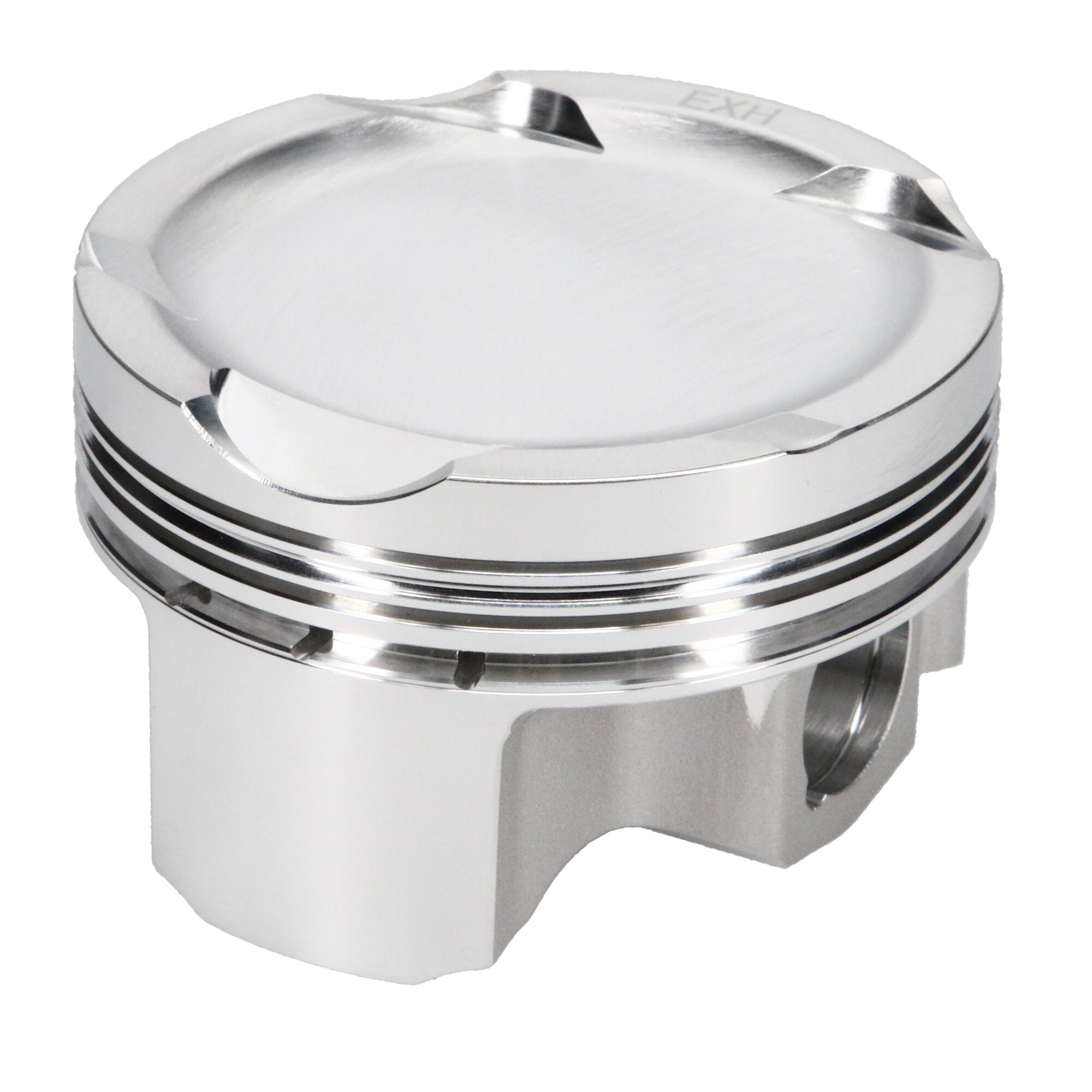

Piston Set, 2618, Inv Dome/Dish, 3.189 Bore, 1.291 CD, 0.787 Pin, Set of 4. |
| Description_EXT |
JE, VW, 1.8T 20V - 20mm Pin, 3.189 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Volkswagen 1.8T 20V, 81.00 Bore, Dish, Set of 4 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Bore Diameter |
81.00 |
| Prop 65 (C, R or CR) |
CR |
| Make |
VOLKSWAGEN |
| Piston Pin Outside Diameter |
0.787 |
| Add-On |
787-2250-18-51C |
| Add-On |
787-050-MW |
| Industry |
Automotive |
| Piston Pin Material |
5115 |
| Add-On |
JG1001-3189 |
| Piston Quantity |
4 |
| Top Compression Ring Thickness |
0.0400 |
| Cylinder Head |
1.8T APH |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.787 |
| Piston Volume |
-10.60 |
| Out of Stock Message |
Call for Availability |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Title |
JE Pistons - Volkswagen, 1.8T 20V, 81.00 mm Bore, Piston Kit |
| Engine |
1.8T 20V 20 mm Pin |
| Piston Average Weight |
279 |
| Product Market |
European |
| Engine Type |
ICE |
| Compression Height |
1.291 |
| Piston Pin Wall Thickness |
0.180 |
| Oil Ring Thickness |
0.111 |
| Ring Set Included |
Yes |
| Engine - Web |
1.8T 20V |
| Wrist Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Volkswagen 1.8T 20V Piston Kit - 81.00 mm Bore - 1.291 in. CH, -10.60 CC |
| Piston Pin Length |
2.250 |
| Piston Head Type |
Dish |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
Yes |
| Make - Web |
Volkswagen |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine Detail |
1.8T 20V 20 mm Pin |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
