As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0L 9A 16V 90-93 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

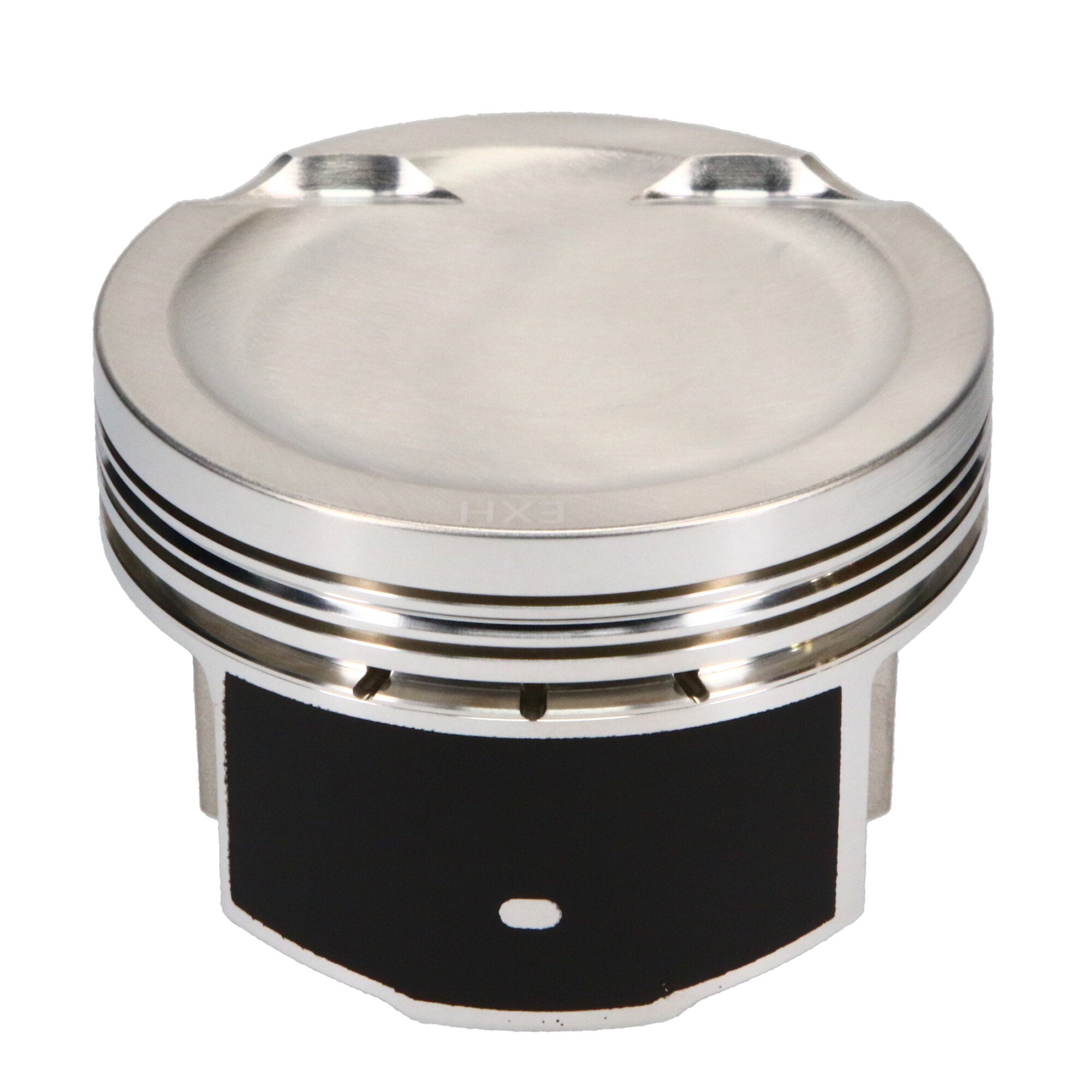

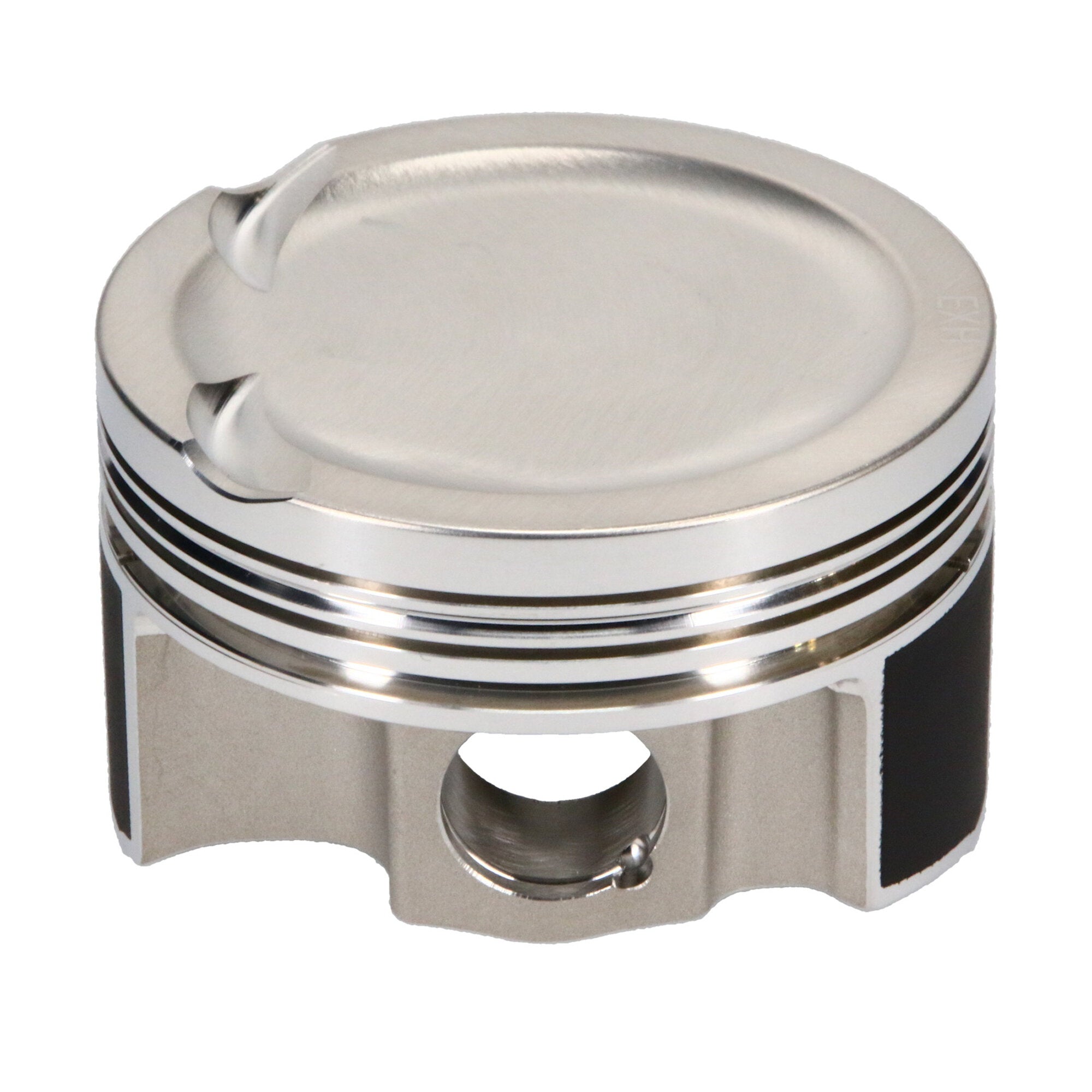

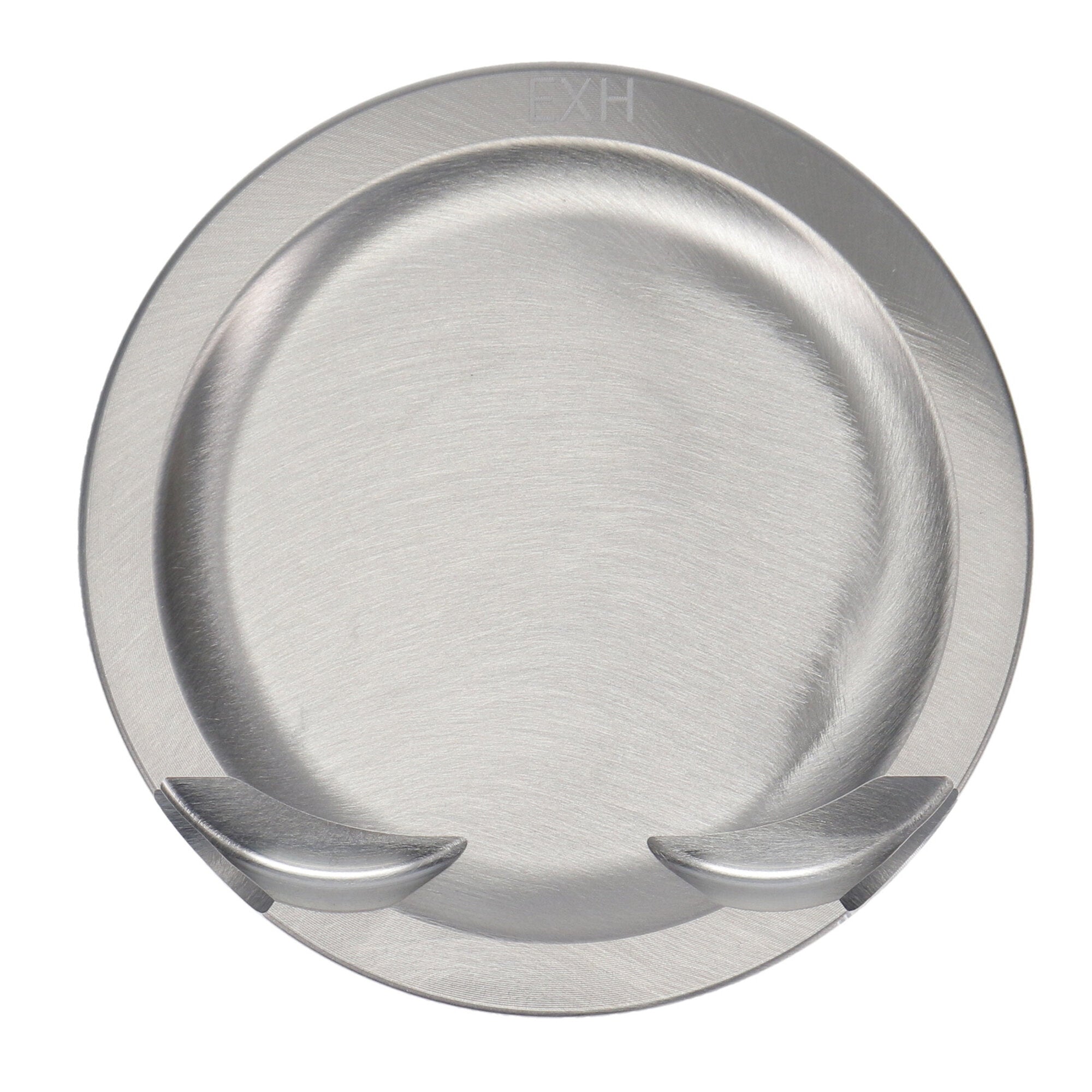

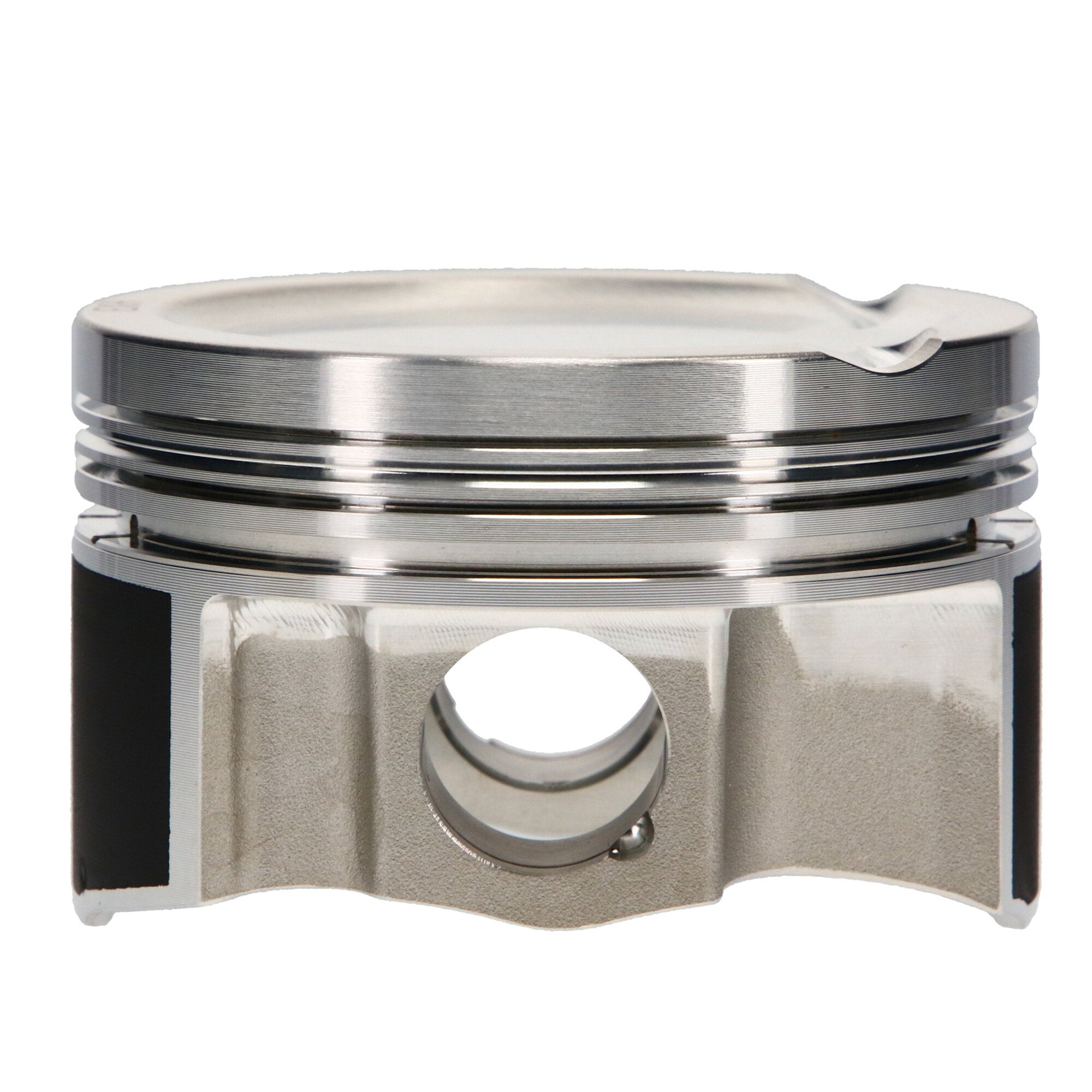

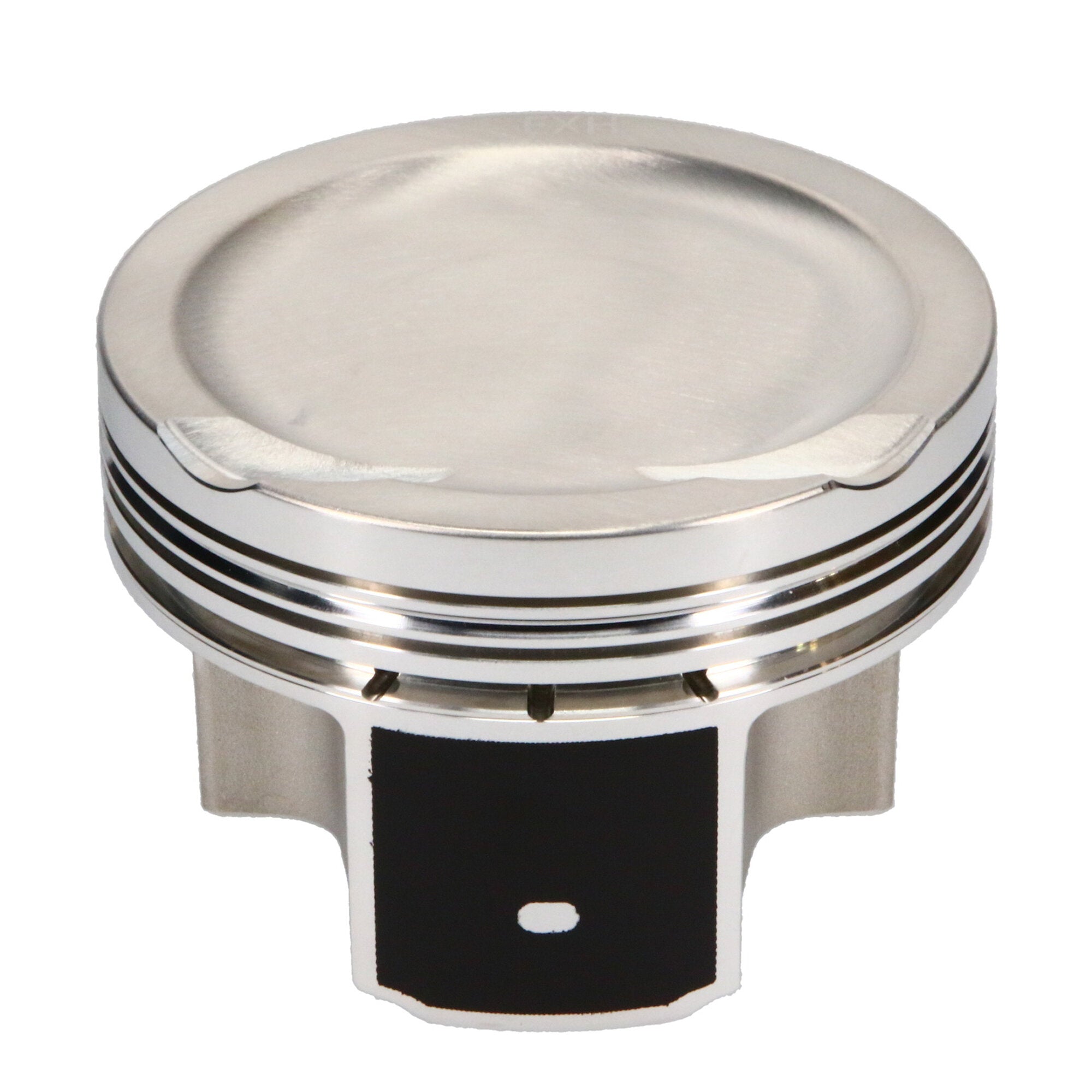

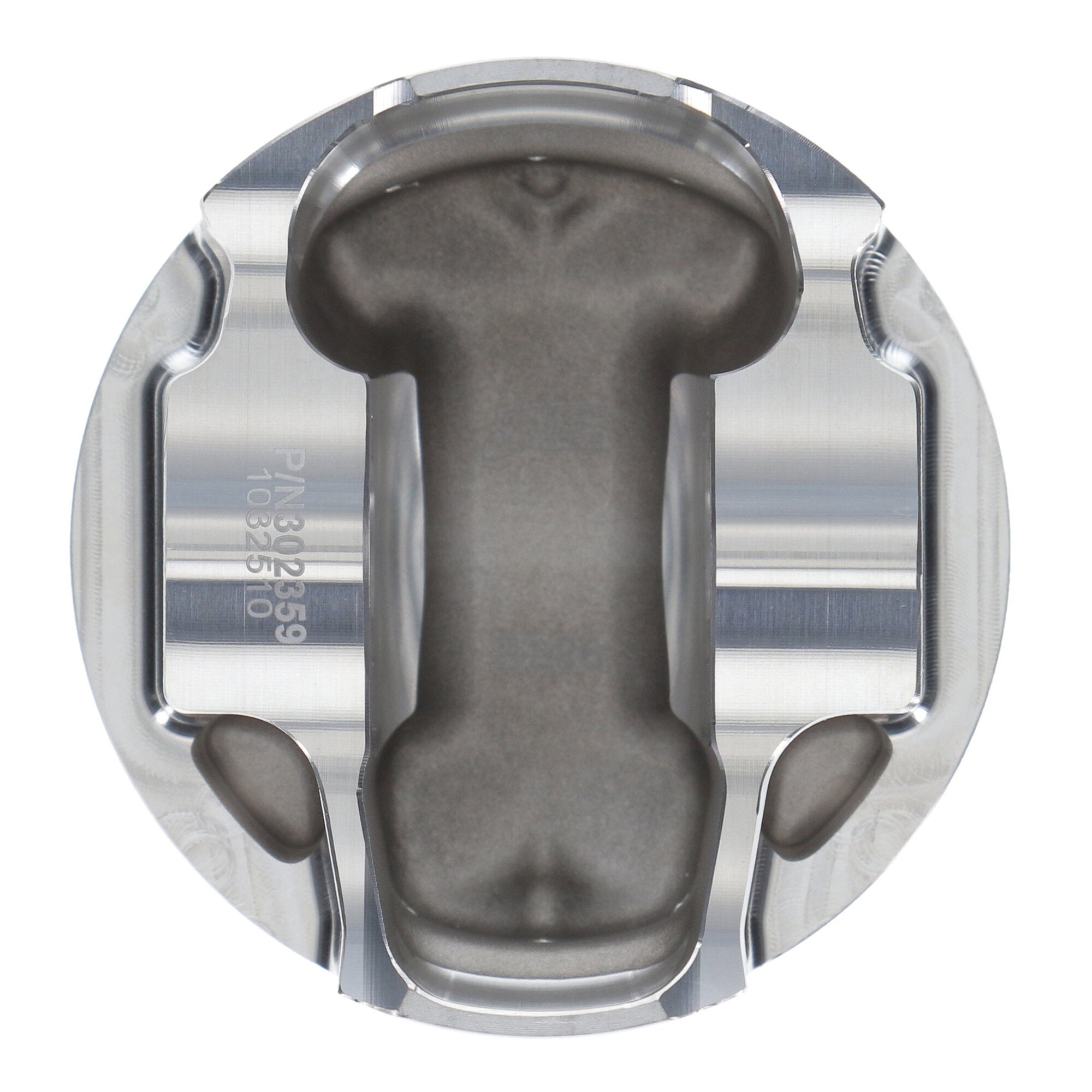

Piston Set, 2618, Dome, 3.287 Bore, 1.165 CD, 0.787 Pin, Set of 4. |
| Description_EXT |
JE, VW, 9A 16V 2.0L, 3.287 in. Bore, 11.50:1, Dome, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Volkswagen 9A 2L 16V, 83.50 Bore, Dome, Set of 4 |
| Piston Quantity |
4 |
| Engine - Web |
9A 16V 2.0L |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Piston Head Type |
Dome |
| Piston Volume |
3.70 |
| Product Type |
Engine Piston Kit |
| Forging Type |
FSR |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.180 |
| Ring Set Included |
Yes |
| Compression Height |
1.165 |
| Bore Diameter |
83.50 |
| Piston Average Weight |
295 |
| Piston Pin Outside Diameter |
0.787 |
| Piston Series |
JE Pistons |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.180 |
| Title |
JE Pistons - Volkswagen, 9A 16V 2.0L, 83.50 mm Bore, Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Top Compression Ring Thickness |
0.0400 |
| Second Compression Ring Thickness |
0.0480 |
| Cylinder Head |
9A |
| Title - Web |
JE Pistons Volkswagen 9A 16V 2.0L Piston Kit - 83.50 mm Bore - 1.165 in. CH, 3.70 CC |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Ringset Included |
Yes |
| Add-On |
JG1001-3287 |
| Make |
VOLKSWAGEN |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Add-On |
787-050-MW |
| Add-On |
787-2250-18-51C |
| Product Market |
European |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.787 |
| Piston Pin Length |
2.250 |
| Engine |
9A 16V 2.0L |
| Make - Web |
Volkswagen |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
