As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for dirt bike and other off-road motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the motocross track to the trail and everything in between, JE Pistons performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.
Specifications:
| Description_ASM |
HONDA 93-16 XR 650L |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

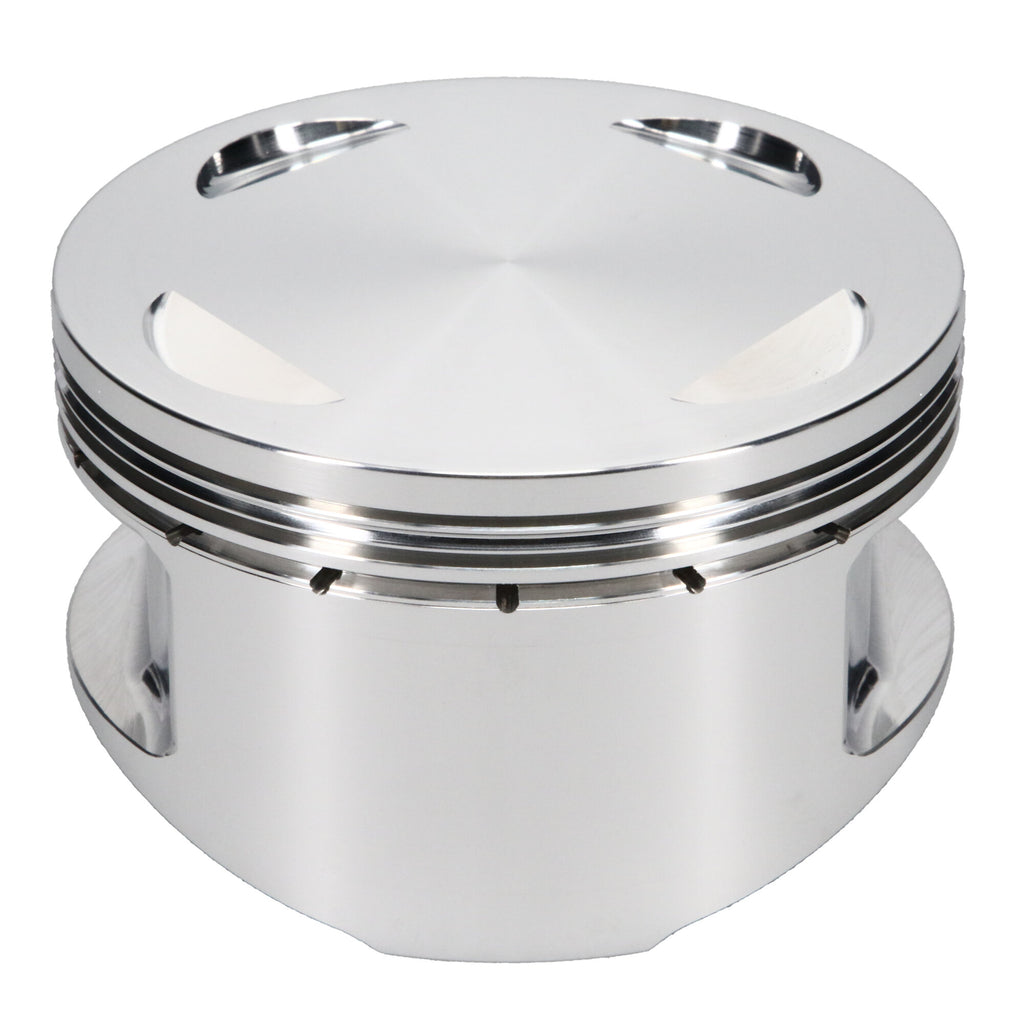

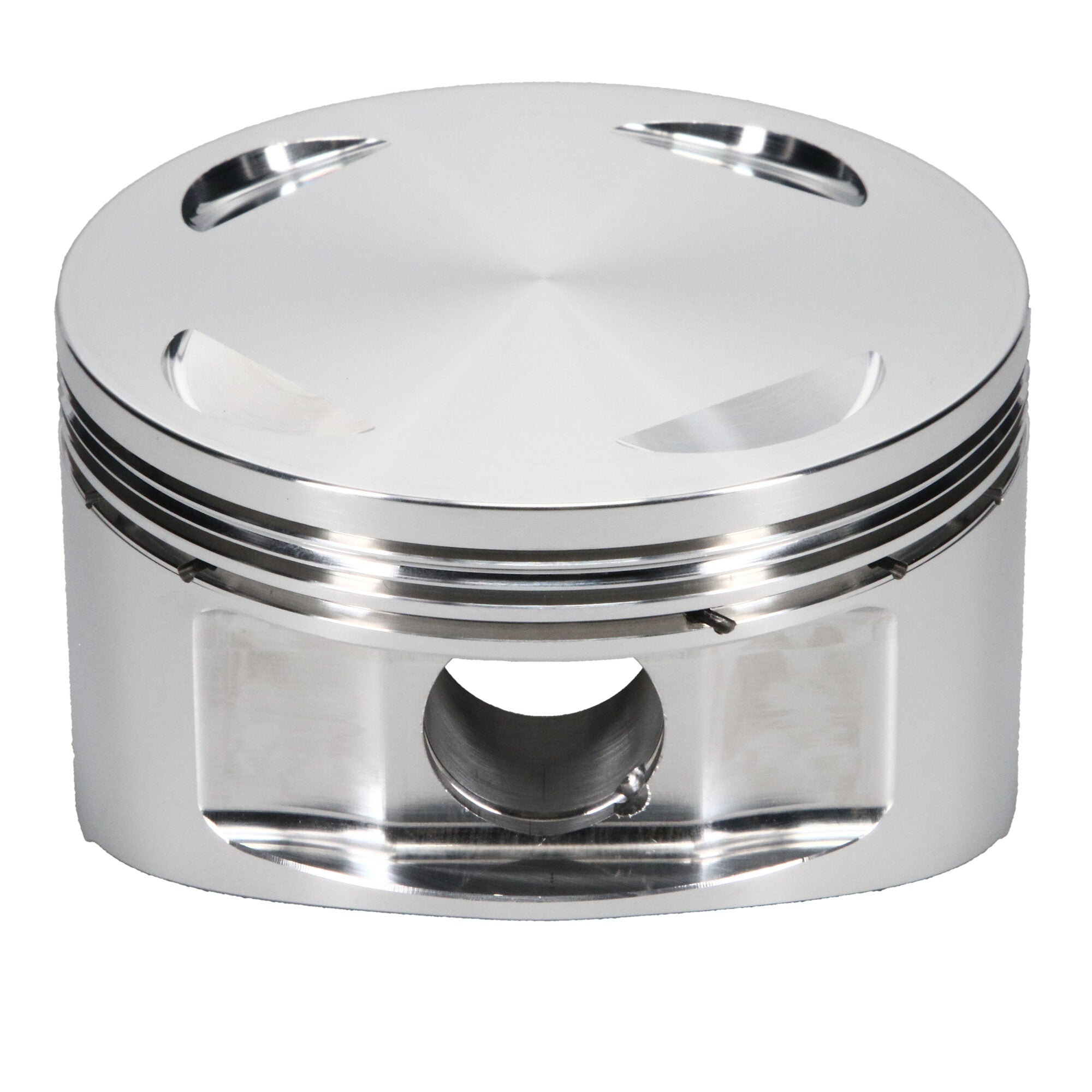

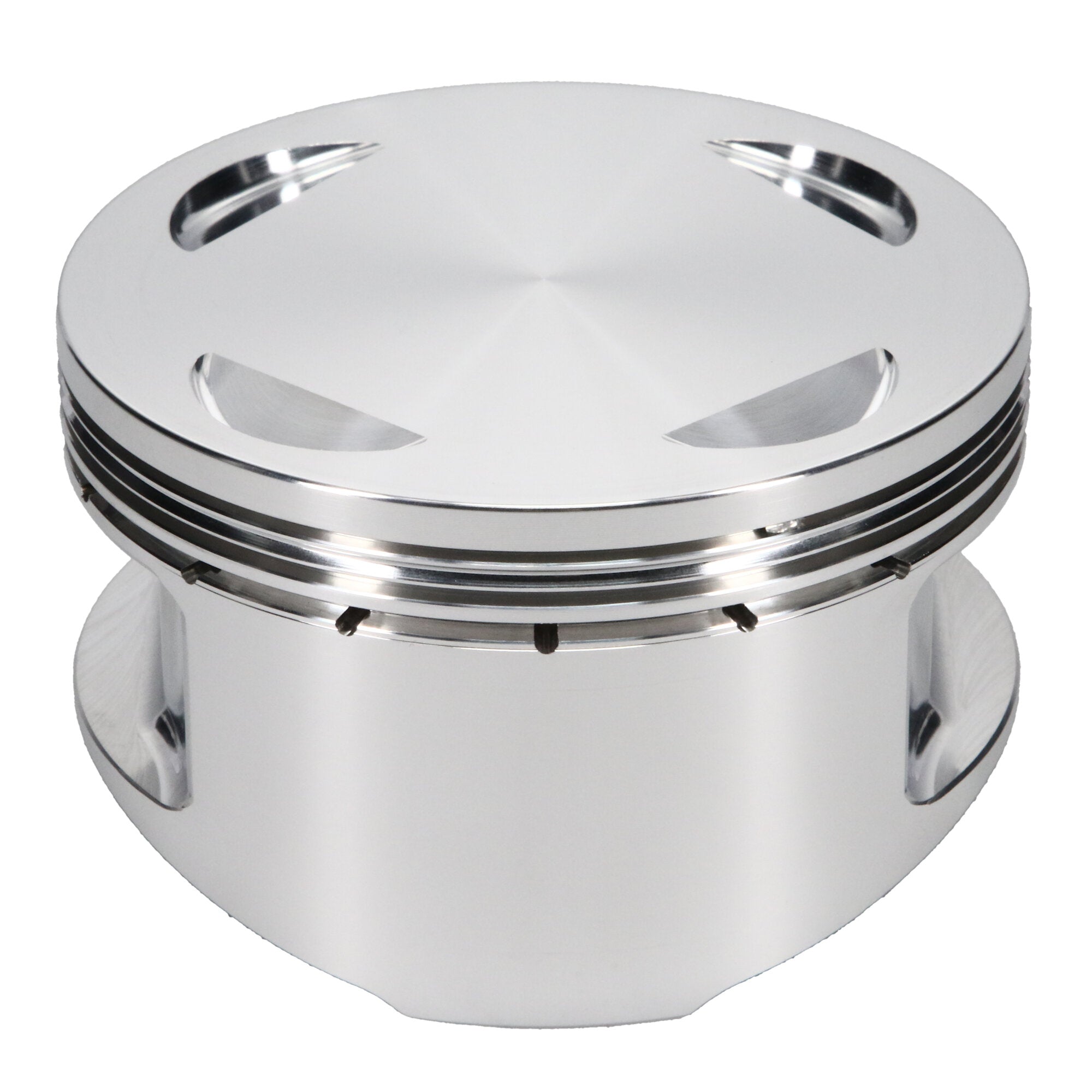

Piston Set, 2618, Flat Top, 4.015 Bore, 1.197 CD, 0.945 Pin, Set of 1. |
| Description_EXT |
JE, Honda, XR 650L, 10.50:1, 101.0 mm Bore, 1 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for dirt bike and other off-road motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the motocross track to the trail and everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
JE, Honda, 101.0 mm Bore, 1 Cyl. Kit |
| Category Hierarchy |
Powersports>Pistons>Piston Kits>Off-Road |
| Bore Diameter |
101.98 |
| Piston Series |
JE Pistons |
| Oil Ring Thickness |
0.0795 |
| Piston Average Weight |
408 |

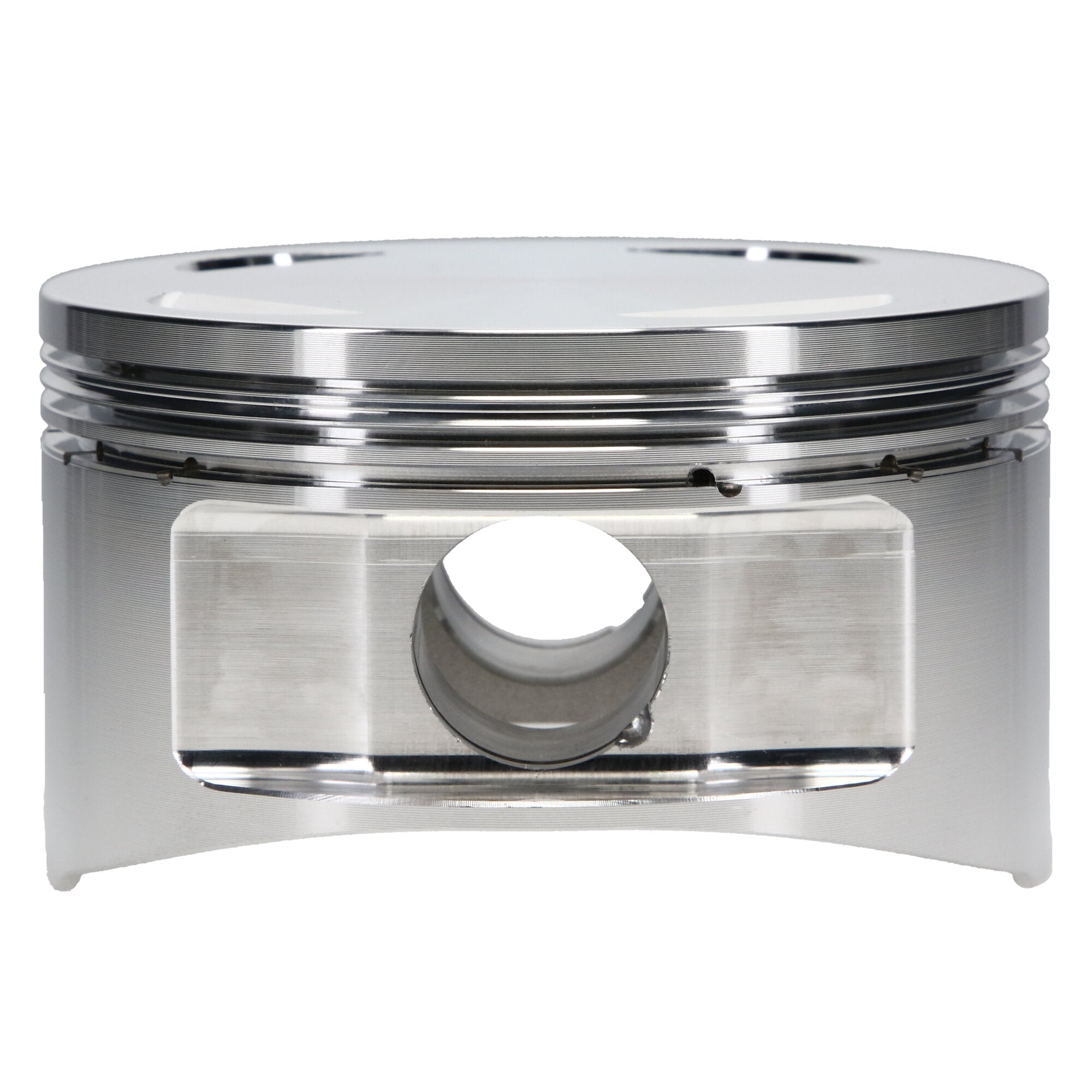

| Wrist Pin Outer Diameter |
0.945 |
| Forging Type |
Round |
| Piston Material |
2618 |
| Ring Set Included |
Yes |
| Top Compression Ring Thickness |
0.0480 |
| Piston Volume |
-1.50 |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Title - Web |
JE, Honda, 101.0 mm Bore, 1 Cyl. Kit |
| Add-On |
945-2850-14-51C |
| Piston Head Type |

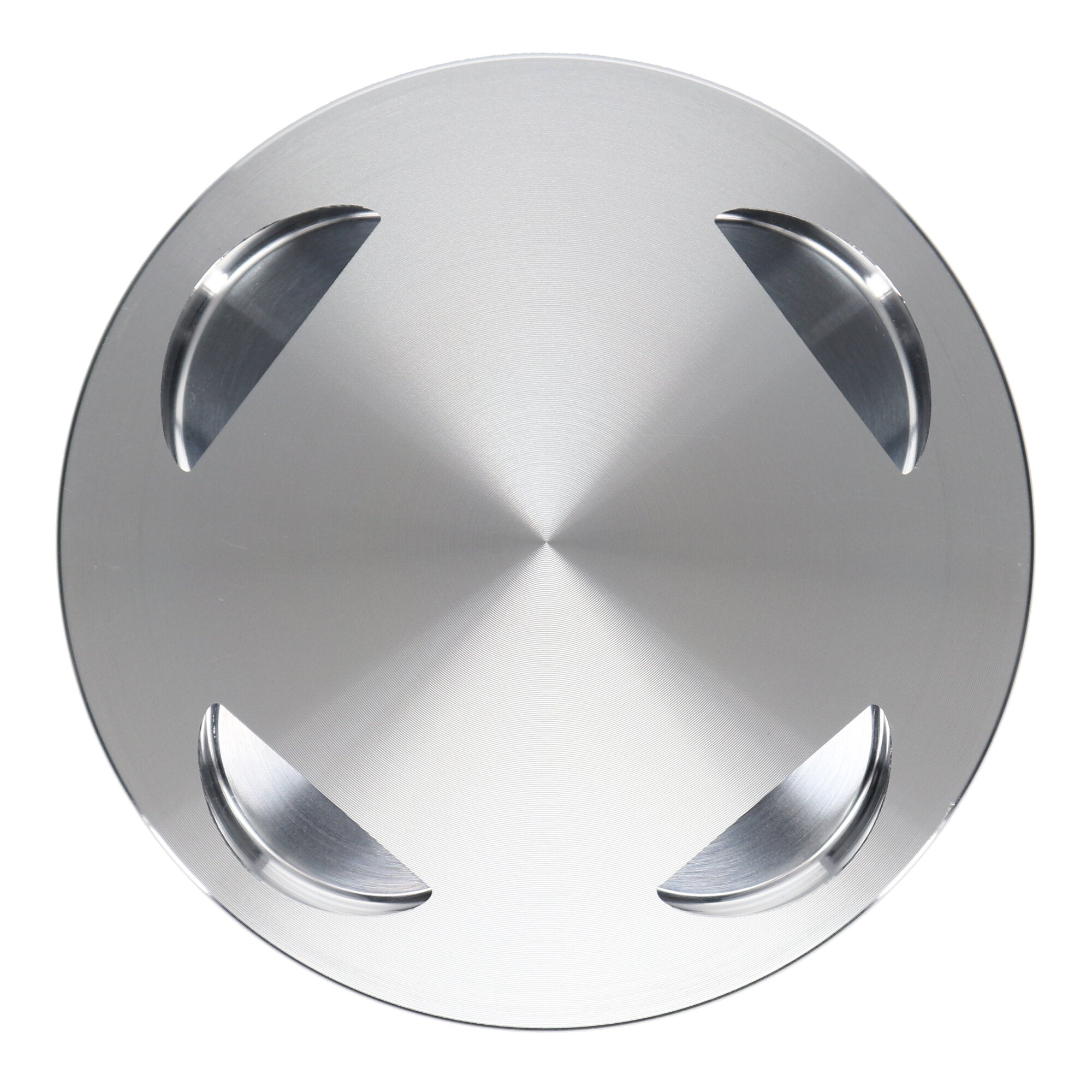

Flat |
| Wrist Pin Wall Thickness |
0.140 |
| Title |
JE, Honda, 101.0 mm Bore, 1 Cyl. Kit |
| Cylinder Head |
XR650L |
| Industry |
Powersports |
| Product Market |
Off-Road |
| Add-On |
945-073-MW |
| Out of Stock Message |
Call for Availability |
| Add-On |
XS10200 |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Length |
2.850 |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Compression Ratio Actual |
10.50:1 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
