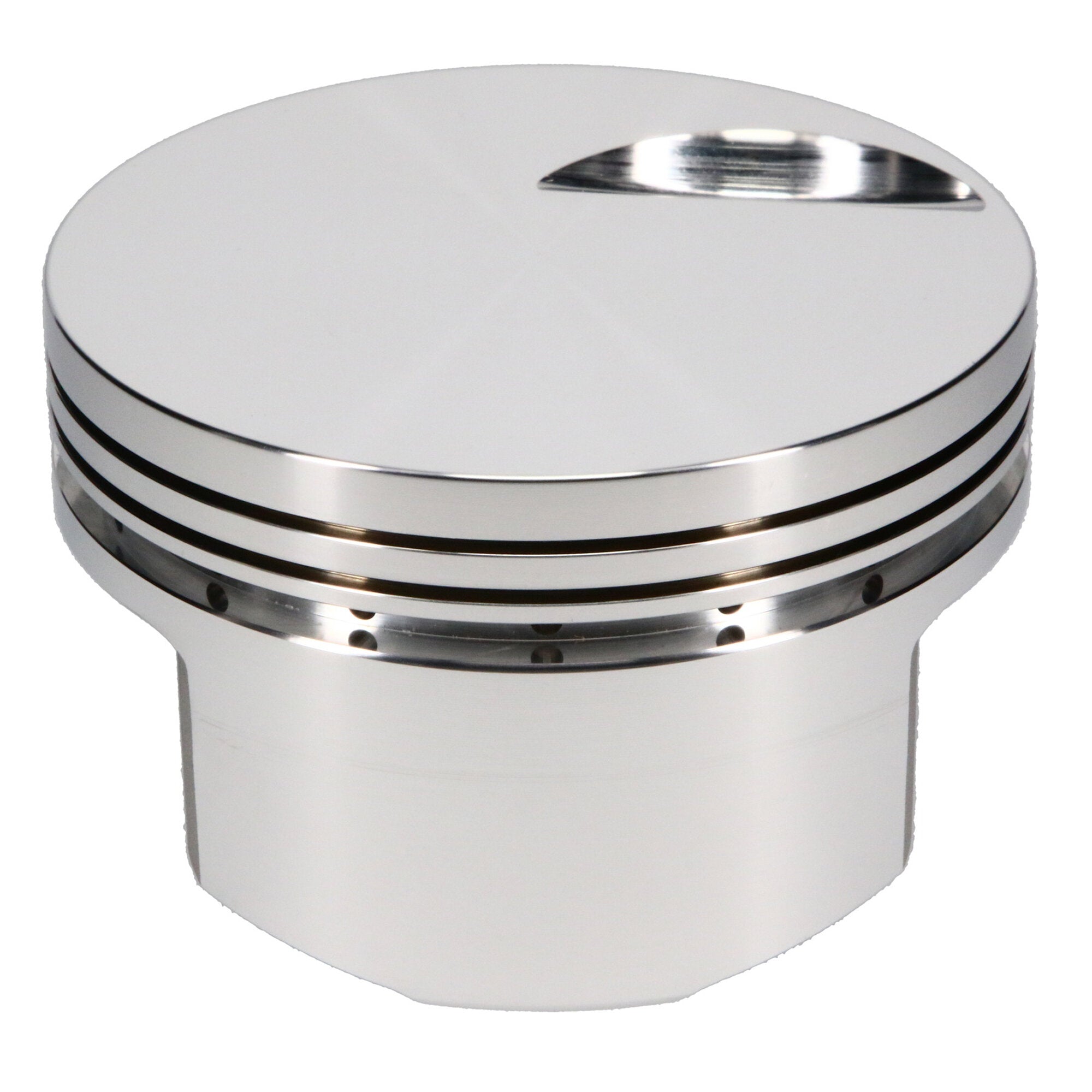

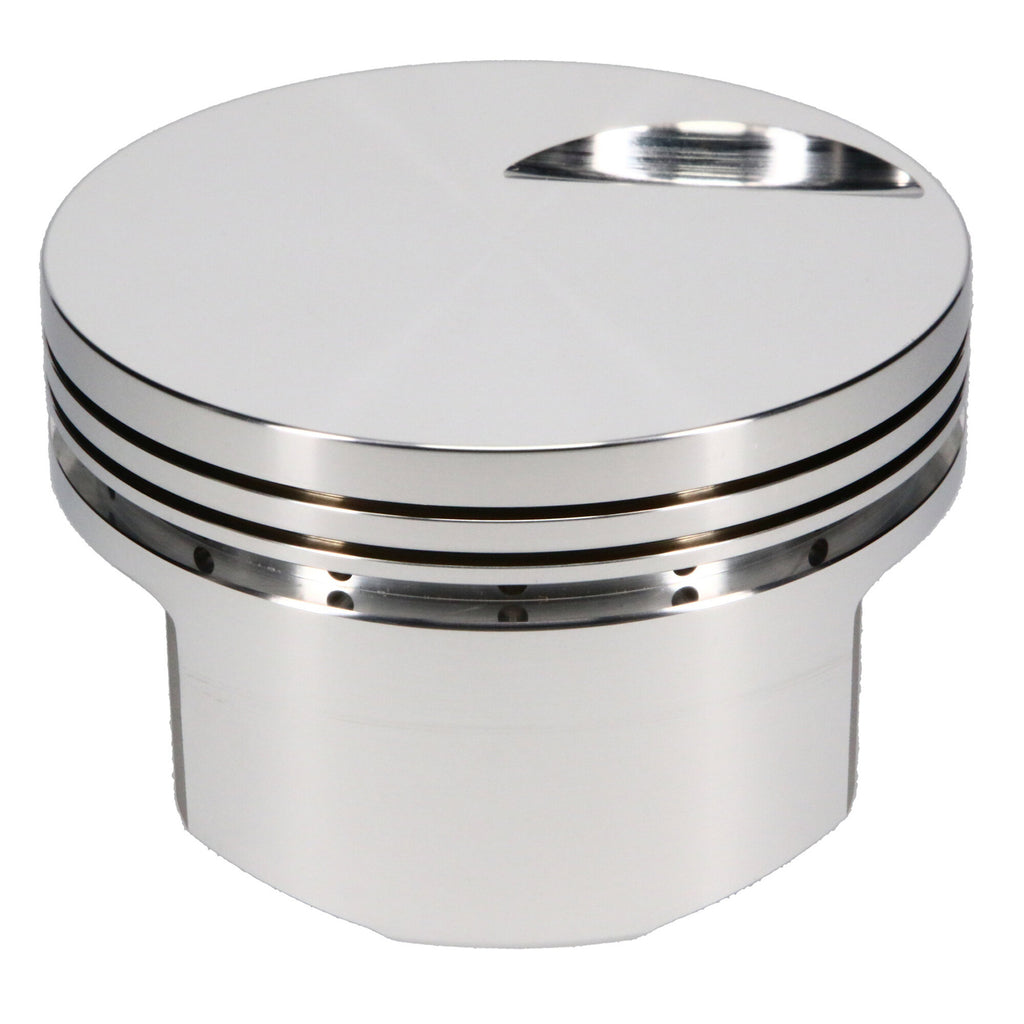

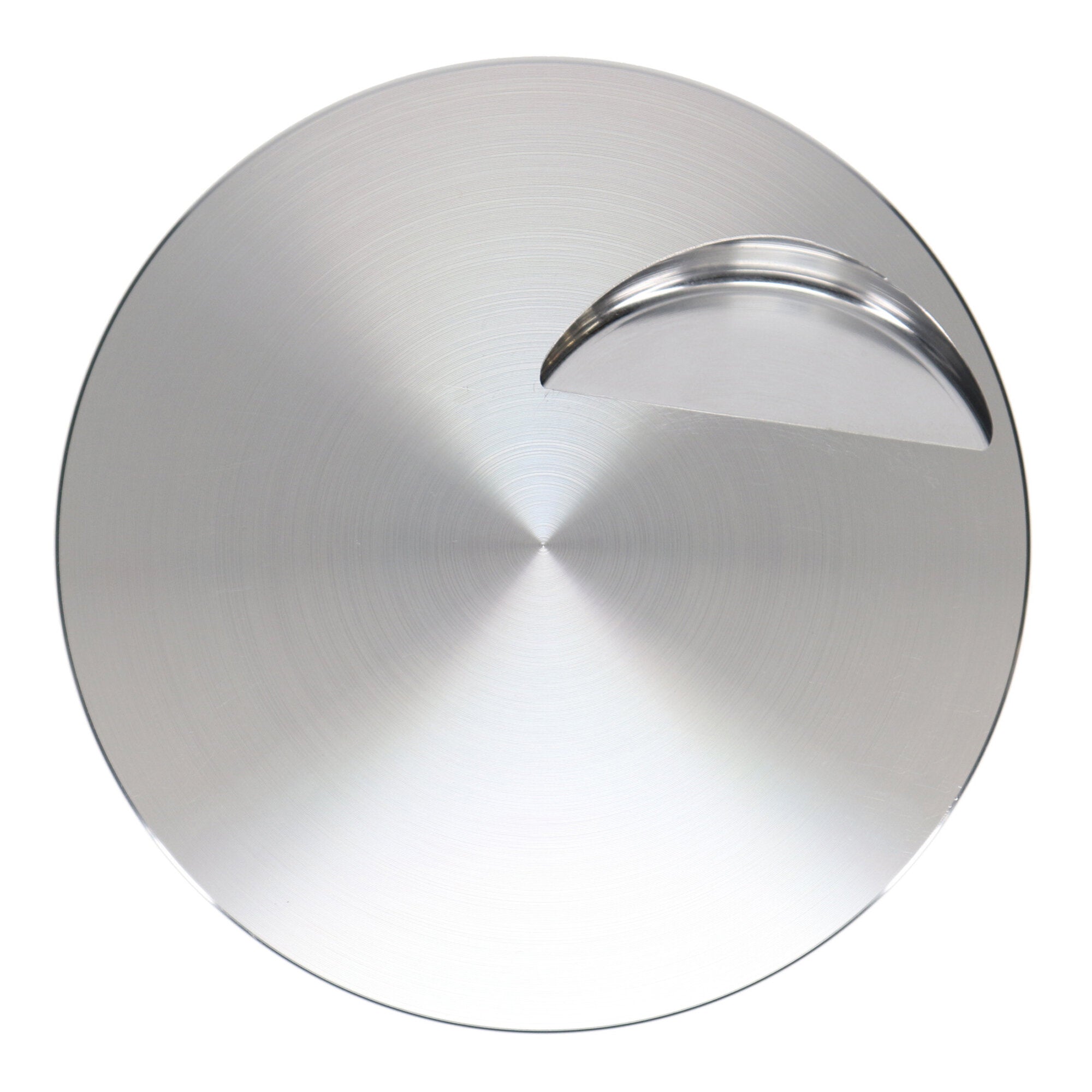

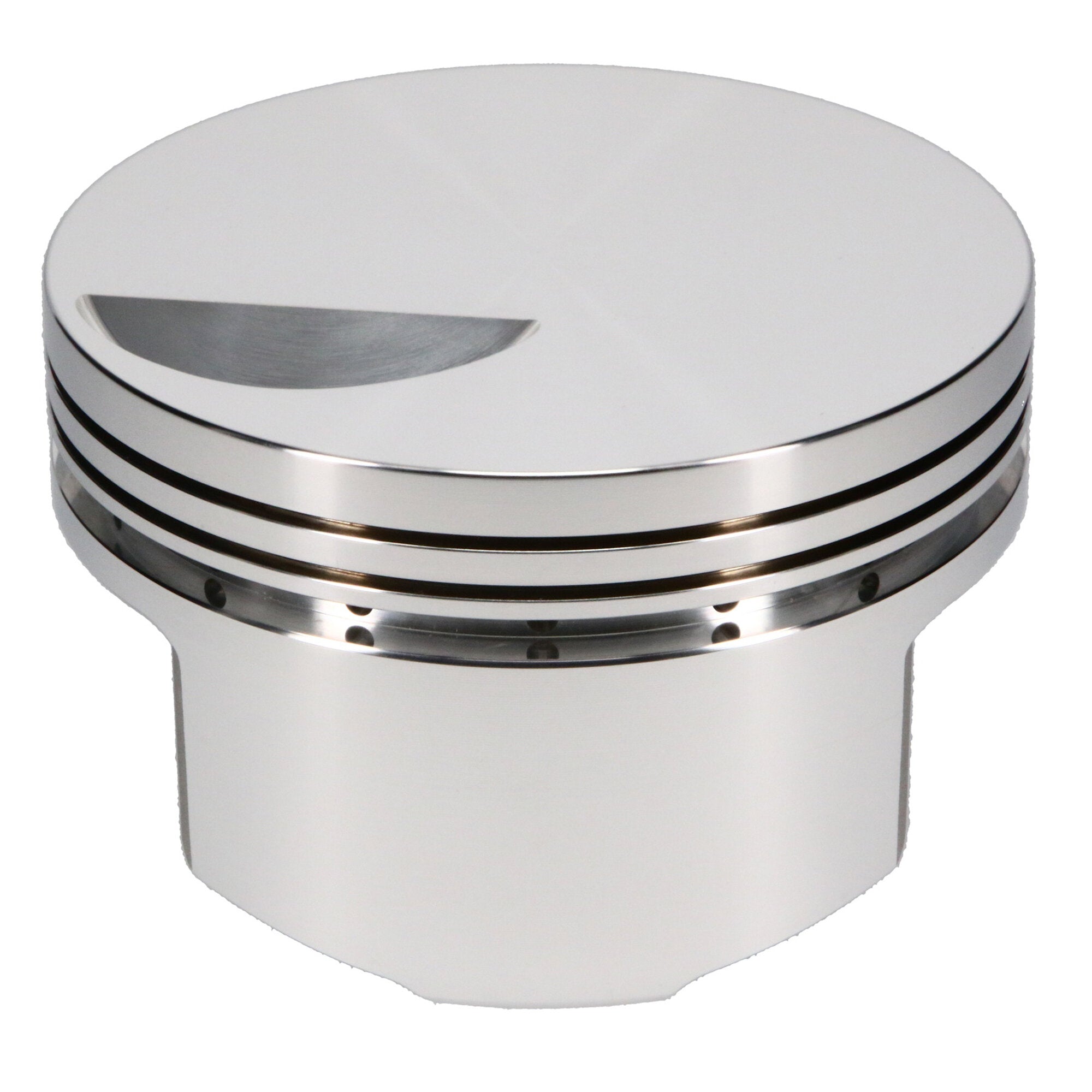

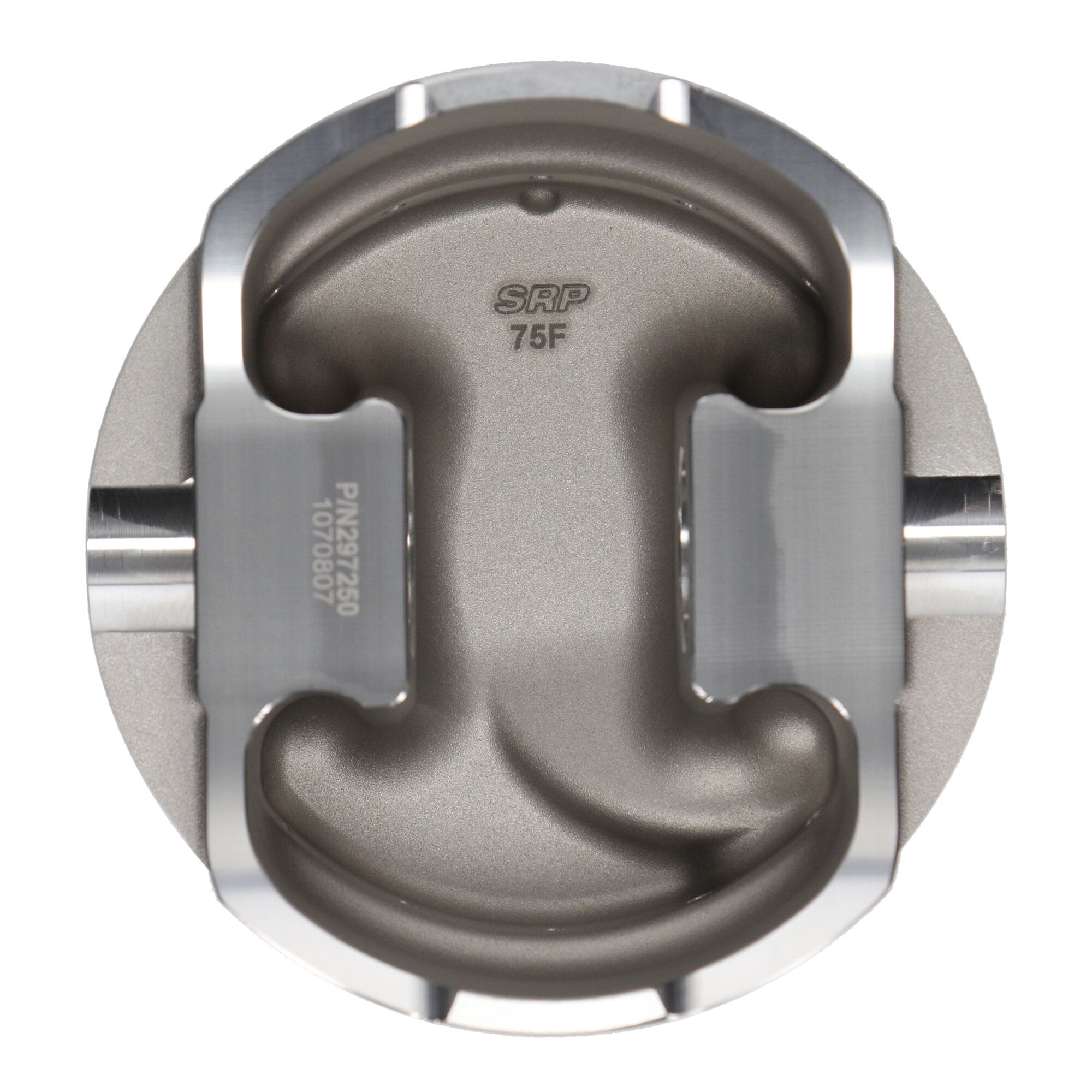

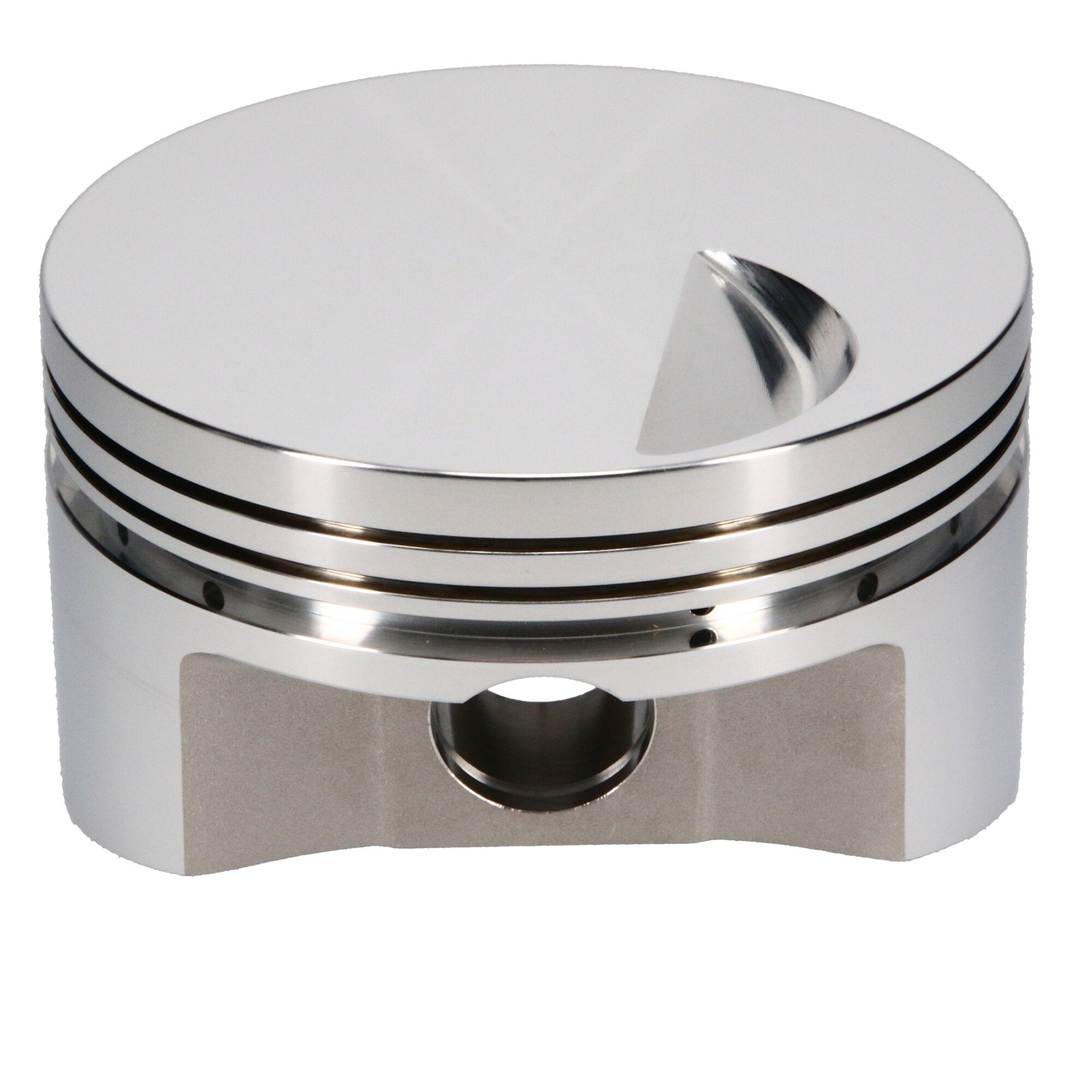

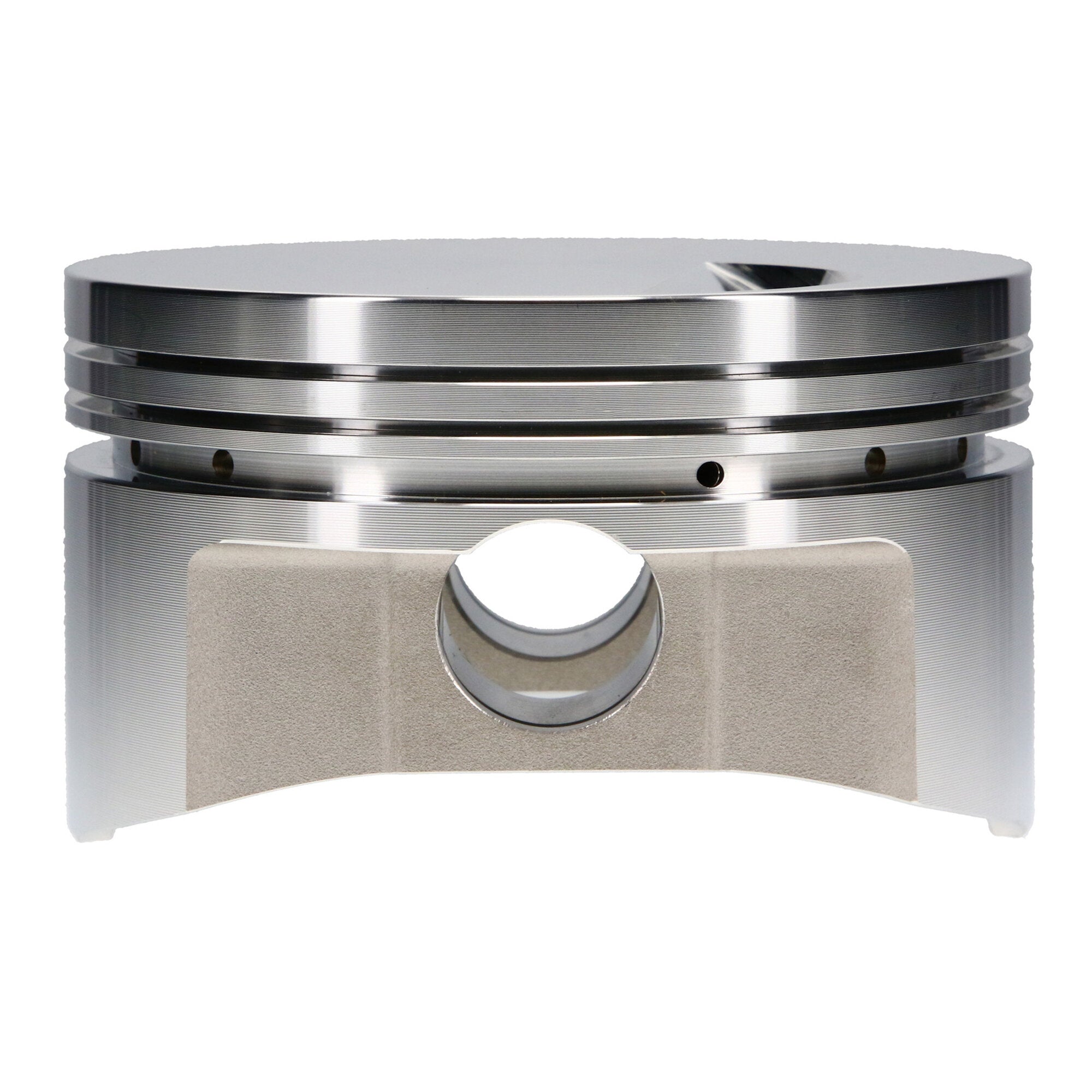

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 572 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.560 Bore, 1.465 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.560 in. Bore, 1.465 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 572, 4.560 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Title |
SRP - Chevrolet, Big Block, 4.560 in. Bore, Piston Kit |
| Cylinder Head |
OPEN CHAMBER |
| Piston Average Weight |
675 |
| Compression Height |
1.465 |
| Bore Diameter |
4.560 |
| Top Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Product Type |
Engine Piston Kit |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Prop 65 Yes/No |
Yes |
| Add-On |
S100S8-4560-5 |
| Product Market |
Domestic |
| Add-On |
990-042-CS |
| Out of Stock Message |
Call for Availability |
| Piston Material |
4032 |
| Add-On |
990-2930-15-51S |
| Ring Set Included |
No |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.560 in. Bore - 1.465 in. CH, -3.00 CC |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Outside Diameter |
0.990 |
| Second Compression Ring Thickness |
0.0640 |
| Industry |
Automotive |
| Piston Volume |
-3.00 |
| Make - Web |
Chevrolet |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
Big Block |
| Piston Pin Material |
5115 |
| Piston Series |
SRP |
| Piston Pin Length |
2.930 |
| Oil Ring Thickness |
0.188 |
| Engine Type |
ICE |
| Make |
CHEVROLET |
| Ringset Included |
No |
| Piston Head Type |
Flat |
| Forging Type |
FSR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
