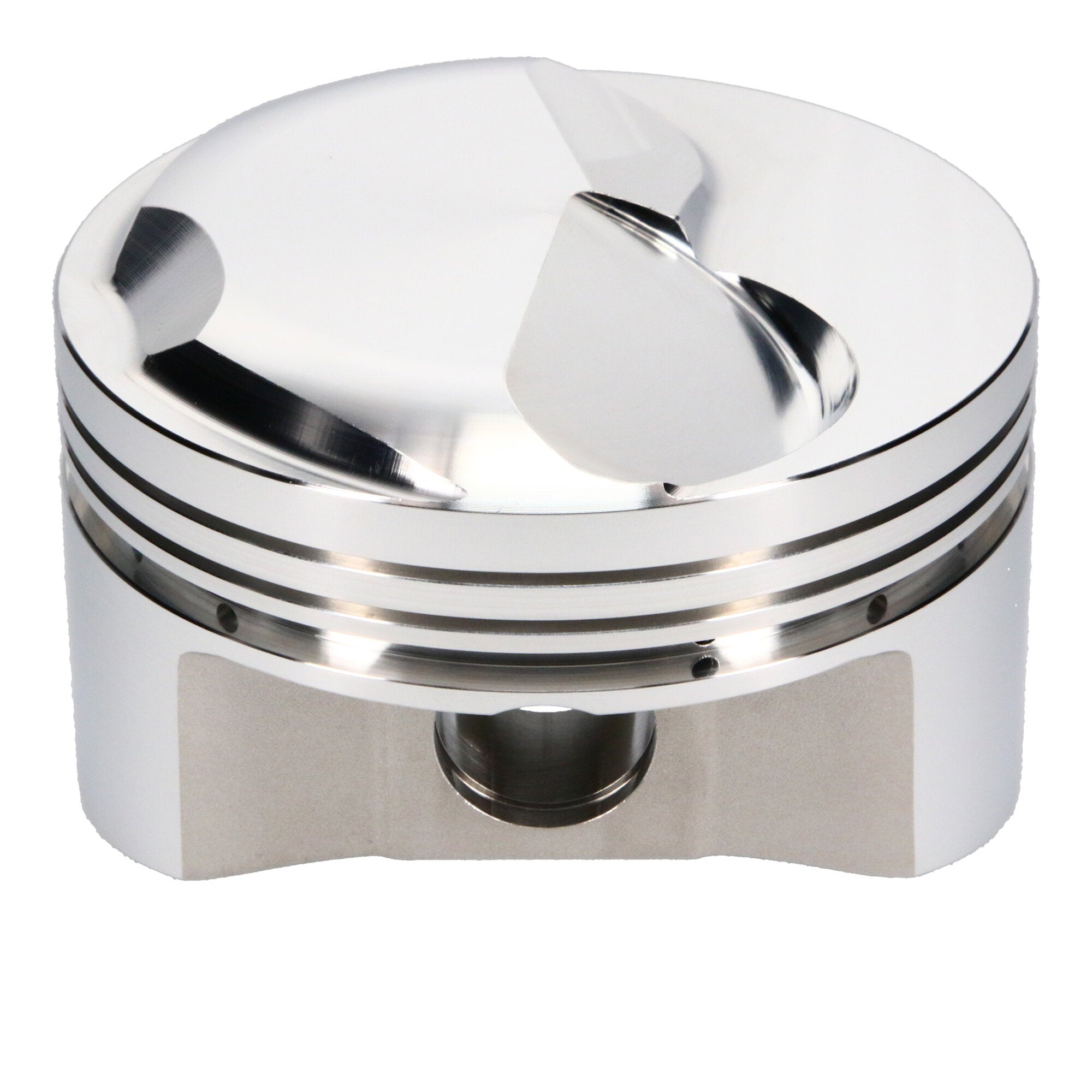

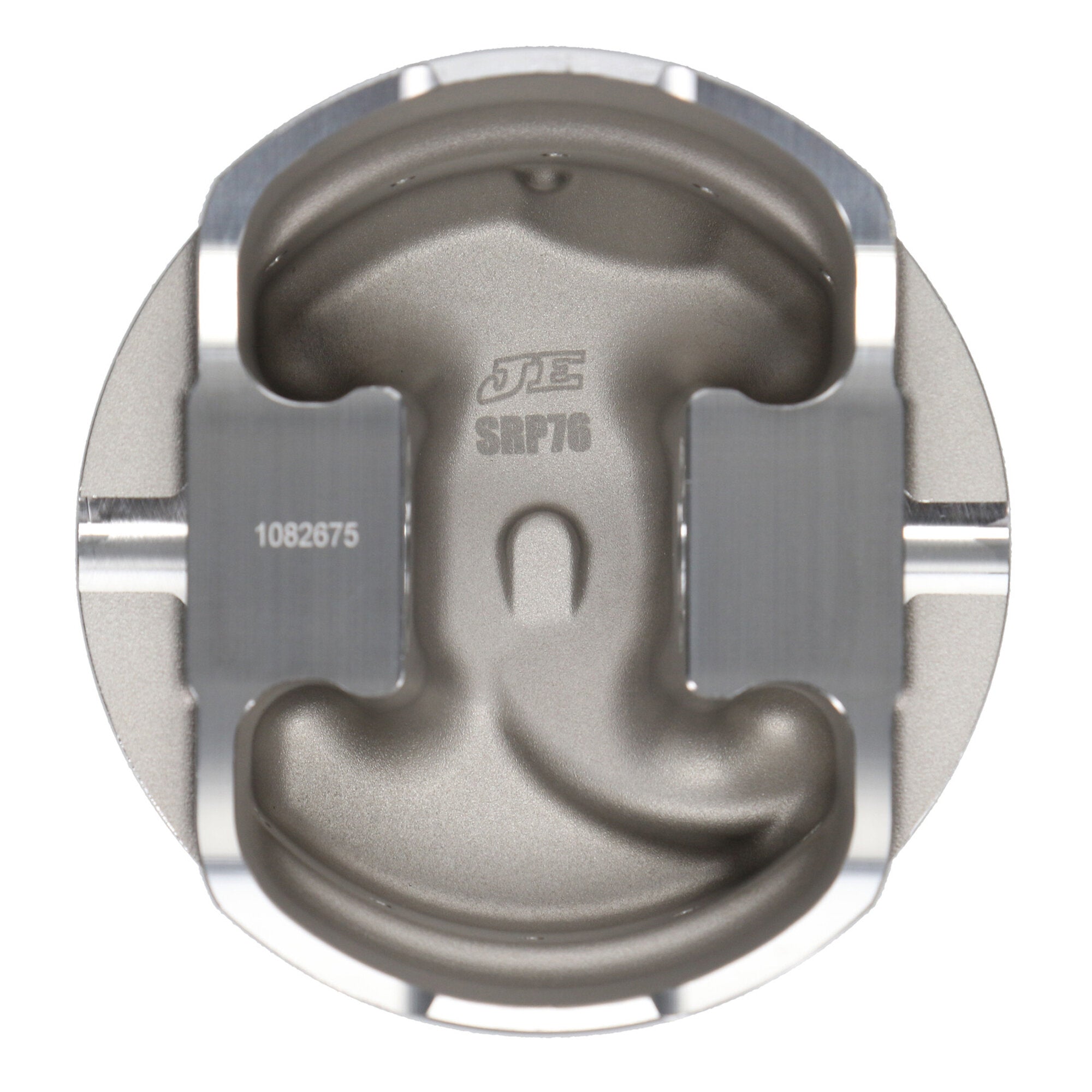

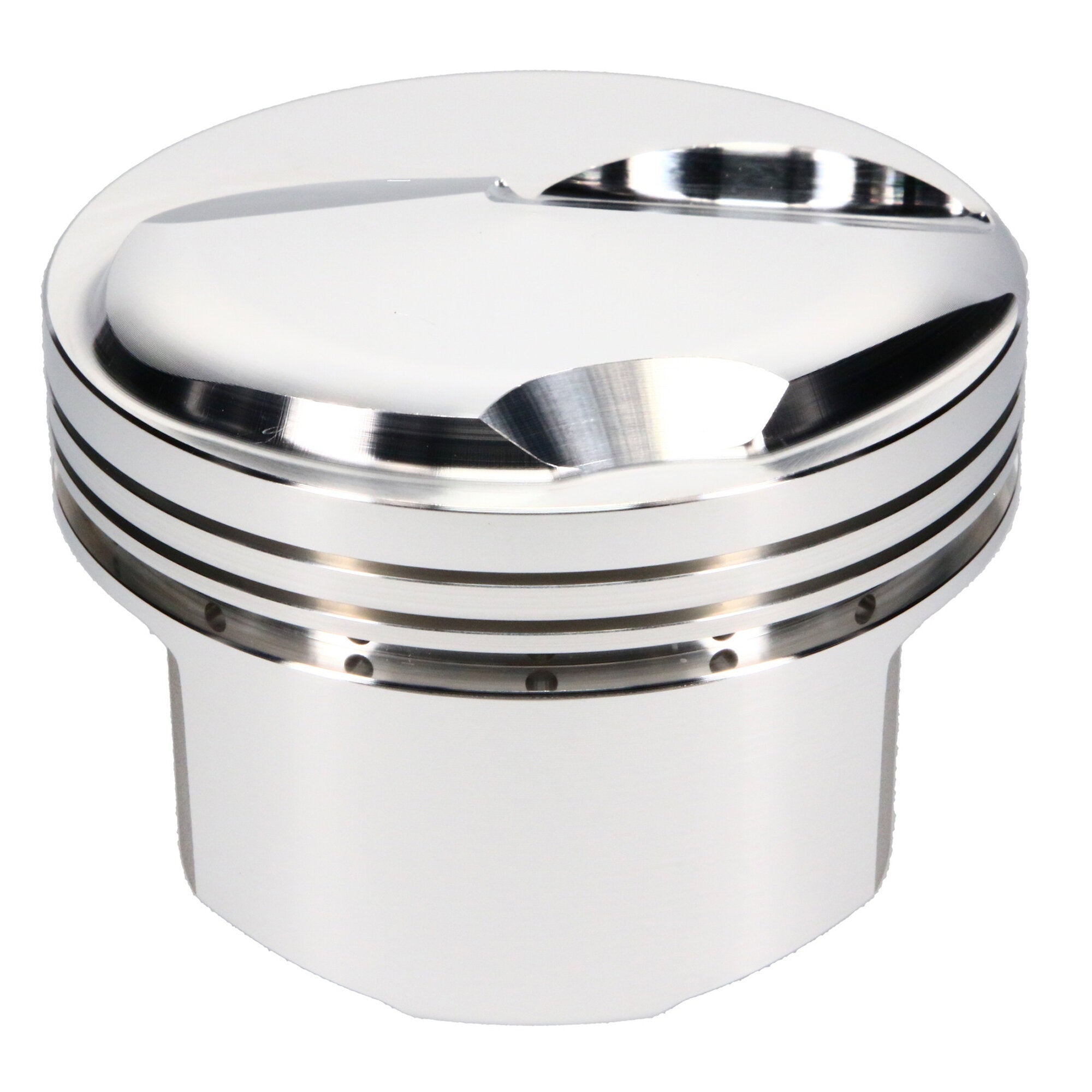

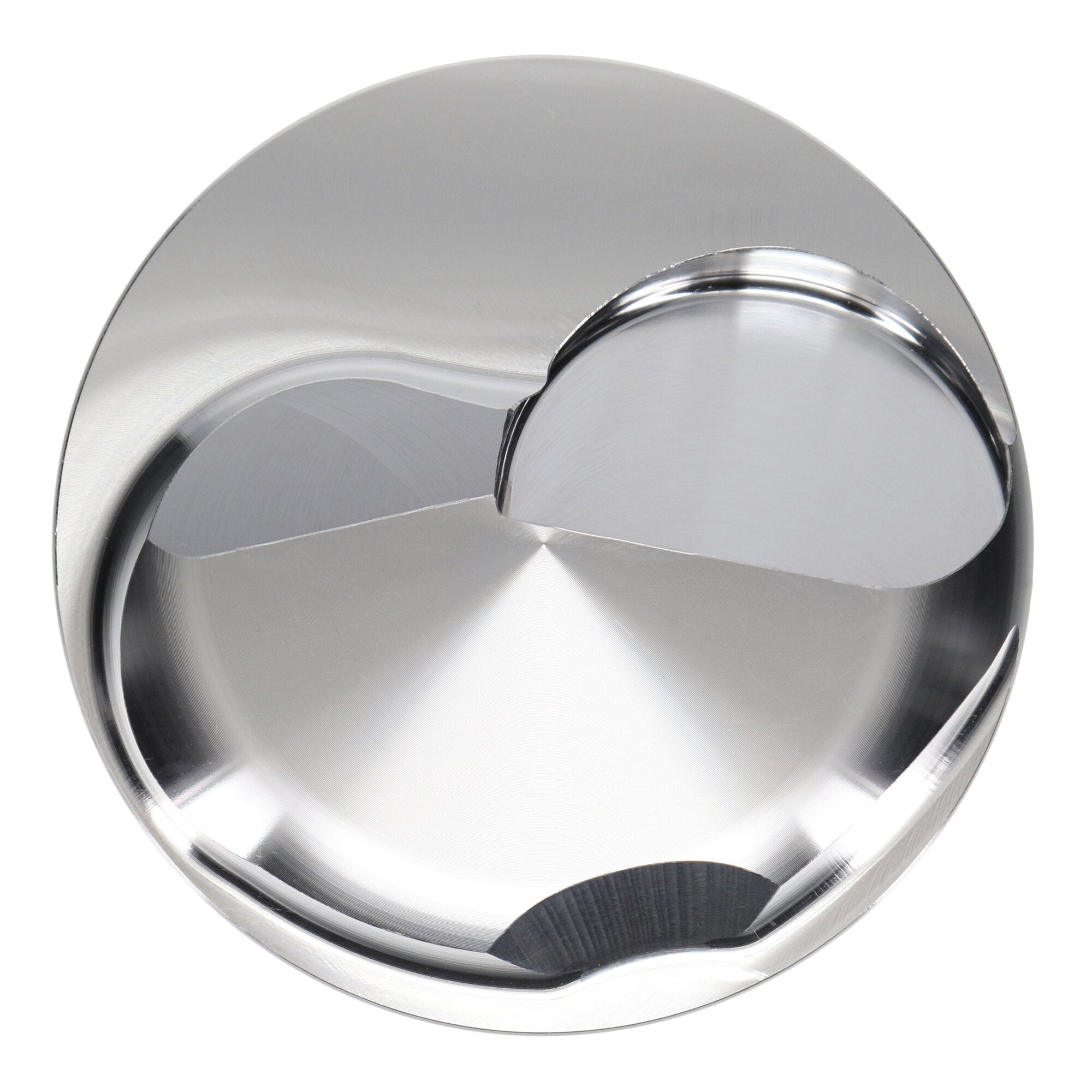

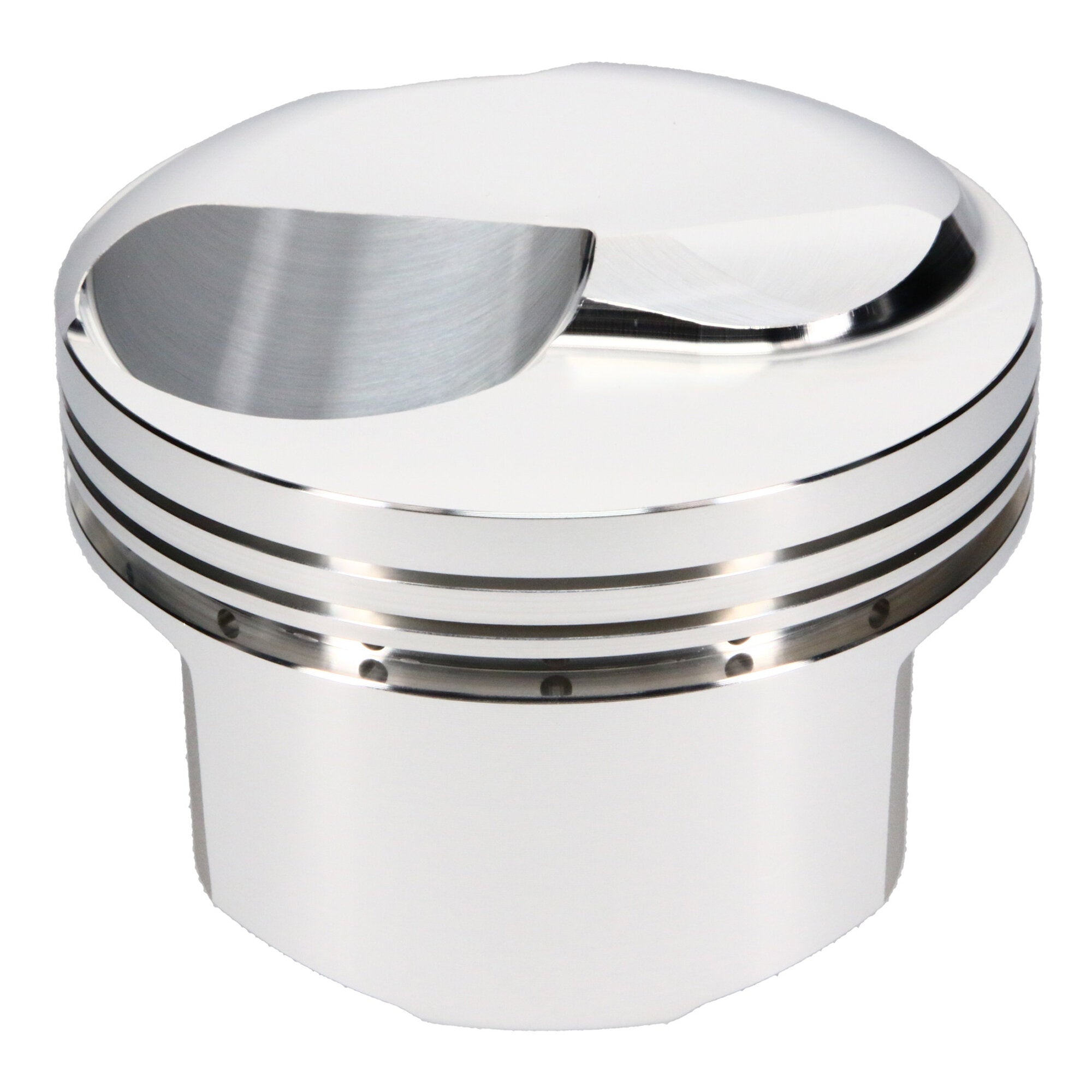

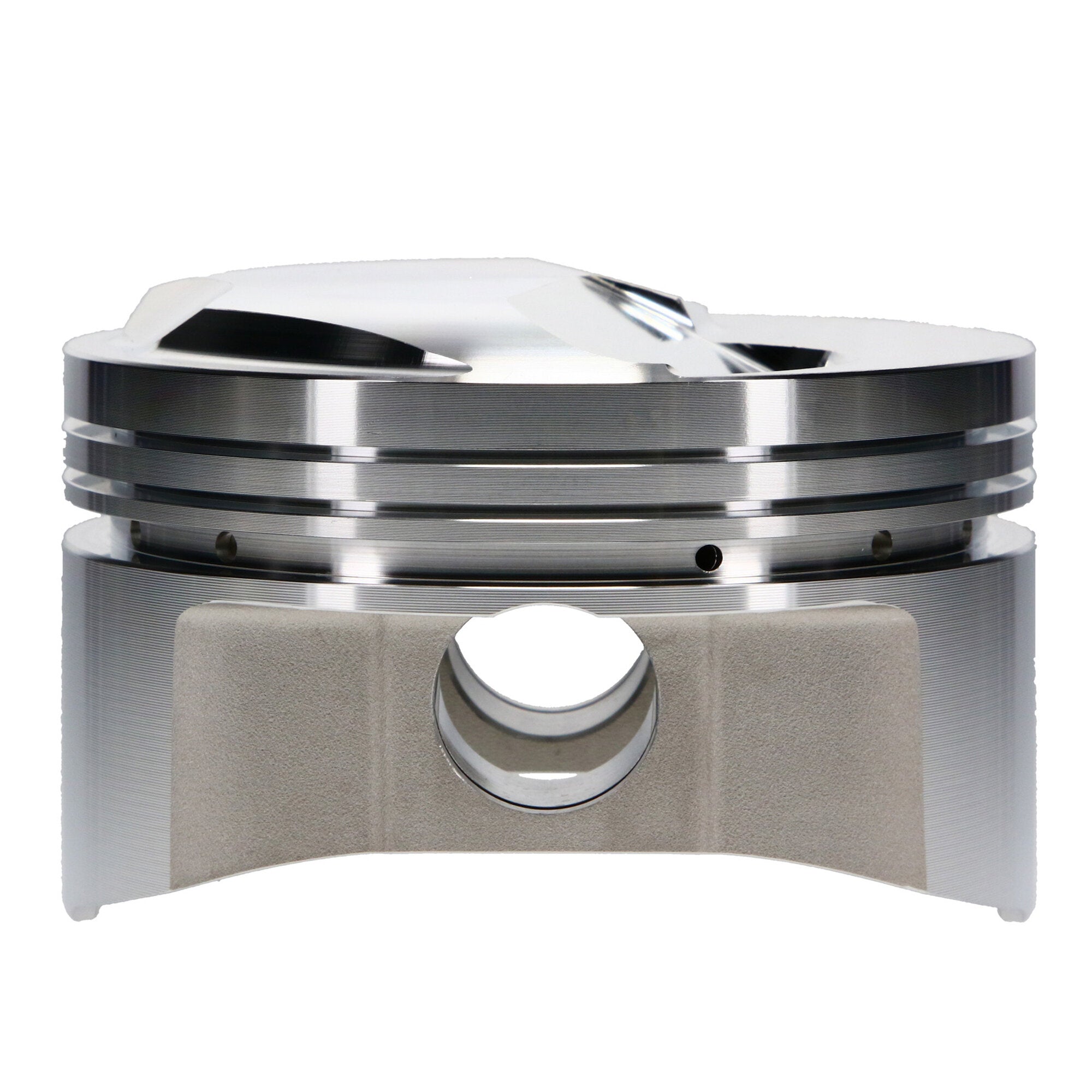

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 572 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.565 Bore, 1.465 CD, 0.990 Pin, Set of 8. |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.565 in. Bore, 1.465 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 572, 4.565 Bore, Dome, Set of 8 |
| Ringset Included |
No |
| Piston Head Type |
Dome |
| Piston Pin Material |
5115 |
| Piston Series |
SRP |
| Make |
CHEVROLET |
| Engine |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Compression Height |
1.465 |
| Piston Pin Outside Diameter |
0.990 |
| Forging Type |
FSR |
| Title |
SRP - Chevrolet, Big Block, 4.565 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Oil Ring Thickness |
0.188 |
| Product Market |
Domestic |
| Bore Diameter |
4.565 |
| Piston Pin Length |
2.930 |
| Top Compression Ring Thickness |
0.0640 |
| Ring Set Included |
No |
| Engine - Web |
Big Block |
| Wrist Pin Outer Diameter |
0.990 |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
671 |
| Industry |
Automotive |
| Cylinder Head |
OPEN CHAMBER |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.565 in. Bore - 1.465 in. CH, 30.60 CC |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-2930-15-51S |
| Add-On |
S100S8-4560-5 |
| Piston Material |
2618 |
| Piston Volume |
30.60 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
990-042-CS |
| Second Compression Ring Thickness |
0.0640 |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.930 |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
