As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

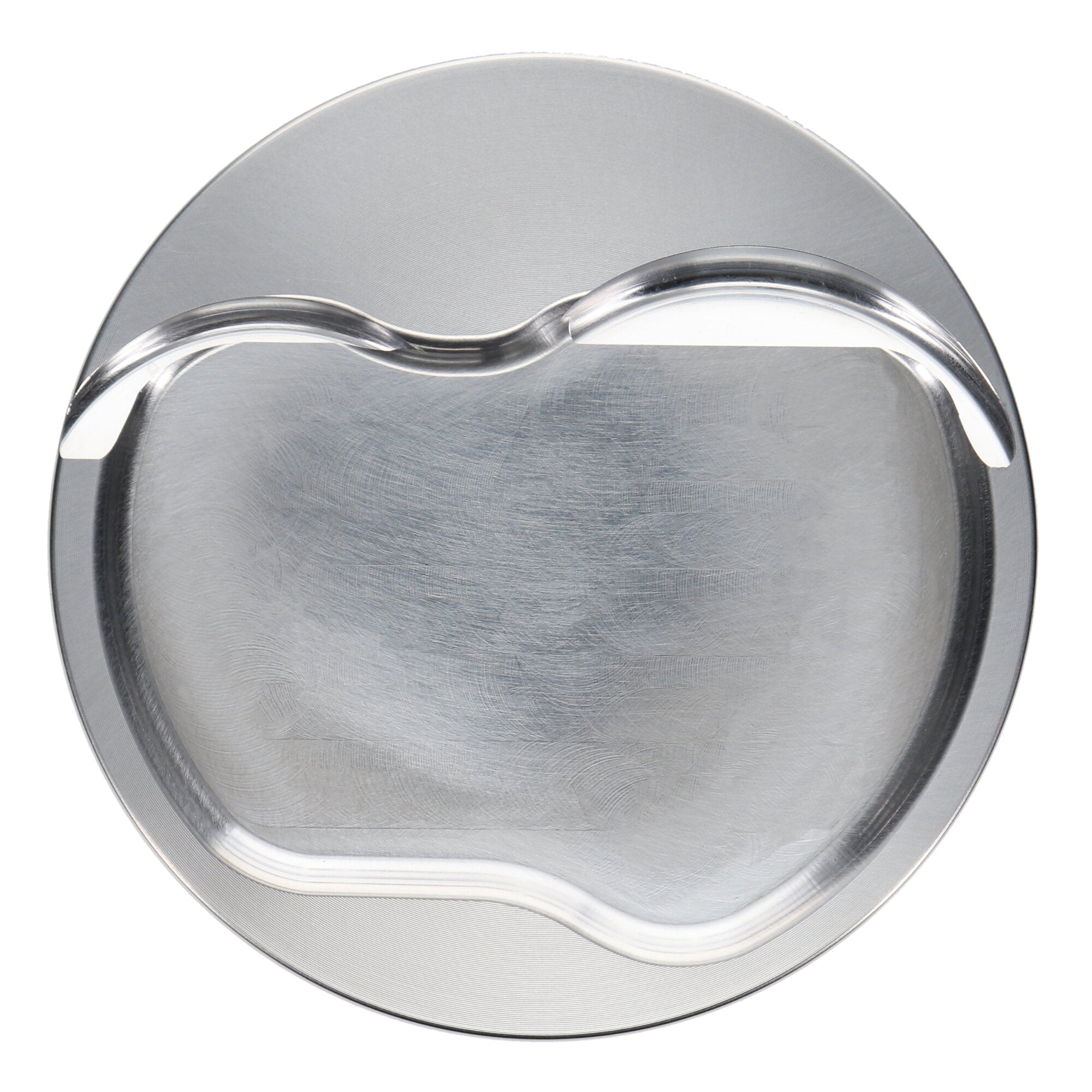

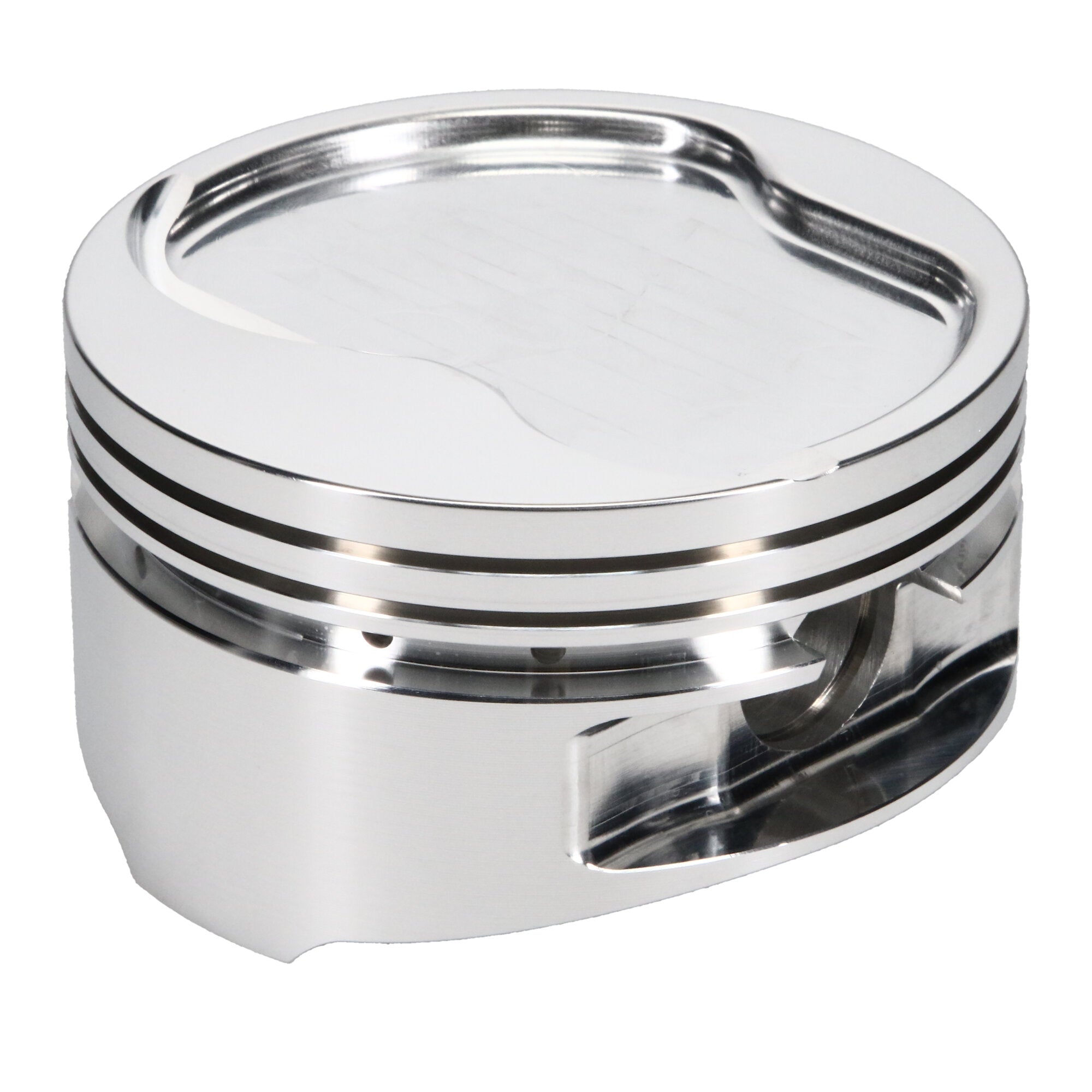

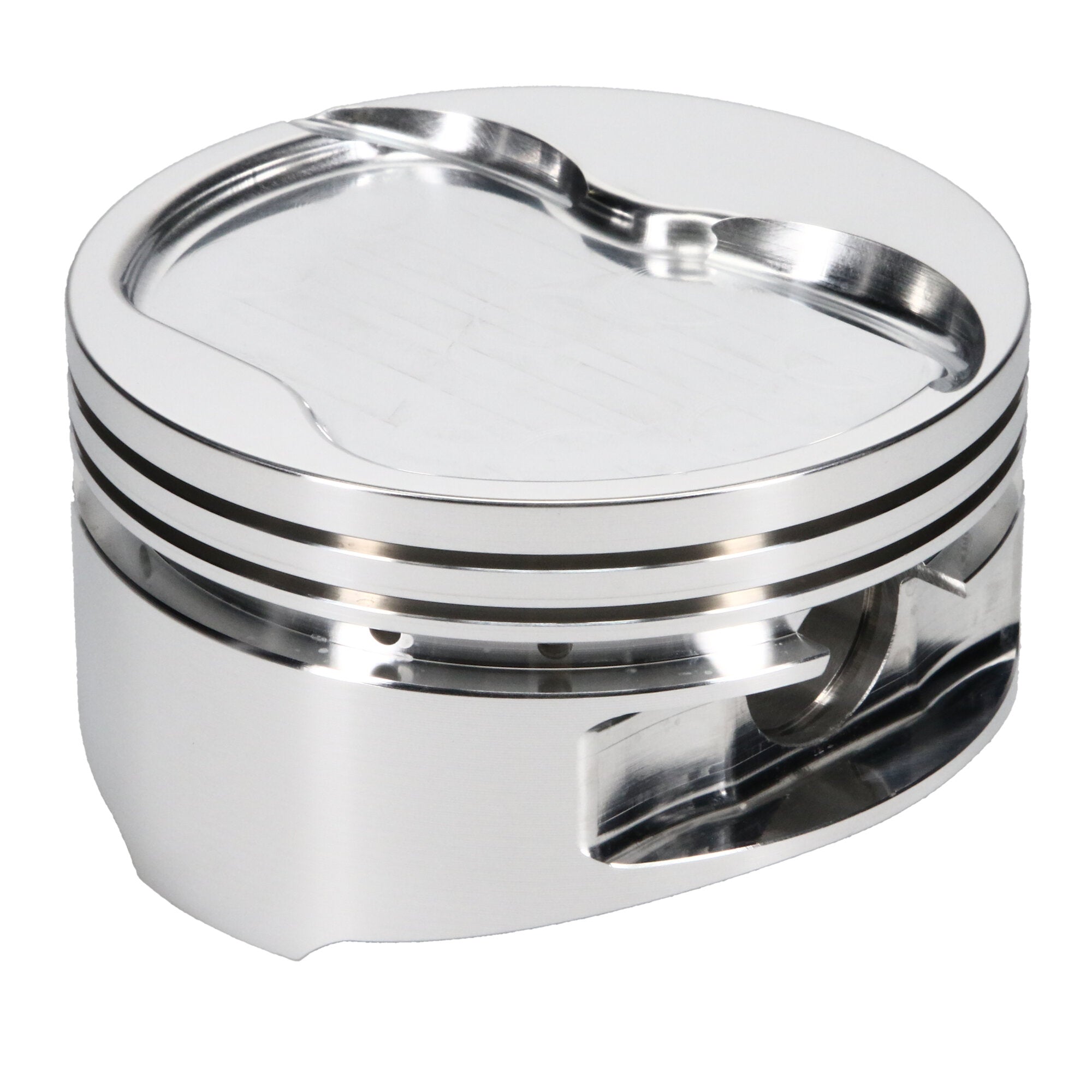

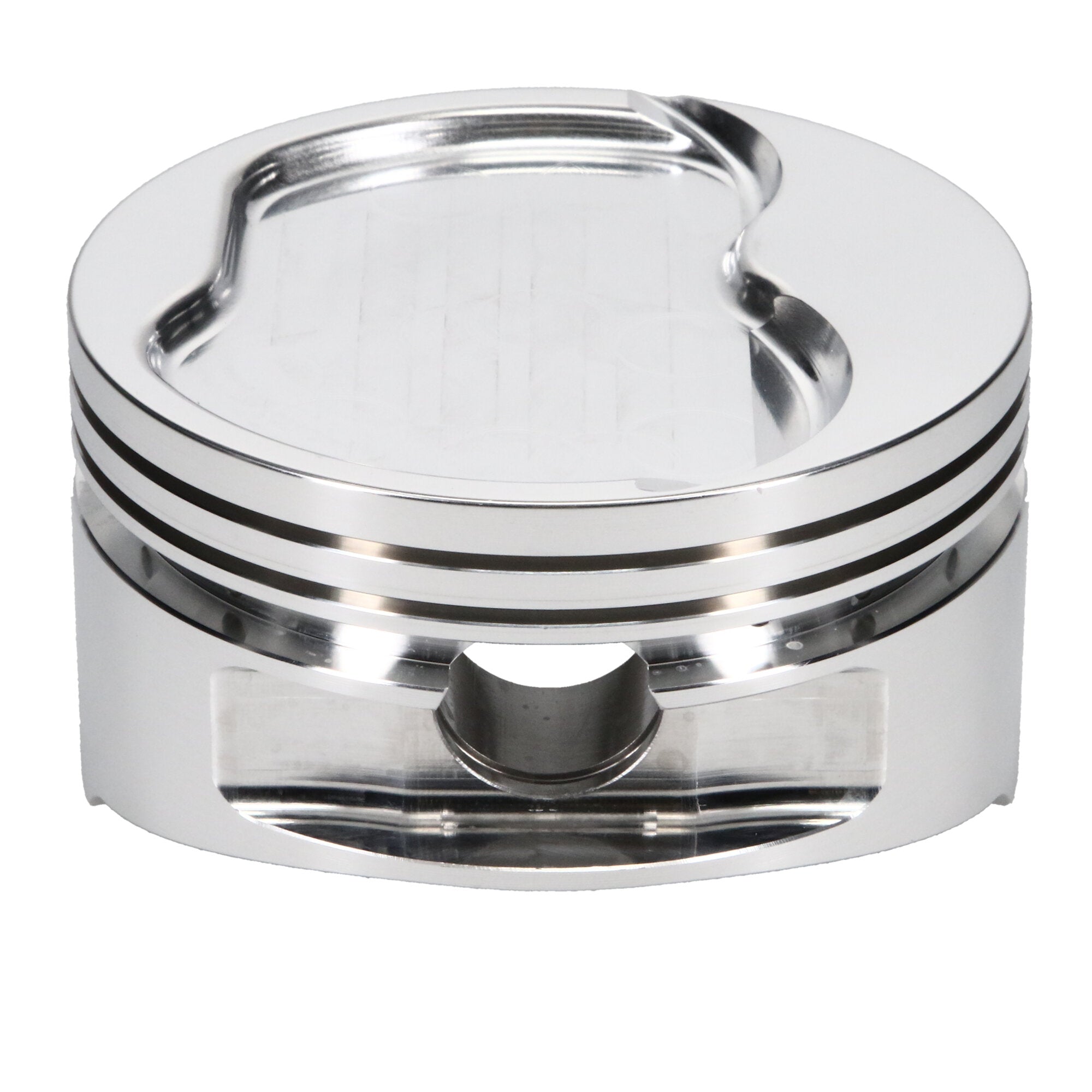

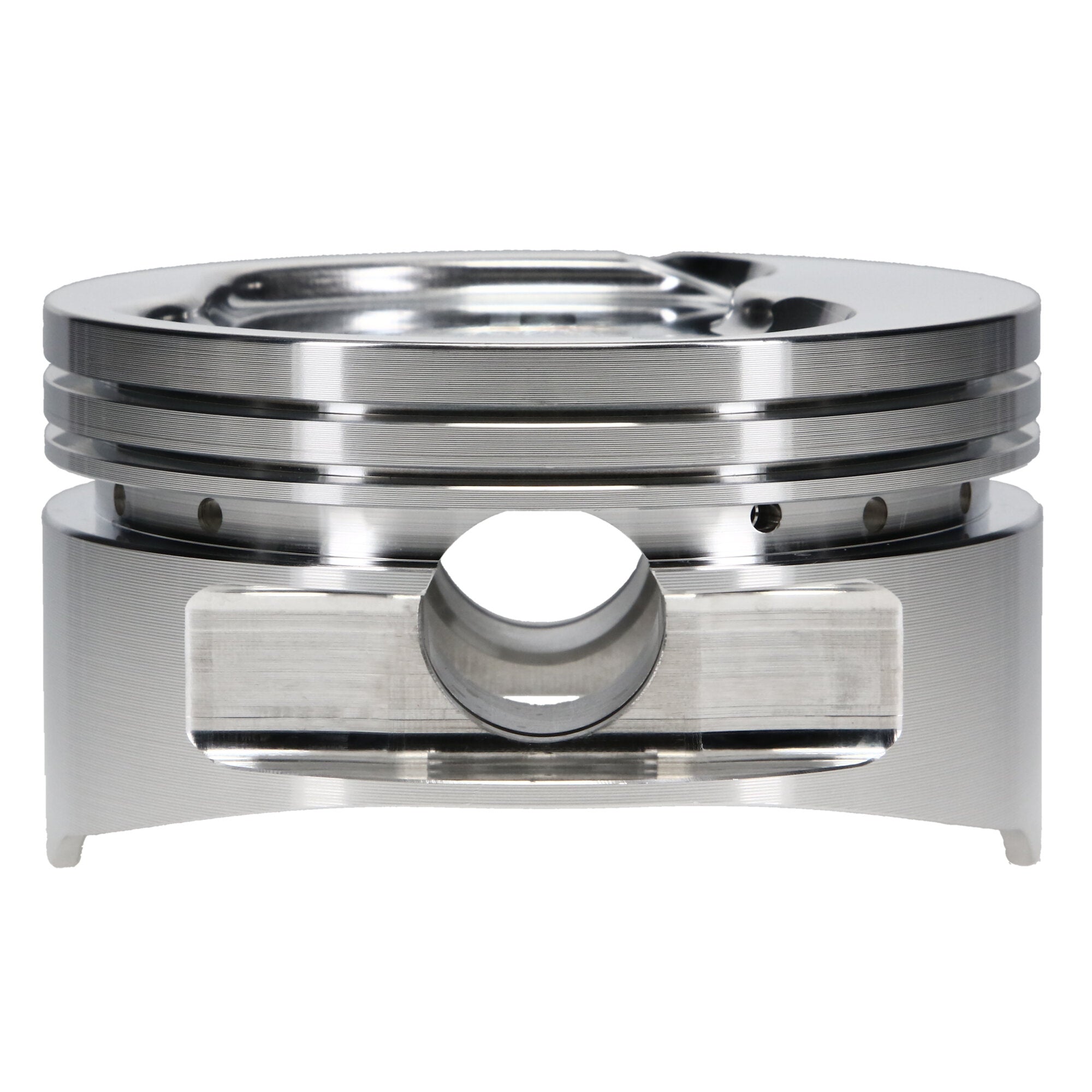

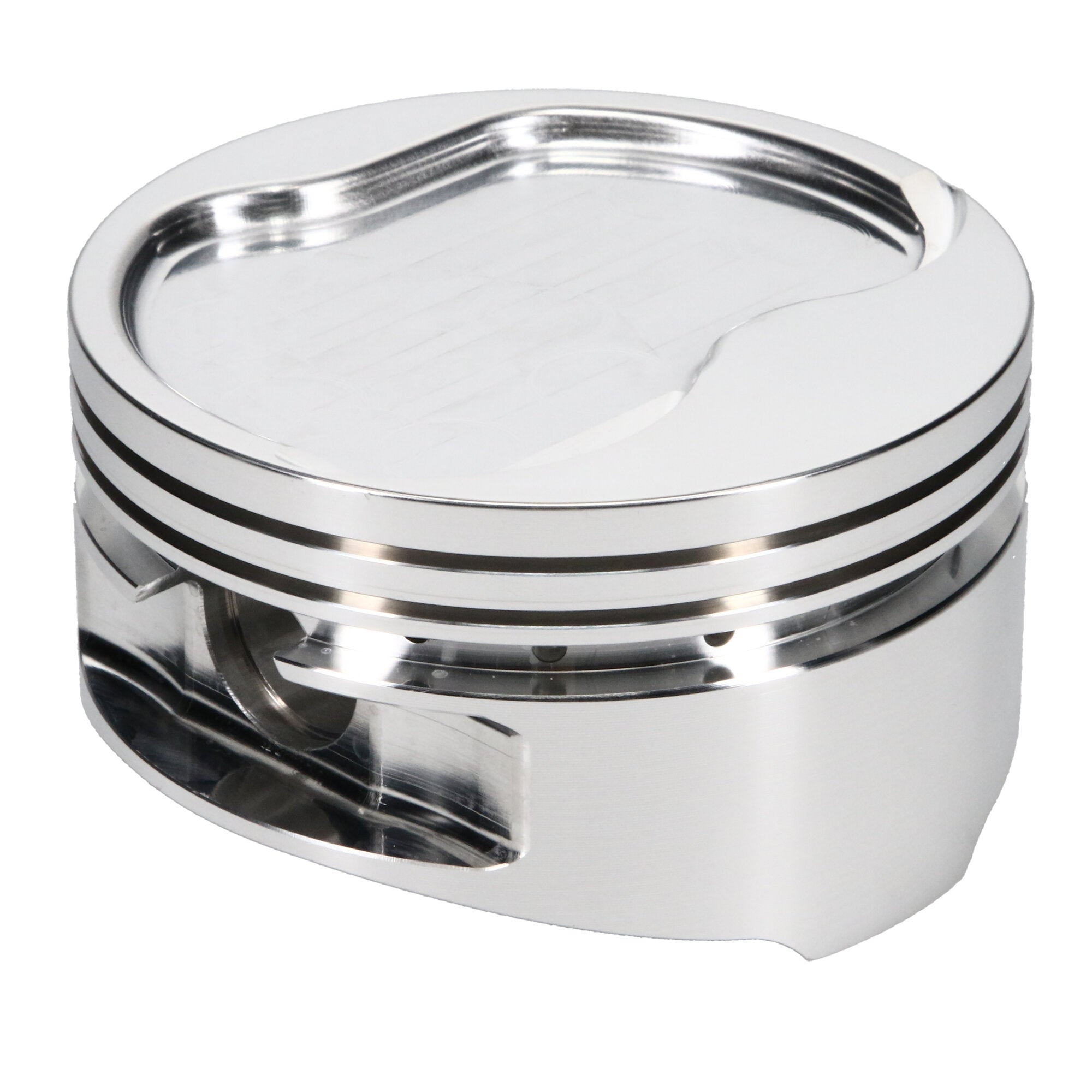

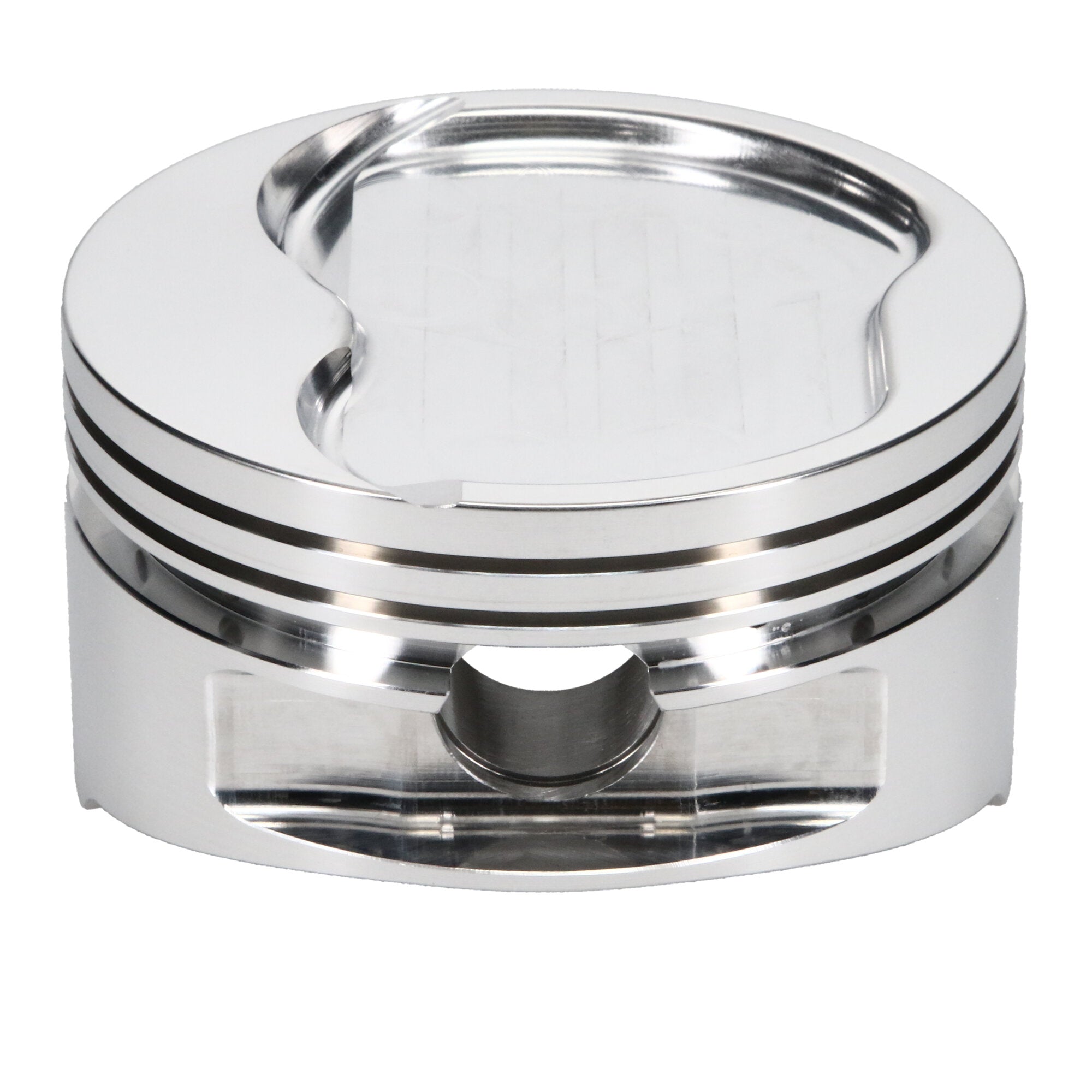

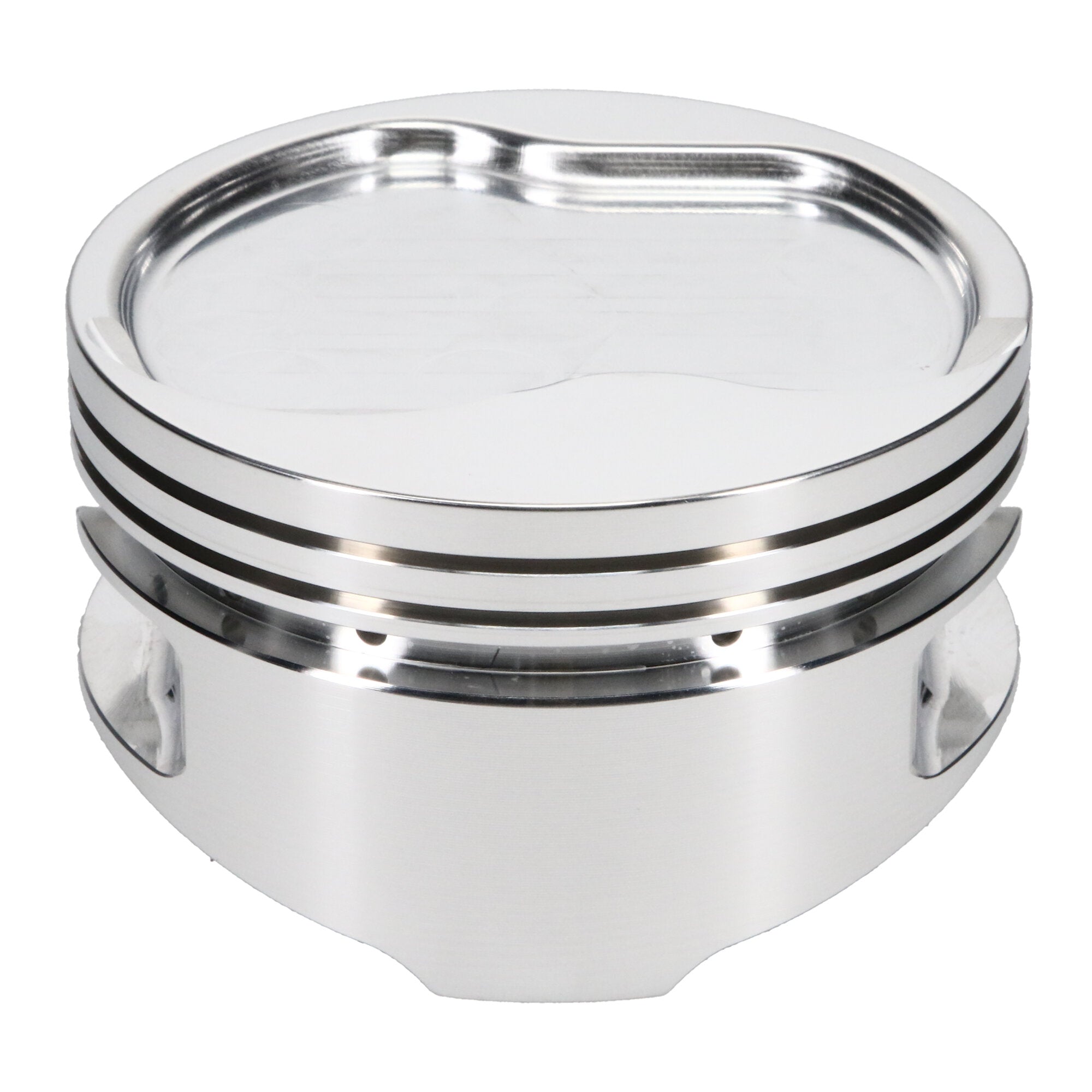

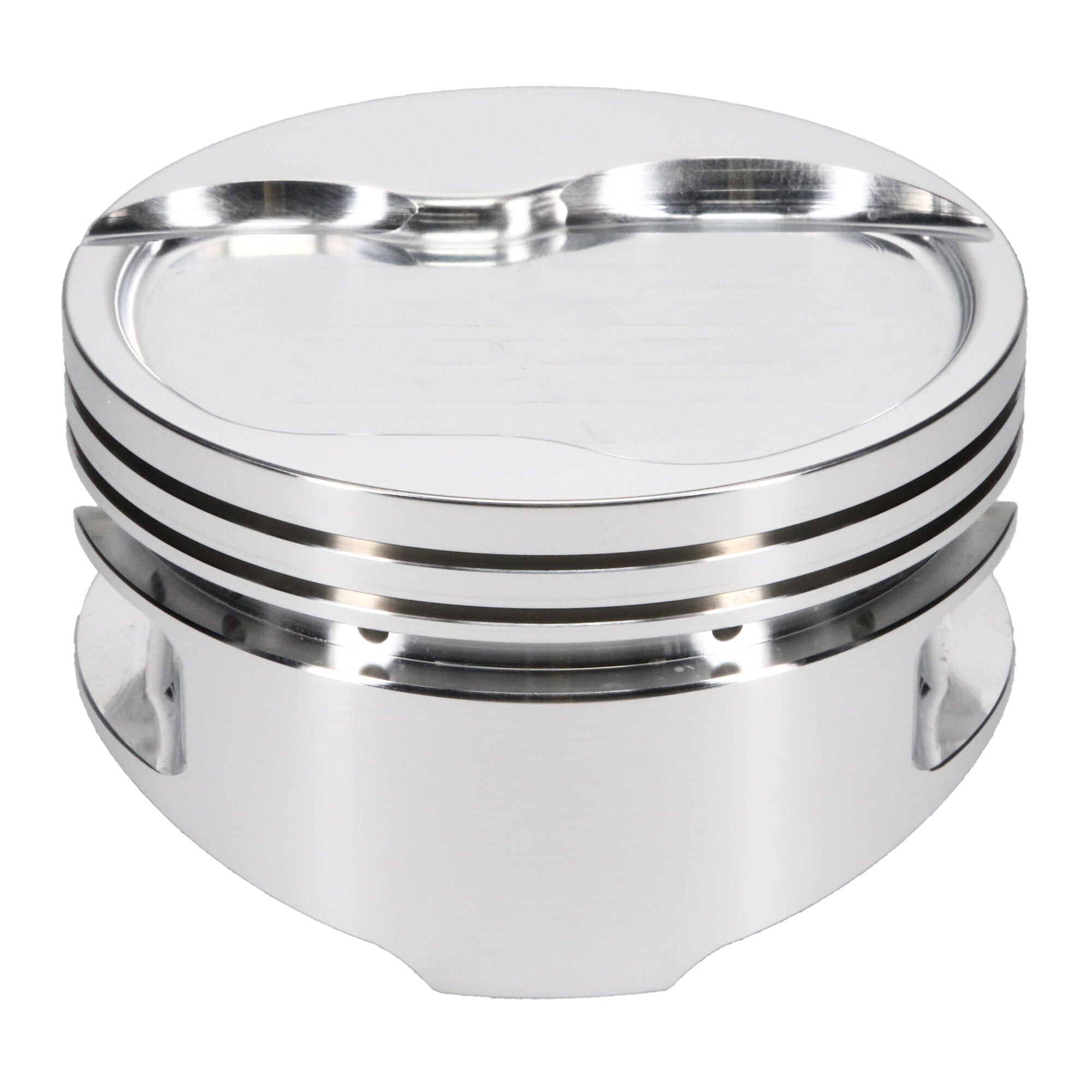

Piston Set, 2618, Inv Dome/Dish, 4.125 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Ford, Small Block Ford, 4.125 in. Bore, 1.100 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

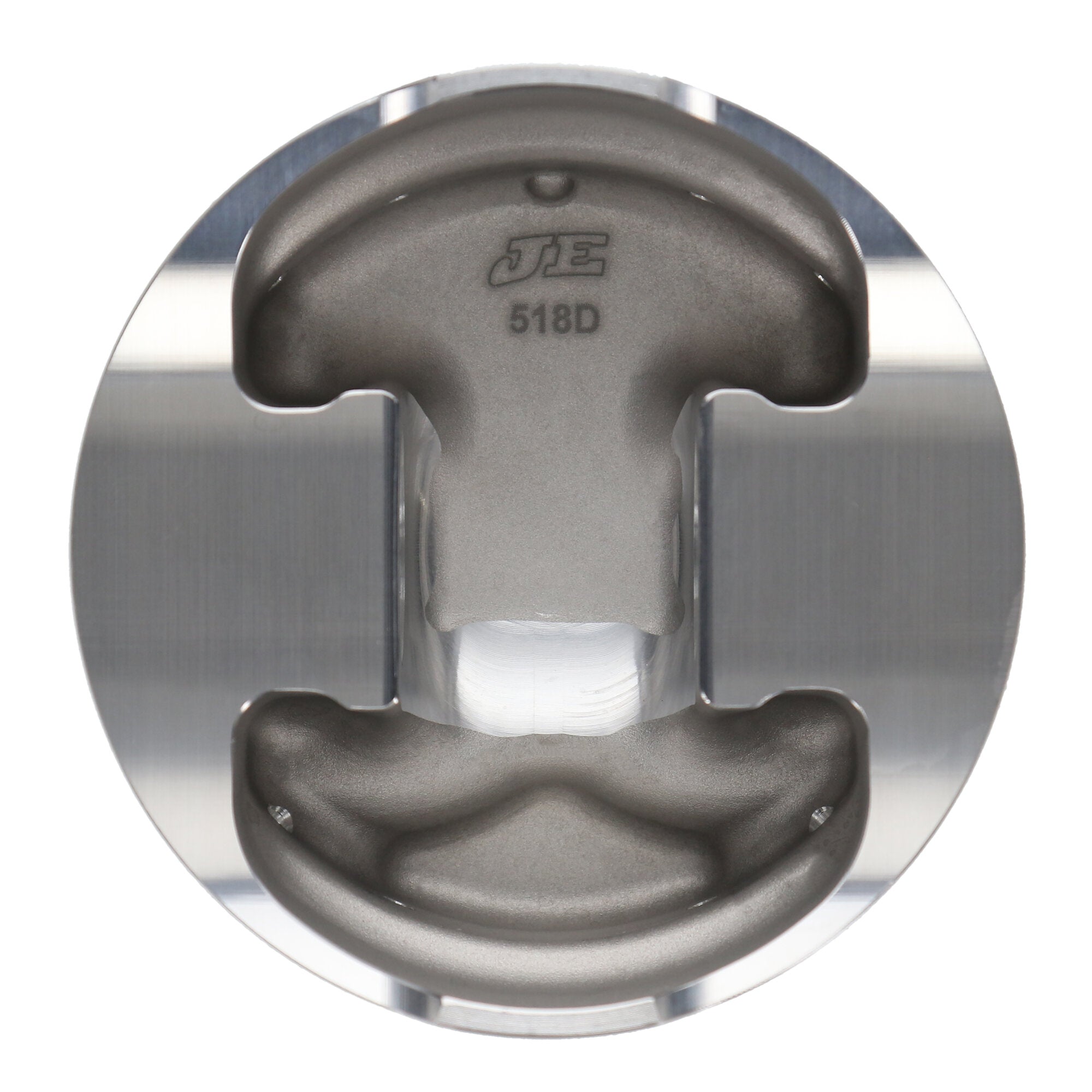

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 302, 4.125 Bore, Dish, Set of 8 |
| Wrist Pin Outer Diameter |
0.927 |
| Make |
FORD |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Oil Ring Thickness |
0.218 |
| Piston Pin Length |
2.750 |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
Small Block |
| Ringset Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Add-On |
J100F8-4125-5 |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.125 in. Bore - 1.100 in. CH, -26.00 CC |
| Bore Diameter |
4.125 |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Product Market |
Domestic |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Product Type |
Engine Piston Kit |
| Second Compression Ring Thickness |
0.0640 |
| Title |
JE Pistons - Ford, Small Block, 4.125 in. Bore, Piston Kit |
| Piston Volume |
-26.00 |
| Piston Quantity |
8 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Average Weight |
461 |
| Piston Material |
2618 |
| Add-On |
927-2750-15-51S |
| Compression Height |
1.100 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.750 |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
