As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of Pro Series pistons for powersports engines. Engineered, forged and machined 100% in the USA, JE Pro Series ATV pistons are designed for each specific engine and racing application with input from professional-level teams and racers. From motocross to dirt track and everything in between, JE Pistons Pro Series are the ultimate forged piston choice for ATV competition.
Specifications:
| Description_ASM |

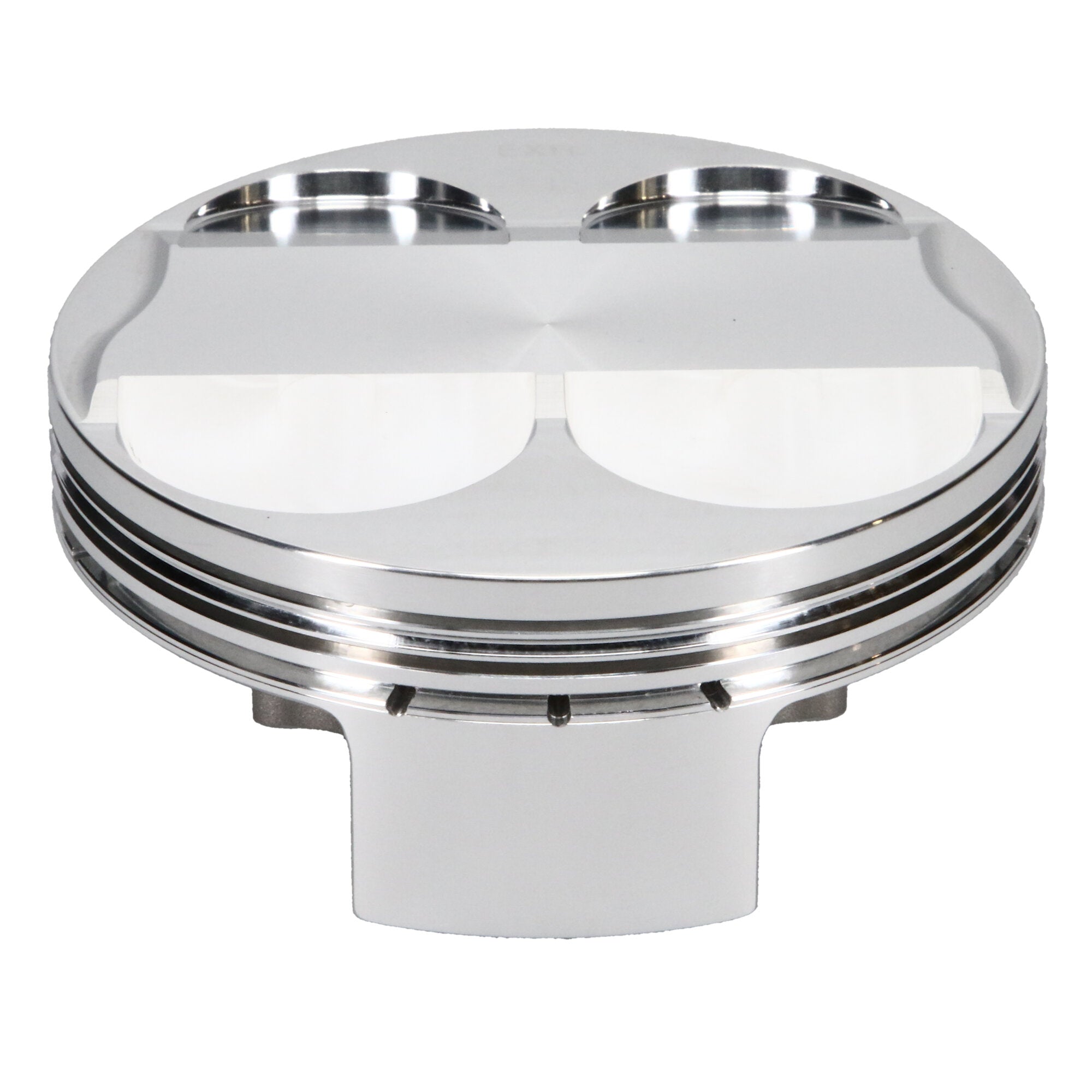

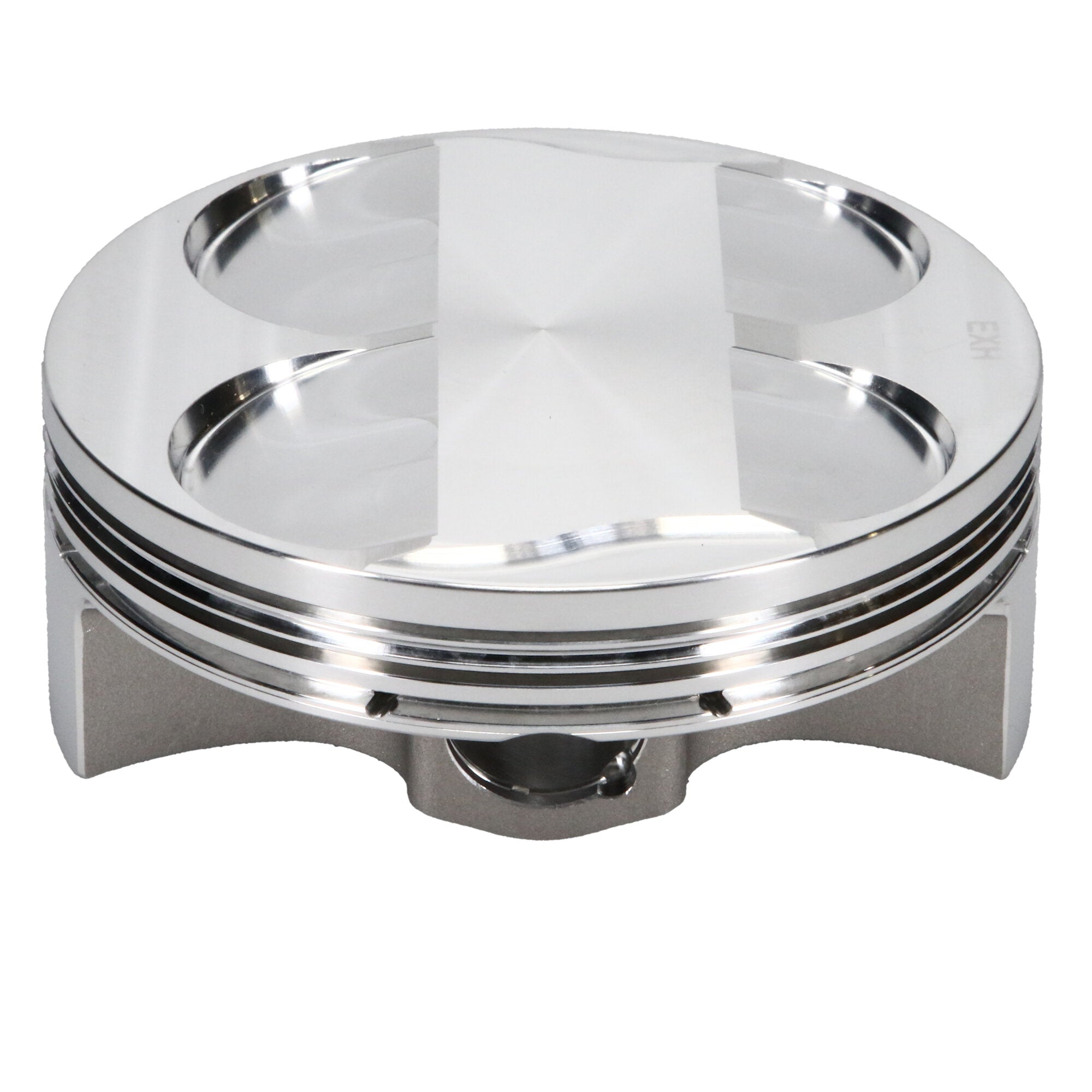

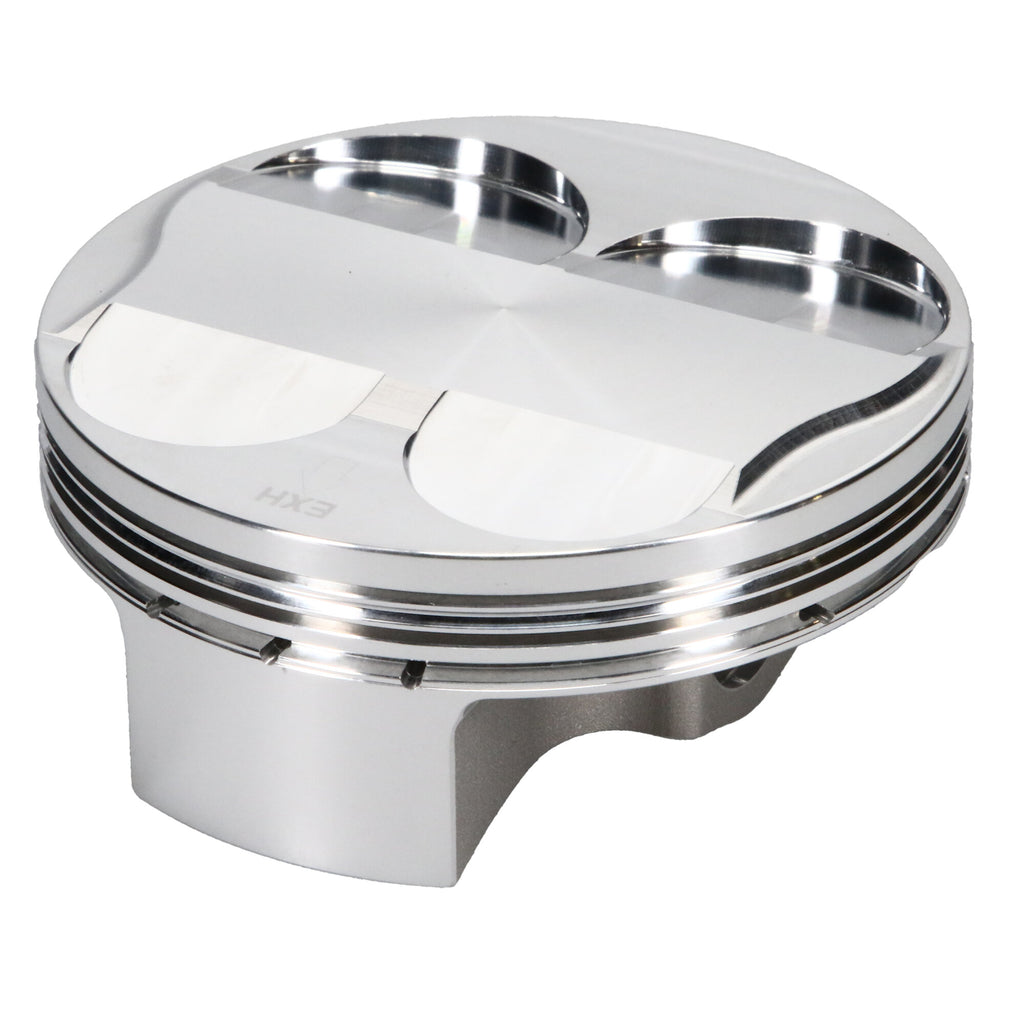

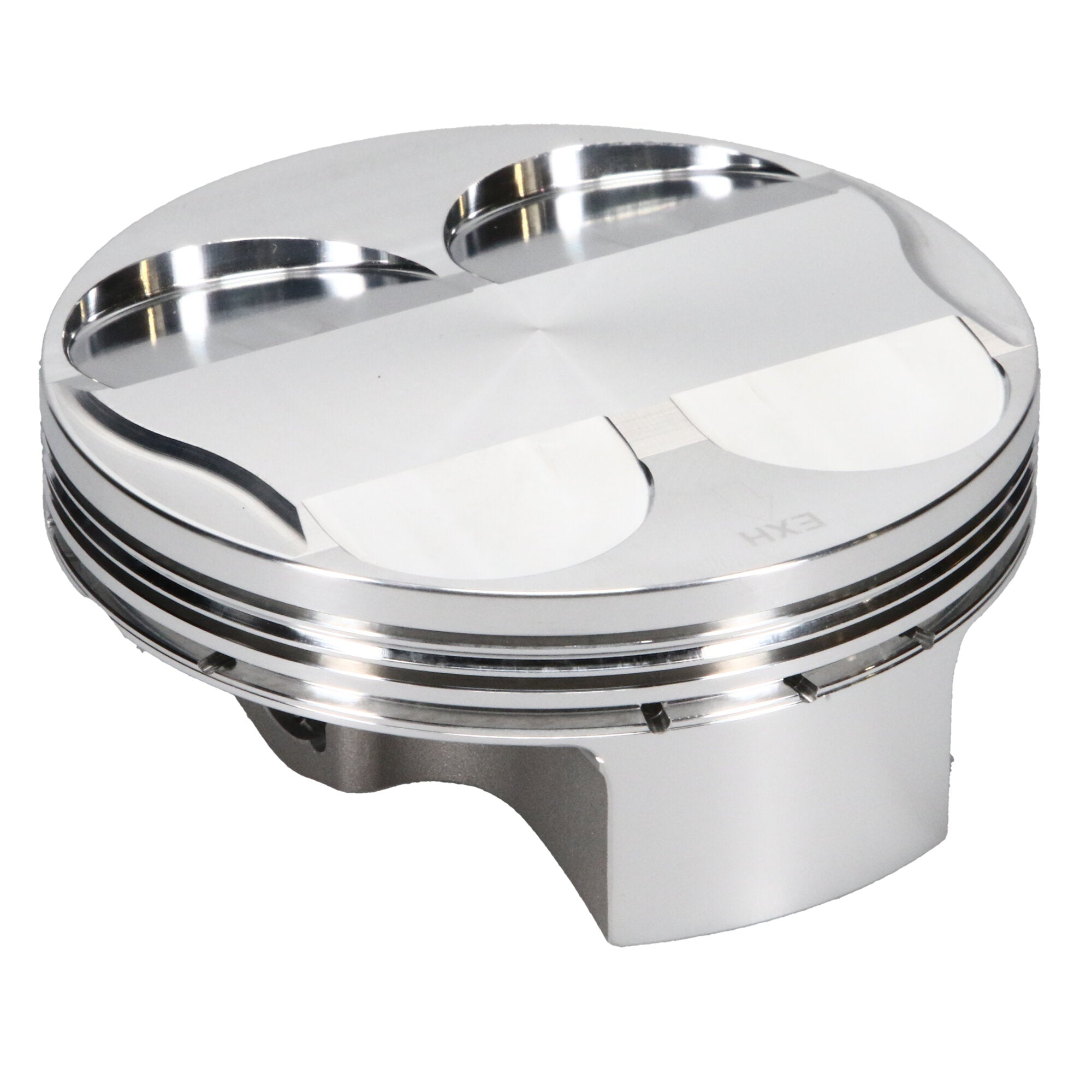

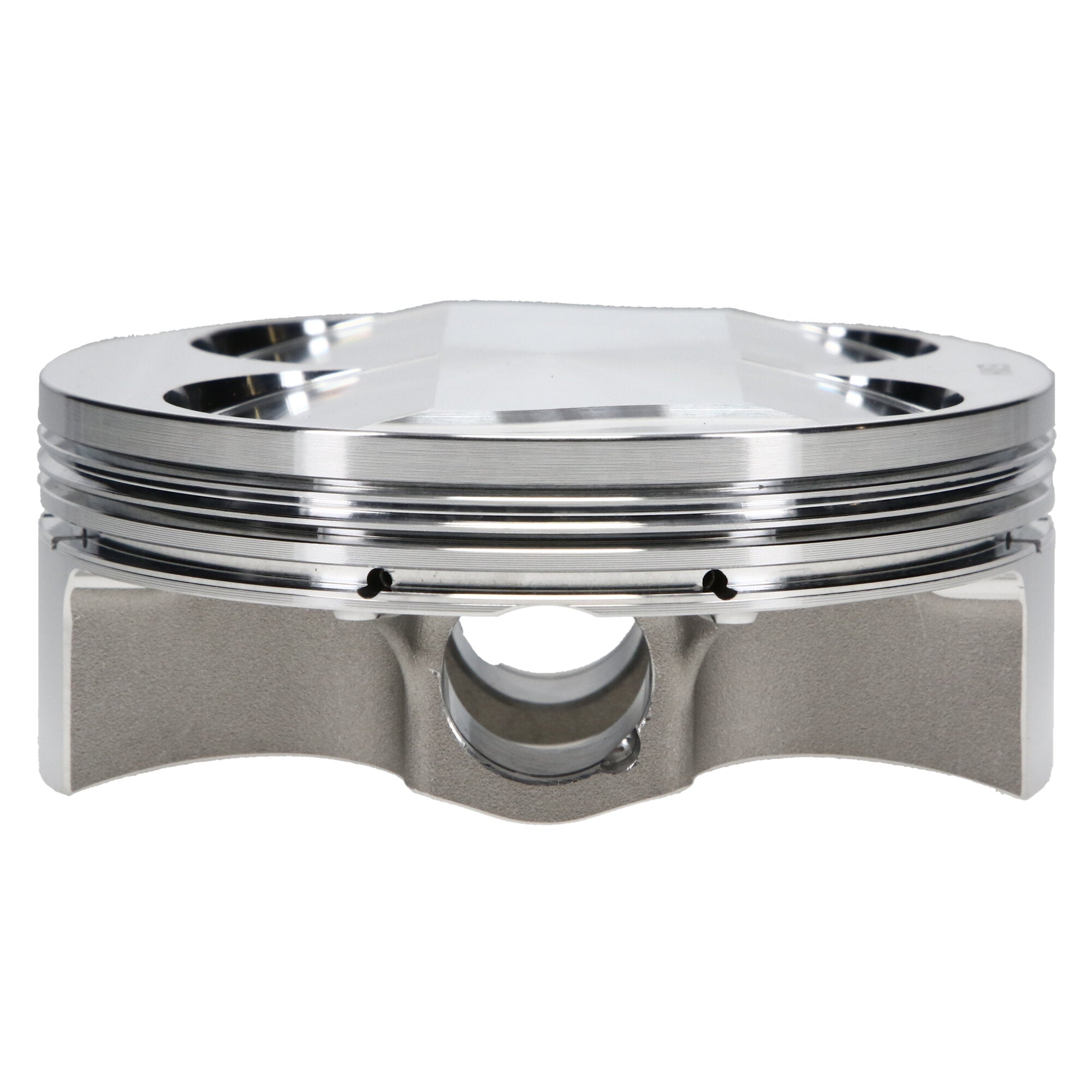

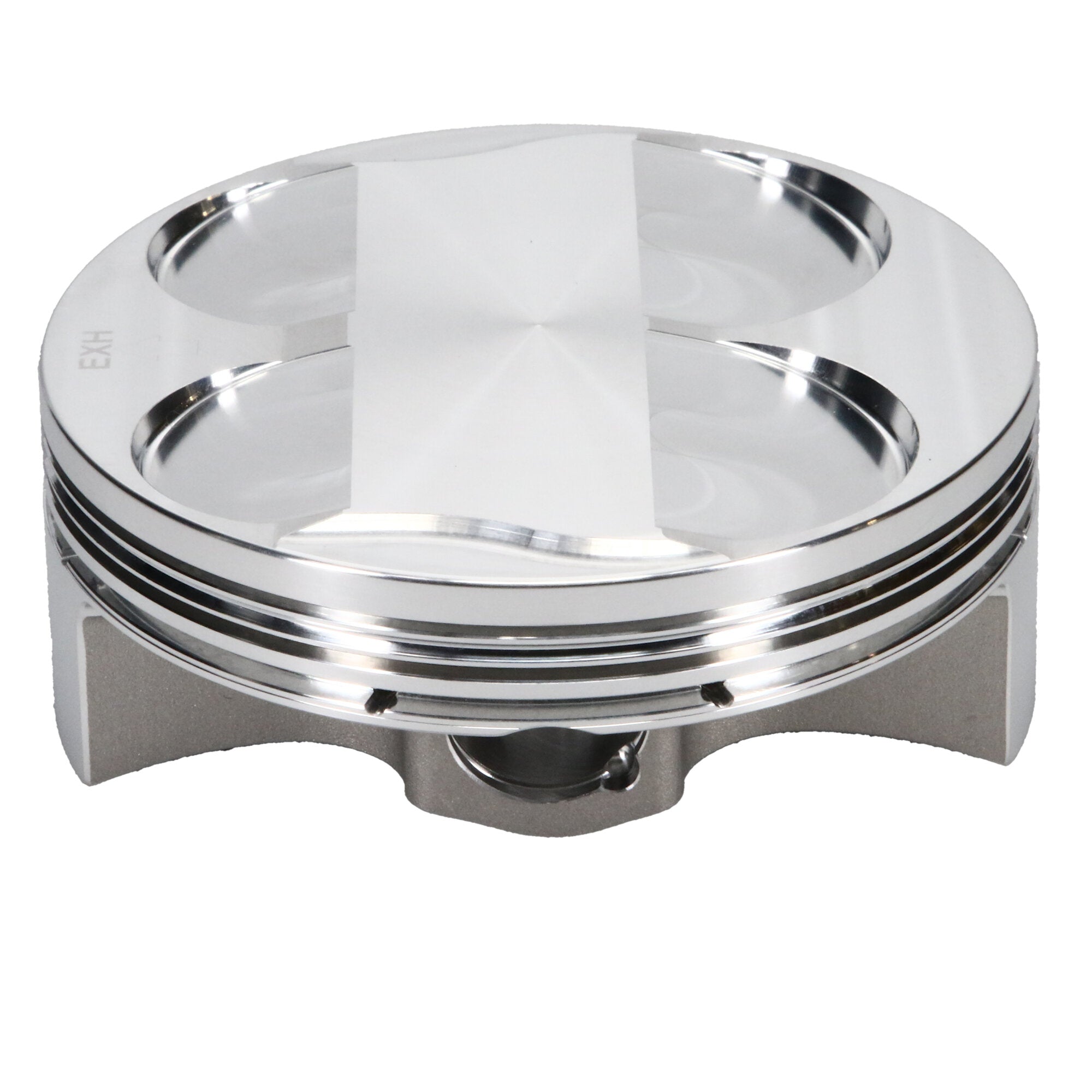

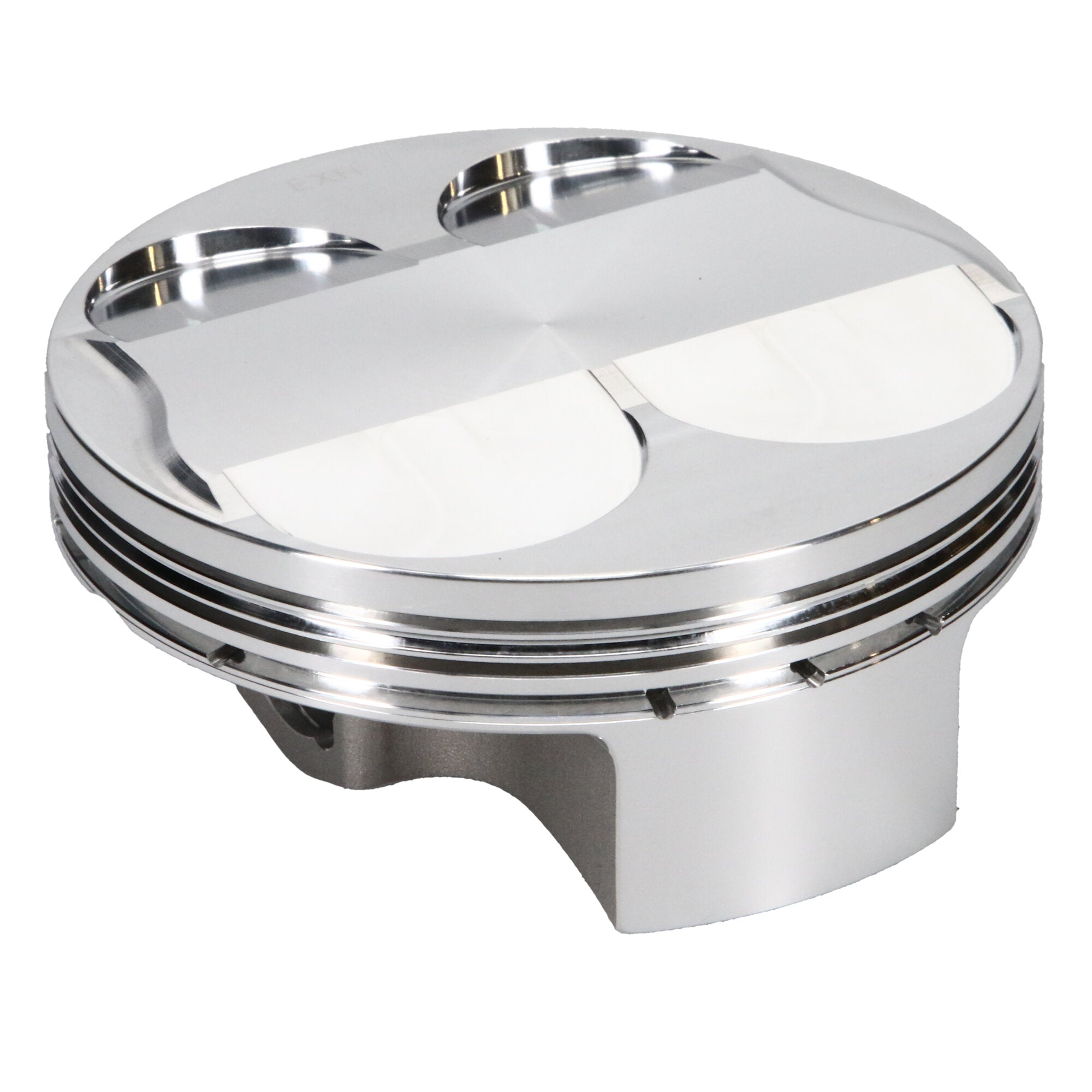

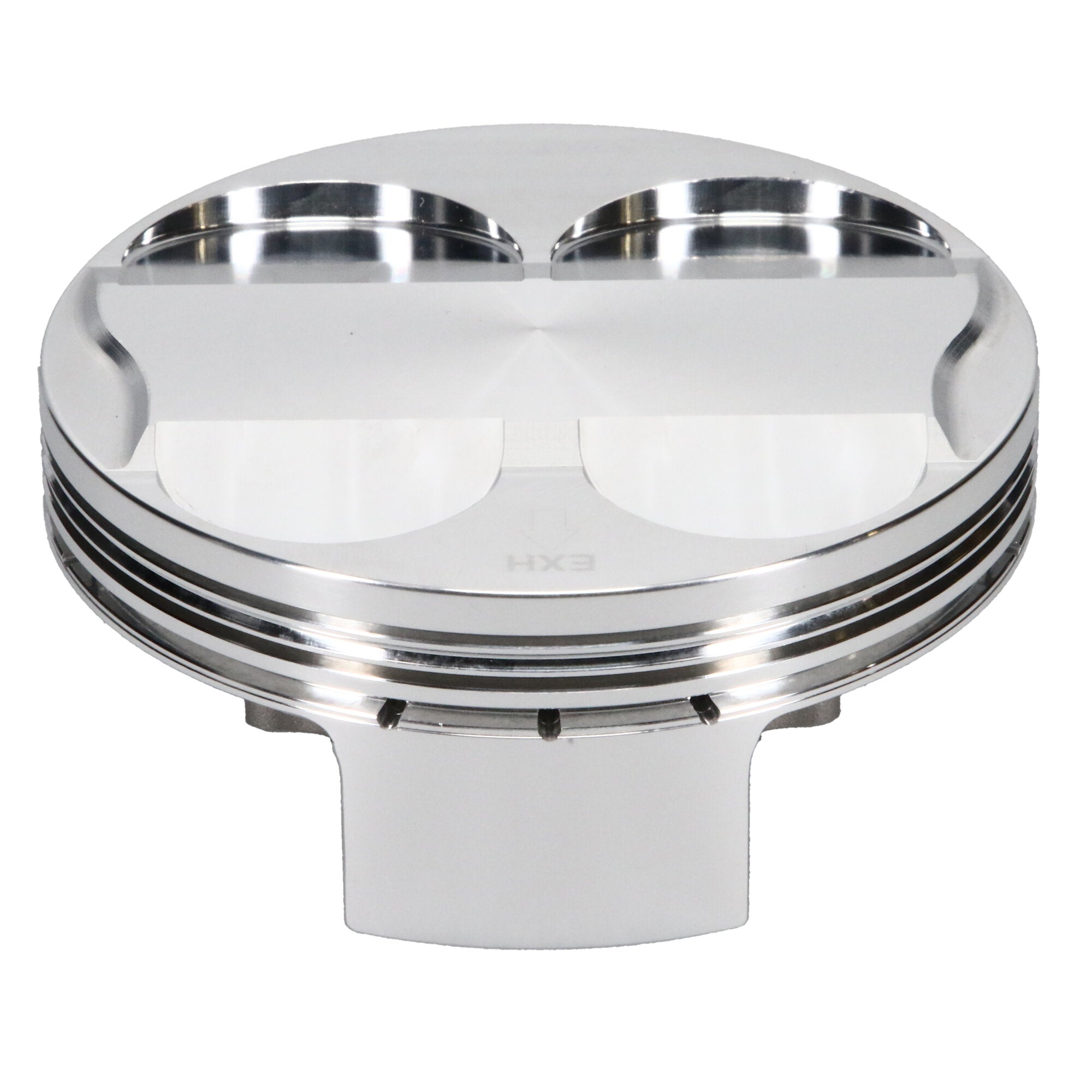

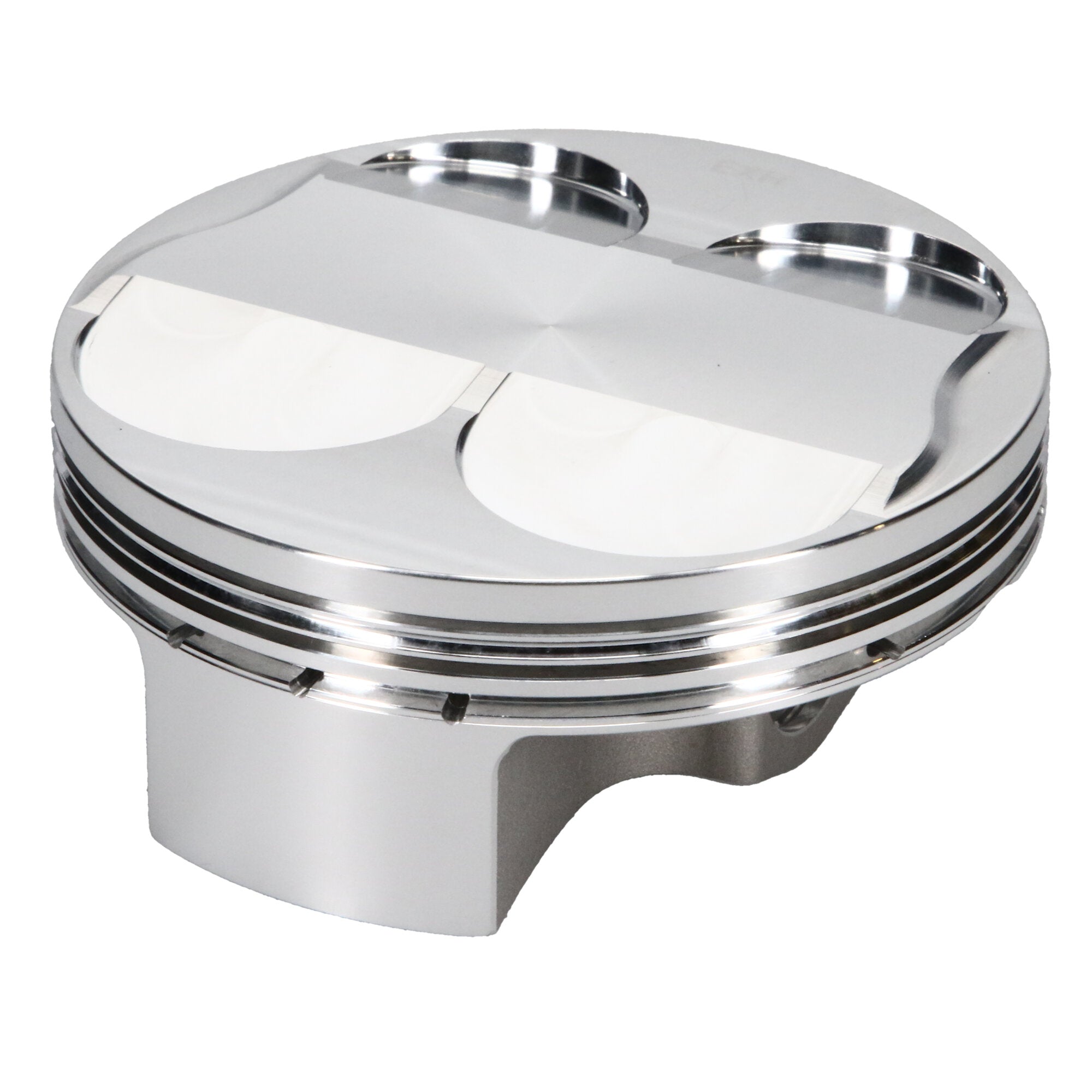

SUZUKI 06-13 LTR450, 06-09 LTR450Z; PRO-SERIES 3-RING |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.760 Bore, 0.965 CD, 0.748 Pin, Set of 1. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Suzuki, LTR450 / LTR450Z - Pro-Series - 3-Ring, 12.80:1, 95.40 mm Bore, 1 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of Pro Series pistons for powersports engines. Engineered, forged and machined 100% in the USA, JE Pro Series ATV pistons are designed for each specific engine and racing application with input from professional-level teams and racers. From motocross to dirt track and everything in between, JE Pistons? Pro Series are the ultimate forged piston choice for ATV competition. |
| Description_SHO |
Piston Kit |
| Description_TLE |
JE, Suzuki, 95.40 mm Bore, 1 Cyl. Kit |
| Product Market |
ATV |
| Bore Diameter |
95.50 |
| Category Hierarchy |
Powersports>Pistons>Pro Series |
| Category Hierarchy |
Powersports>Pistons>Piston Kits>ATV |
| Title |
JE, Suzuki, 95.40 mm Bore, 1 Cyl. Kit |
| Add-On |
748-2050-16-93C |
| Piston Average Weight |
282 |
| Add-On |
748-050-MW |
| Industry |
Powersports |
| Add-On |
JG8001-3760 |
| Top Compression Ring Thickness |
0.0383 |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Wrist Pin Length |
2.050 |
| Cylinder Head |
LTR 450 |
| Prop 65 (C, R or CR) |
CR |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.748 |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
0.80 |
| Compression Ratio Actual |
12.80:1 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.160 |
| Piston Series |
Pro Series |
| Forging Type |
FSR |
| Title - Web |
JE, Suzuki, 95.40 mm Bore, 1 Cyl. Kit |
| Engine Type |
ICE |

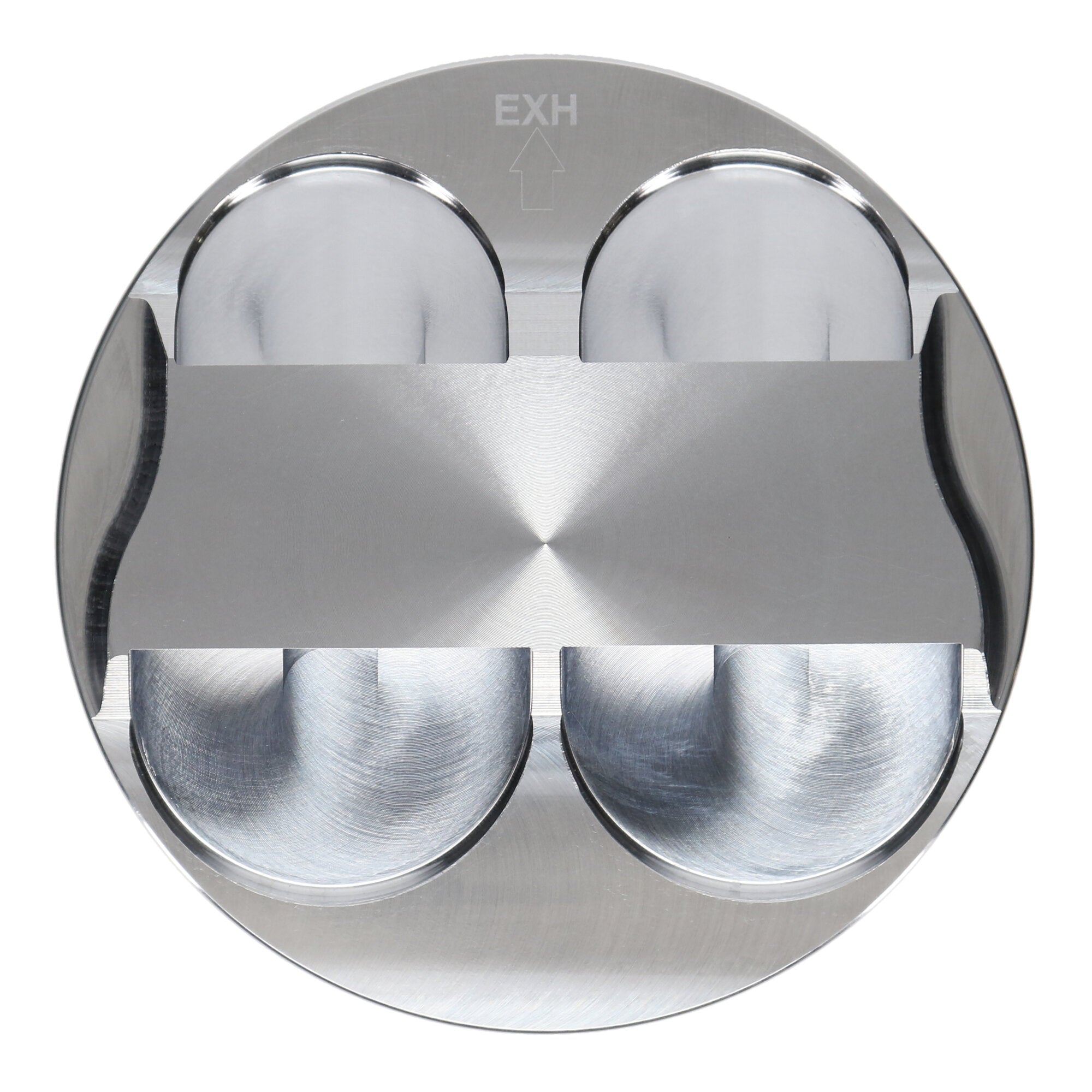

| Piston Head Type |
Dome |
| Oil Ring Thickness |
0.0795 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
