As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

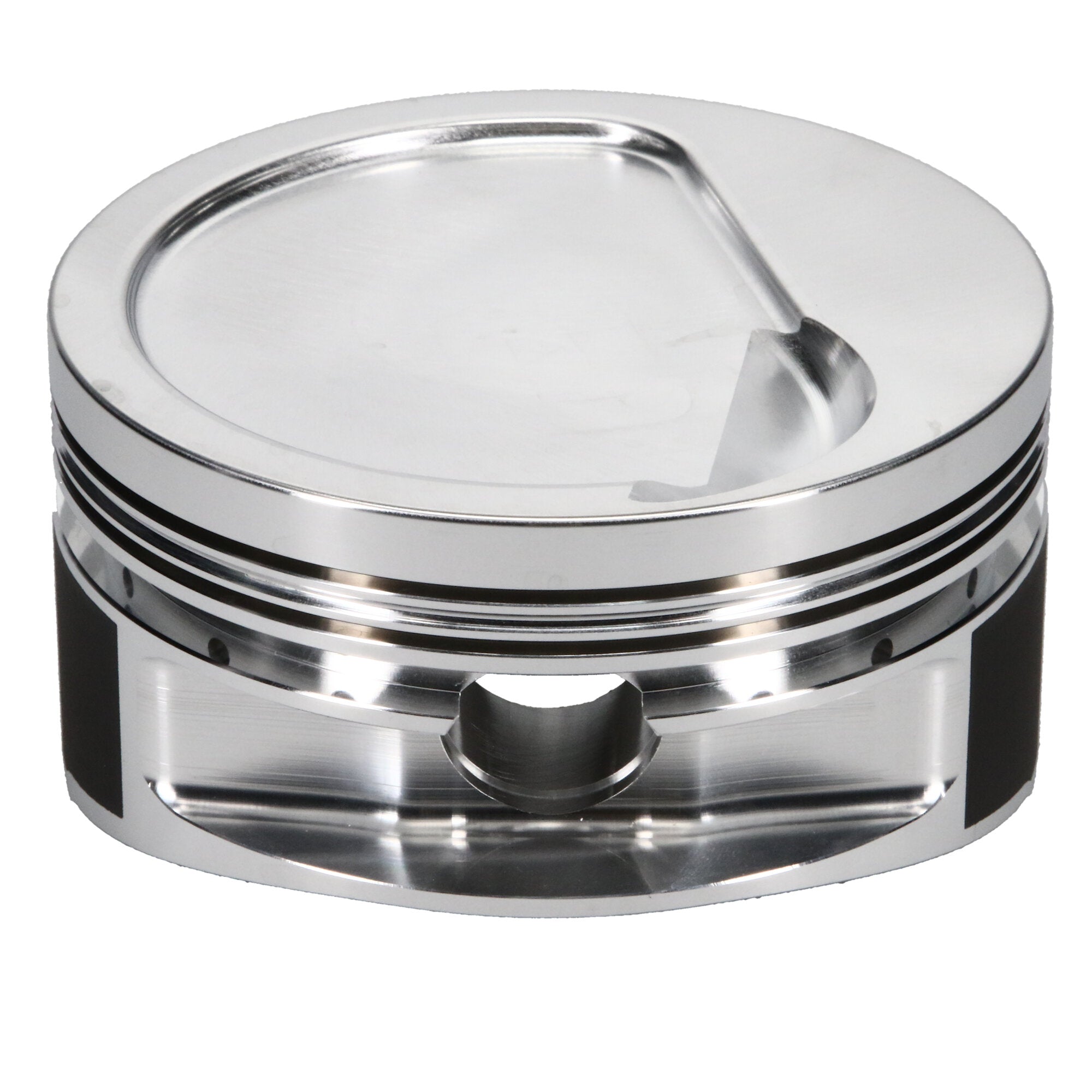

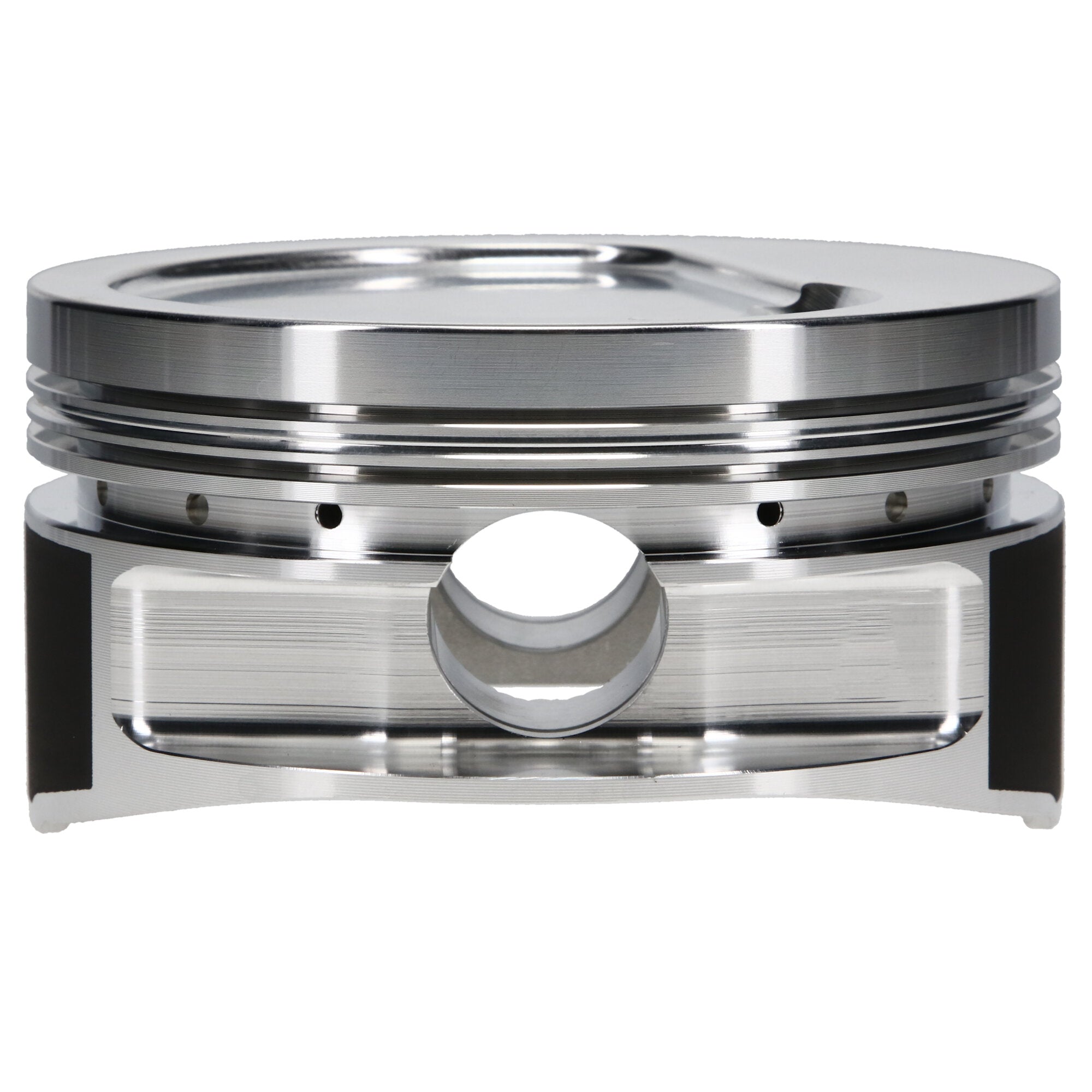

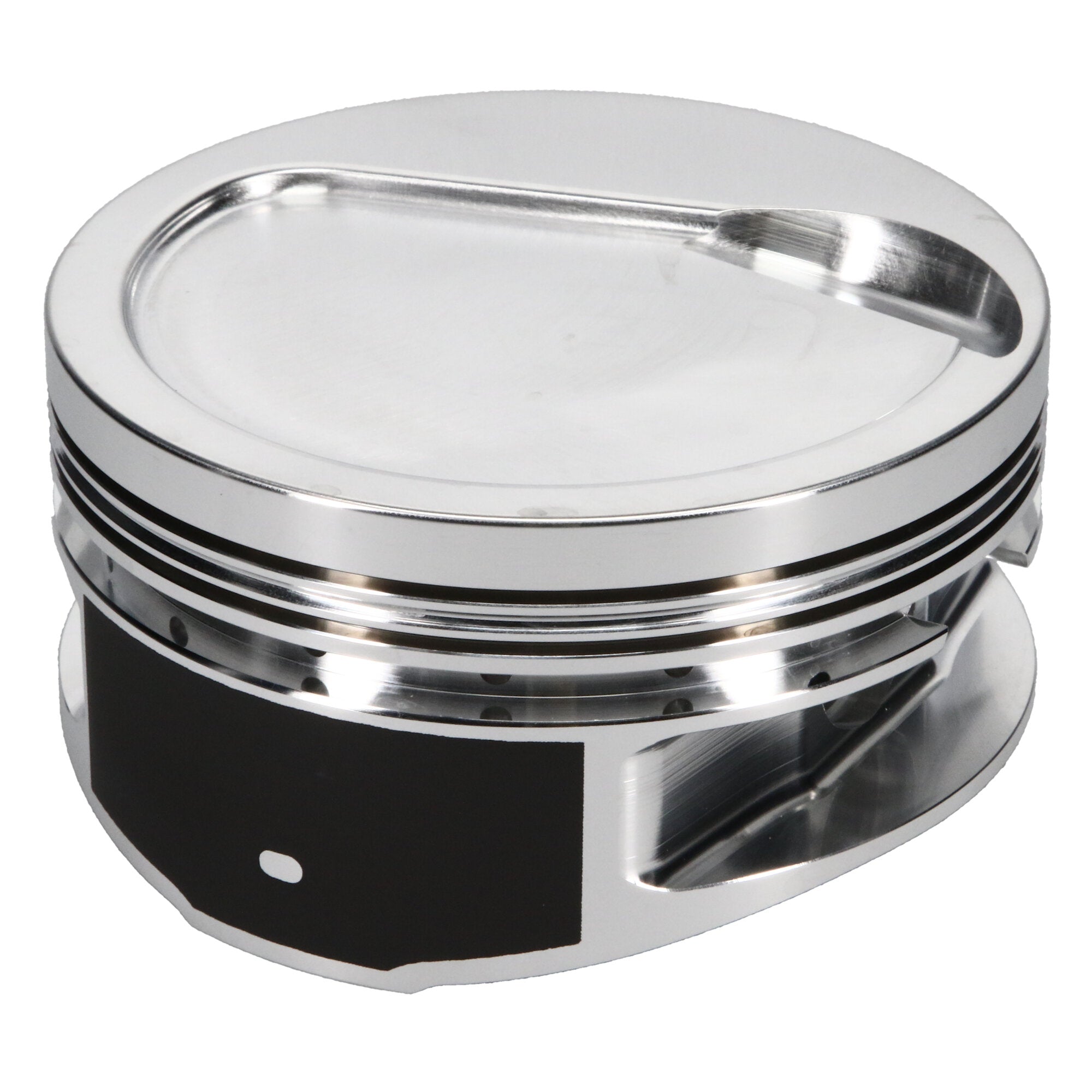

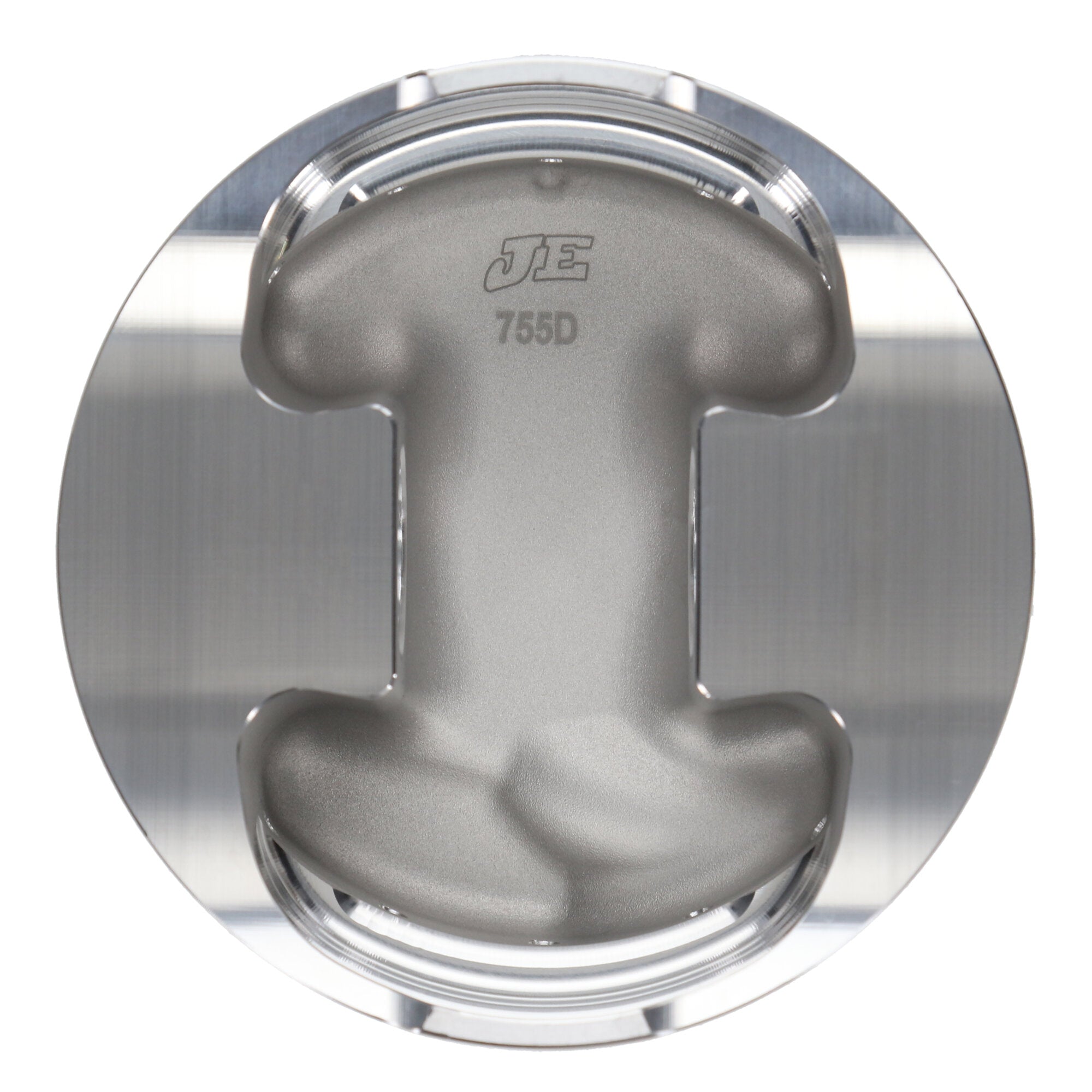

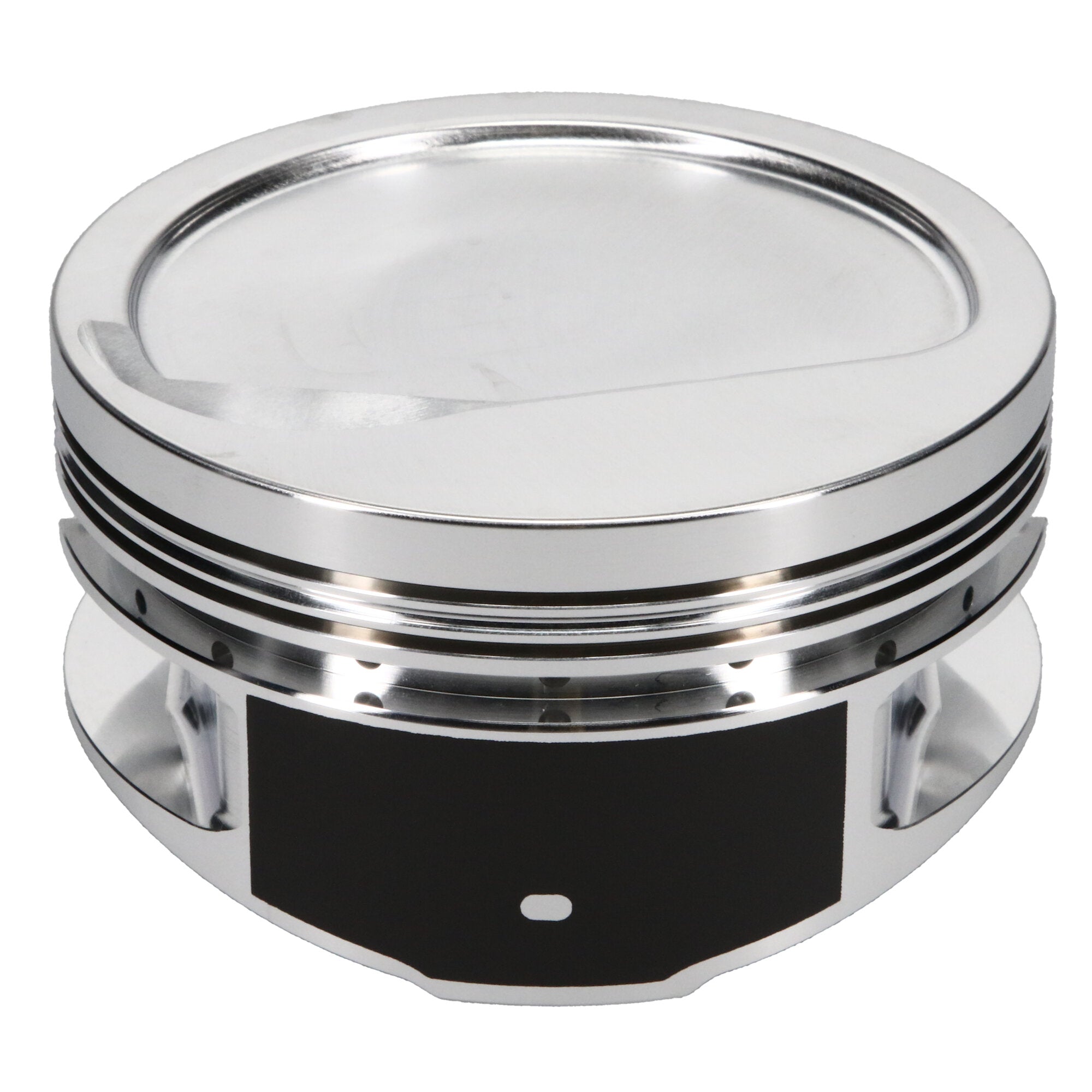

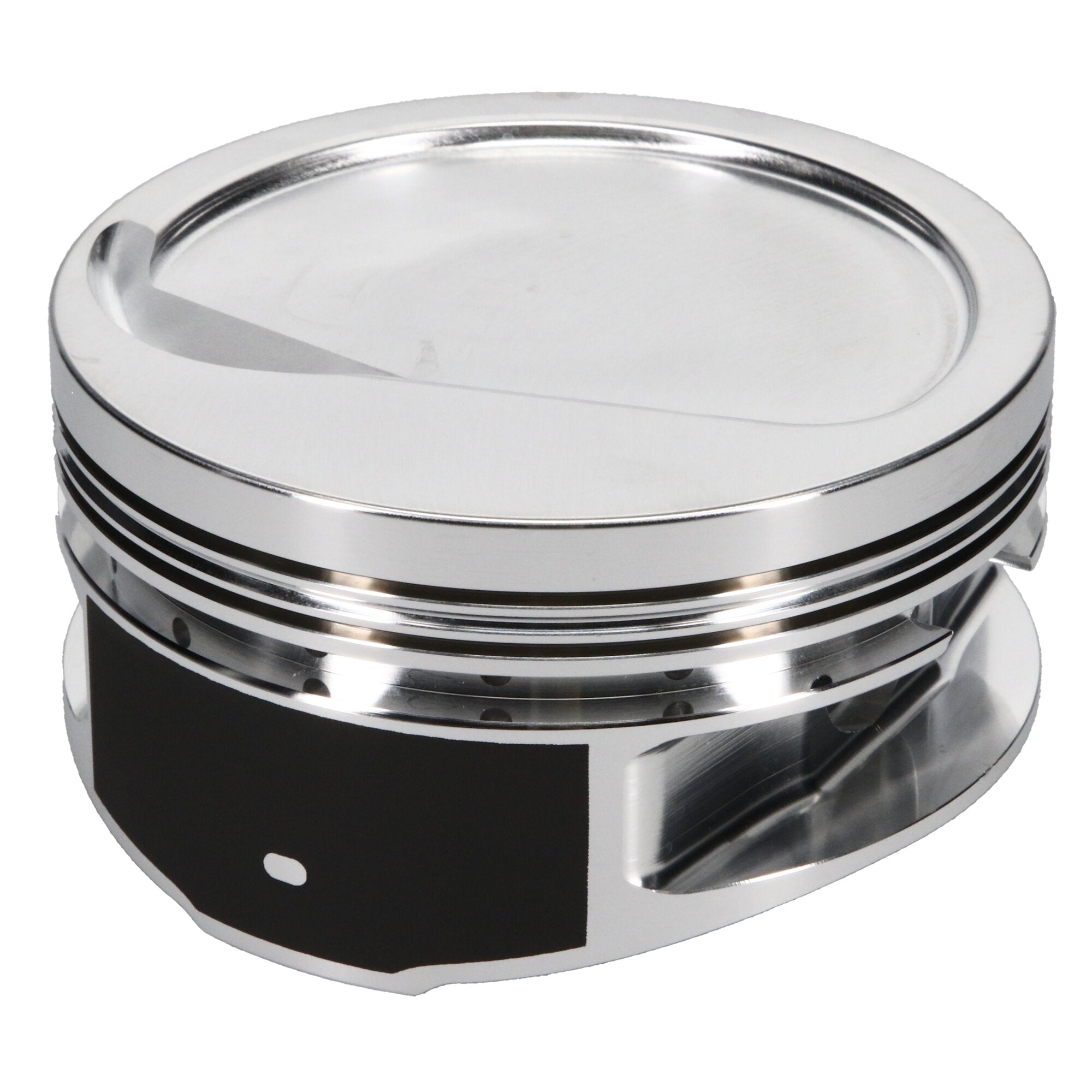

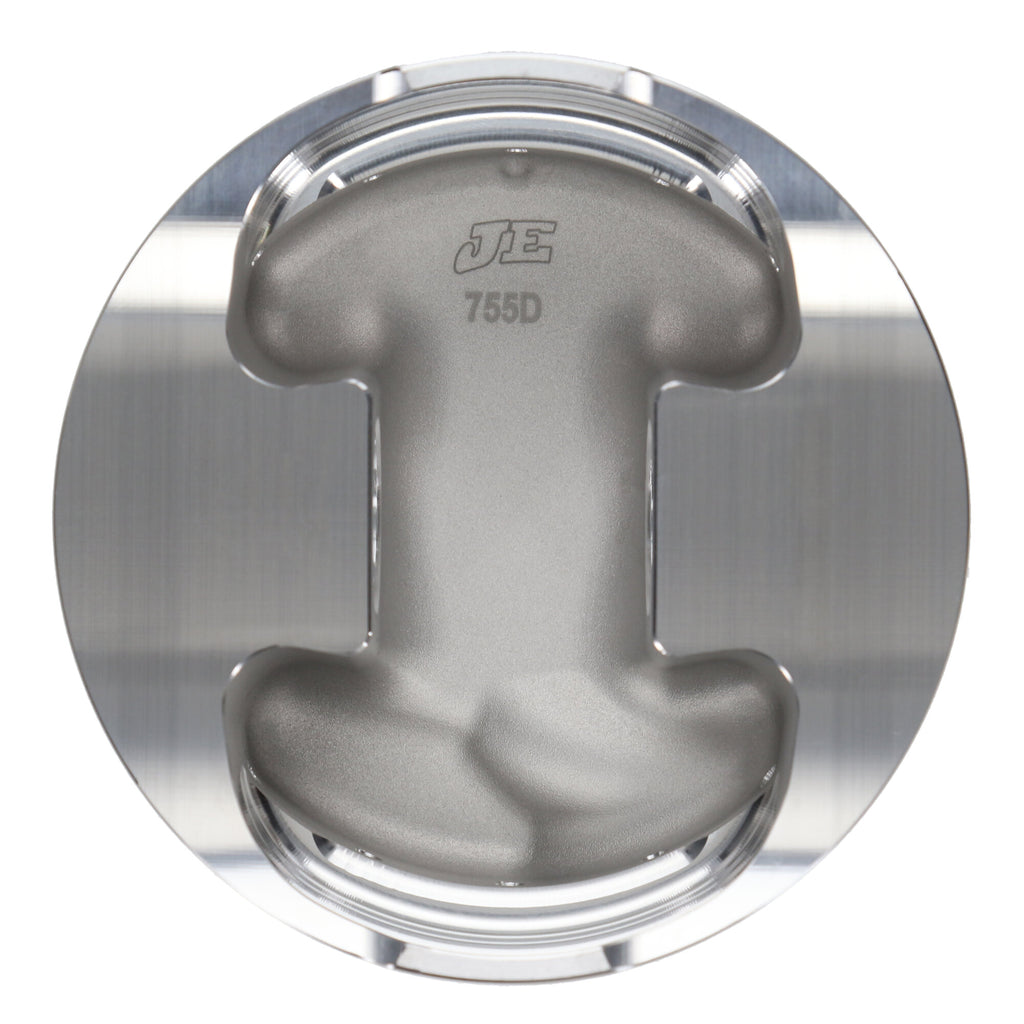

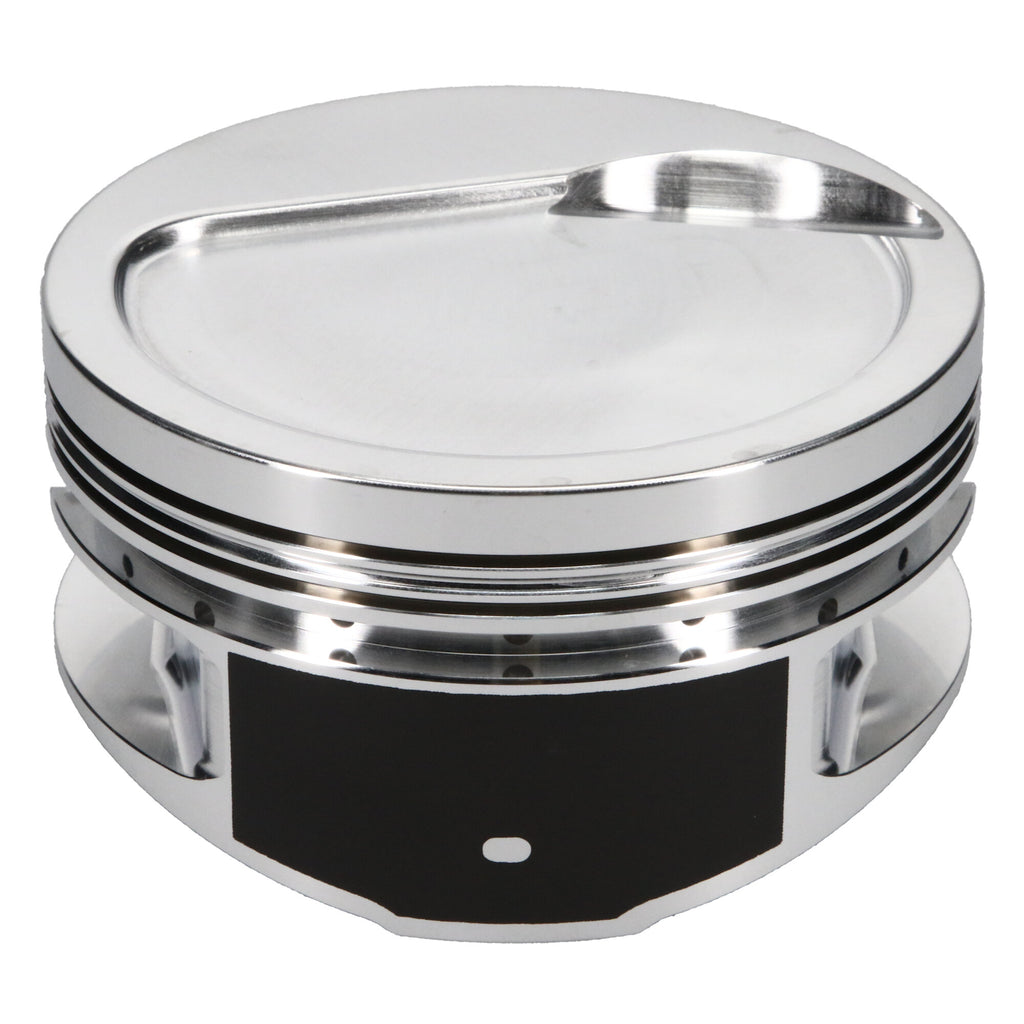

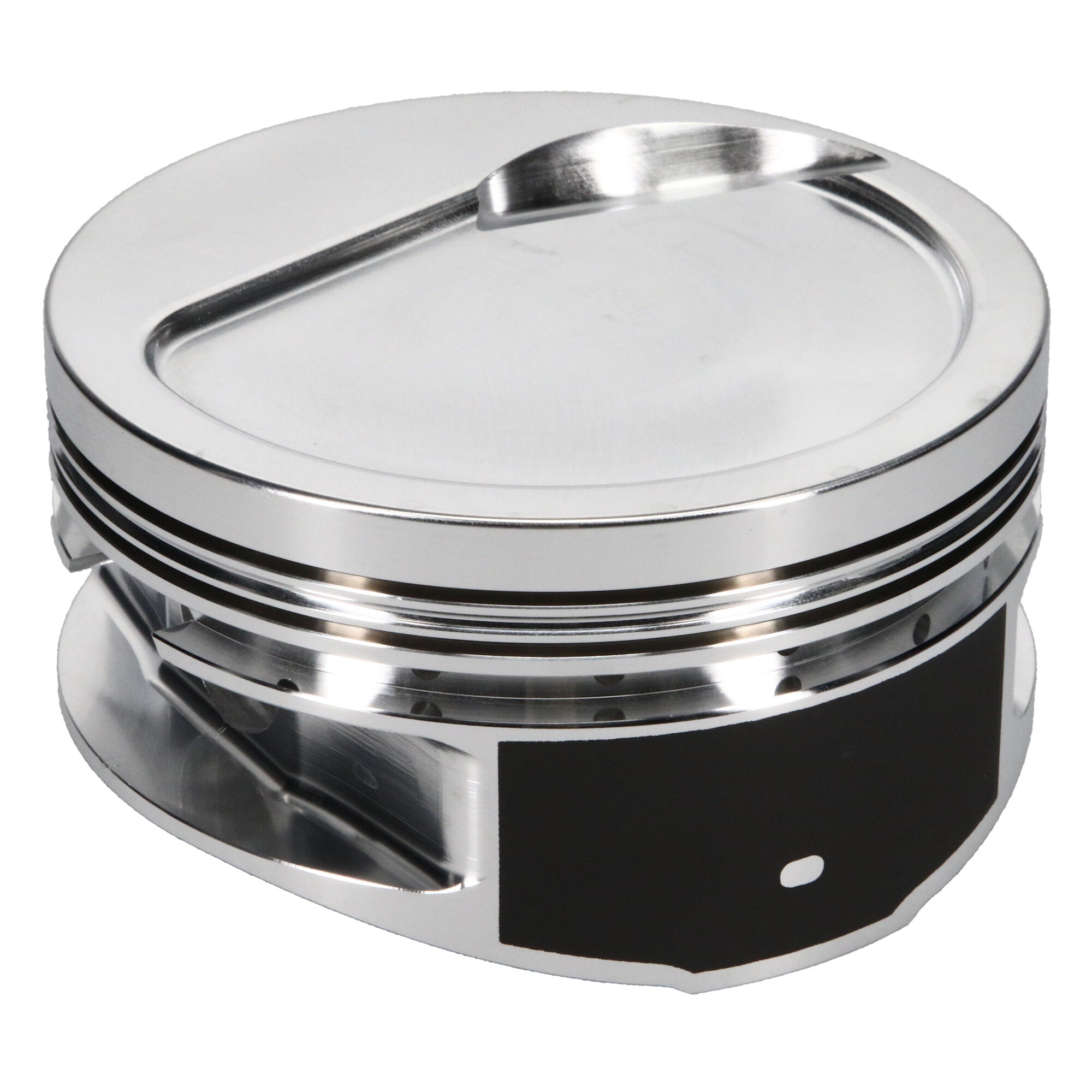

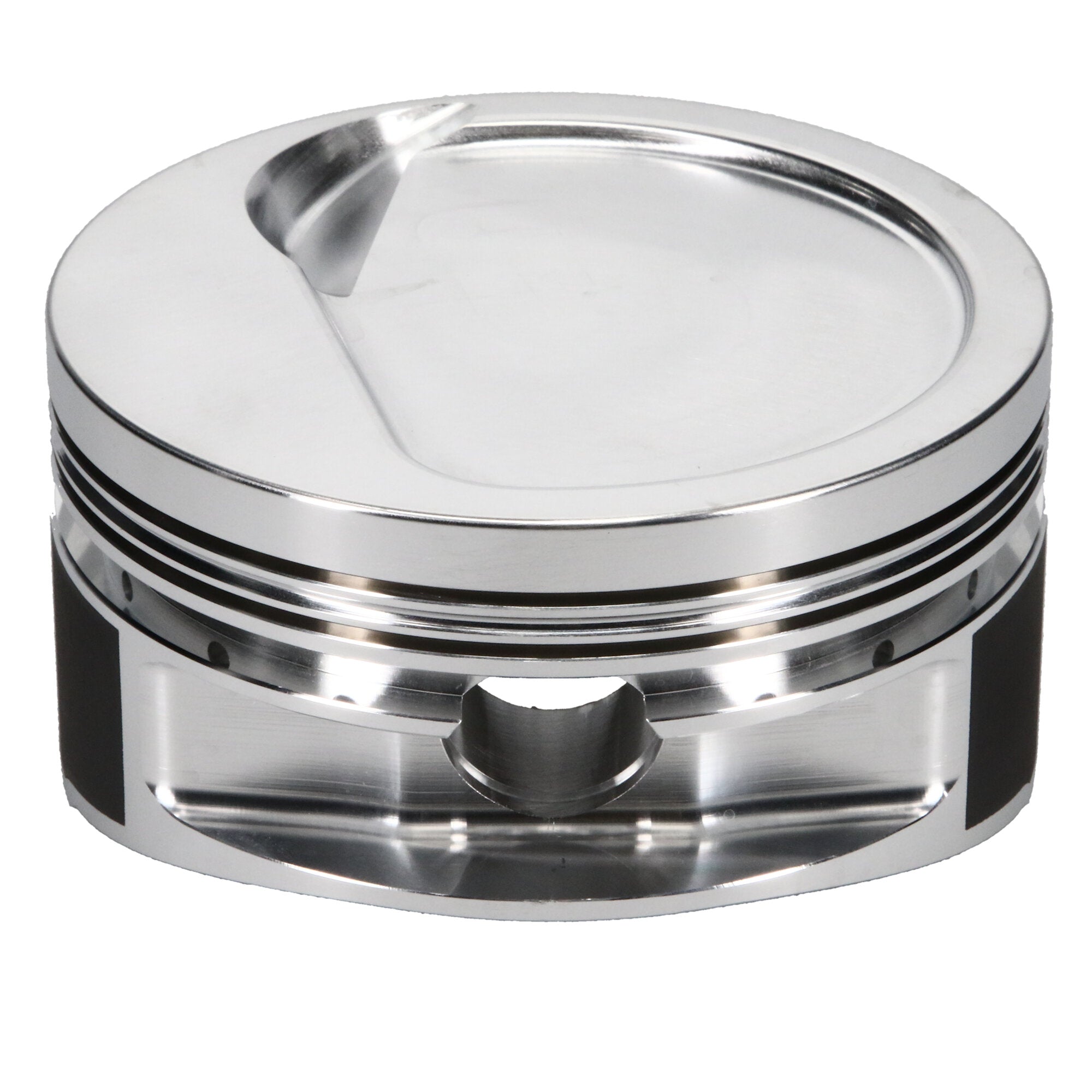

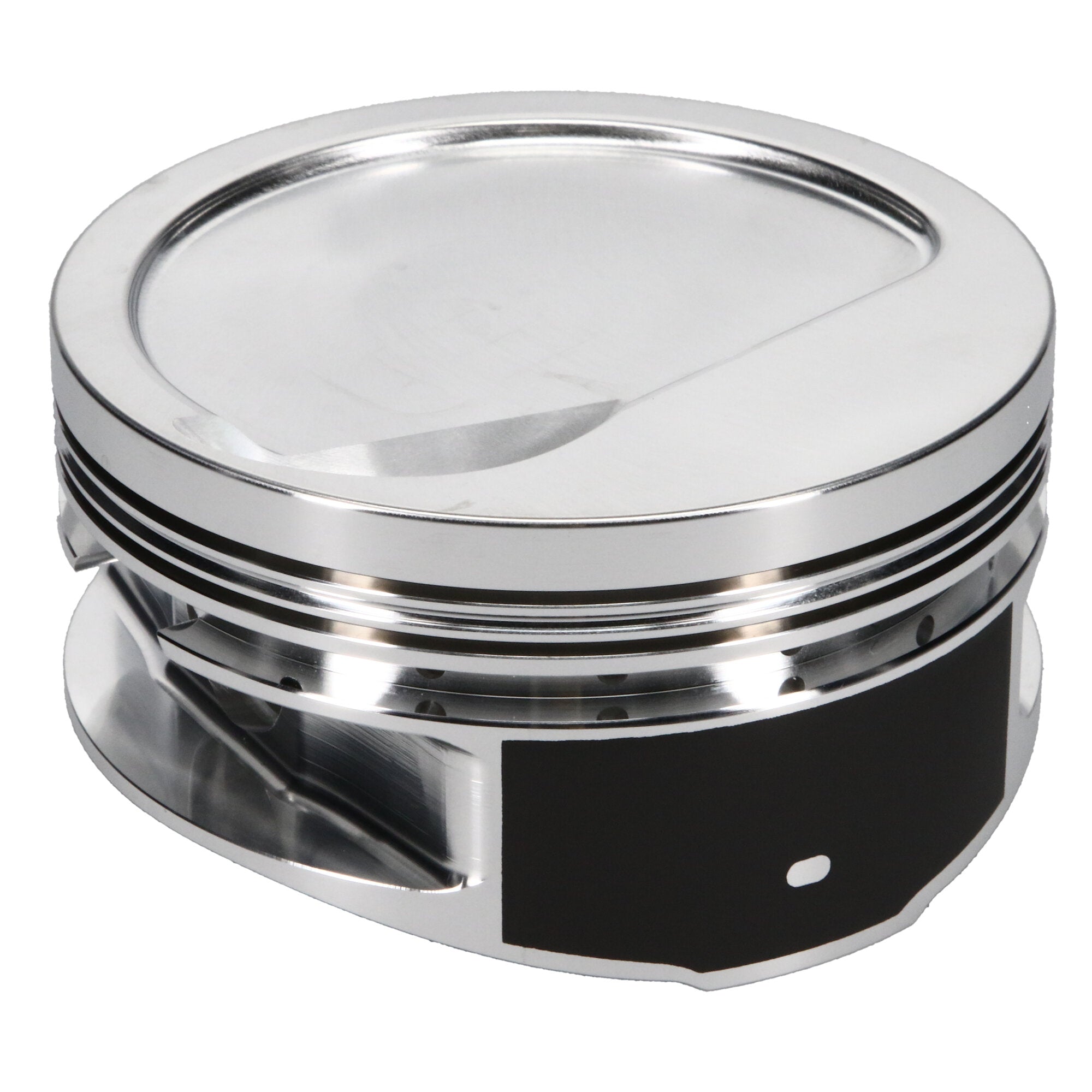

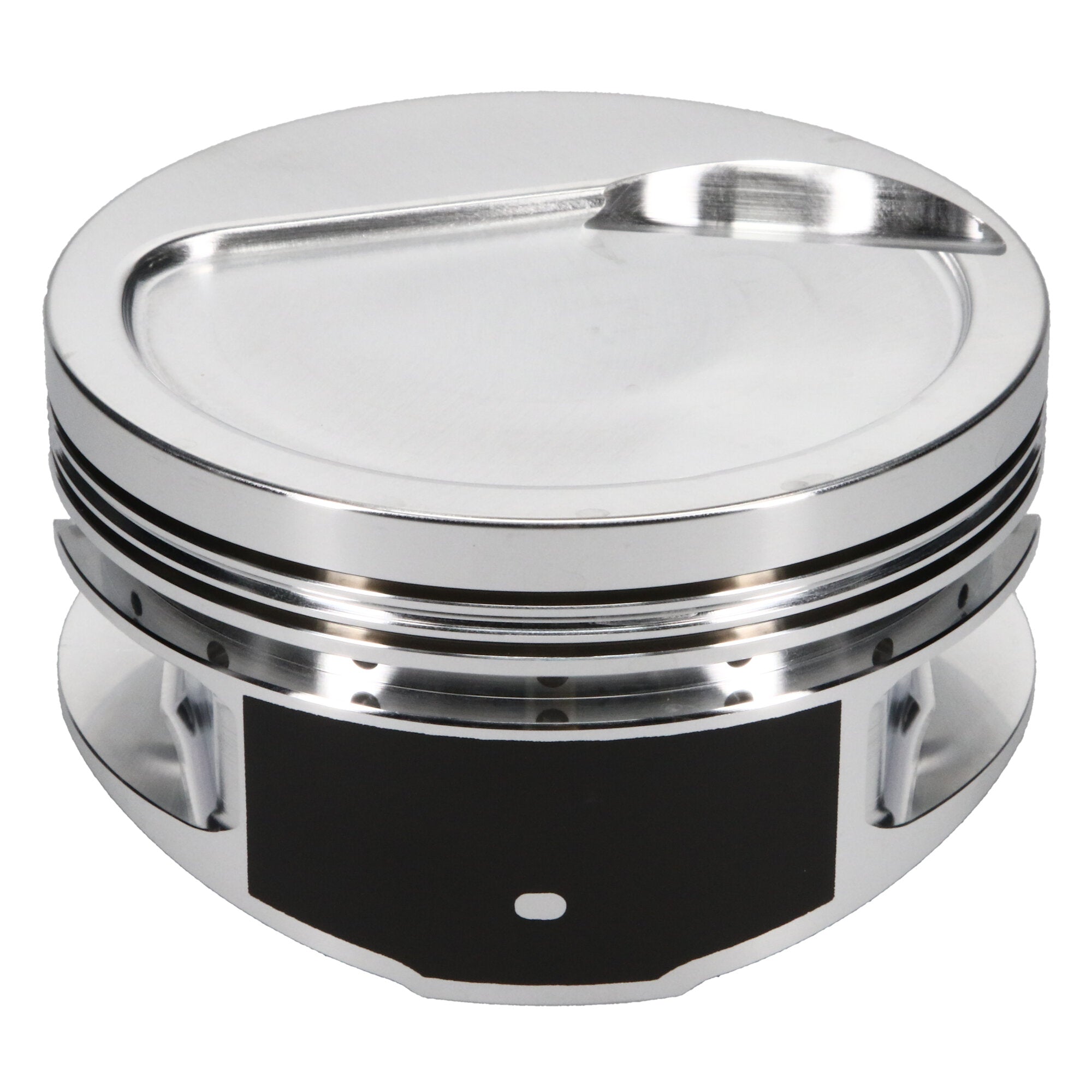

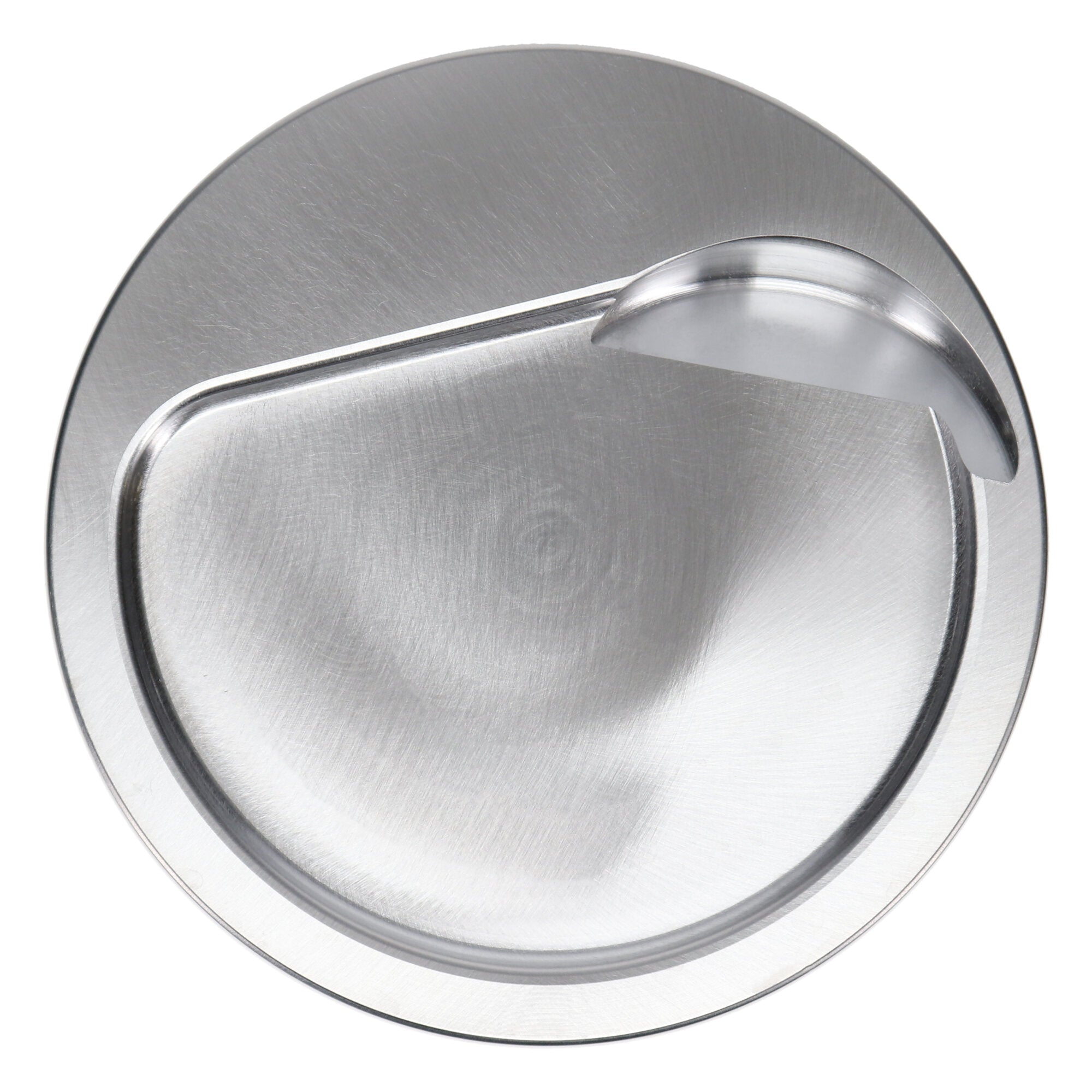

Piston Set, 2618, Inv Dome/Dish, 4.625 Bore, 1.395 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.625 in. Bore, 1.395 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 454, 4.625 Bore, Dish, Set of 8 |
| Make - Web |
Chevrolet |
| Piston Pin Length |
2.930 |
| Engine |
Big Block |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.180 |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Wrist Pin Wall Thickness |
0.180 |
| Piston Volume |
-28.00 |
| Make |
CHEVROLET |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.625 in. Bore - 1.395 in. CH, -28.00 CC |
| Second Compression Ring Thickness |
0.0640 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.625 in. Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Add-On |
990-042-CS |
| Add-On |
990-2930-18-51S |
| Product Market |
Domestic |
| Add-On |
J100F8-4625-5 |
| Top Compression Ring Thickness |
0.0640 |
| Bore Diameter |
4.625 |
| Cylinder Head |
OPEN CHAMBER |
| Industry |
Automotive |
| Compression Height |
1.395 |
| Piston Average Weight |
634 |
| Oil Ring Thickness |
0.188 |
| Product Type |
Engine Piston Kit |
| Forging Type |
Round |
| Engine - Web |
Big Block |
| Piston Material |
2618 |
| Piston Quantity |
8 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Outside Diameter |
0.990 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
