As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

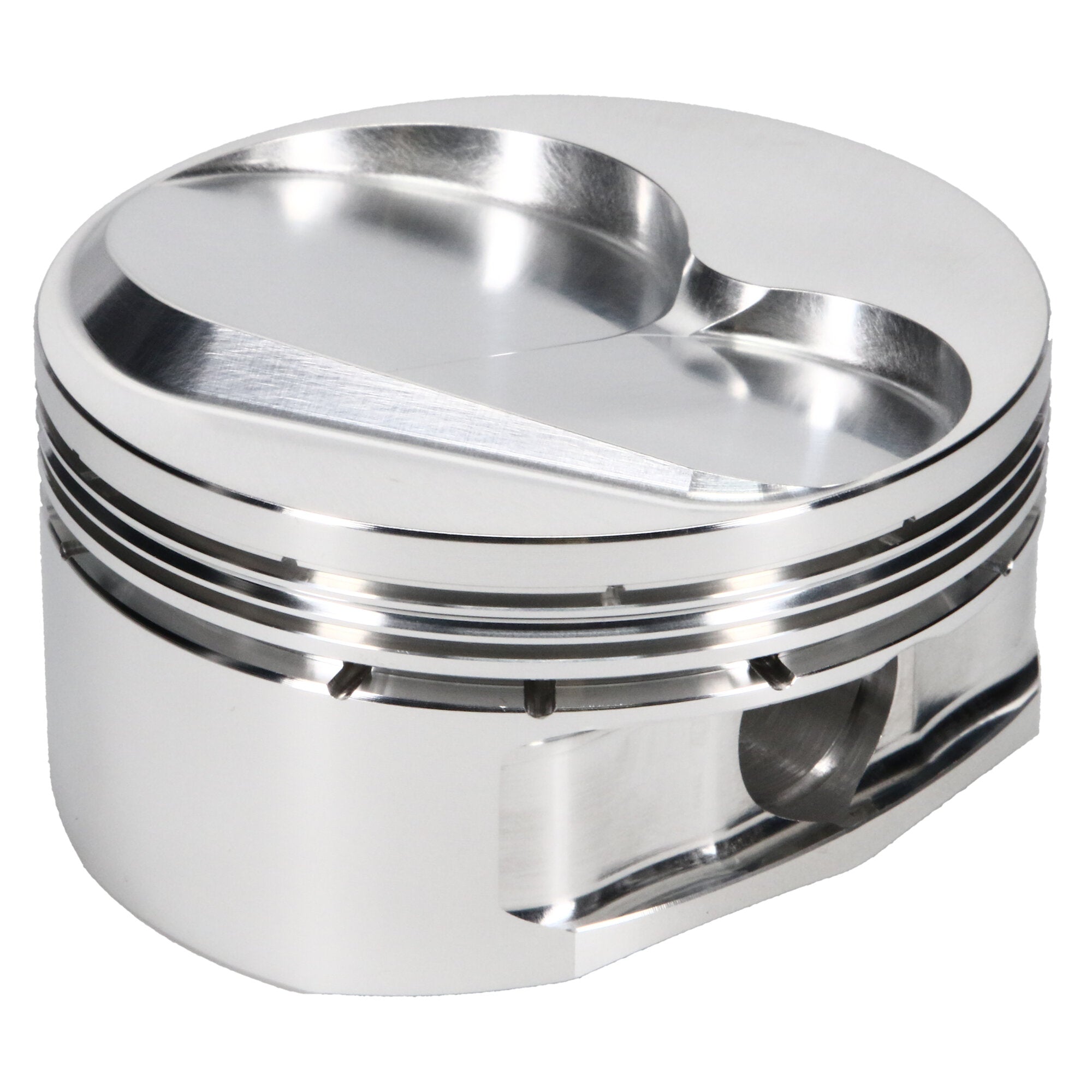

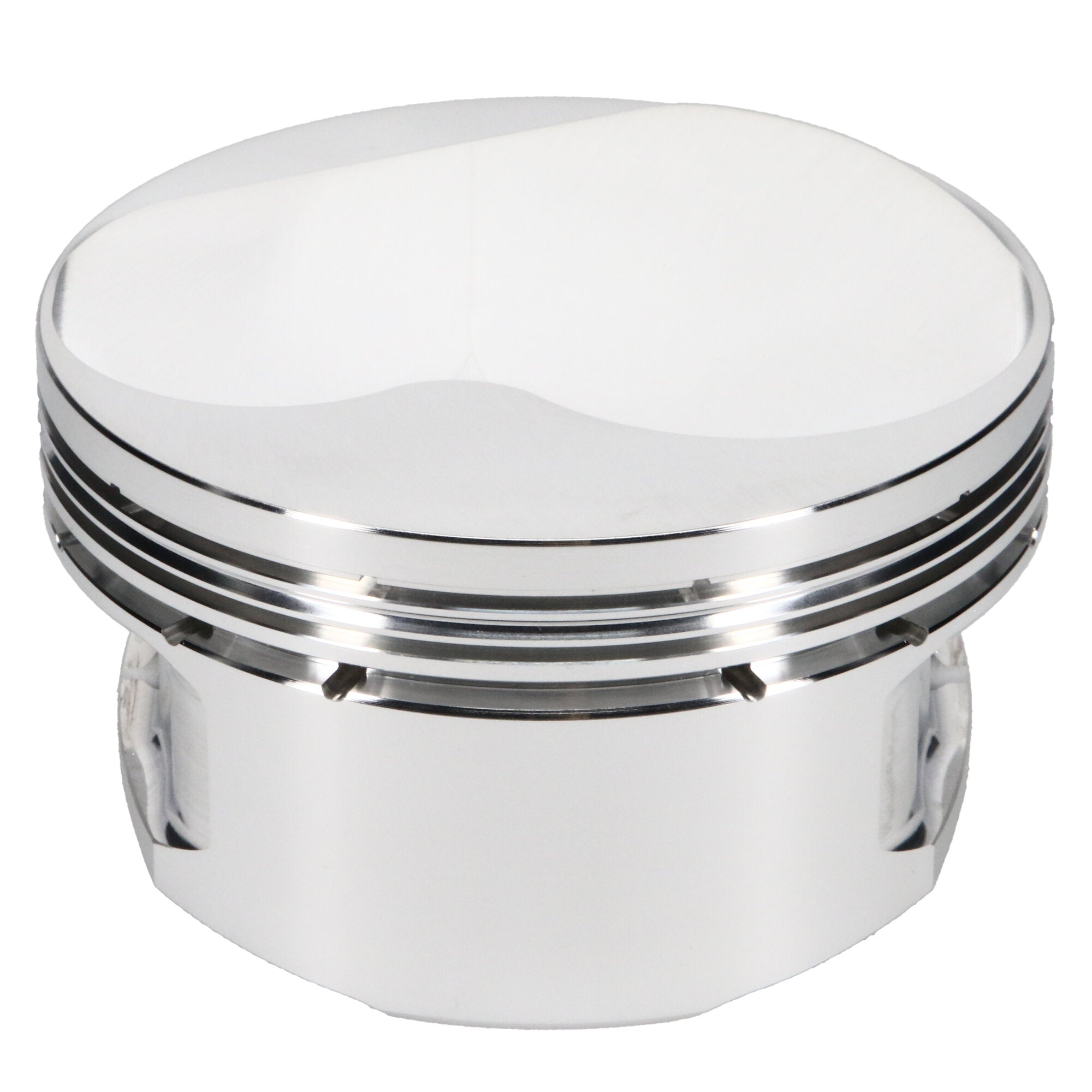

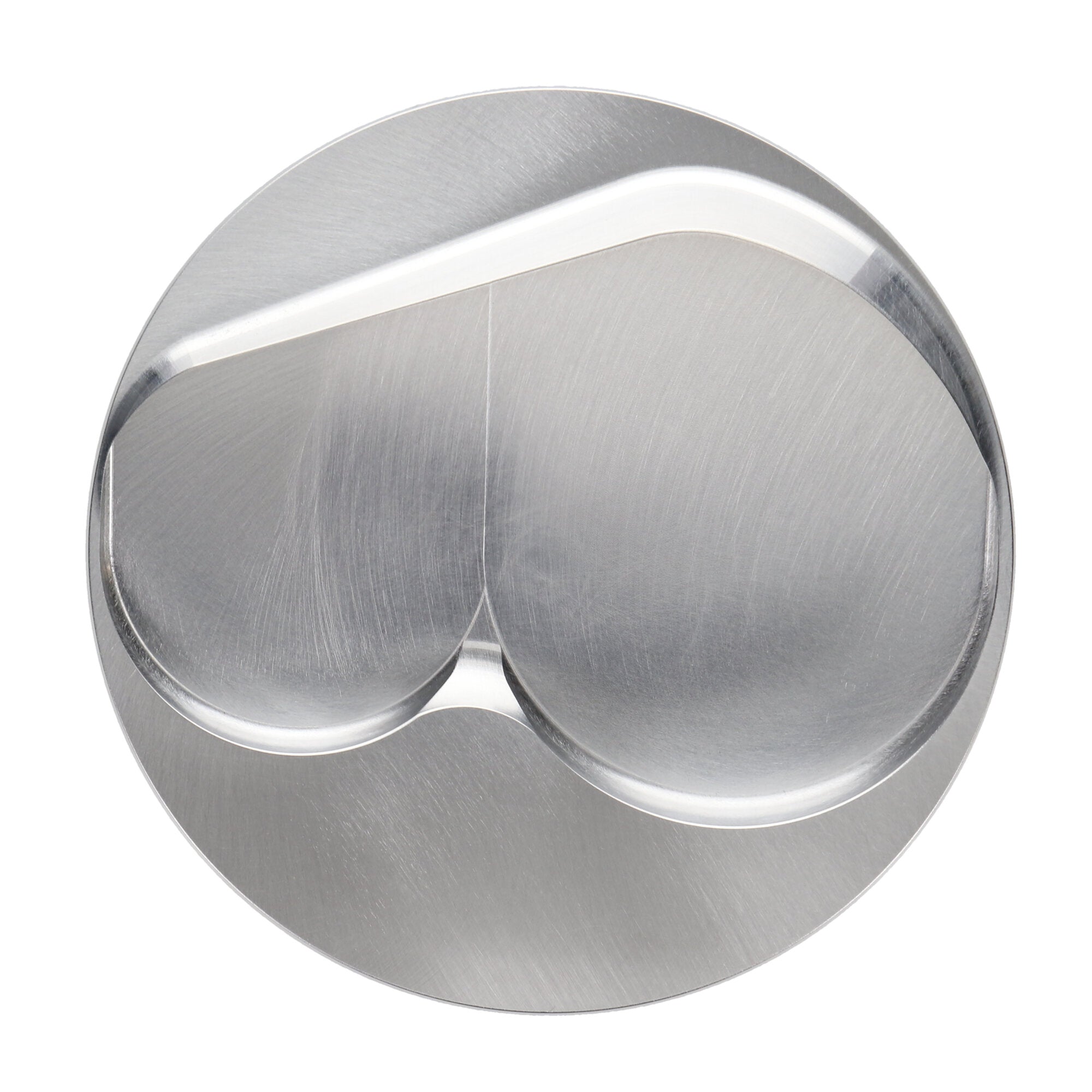

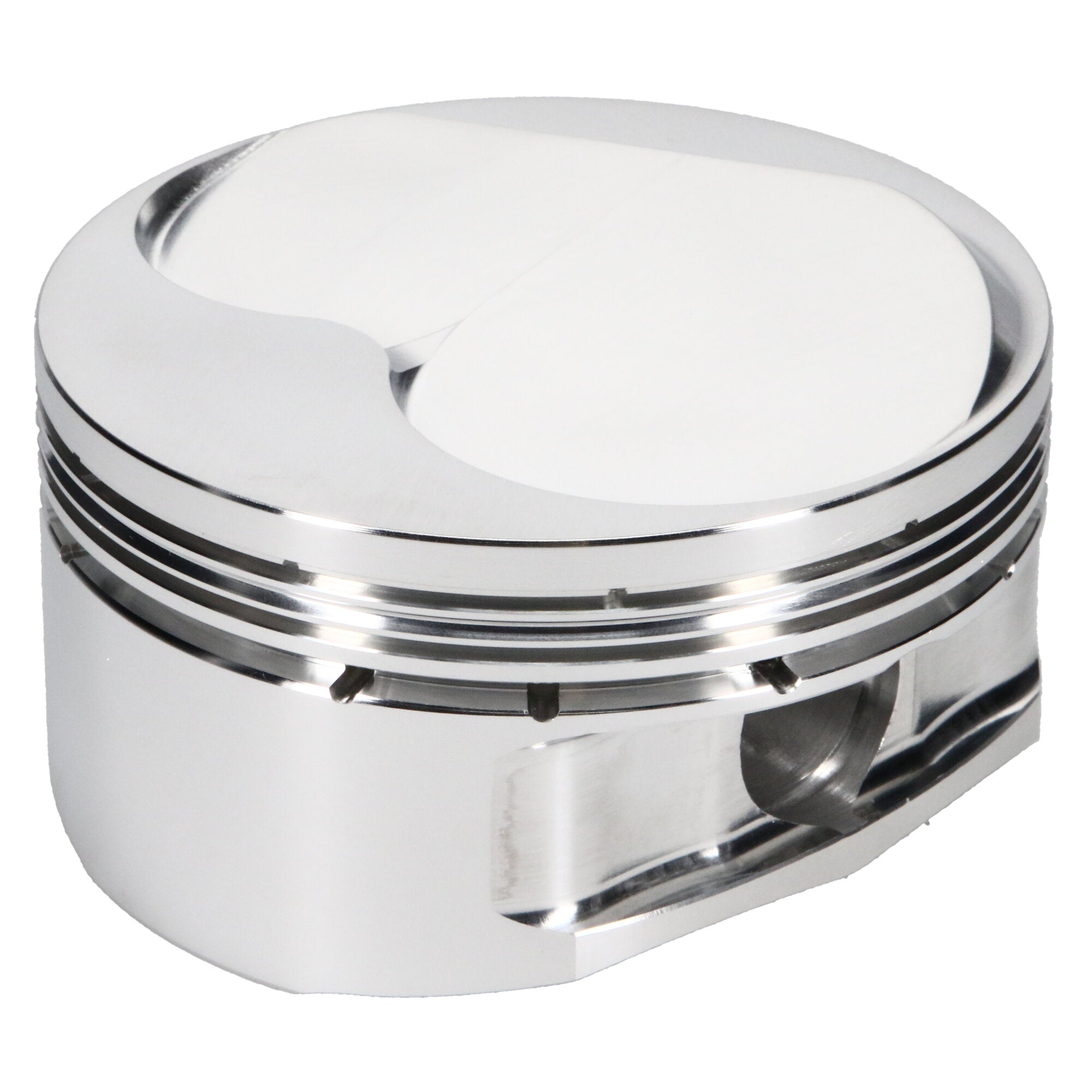

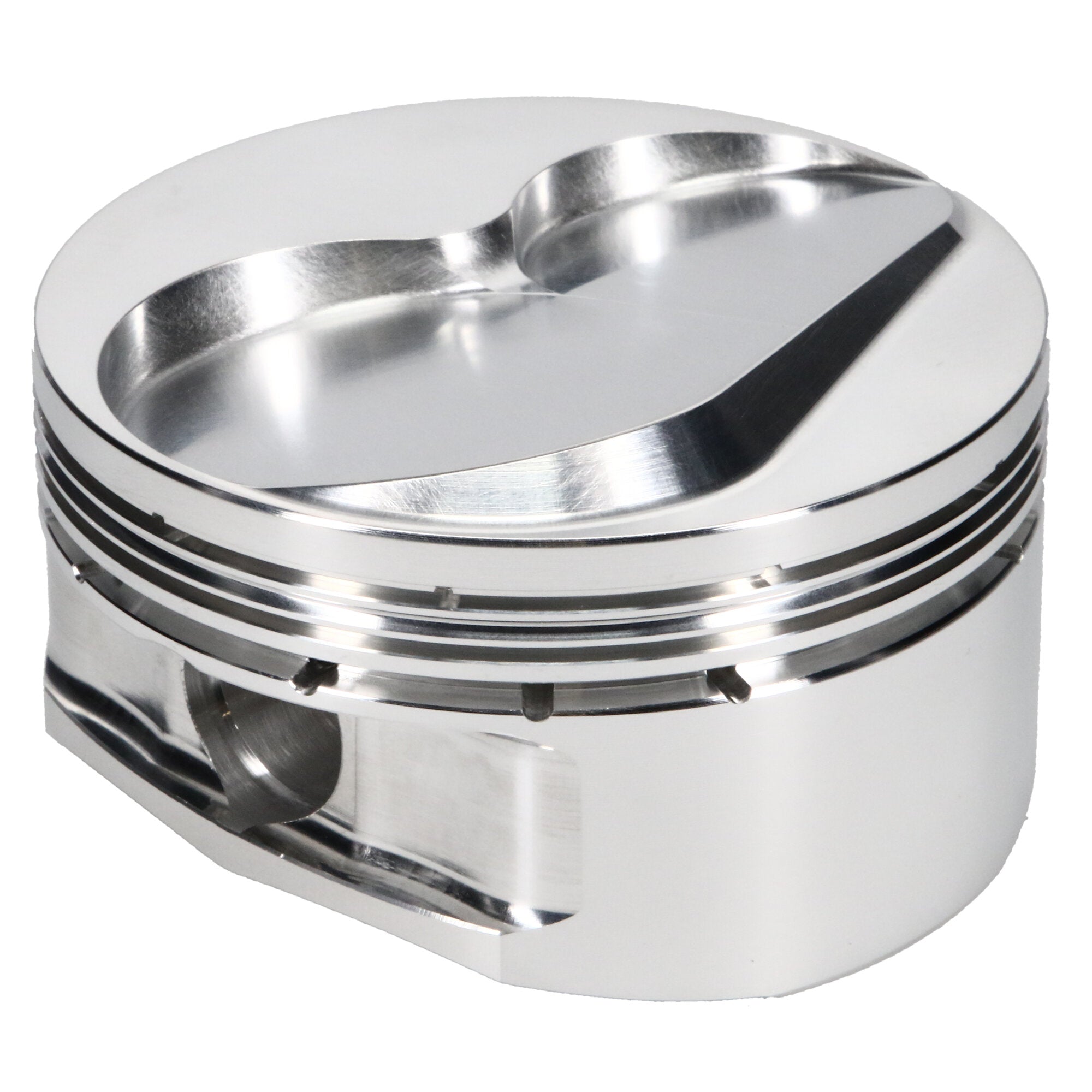

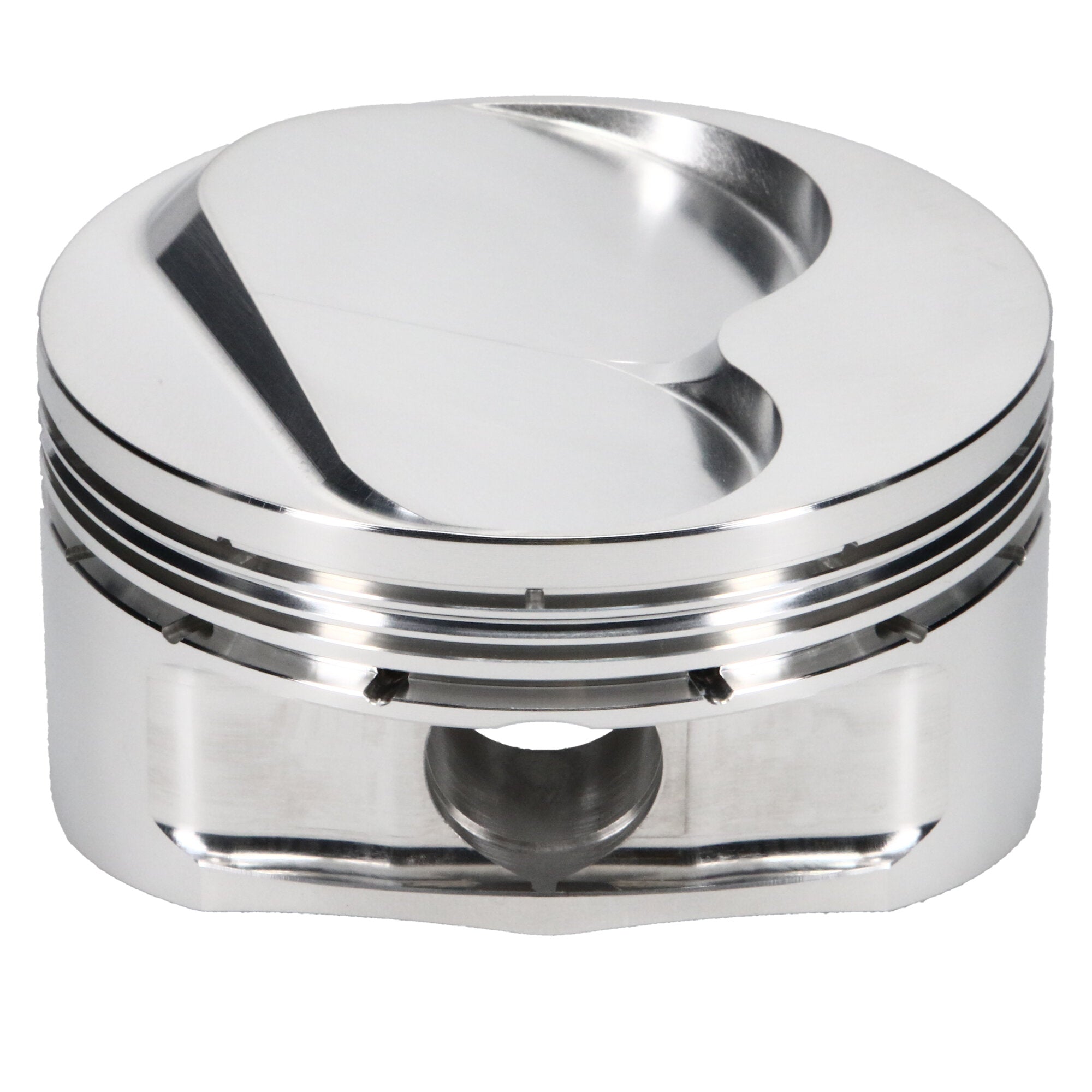

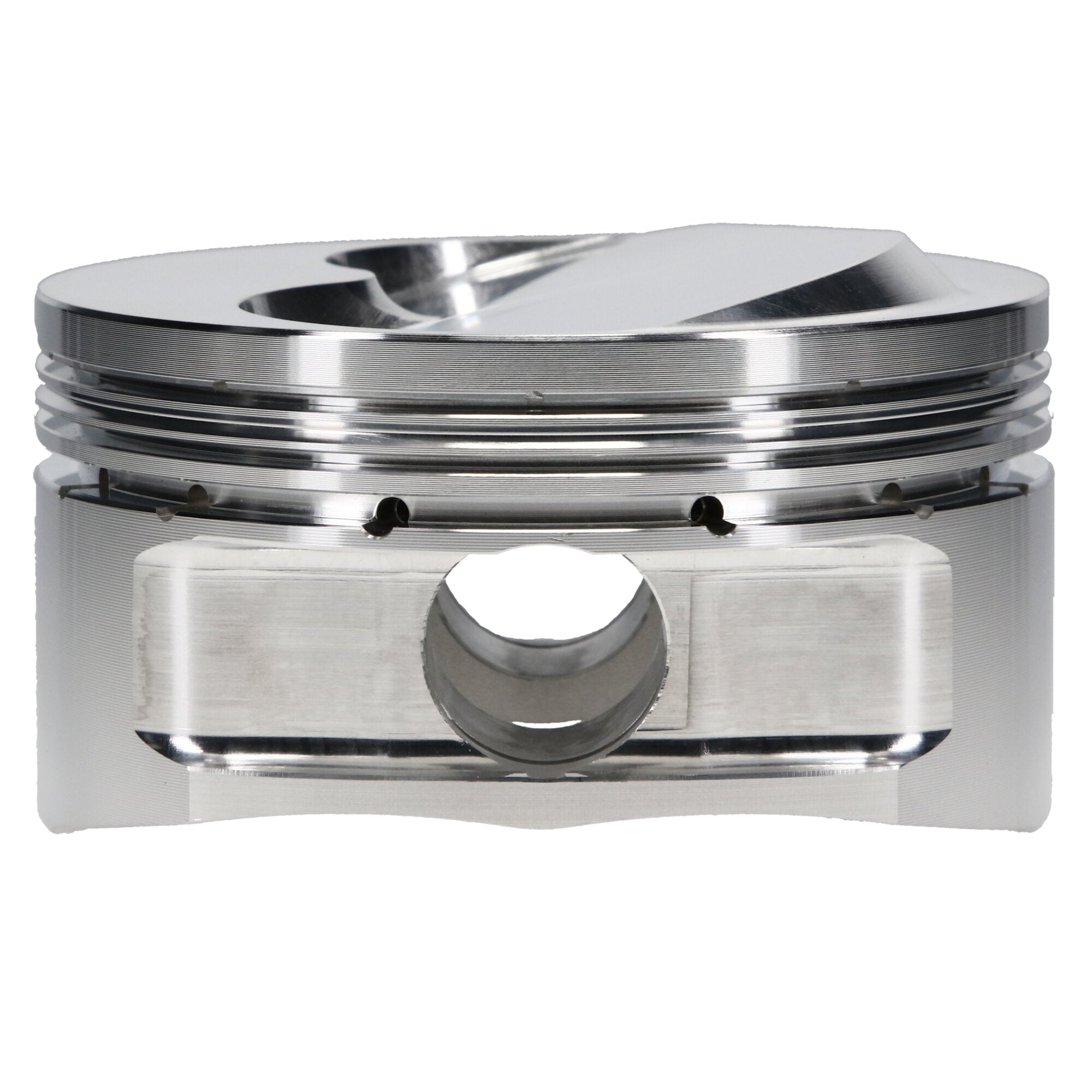

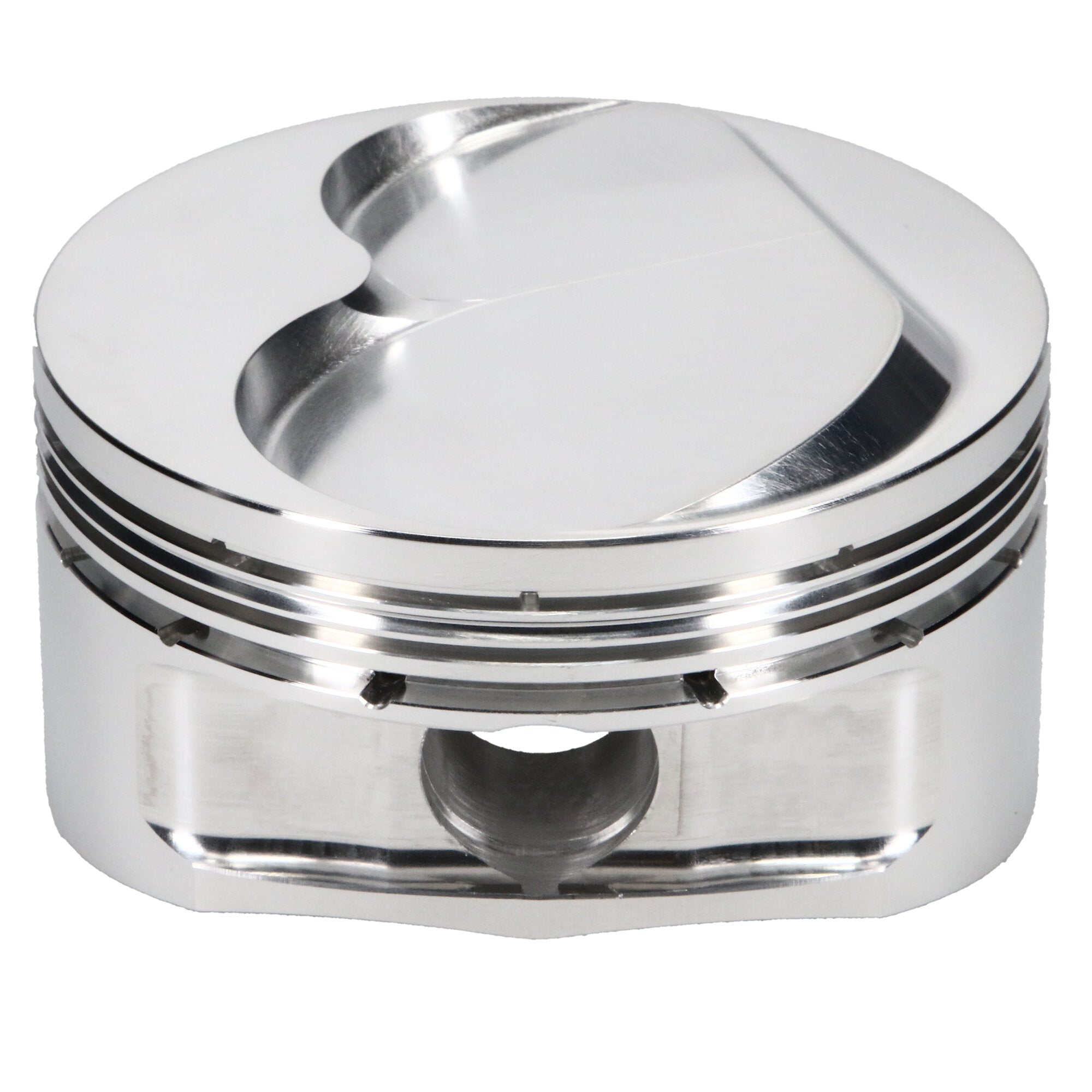

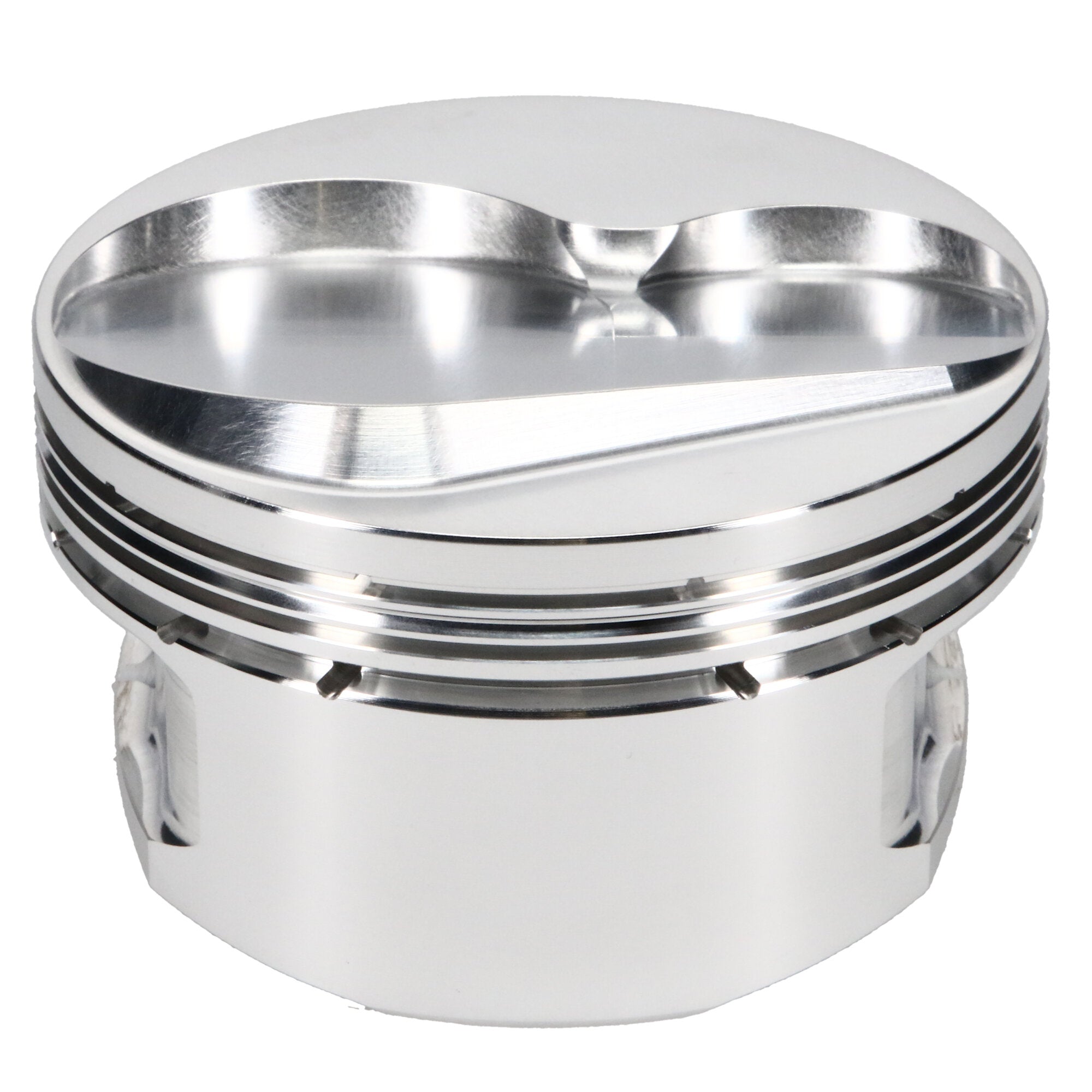

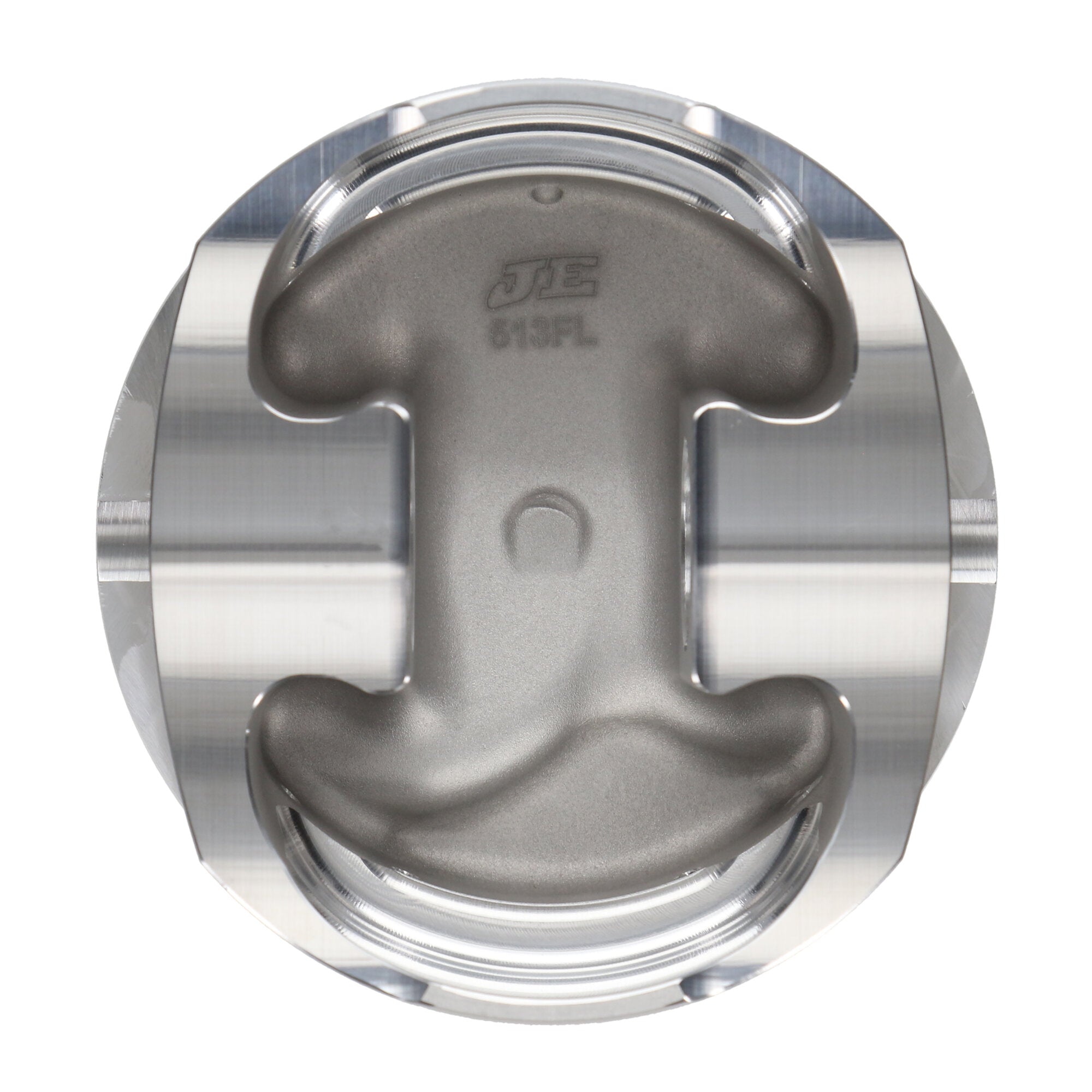

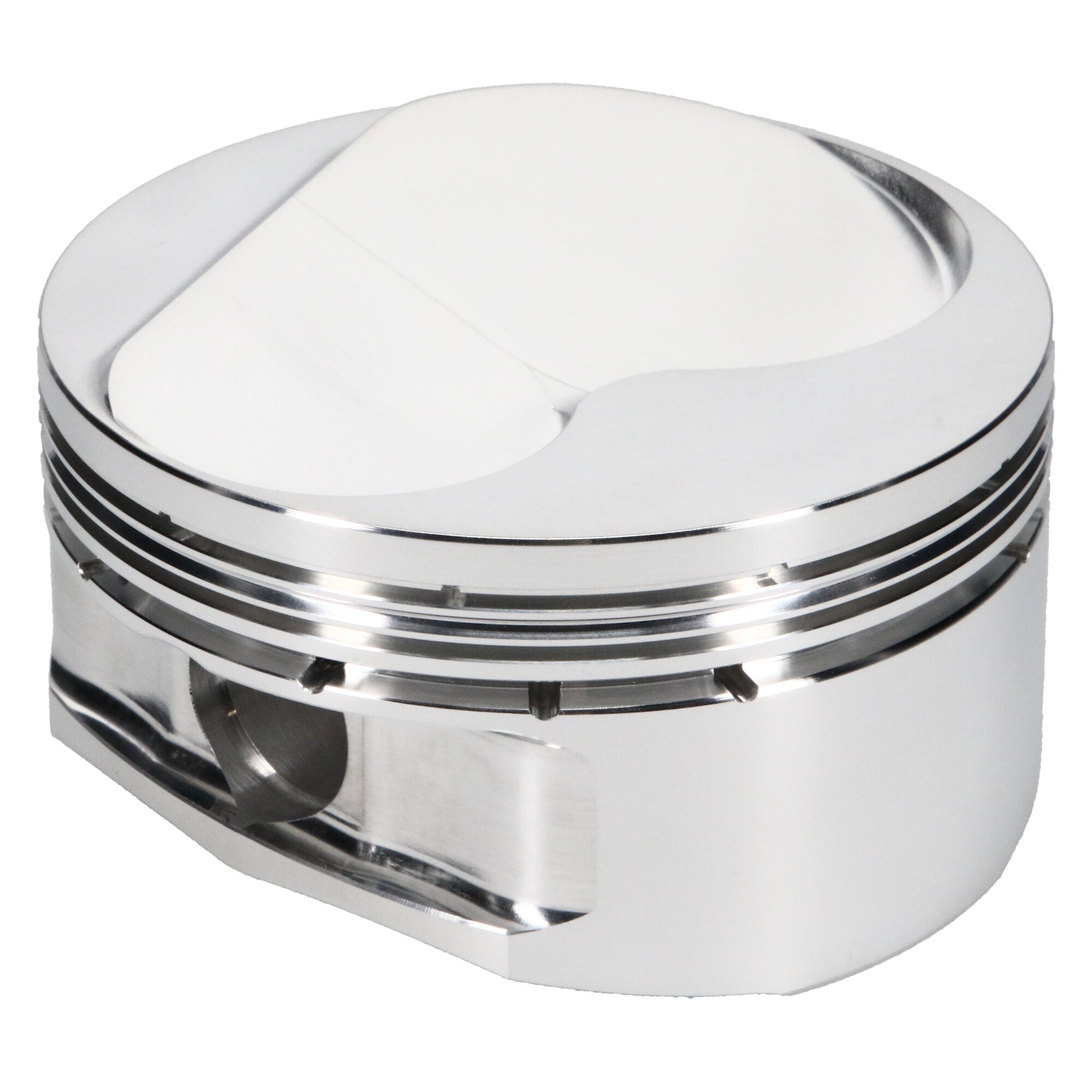

Piston Set, 2618, Dome, 4.125 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.125 in. Bore, 1.250 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 400, 4.125 Bore, Dome, Set of 8 |
| Compression Height |
1.250 |
| Forging Type |
Round |
| Piston Quantity |
8 |
| Industry |
Automotive |
| Make |
CHEVROLET |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.927 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.125 in. Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0475 |
| Product Type |
Engine Piston Kit |
| Product Market |
Domestic |
| Wrist Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.927 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Cylinder Head |
CHEVROLET 13 DEG |
| Bore Diameter |
4.125 |
| Prop 65 (C, R or CR) |
CR |
| Oil Ring Thickness |
0.119 |
| Piston Average Weight |
473 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Volume |
-4.70 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Material |
2618 |
| Engine - Web |
Small Block |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.125 in. Bore - 1.250 in. CH, -4.70 CC |
| Engine |
Small Block |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0600 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dome |
| Add-On |
927-042-CS |
| Add-On |
J75008-4125-5 |
| Piston Pin Length |
2.750 |
| Add-On |
927-2750-15-51S |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine Type |
ICE |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
