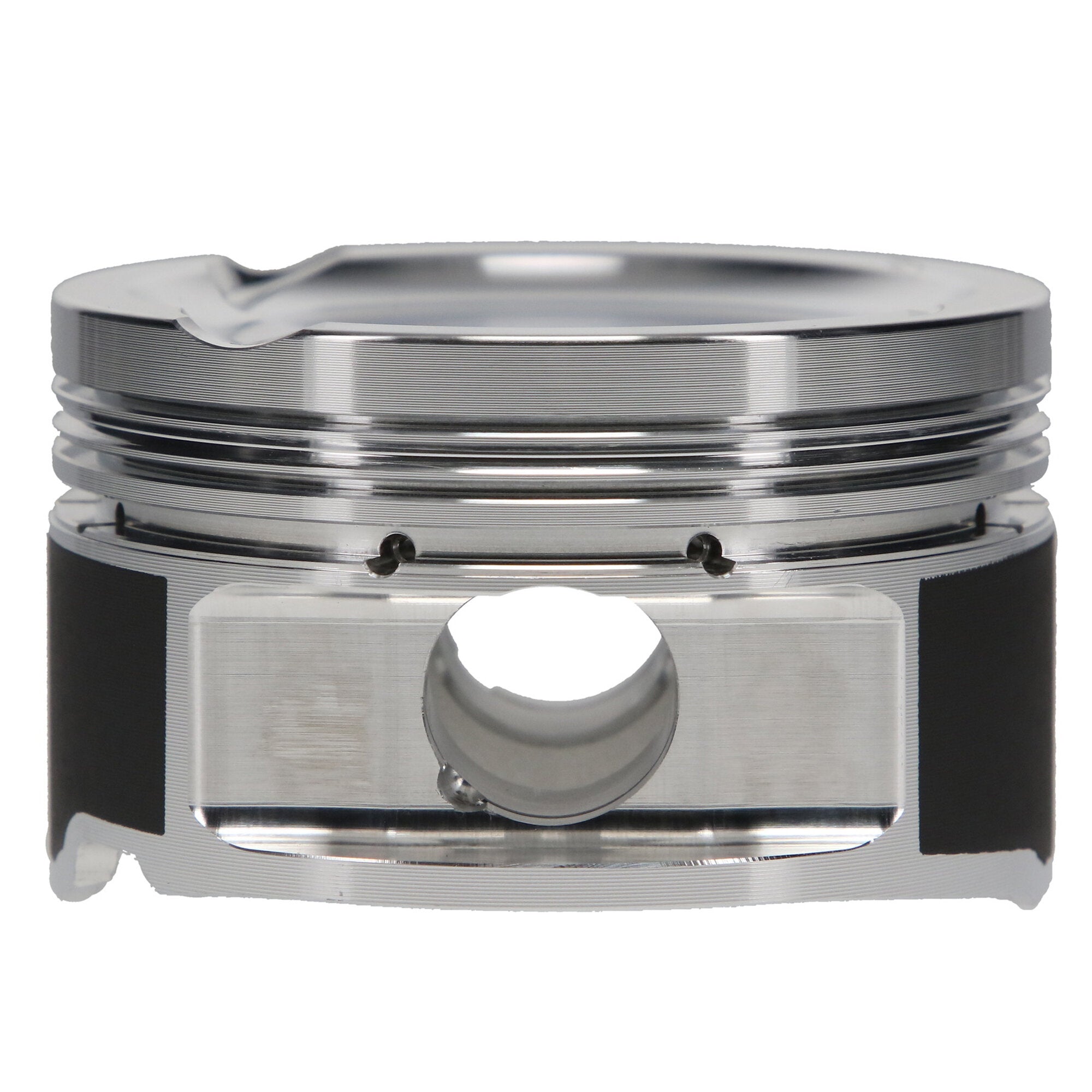

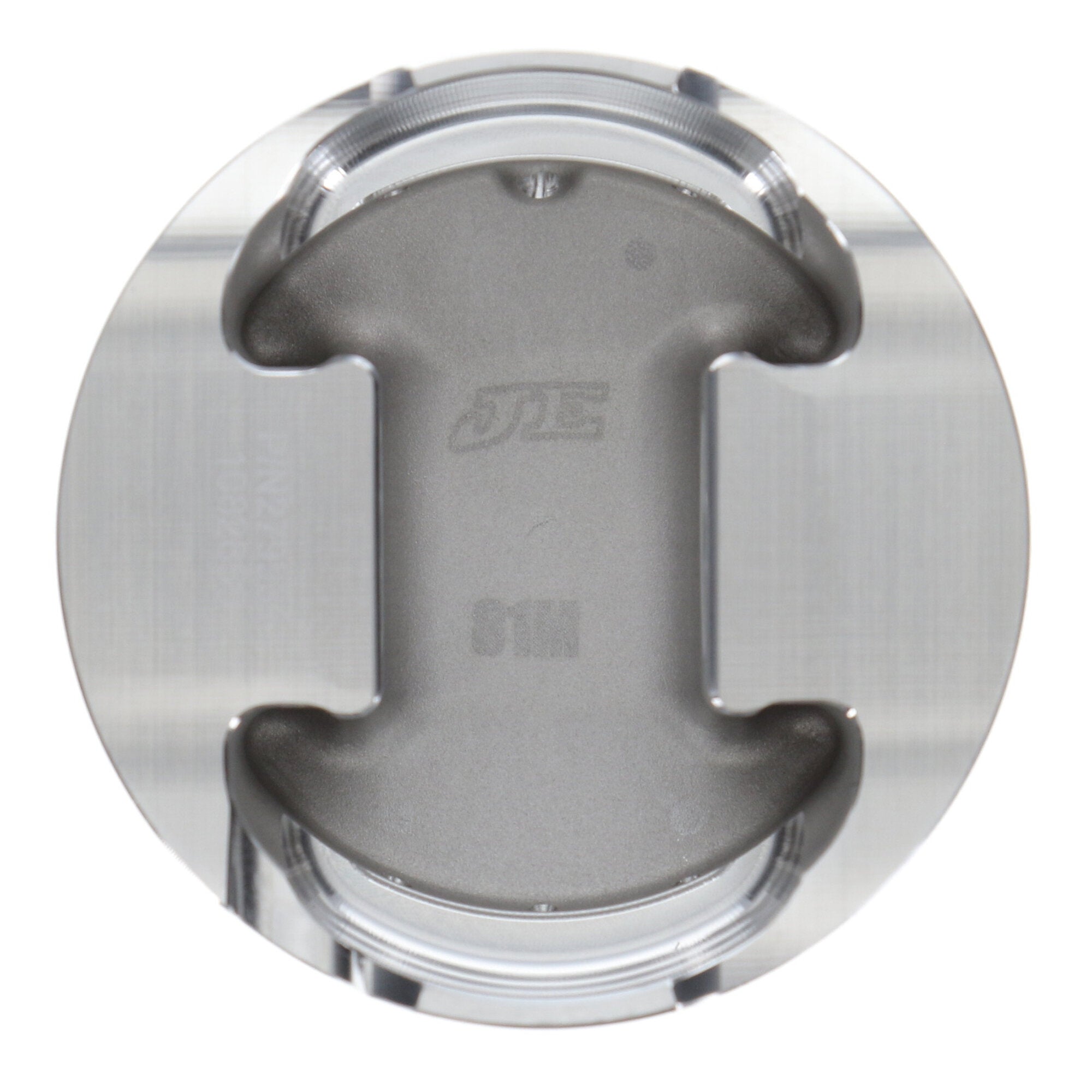

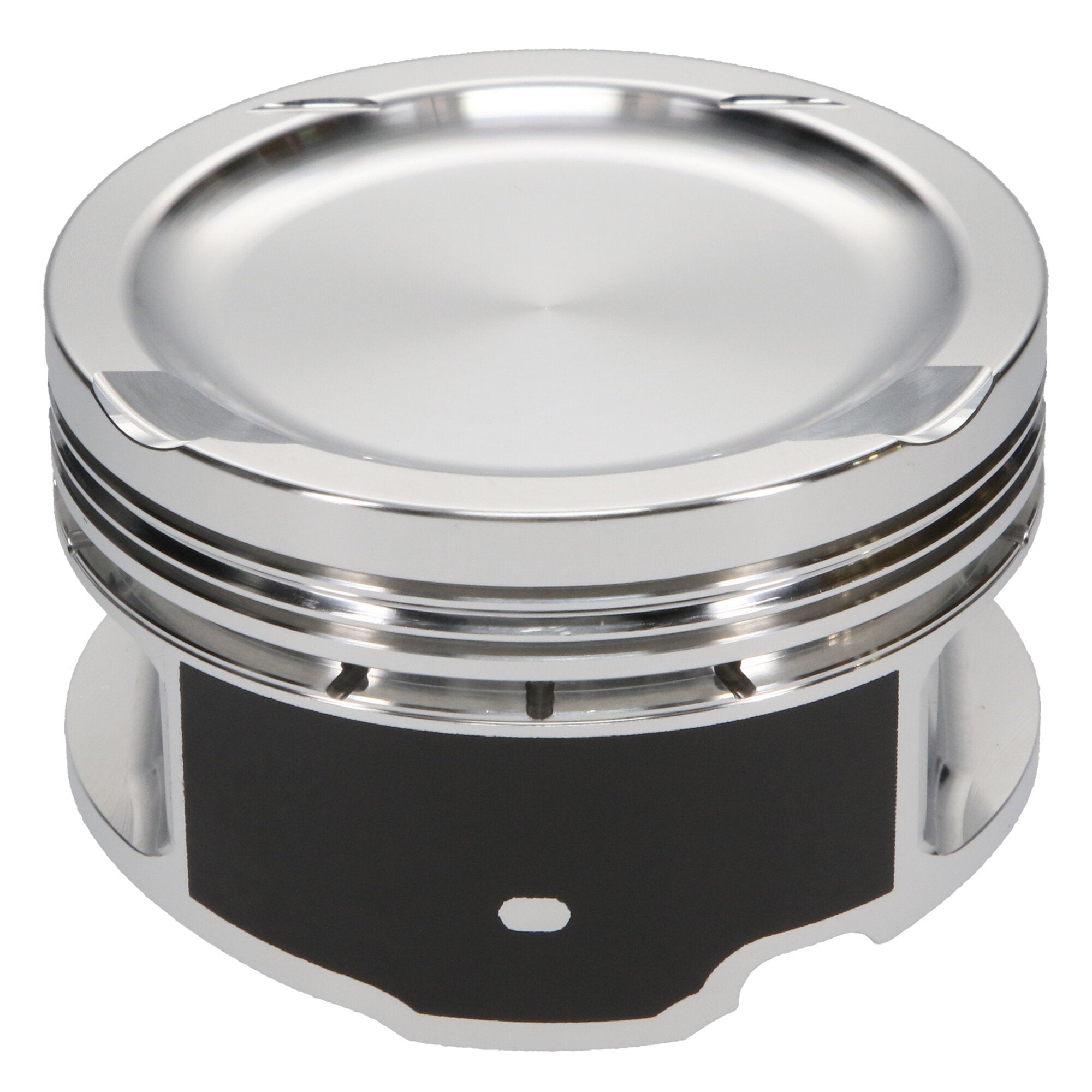

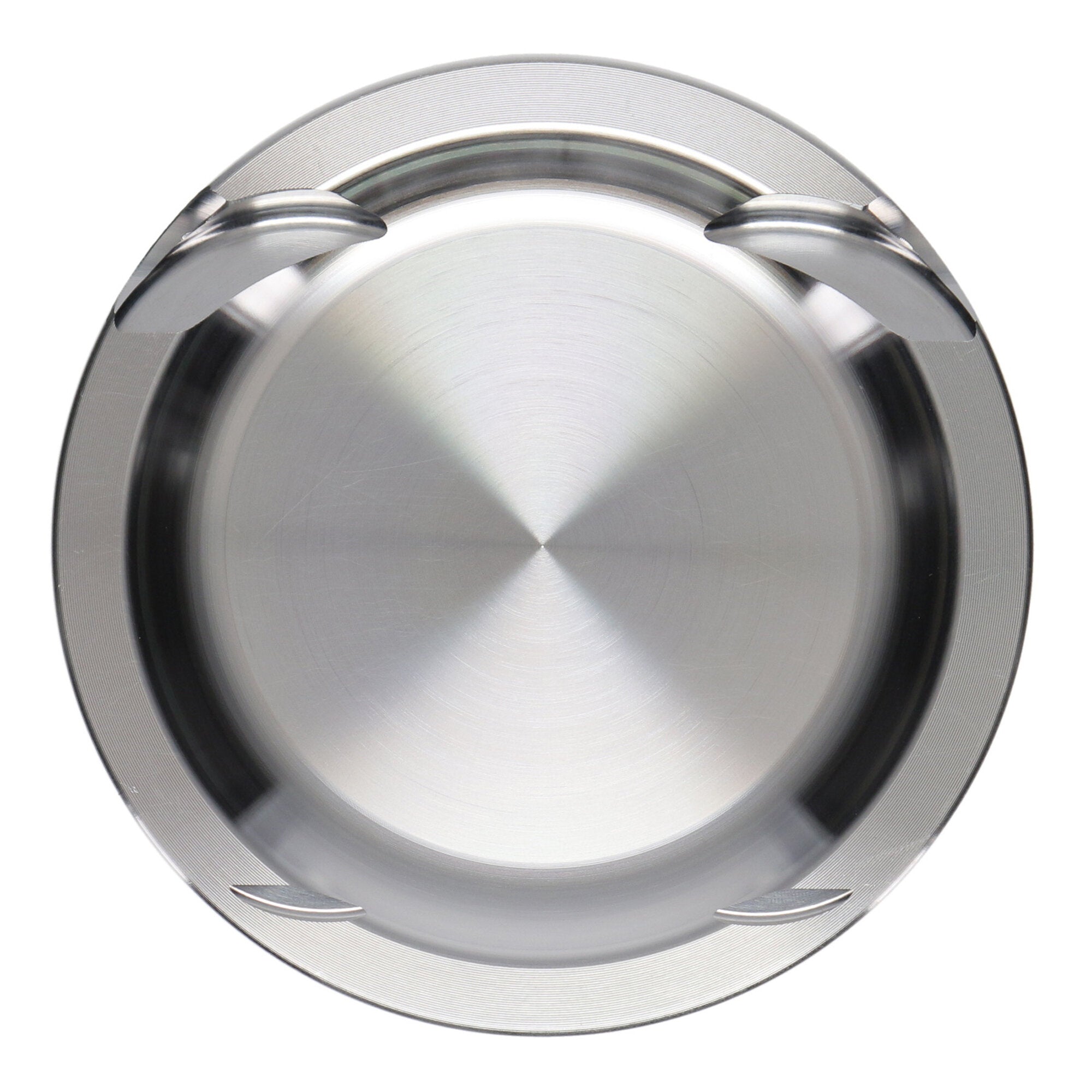

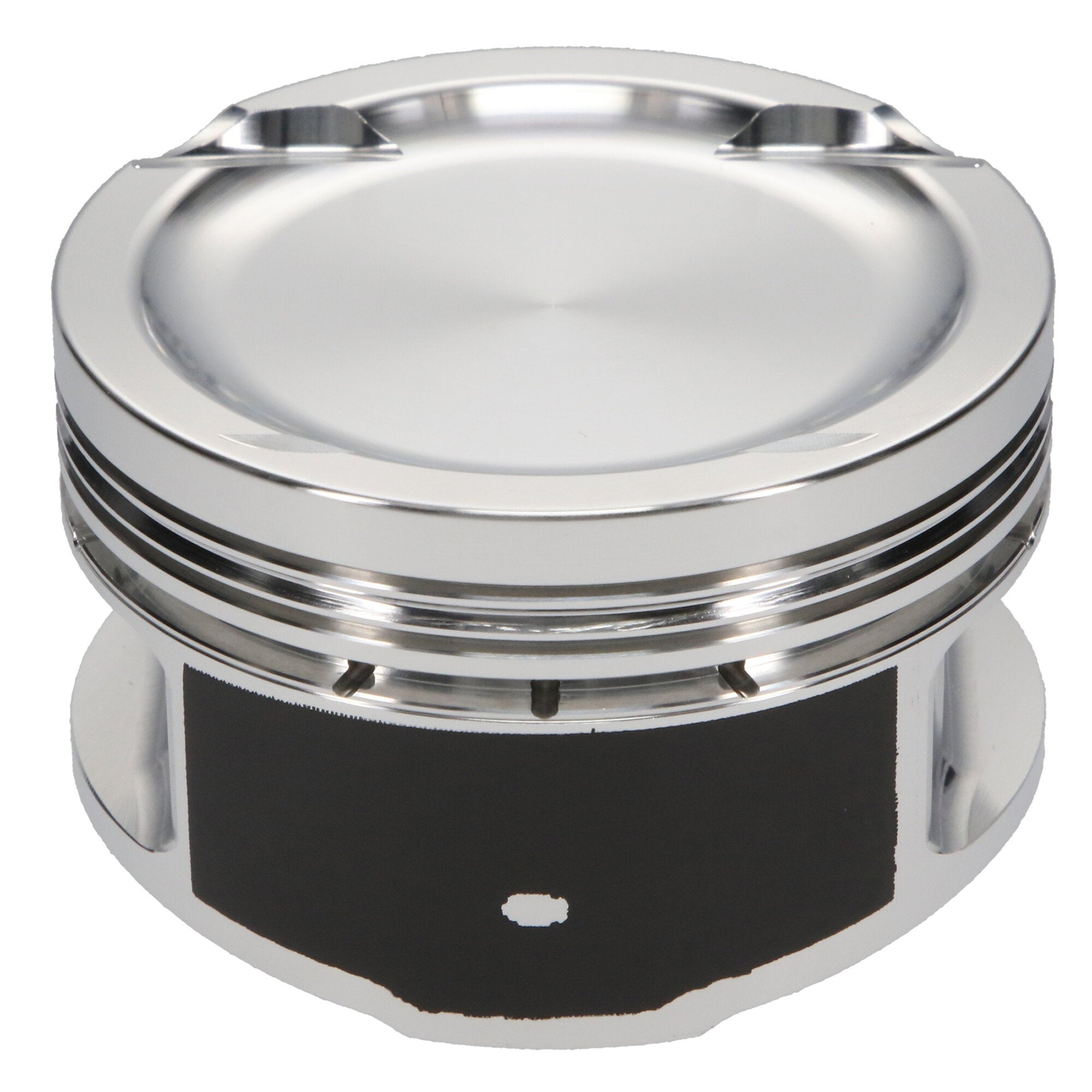

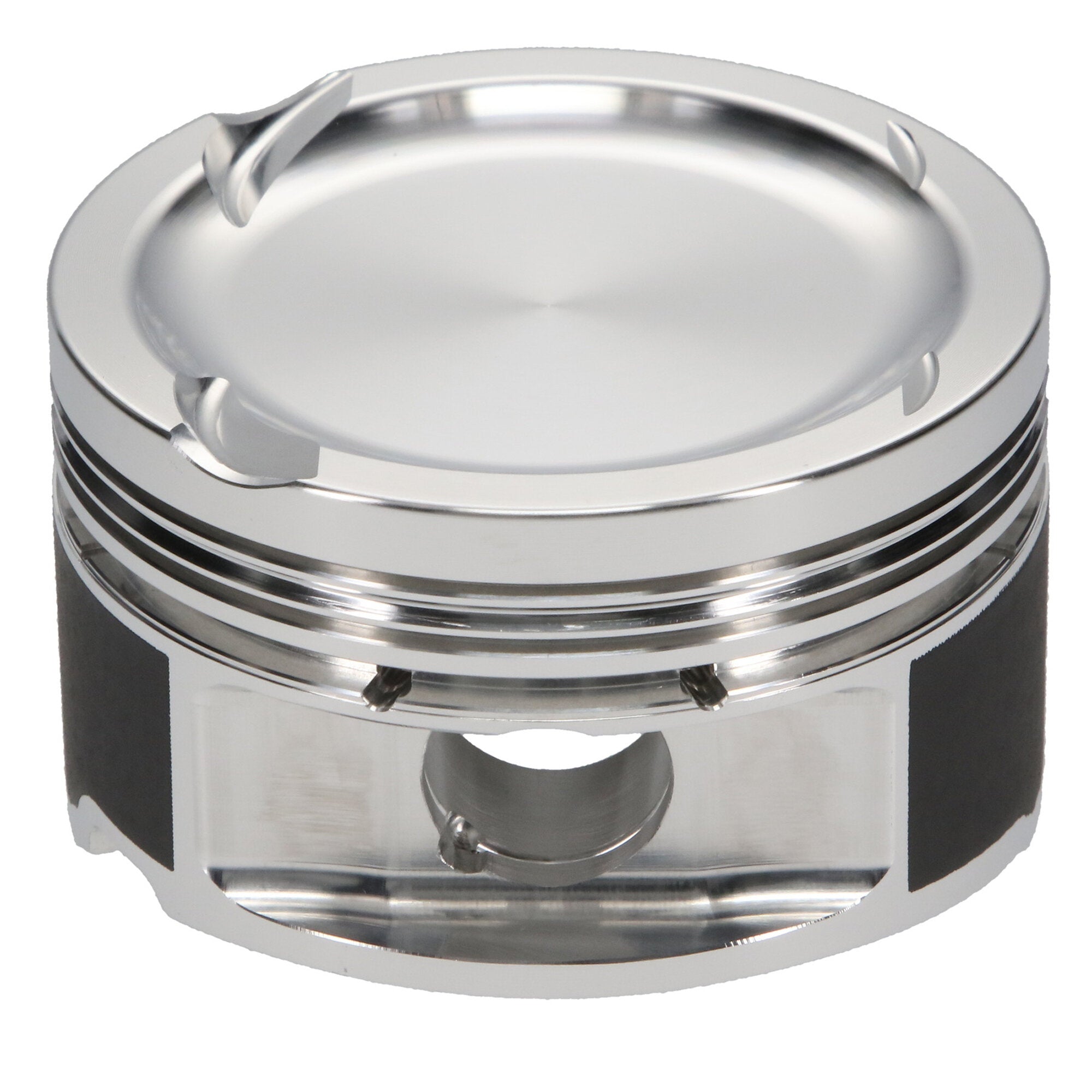

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0T FSI 04-08 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, VW, 2.0T FSI - 04-08 - 20mm Pin, 3.248 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.787 Pin, Set of 4. |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Volkswagen 2.0L Turbo, 82.50 Bore, Dish, Set of 4 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Piston Head Type |
Dish |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Volkswagen 2.0T FSI Piston Kit - 82.50 mm Bore - 1.165 in. CH, -11.50 CC |
| Make - Web |
Volkswagen |
| Add-On |
787-050-MW |
| Industry |
Automotive |
| Add-On |
JG1001-3250 |
| Cylinder Head |
2.0LGOLF FSI |
| Add-On |
787-2250-18-51C |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine Detail |
2.0T FSI 04-08 20 mm Pin |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.180 |
| Make |
VOLKSWAGEN |
| Engine |
2.0T FSI 04-08 20 mm Pin |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Forging Type |
Round |
| Piston Pin Outside Diameter |
0.787 |
| Title |
JE Pistons - Volkswagen, 2.0T FSI, 82.50 mm Bore, Piston Kit |
| Product Market |
European |
| Product Type |
Engine Piston Kit |
| Piston Series |
JE Pistons |
| Bore Diameter |
82.50 |
| Top Compression Ring Thickness |
0.0400 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Compression Height |
1.165 |
| Piston Average Weight |
290 |
| Piston Quantity |
4 |
| Piston Volume |
-11.50 |
| Piston Pin Material |
5115 |
| Wrist Pin Wall Thickness |
0.180 |
| Ring Set Included |
Yes |
| Engine - Web |
2.0T FSI |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.787 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
