As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

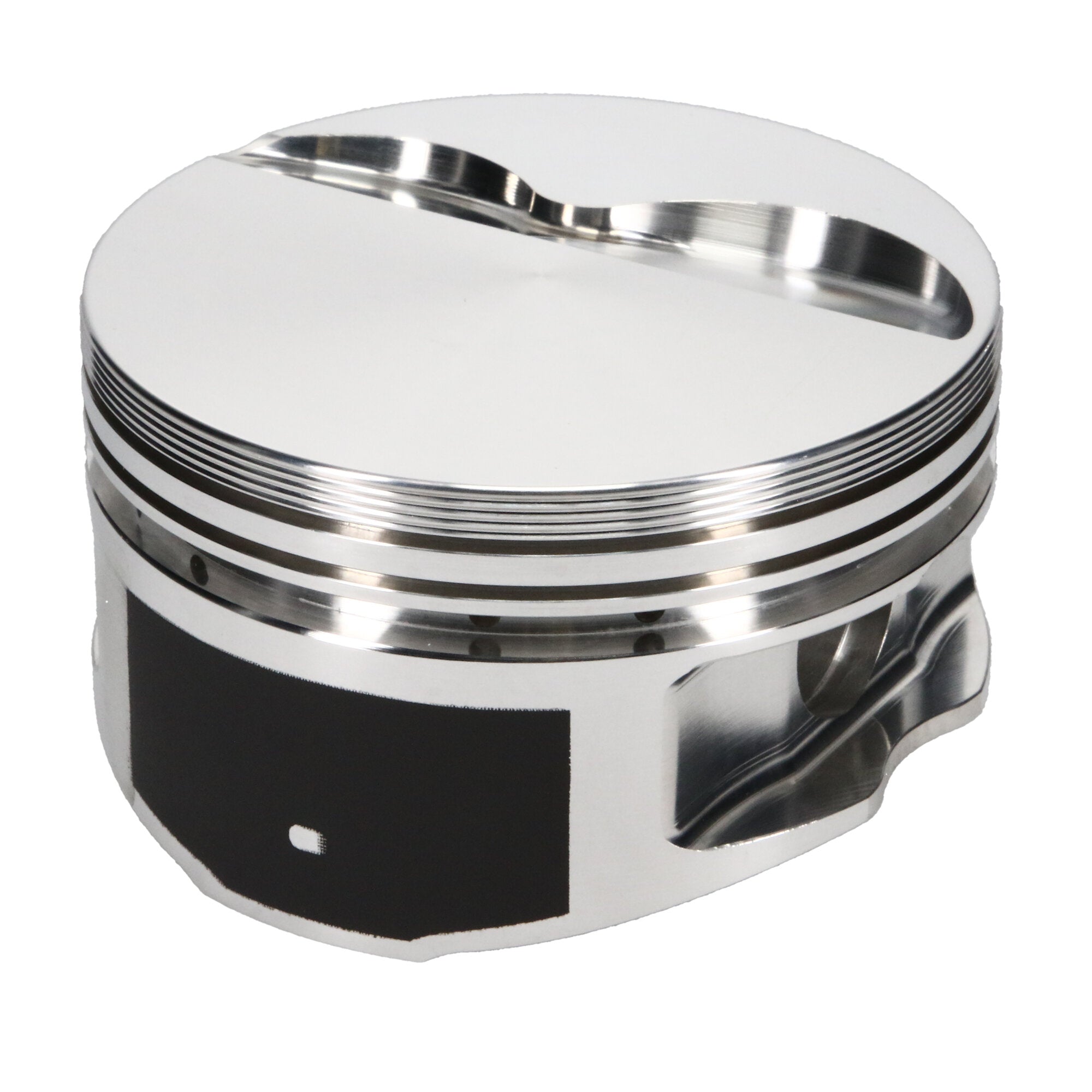

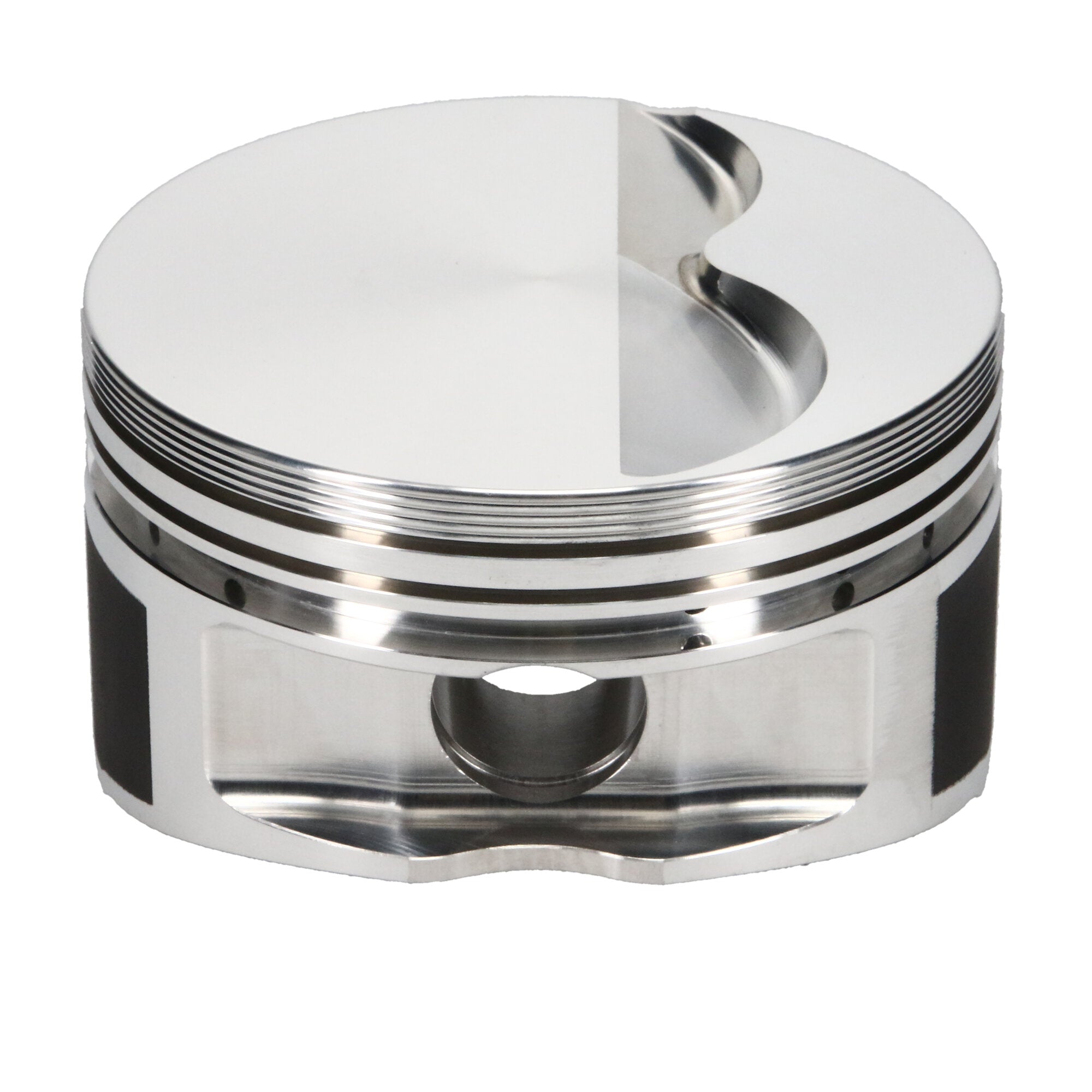

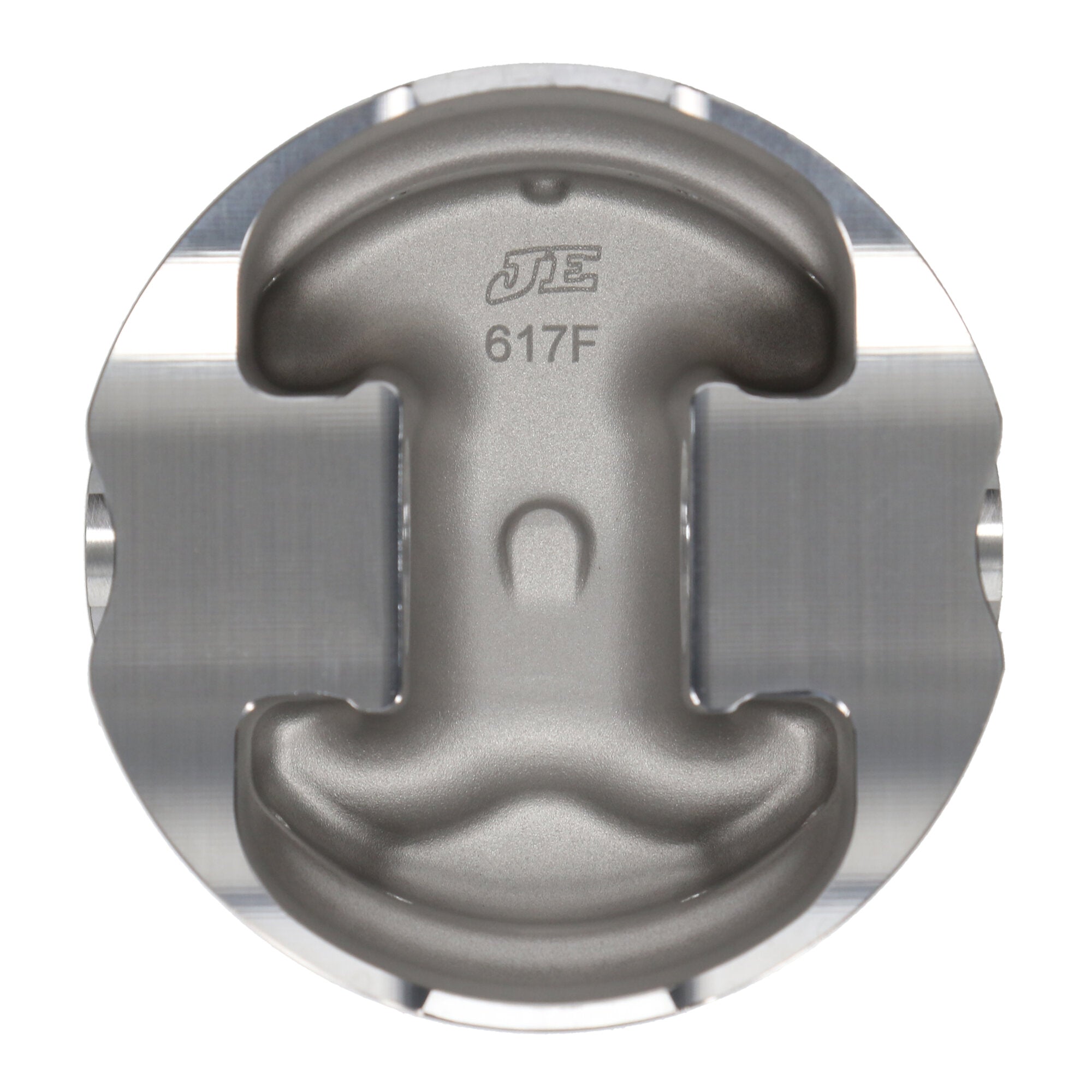

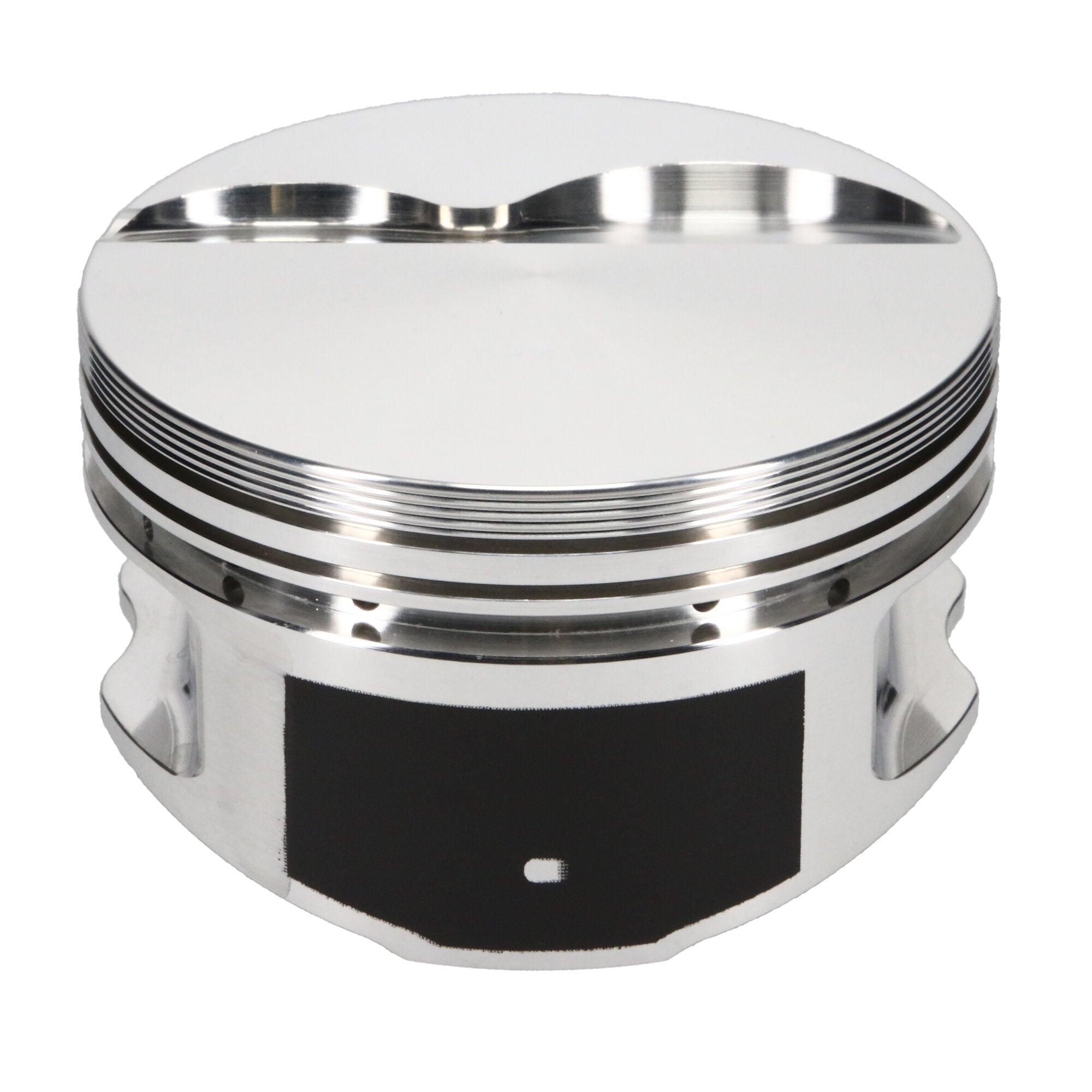

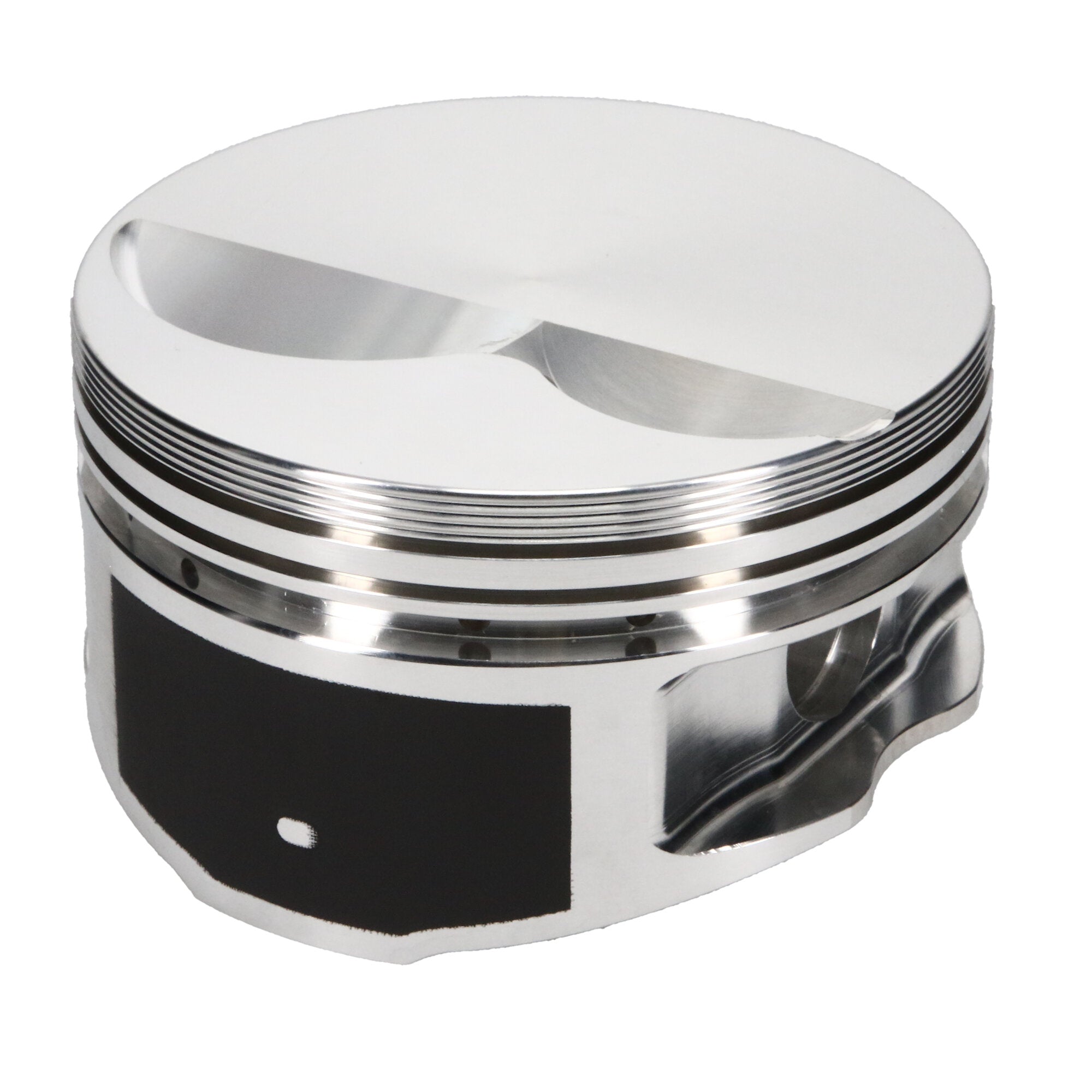

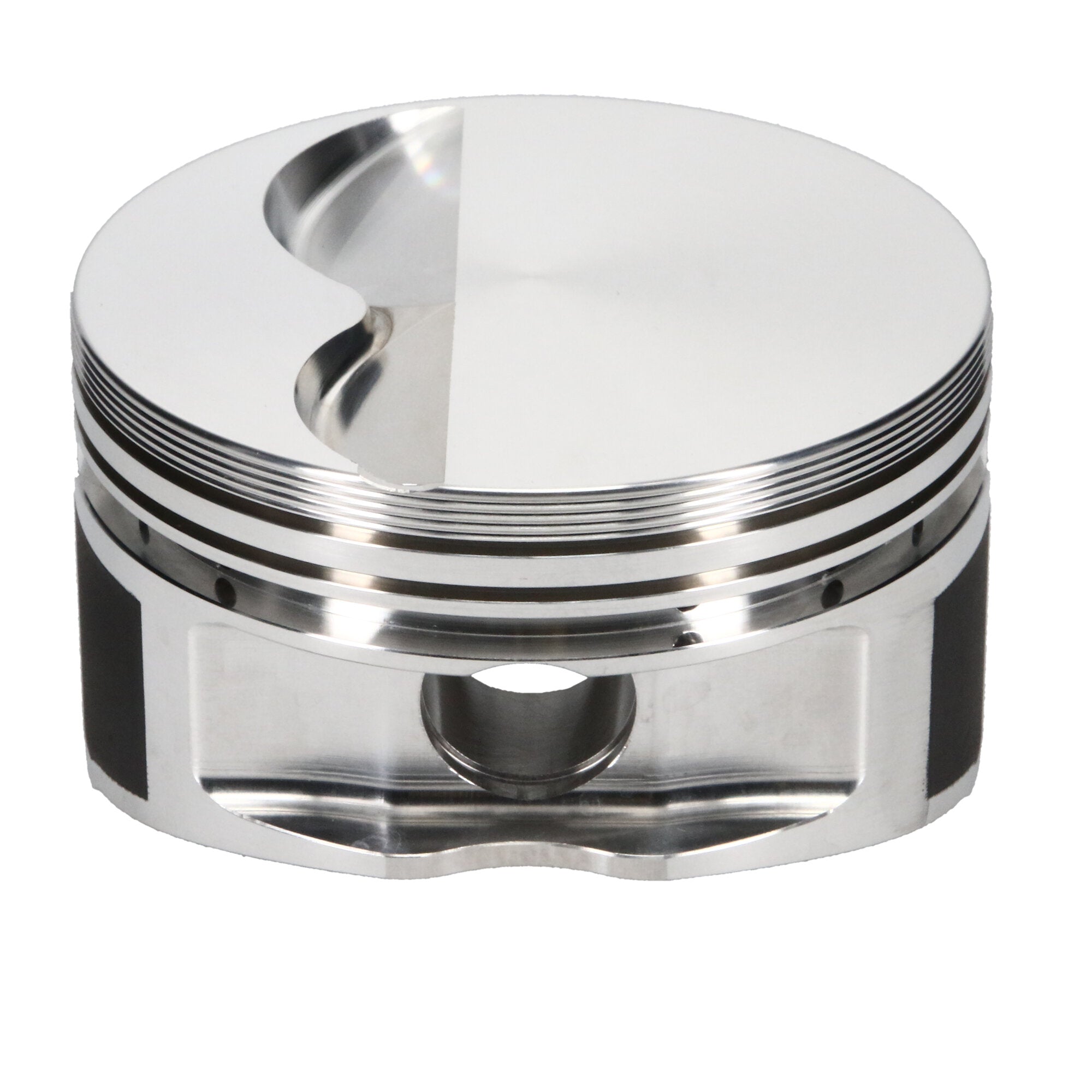

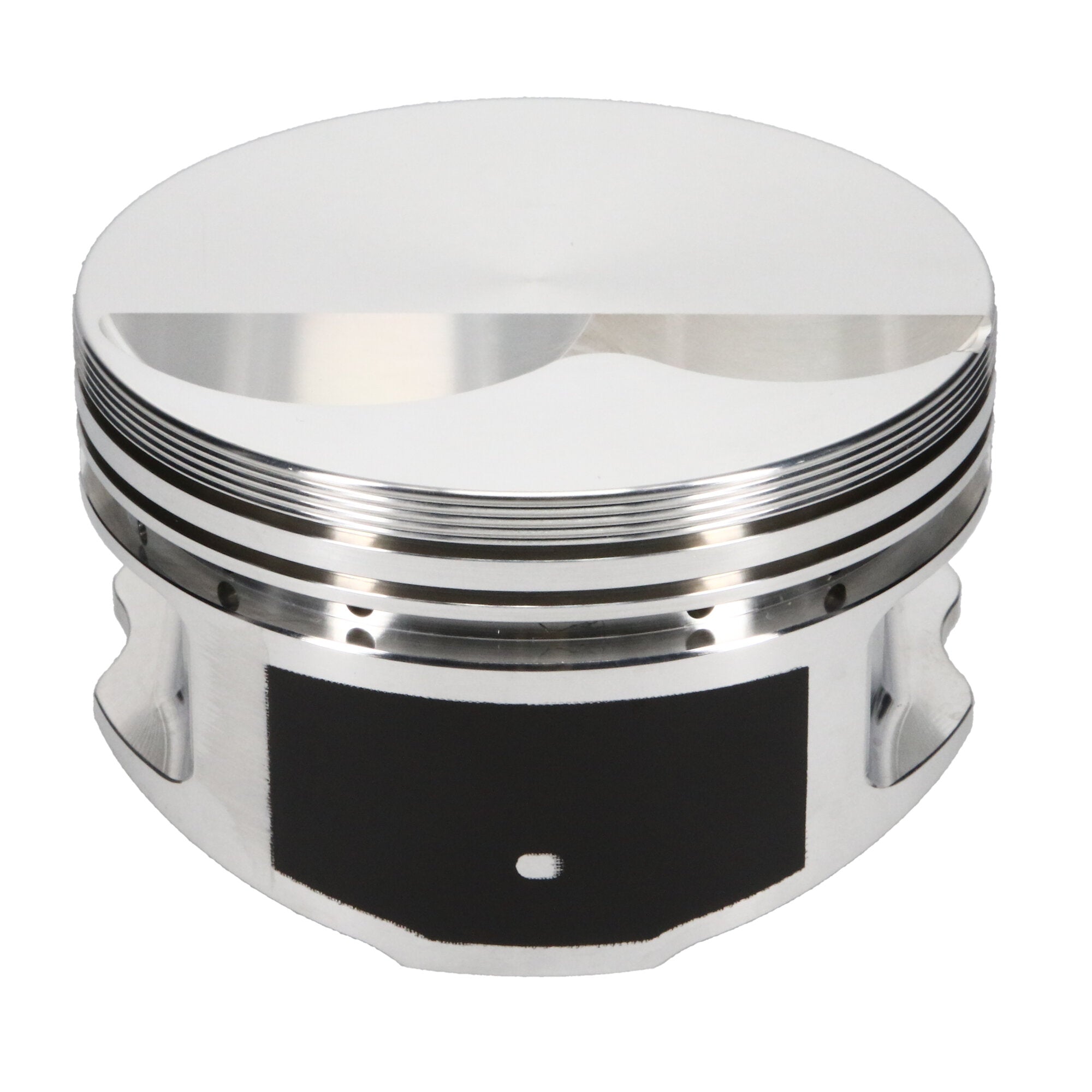

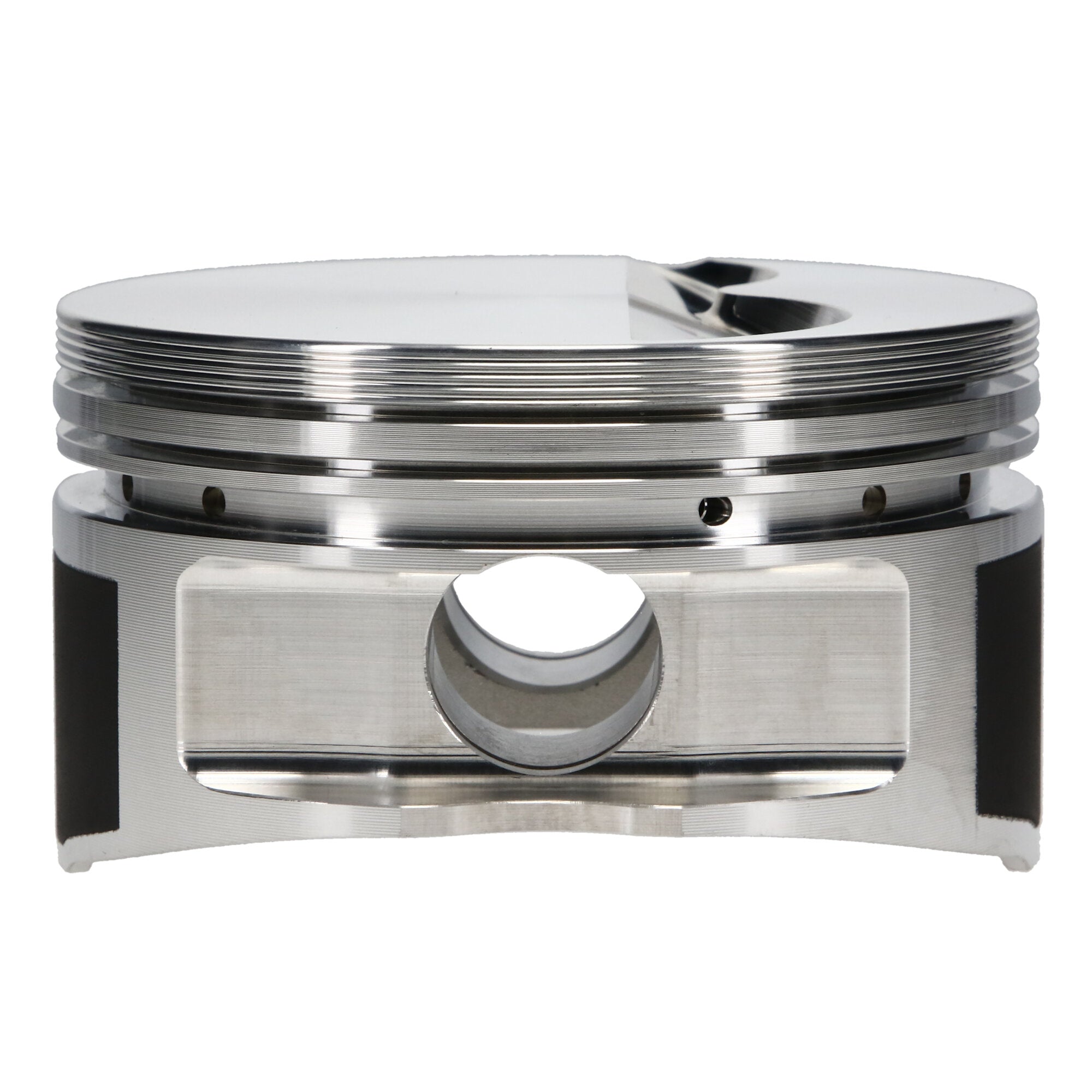

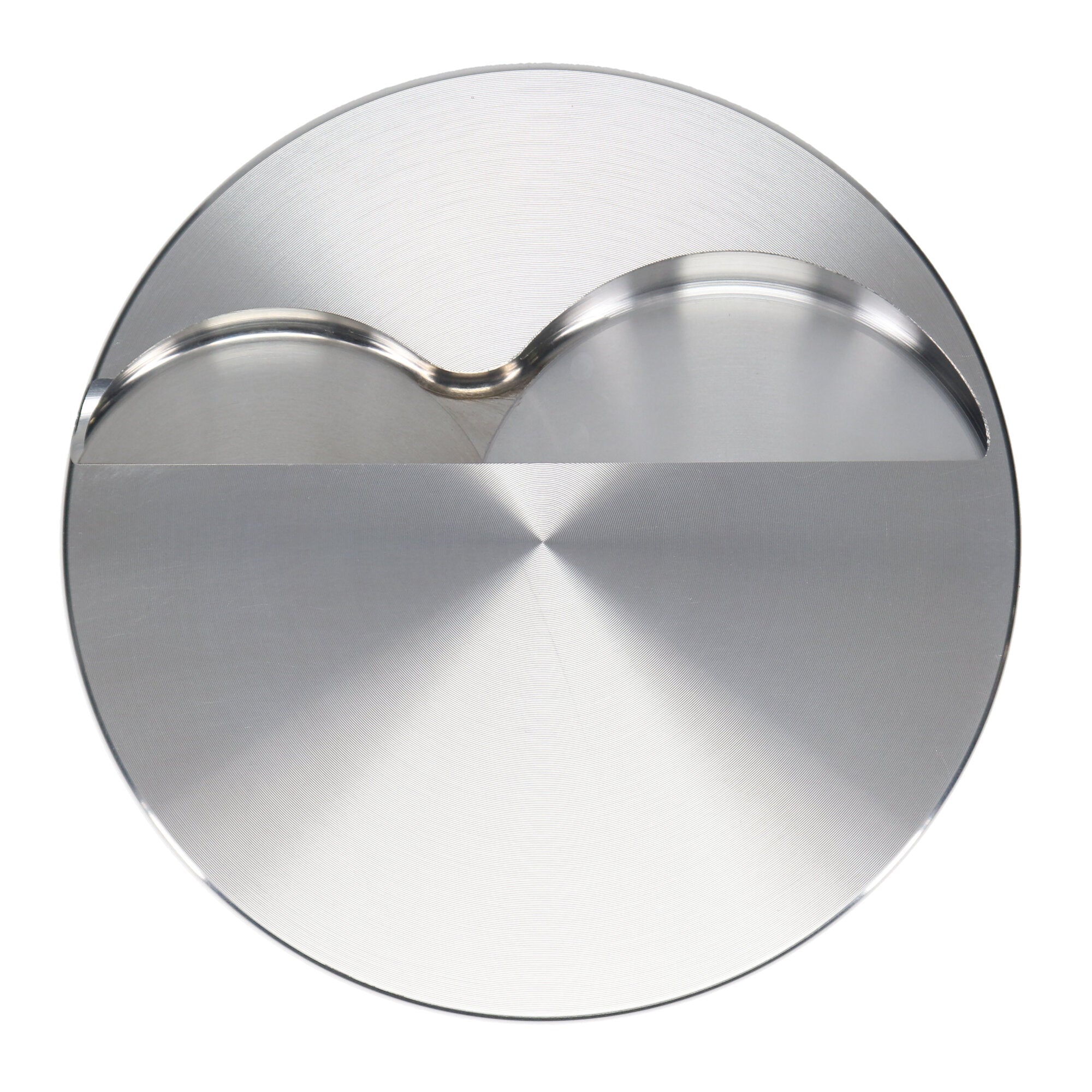

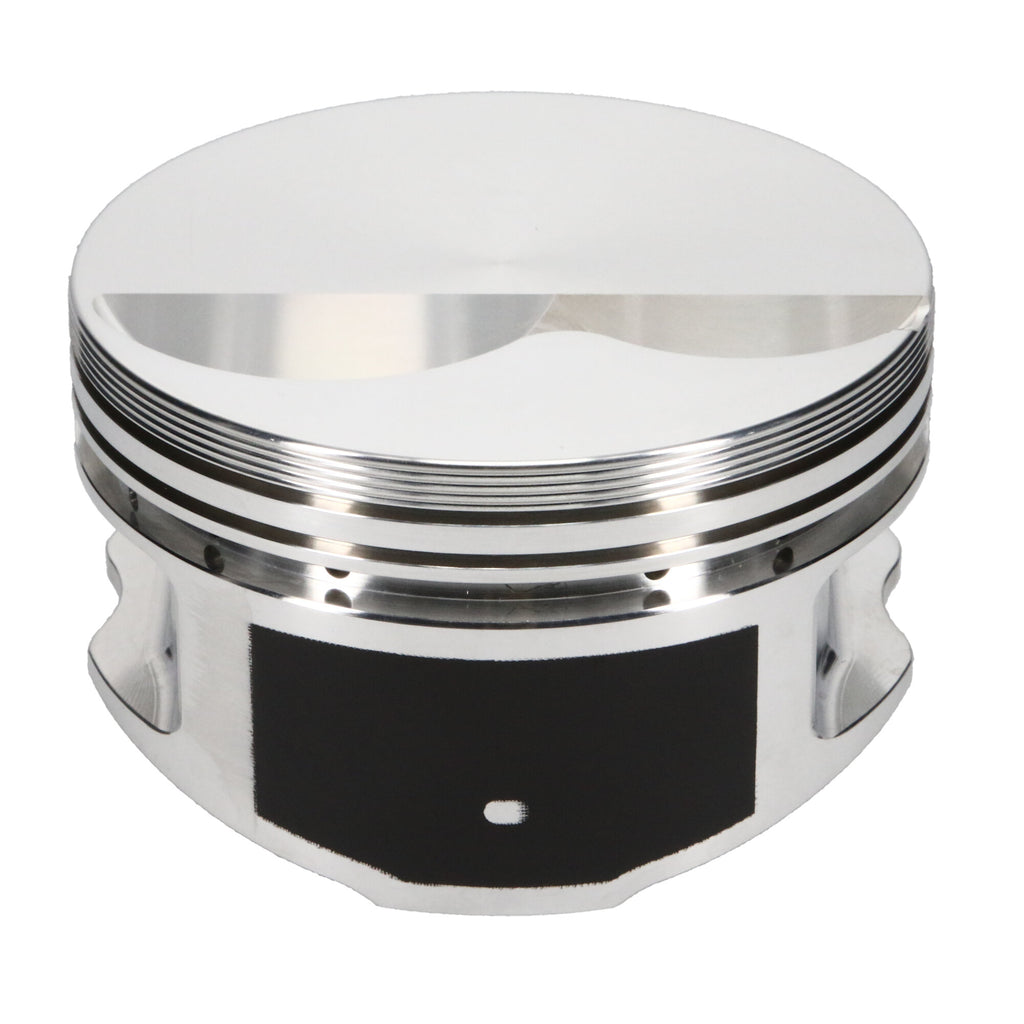

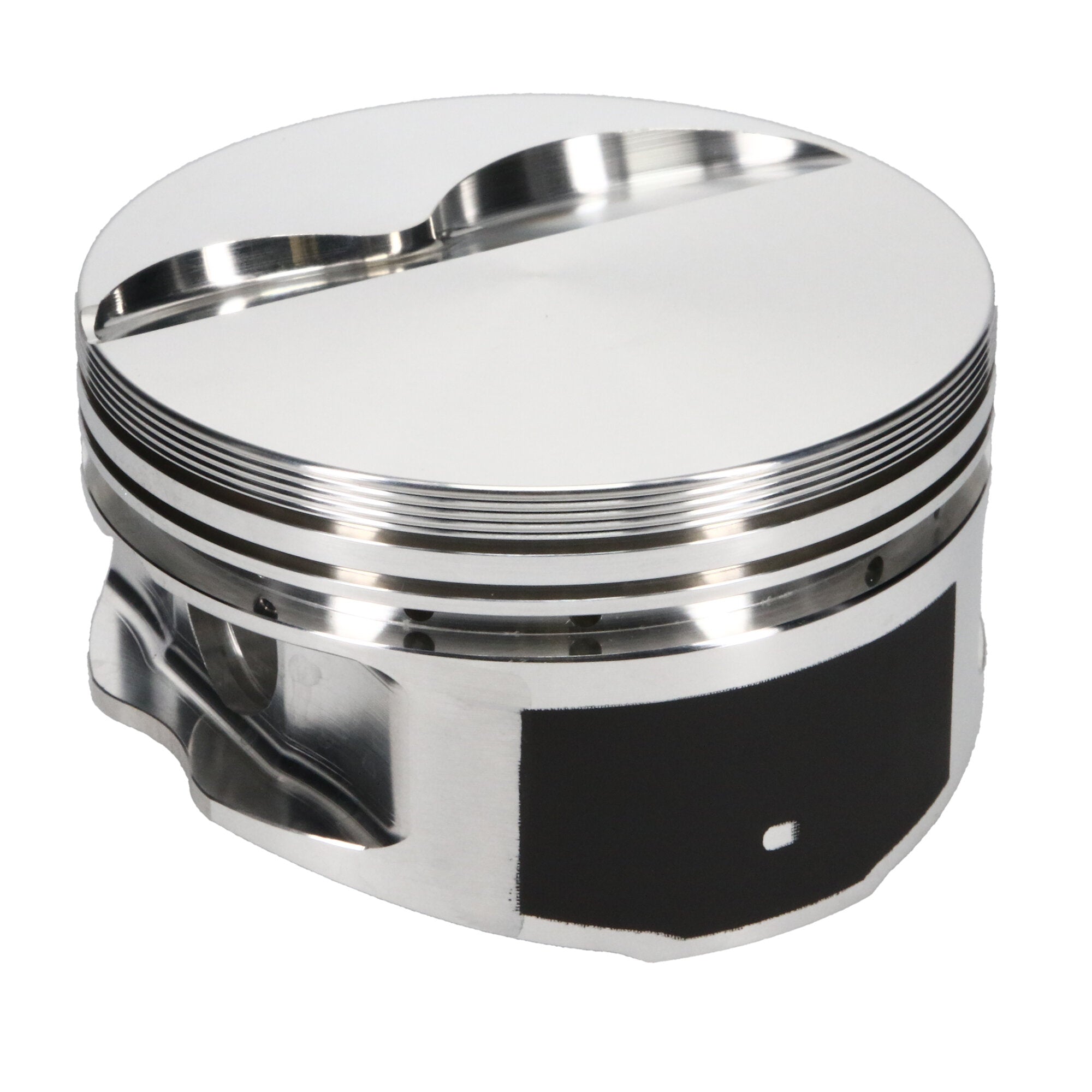

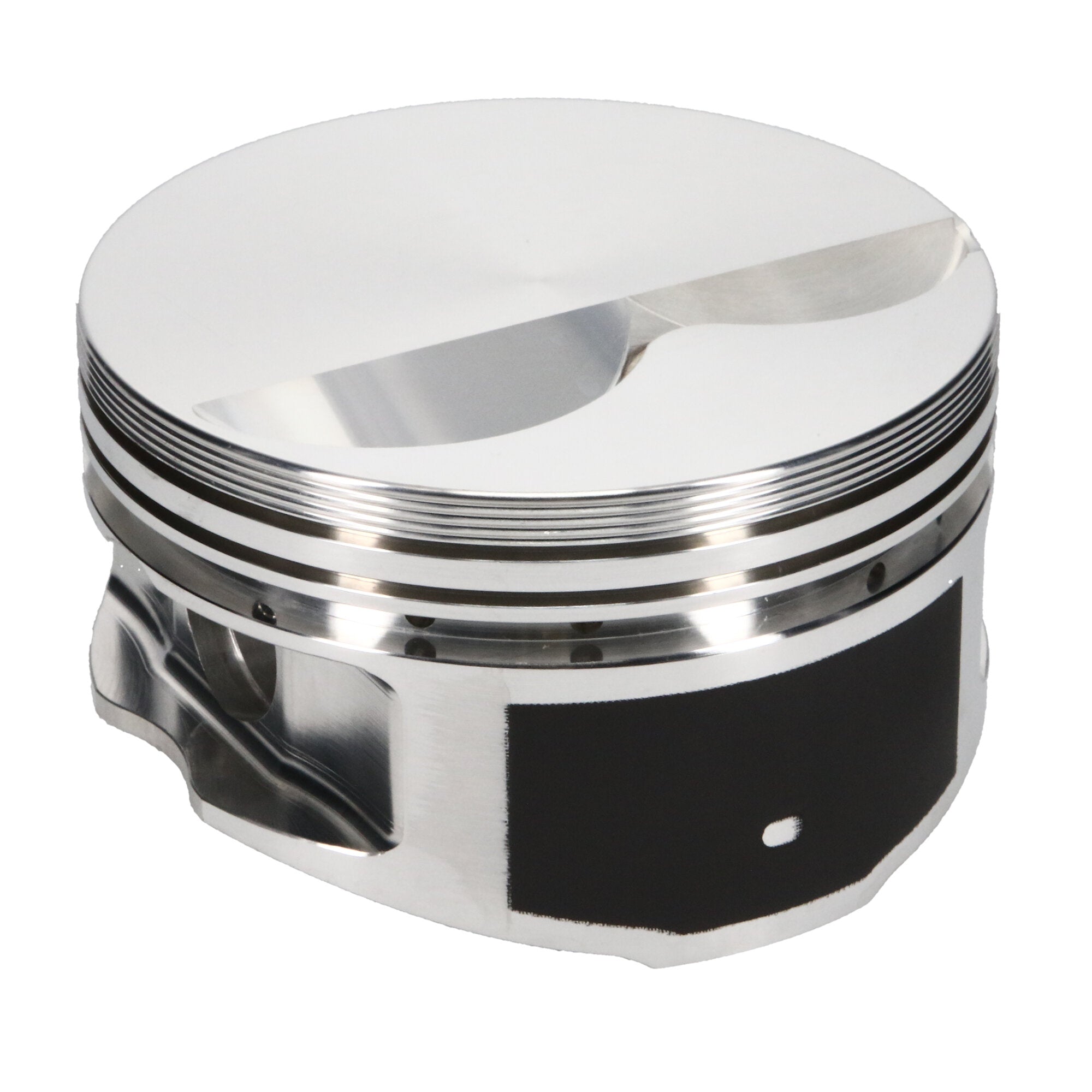

Piston Set, 2618, Flat Top, 4.030 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Ford, Small Block Ford, 4.030 in. Bore, 1.100 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Ford 302, 4.030 Bore, Flat, Set of 8 |
| Oil Ring Thickness |
0.218 |
| Piston Pin Length |
2.750 |
| Piston Pin Wall Thickness |
0.150 |
| Ringset Included |
No |
| Make - Web |
Ford |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine |
Small Block |
| Piston Series |
JE Pistons |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Head Type |
Flat |
| Engine Type |
ICE |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Outside Diameter |
0.927 |
| Piston Volume |
-5.00 |
| Piston Average Weight |
411 |
| Make |
FORD |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Product Market |
Domestic |
| Bore Diameter |
4.030 |
| Wrist Pin Wall Thickness |
0.150 |
| Add-On |
J10008-4030-5 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Title |
JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston Kit |
| Piston Quantity |
8 |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Product Type |
Engine Piston Kit |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.030 in. Bore - 1.100 in. CH, -5.00 CC |
| Compression Height |
1.100 |
| Add-On |
927-2750-15-51S |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Out of Stock Message |
Call for Availability |
| Engine - Web |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Wrist Pin Length |
2.750 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
