As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for sport bike and other motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the road course to the drag strip everything in between, JE Pistons performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.
Specifications:
| Description_ASM |
YAMAHA 06-20 YZF-R6 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

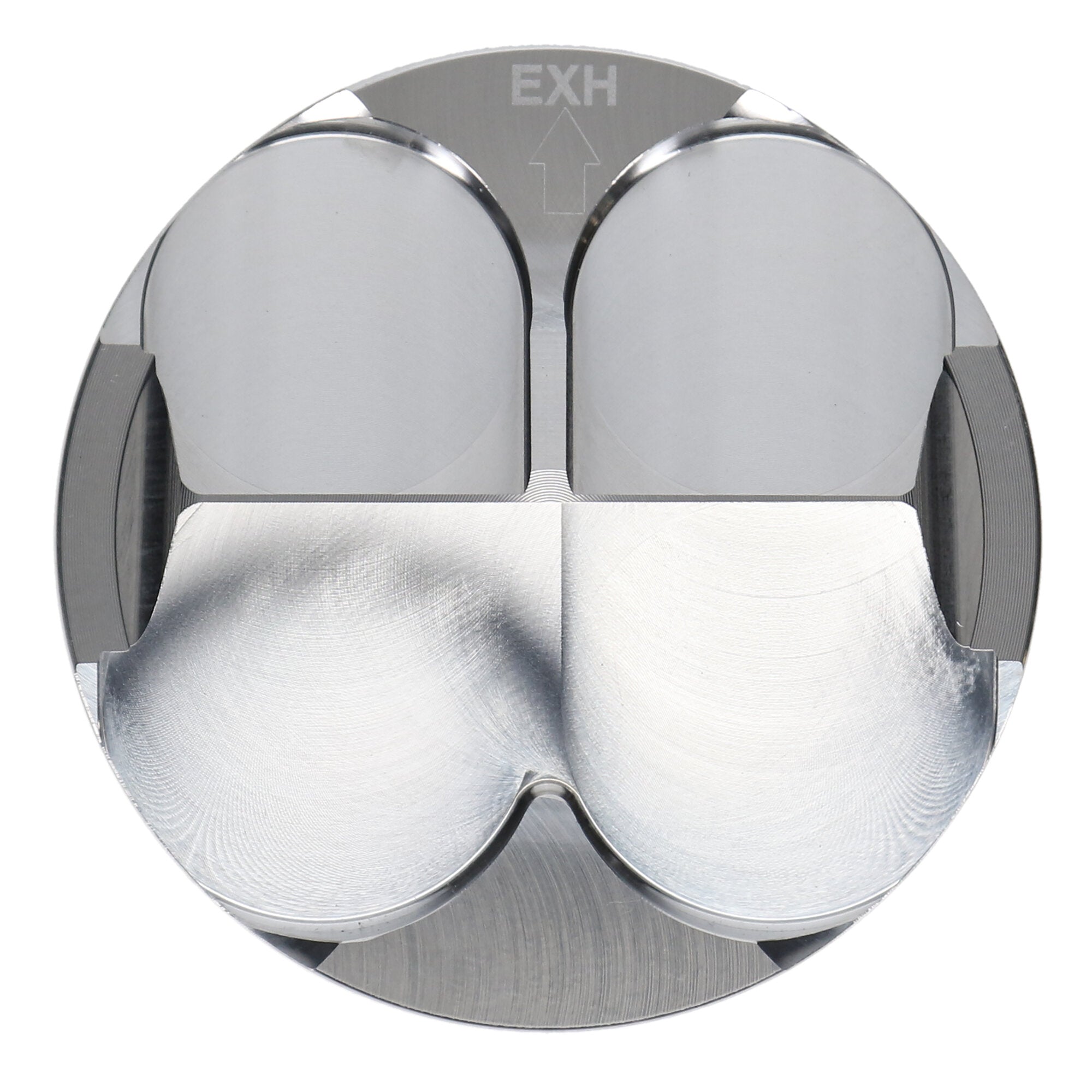

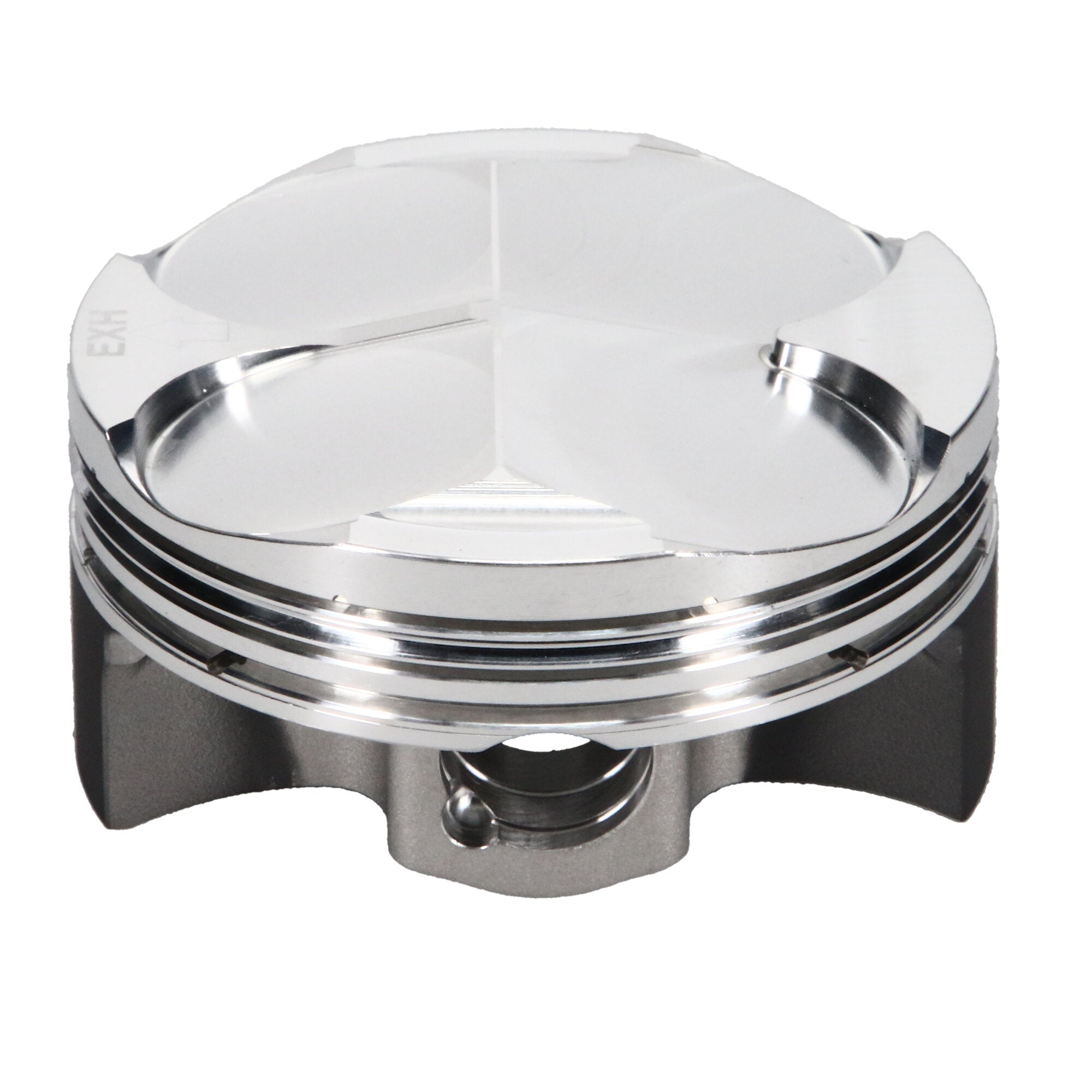

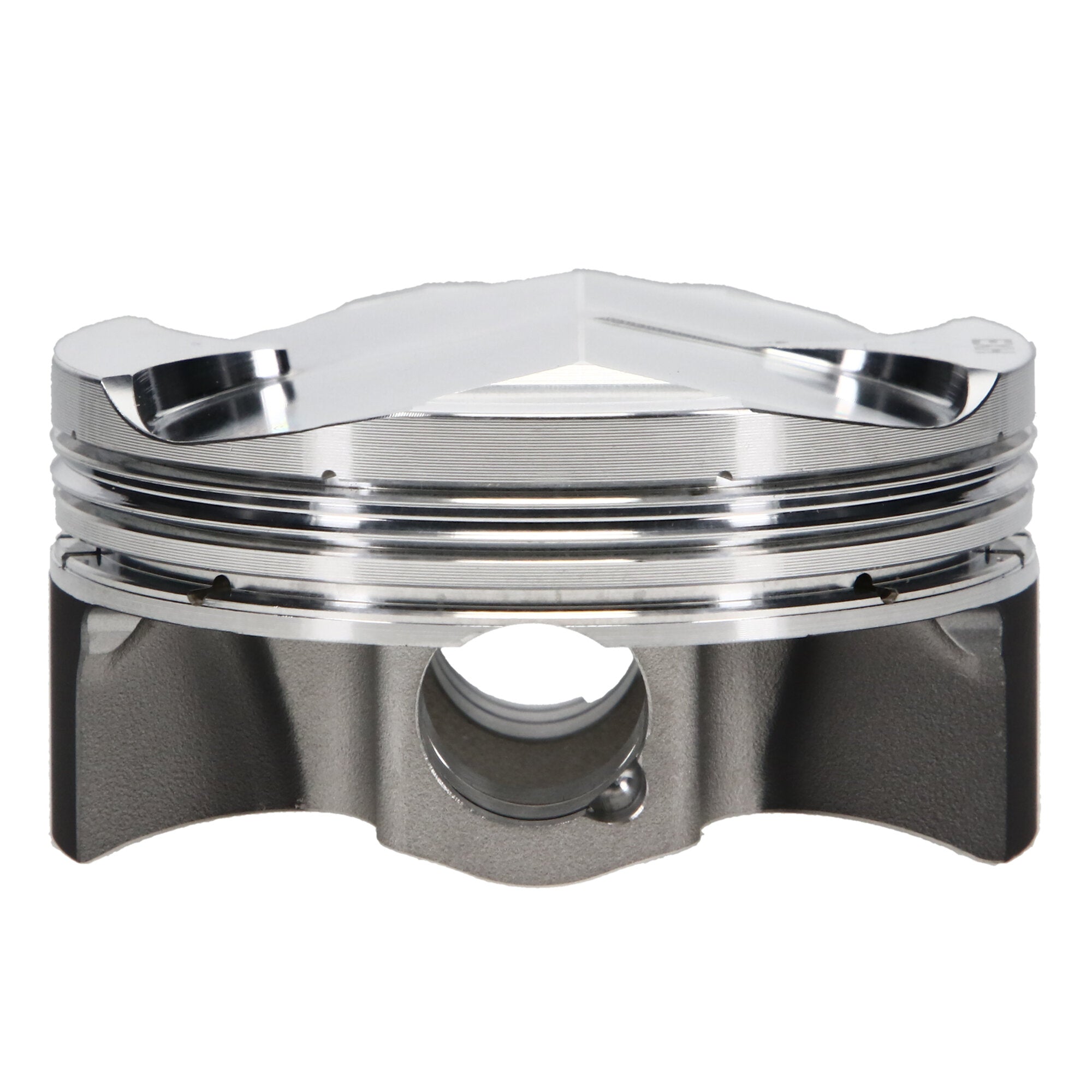

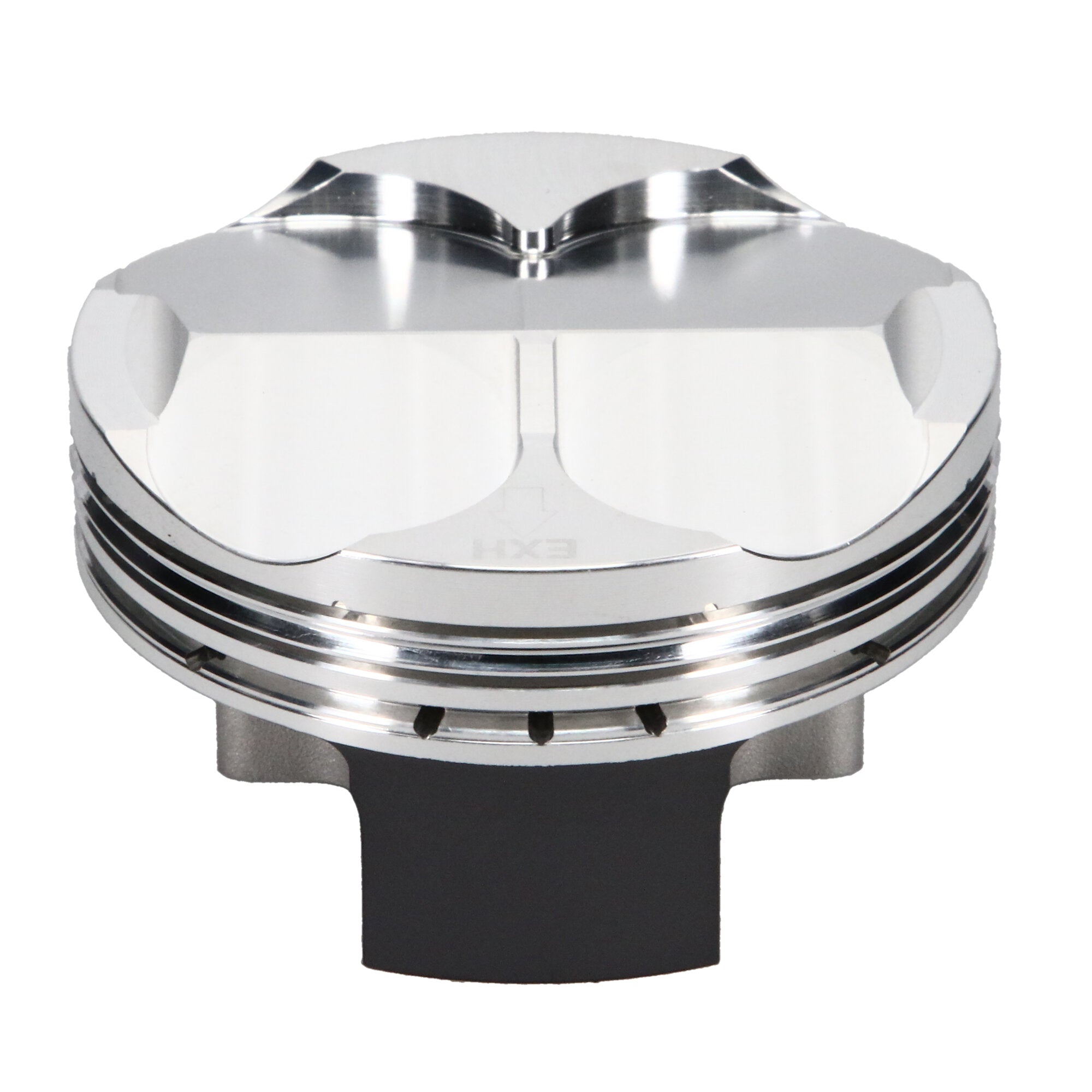

Piston Set, 2618, Dome, 2.638 Bore, 0.835 CD, 0.591 Pin, Set of 4. |
| Description_EXT |
JE, Yamaha, YZF-R6, 13.10:1, 67.00 mm Bore, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for sport bike and other motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the road course to the drag strip everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons. |
| Description_TLE |
JE, Yamaha, 67.00 mm Bore, 4 Cyl. Kit |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-1.30 |
| Ring Set Included |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0320 |
| Wrist Pin Length |
1.650 |
| Add-On |
591-1650-14-TTC |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE, Yamaha, 67.00 mm Bore, 4 Cyl. Kit |
| Piston Material |
2618 |
| Industry |
Powersports |
| Category Hierarchy |
Powersports>Pistons>Piston Kits>Street |
| Title |
JE, Yamaha, 67.00 mm Bore, 4 Cyl. Kit |
| Add-On |
XA6700 |
| Bore Diameter |
67.00 |
| Cylinder Head |
YZF-R6 600 |
| Top Compression Ring Thickness |
0.0320 |
| Product Market |
Street |
| Add-On |
591-040-MW |
| Piston Average Weight |
130 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Wrist Pin Wall Thickness |
0.140 |
| Oil Ring Thickness |
0.0585 |
| Compression Ratio Actual |
13.00:1 |
| Piston Head Type |
Dome |
| Wrist Pin Outer Diameter |
0.591 |
| Engine Type |
ICE |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
3.0000 |
