As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler W-2 NASCAR Canada |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

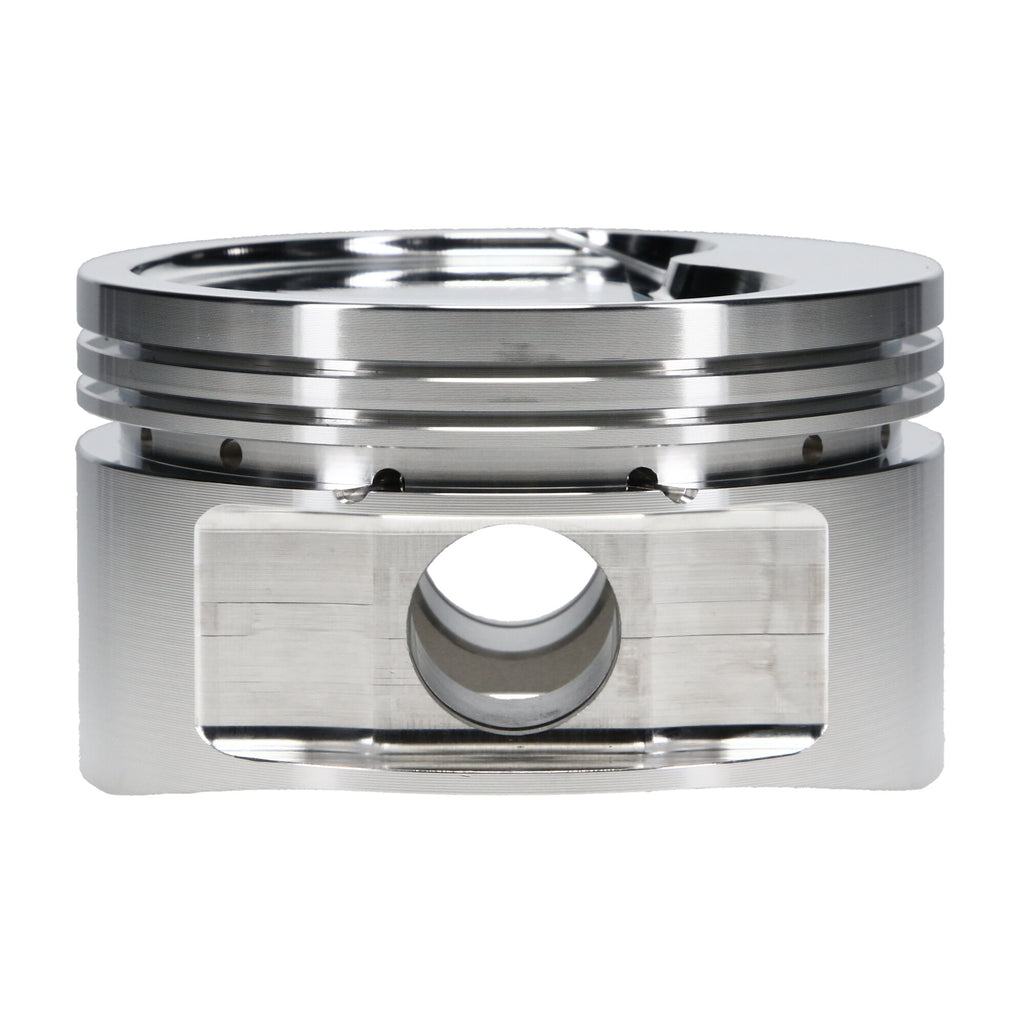

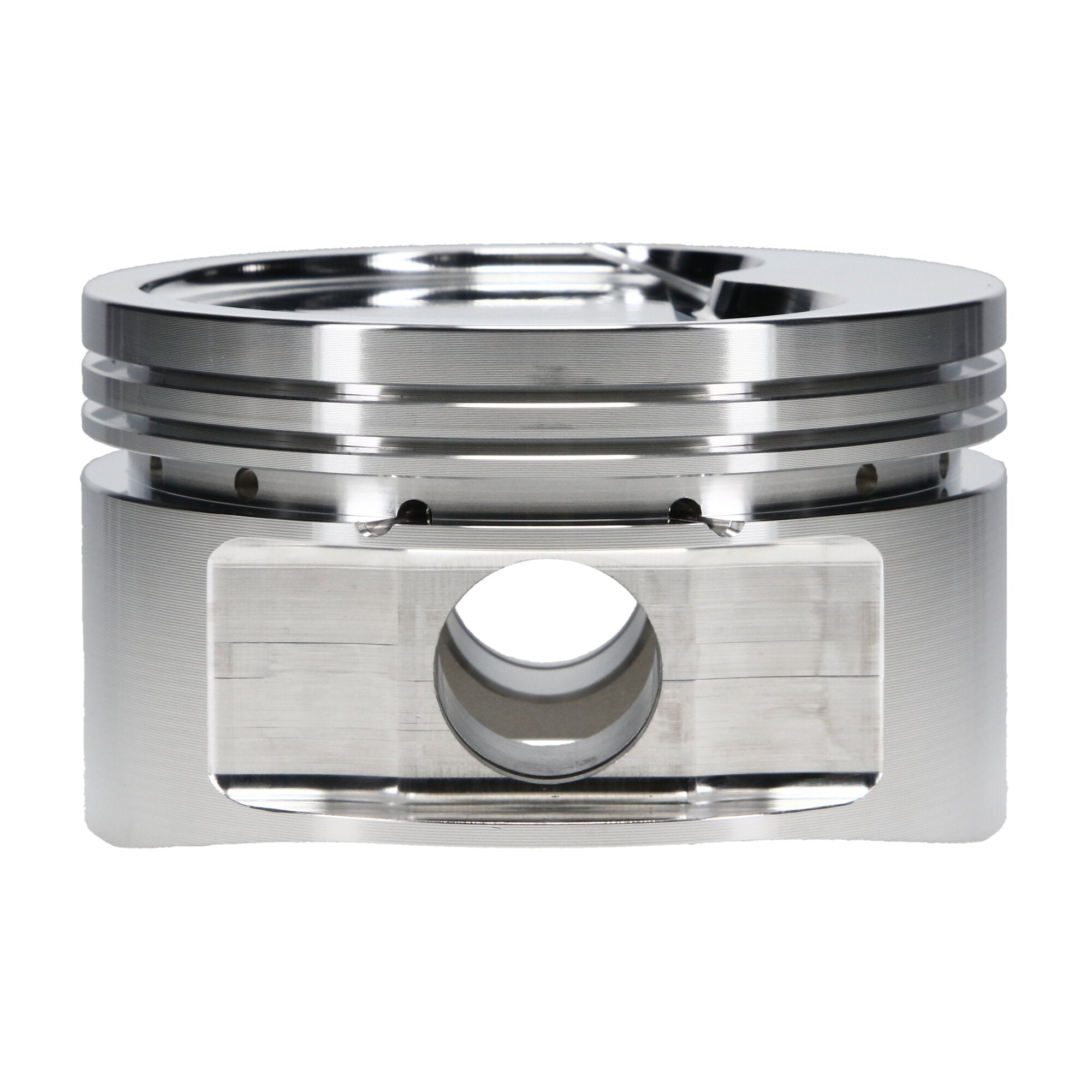

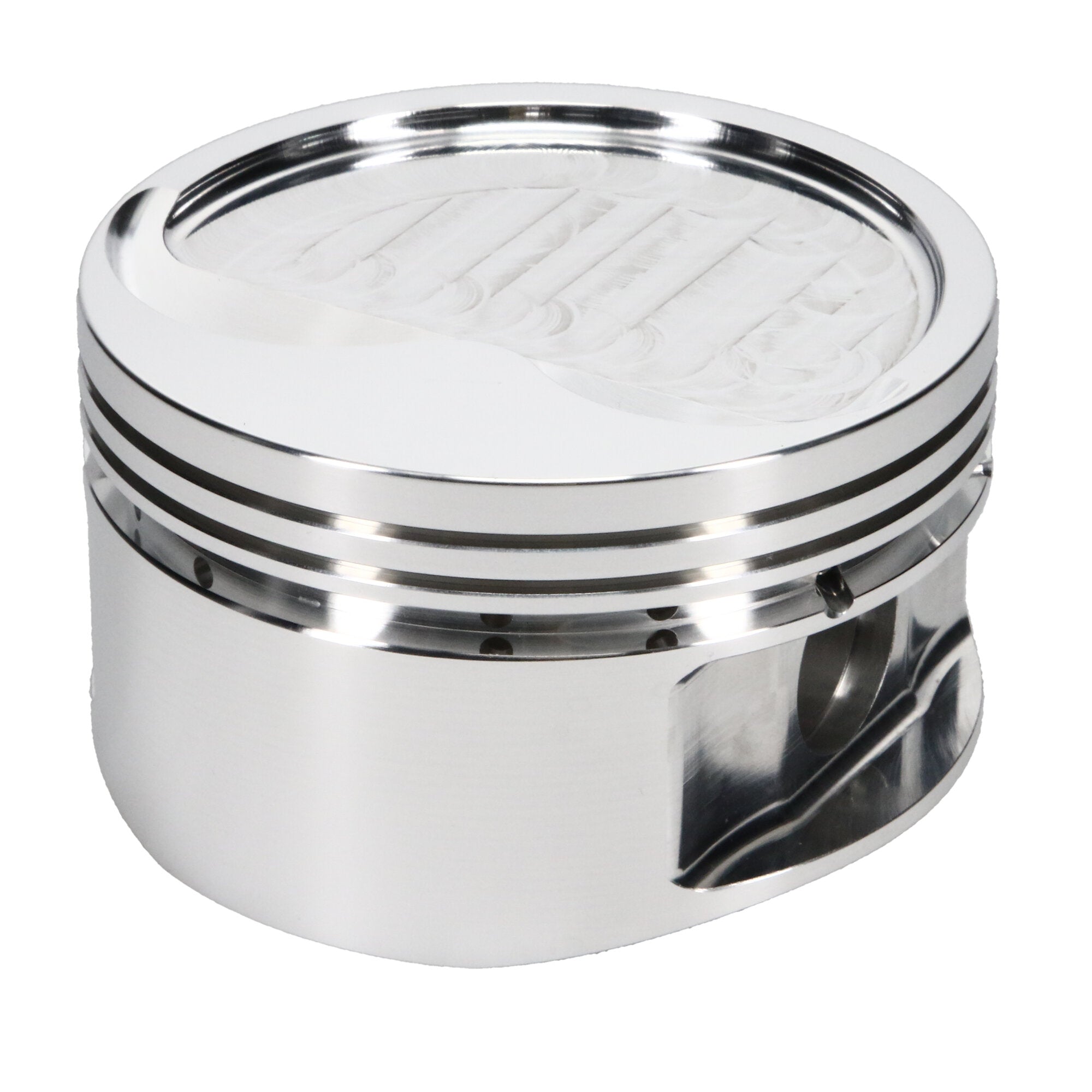

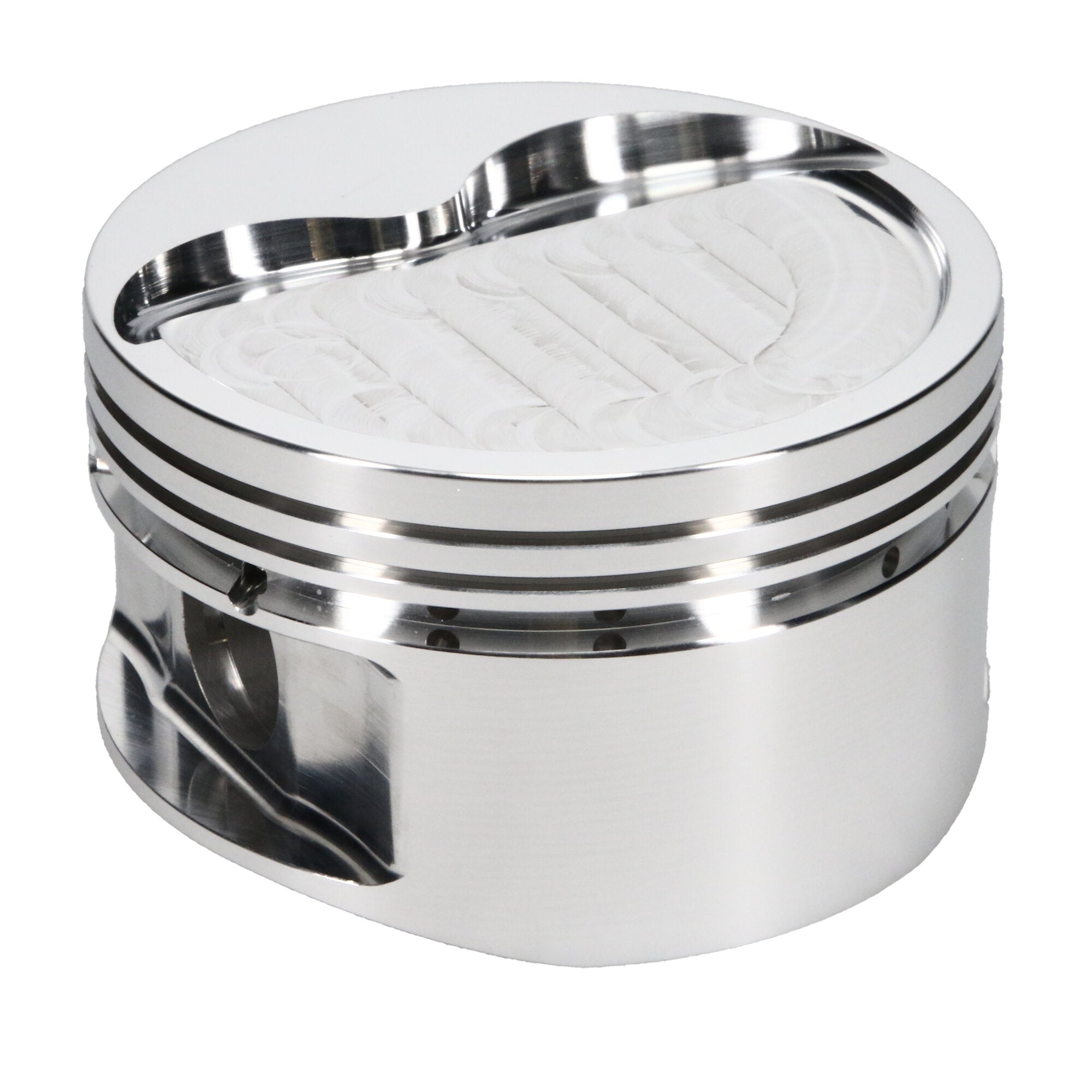

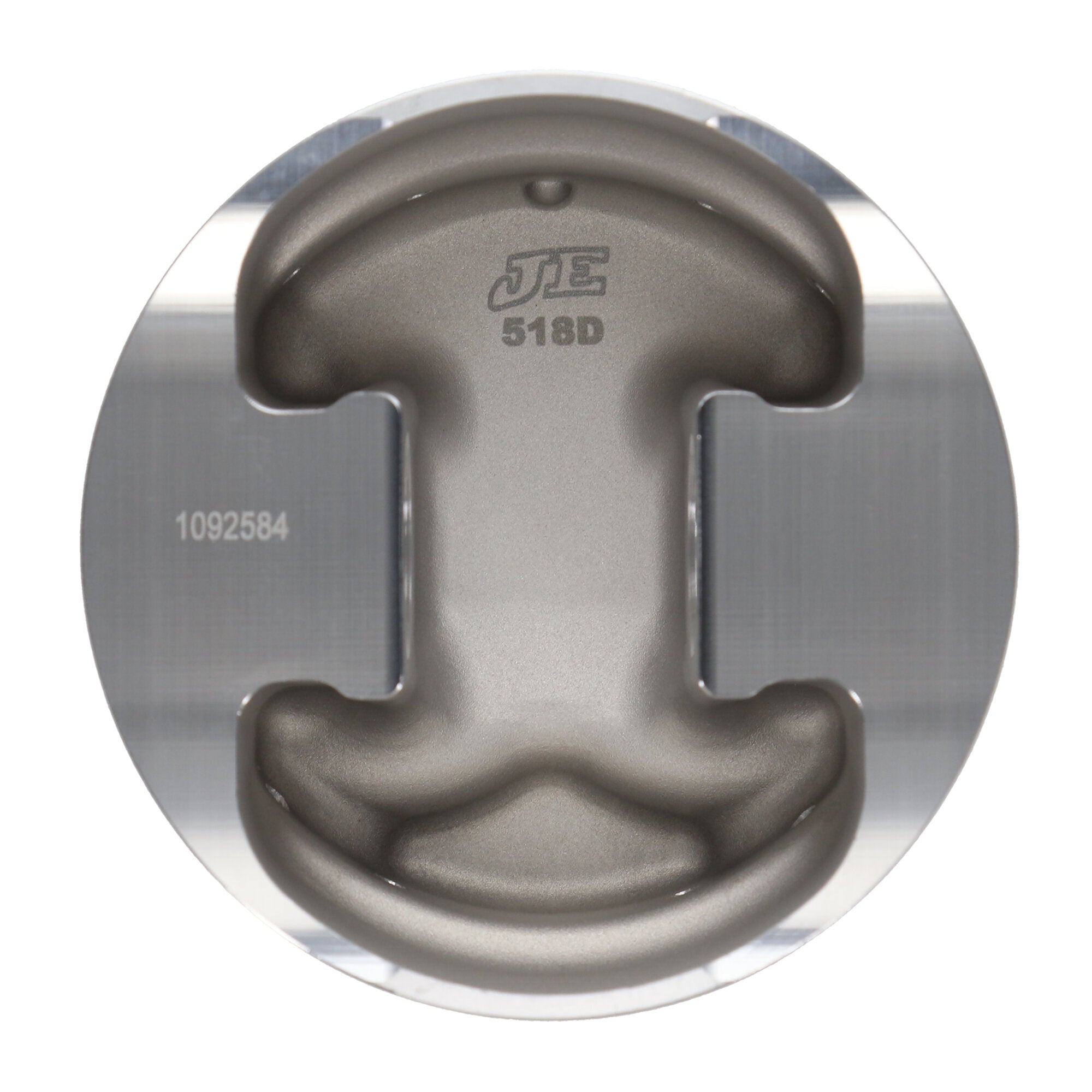

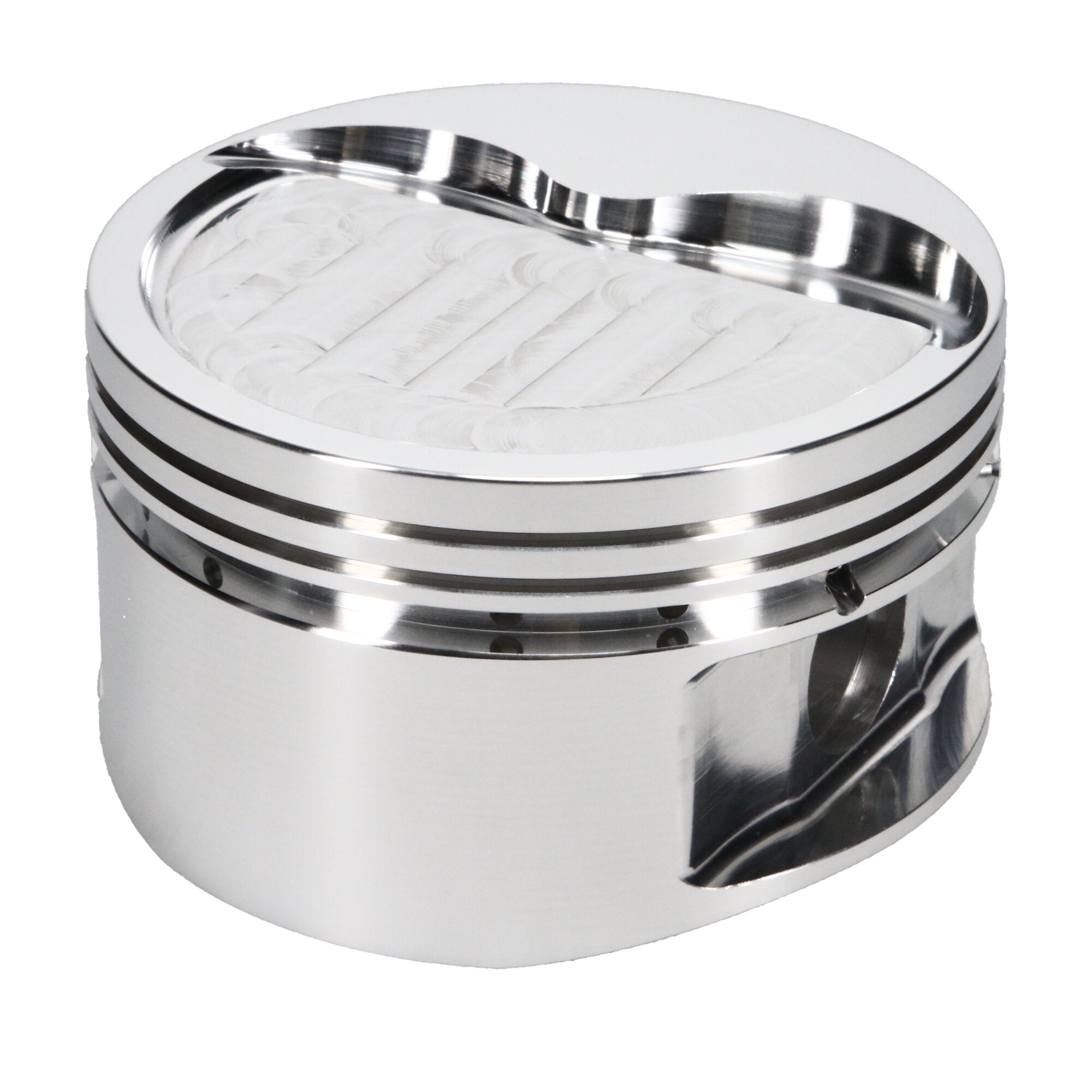

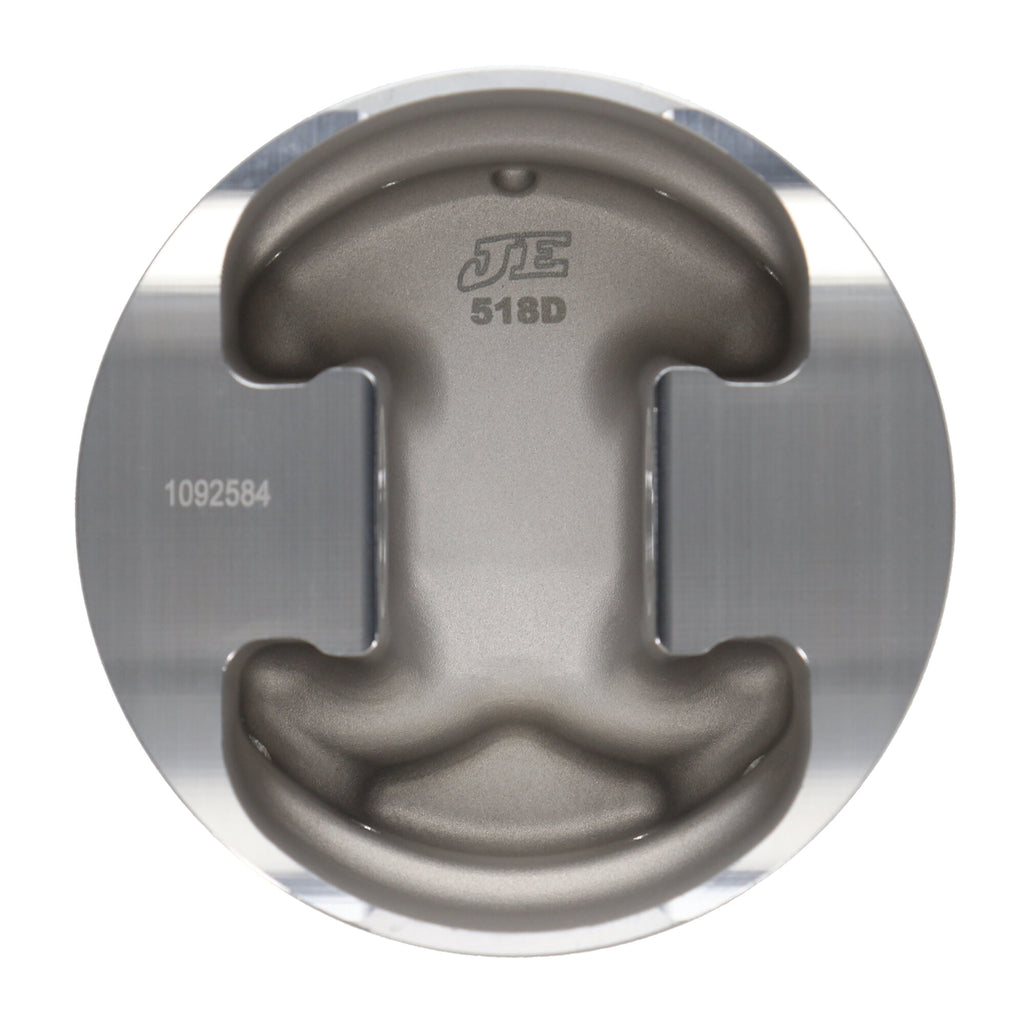

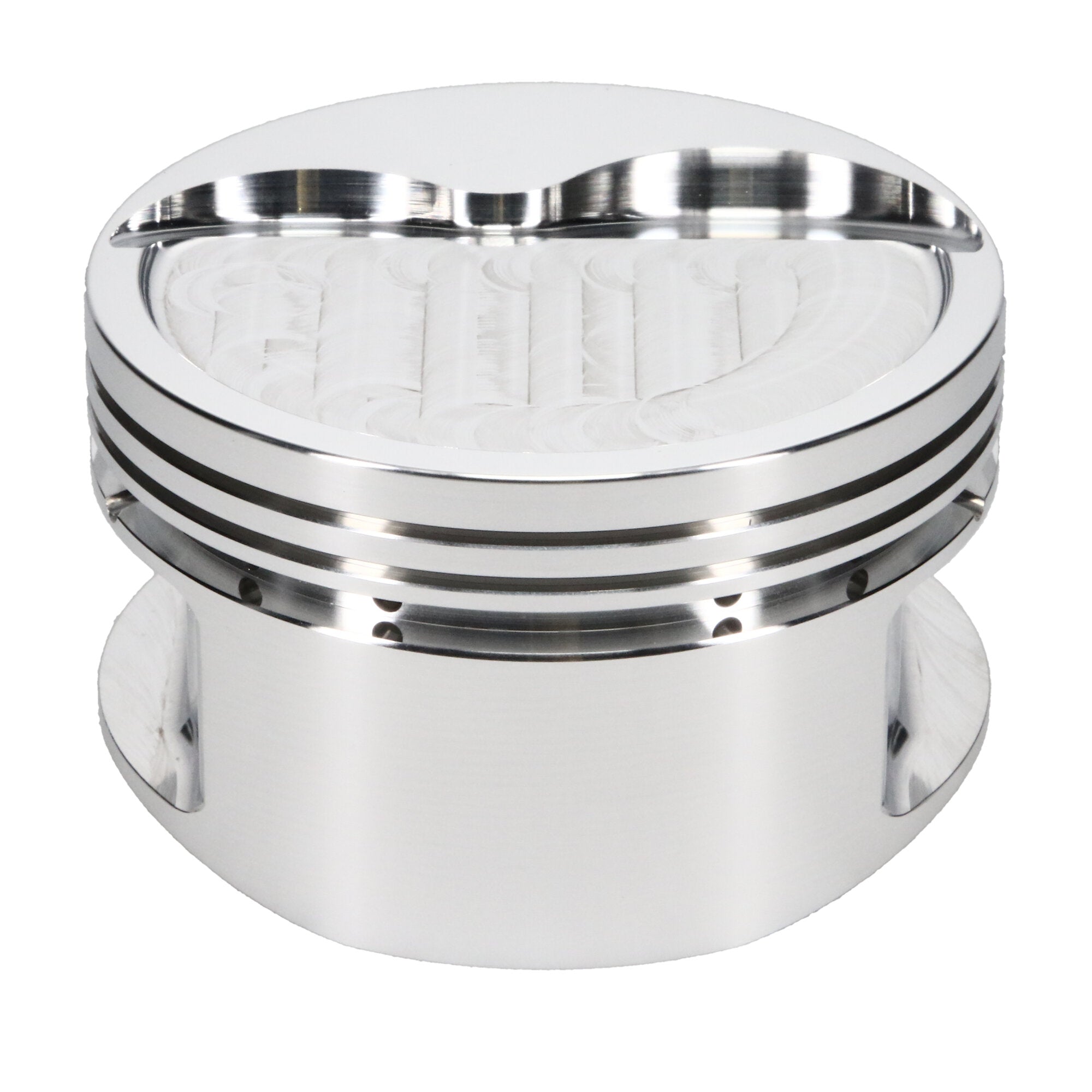

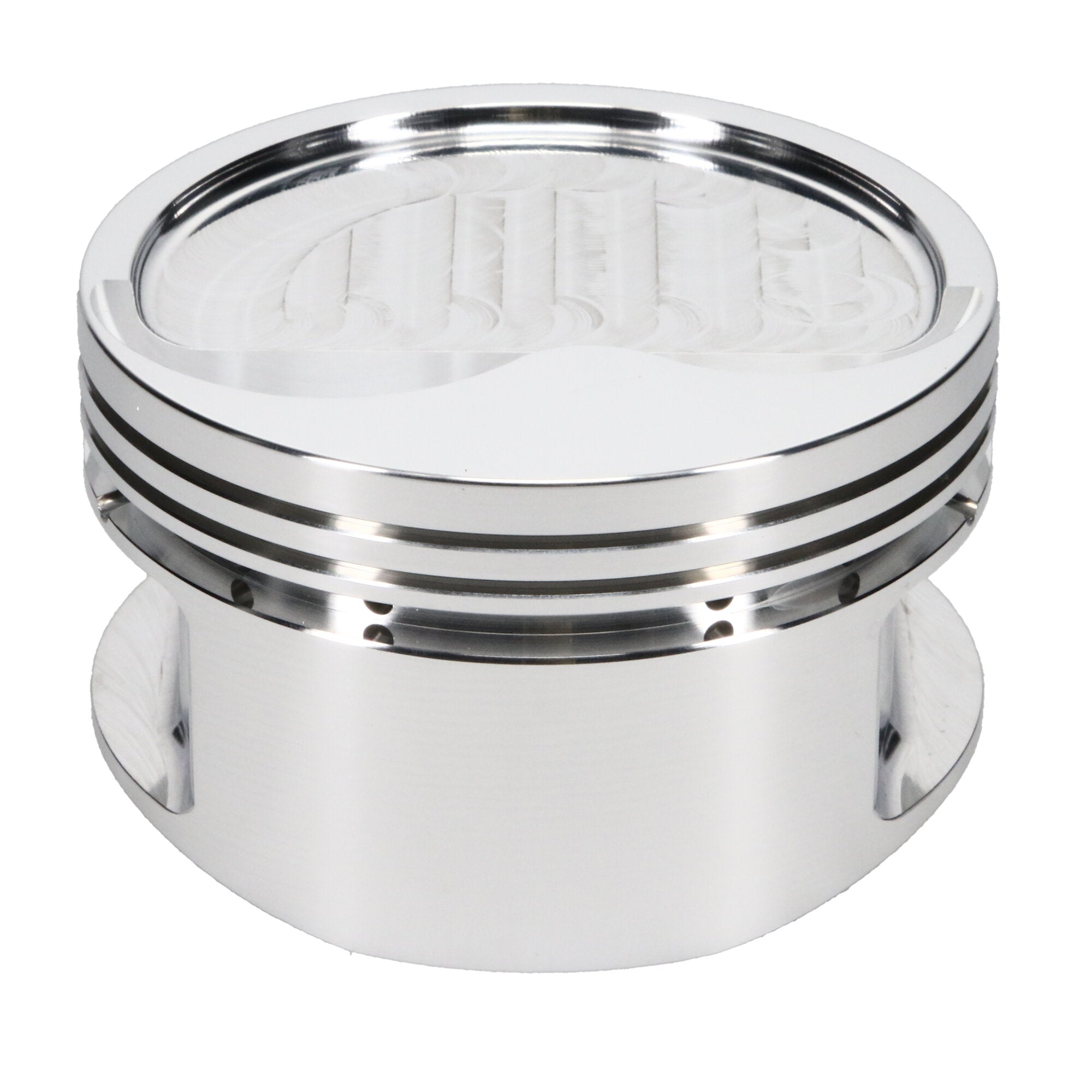

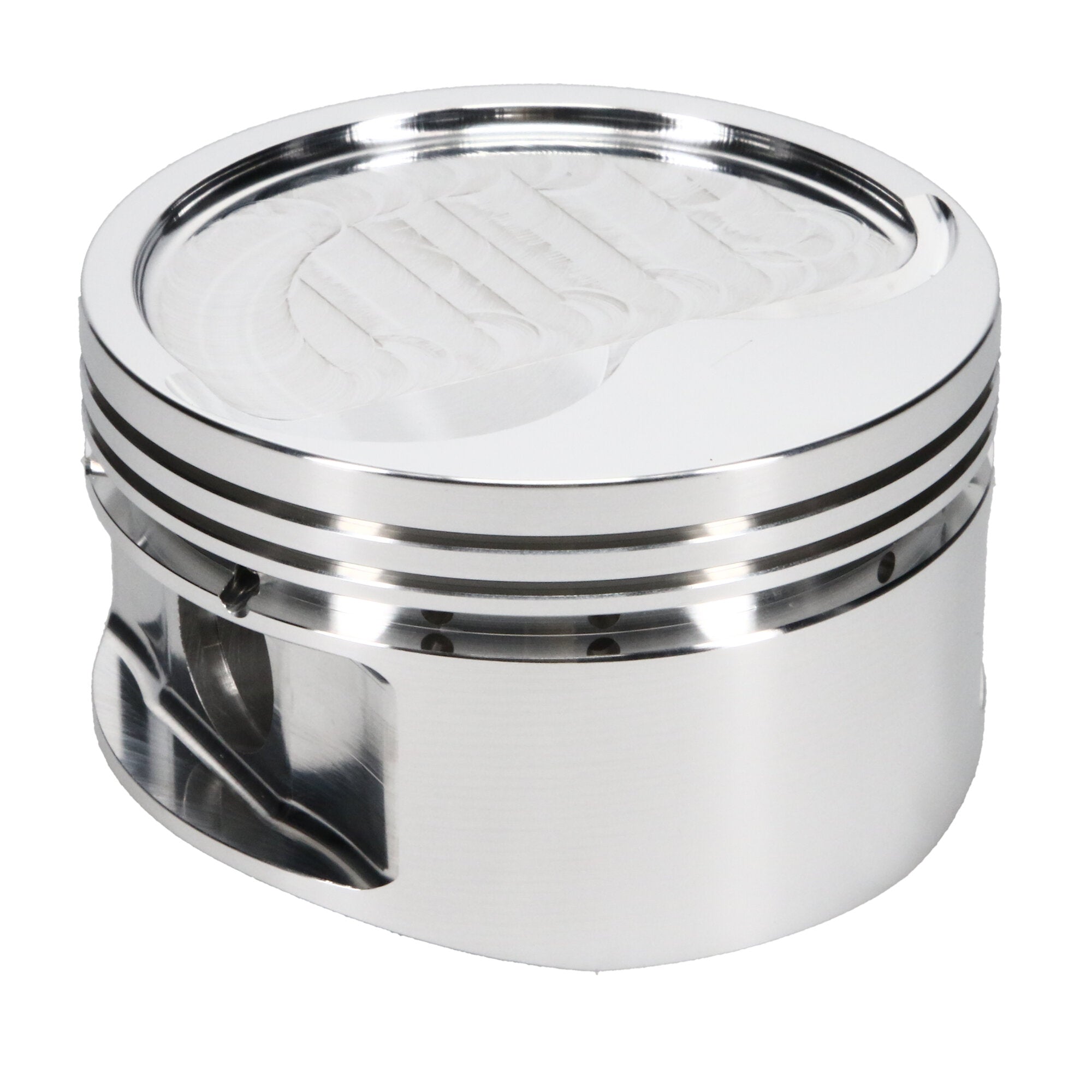

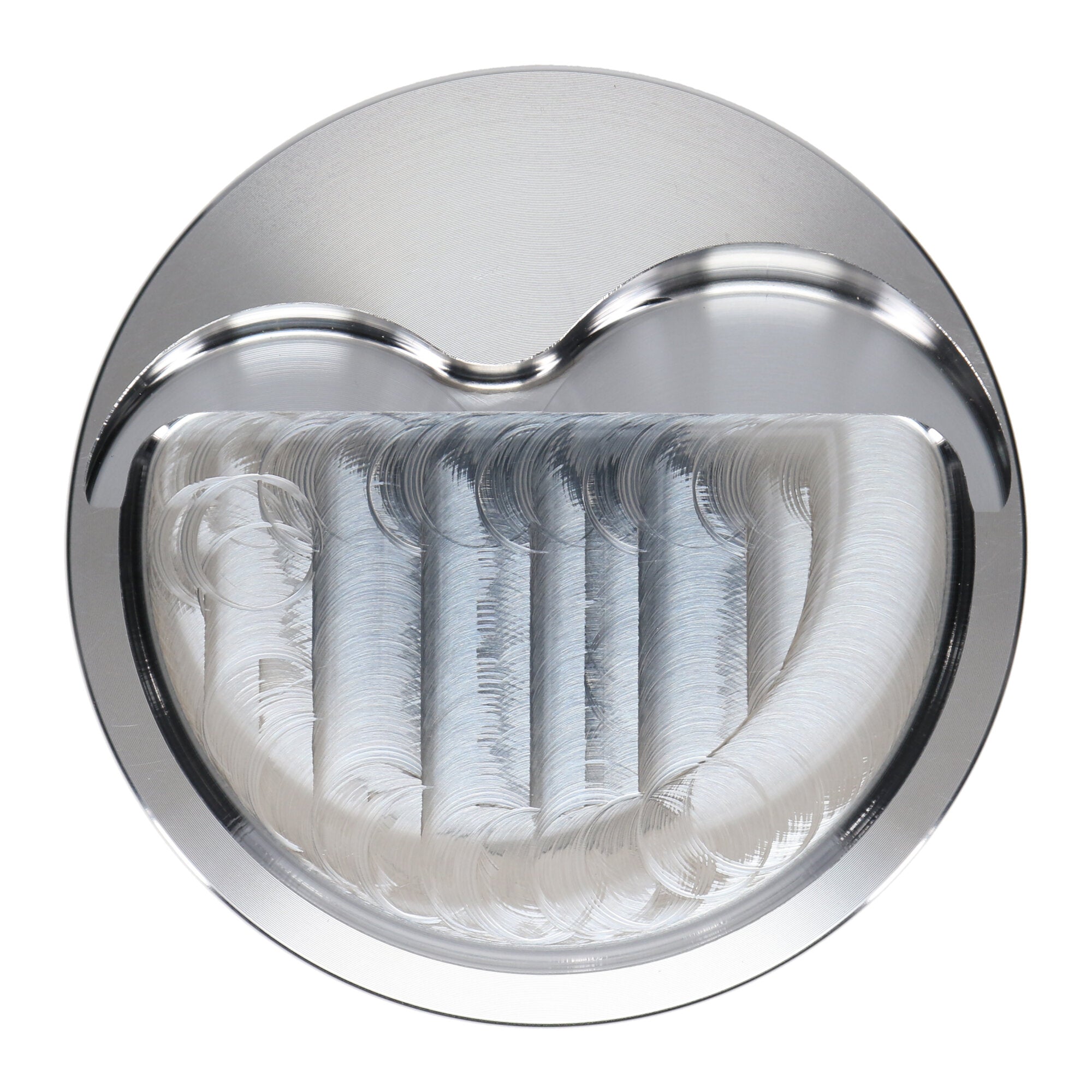

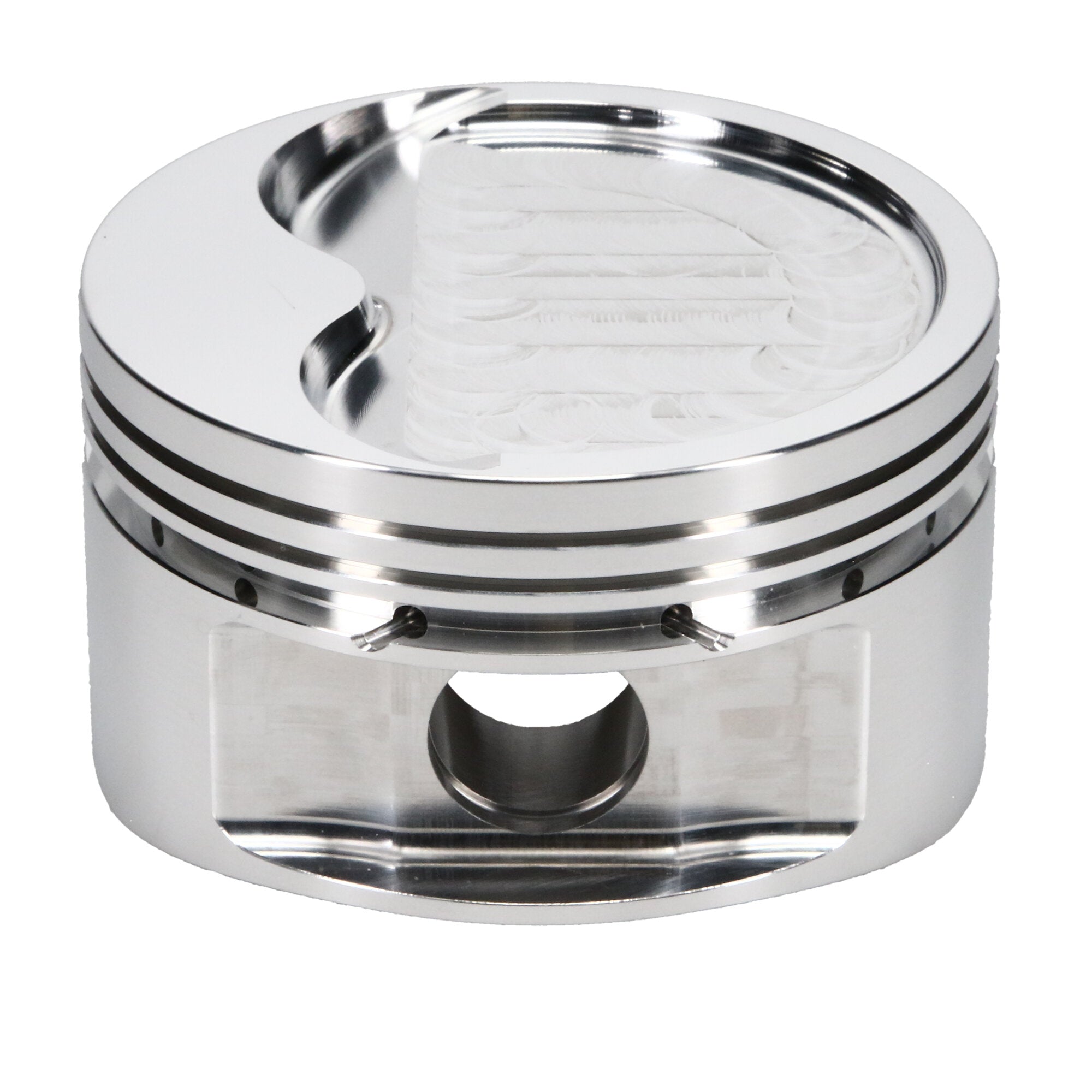

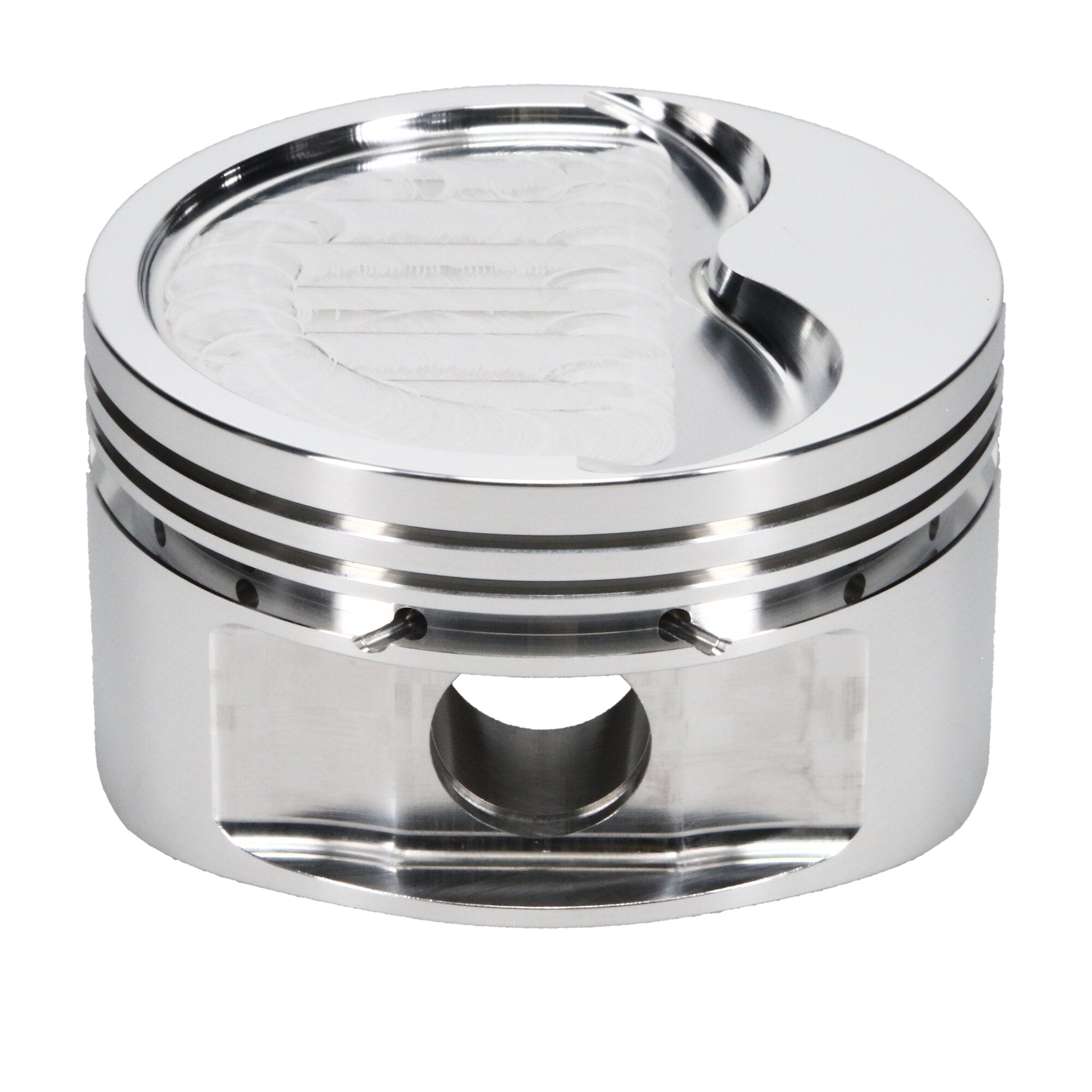

Piston Set, 2618, Inv Dome/Dish, 4.040 Bore, 1.665 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chrysler, Small Block Chrysler, 4.040 in. Bore, 1.665 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chrysler W-2 NASCAR CANADA, 4.040 Bore, Dish, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Oil Ring Thickness |
0.188 |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Wrist Pin Length |
2.500 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Piston Volume |
-11.00 |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.927 |
| Product Type |
Engine Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Quantity |
8 |
| Bore Diameter |
4.040 |
| Compression Height |
1.665 |
| Piston Average Weight |
501 |
| Make |
CHRYSLER |
| Product Market |
Domestic |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Add-On |
927-2500-15-51S |
| Prop 65 (C, R or CR) |
CR |
| Ringset Included |
No |
| Add-On |
927-042-CS |
| Piston Pin Length |
2.500 |
| Out of Stock Message |
Call for Availability |
| Title |
JE Pistons - Chrysler, Small Block, 4.040 in. Bore, Piston Kit |
| Engine |
Small Block |
| Top Compression Ring Thickness |
0.0640 |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
J10008-4040-5 |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Industry |
Automotive |
| Cylinder Head |
360 WEDGE |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Chrysler Small Block Piston Kit - 4.040 in. Bore - 1.665 in. CH, -11.00 CC |
| Make - Web |
Chrysler |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
