As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan KA24DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

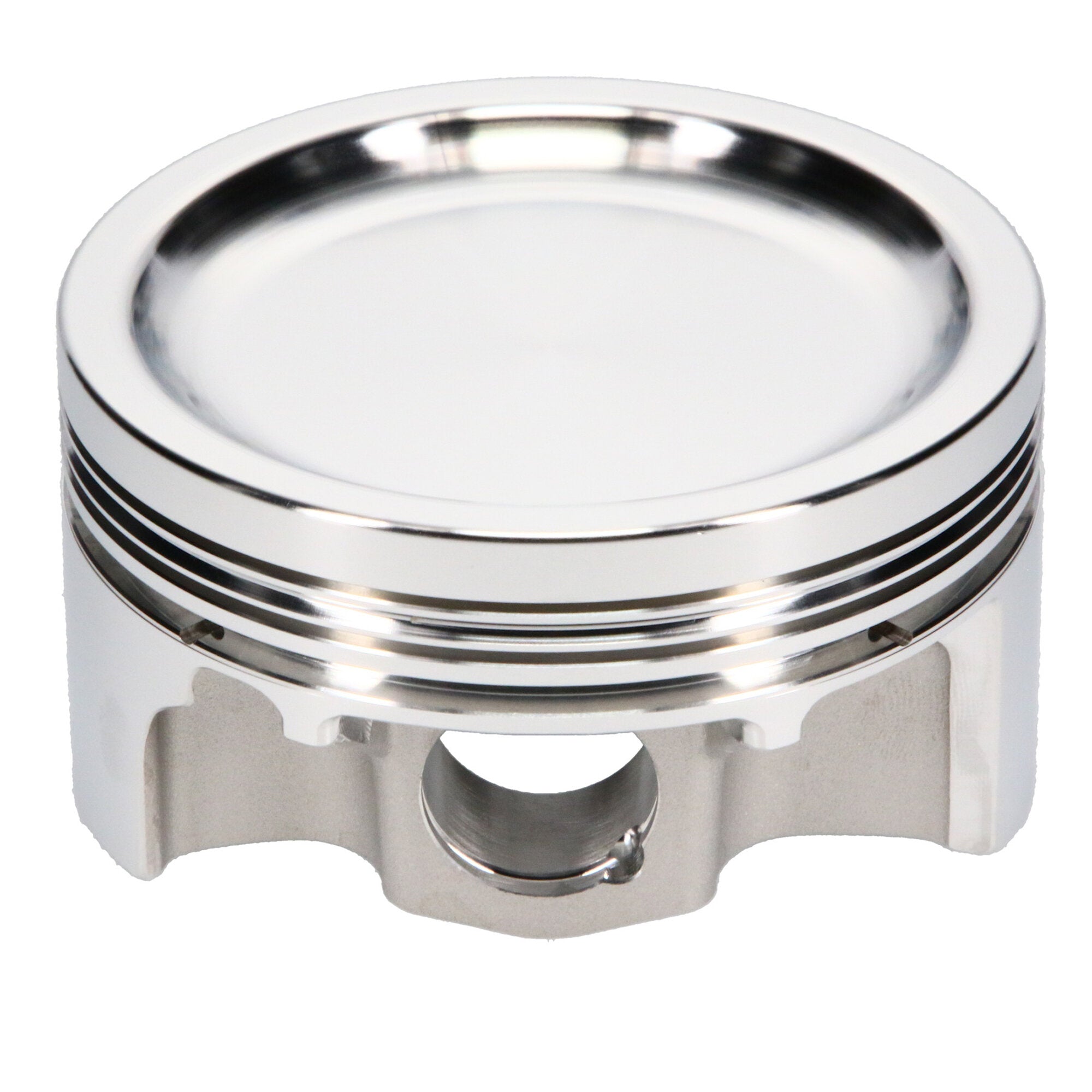

Piston Set, 2618, Inv Dome/Dish, 3.524 Bore, 1.336 CD, 0.827 Pin, Set of 4. |
| Description_EXT |
JE, Nissan, KA24DE, 3.524 in. Bore, 11.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Nissan KA24DE, 89.50 Bore, Dish, Set of 4 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.250 |
| Engine |
KA24DE |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-6.60 |
| Industry |
Automotive |
| Add-On |
827-2250-15-51C |
| Add-On |
827-063-MW |
| Cylinder Head |
KA24DE |
| Add-On |
JG1001-3524 |
| Ring Set Included |
Yes |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Nissan KA24DE Piston Kit - 89.50 mm Bore - 1.336 in. CH, -6.60 CC |
| Second Compression Ring Thickness |
0.0480 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Nissan |
| Title |
JE Pistons - Nissan, KA24DE, 89.50 mm Bore, Piston Kit |
| Piston Quantity |
4 |
| Ringset Included |
Yes |
| Top Compression Ring Thickness |
0.0400 |
| Forging Type |
Round |
| Piston Pin Outside Diameter |
0.827 |
| Make |
NISSAN |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Compression Height |
1.336 |
| Piston Average Weight |
341 |
| Bore Diameter |
89.50 |
| Product Market |
Sport Compact |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
KA24DE |
| Wrist Pin Outer Diameter |
0.827 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
