As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 1.8T 20V 97-05 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

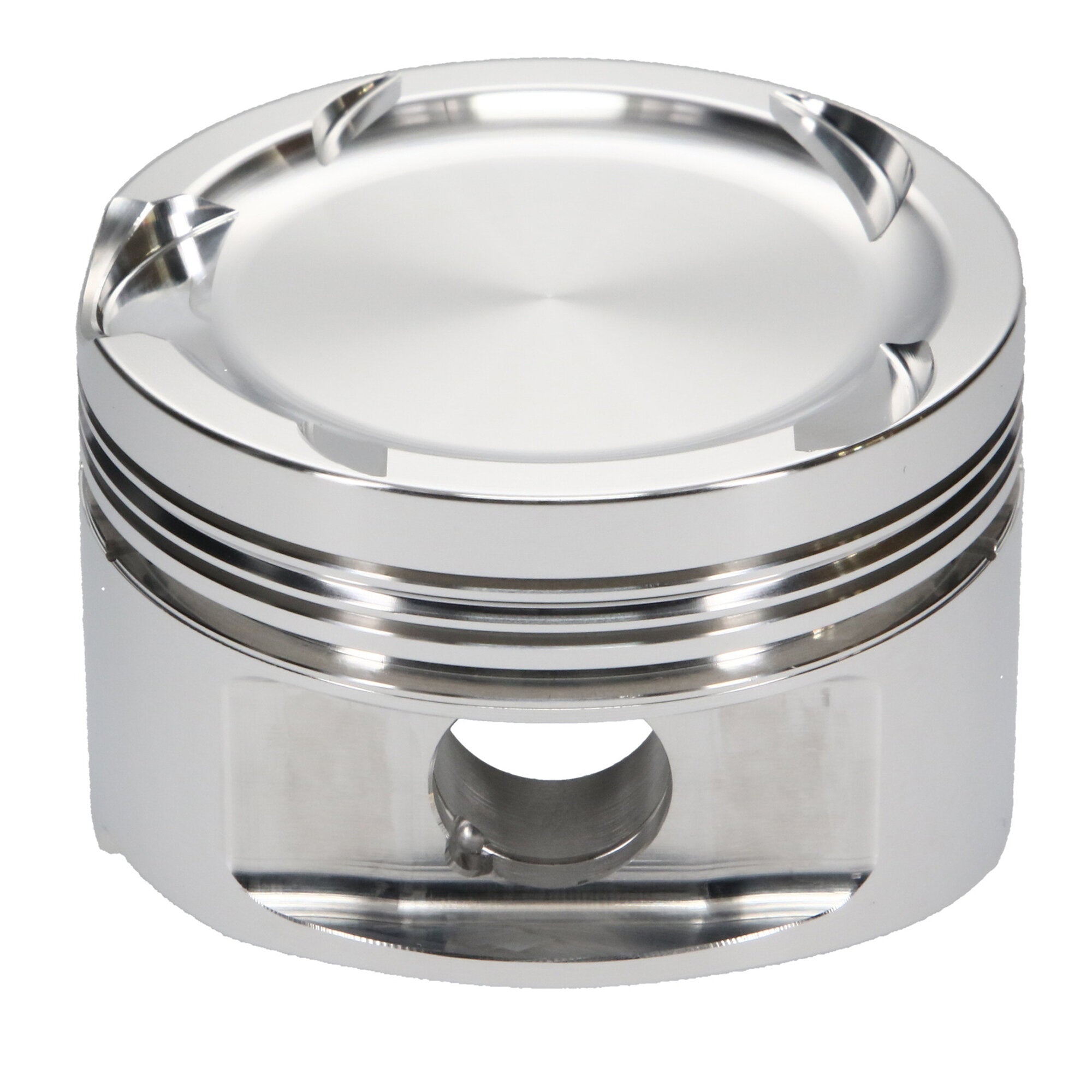

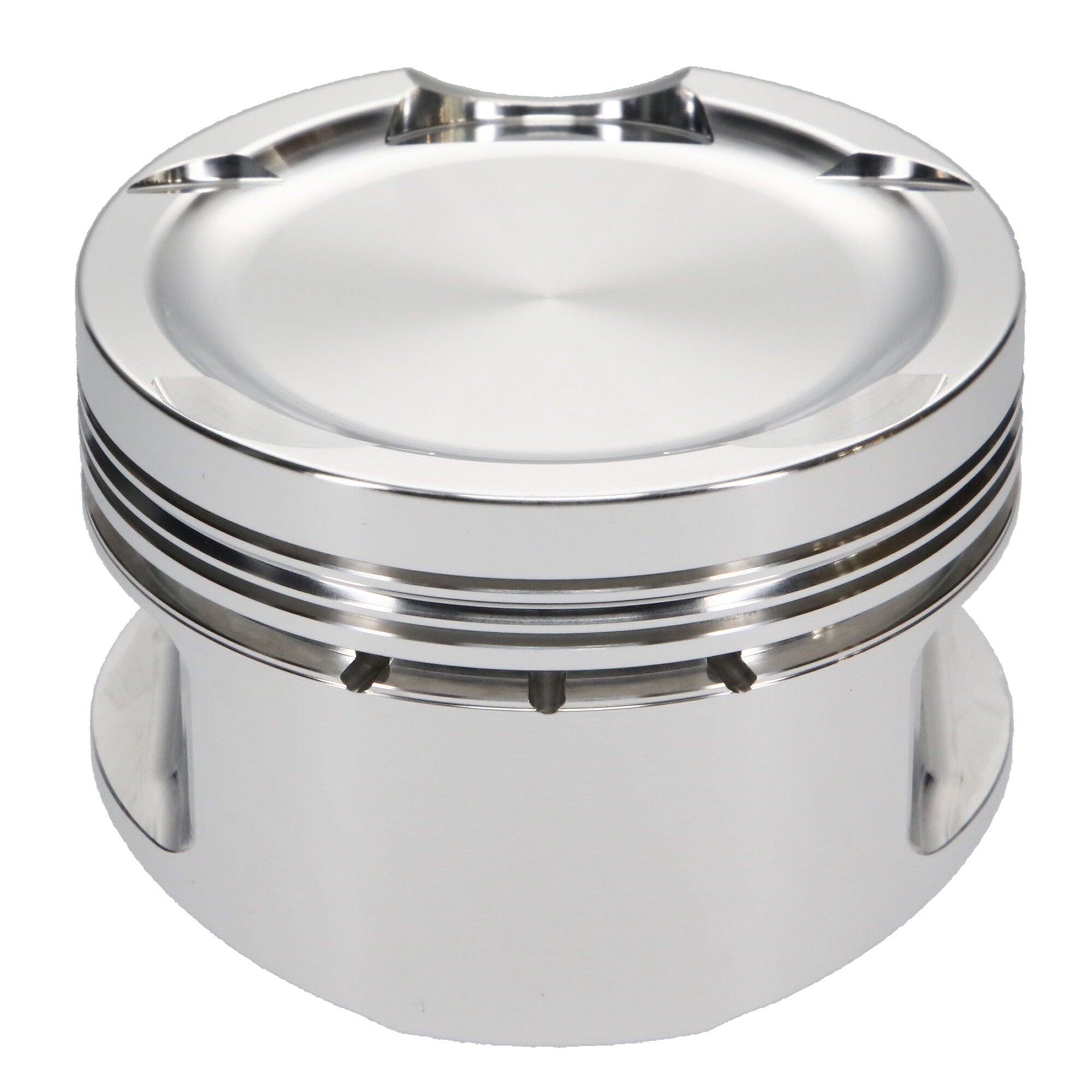

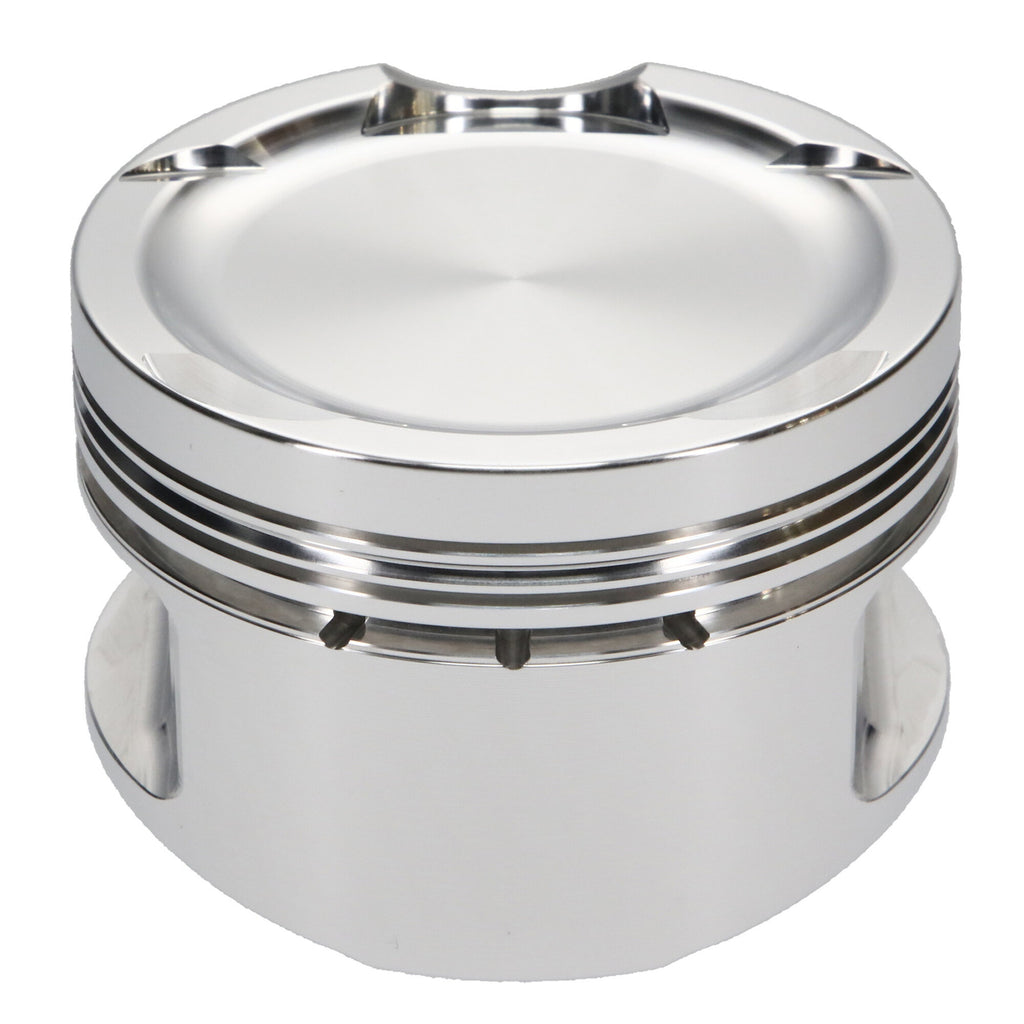

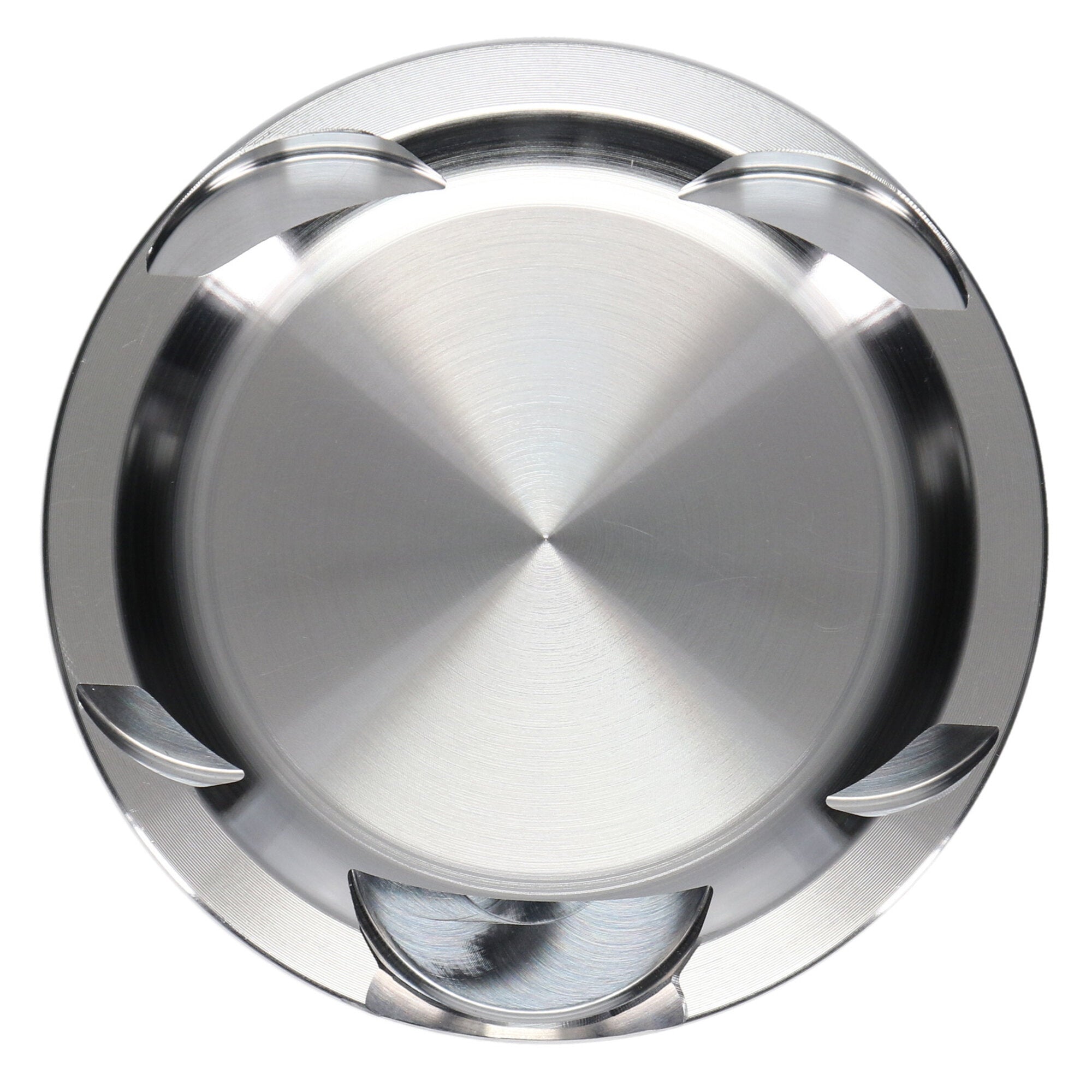

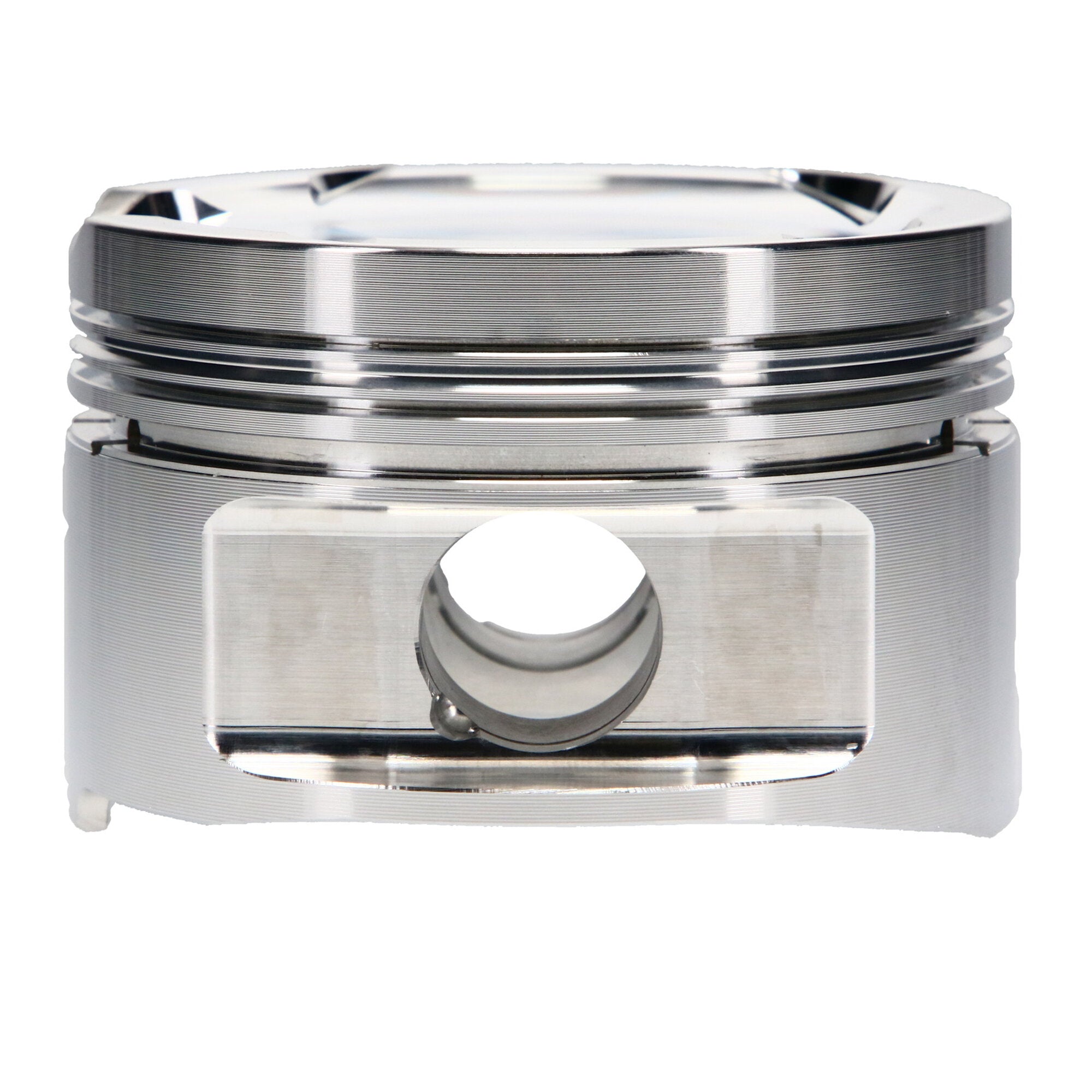

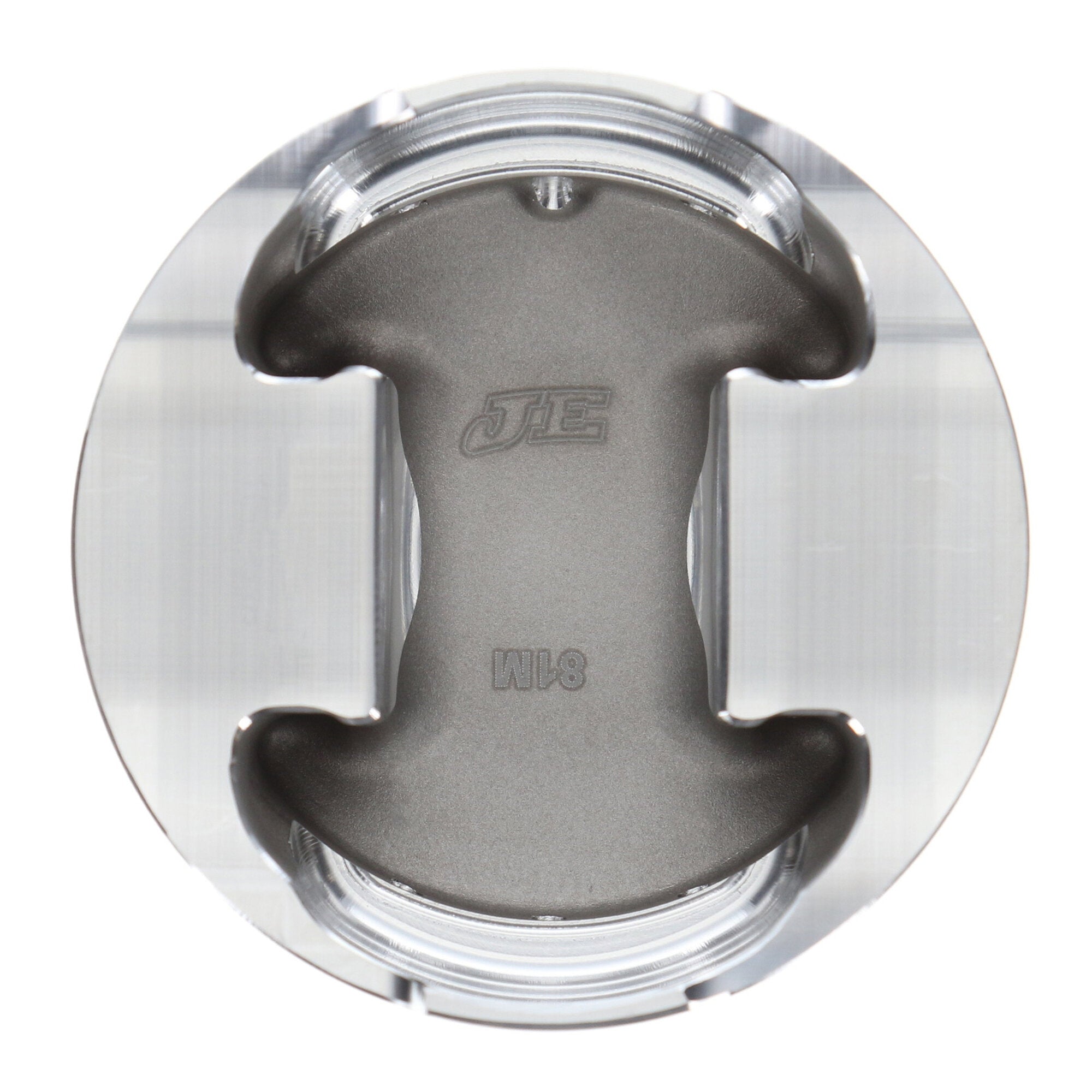

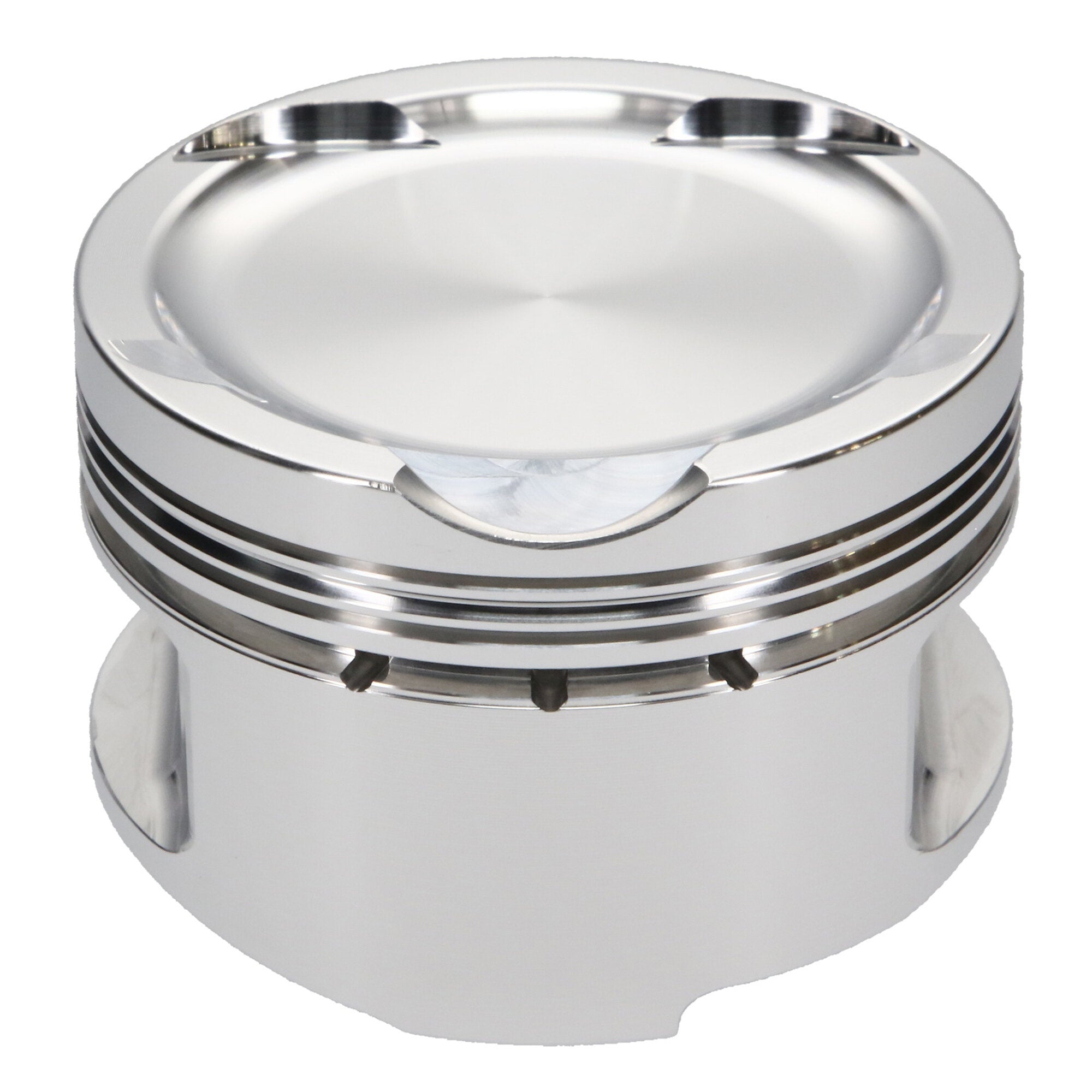

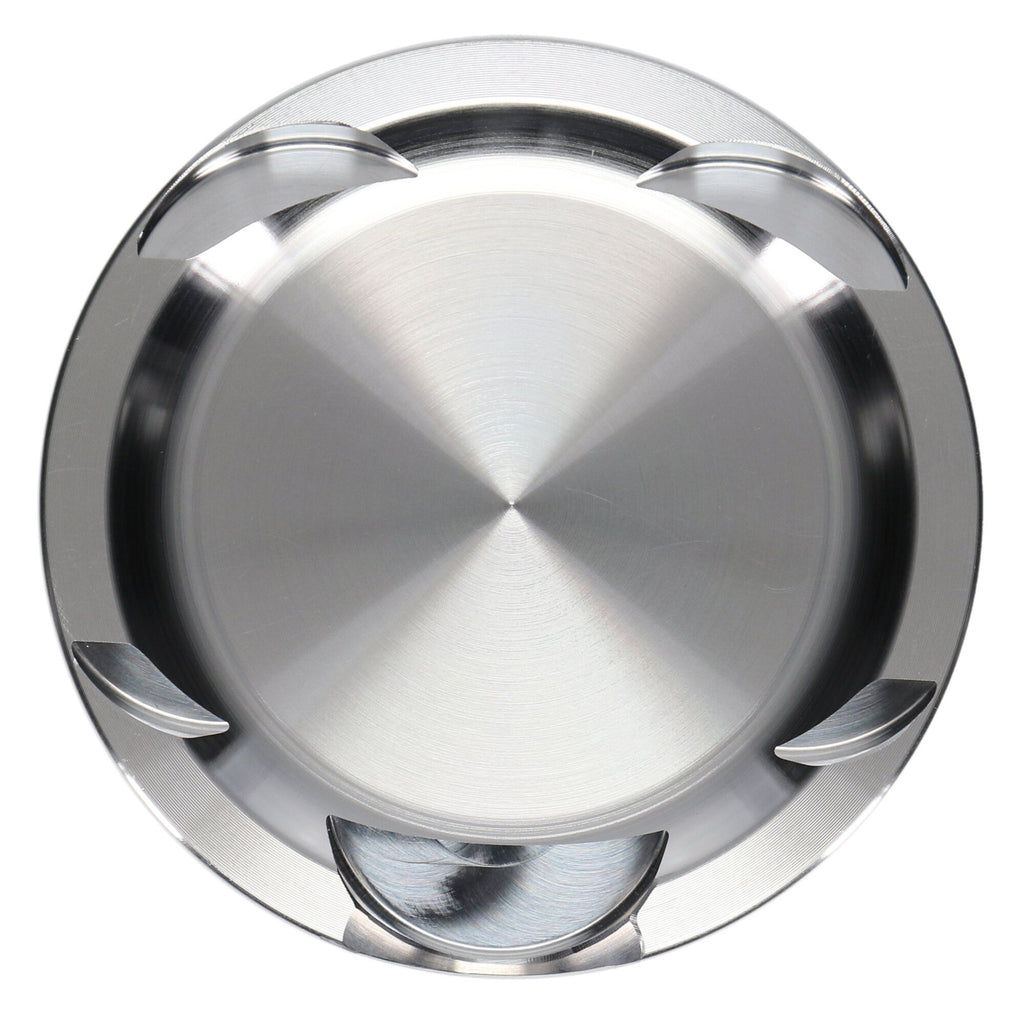

Piston Set, 2618, Inv Dome/Dish, 3.209 Bore, 1.286 CD, 0.787 Pin, Set of 4. |
| Description_EXT |
JE, VW, 1.8T 20V - 20mm Pin, 3.209 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Volkswagen 1.8T 20V, 81.50 Bore, Dish, Set of 4 |
| Piston Head Type |
Dish |
| Wrist Pin Outer Diameter |
0.787 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.180 |
| Make |
VOLKSWAGEN |
| Oil Ring Thickness |
0.111 |
| Ringset Included |
Yes |
| Engine Detail |
1.8T 20V 20 mm Pin |
| Wrist Pin Wall Thickness |
0.180 |
| Industry |
Automotive |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Piston Average Weight |
307 |
| Title |
JE Pistons - Volkswagen, 1.8T 20V, 81.50 mm Bore, Piston Kit |
| Cylinder Head |
1.8T APH |
| Forging Type |
Round |
| Piston Pin Length |
2.250 |
| Piston Quantity |
4 |
| Piston Material |
2618 |
| Engine |
1.8T 20V 20 mm Pin |
| Top Compression Ring Thickness |
0.0400 |
| Add-On |
JG1001-3209 |
| Piston Volume |
-8.60 |
| Bore Diameter |
81.50 |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Outside Diameter |
0.787 |
| Product Type |
Engine Piston Kit |
| Product Market |
European |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
787-050-MW |
| Out of Stock Message |
Call for Availability |
| Compression Height |
1.286 |
| Title - Web |
JE Pistons Volkswagen 1.8T 20V Piston Kit - 81.50 mm Bore - 1.286 in. CH, -8.60 CC |
| Prop 65 Yes/No |
Yes |
| Add-On |
787-2250-18-51C |
| Make - Web |
Volkswagen |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Engine - Web |
1.8T 20V |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
