As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

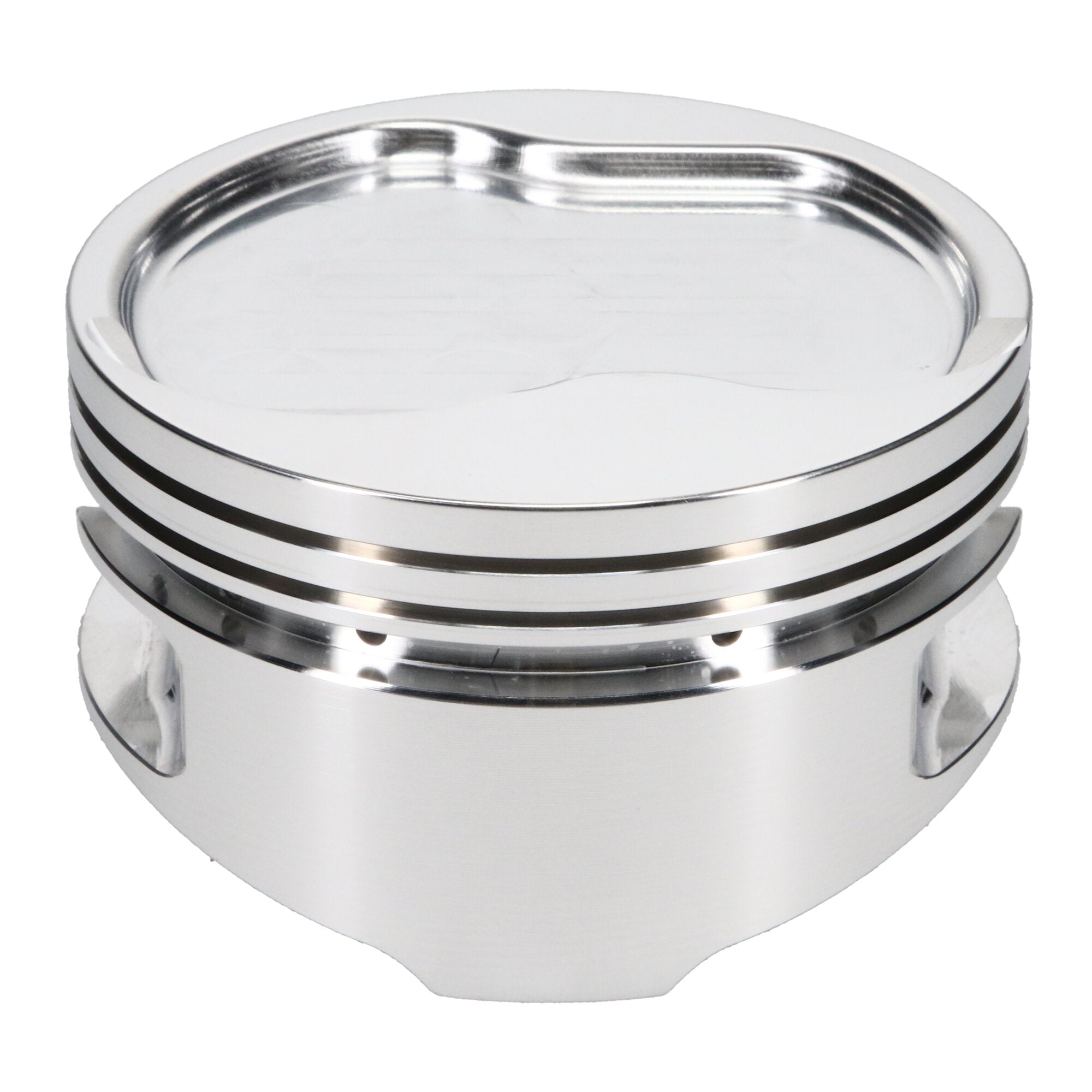

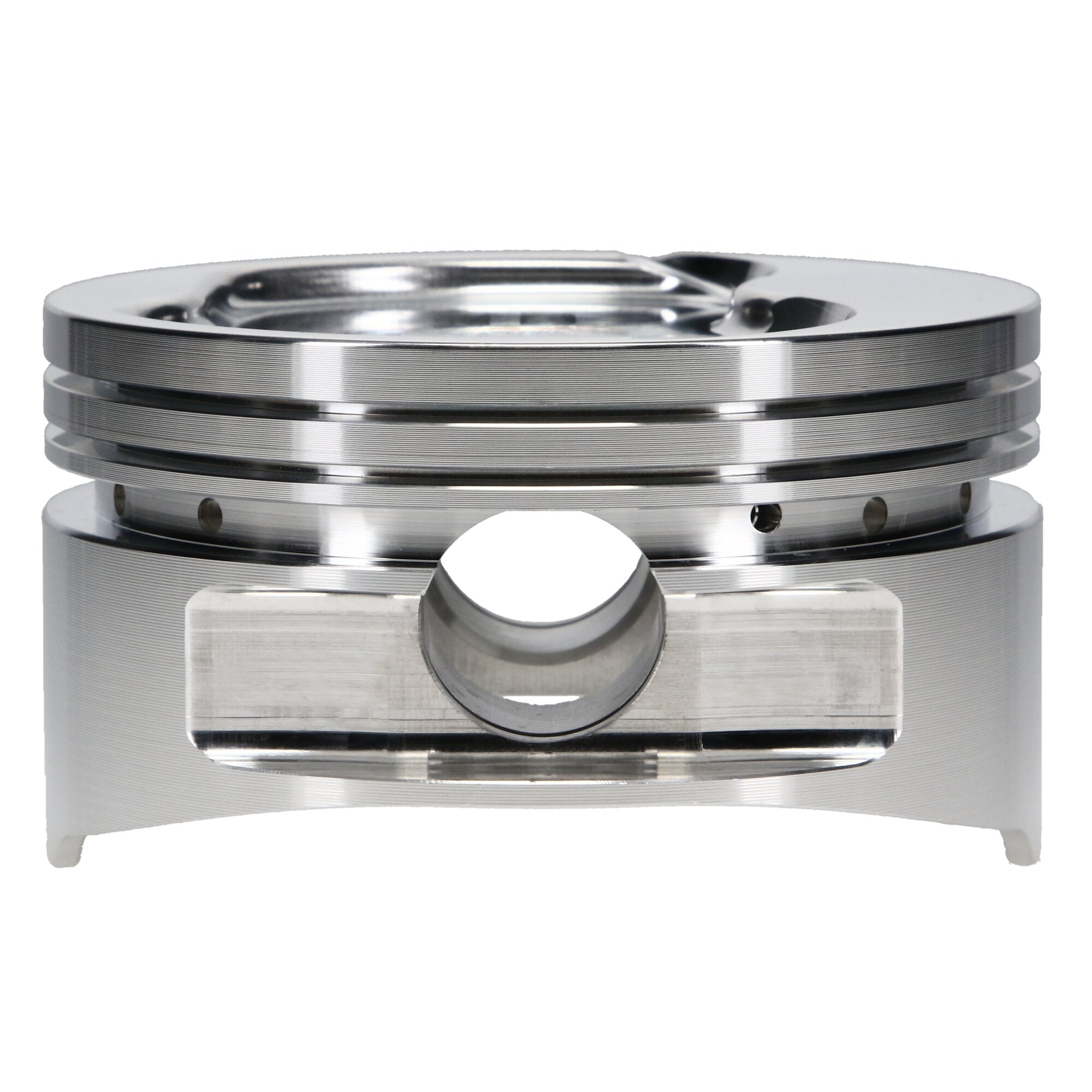

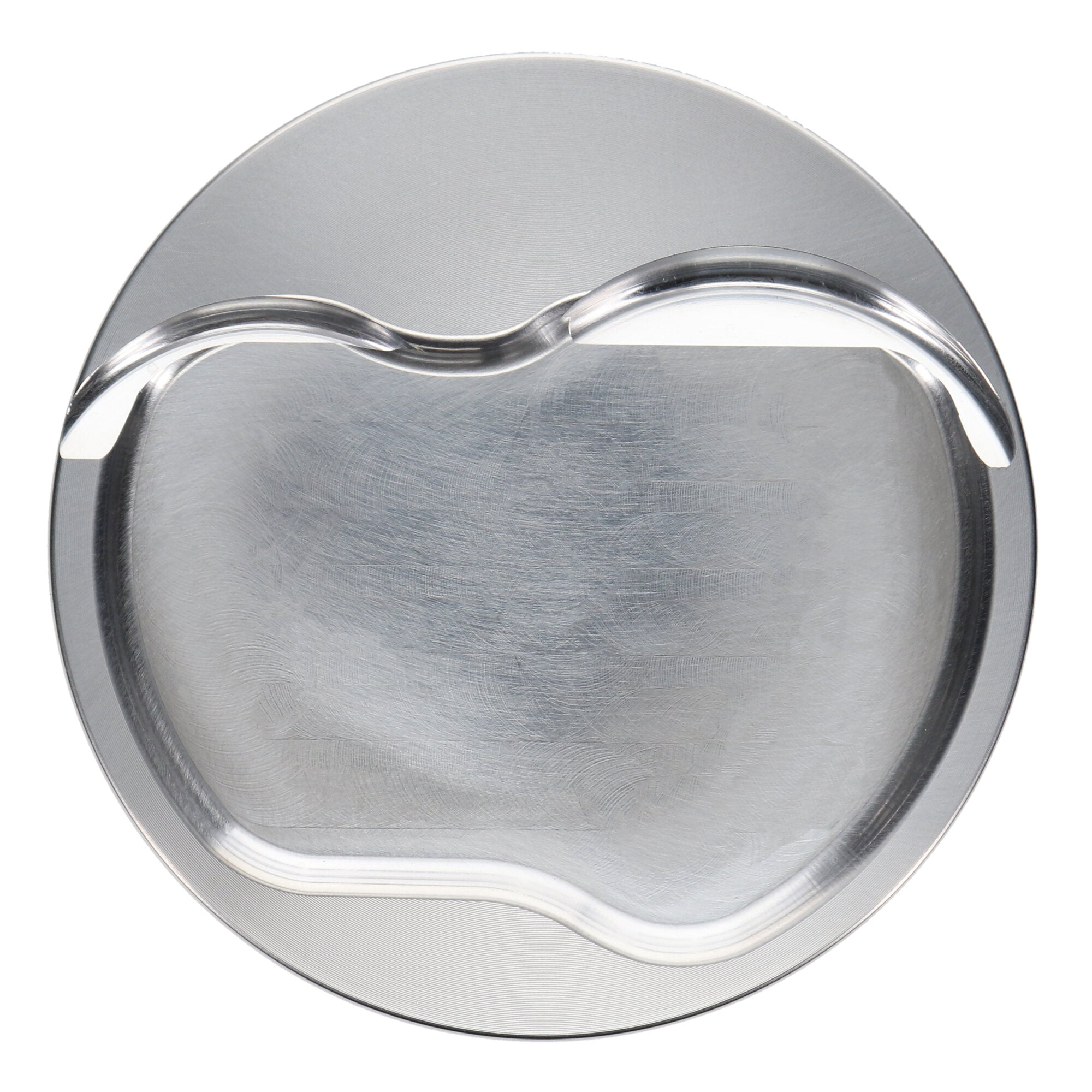

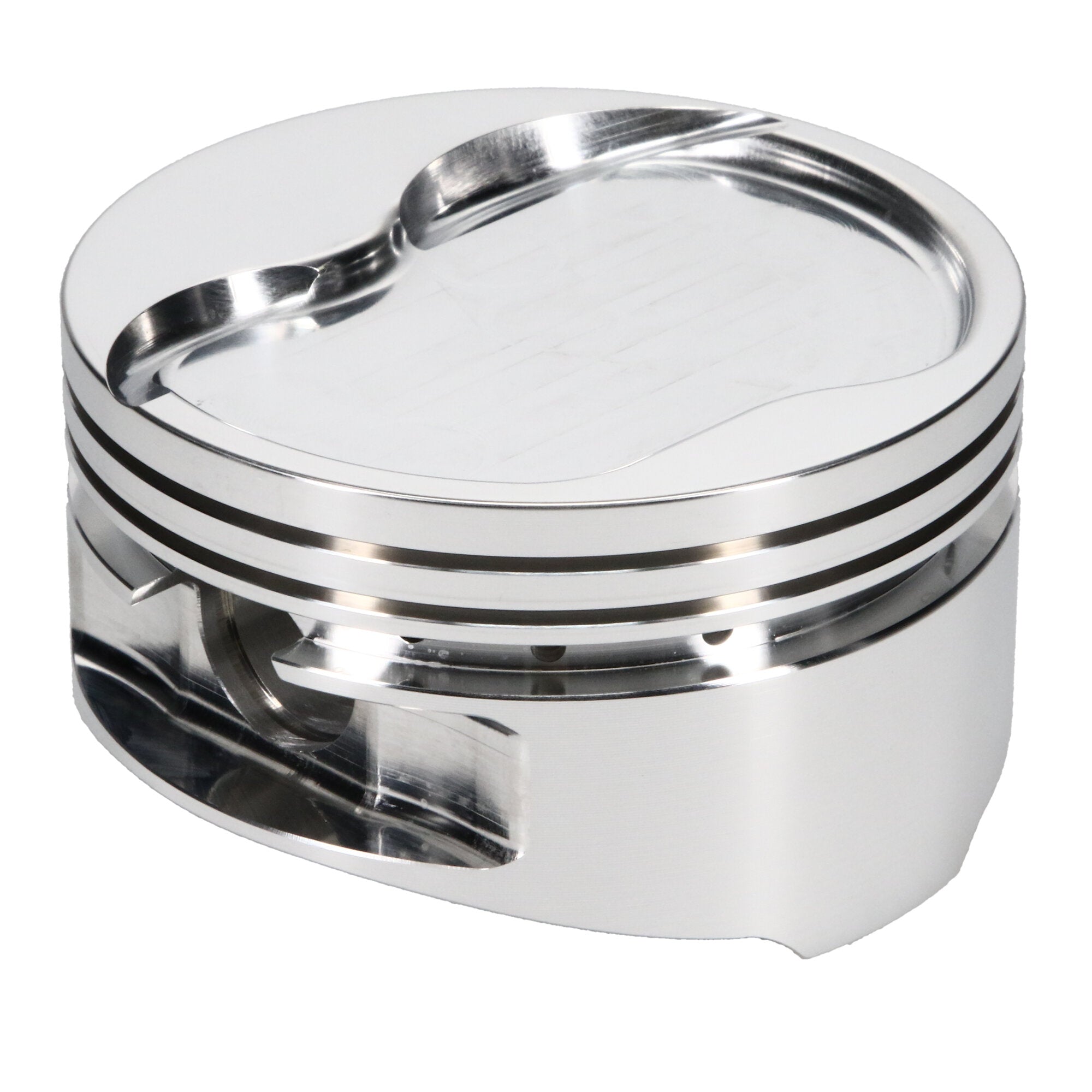

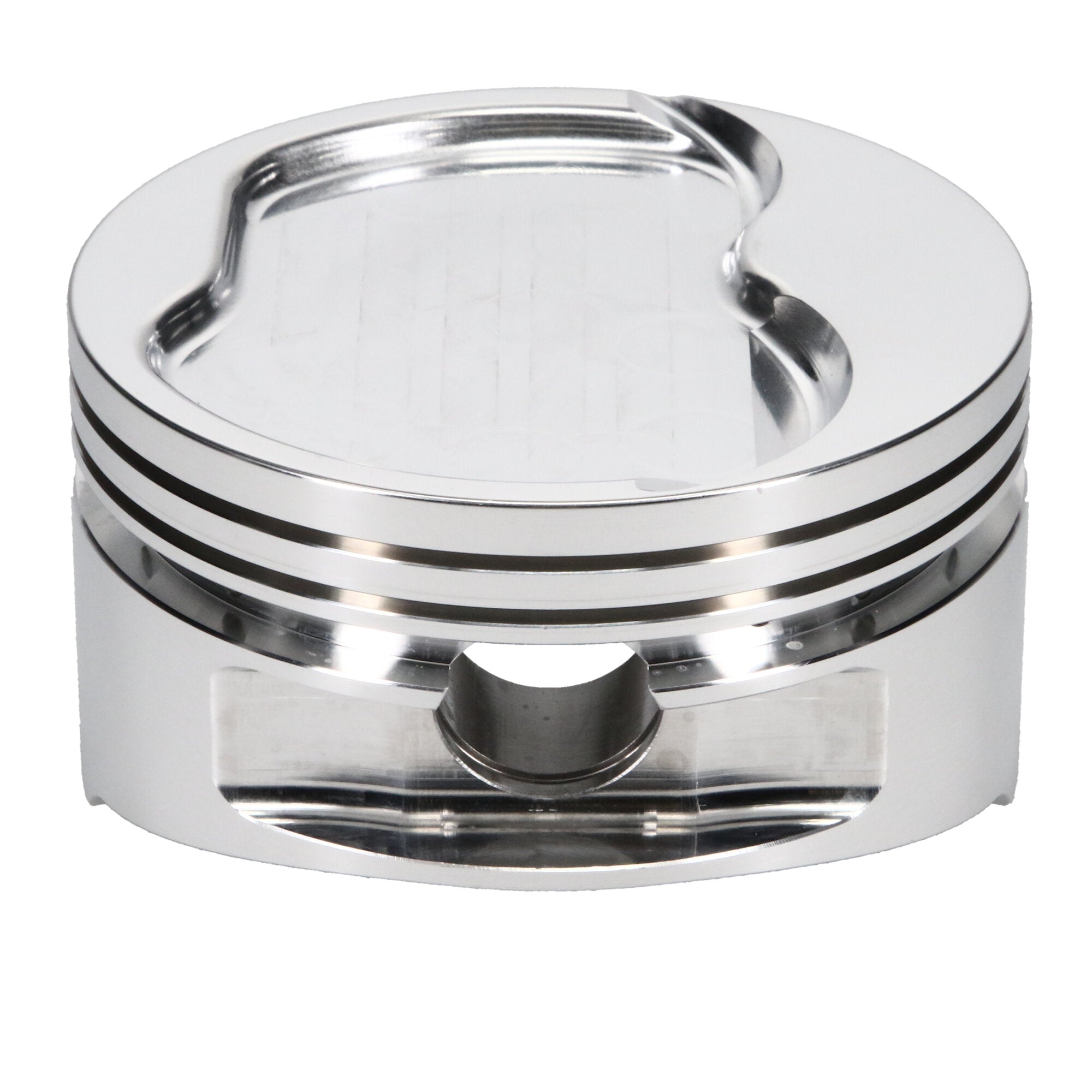

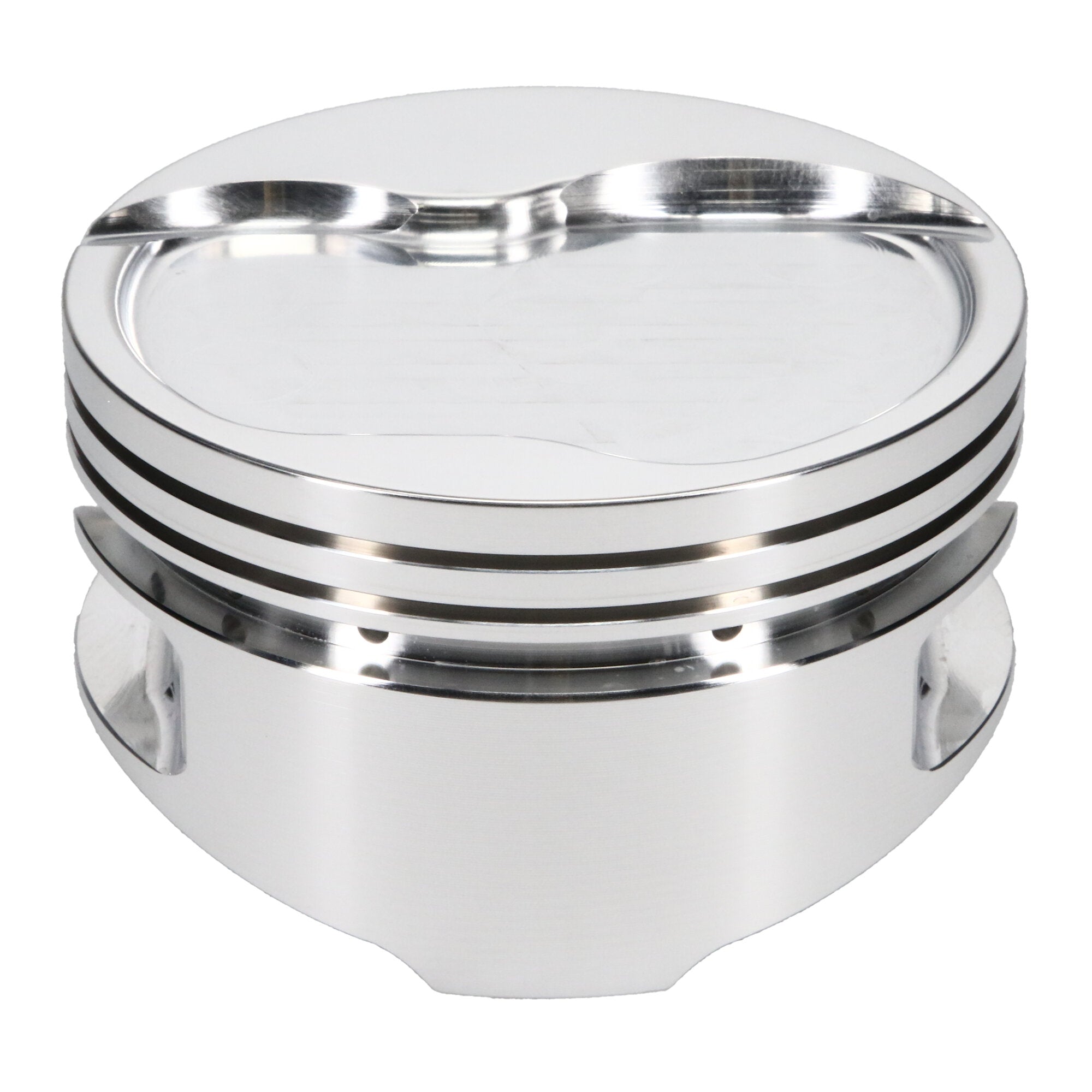

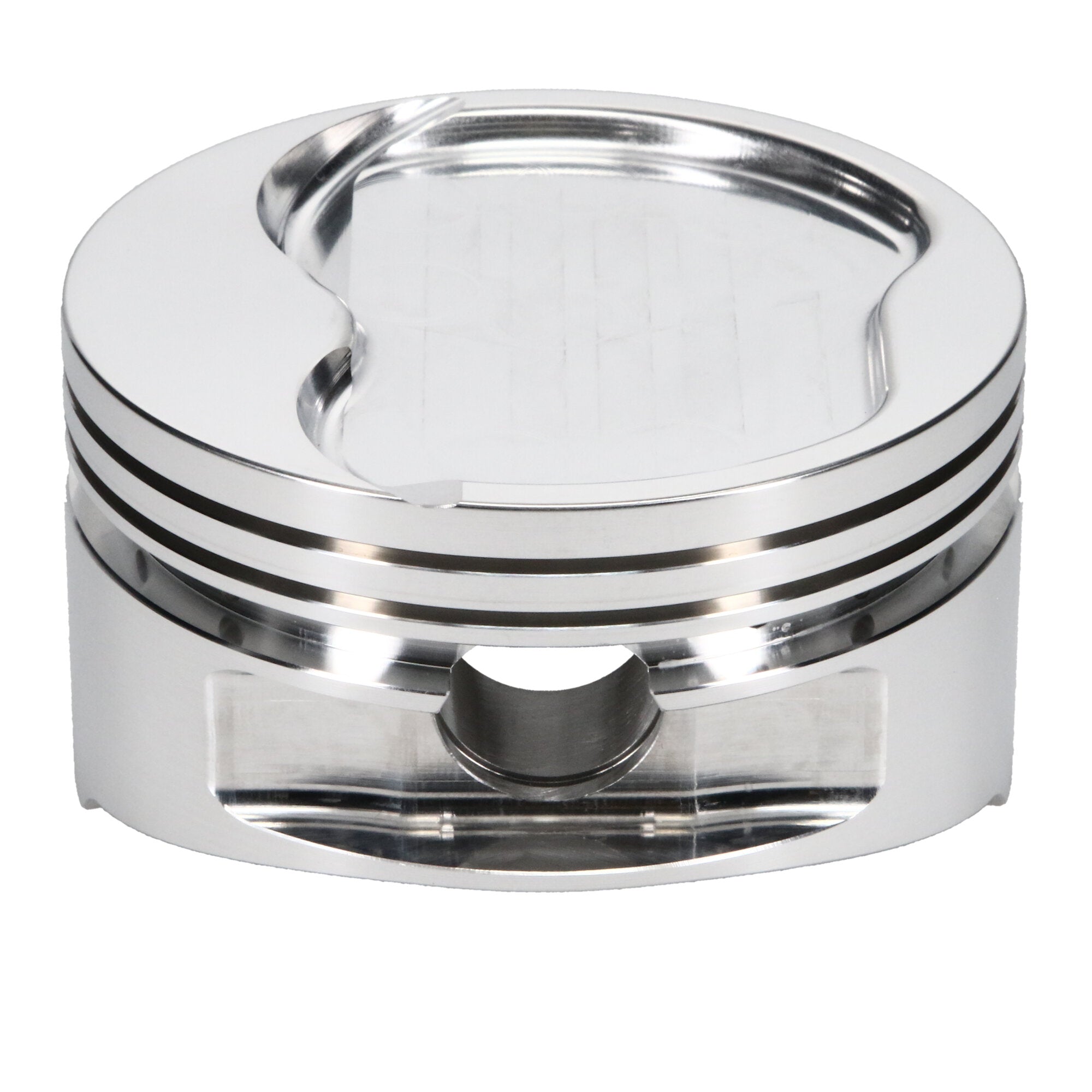

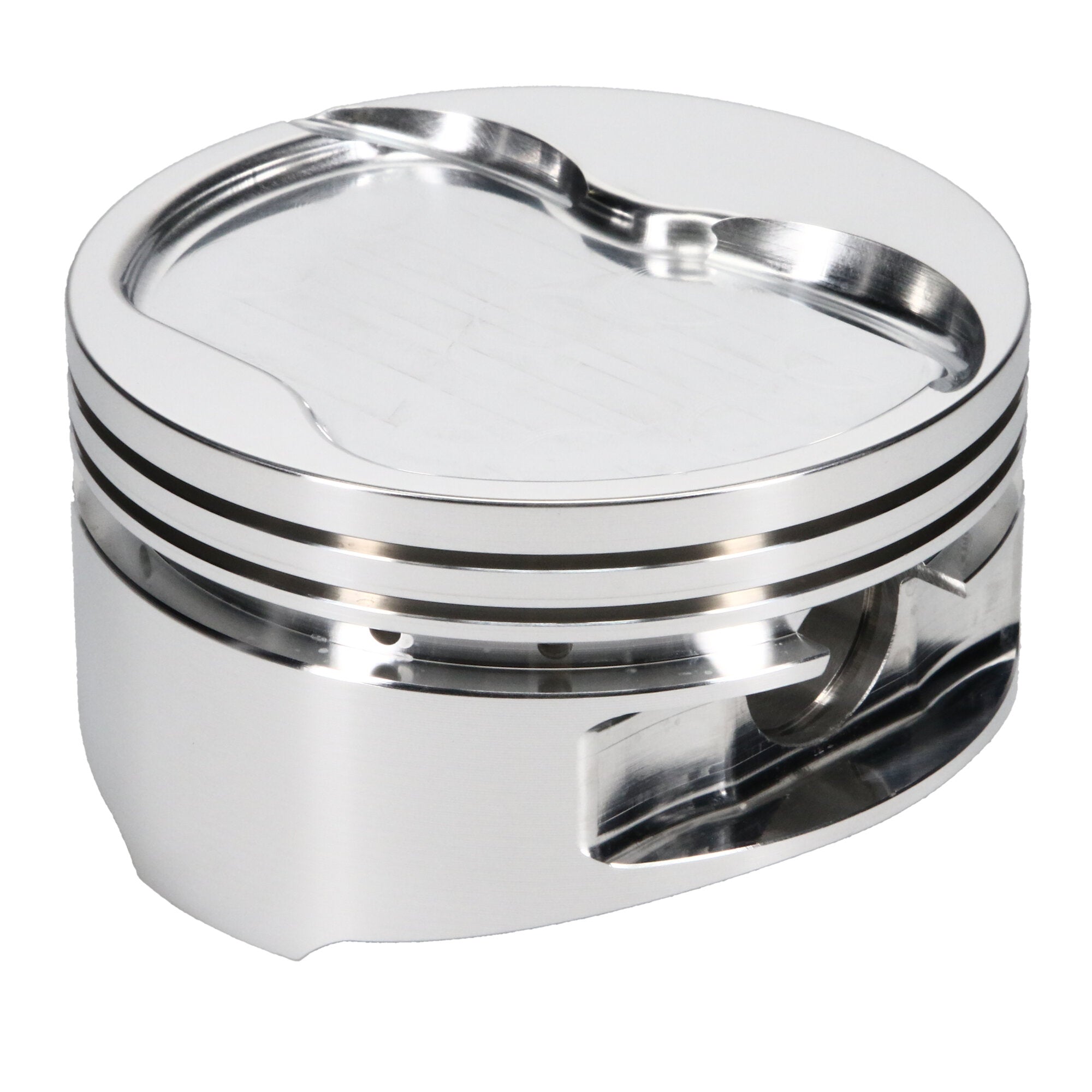

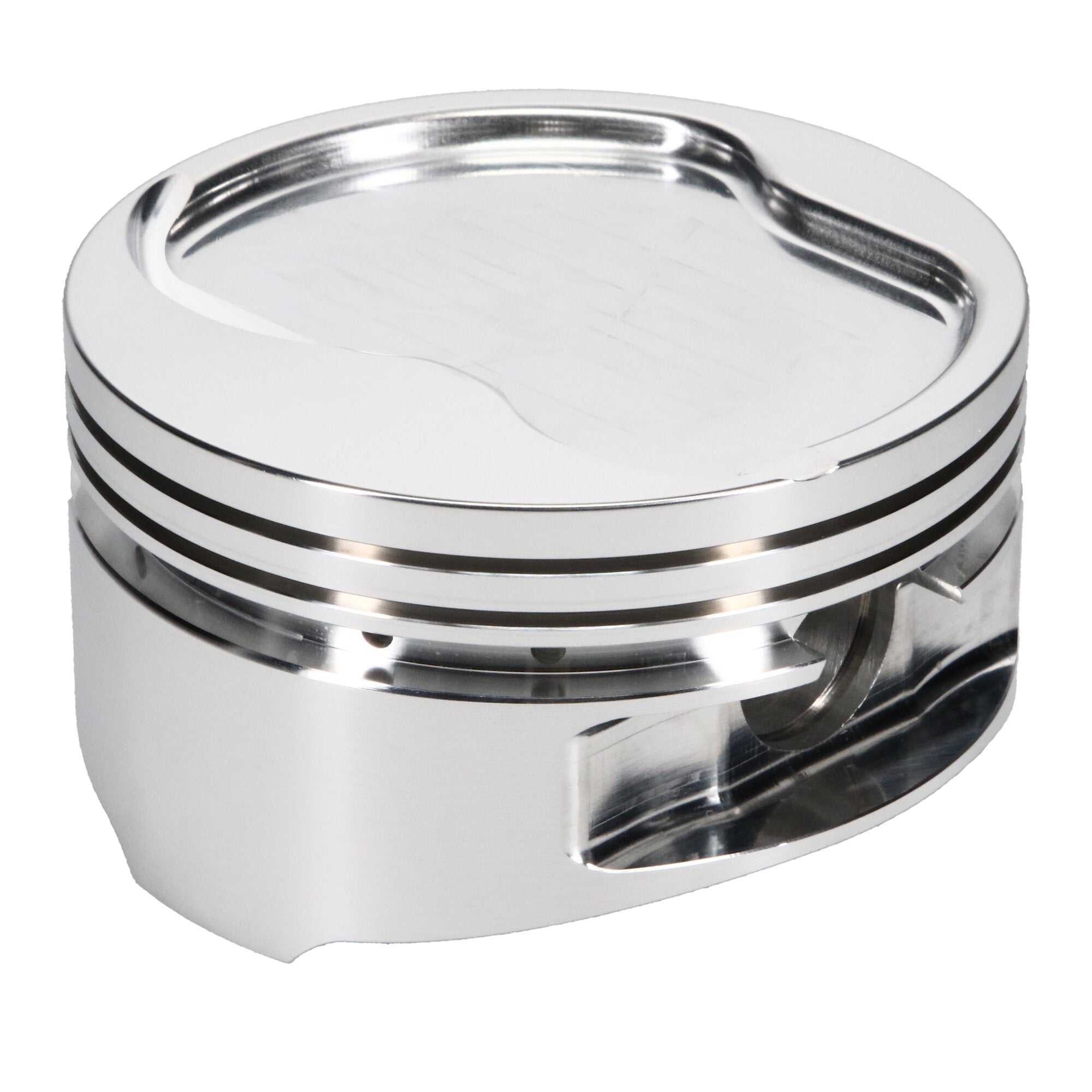

Piston Set, 2618, Inv Dome/Dish, 4.040 Bore, 1.175 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Small Block Ford, 4.040 in. Bore, 1.175 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 302, 4.040 Bore, Dish, Set of 8 |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Industry |
Automotive |
| Piston Average Weight |
446 |
| Title |
JE Pistons - Ford, Small Block, 4.040 in. Bore, Piston Kit |
| Compression Height |
1.175 |
| Piston Material |
2618 |
| Engine - Web |
Small Block |
| Bore Diameter |
4.040 |
| Top Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Add-On |
927-2750-15-51S |
| Piston Quantity |
8 |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.040 in. Bore - 1.175 in. CH, -26.00 CC |
| Add-On |
J100F8-4040-5 |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
927-042-CS |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Outside Diameter |
0.927 |
| Prop 65 (C, R or CR) |
CR |
| Piston Head Type |
Dish |
| Piston Volume |
-26.00 |
| Make |
FORD |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Length |
2.750 |
| Ring Set Included |
No |
| Make - Web |
Ford |
| Ringset Included |
No |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Piston Pin Length |
2.750 |
| Engine |
Small Block |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.218 |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
