Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 351C Cleveland |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

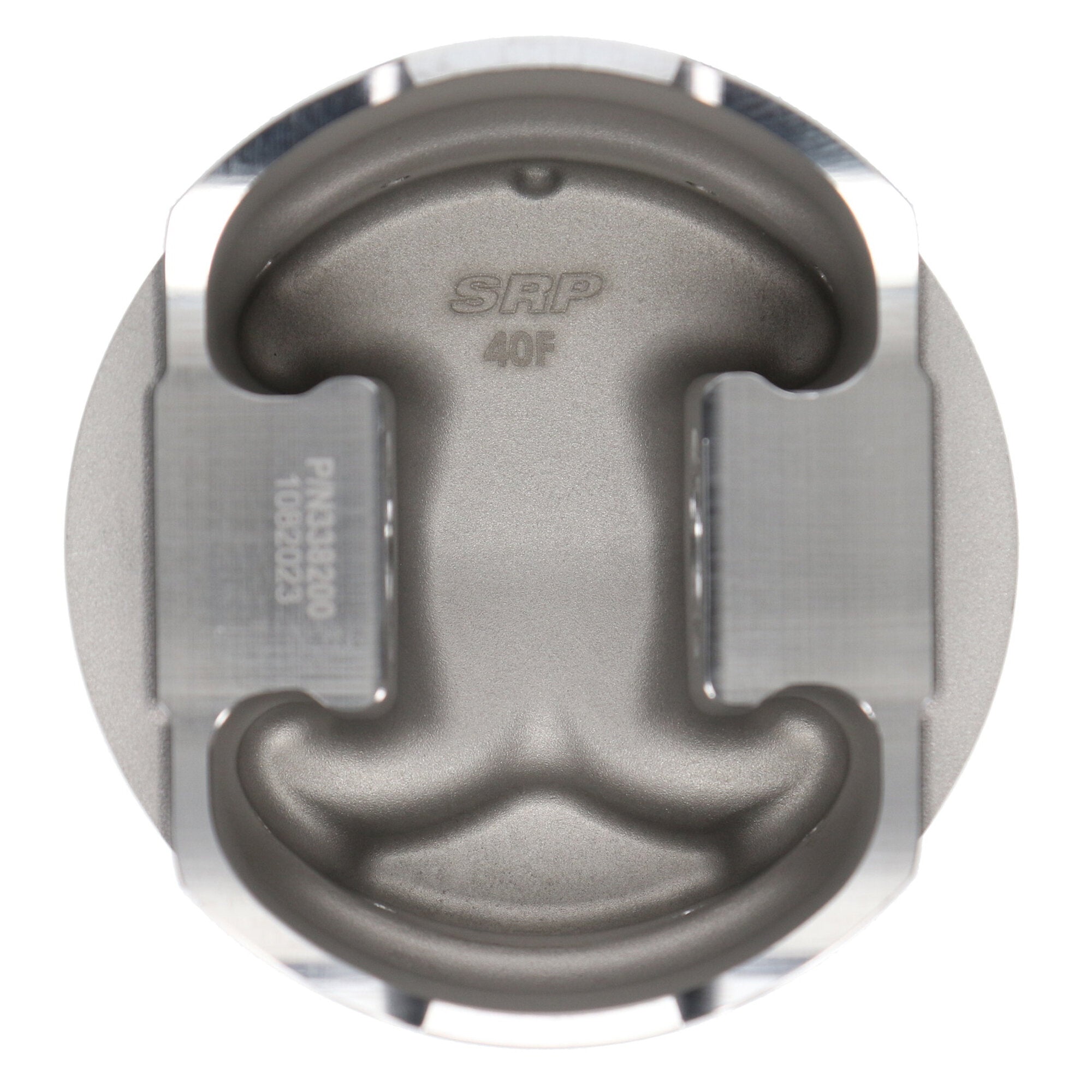

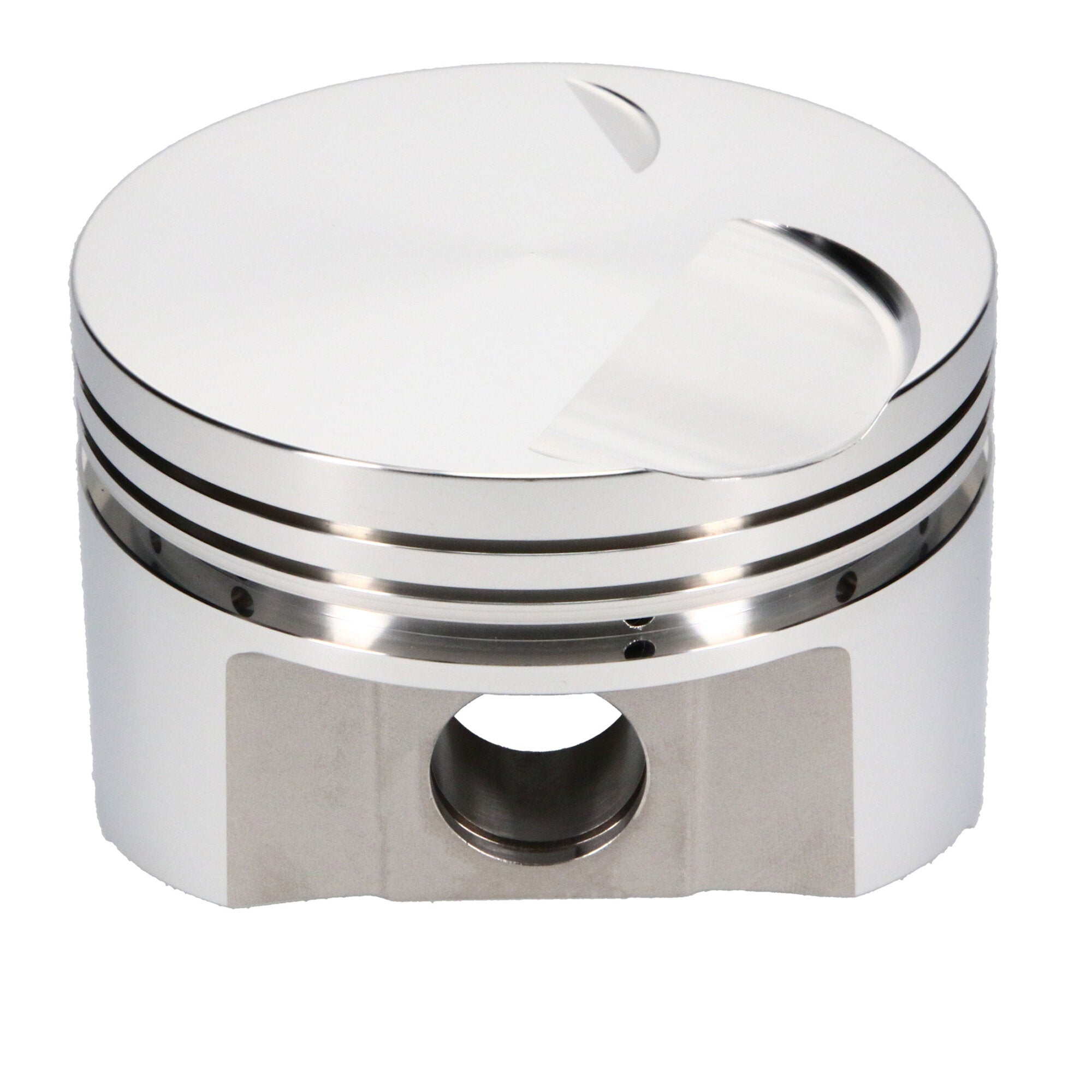

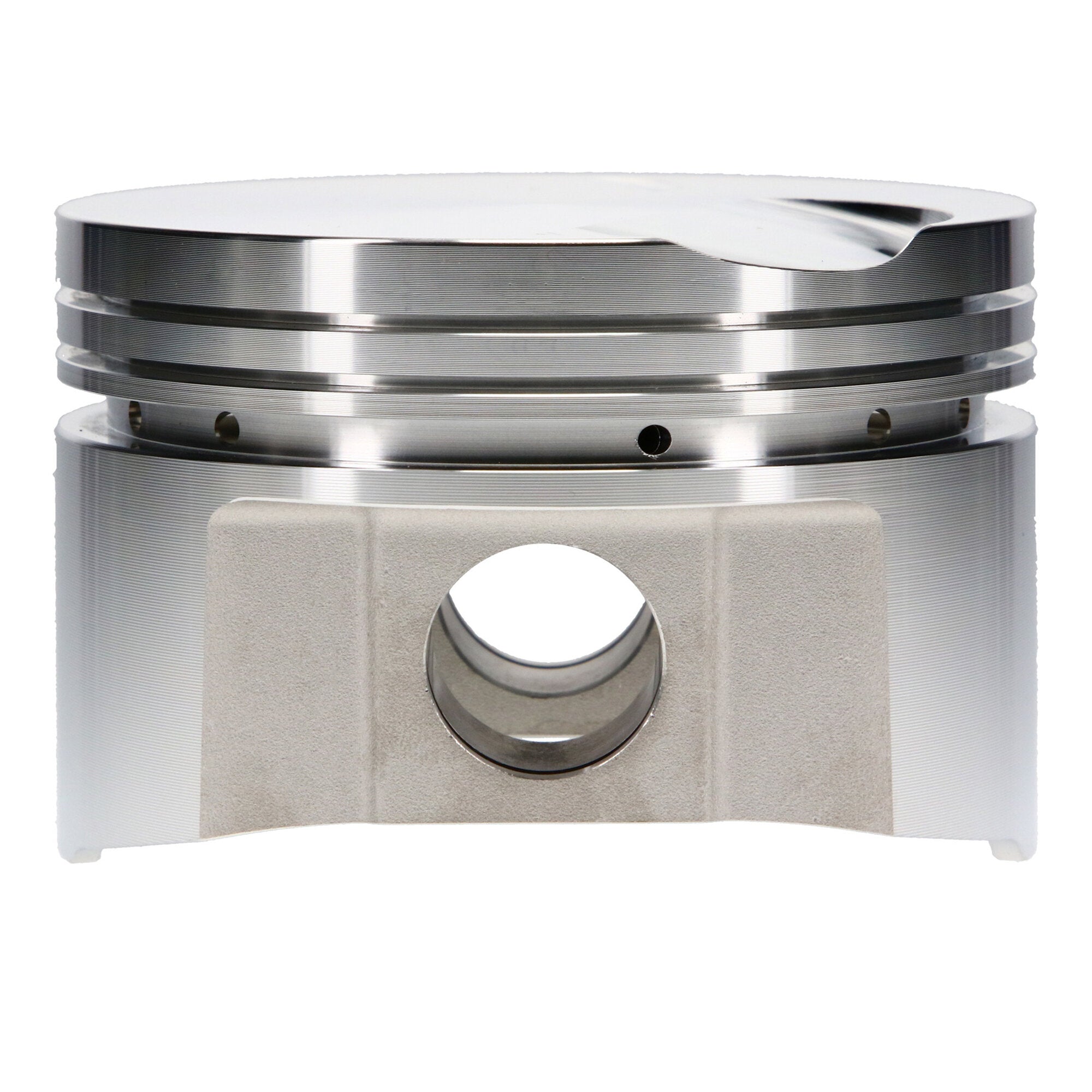

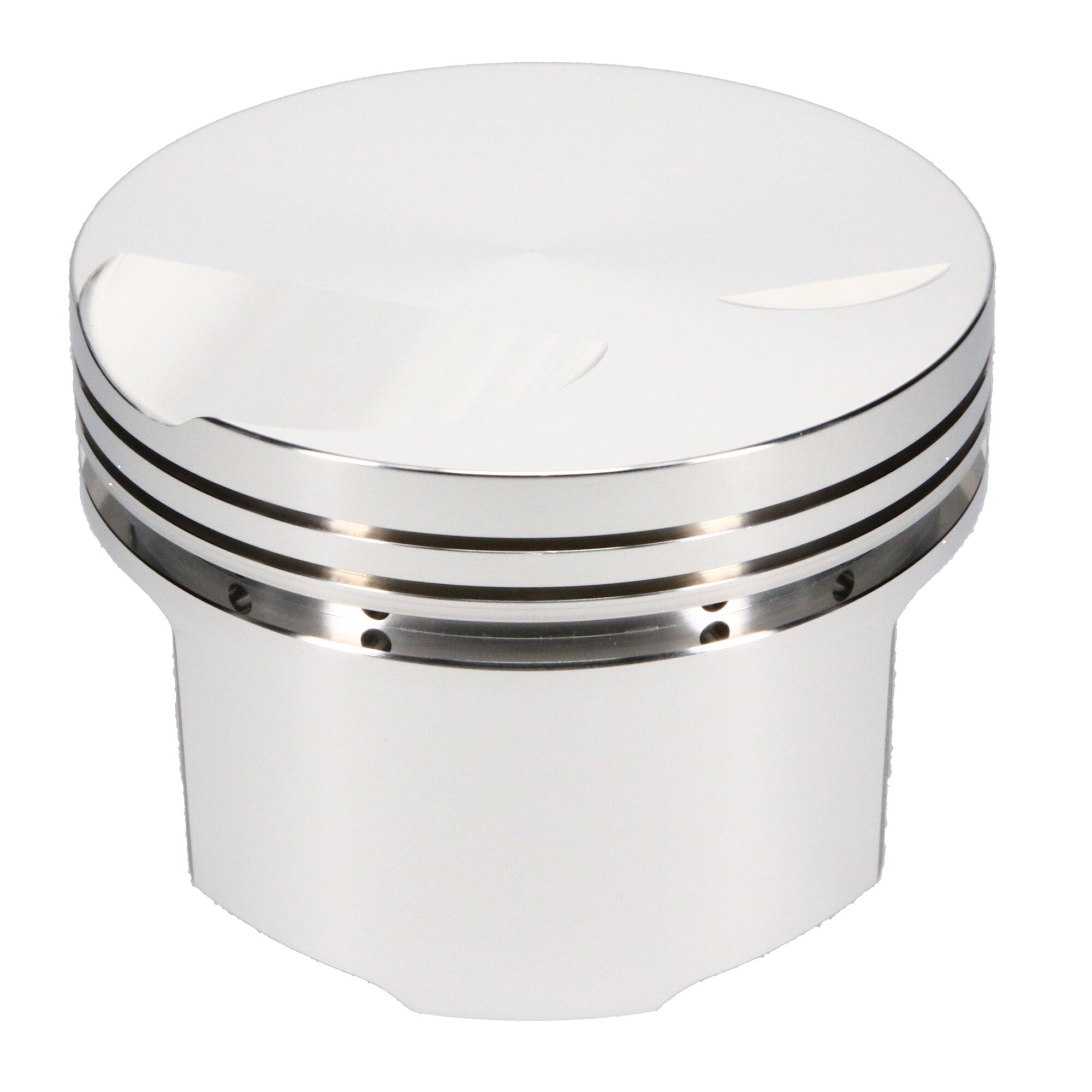

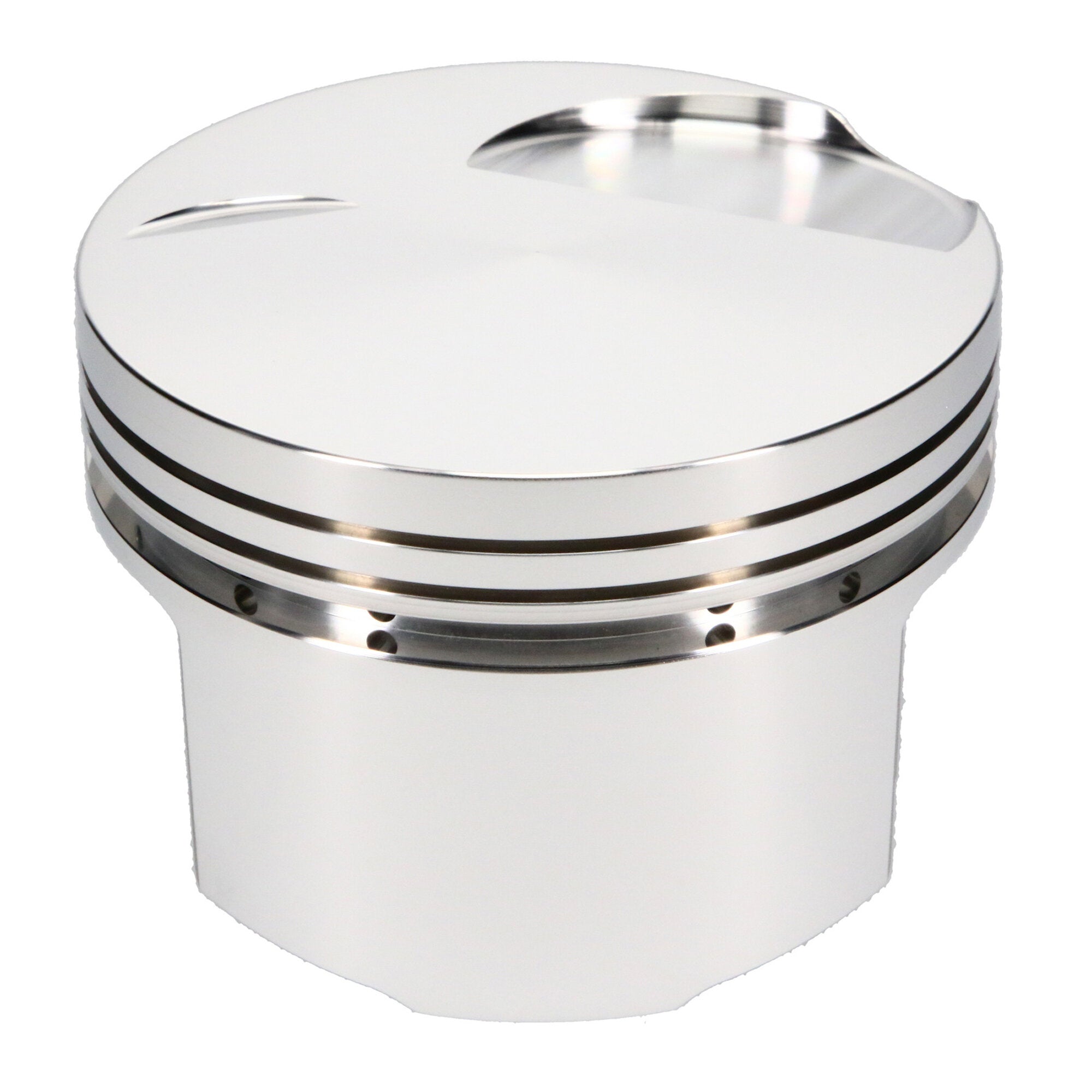

Piston Set, 4032, Flat Top, 4.040 Bore, 1.660 CD, 0.912 Pin, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Ford, Small Block Ford, 4.040 in. Bore, 1.660 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 351 Cleveland, 4.040 Bore, Flat, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Forging Type |
FSR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine Type |
ICE |
| Piston Pin Length |
2.750 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
SRP Ford Small Block Piston Kit - 4.040 in. Bore - 1.660 in. CH, -3.00 CC |
| Make - Web |
Ford |
| Engine |
Small Block |
| Ringset Included |
No |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |

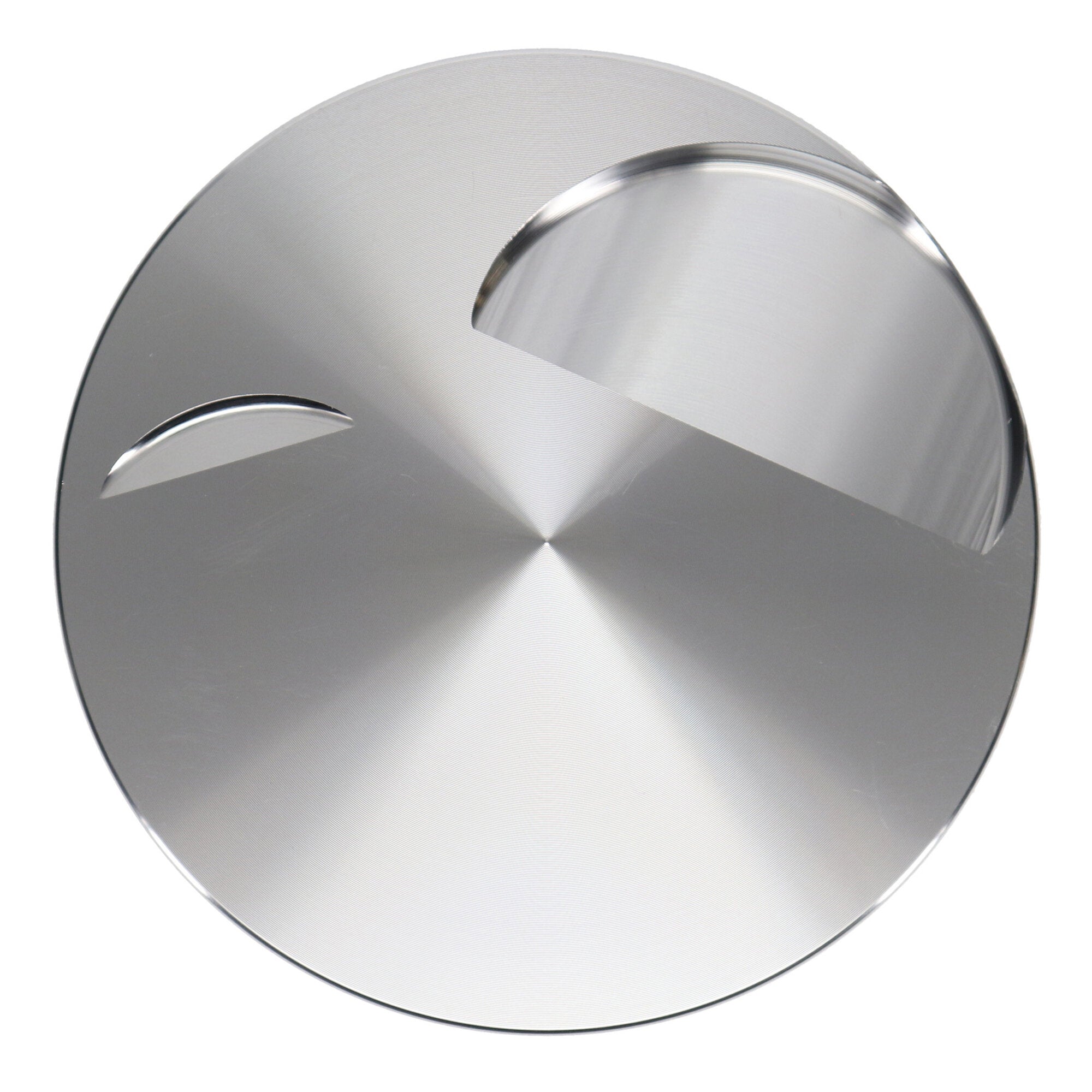

Flat |
| Second Compression Ring Thickness |
0.0640 |
| Oil Ring Thickness |
0.188 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Average Weight |
547 |
| Piston Series |
SRP |
| Piston Pin Material |
5115 |
| Bore Diameter |
4.040 |
| Make |
FORD |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Outside Diameter |
0.912 |
| Title |
SRP - Ford, Small Block, 4.040 in. Bore, Piston Kit |
| Piston Material |
4032 |
| Wrist Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.912 |
| Piston Volume |
-3.00 |
| Product Market |
Domestic |
| Add-On |
912-2750-14-51S |
| Compression Height |
1.660 |
| Add-On |
927-042-CS |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Add-On |
S100S8-4040-5 |
| Piston Pin Wall Thickness |
0.140 |
| Top Compression Ring Thickness |
0.0640 |
| Cylinder Head |
CLEVELAND |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.140 |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
