As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

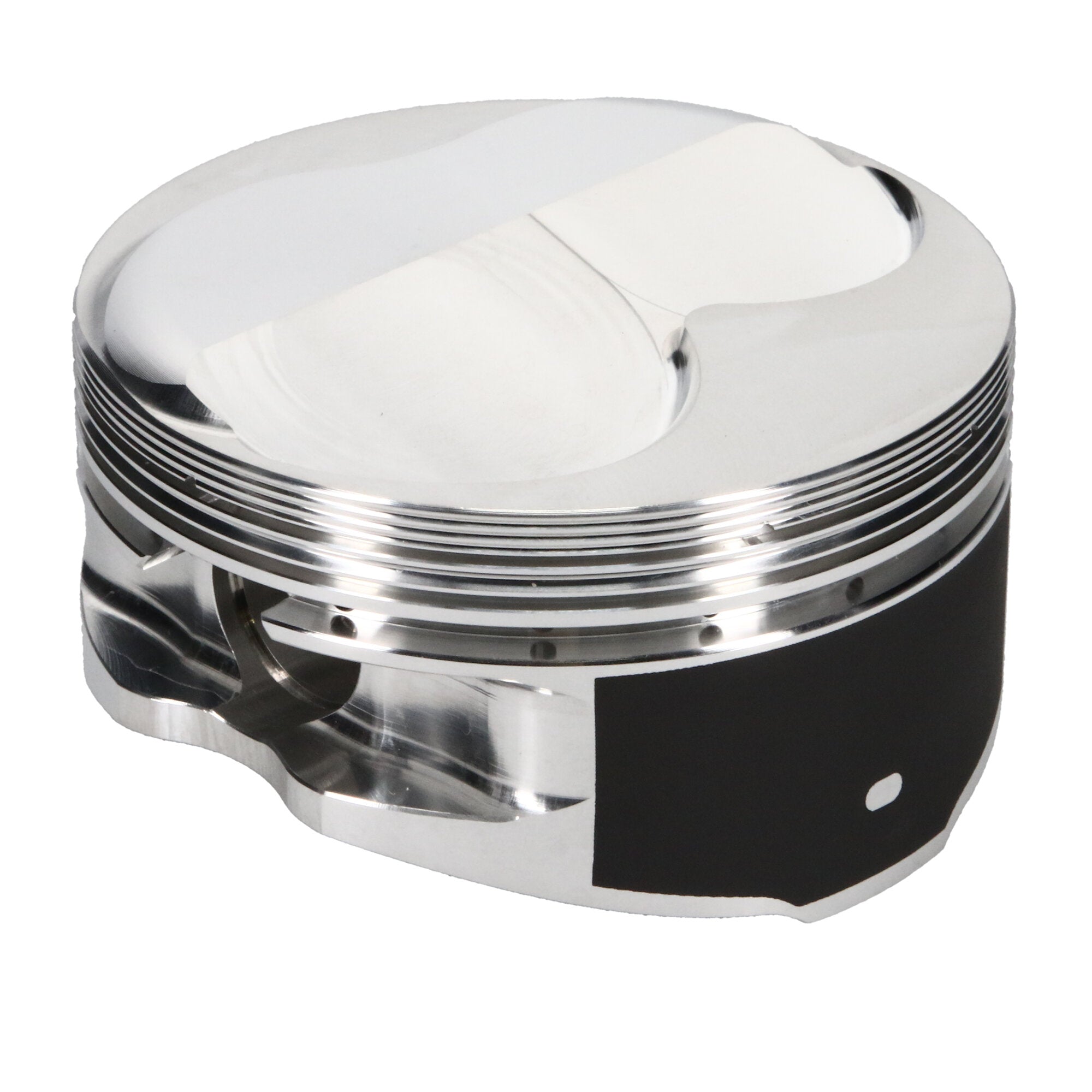

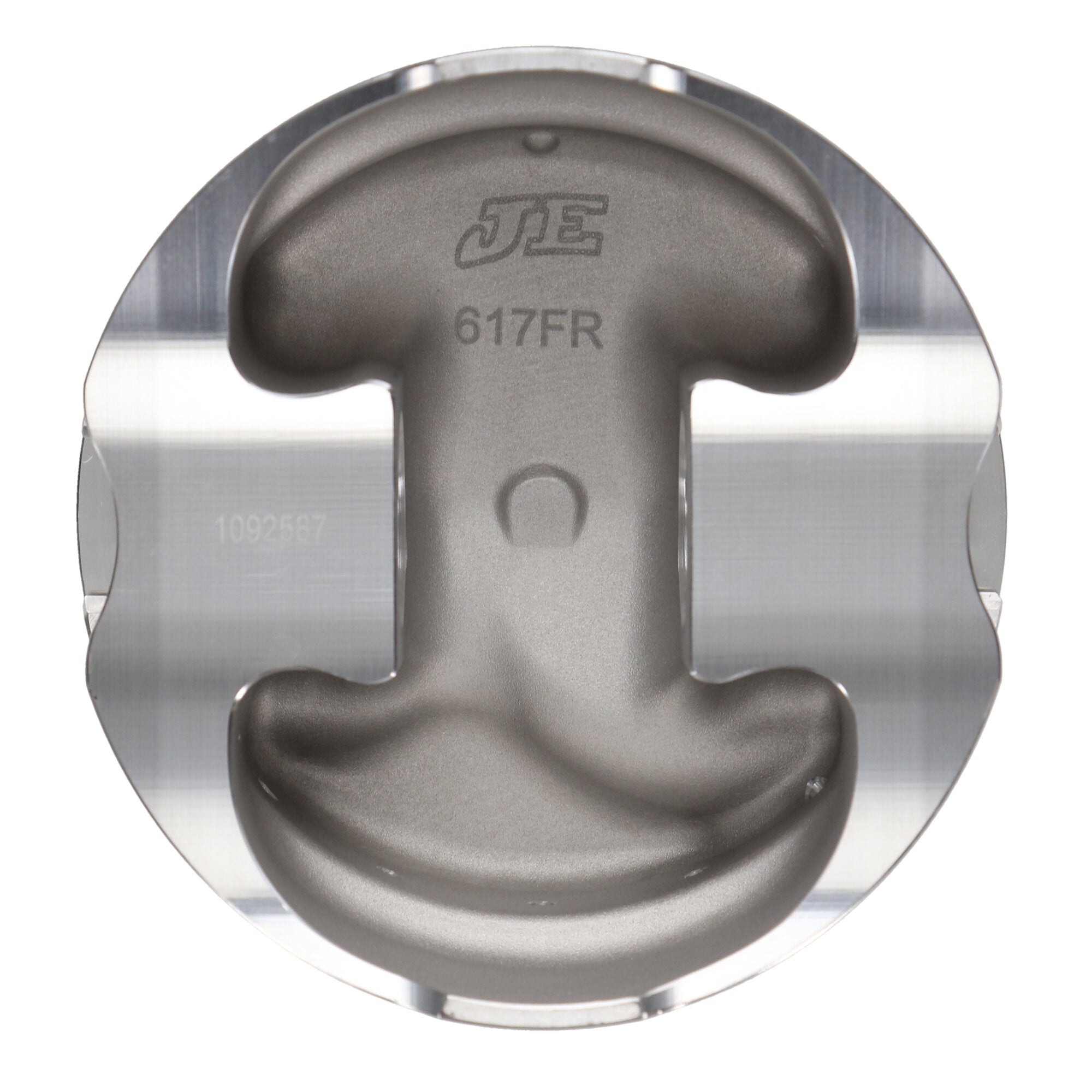

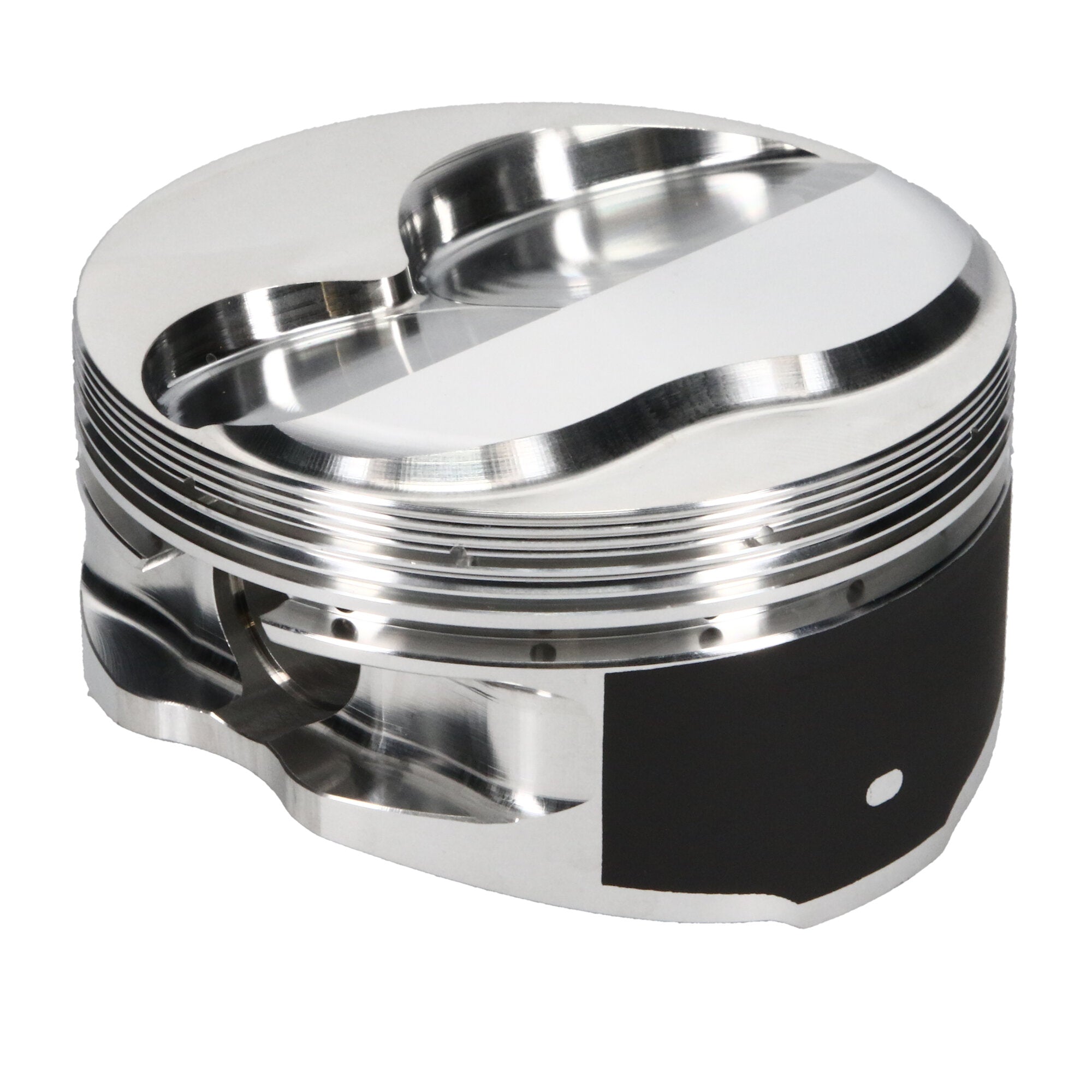

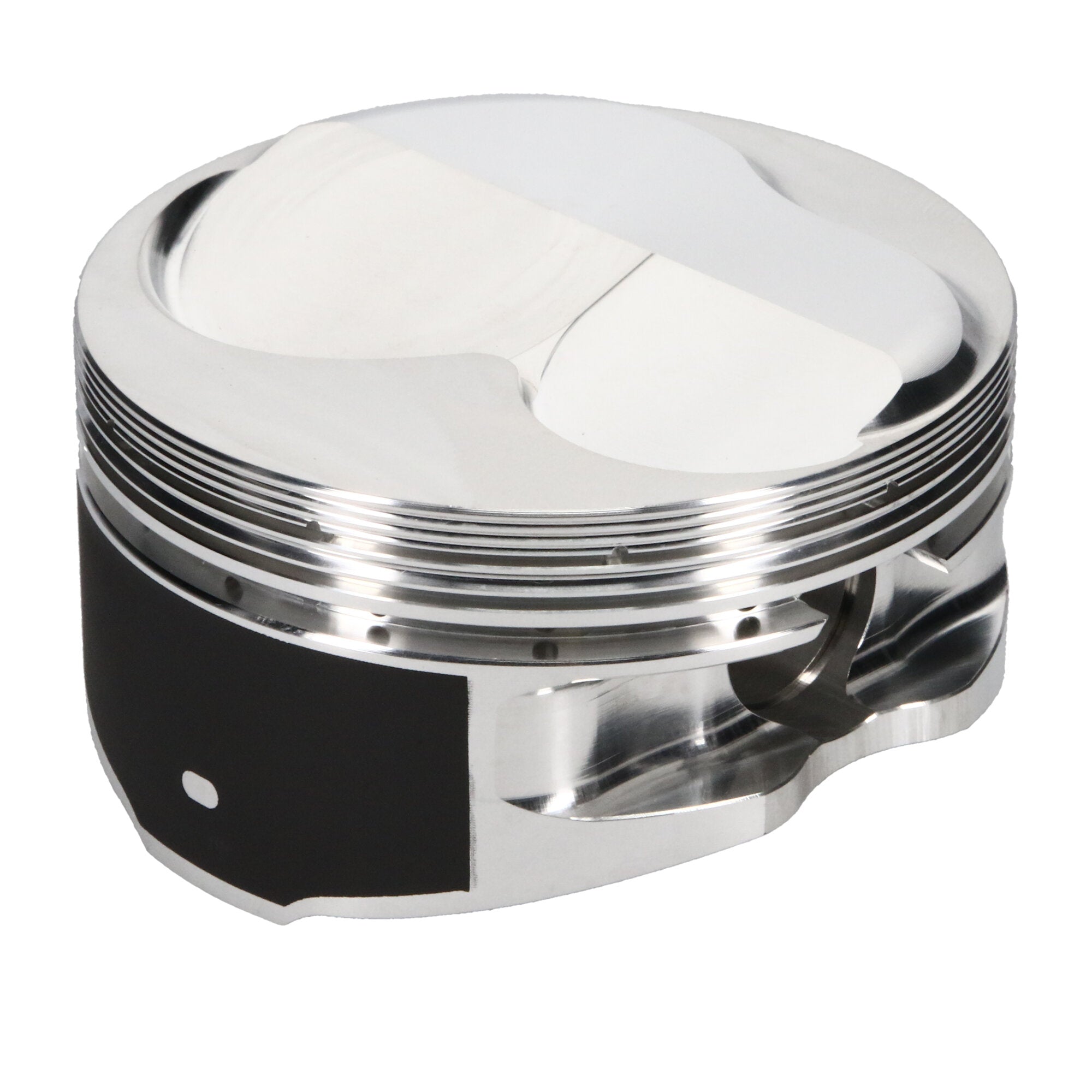

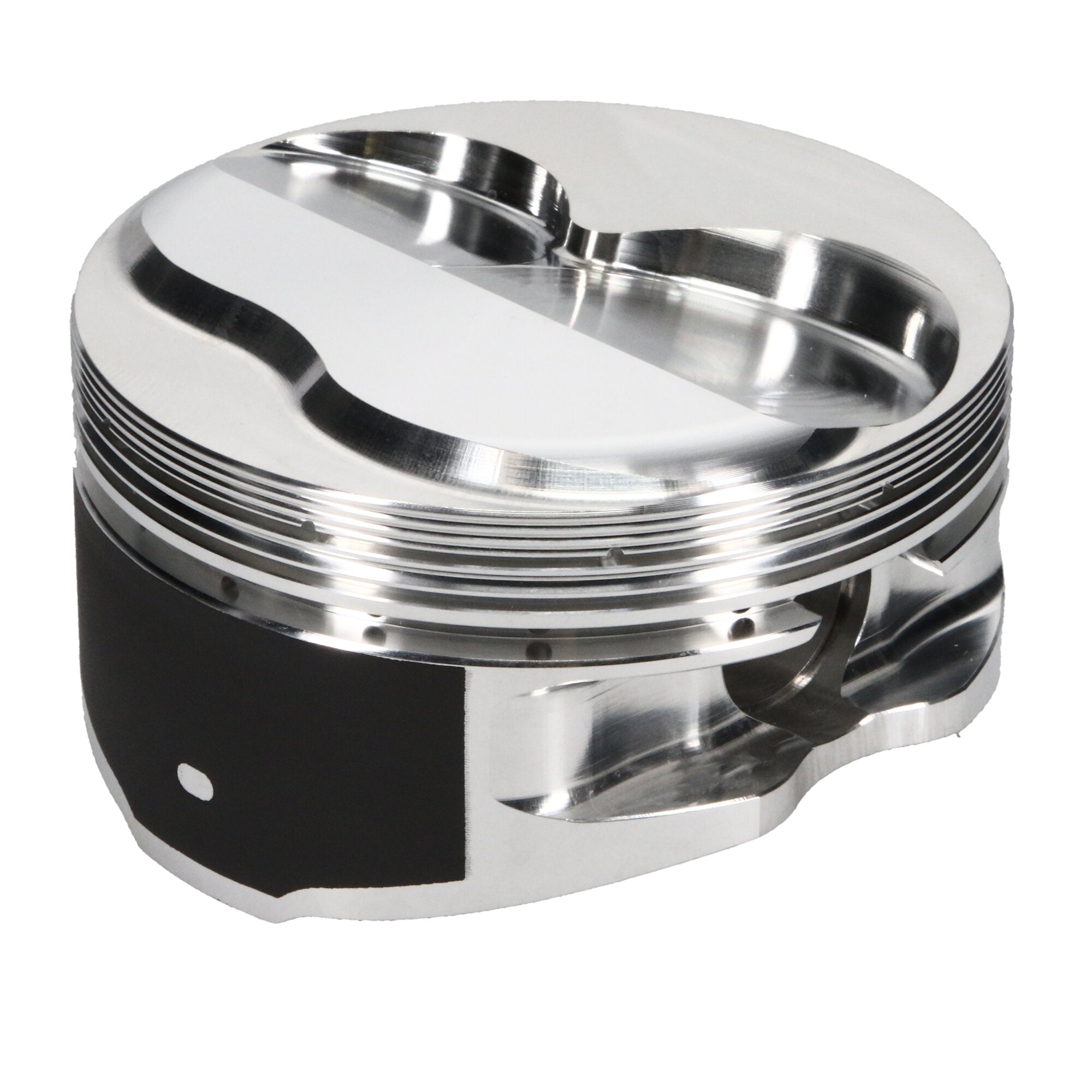

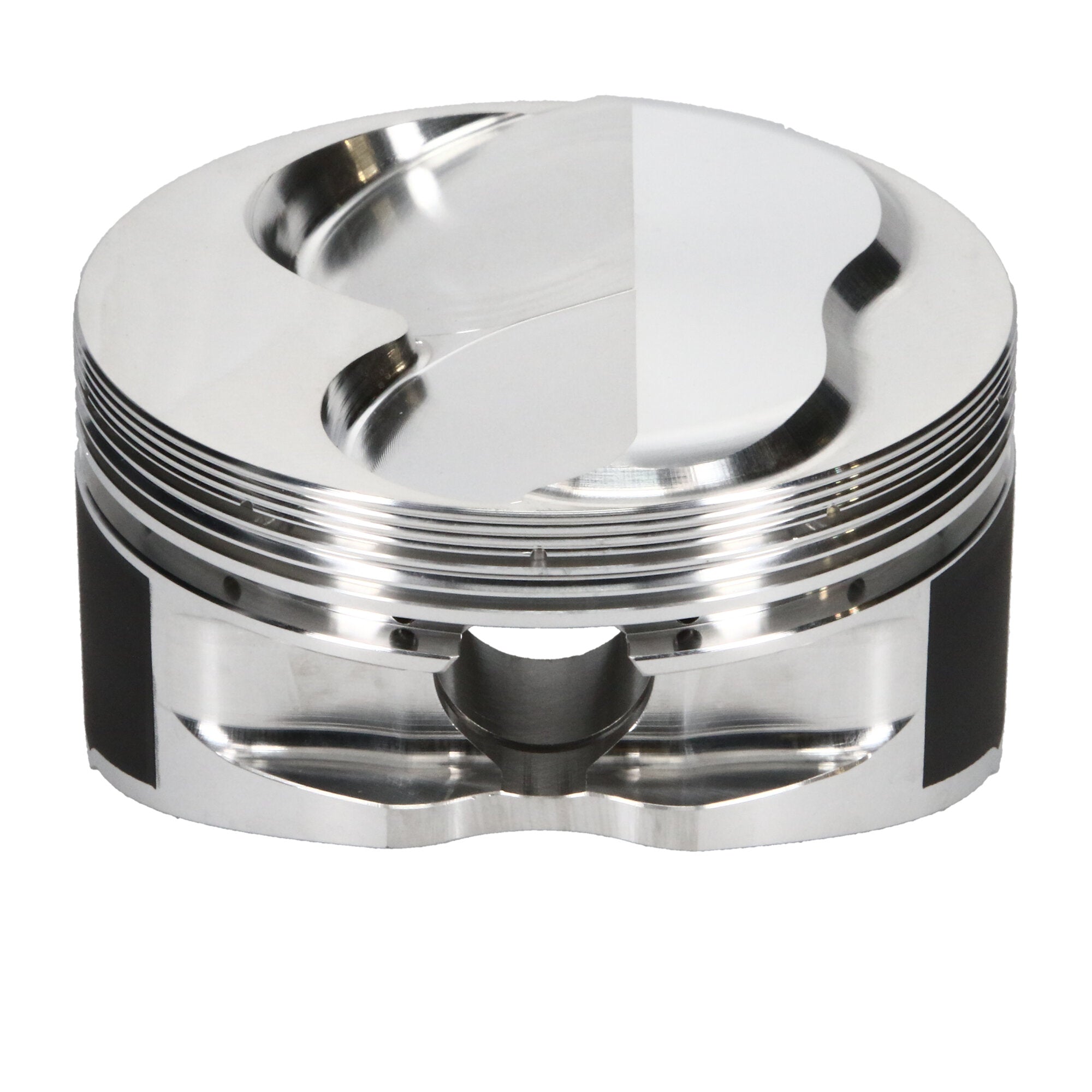

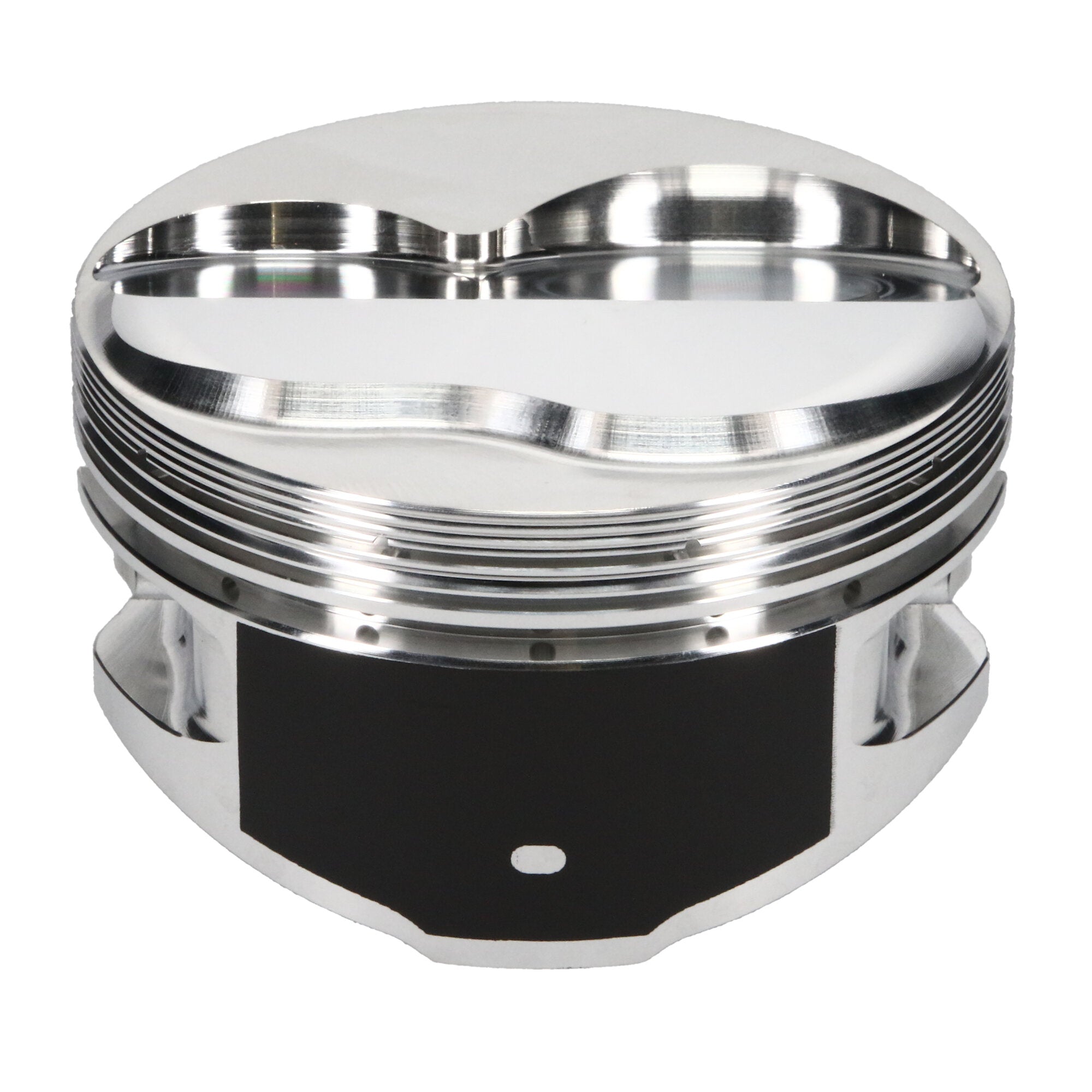

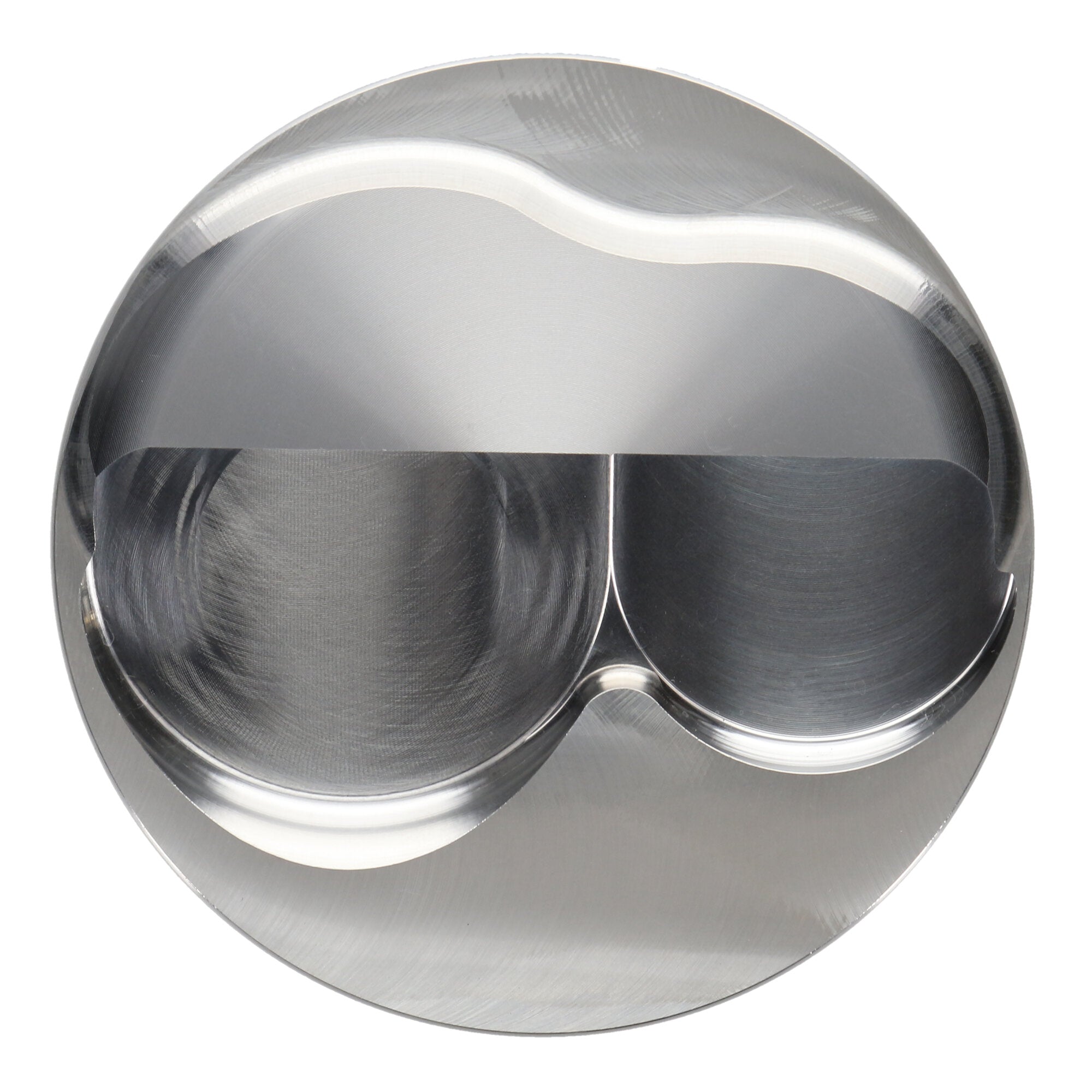

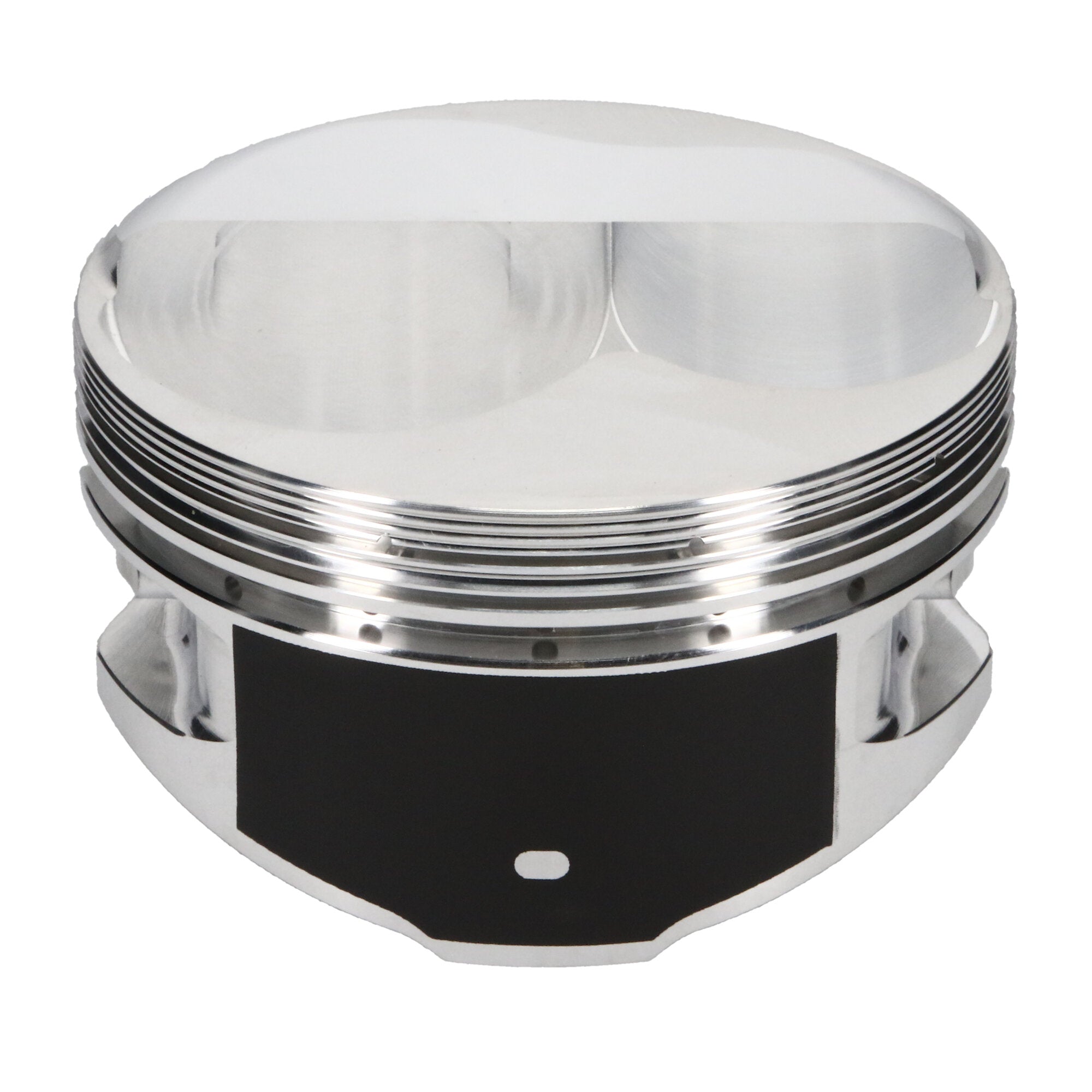

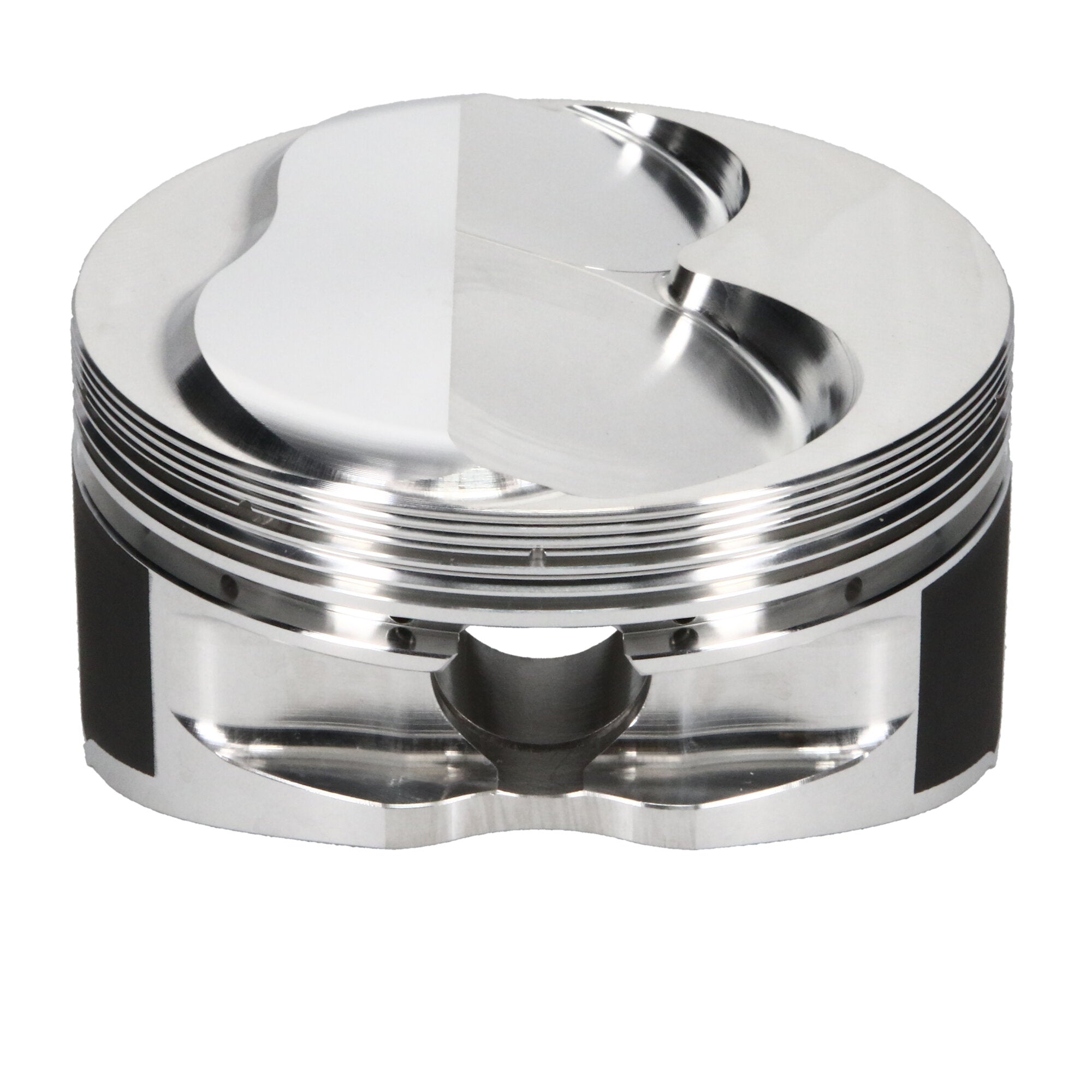

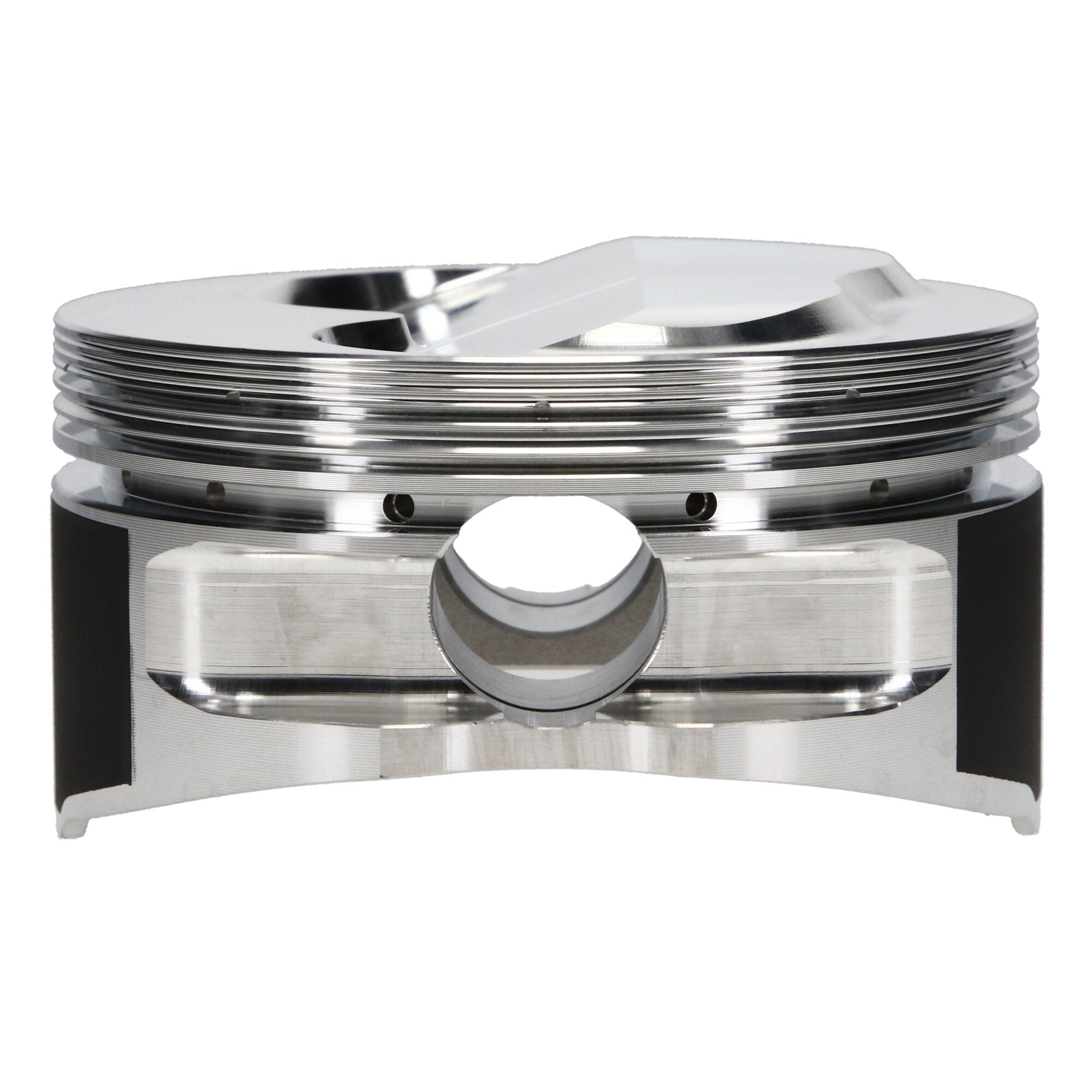

Piston Set, 2618, Dome, 4.125 Bore, 1.062 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.125 in. Bore, 1.062 CD, Dome, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 400, 4.125 Bore, Dome, Set of 8 |
| Ring Set Included |
No |
| Second Compression Ring Thickness |
0.0600 |
| Piston Volume |
2.50 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.125 in. Bore - 1.062 in. CH, 2.50 CC |
| Add-On |
927-073-AS |
| Industry |
Automotive |
| Add-On |
927-2750-15-51S |
| Cylinder Head |
CHEVROLET 18 DEG |
| Add-On |
J75008-4125-5 |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine |
Small Block |
| Title |
JE Pistons - Chevrolet, Small Block, 4.125 in. Bore, Piston Kit |
| Piston Average Weight |
454 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dome |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Ringset Included |
No |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0475 |
| Compression Height |
1.062 |
| Piston Pin Length |
2.750 |
| Piston Series |
JE Pistons |
| Wrist Pin Wall Thickness |
0.150 |
| Make - Web |
Chevrolet |
| Engine - Web |
Small Block |
| Piston Quantity |
8 |
| Piston Pin Outside Diameter |
0.927 |
| Oil Ring Thickness |
0.149 |
| Engine Type |
ICE |
| Bore Diameter |
4.125 |
| Forging Type |
Round |
| Make |
CHEVROLET |
| Wrist Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
