As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mopar Big Block 440 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

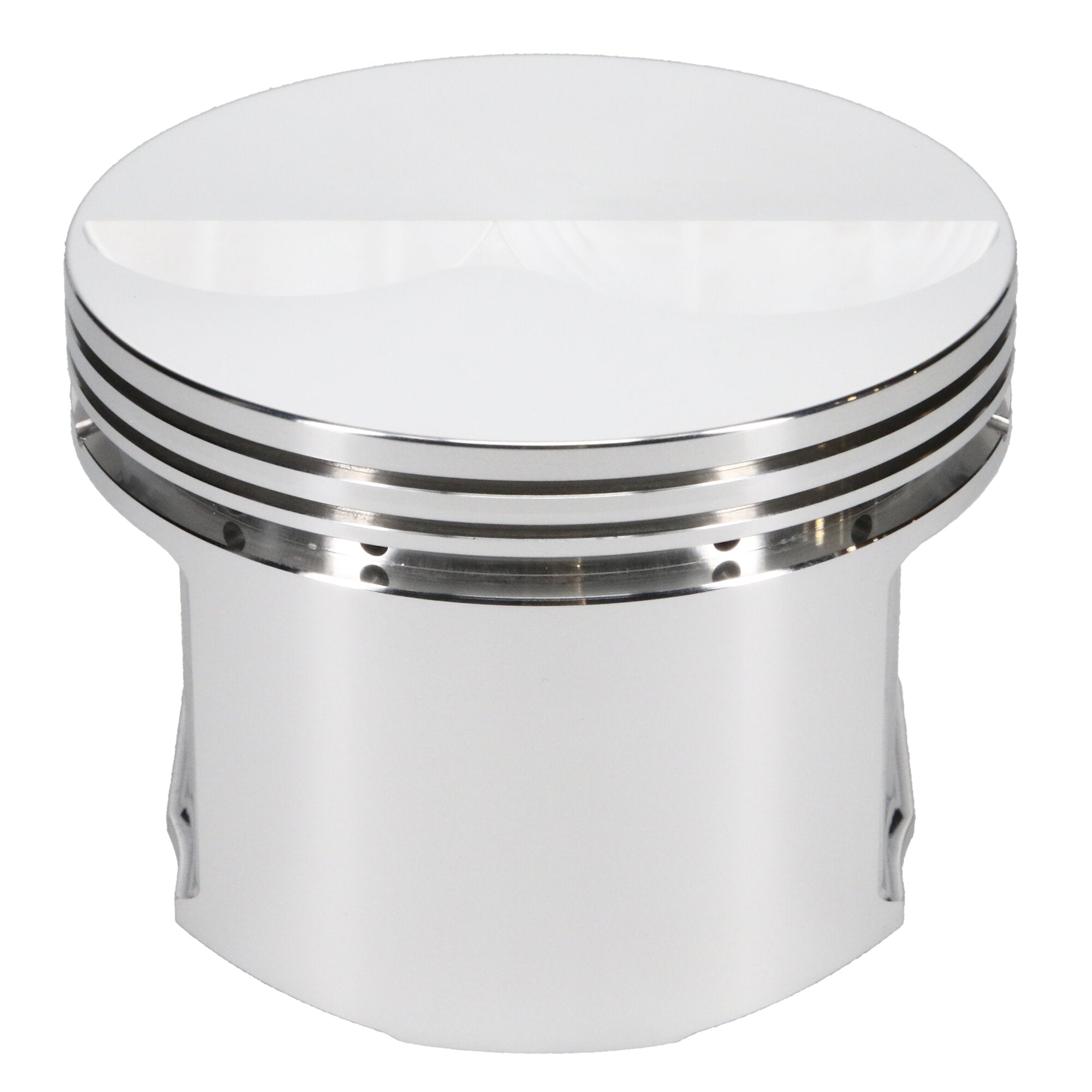

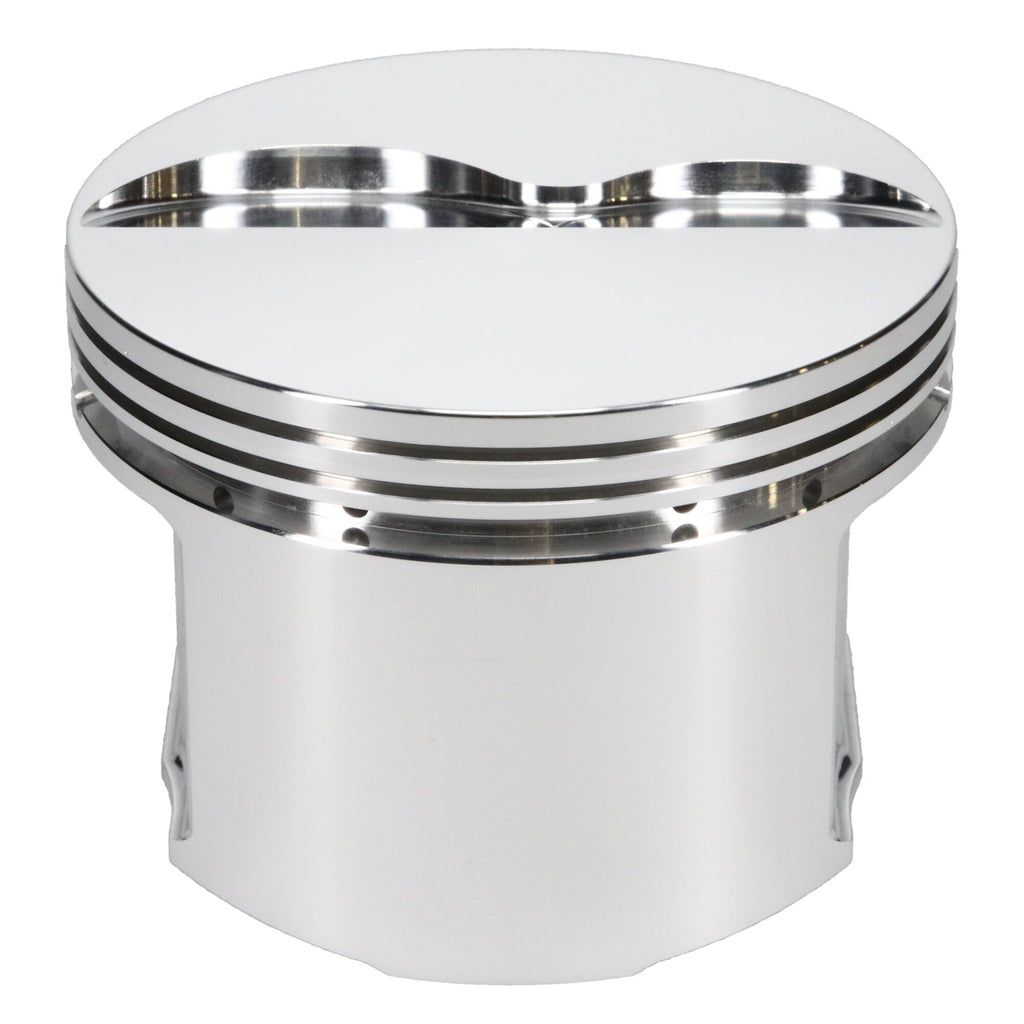

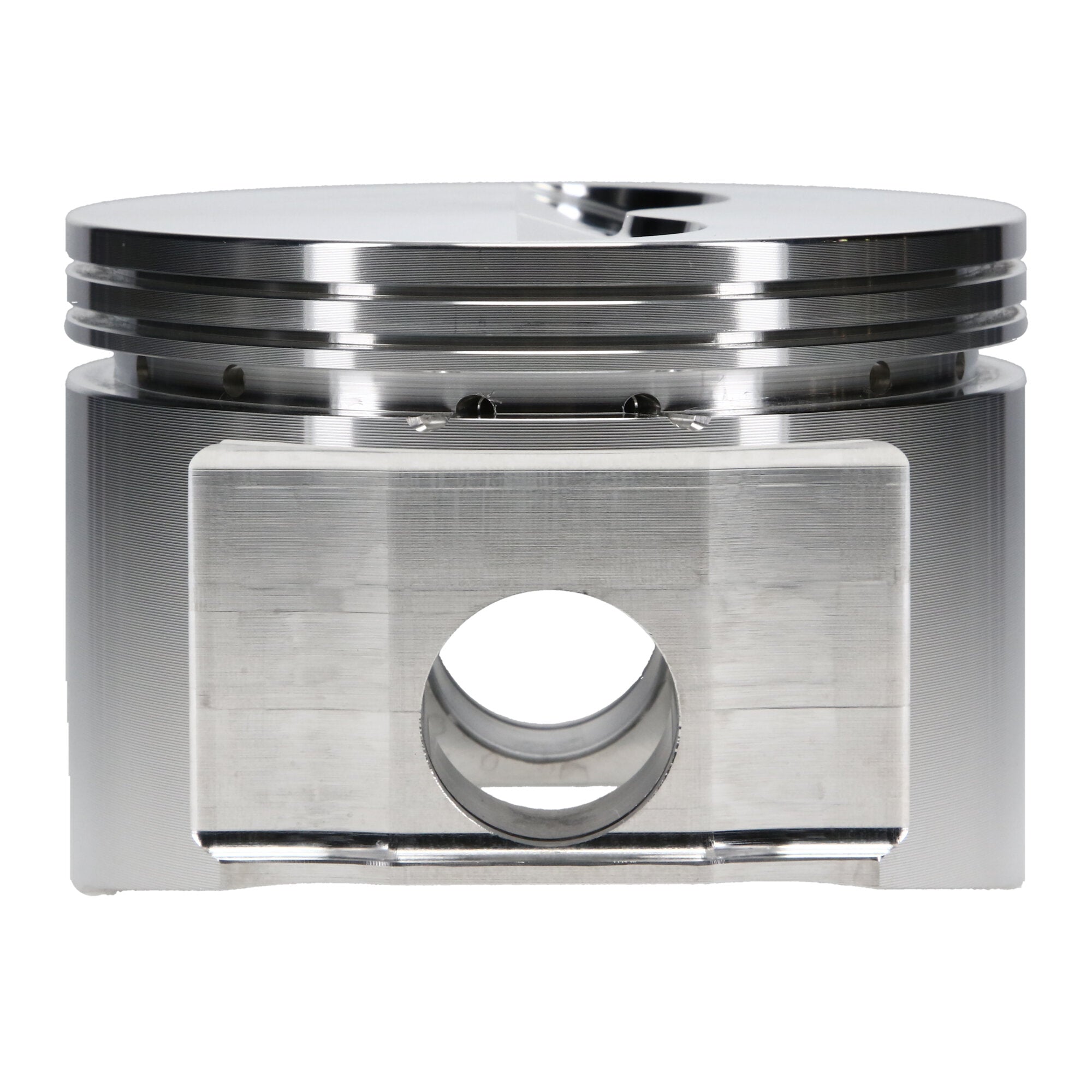

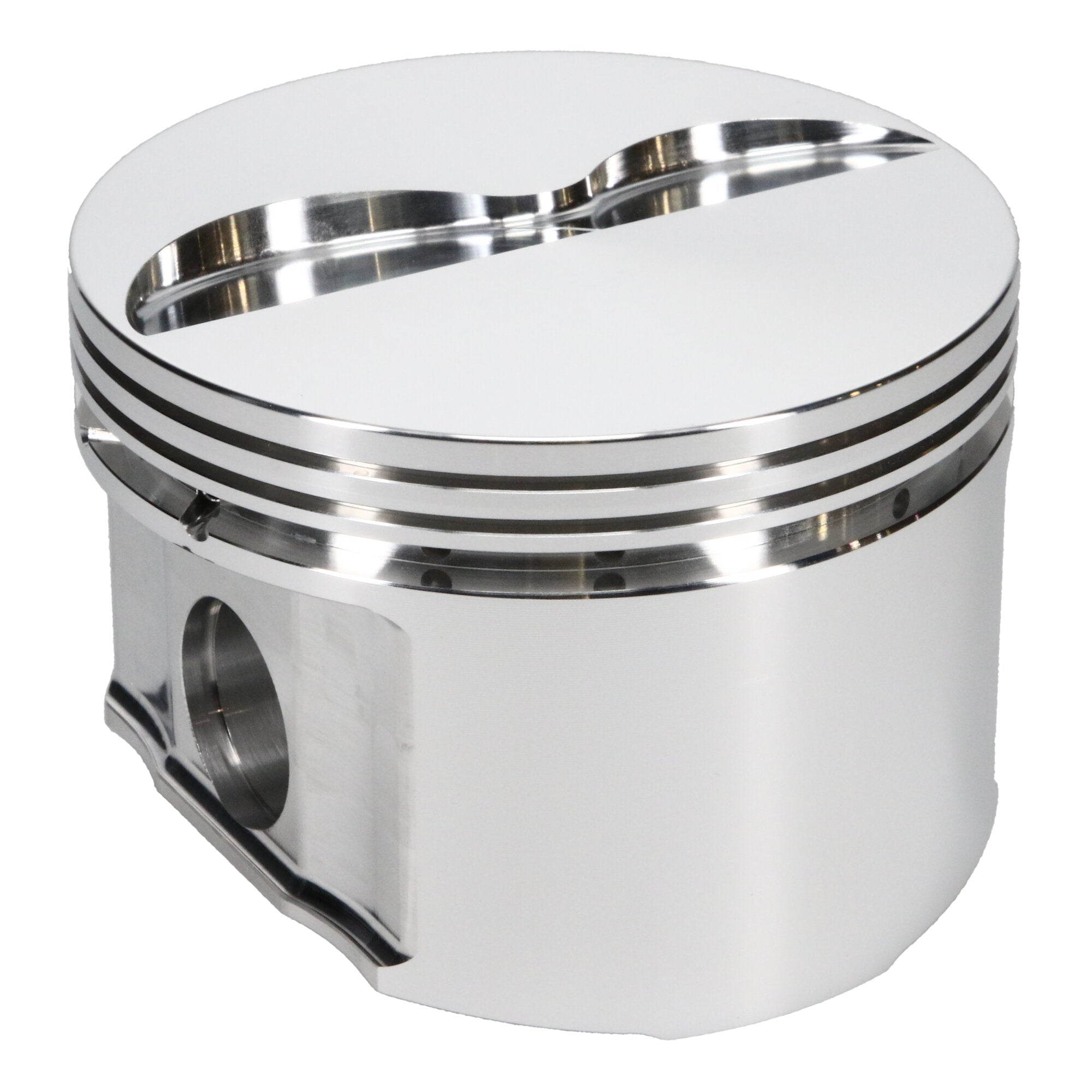

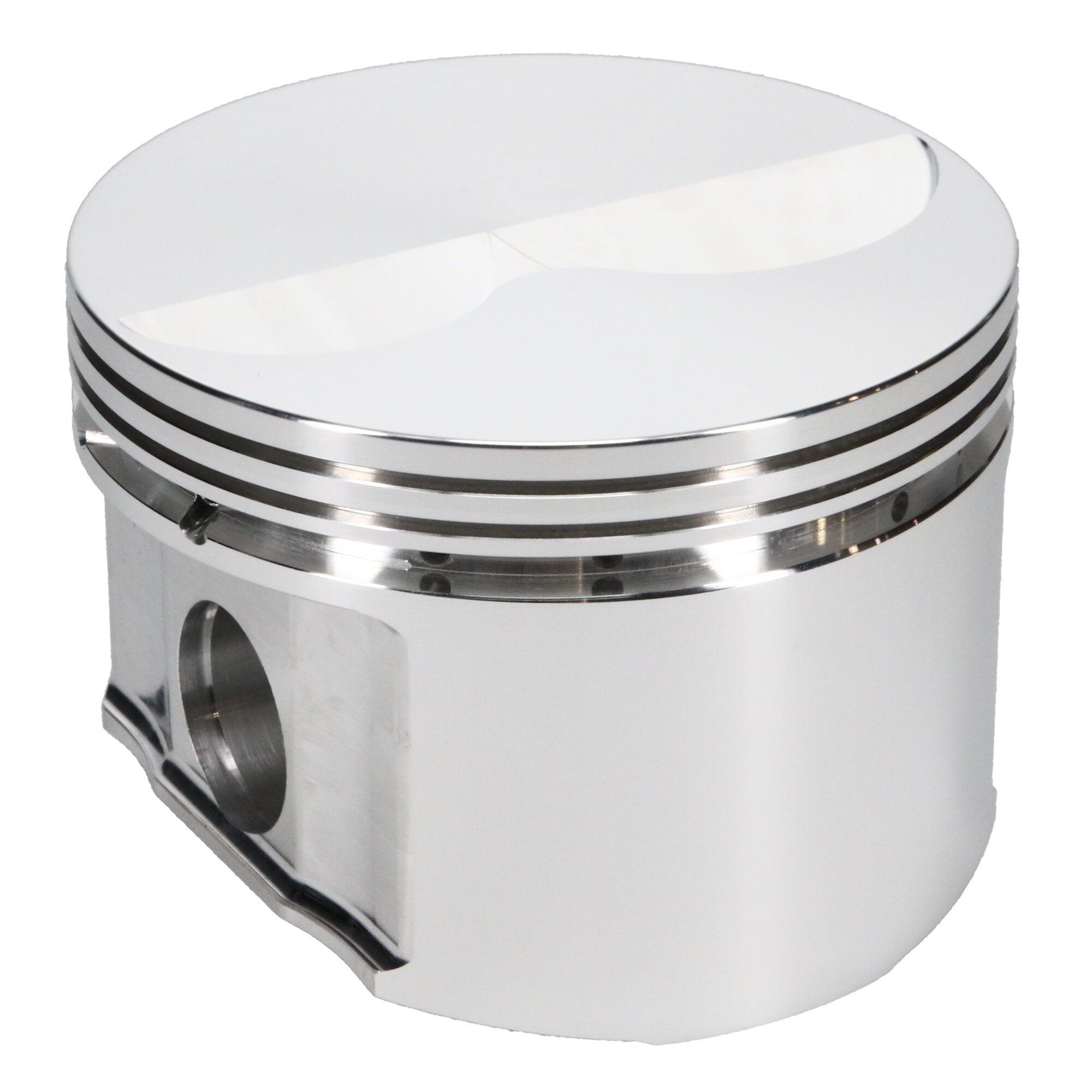

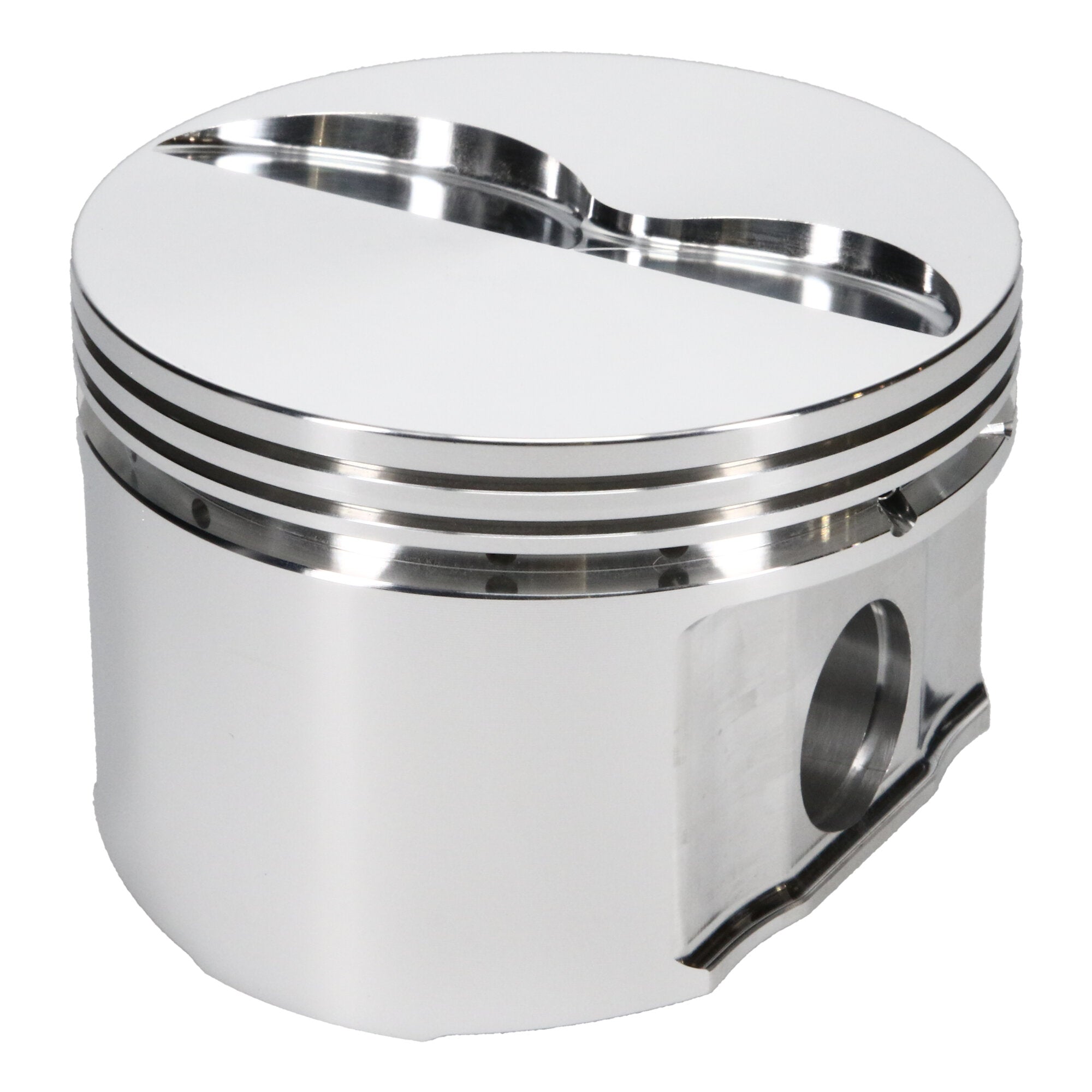

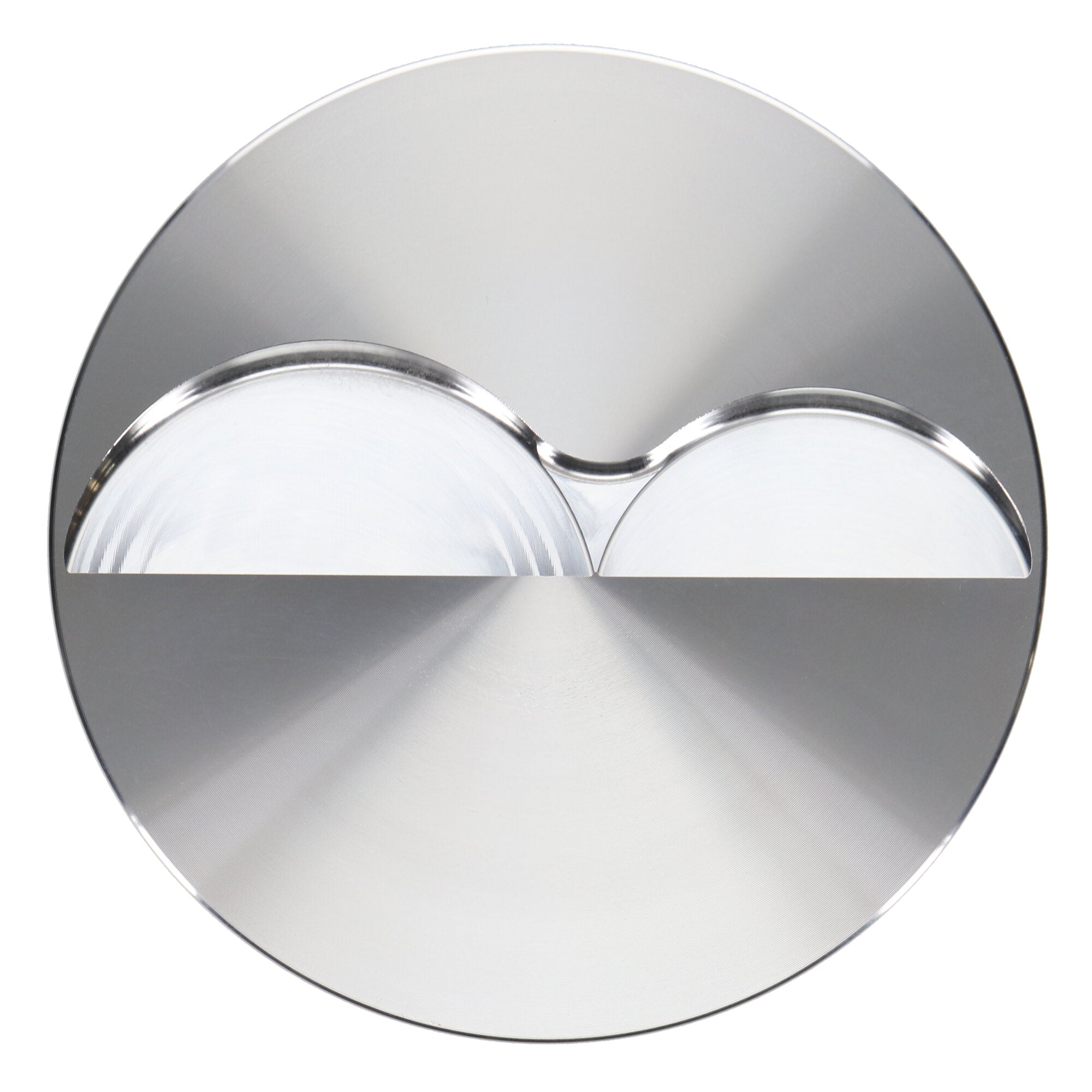

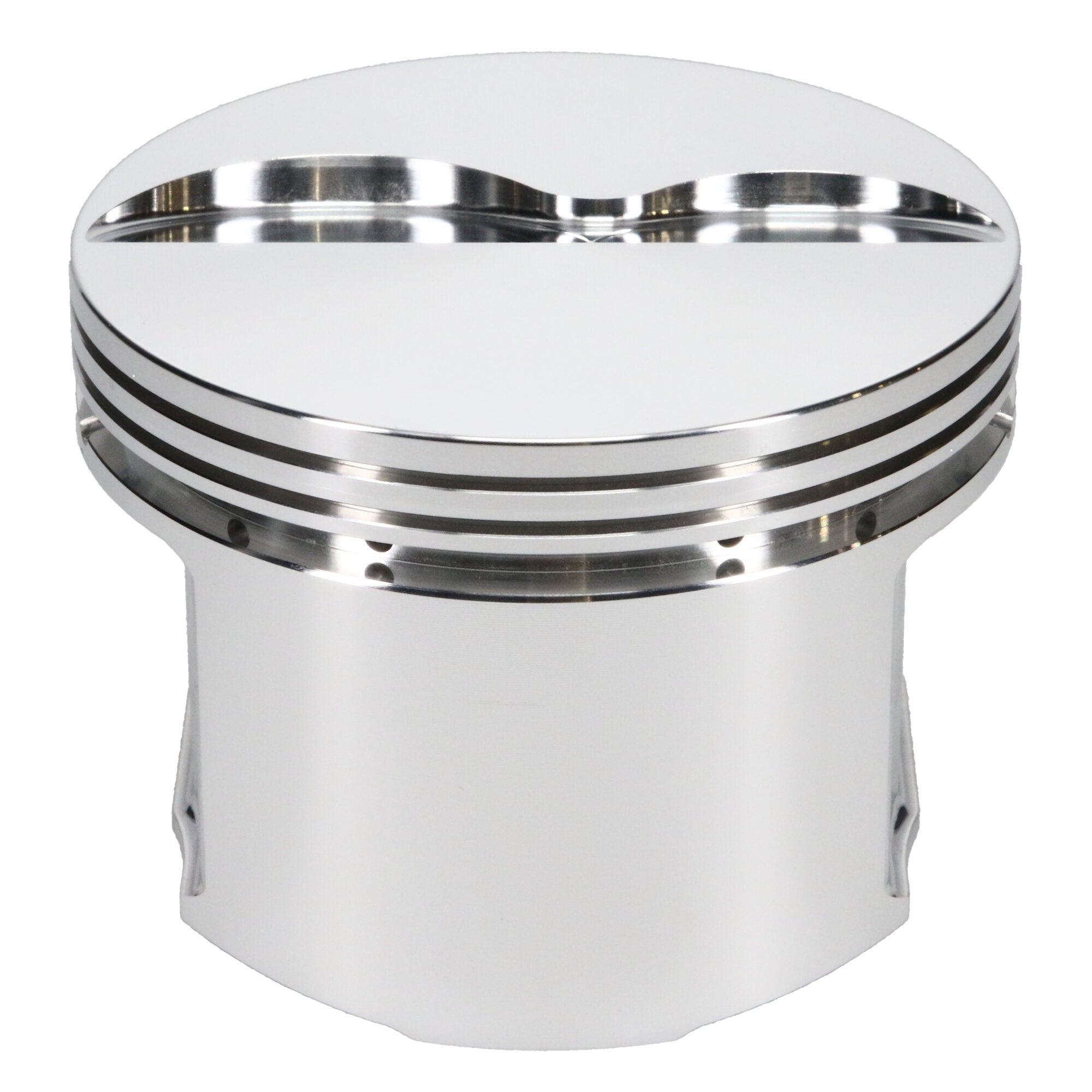

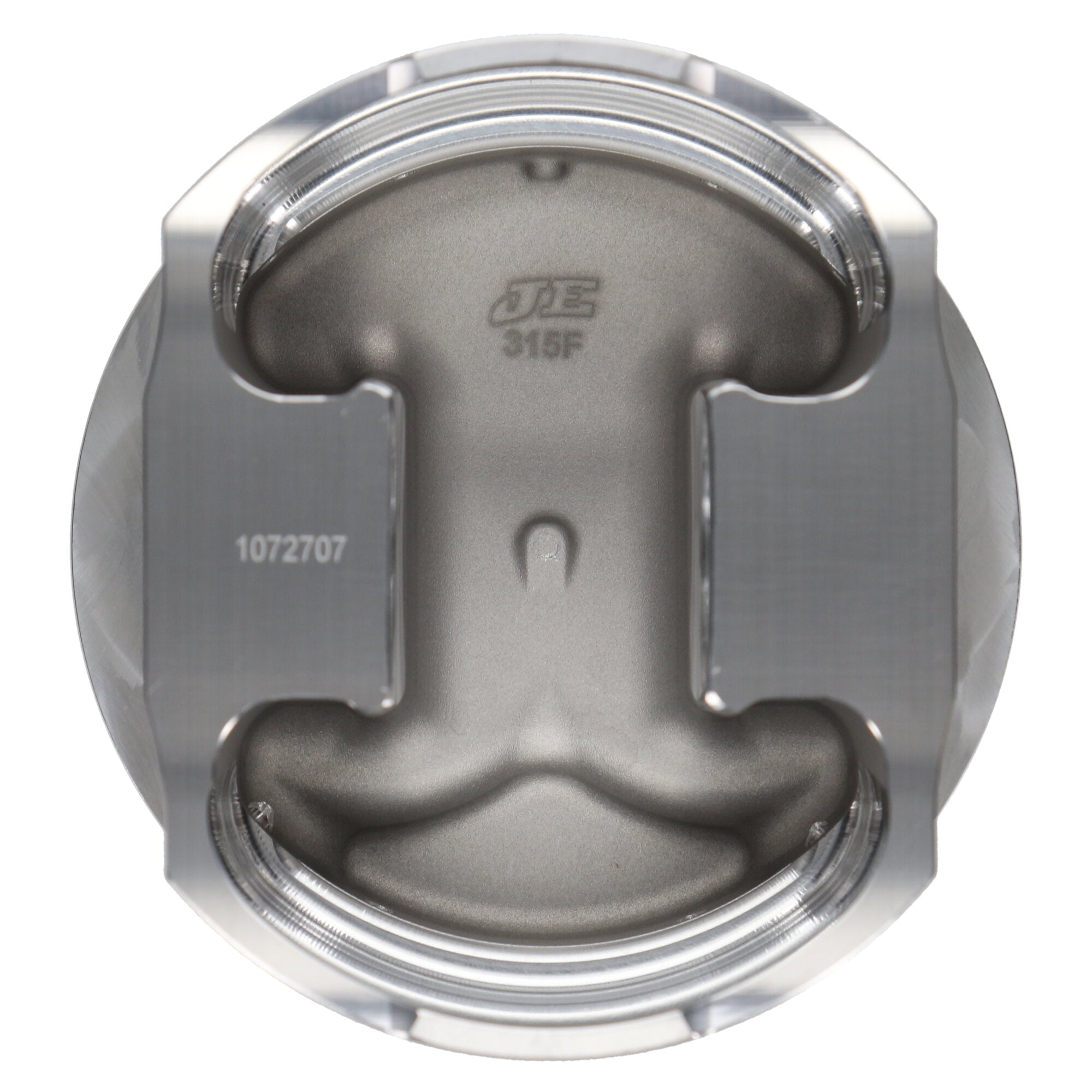

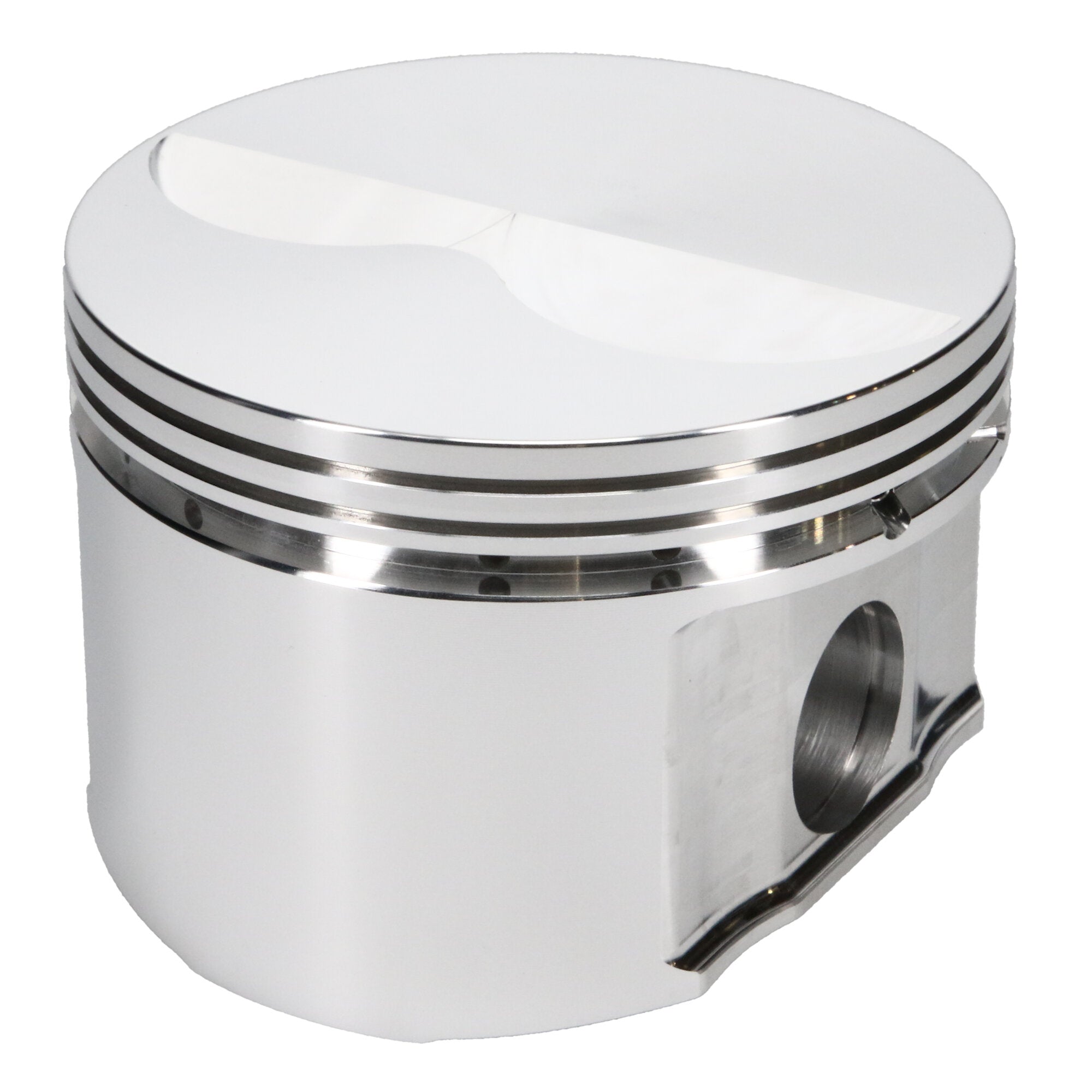

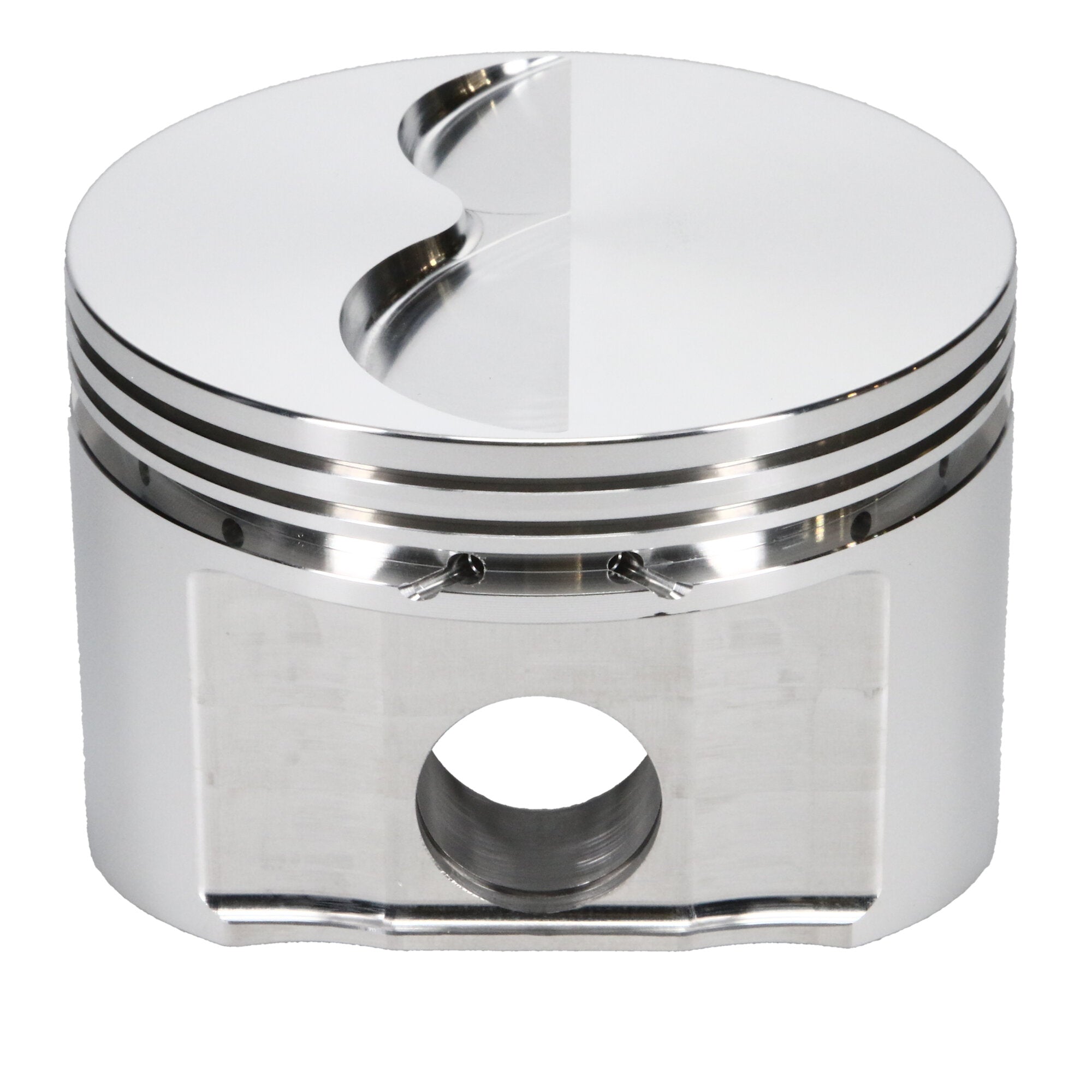

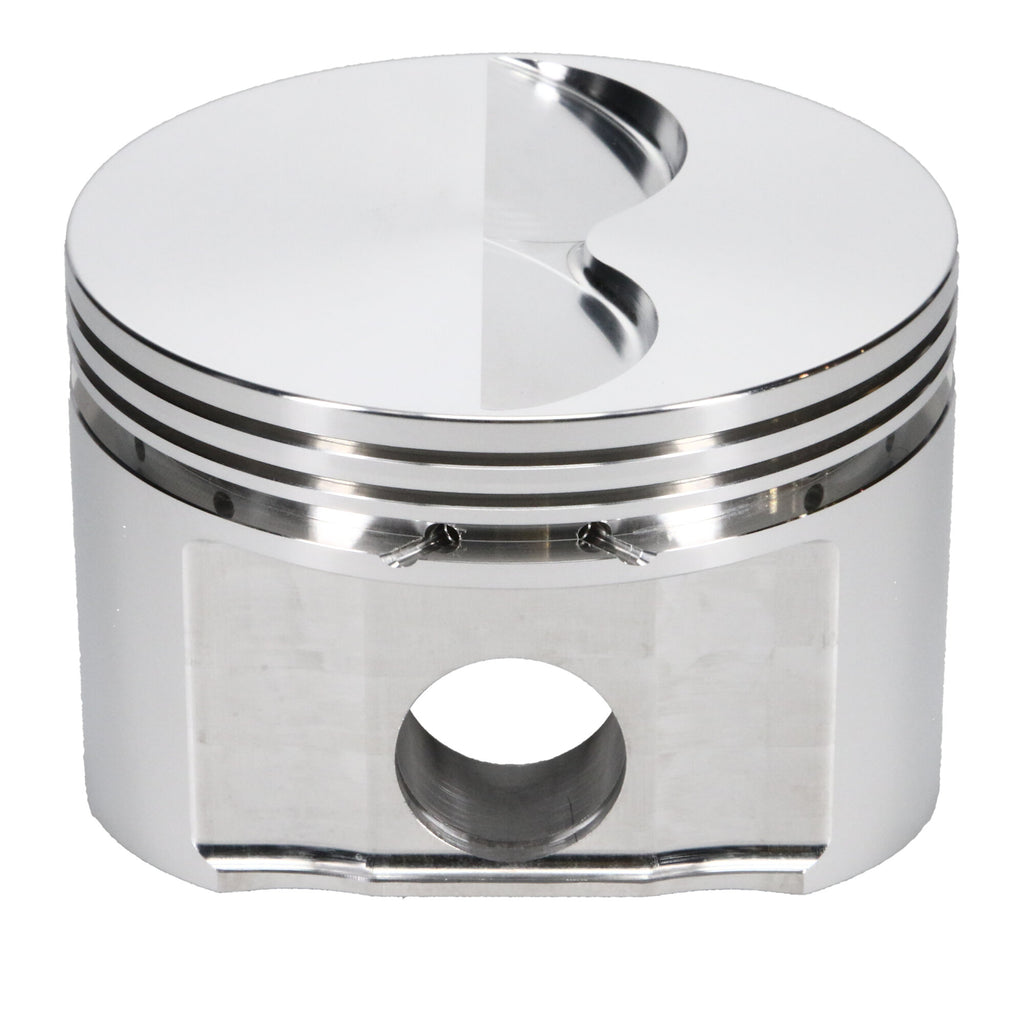

Piston Set, 2618, Flat Top, 4.350 Bore, 2.058 CD, 1.094 Pin, Set of 8. |
| Description_EXT |
JE, Mopar, Big Block Chrysler, 4.350 in. Bore, 2.058 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
MOPAR 440, 4.350 Bore, Flat, Set of 8 |
| Piston Head Type |
Flat |
| Cylinder Head |
440 WEDGE |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Mopar Big Block Piston Kit - 4.350 in. Bore - 2.058 in. CH, -3.00 CC |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Industry |
Automotive |
| Piston Pin Length |
2.930 |
| Ringset Included |
No |
| Add-On |
094-037-CS |
| Add-On |
094-2930-15-51S |
| Add-On |
J10008-4350-5 |
| Make - Web |
Mopar |
| Compression Height |
2.058 |
| Title |
JE Pistons - Mopar, Big Block, 4.350 in. Bore, Piston Kit |
| Product Market |
Domestic |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Series |
JE Pistons |
| Engine |
Big Block |
| Make |
MOPAR |
| Piston Average Weight |
640 |
| Bore Diameter |
4.350 |
| Top Compression Ring Thickness |
0.0640 |
| Oil Ring Thickness |
0.188 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Piston Pin Outside Diameter |
1.094 |
| Engine Type |
ICE |
| Piston Quantity |
8 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-3.00 |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
1.094 |
| Wrist Pin Length |
2.930 |
| Engine - Web |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
