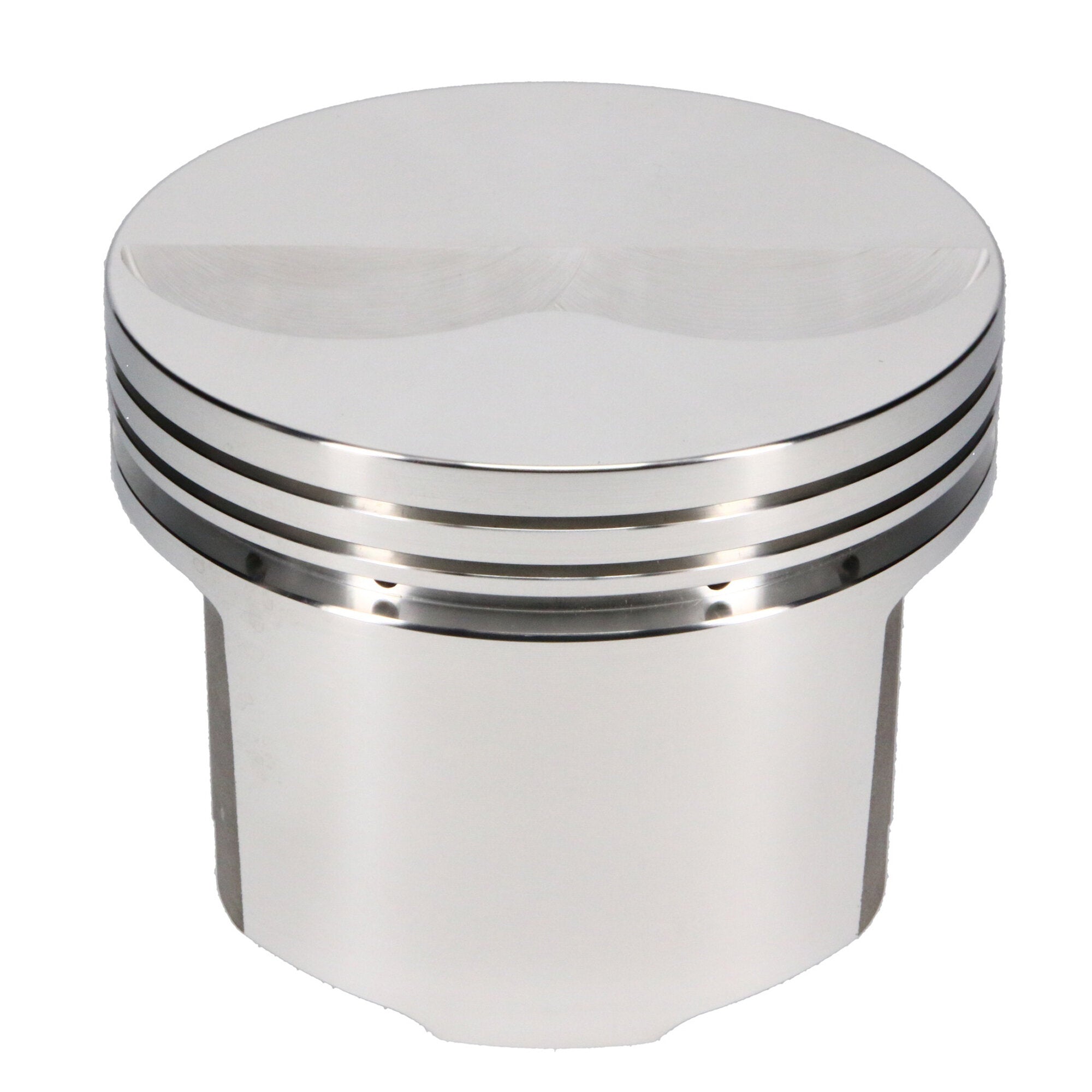

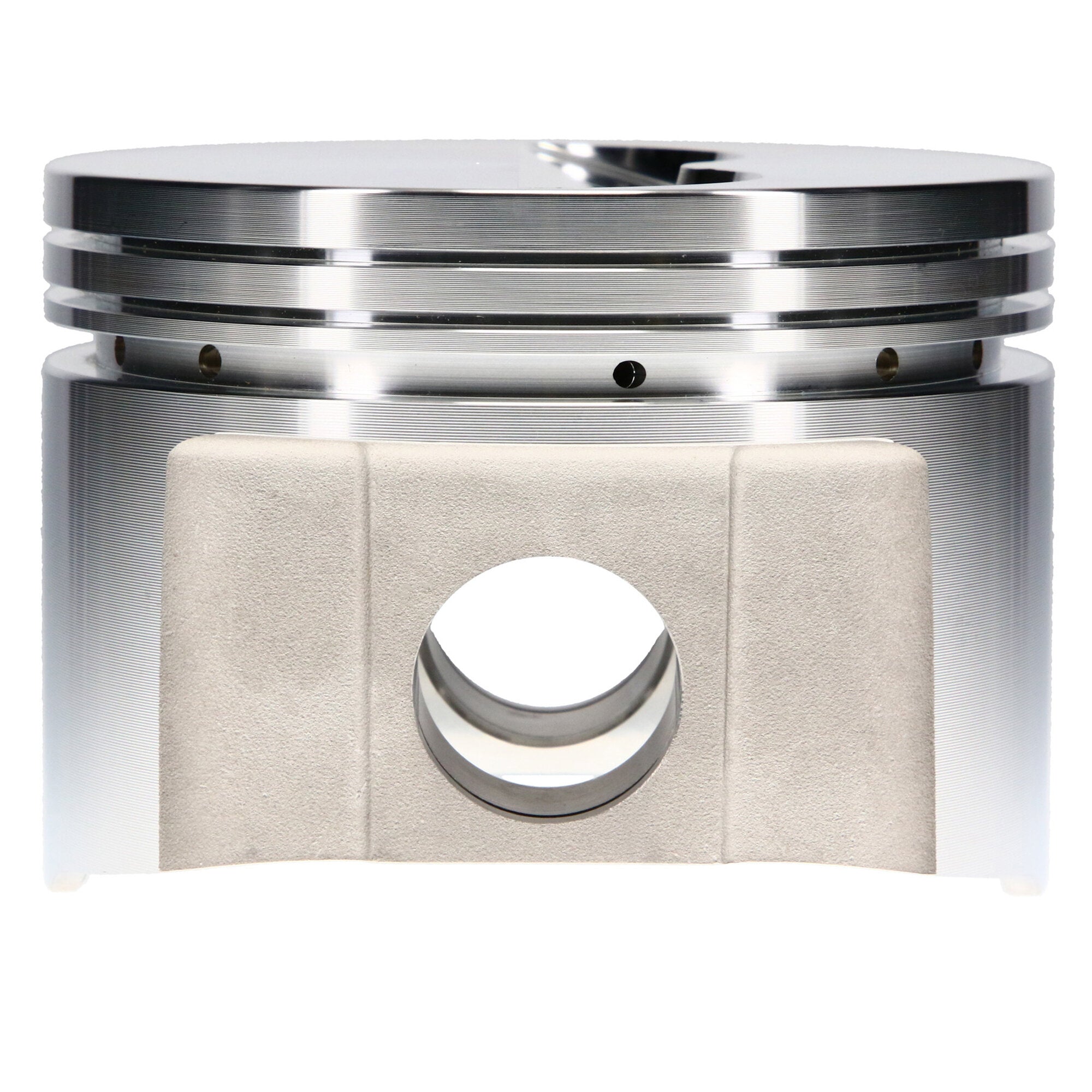

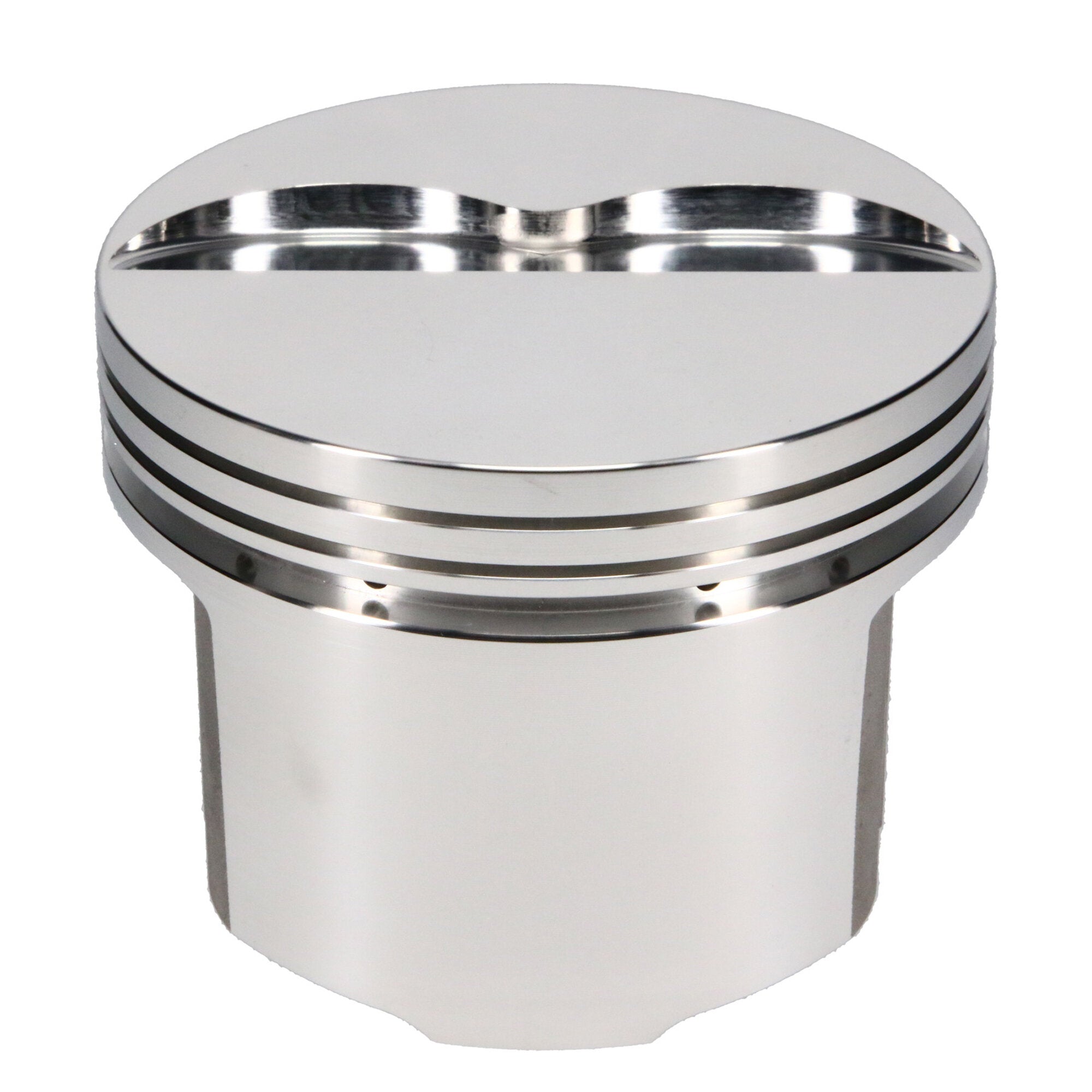

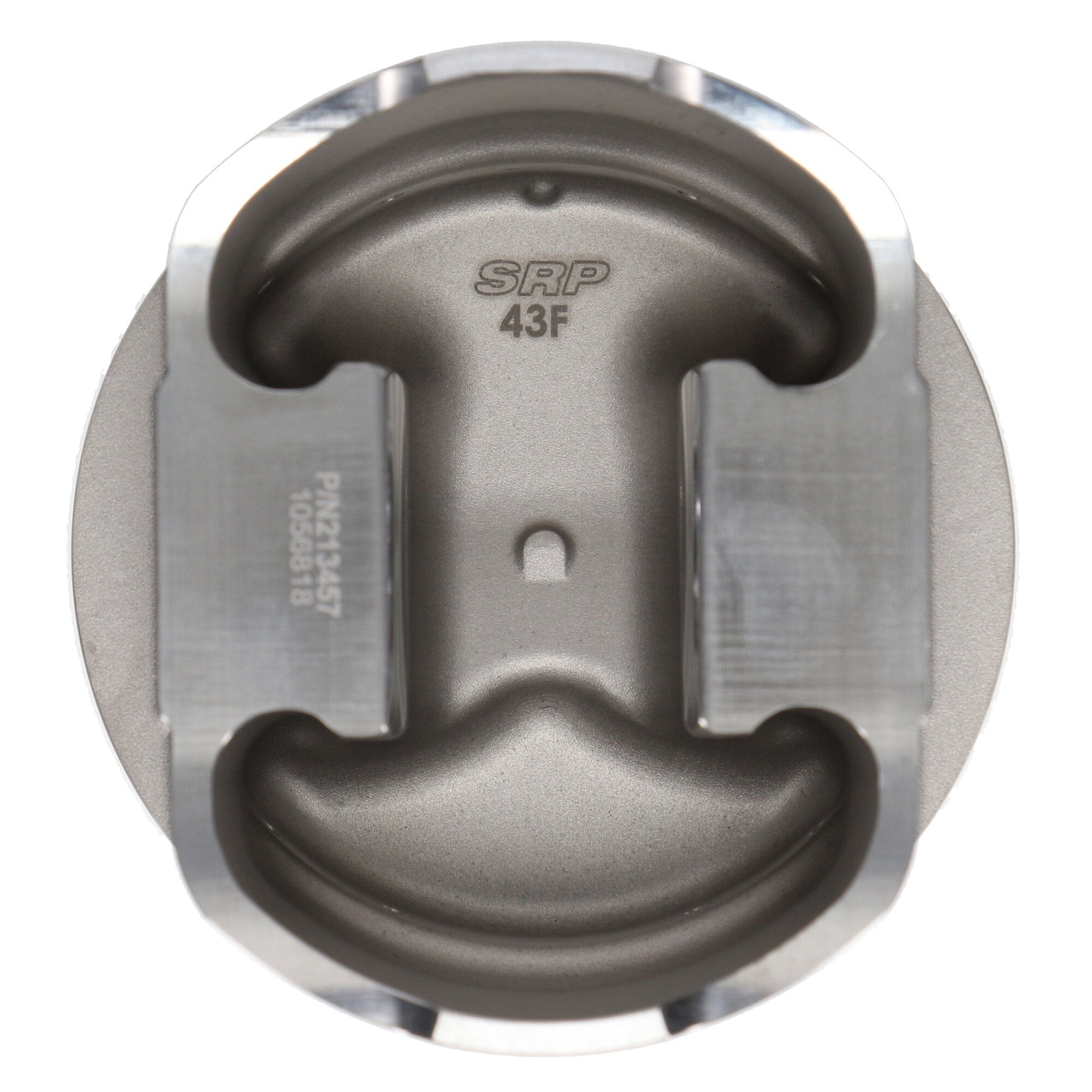

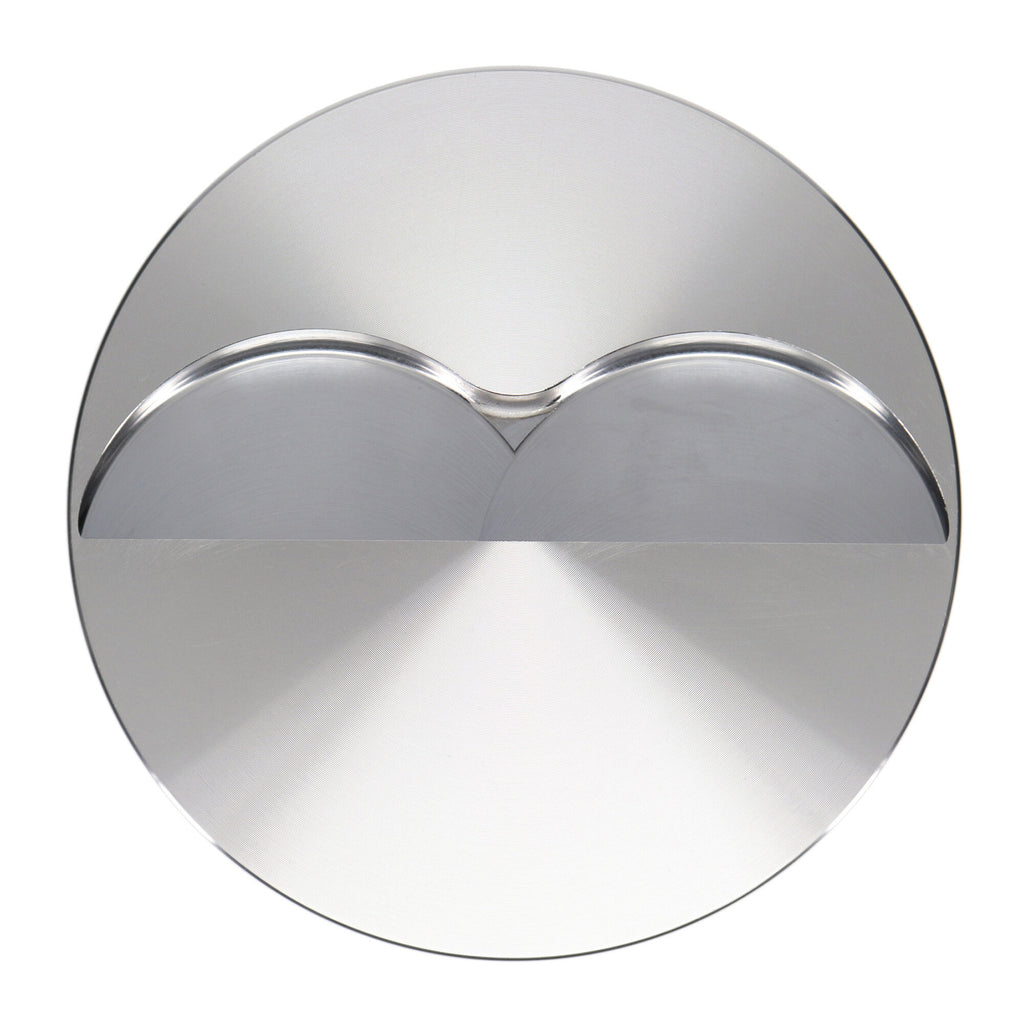

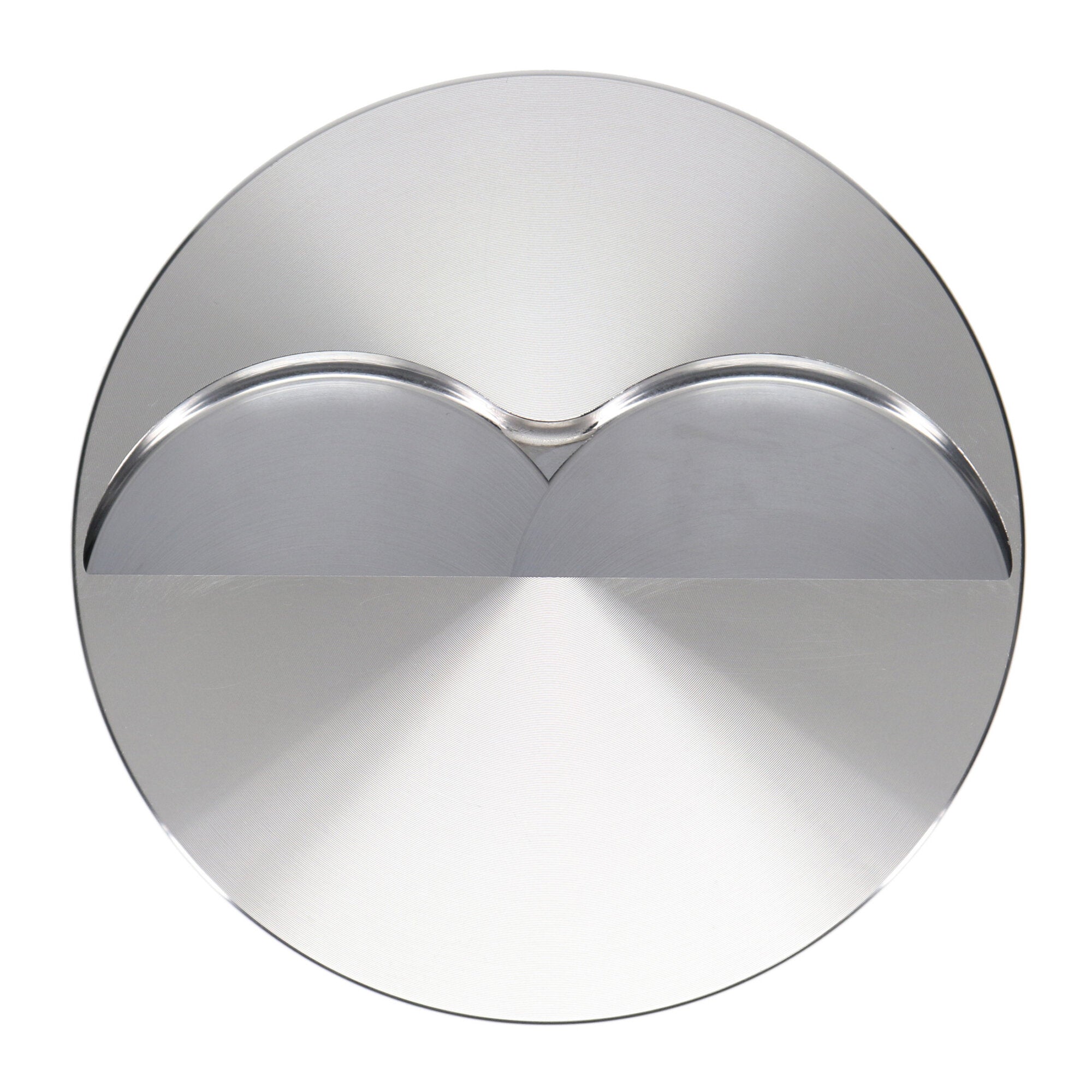

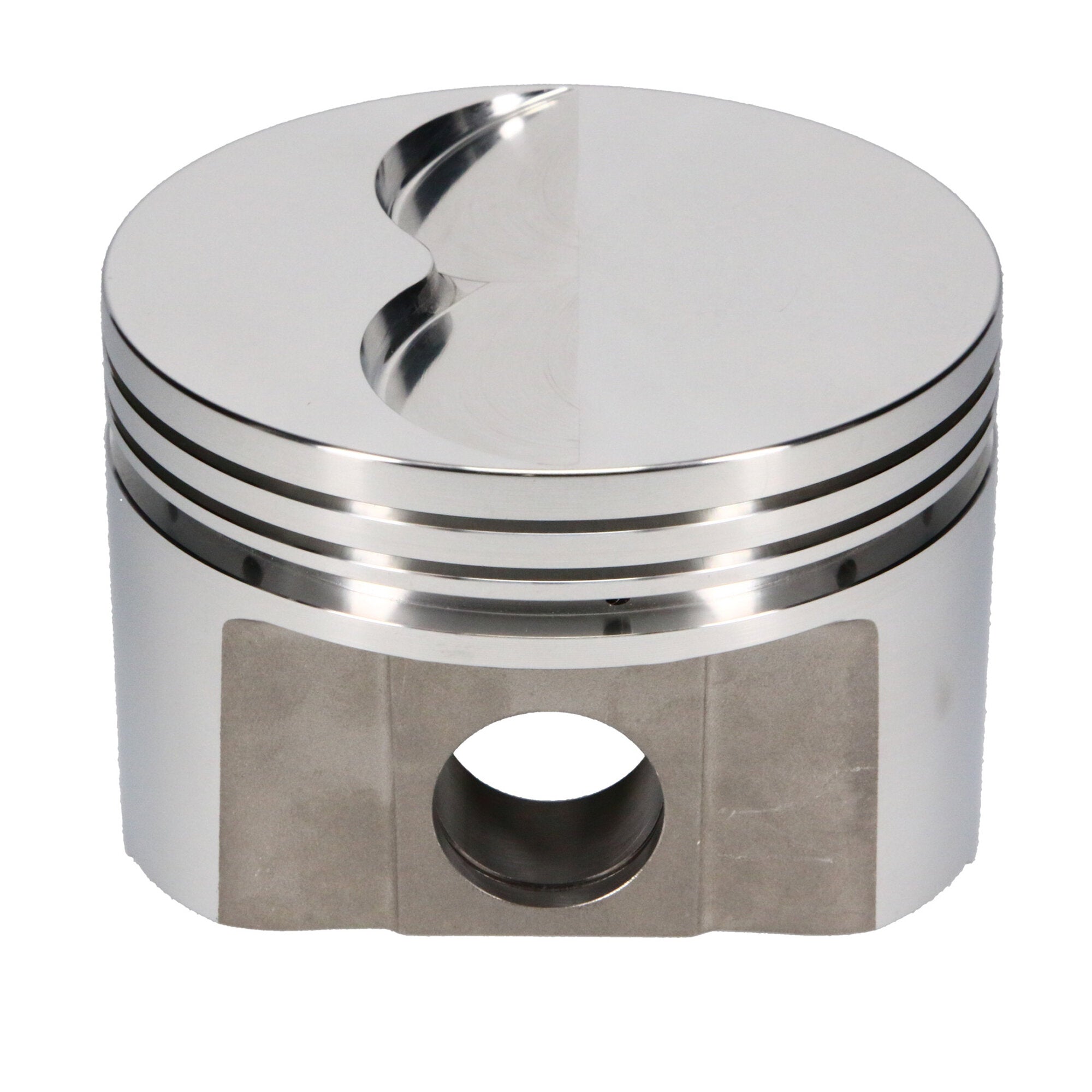

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chrysler Big Block 400 |
| Description_DES |
Piston Set, 4032, Flat Top, 4.375 Bore, 1.320 CD, 0.990 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_EXT |
SRP, Chrysler, Big Block Chrysler, 4.375 in. Bore, 1.320 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 400, 4.375 Bore, Flat, Set of 8 |
| Oil Ring Thickness |
0.218 |
| Ringset Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine |
Big Block |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Flat |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Length |
2.930 |
| Piston Series |
SRP |
| Make - Web |
Chrysler |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Outside Diameter |
0.990 |
| Piston Average Weight |
558 |
| Add-On |
990-042-CS |
| Title - Web |
SRP Chrysler Big Block Piston Kit - 4.375 in. Bore - 1.320 in. CH, -6.00 CC |
| Piston Pin Material |
5115 |
| Compression Height |
1.320 |
| Cylinder Head |
440 WEDGE |
| Add-On |
S100S8-4375-5 |
| Engine Type |
ICE |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Title |
SRP - Chrysler, Big Block, 4.375 in. Bore, Piston Kit |
| Make |
CHRYSLER |
| Piston Material |
4032 |
| Top Compression Ring Thickness |
0.0640 |
| Add-On |
990-2930-15-51S |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
-6.00 |
| Bore Diameter |
4.375 |
| Industry |
Automotive |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Forging Type |
FSR |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.930 |
| Engine - Web |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
