As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan RB26DT R32-34 Skyline |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

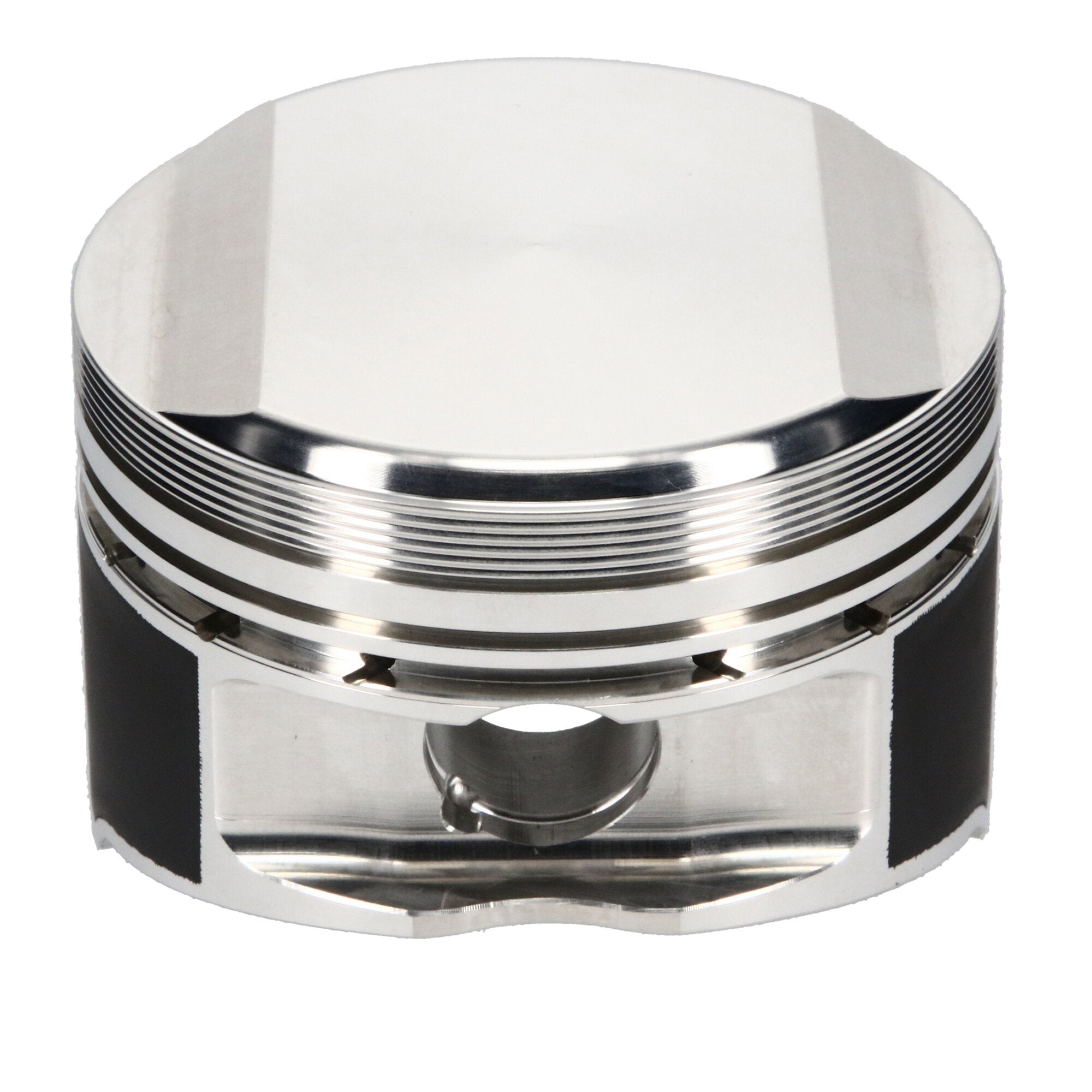

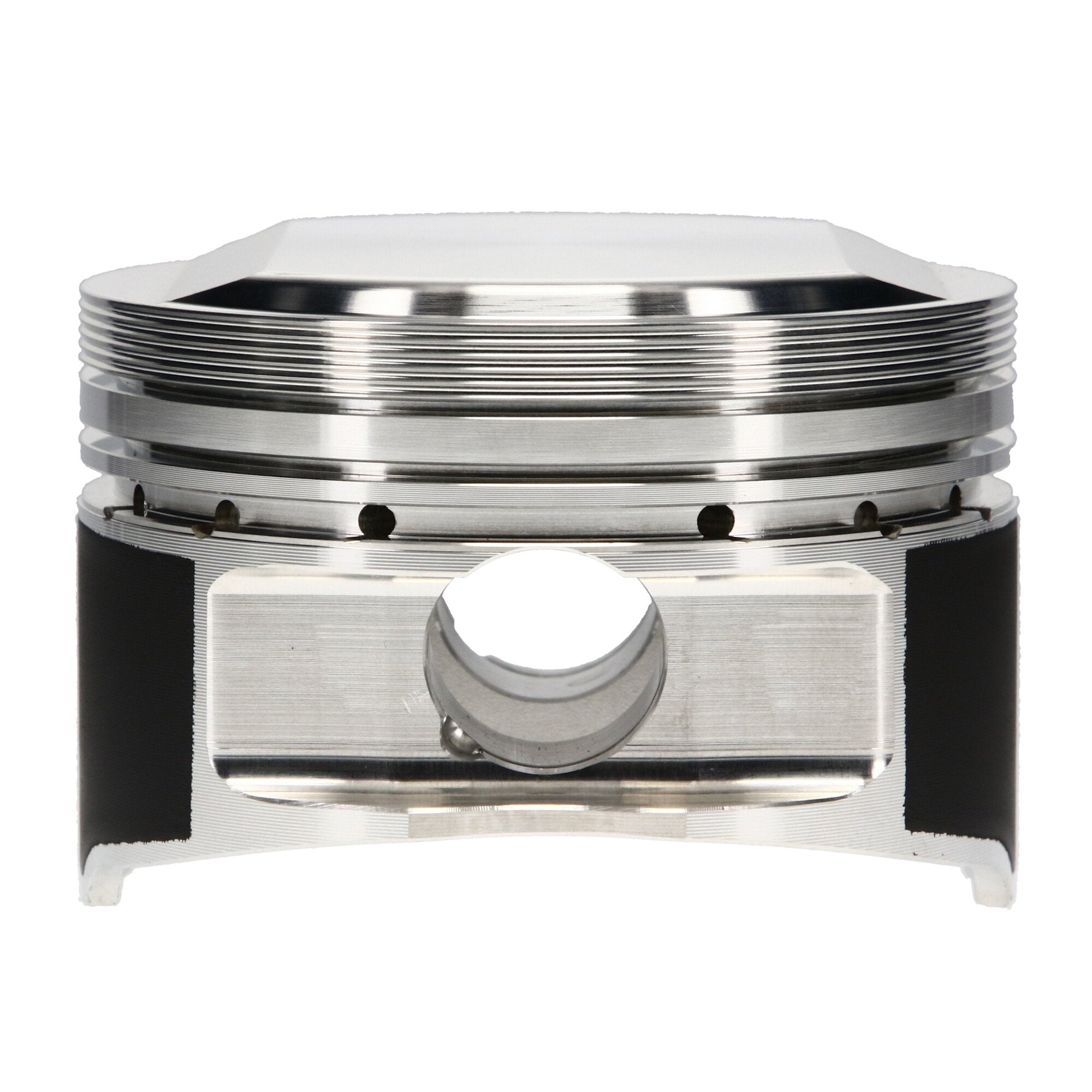

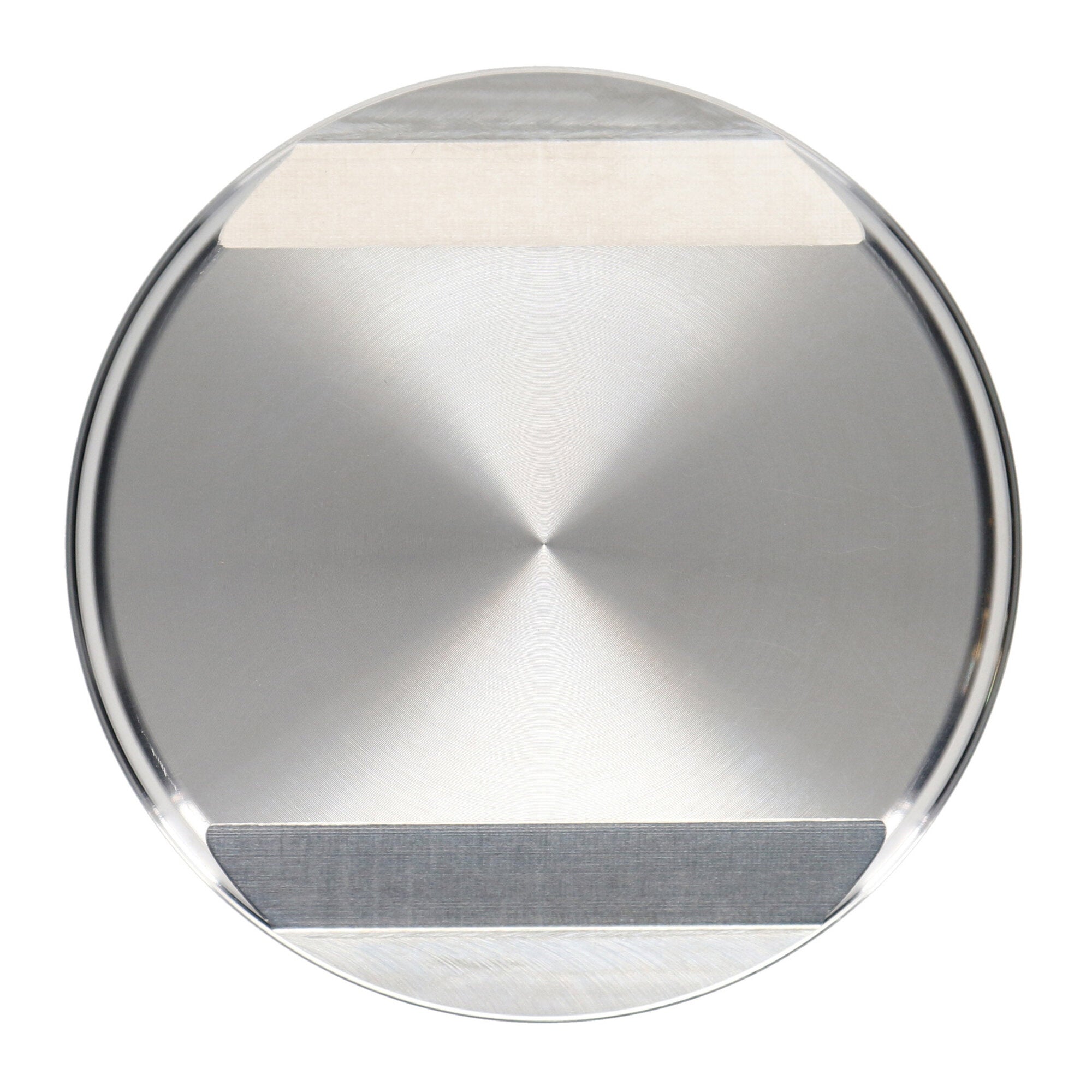

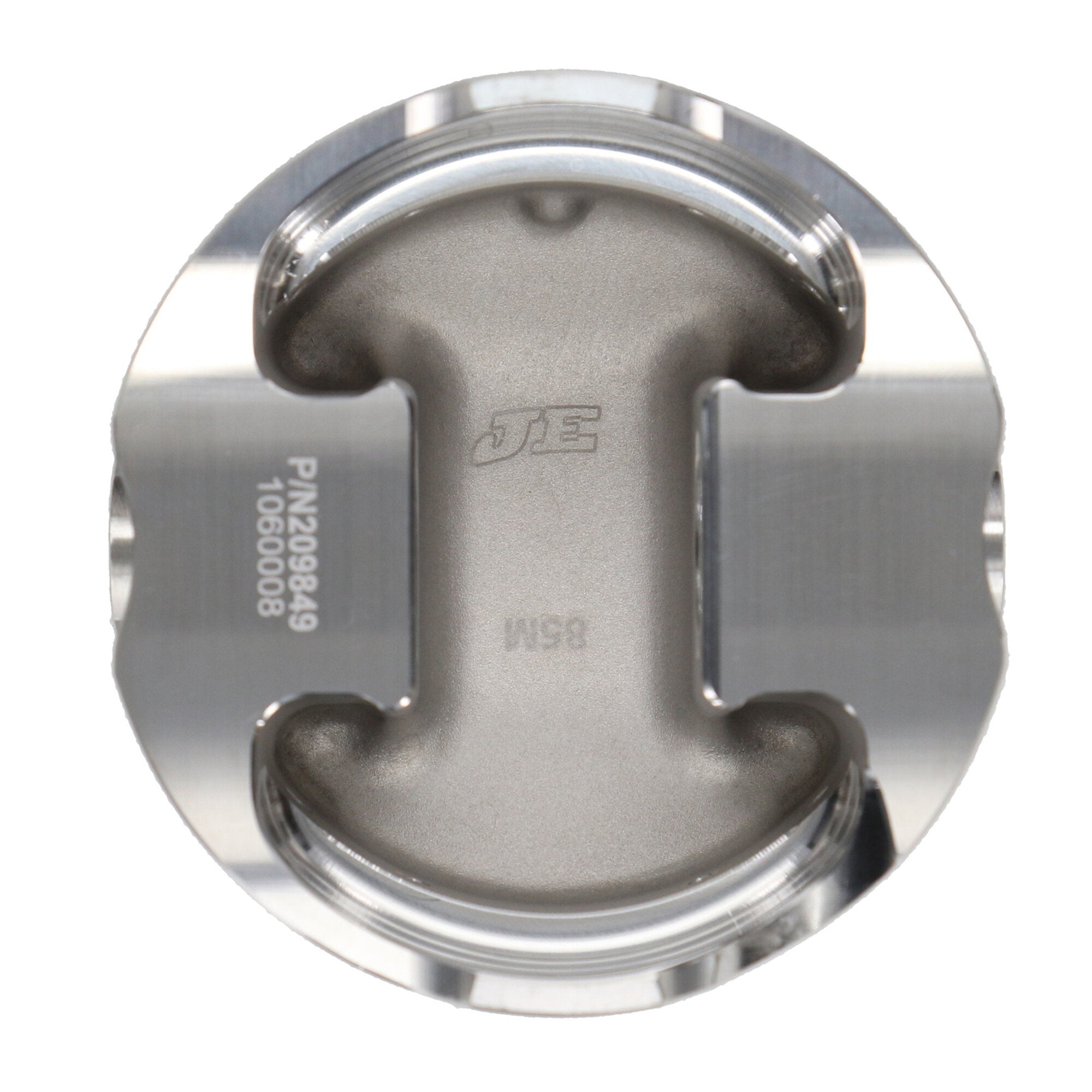

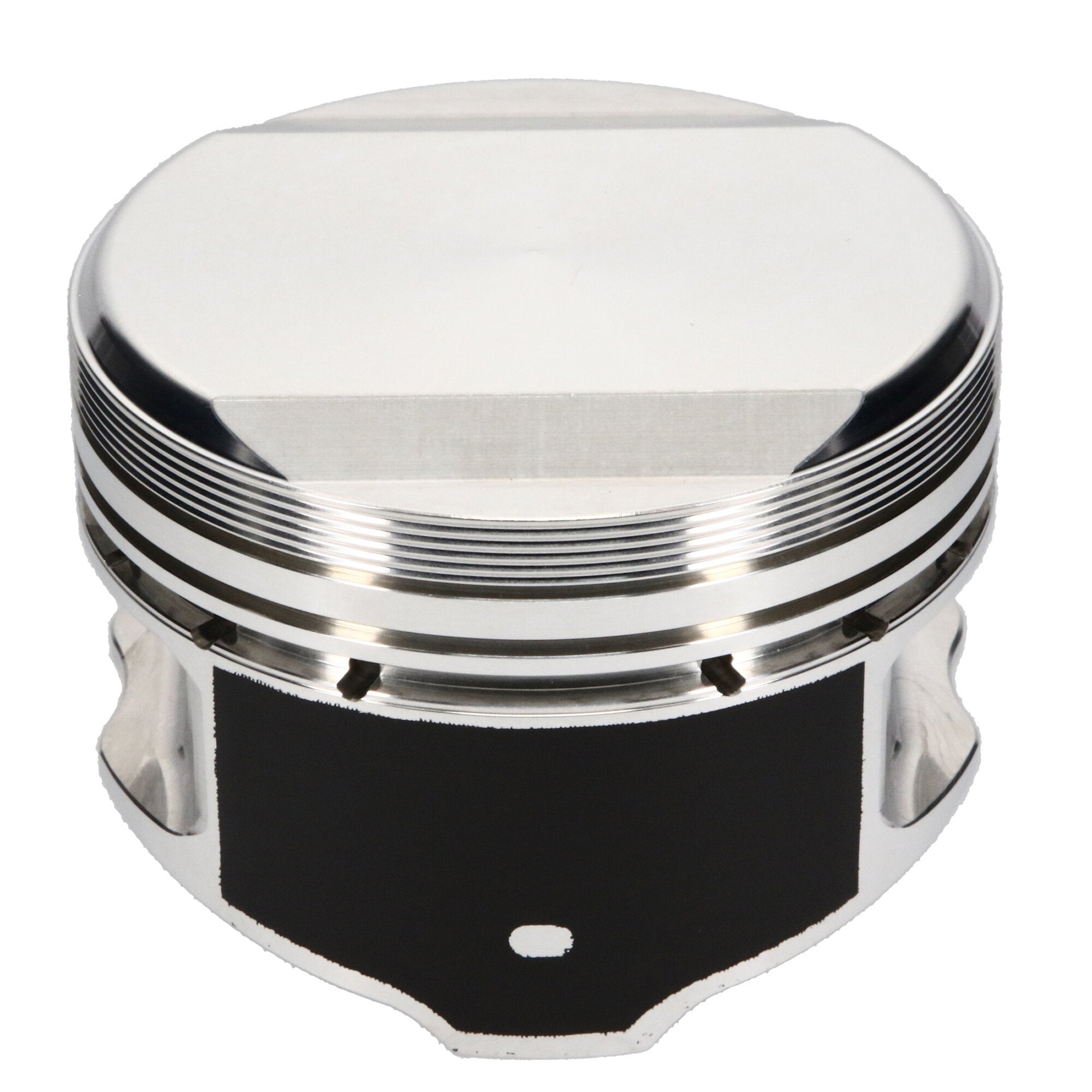

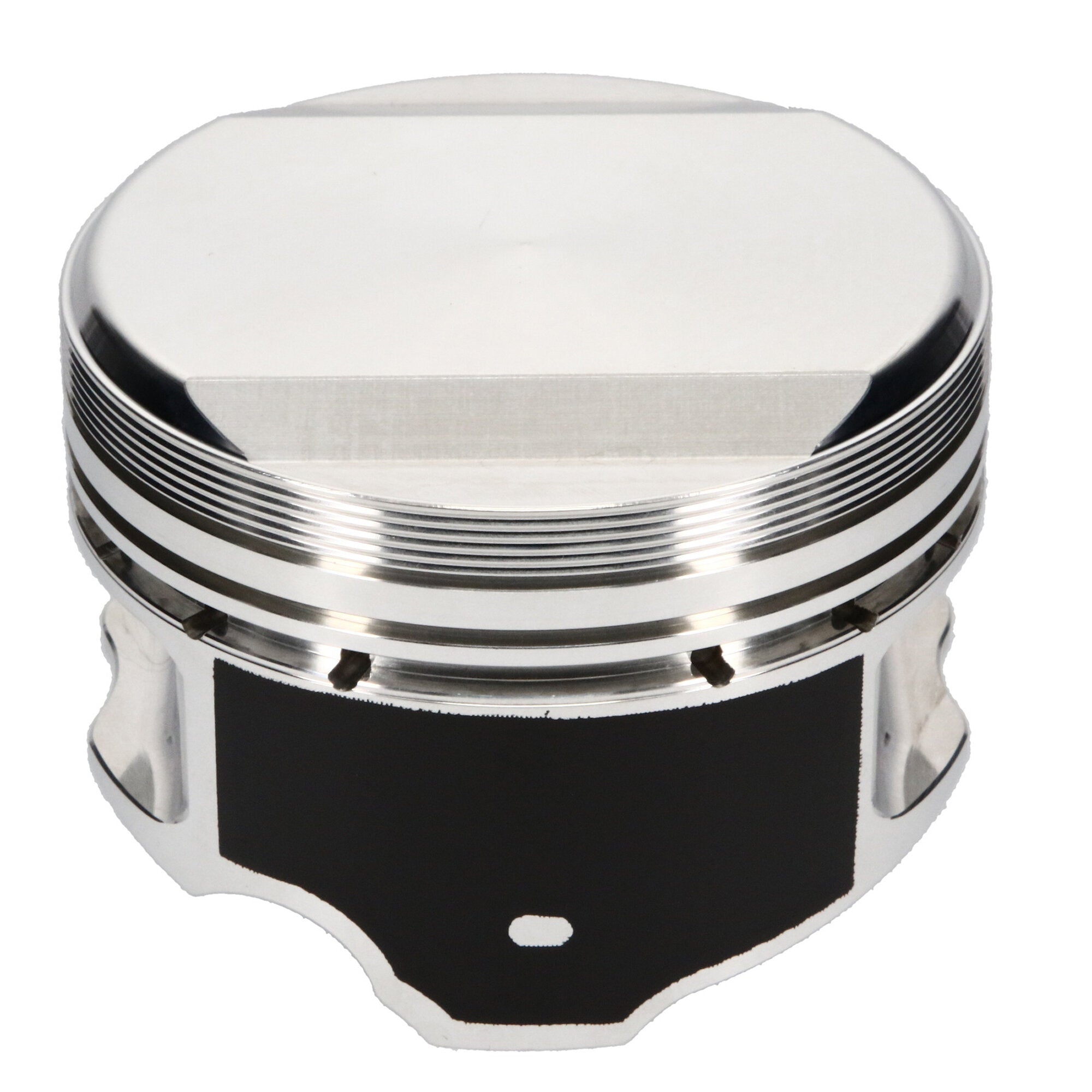

JE, Nissan, RB Series, 3.425 in. Bore, 8.50:1, Dome, 6 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.425 Bore, 1.185 CD, 0.827 Pin, Set of 6. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Nissan RB26DT, 87.00 Bore, Dome, Set of 6 |
| Piston Pin Length |
2.250 |
| Piston Head Type |
Dome |
| Wrist Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Ringset Included |
Yes |
| Title - Web |
JE Pistons Nissan RB Series Piston Kit - 87.00 mm Bore - 1.185 in. CH, 15.30 CC |
| Piston Pin Material |
5115 |
| Engine |
RB SERIES |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Make |
NISSAN |
| Oil Ring Thickness |
0.119 |
| Make - Web |
Nissan |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Piston Quantity |
6 |
| Compression Height |
1.185 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Second Compression Ring Thickness |
0.0600 |
| Top Compression Ring Thickness |
0.0480 |
| Cylinder Head |
RB26DETT |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Sport Compact |
| Bore Diameter |
87.00 |
| Industry |
Automotive |
| Piston Pin Outside Diameter |
0.827 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
15.30 |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Engine - Web |
RB Series |
| Wrist Pin Outer Diameter |
0.827 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
827-2250-15-51C |
| Title |
JE Pistons - Nissan, RB Series, 87.00 mm Bore, Piston Kit |
| Add-On |
JC2104-3425 |
| Add-On |
827-063-MW |
| Piston Average Weight |
360 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
7.0000 |
