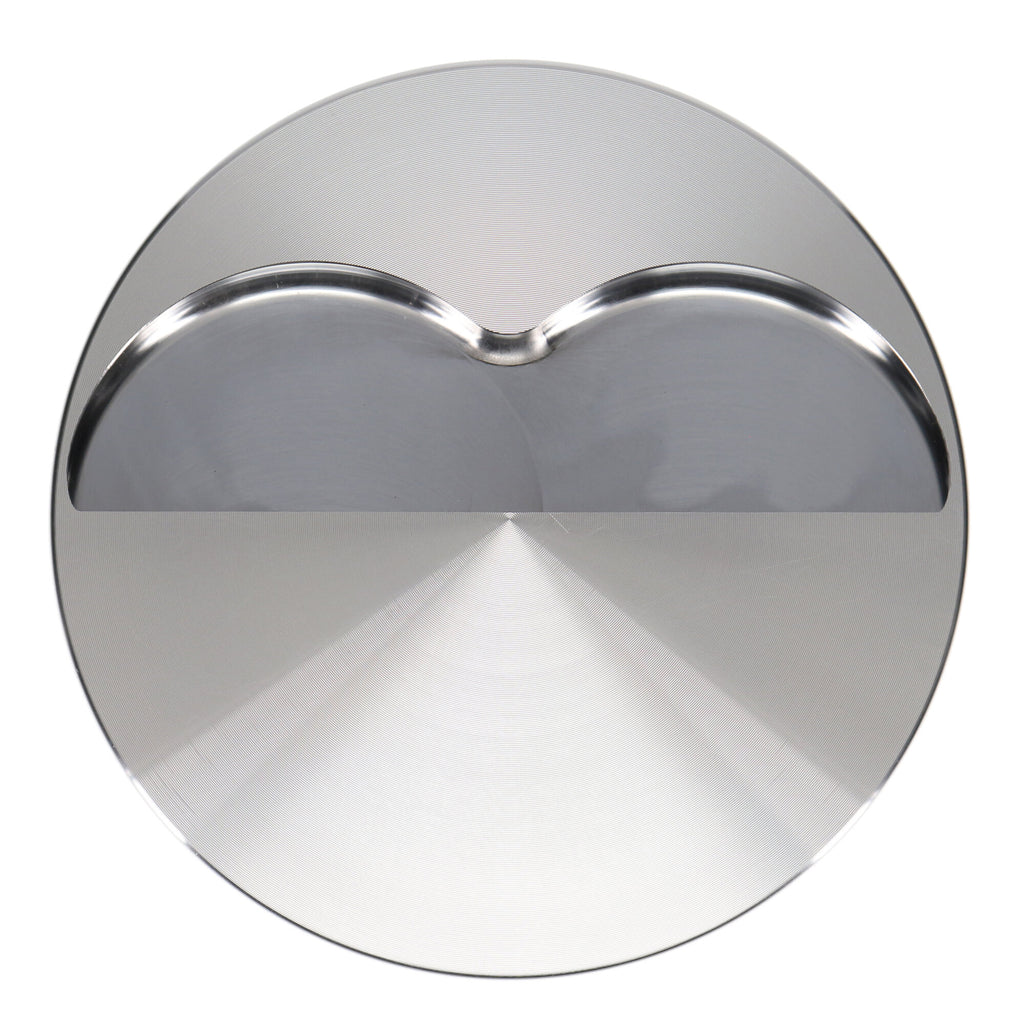

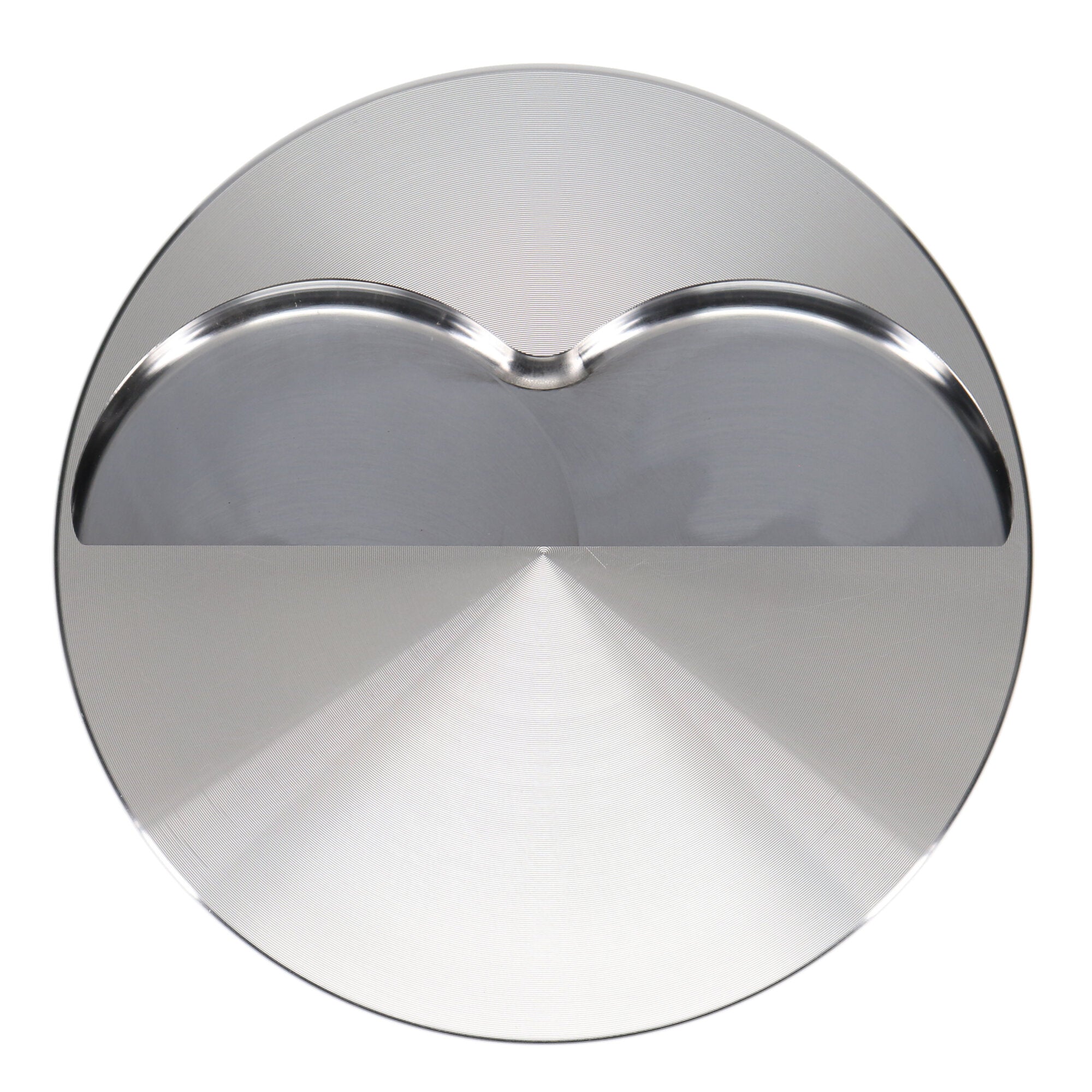

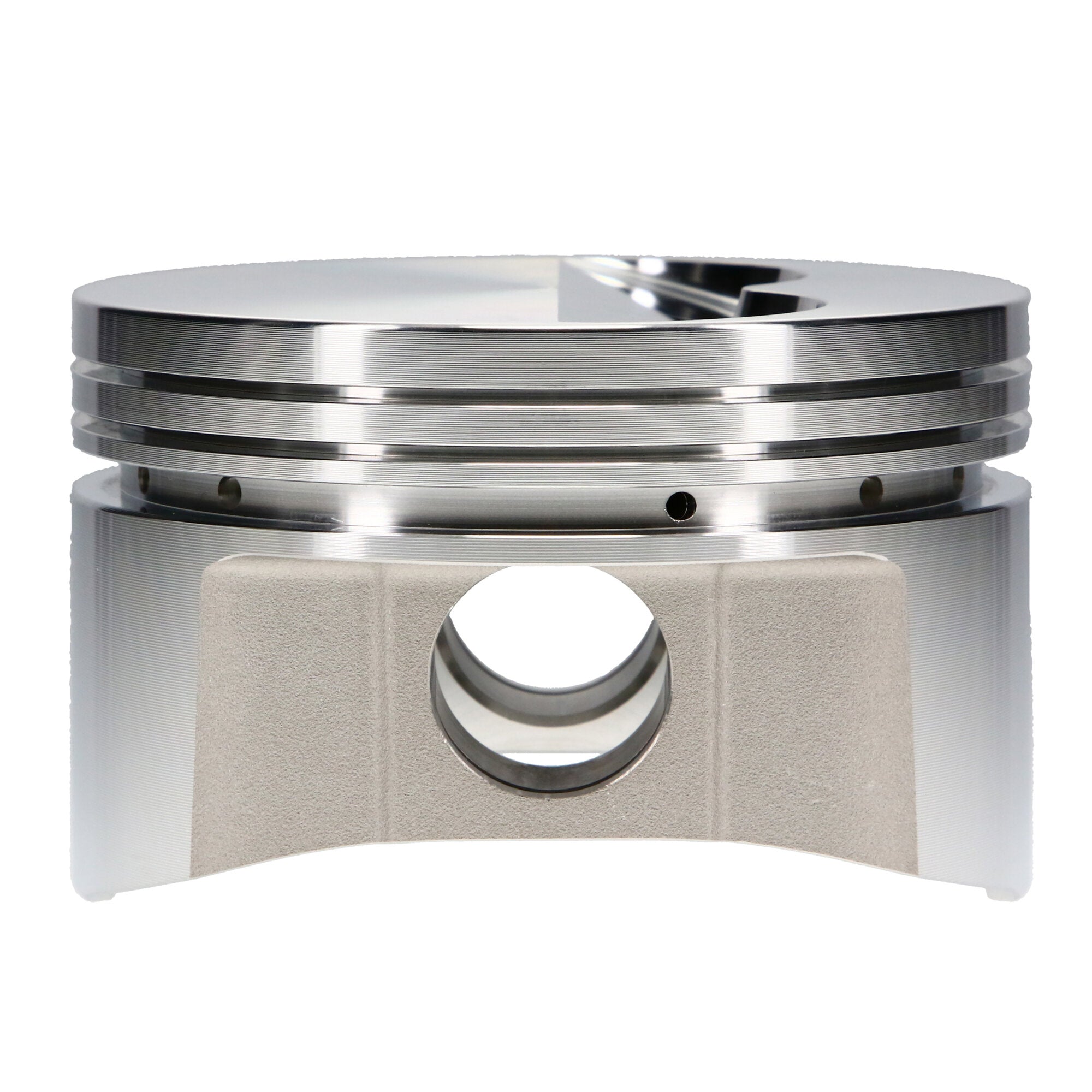

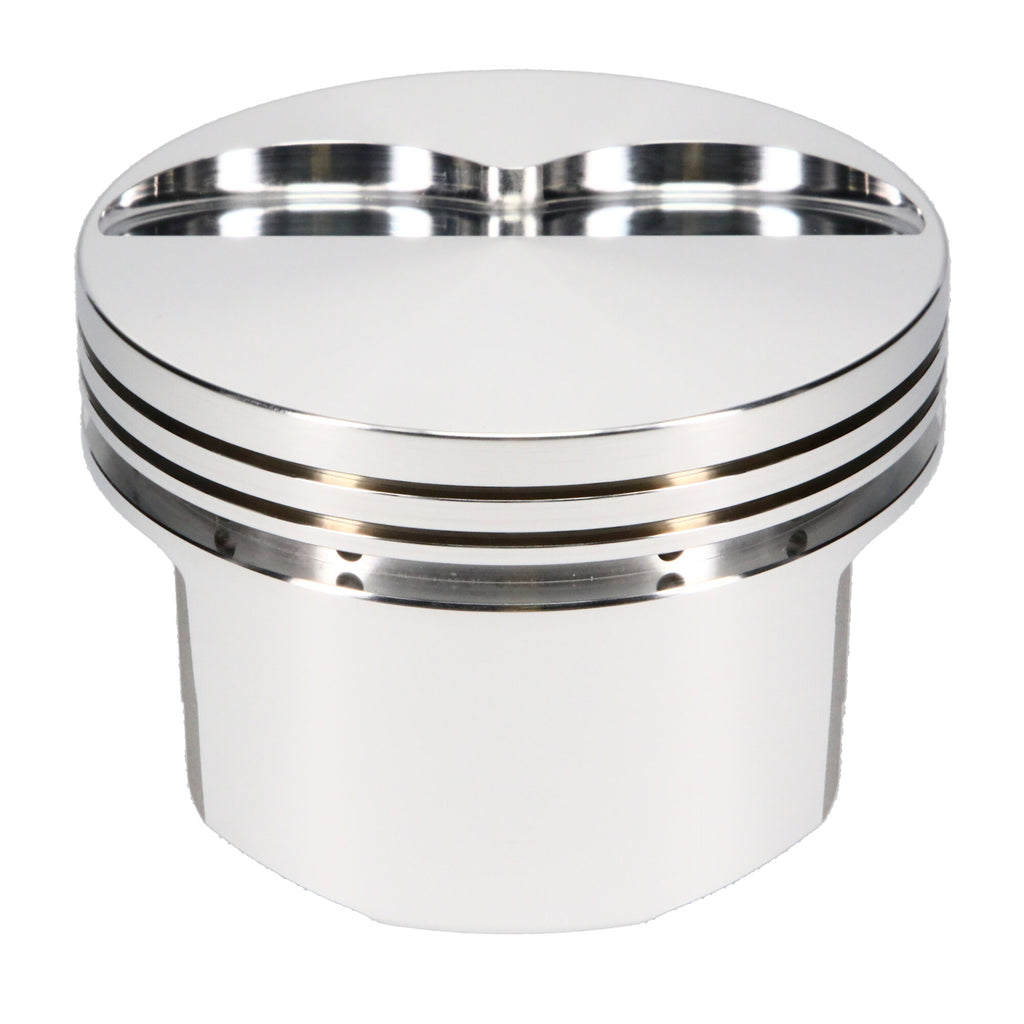

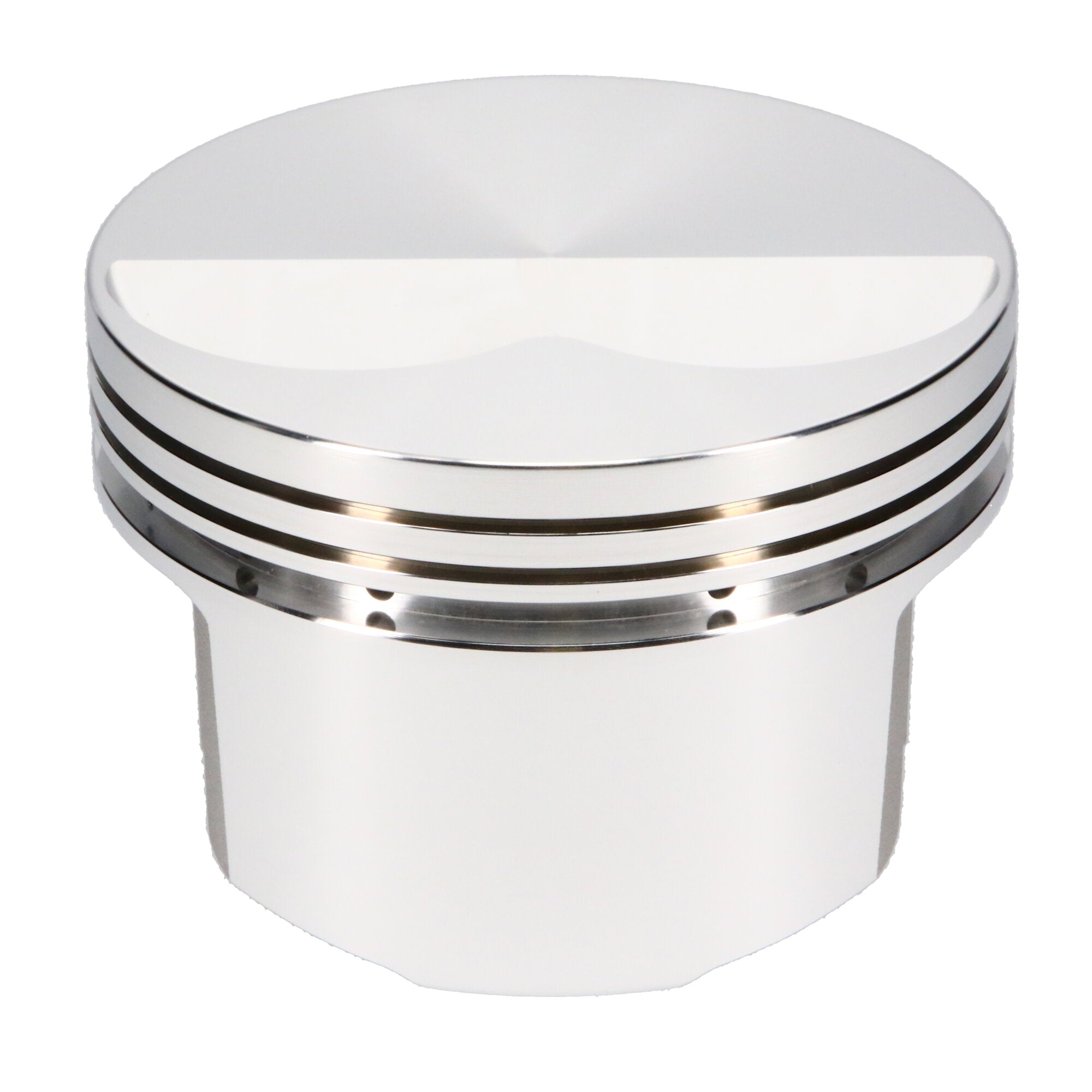

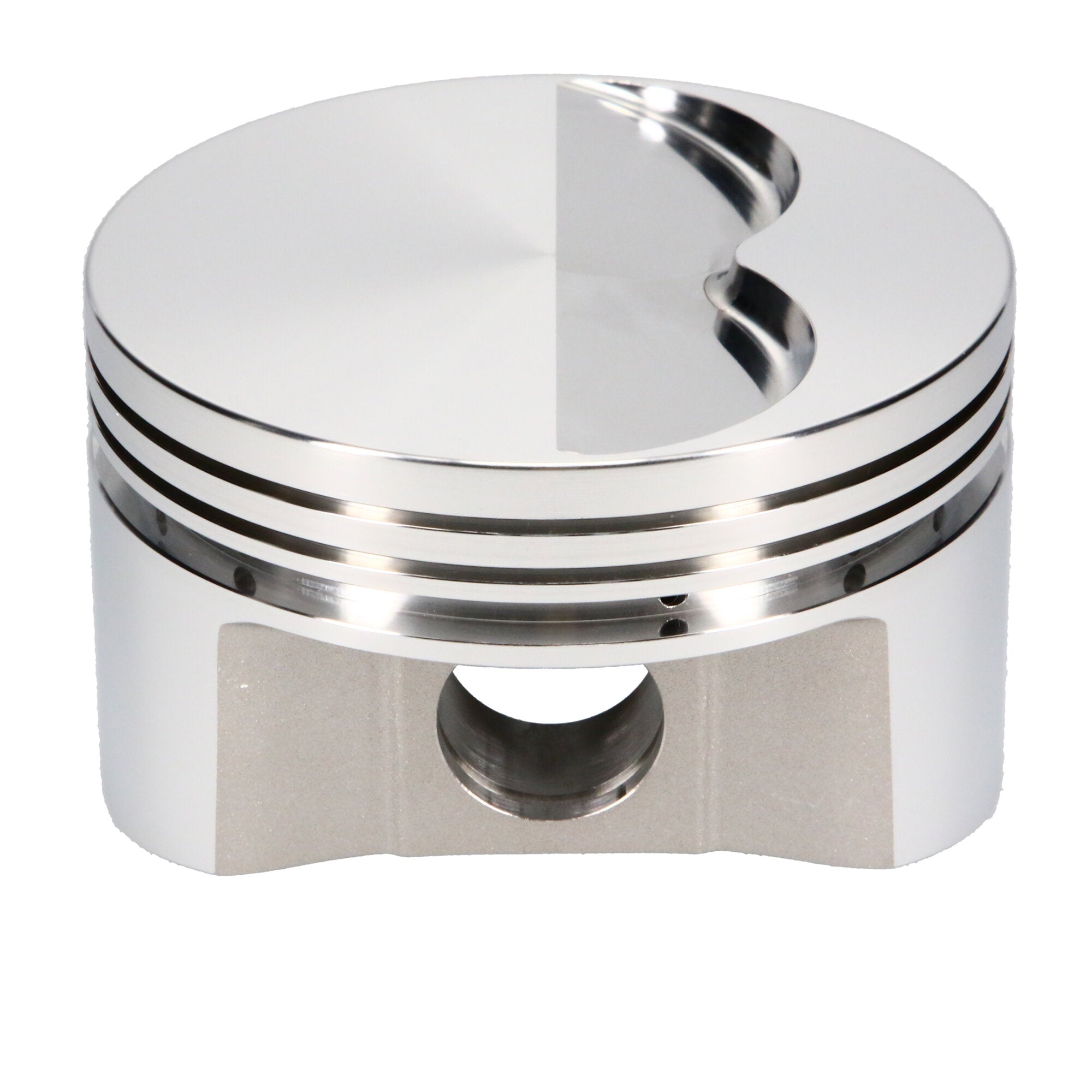

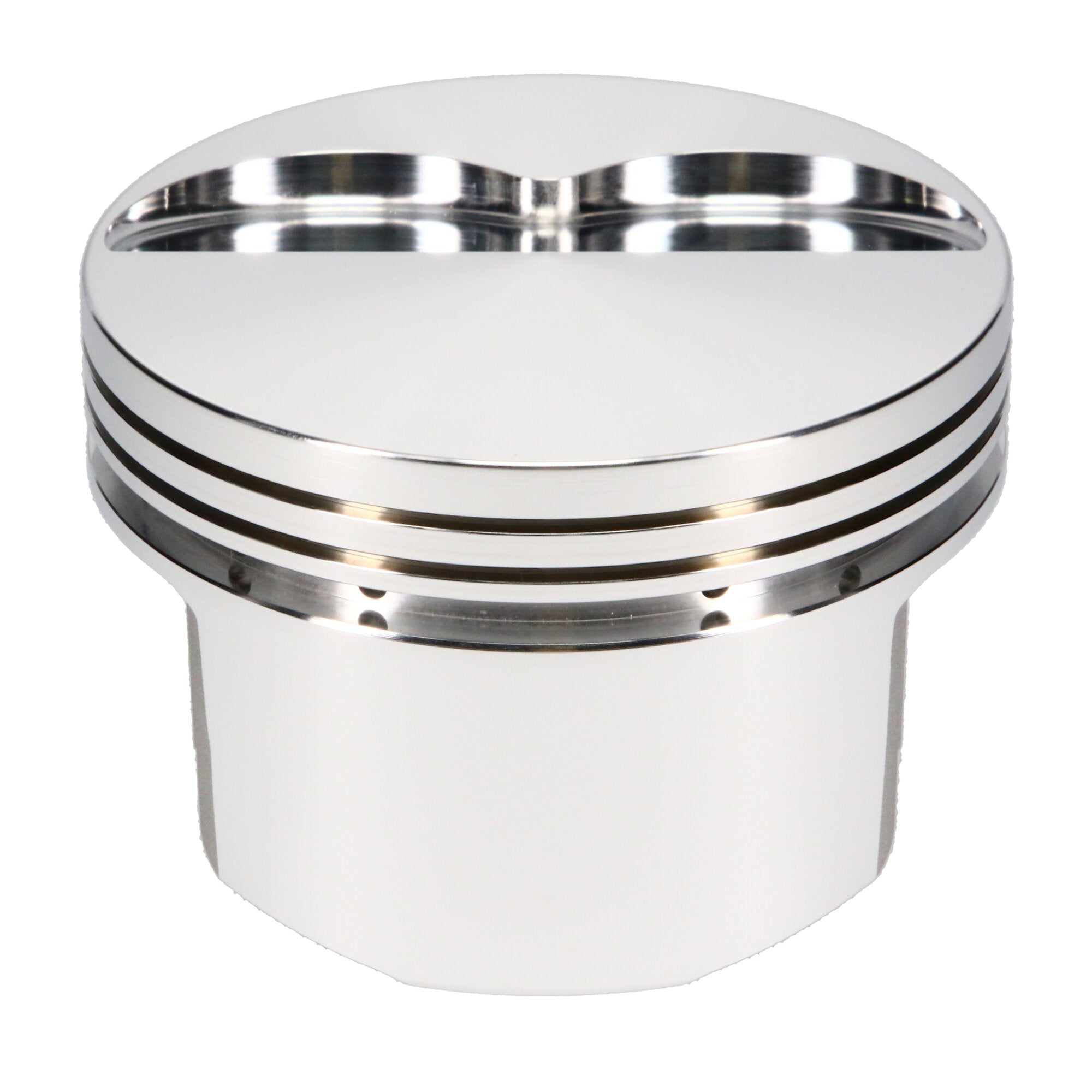

  • JE Pistons 196830S Piston Single, 4032, Flat Top, 4.185 Bore, 1.285 CD, 0.990 Pin, Set of 1.
Sold out
Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-4032,-Flat-Top,-4.185-Bore,-1.285-Cd,-0.990-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

JE Pistons 196830S Piston Single, 4032, Flat Top, 4.185 Bore, 1.285 CD, 0.990 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_196830S
Engine Piston
$234.45
customers are viewing this product
JE Pistons 186239S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.213 CD, 0.827 Pin, Set of 1.
JE Pistons 186239S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.213 CD, 0.827 Pin, Set of 1.
$451.87
JE Pistons 187695R Piston Single, 2618, Flat Top, 4.030 Bore, 1.000 CD, 0.927 Pin, Set of 1.
JE Pistons 187695R Piston Single, 2618, Flat Top, 4.030 Bore, 1.000 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 196830S Piston Single, 4032, Flat Top, 4.185 Bore, 1.285 CD, 0.990 Pin, Set of 1.
Details

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Specifications:

Description_ASM Pontiac 455 Stroker
Description_DEF Engine Piston
Description_DES Piston Single, 4032, Flat Top, 4.185 Bore, 1.285 CD, 0.990 Pin, Set of 1.
Description_FAB
  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Description_EXT SRP, Pontiac, Big Block Pontiac, 4.185 in. Bore, 1.285 CD, Flat Top, Single Piston
Description_INV SRP, Piston
Description_TLE Pontiac 455, 4.185 Bore, Flat, Set of 1
Description_MKT Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Description_SHO Piston
Title SRP - Pontiac, Big Block, 4.185 in. Bore, Piston
Piston Average Weight 474
Bore Diameter 4.185
Product Market Domestic
Piston Series SRP
Category Hierarchy Auto>SRP Pistons>SRP>Single Replacement Pistons
Oil Ring Thickness 0.218
Top Compression Ring Thickness 0.0640
Ringset Included No
Make PONTIAC
Piston Pin Outside Diameter 0.990
Engine Type ICE
Piston Head Type Flat
Product Type Engine Piston
Engine - Web Big Block
Wrist Pin Wall Thickness 0.150
Wrist Pin Length 2.750
Ring Set Included No
Industry Automotive
Title - Web SRP Pontiac Big Block Piston - 4.185 in. Bore - 1.285 in. CH, -5.00 CC
Compression Height 1.285
Cylinder Head PONTIAC 455
Piston Pin Wall Thickness 0.150
Add-On 990-2750-15-51S
Piston Material 4032
Engine Big Block
Piston Pin Material 5115
Out of Stock Message Call for Availability
Forging Type FSR
Piston Volume -5.00
Second Compression Ring Thickness 0.0640
Prop 65 Yes/No Yes
Add-On 990-042-CS
Add-On J100F8-4185-5
Wrist Pin Outer Diameter 0.990
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Prop 65 - Short Label Prop 65 Warning Label.JPG
Make - Web Pontiac
Piston Pin Length 2.750
Prop 65 (C, R or CR) CR
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
