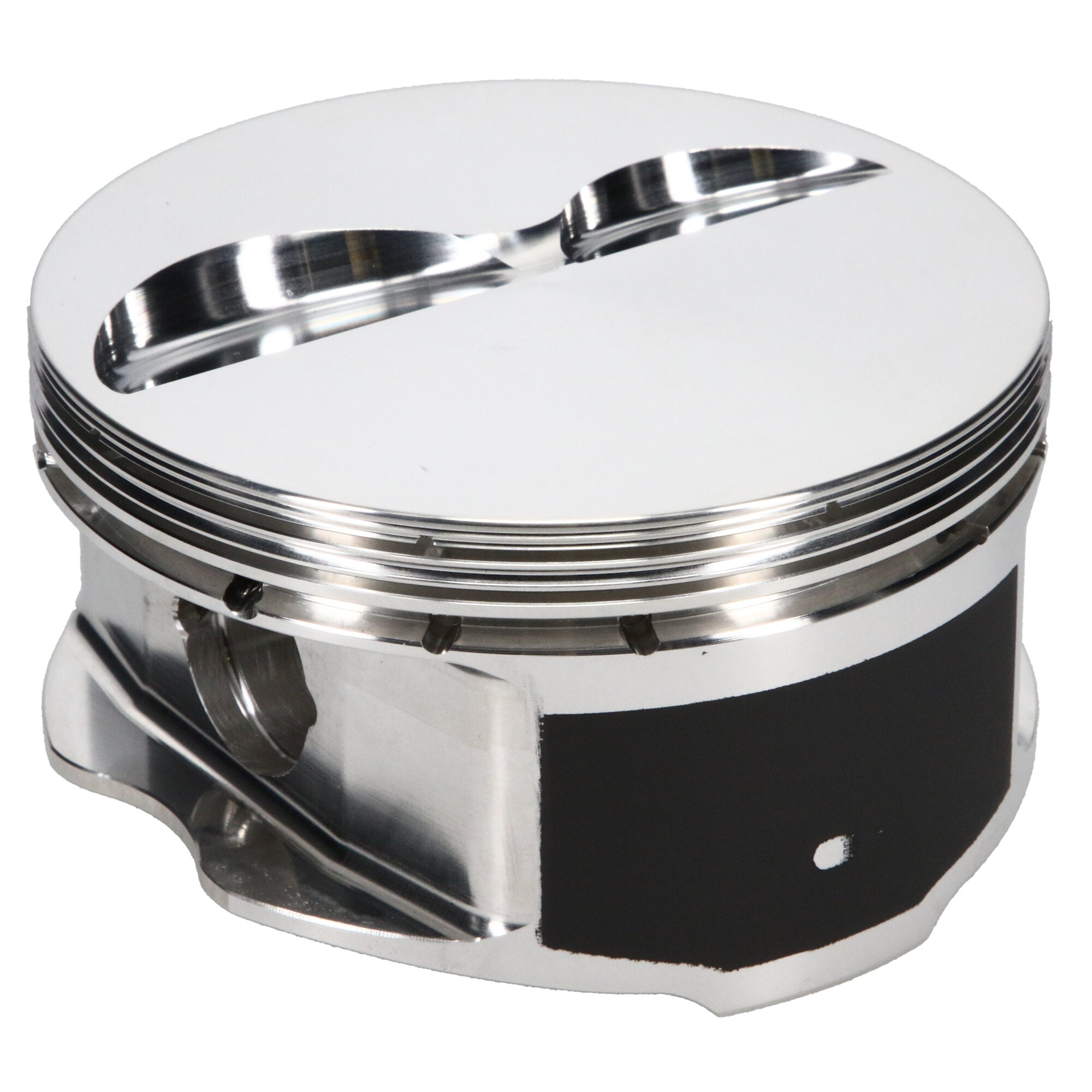

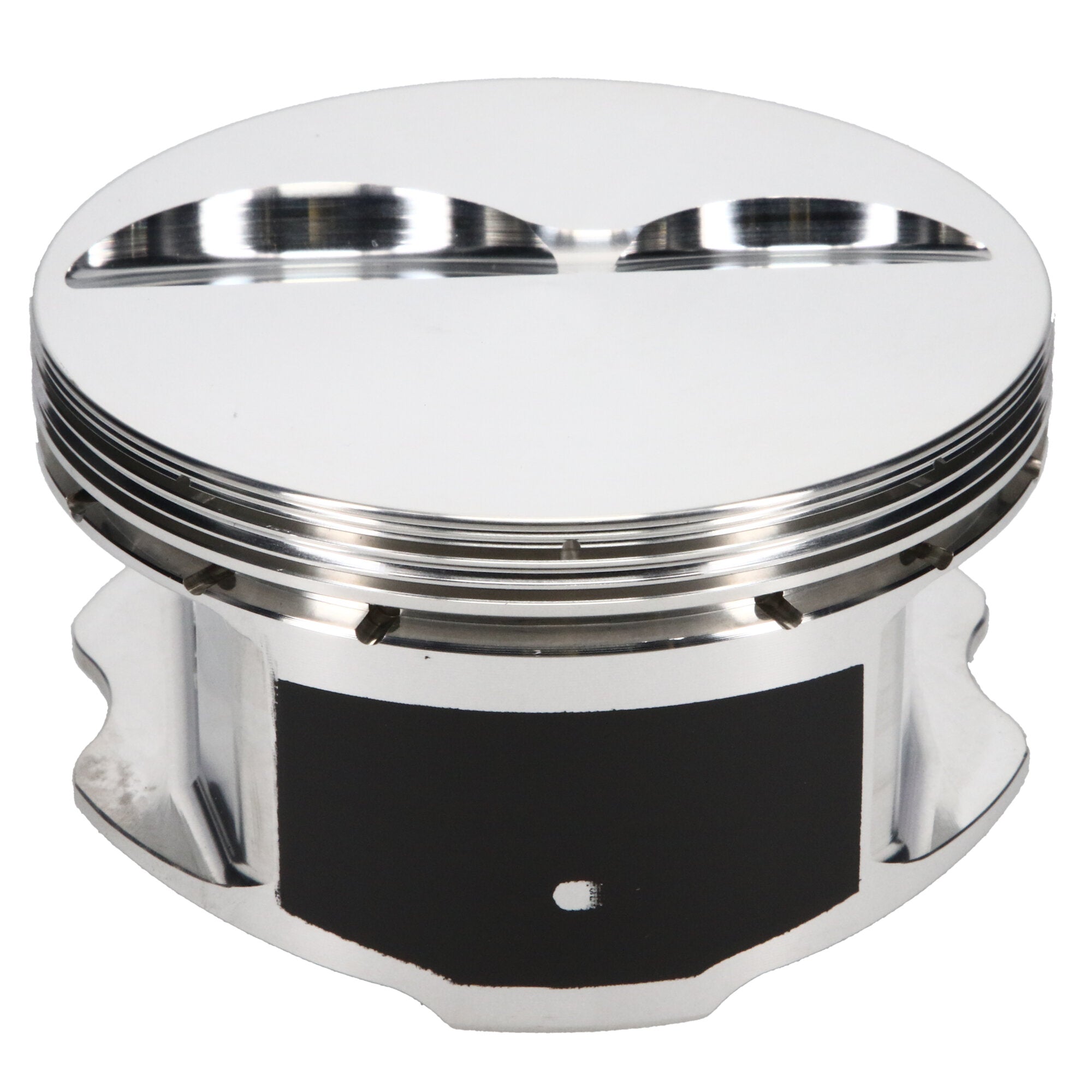

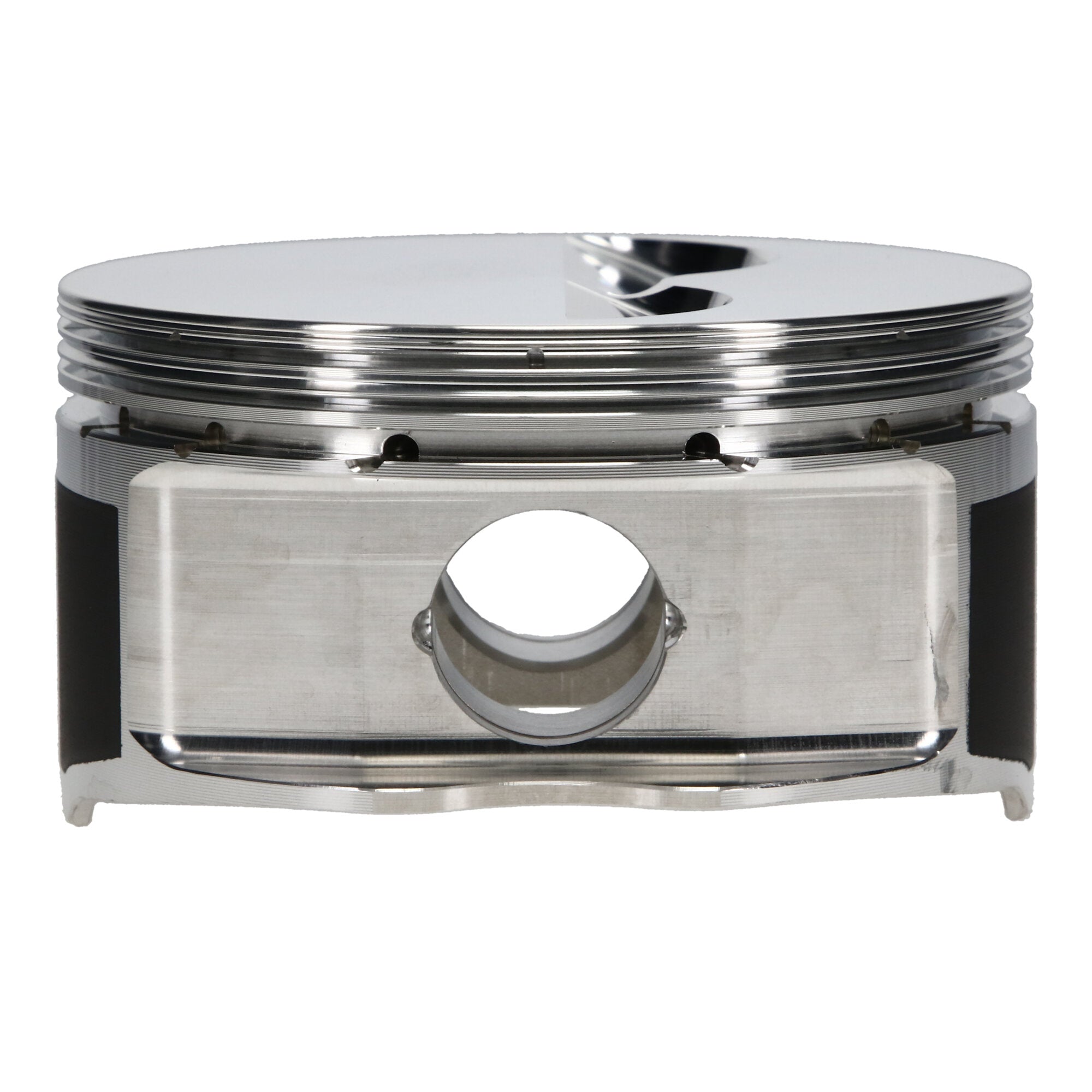

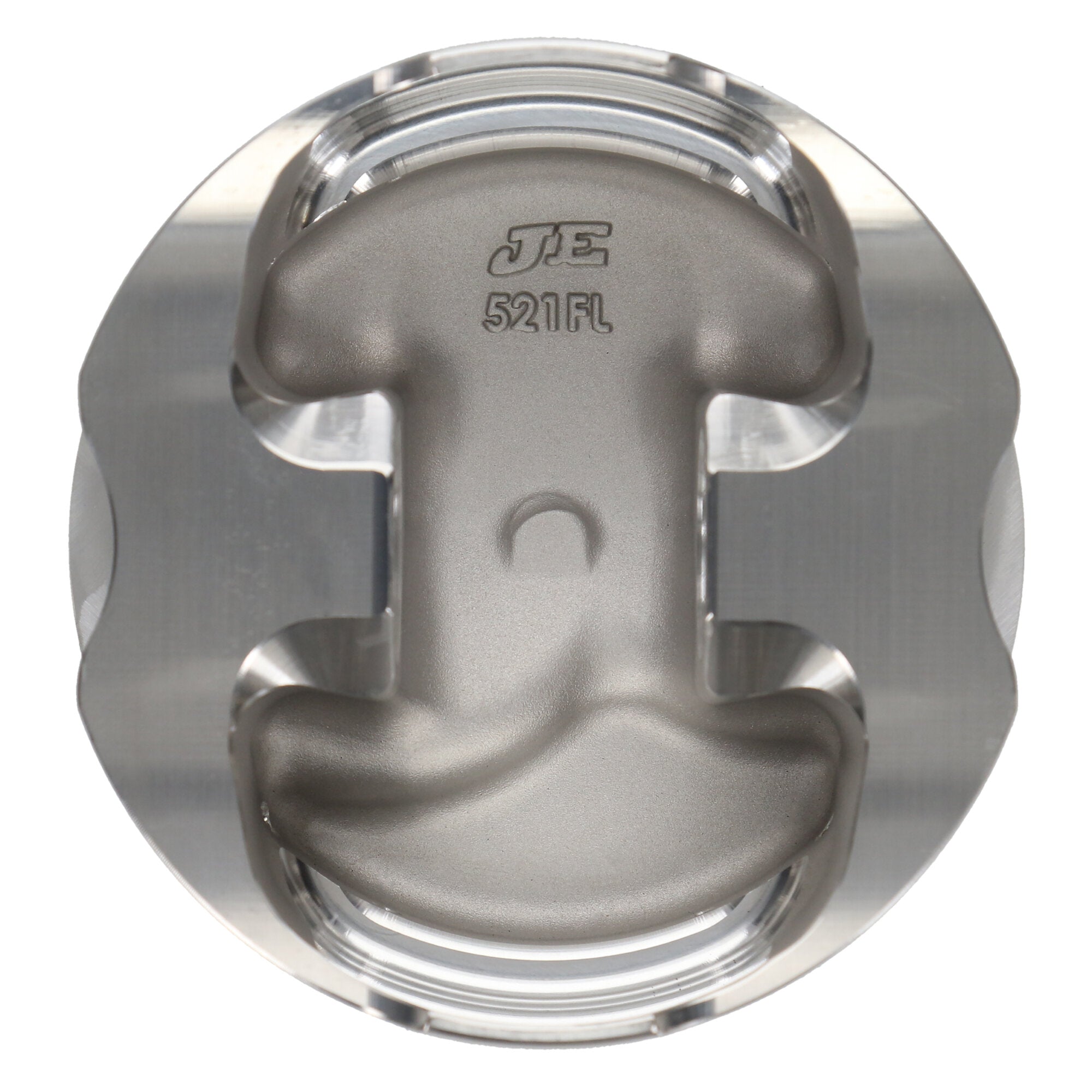

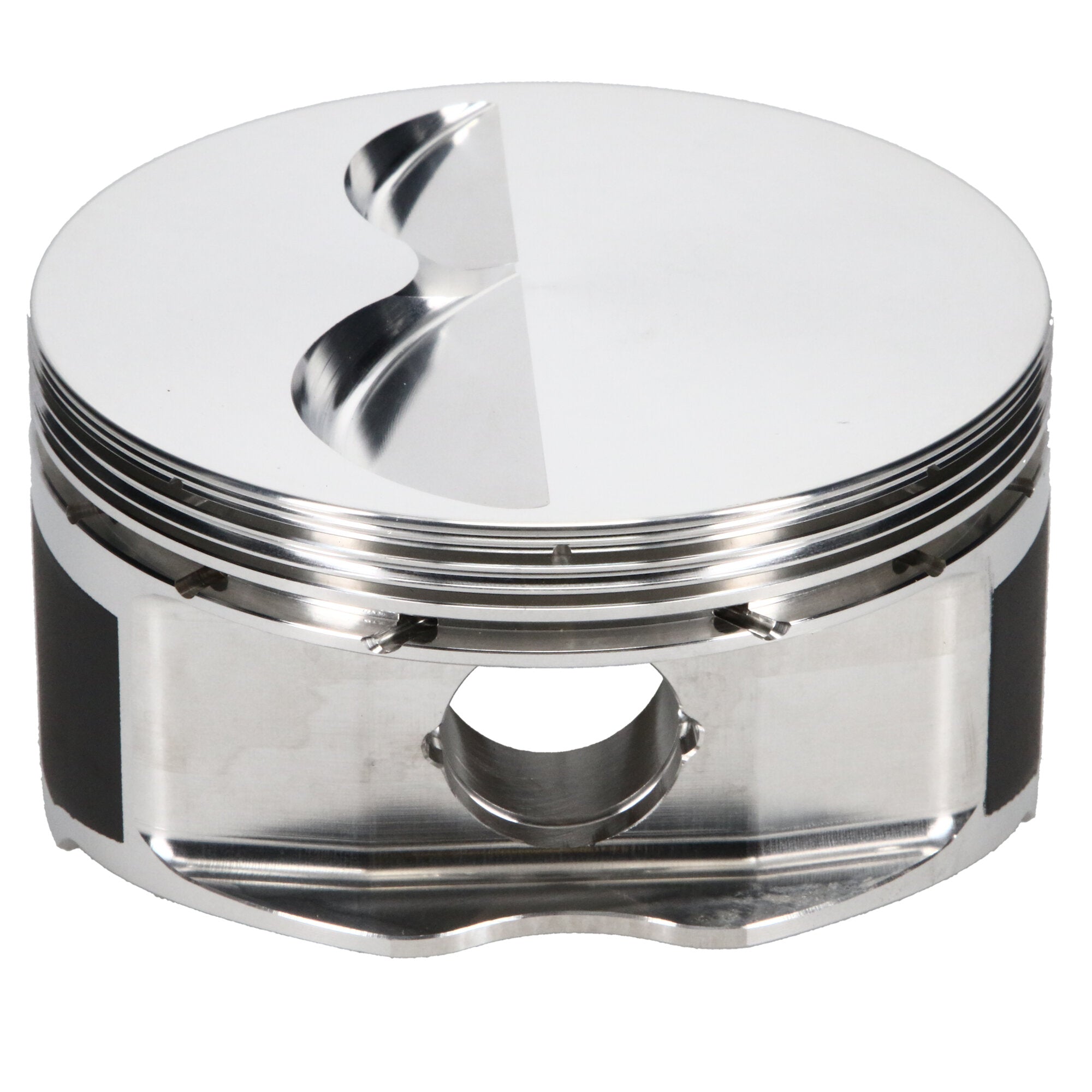

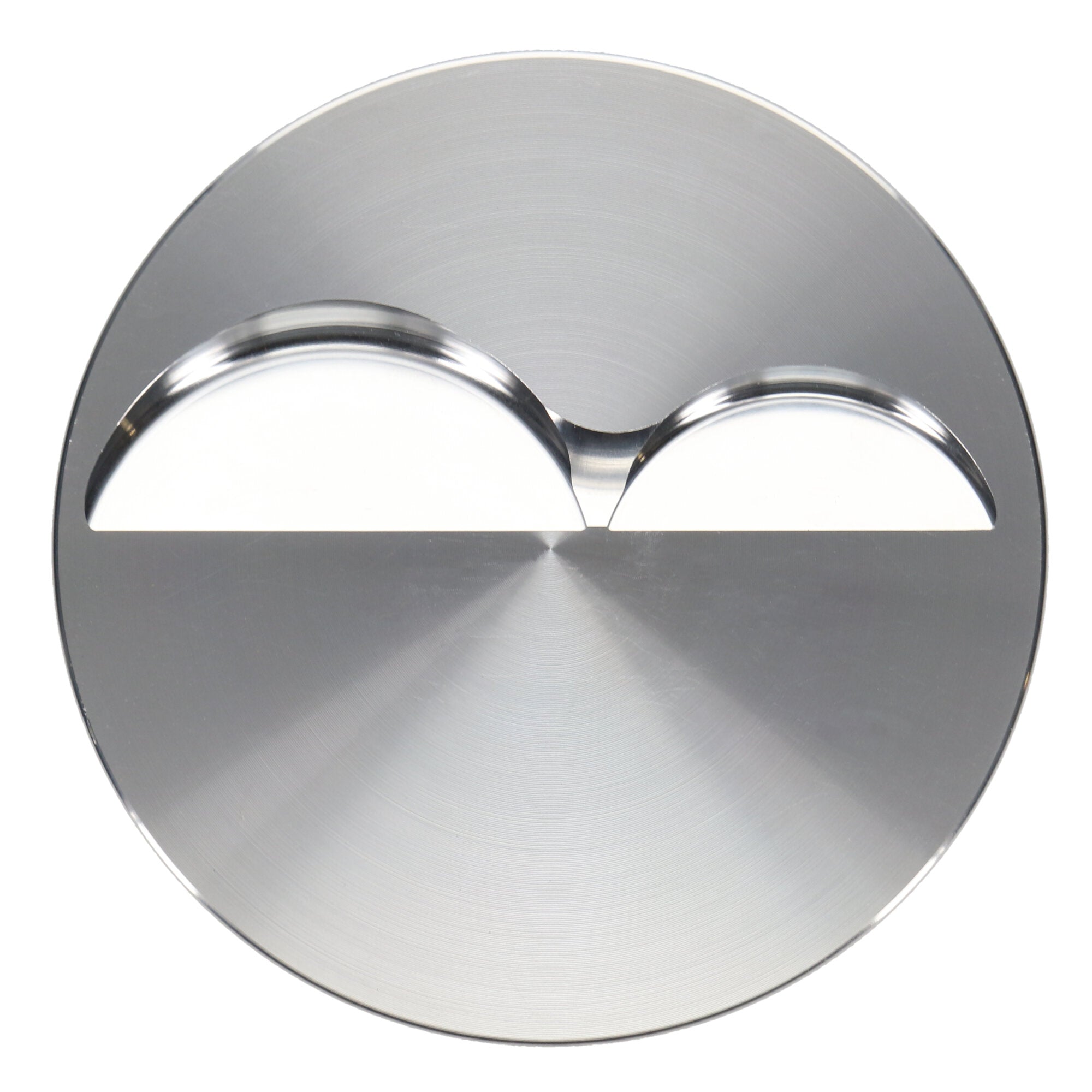

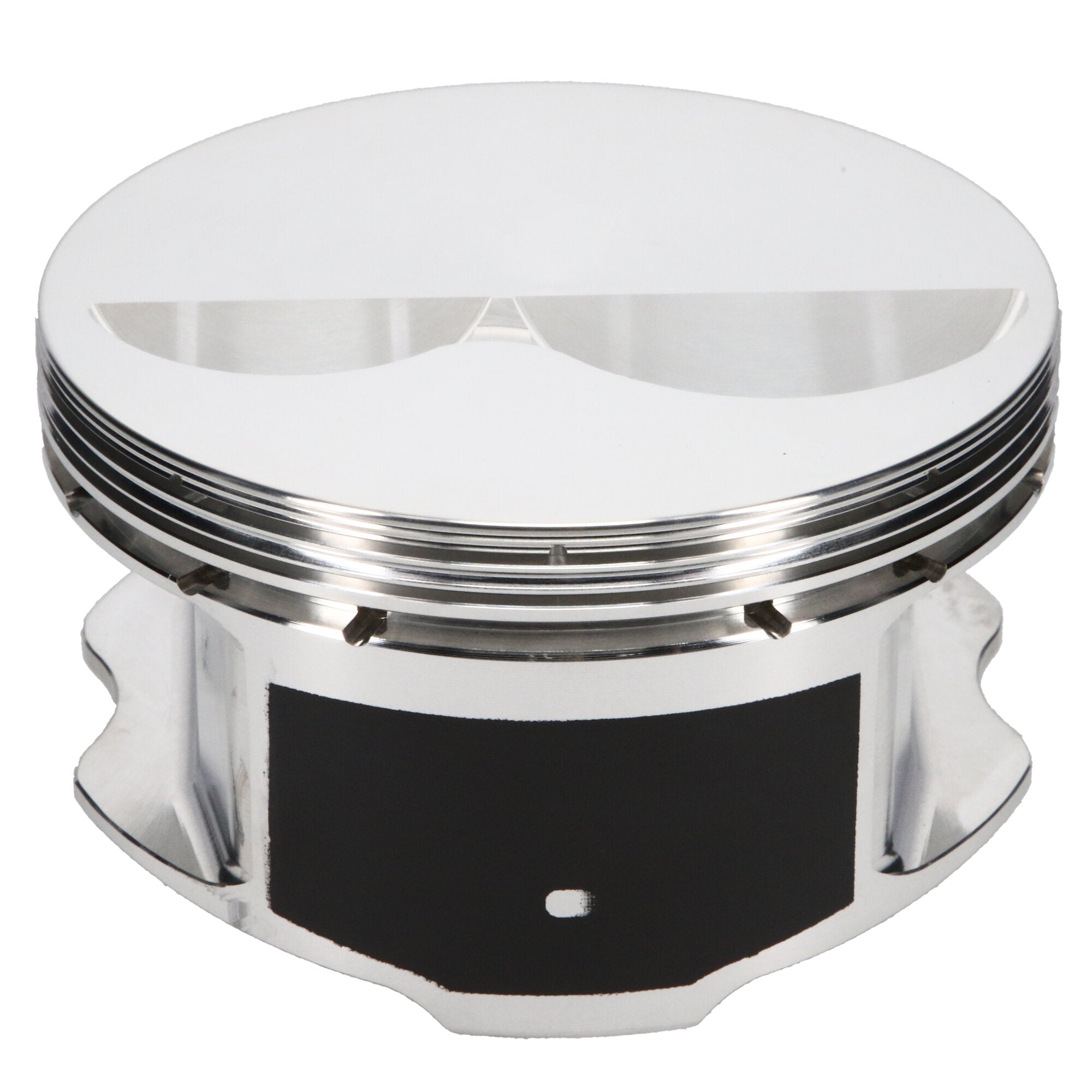

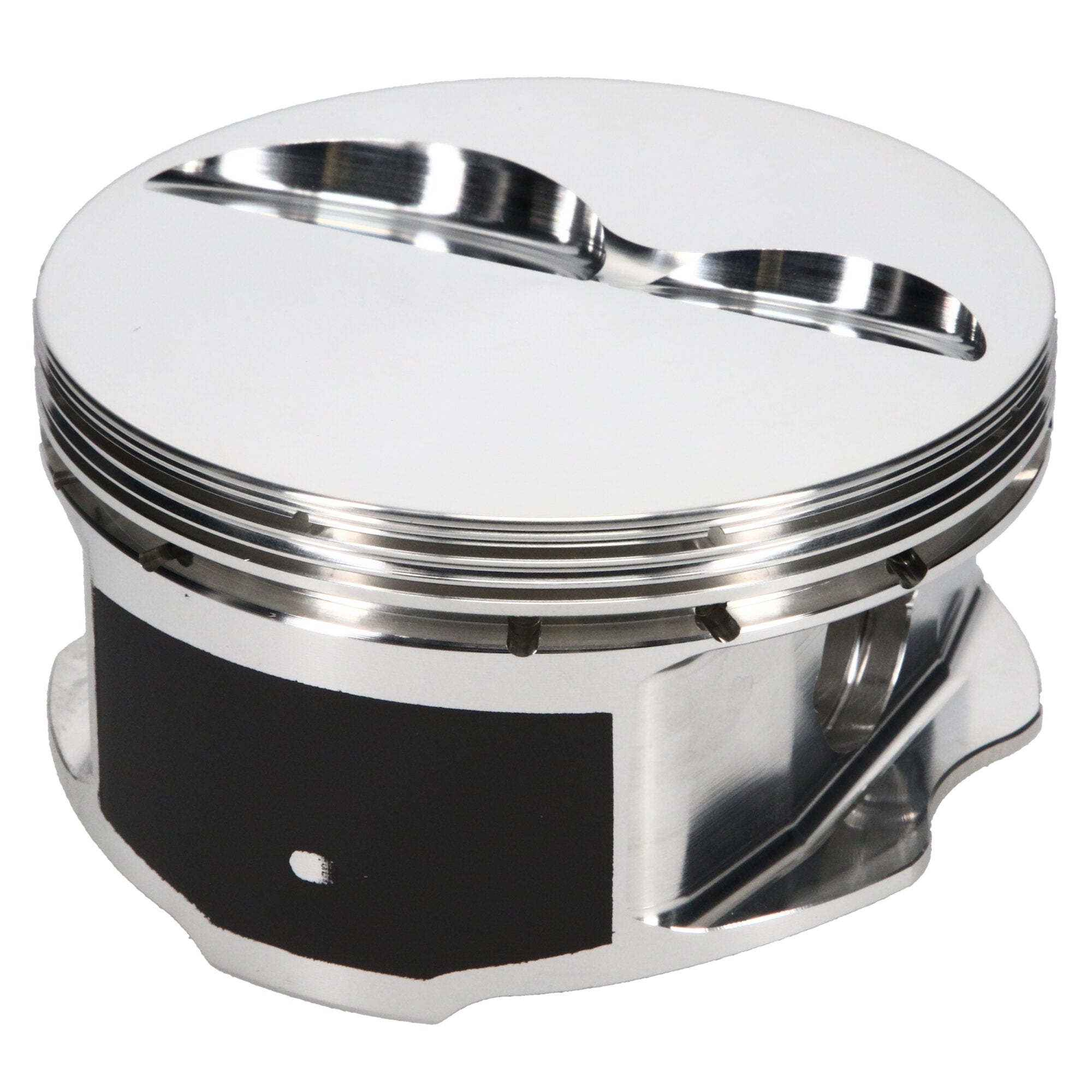

  • JE Pistons 187695R Piston Single, 2618, Flat Top, 4.030 Bore, 1.000 CD, 0.927 Pin, Set of 1.
Sold out
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.000-Cd,-0.927-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

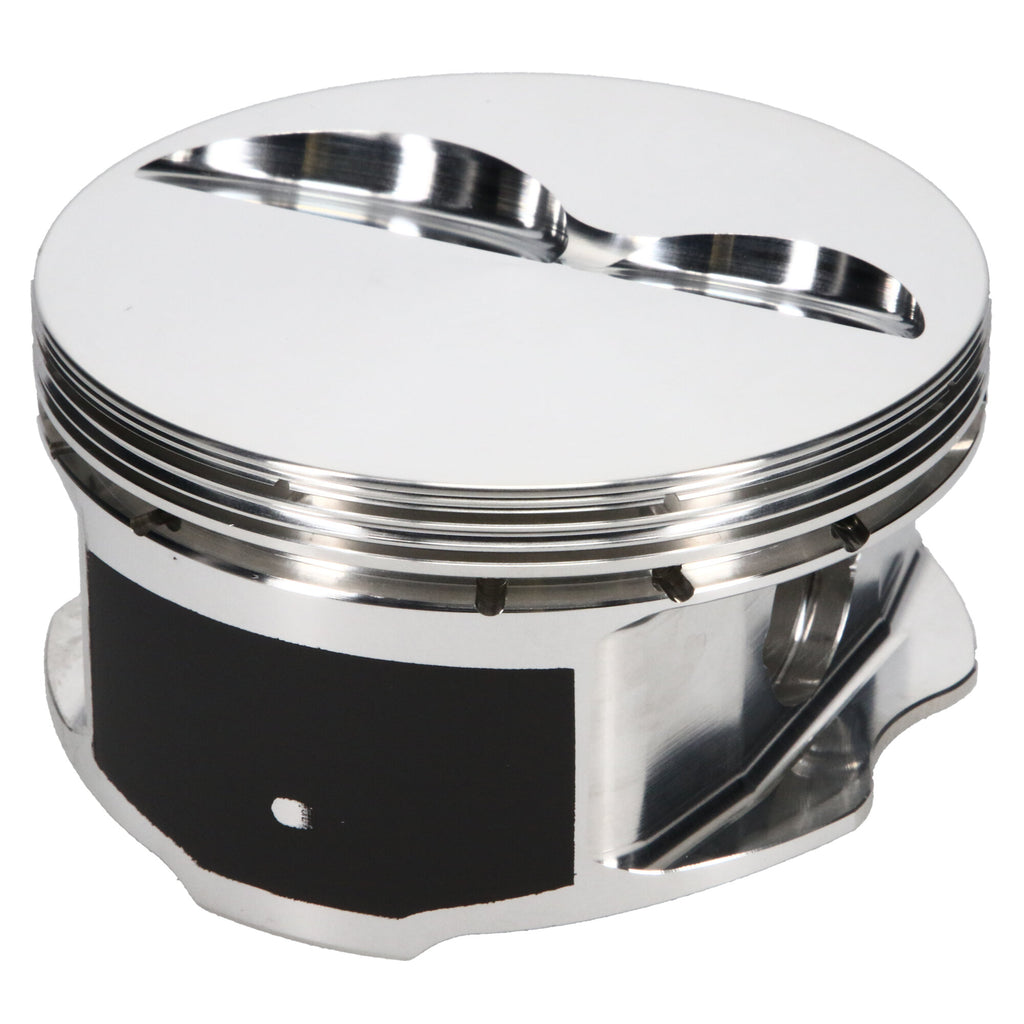

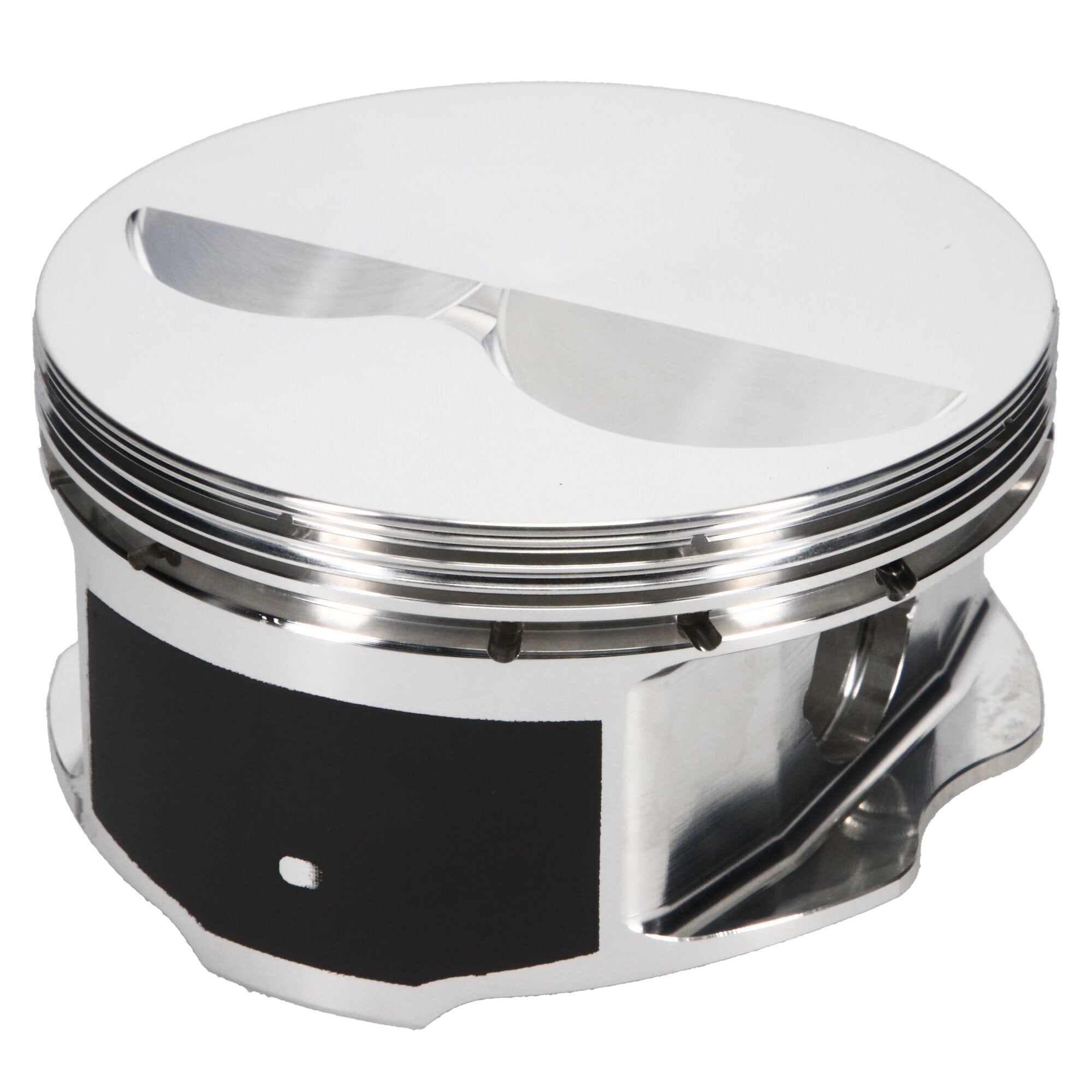

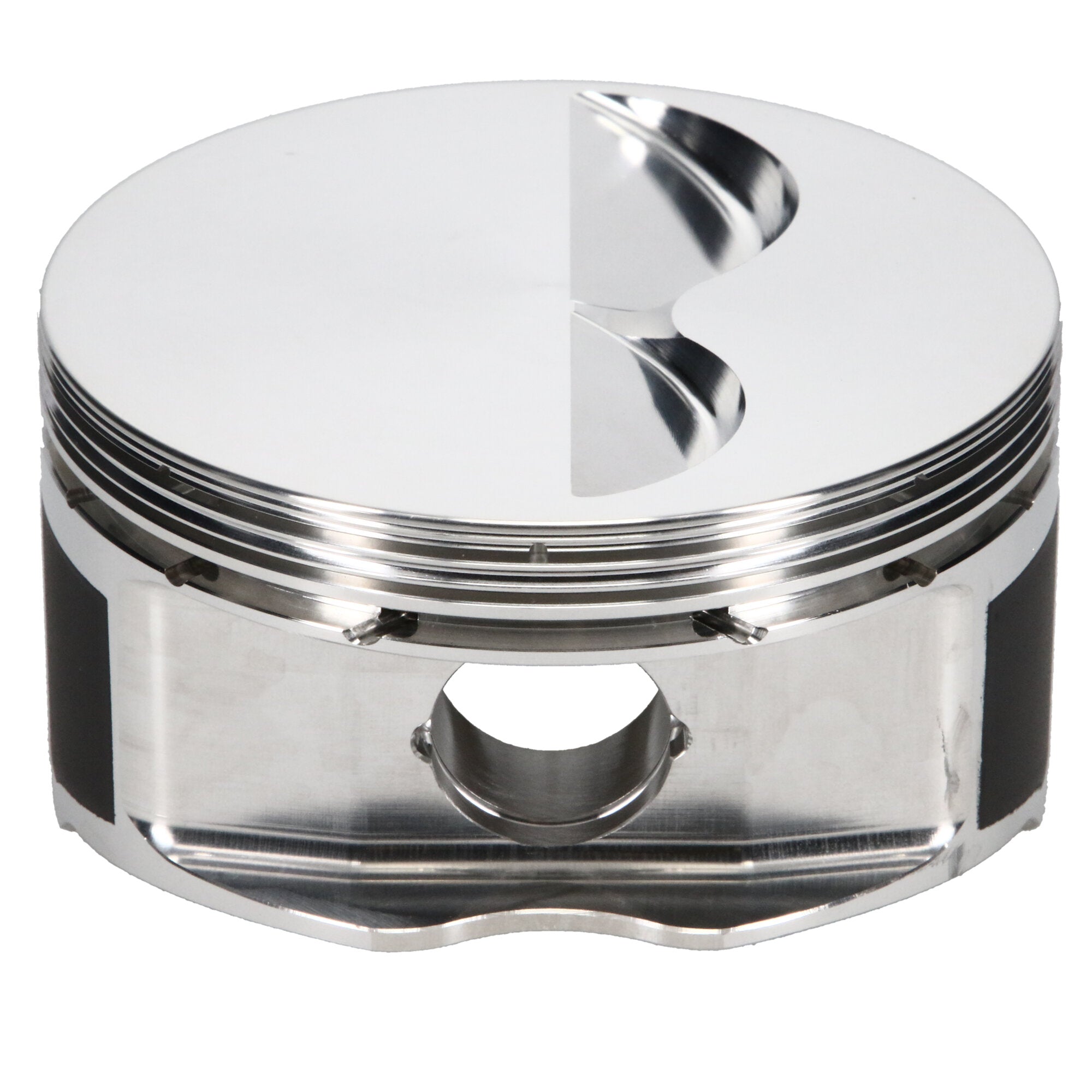

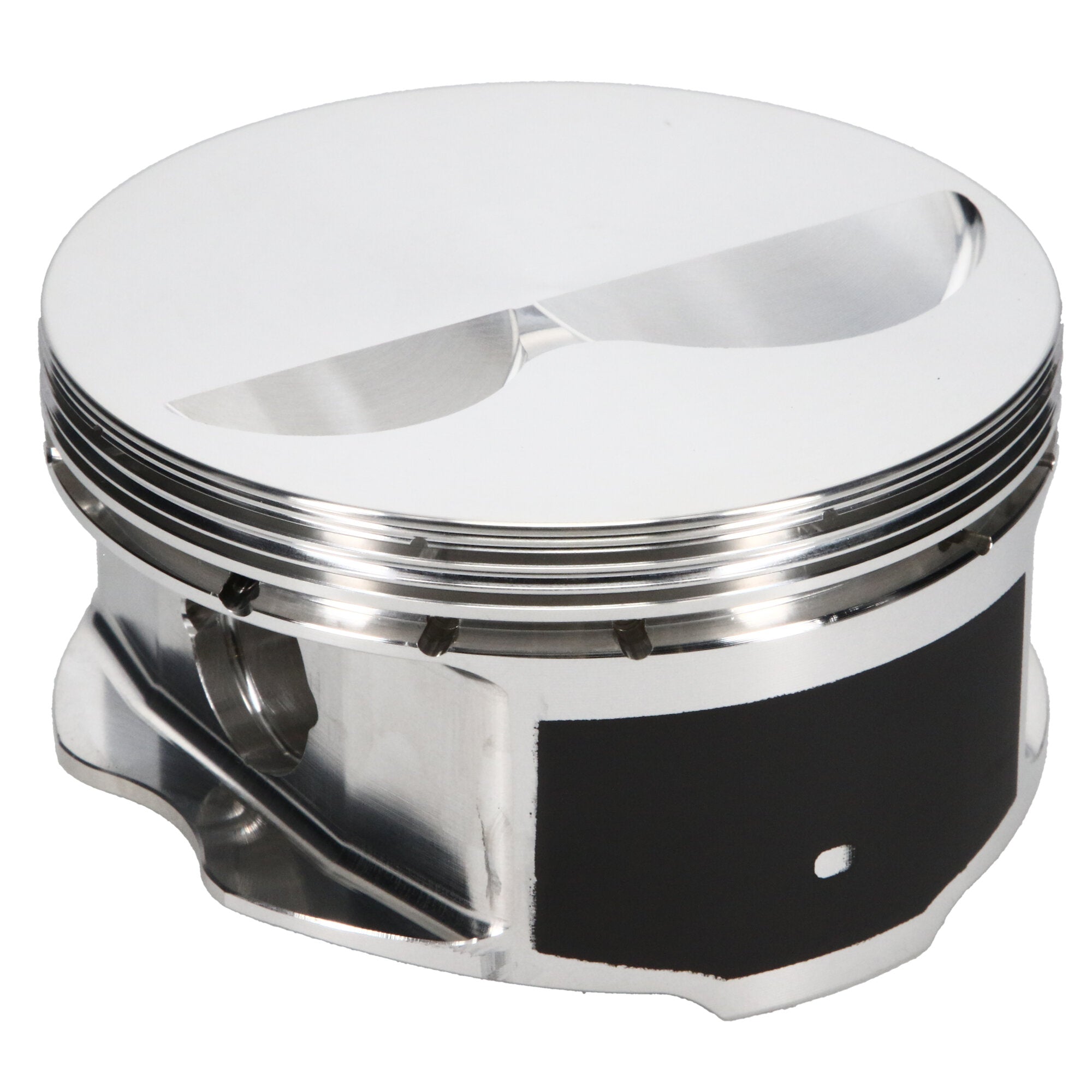

JE Pistons 187695R Piston Single, 2618, Flat Top, 4.030 Bore, 1.000 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_187695R
Engine Piston
$343.75
customers are viewing this product
JE Pistons 196830S Piston Single, 4032, Flat Top, 4.185 Bore, 1.285 CD, 0.990 Pin, Set of 1.
JE Pistons 196830S Piston Single, 4032, Flat Top, 4.185 Bore, 1.285 CD, 0.990 Pin, Set of 1.
$234.45
JE Pistons 194955L Piston Single, 2618, Dome, 4.135 Bore, 1.100 CD, 0.927 Pin, Set of 1.
JE Pistons 194955L Piston Single, 2618, Dome, 4.135 Bore, 1.100 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 187695R Piston Single, 2618, Flat Top, 4.030 Bore, 1.000 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.030 Bore, 1.000 CD, 0.927 Pin, Set of 1.
Description_EXT JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.000 CD, Flat Top, Right Piston
Description_INV JE Pistons, Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_TLE Chevrolet 350, 4.030 Bore, Flat, Set of 1
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_SHO Piston
Engine Small Block
Piston Pin Length 2.400
Make - Web Chevrolet
Wrist Pin Outer Diameter 0.927
Prop 65 - Short Label Prop 65 Warning Label.JPG
Forging Type Round
Piston Pin Material 5115
Piston Head Type Flat
Piston Series JE Pistons
Ringset Included No
Oil Ring Thickness 0.119
Engine Type ICE
Make CHEVROLET
Title - Web JE Pistons Chevrolet Small Block Piston - 4.030 in. Bore - 1.000 in. CH, -4.10 CC
Piston Pin Wall Thickness 0.130
Wrist Pin Wall Thickness 0.130
Industry Automotive
Prop 65 (C, R or CR) CR
Title JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston
Piston Pin Outside Diameter 0.927
Add-On 927-073-MW
Prop 65 Yes/No Yes
Product Market Domestic
Second Compression Ring Thickness 0.0440
Add-On J71408-4030-5
Product Type Engine Piston
Add-On 927-2400-13-51C
Piston Average Weight 318
Piston Orientation Right
Out of Stock Message Call for Availability
Piston Material 2618
Piston Quantity 1
Bore Diameter 4.030
Piston Volume -4.10
Cylinder Head STD CHEVROLET 23 DEG
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Top Compression Ring Thickness 0.0436
Compression Height 1.000
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Engine - Web Small Block
Wrist Pin Length 2.400
Ring Set Included No
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
